Dust-Free Small Bag Discharging and Feeding Station Solutions

Customization:	Available
Capacity(t/h):	150-300
Feeding Rate Control:	Semi-Automatic

Send Inquiry

Product Description

Basic Info.

Model NO.

RX-WT100/150/200/300

Material

Stainless Steel

Motor Power(kw)

1~10

Raw Material

Powder

Usage

Building Materials, Chemical Industry, Gravel Field, Metallurgy, Ore-dressing

Delivery Date

10-25days

Type

Storage Feeder

Appearance

Closed-Type

Max Feeding (mm)

630

Installation Slope

After-Sales Service

Support

Warranty

1year

Movement Mode

Vibration

Origin

China

Production Capacity

50000/Year

Packaging & Delivery

Package Size

150.00cm * 200.00cm * 180.00cm

Package Gross Weight

100.000kg

Working Principle

Our automatic dust collection system is engineered to efficiently absorb and discharge dust, significantly reducing dust generation during material unpacking and feeding. This innovation ensures a pristine working environment.
This versatile device can handle 50kg, 25kg, and 15kg bags, accommodating a wide range of processing needs with ease.
Equipped with a state-of-the-art screening and vibration mechanism, it facilitates seamless unloading and pipeline transport, ensuring no foreign objects infiltrate the material during the feeding process.
Designed to prevent material blockages, our machine can be paired with optional dust collectors to minimize airborne dust, protect the environment, and lower labor demands.
The storage tank's base features a dynamic hopper, customizable to suit varying storage box sizes, enhancing operational flexibility.

Technical Parameters

Model	RX-WT100	RX-WT150	RX-WT200	RX-WT300
Volume (L)	100	150	200	300
Power (KW)	0.8	2	2	2
Noise (dB)	70	80	80	80
0.6MPa Compressed air consumption (L/min)	5	5	5	5
Discharge interface	DN150	DN200	DN200	DN250
Dust removal fan exhaust interface	φ100	φ100	φ100	φ100
Weight (Kg)	About 170	About 200	About 220	About 240
Overall dimensions (mm L×W×H)	8009001800	90010002200	115013002000	85011002600
Power supply parameters	380V/50Hz, Three phase five wire

* Excluding power requirements for independent fans and electrical components.
* Compressed air consumption limited to reverse blowing device.

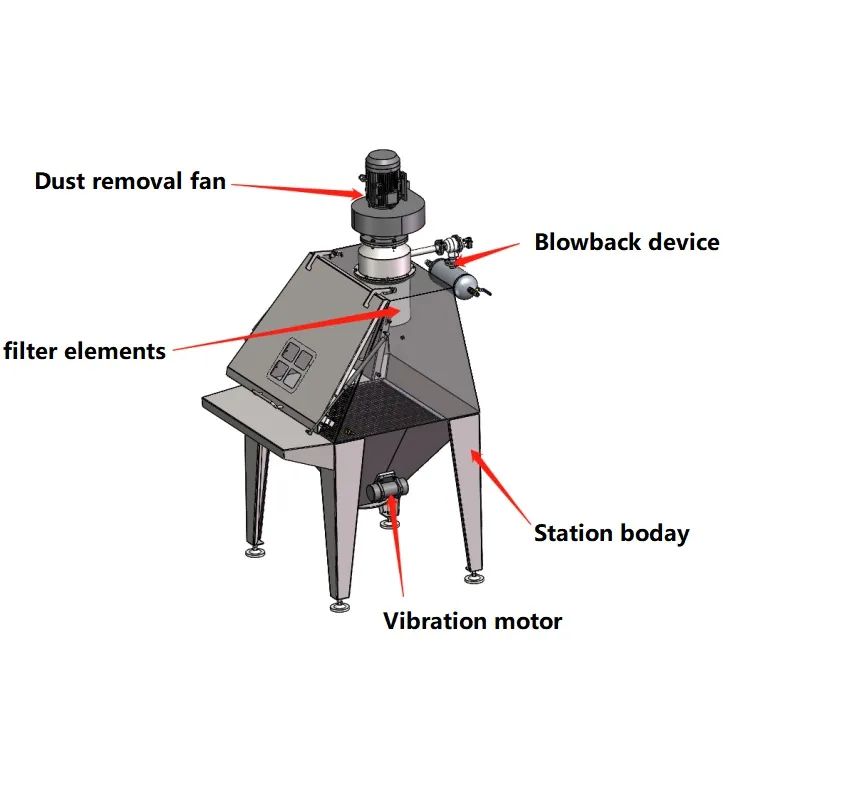

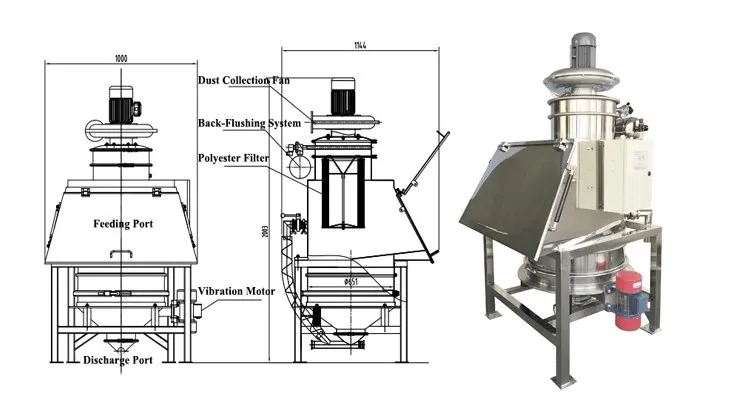

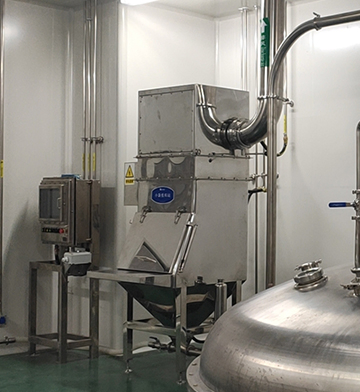

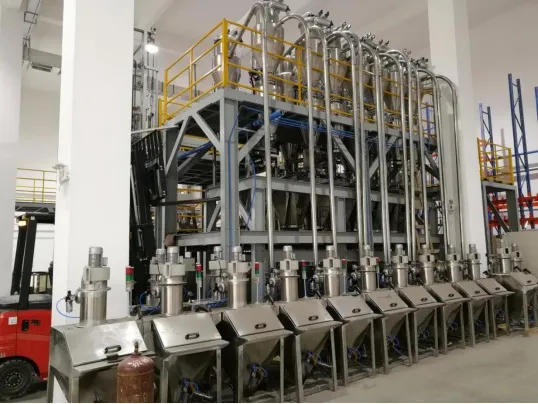

Product Configuration & Site

Key Characteristics

Simple Structure: Safe, convenient operation and easy maintenance.
Dust-Free Operation: Fully enclosed bag feeding and pipeline transport.
Hygienic Design: No dead corner design for easy cleaning.
Environmental Protection: Automatic dust removal system eliminates airborne dust.
Versatility: Various bag opening specifications to meet diverse demands.
Multi-industry Use: Ideal for pharmaceuticals, food, chemicals, and batteries.

Common Troubleshooting

Fault Phenomenon	Fault Cause	Troubleshooting
No backflushing	Air valve not open / Pulse valve malfunction / Filter clogged	Open valve / Check pulse valve / Replace filter
No electric vibration	Damaged motor / Not powered on	Replace motor / Connect power supply
Slow/No fan extraction	Fan damage / Filter clogged	Replace fan / Replace filter element

Application & Reference

Frequently Asked Questions

What materials can the dust-free feeding station handle?

The system is specifically designed for powder materials, widely used in industries like pharmaceuticals, food, chemicals, and batteries.

What bag sizes are compatible with this equipment?

It is a versatile device that can accommodate standard 15kg, 25kg, and 50kg bags.

How does the system ensure a dust-free environment?

It uses a fully enclosed feeding mechanism paired with an automatic pulse dust collection system to absorb and filter airborne particles.

Is the equipment easy to clean for different material batches?

Yes, the station features a "no dead corner" design and is made of stainless steel, making it easy to maintain and clean thoroughly.

What is the warranty period for the RX-WT series?

The equipment comes with a standard 1-year warranty and supported after-sales service.

What are the power requirements for the station?

The standard rated power supply is 380V/50Hz, featuring a three-phase five-wire system.
