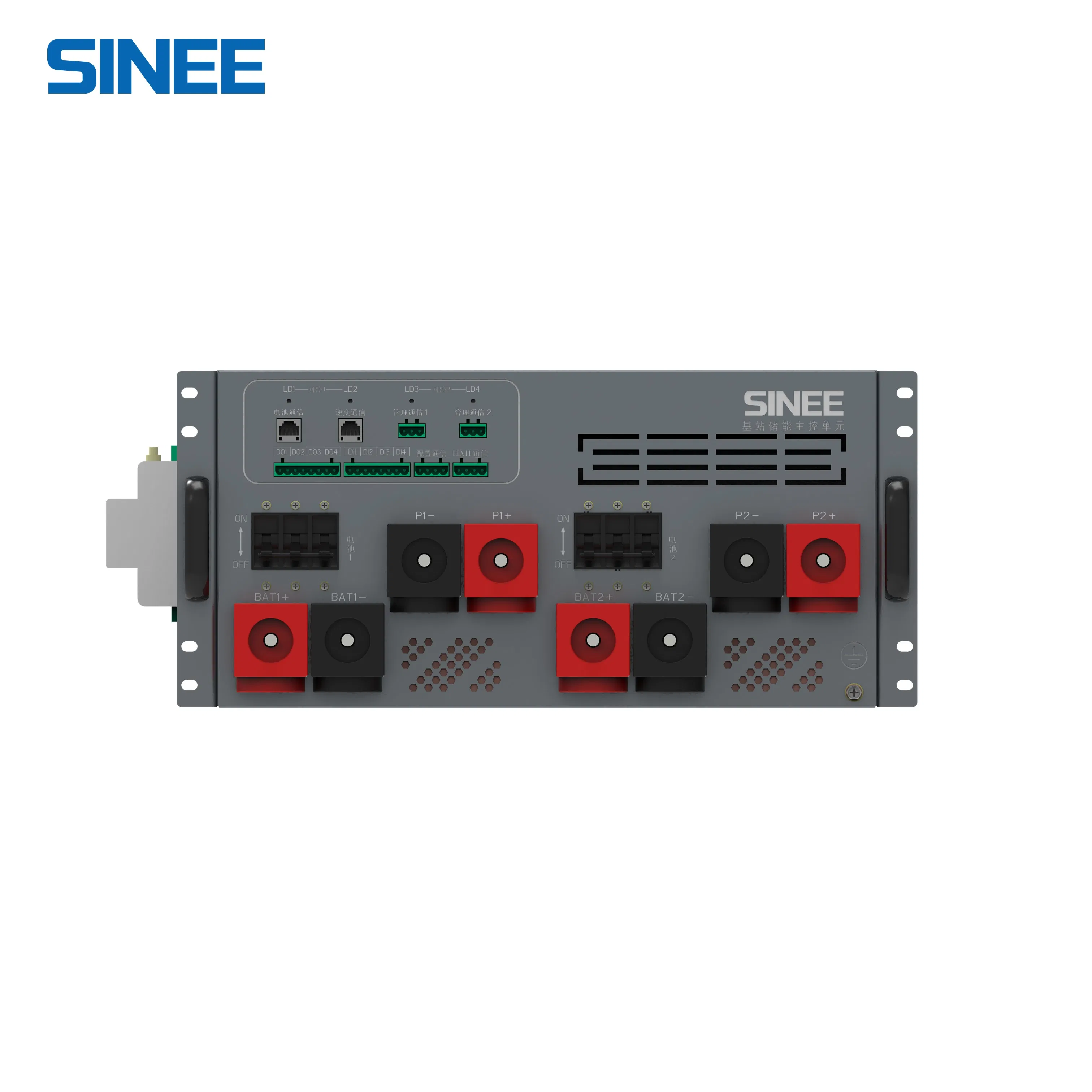

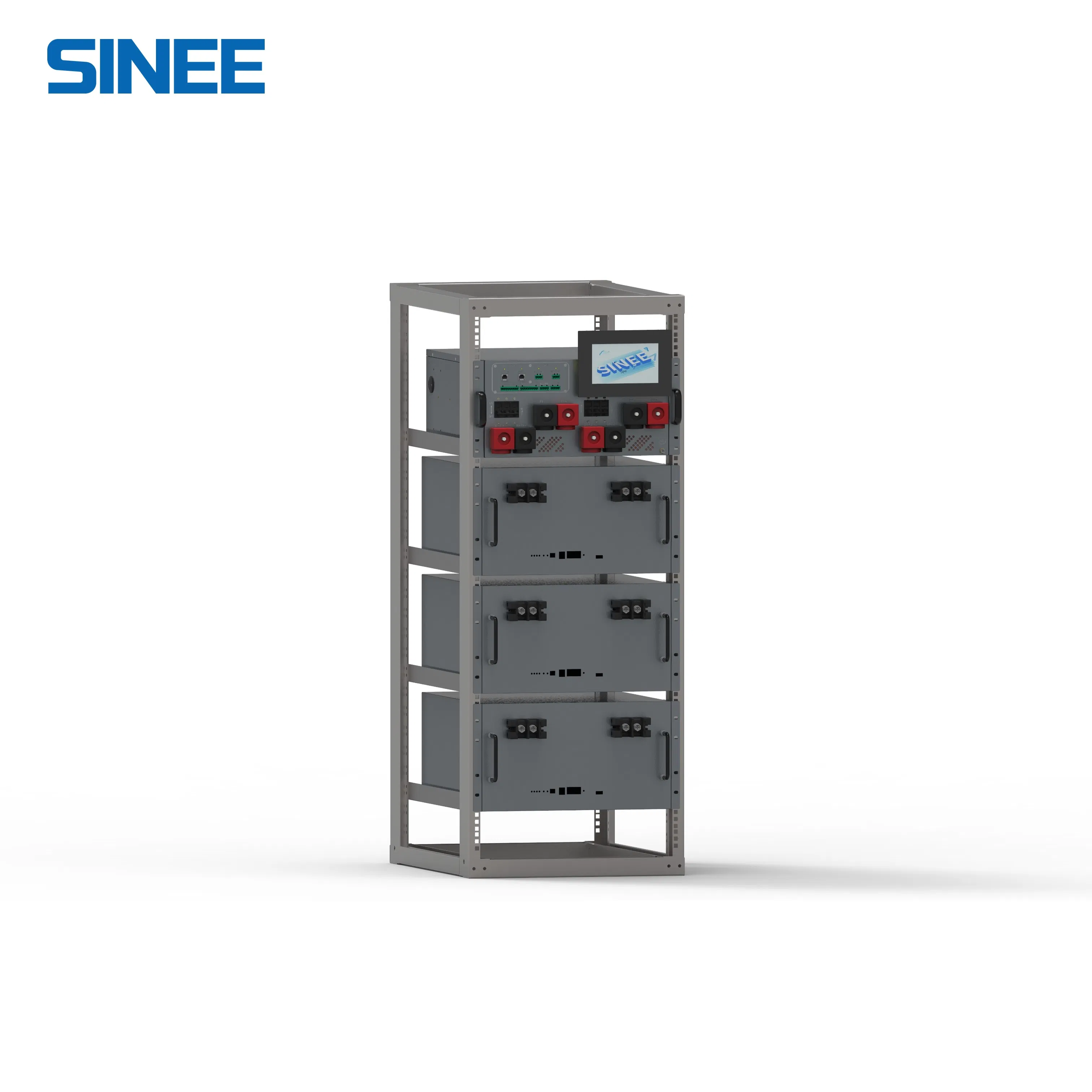

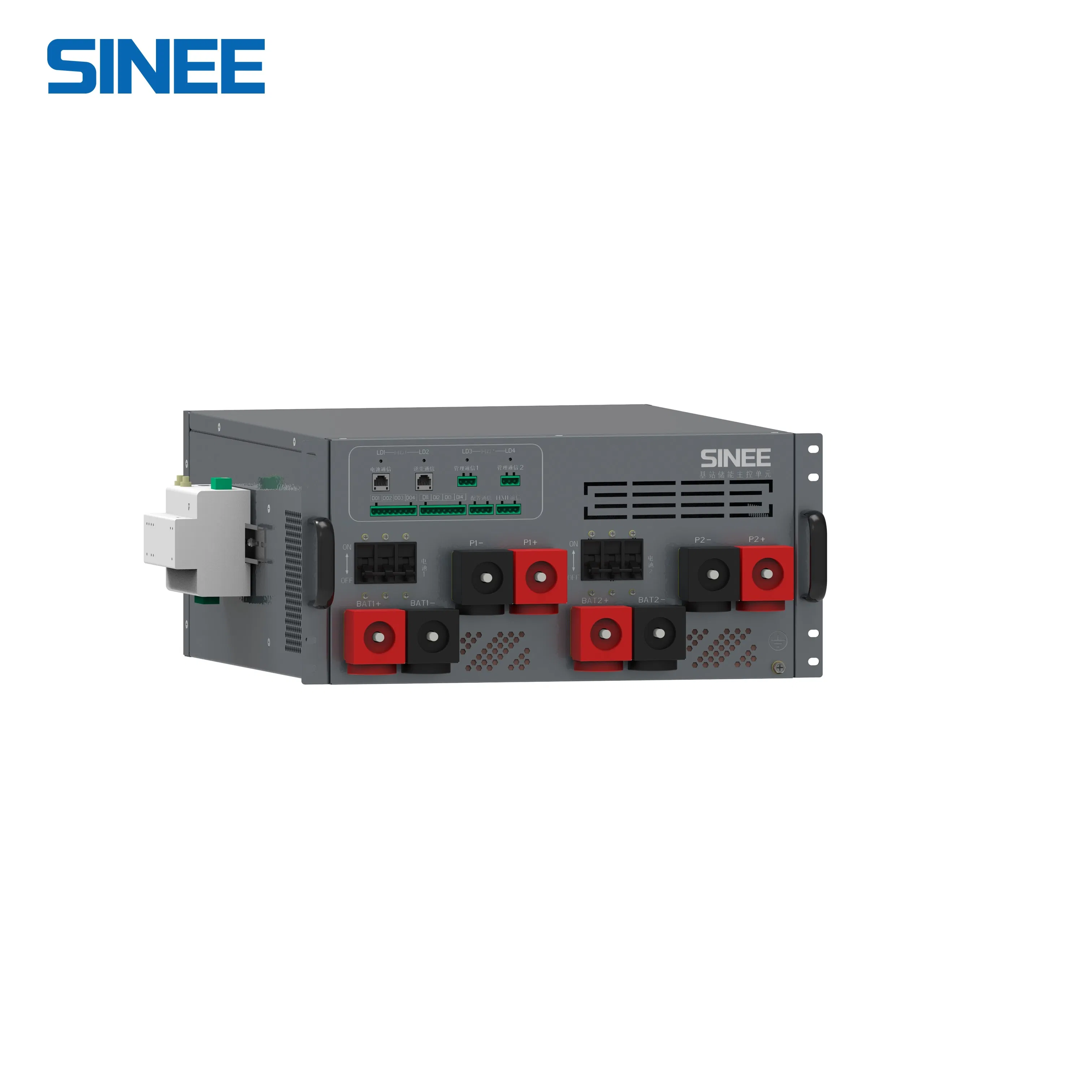

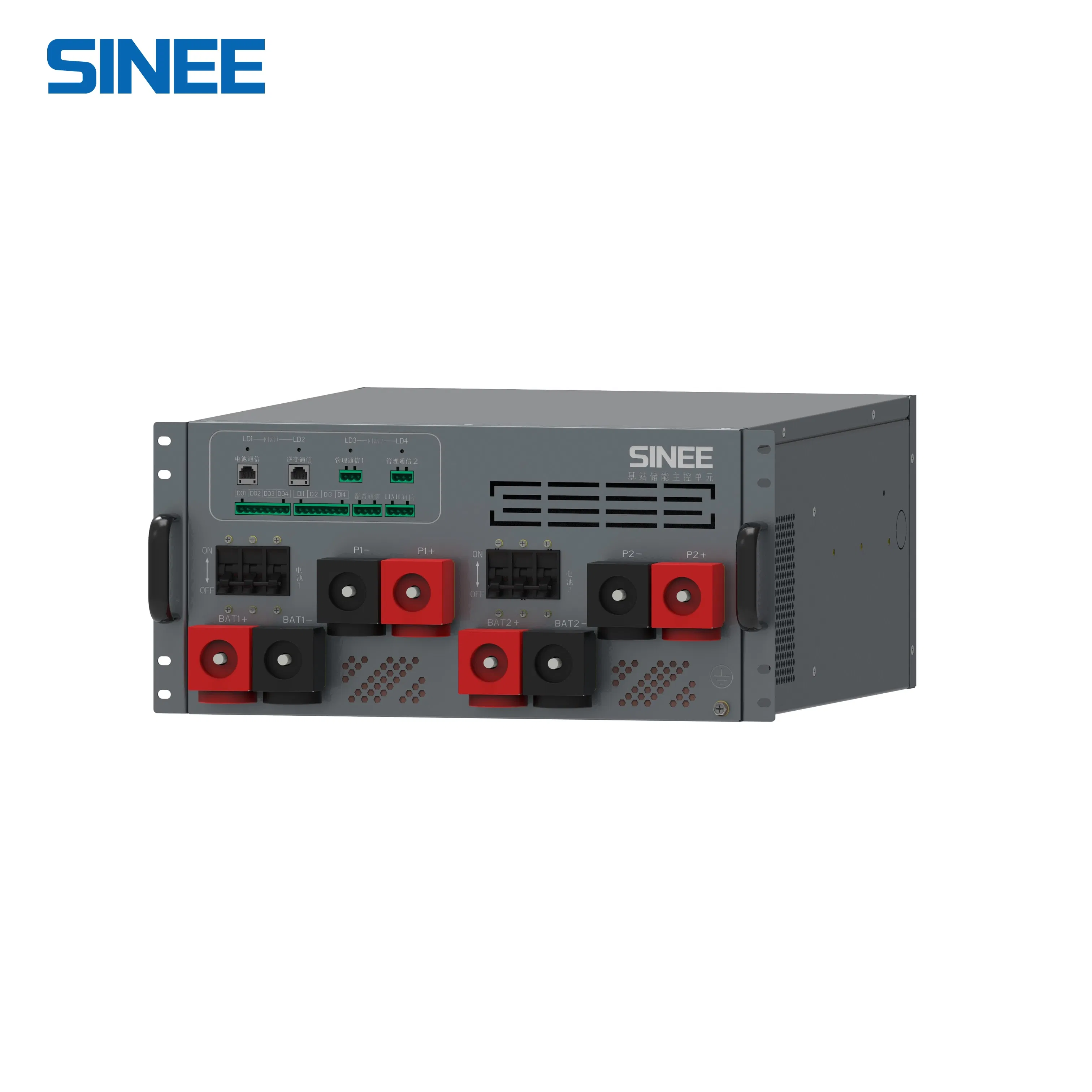

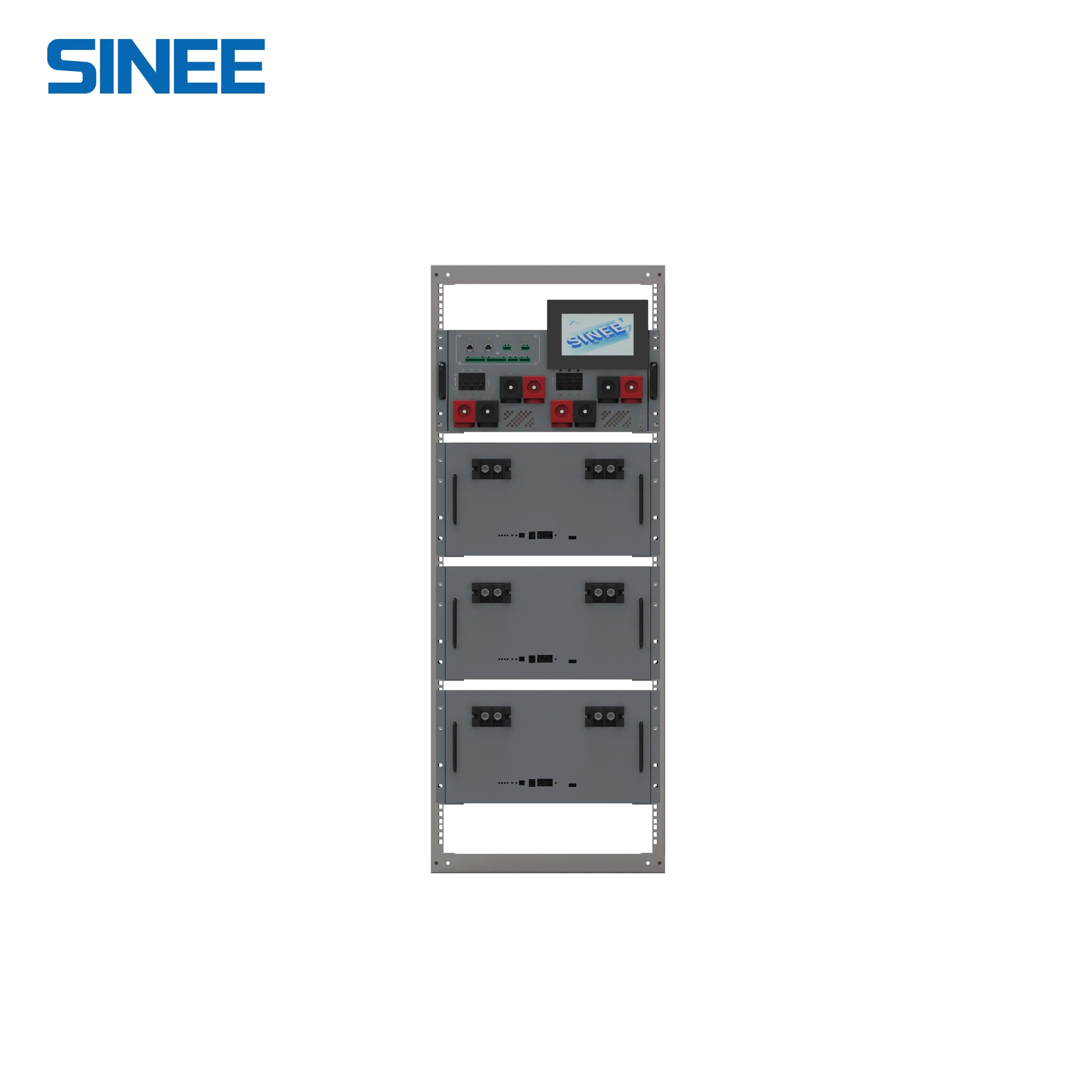

Empowering Networks Energy Storage Solutions for Base Station Efficiency

Customization:	Available
Type:	Energy Storage
Usage:	Electric Power

Send Inquiry

Product Description

Basic Specifications

Model NO.

Energy Storage

Nominal Voltage

48V

Electrolyte

Li-ion

Power

33.12kwh

Voltage

DC Bus Side 42vd-58VDC

Protection Level

IP21

Efficiency

>95%

MTBF

>100000 Hours

Cooling Method

Air Cooling

Environment

Indoor

Product Description

Empowering Networks Energy Storage Solutions for Base Station Efficiency

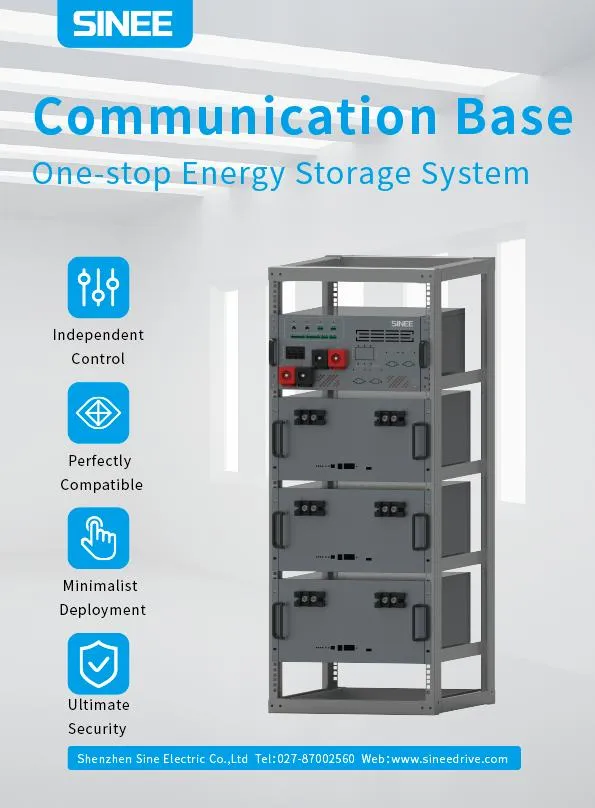

The one-stop energy storage system for communication base stations is specially designed for base station energy storage. Users can use the energy storage system to discharge during load peak periods and charge from the grid during low load periods, reducing peak load demand and saving electricity costs, thus achieving the purpose of improving load characteristics and participating in system peak regulation, while saving electricity costs and maximizing arbitrage.

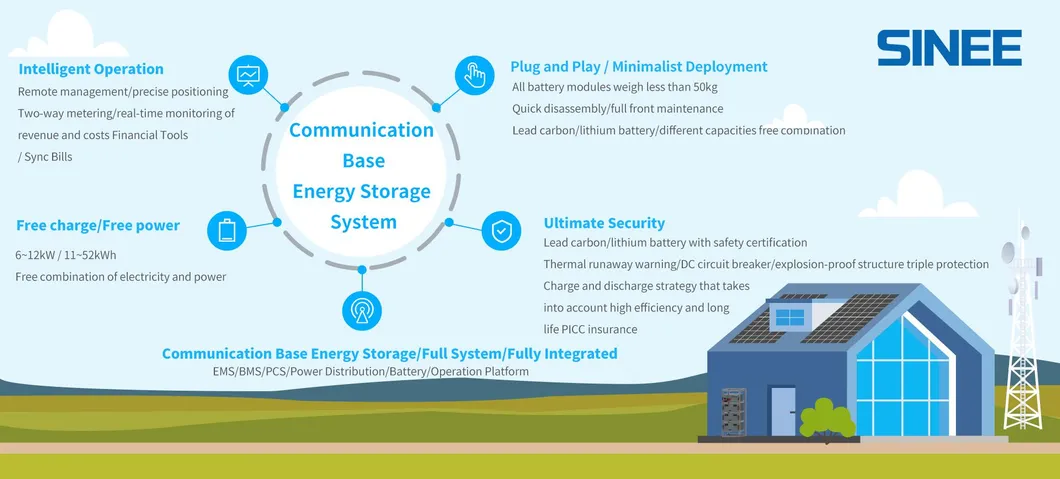

⚙️ System Integration

Integrate EMS / BMS / PCS / power distribution / battery / operation platform to provide one-stop system solutions.

🔋 Independent Control

Each group of batteries is independently controlled, without risk of circulation.

🔌 Perfectly Compatible

Compatible with mainstream batteries on the market, allowing batteries of different types, capacities and batches to be used in parallel.

🛡️ Safe and Stable

Thermal runaway warning / DC circuit breaker / explosion-proof structure triple protection design.

⚡ Minimalist Deployment

Modular design enables quick disassembly and assembly, taking only 15 minutes to complete installation.

🖥️ Intelligent Operation

Remote monitoring of equipment status to achieve efficient operation and maintenance.

Product Parameters

Category	Feature	Lead Carbon System	Lithium Battery System
Mechanical Properties	Specification	Rack mount	Rack mount
	Weight	860kg (2V500Ah system)	370kg (3.2V230Ah system)
	Size (LWH)	1040mm540mm1485mm	680mm489.5mm1528mm
Electrical Characteristics	Power	22kWh	33.12KWh
	Voltage (DC Bus)	42VDC~58VDC	42VDC~58VDC
	Efficiency	≥95%	≥95%
	MTBF	>100000 Hours	>100000 Hours
Environment	Ambient Temp	-20 to 50ºC	-20 to 50ºC

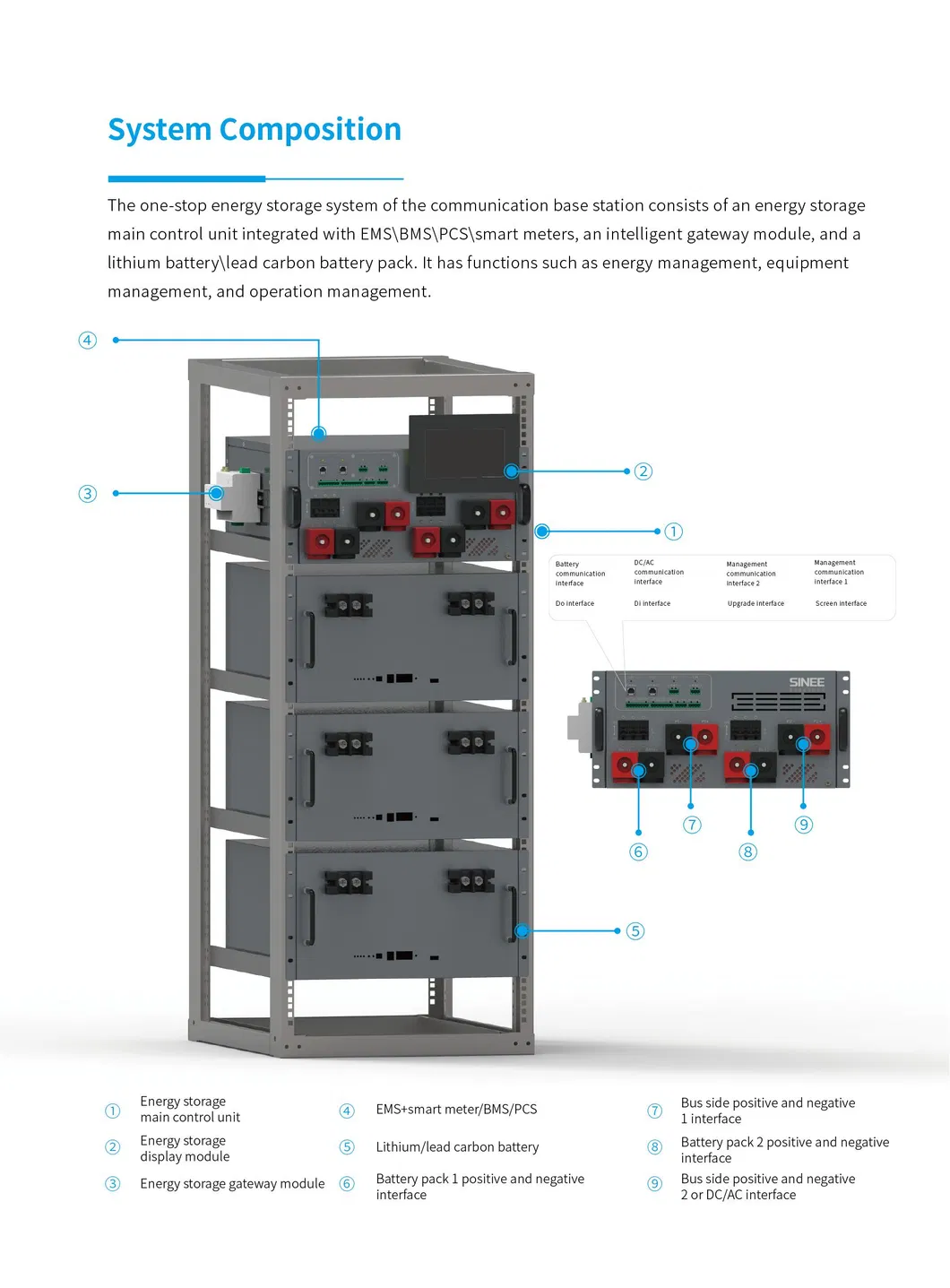

Installation Instructions

Frequently Asked Questions

What is the primary use of this energy storage system?

It is specifically designed for communication base stations to discharge during peak load periods and charge during low load periods, reducing costs and improving efficiency.

How long does the installation take?

Due to its modular design, the system supports quick disassembly and assembly, allowing for a base station installation to be completed in as little as 15 minutes.

What safety protections are included in the design?

The system features a triple protection design including thermal runaway warnings, DC circuit breakers, and an explosion-proof structure.

Is the system compatible with different battery brands?

Yes, it is compatible with mainstream batteries on the market and supports the parallel use of batteries with different types, capacities, and batches.

How is the equipment monitored and maintained?

The system utilizes intelligent operation with remote monitoring, allowing users to calculate energy storage revenue and monitor equipment status in real-time.

What is the expected lifespan and efficiency?

The system offers an efficiency of over 95% and a Mean Time Between Failures (MTBF) of more than 100,000 hours at 25ºC.
