| Model | NTDL |
| Application | Workshop, Shipboard, Warehouse, Building, Logistics |
| Lift Mechanism | Articulated Lift |
| Driven Type | Hydraulic |
| Safety System | Self-Locking, Lip Emergency Stop |
| Loading Capacity | 10000kg |
| Table Size | 2.0*2.0m (Customizable) |
| Certification | ISO 9001 |

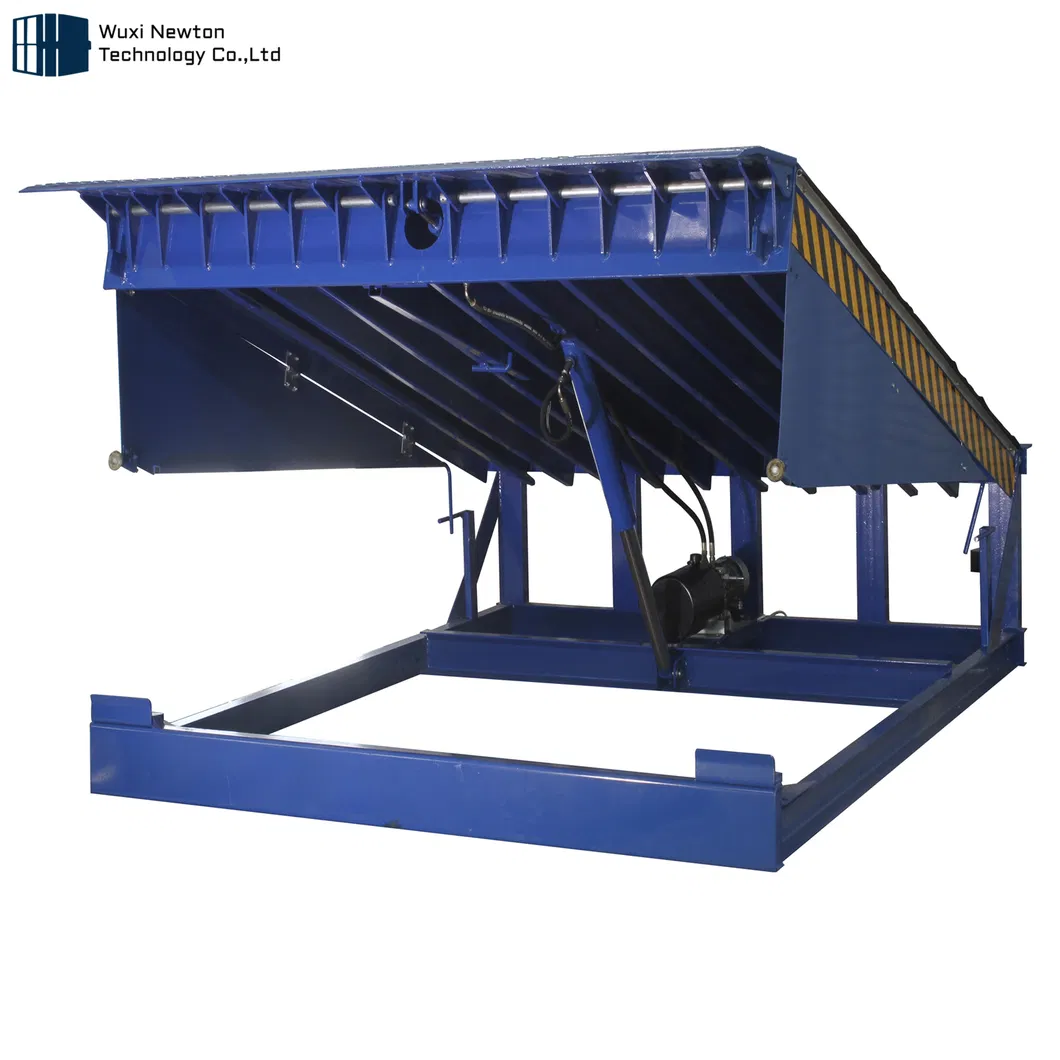

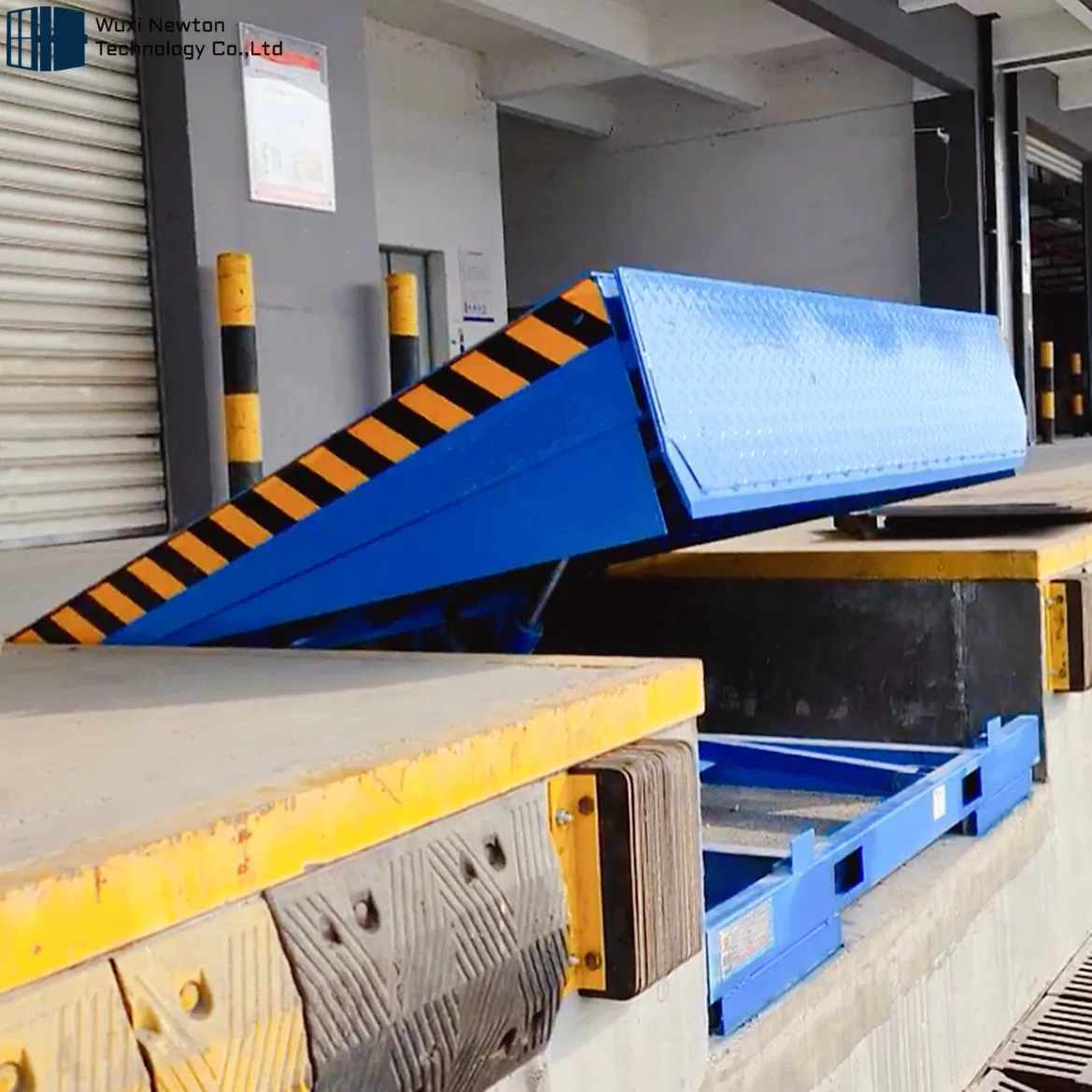

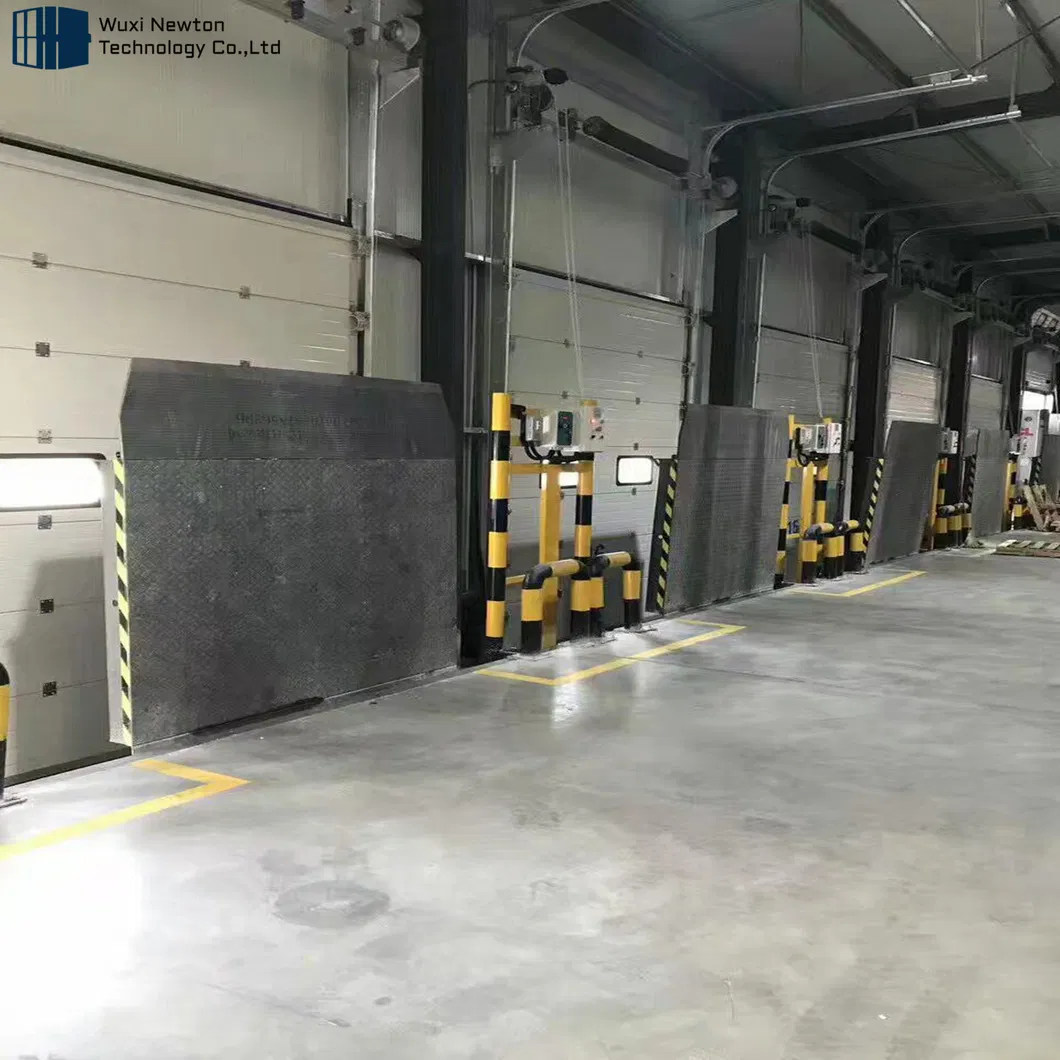

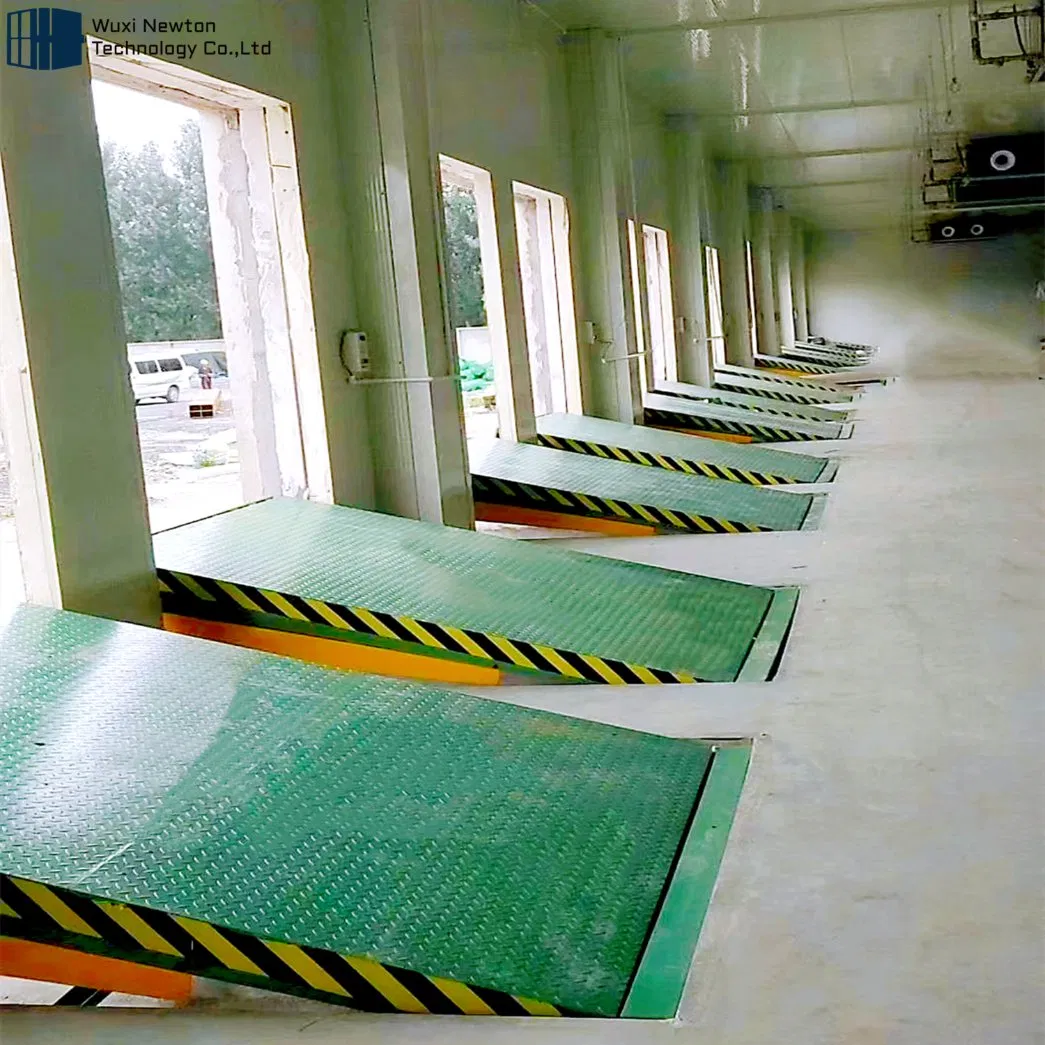

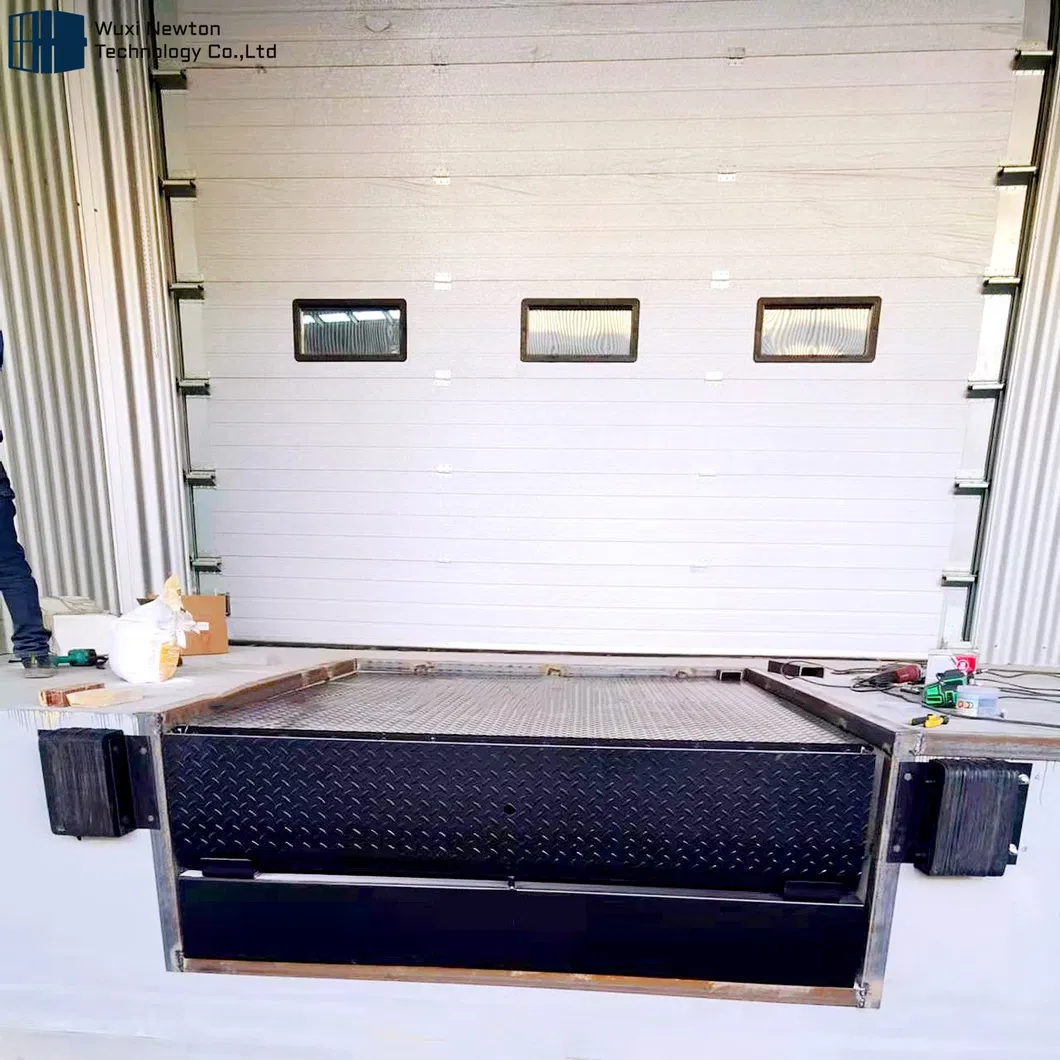

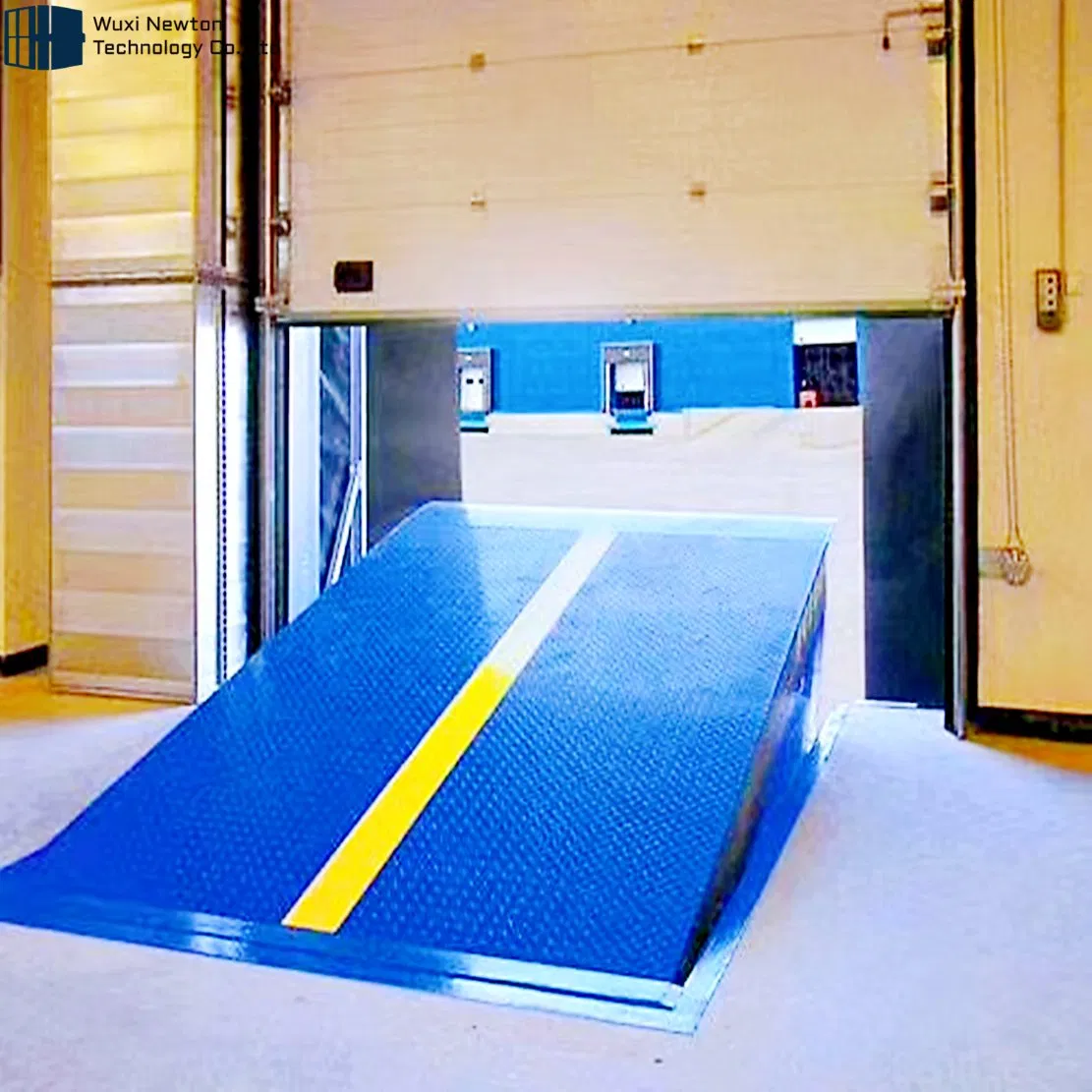

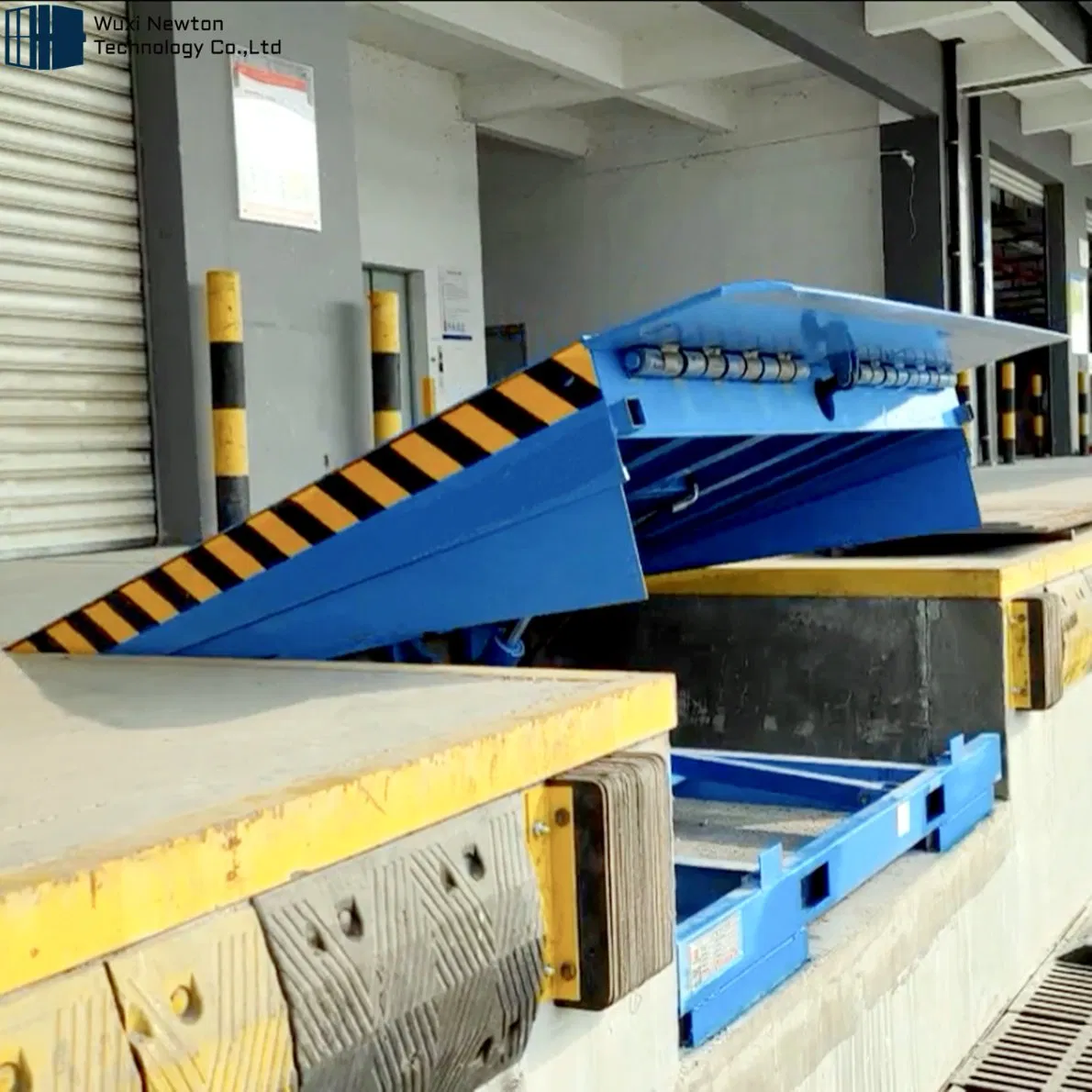

In the field of logistics, our dock leveler realizes fast and safe loading and unloading processes. It balances the height difference between the platform ground and the dock of different transport vehicles. Whether it is a flatbed truck or a container truck, the sturdy steel structure design and high-quality materials provide a reliable choice for all loading yards.

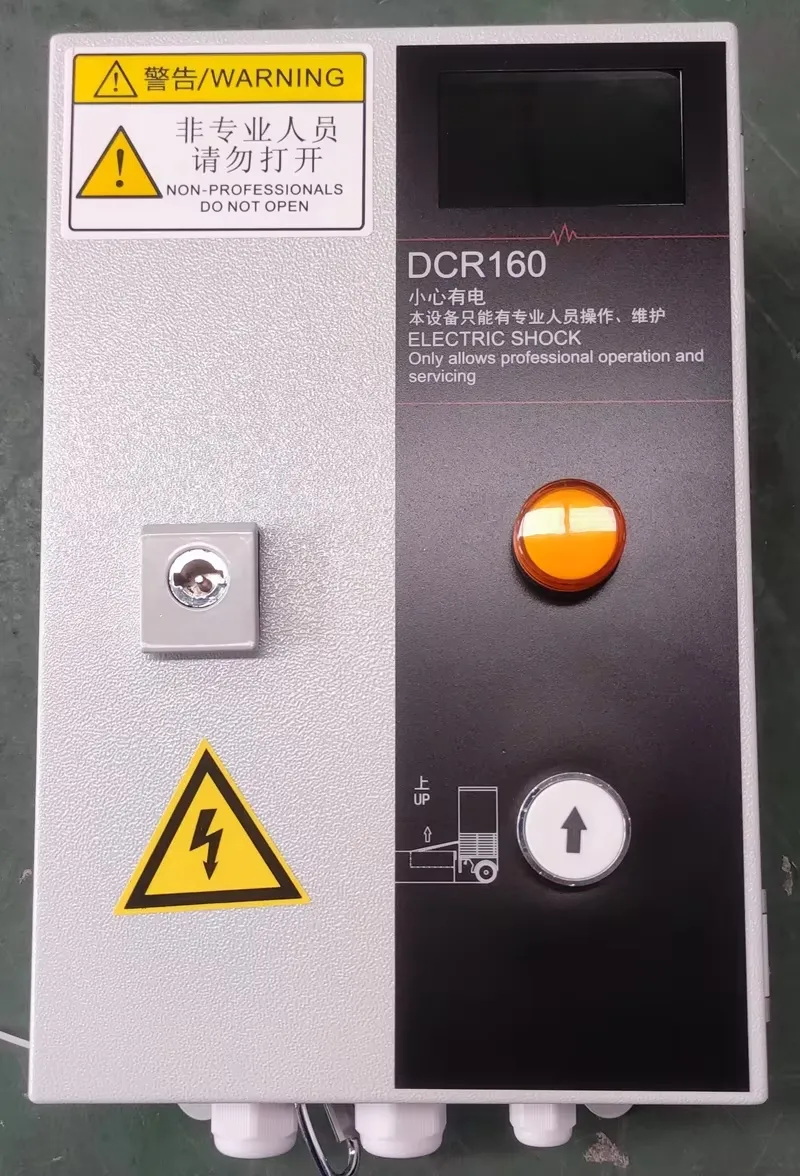

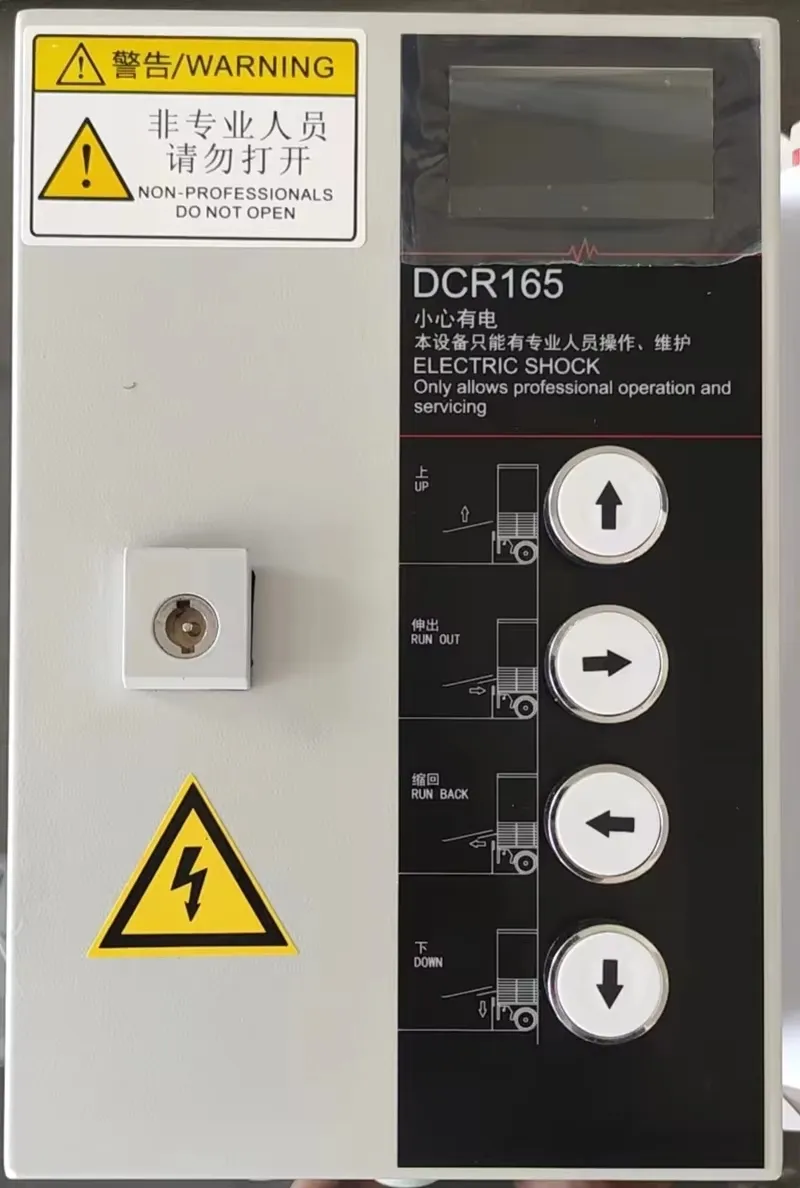

Utilizes push-button activation and is the safest, strongest, and most reliable type of loading dock leveler.

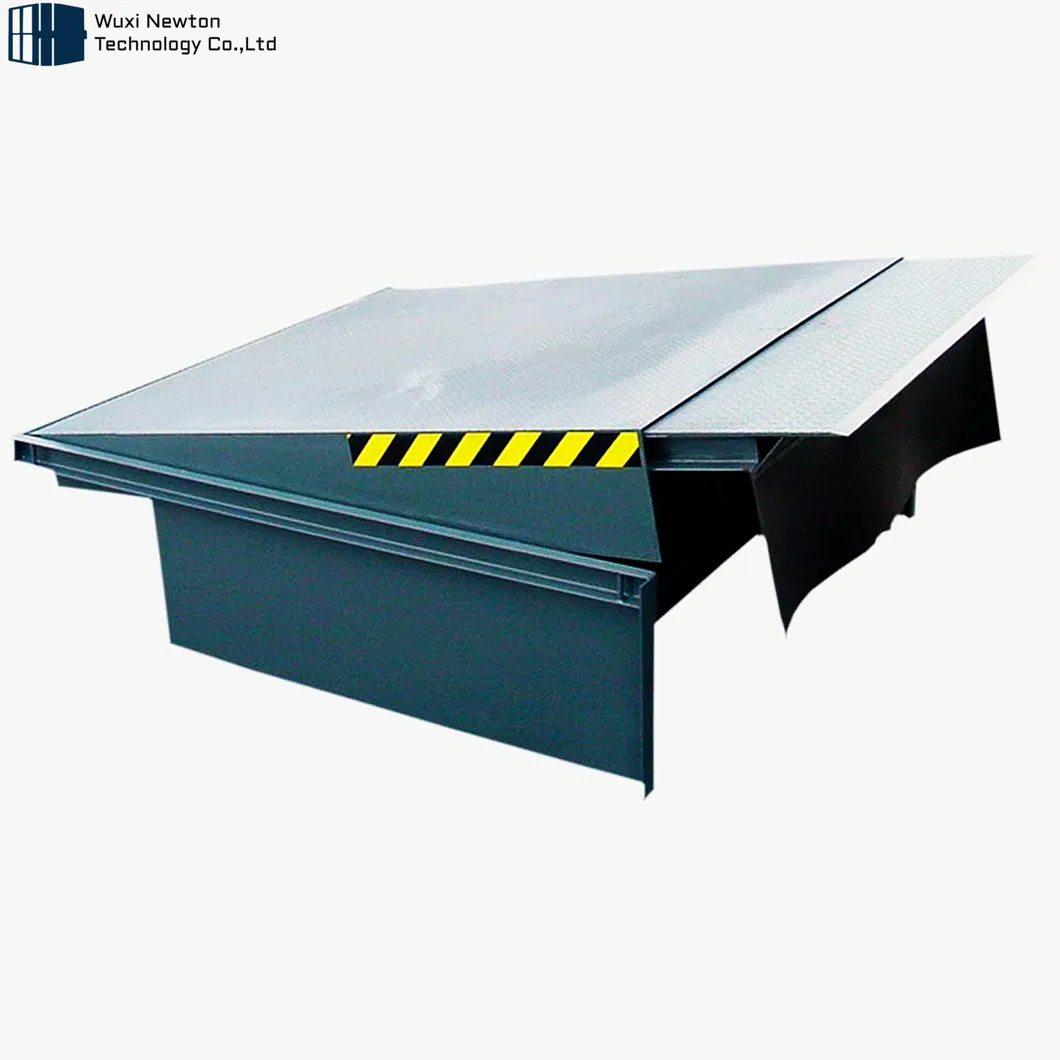

Equipped with a telescopic lip (1000mm), allowing adaptation to all loading situations including end loads.
Designed for enhanced pedestrian safety, sanitation, and environmental control.

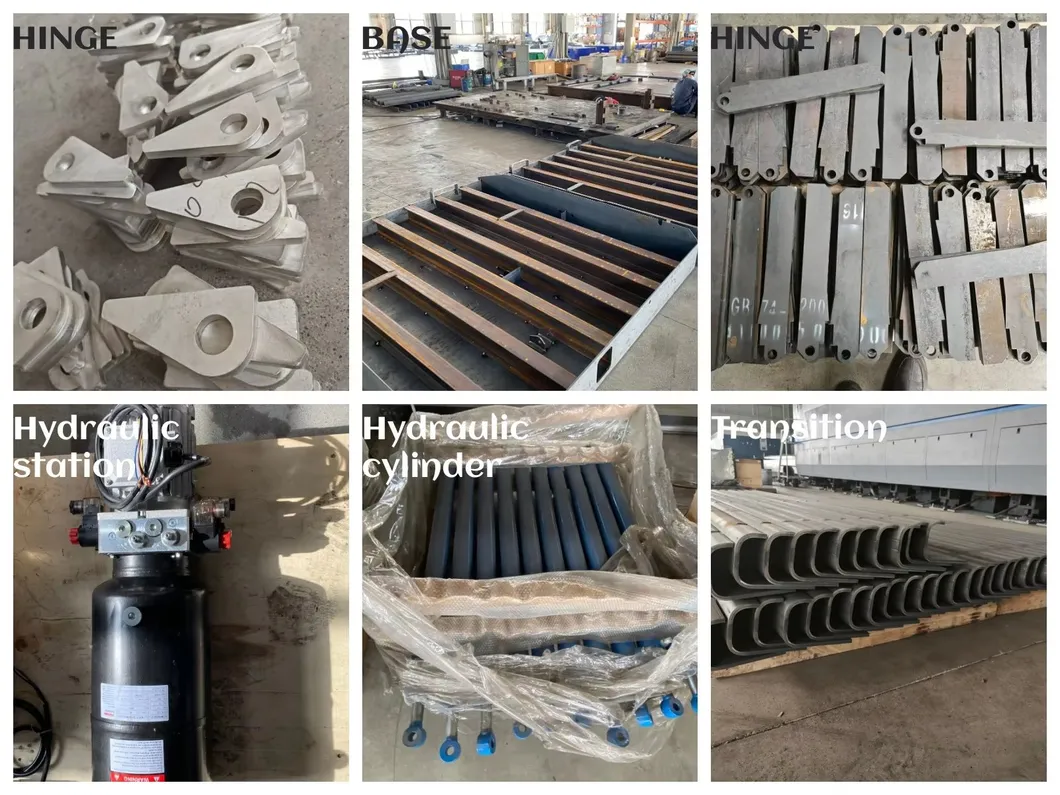

| Component | Specification |
|---|---|

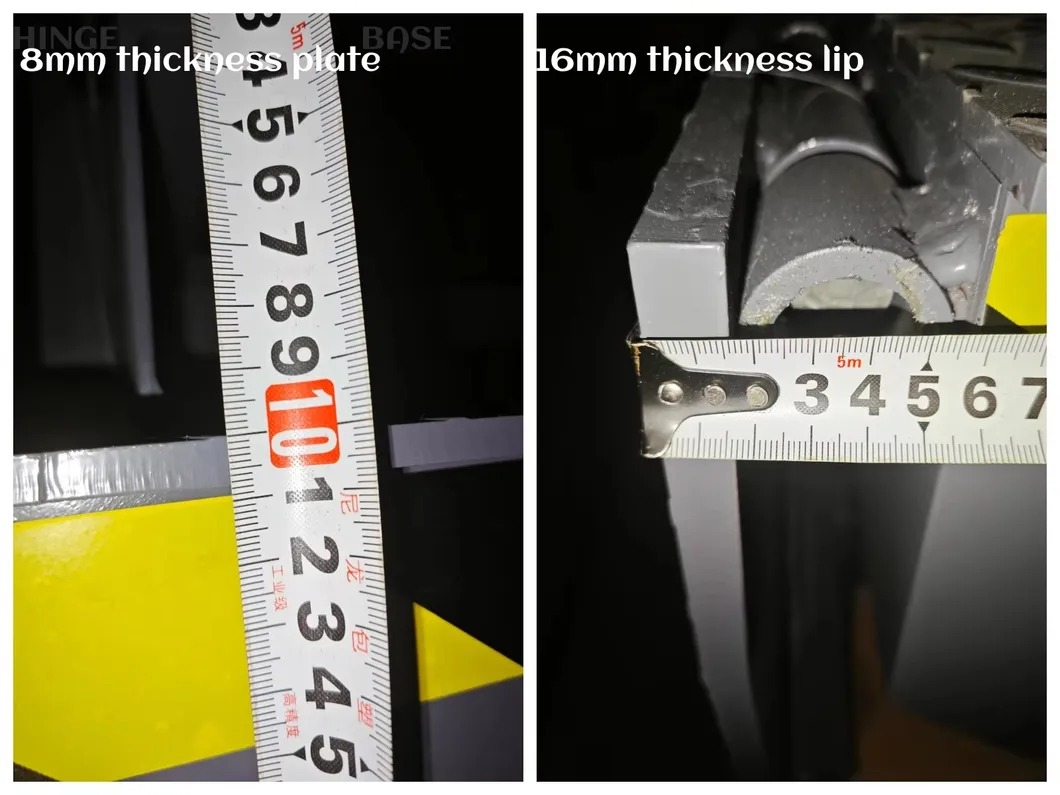

| Upper Plate | 8 mm thickness, anti-skate steel plate |
| Swinging Lip | Single 16 mm thickness, 400mm length |
| Adjustment Time | Rise ≤16S, Fall ≤10S |
| Working Range | +300mm / -300mm |
| Service Life | ≥200,000 times |
| Operating Temp | -25ºC to +50ºC |
| Hydraulic Oil | Mobile VG46 |
| Noise | <50db |
Voltage: 220V/380V
Protection: IP55 Level
Features: Equipped with emergency stop button for maximum safety.
