| Model NO. | NTDL | Driven Type | Hydraulic |
|---|---|---|---|
| Application | Workshop, Shipboard, Warehouse, Building, Logistics | Loading Capacity | 10000kg |
| Lift Mechanism | Articulated Lift | Table Size | 2.0*2.0m |
| Safety System | Self-Locking, Lip Emergency Stop | Working Range | -300 to +350mm |
| Supply Voltage | 380V/50Hz | Motor Power | 0.75kw |

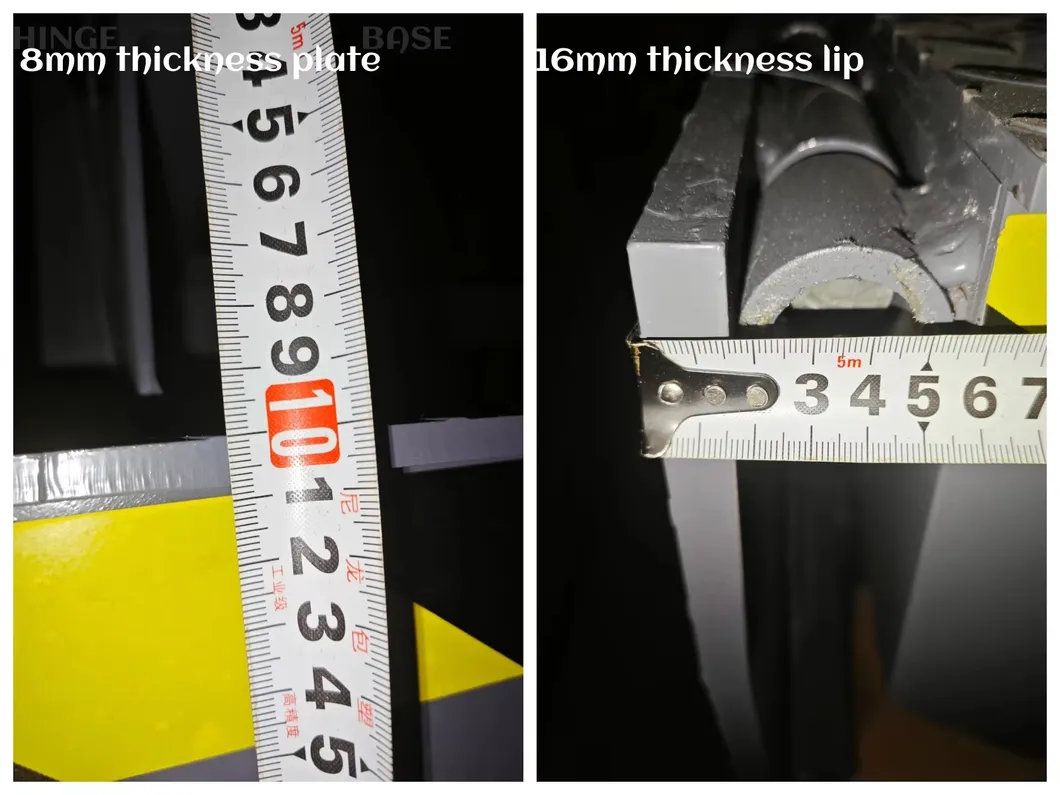

| Upper Plate | 8 mm thickness, anti-skate steel plate |
|---|---|
| Swinging Lip | Single 16 mm thickness, 400mm length |
| Adjustment Time | Rise Time ≤16S, Fall time ≤10S |
| Working Range | +300mm / 260~300mm |

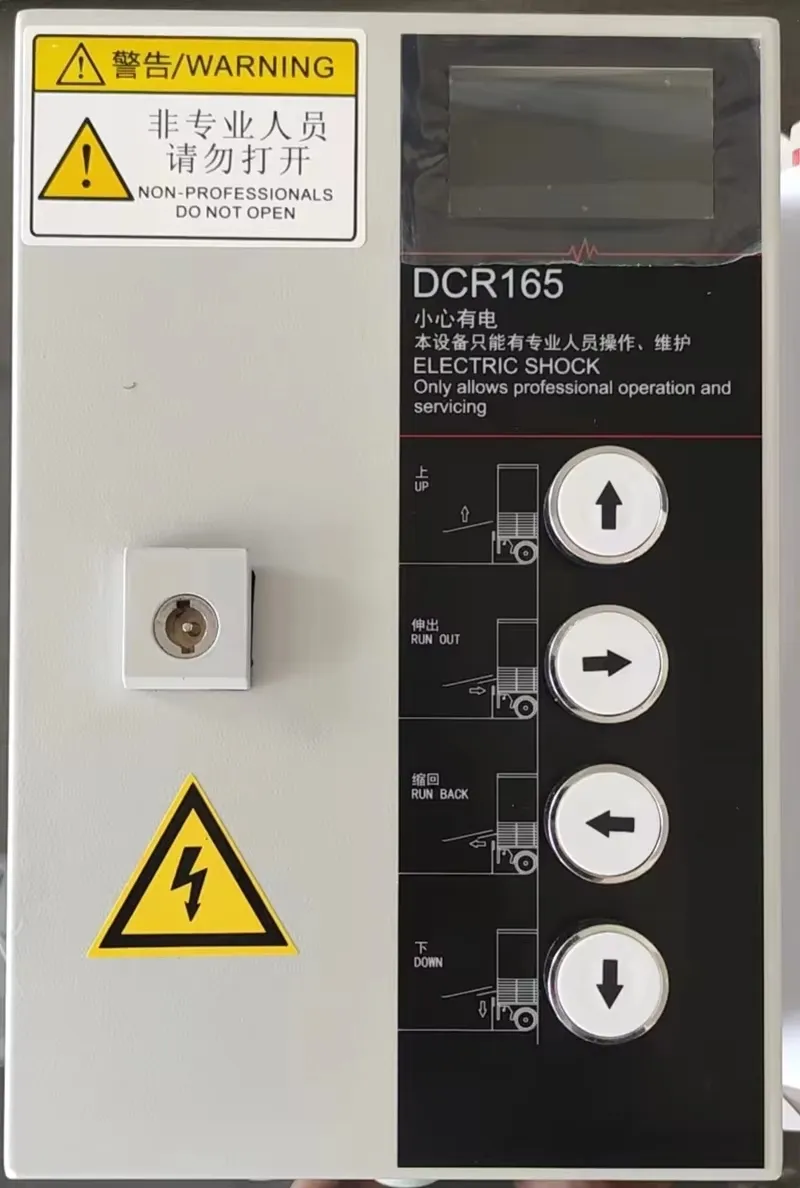

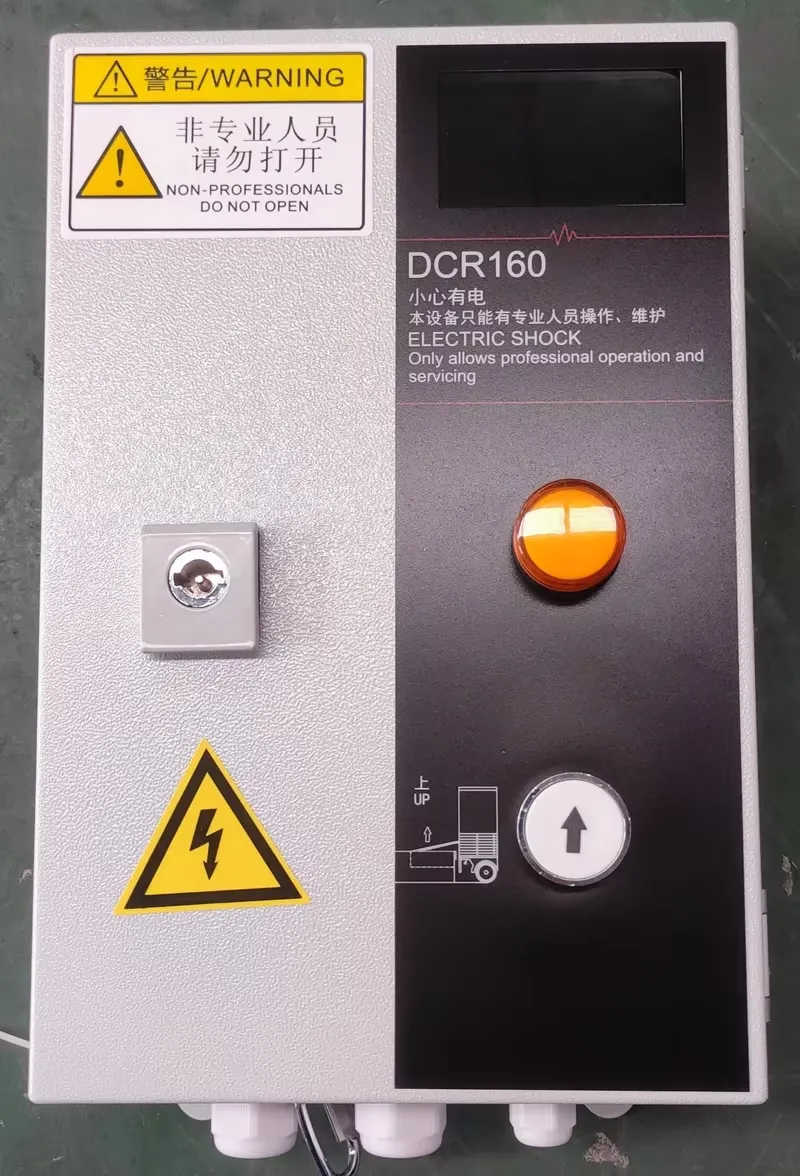

| Electric Control Box | 24V weak current control |
| Service Life | ≥200,000 times |
| Noise | <50db (±5db) |

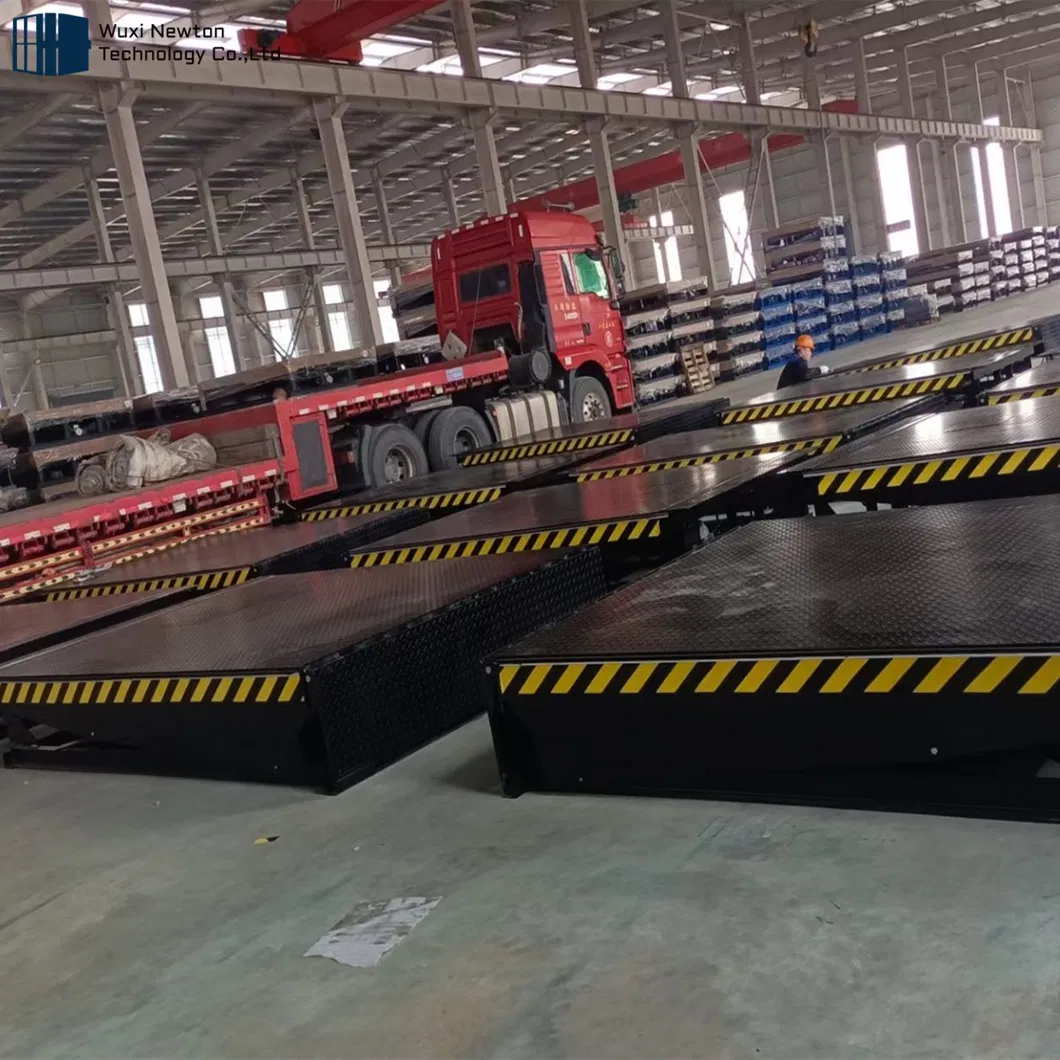

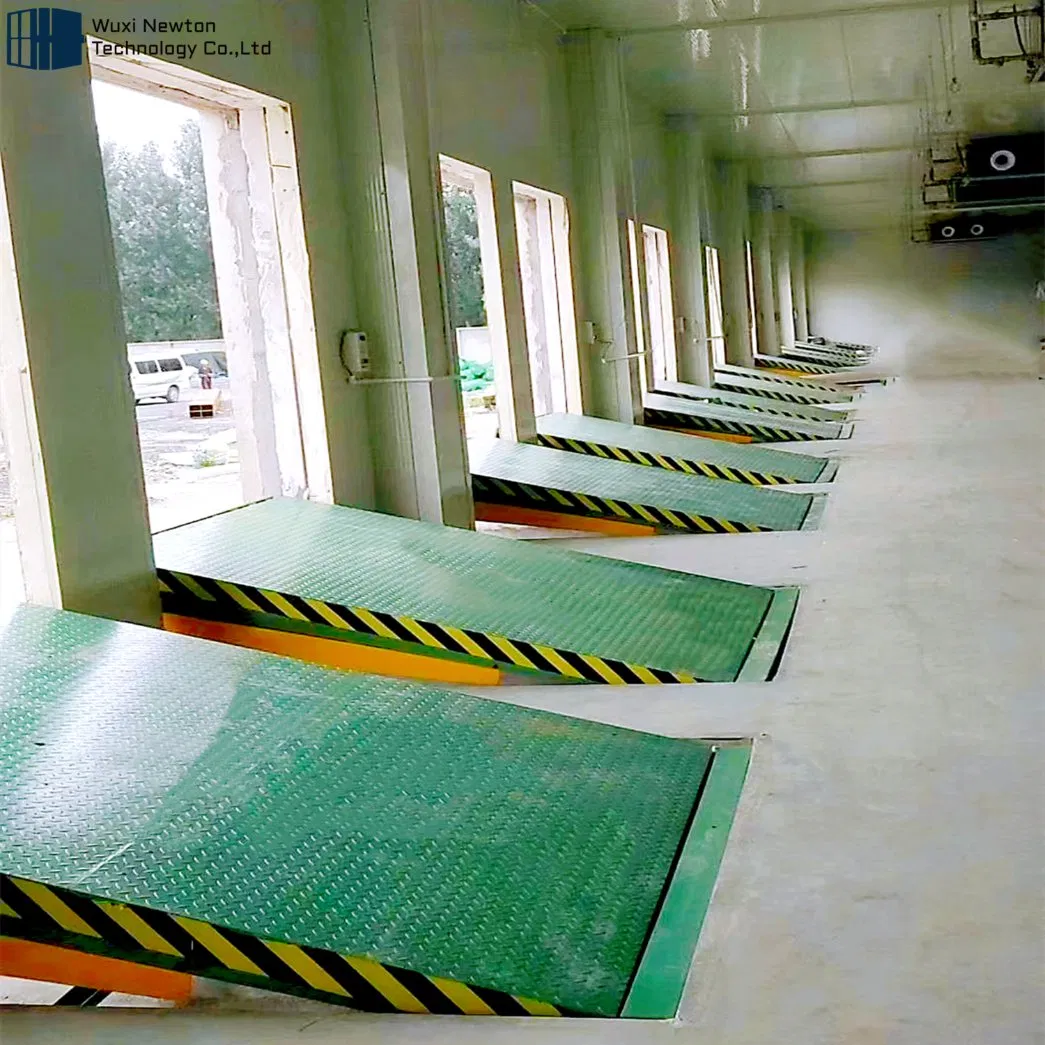

In the field of logistics, our dock leveler enables a fast and safe loading and unloading process. It effectively balances the height difference between the platform ground and various transport vehicles. Whether dealing with flatbed trucks or container trucks, this solution meets all industrial requirements. The sturdy steel structure and high-quality materials provide a reliable choice for any loading bay.

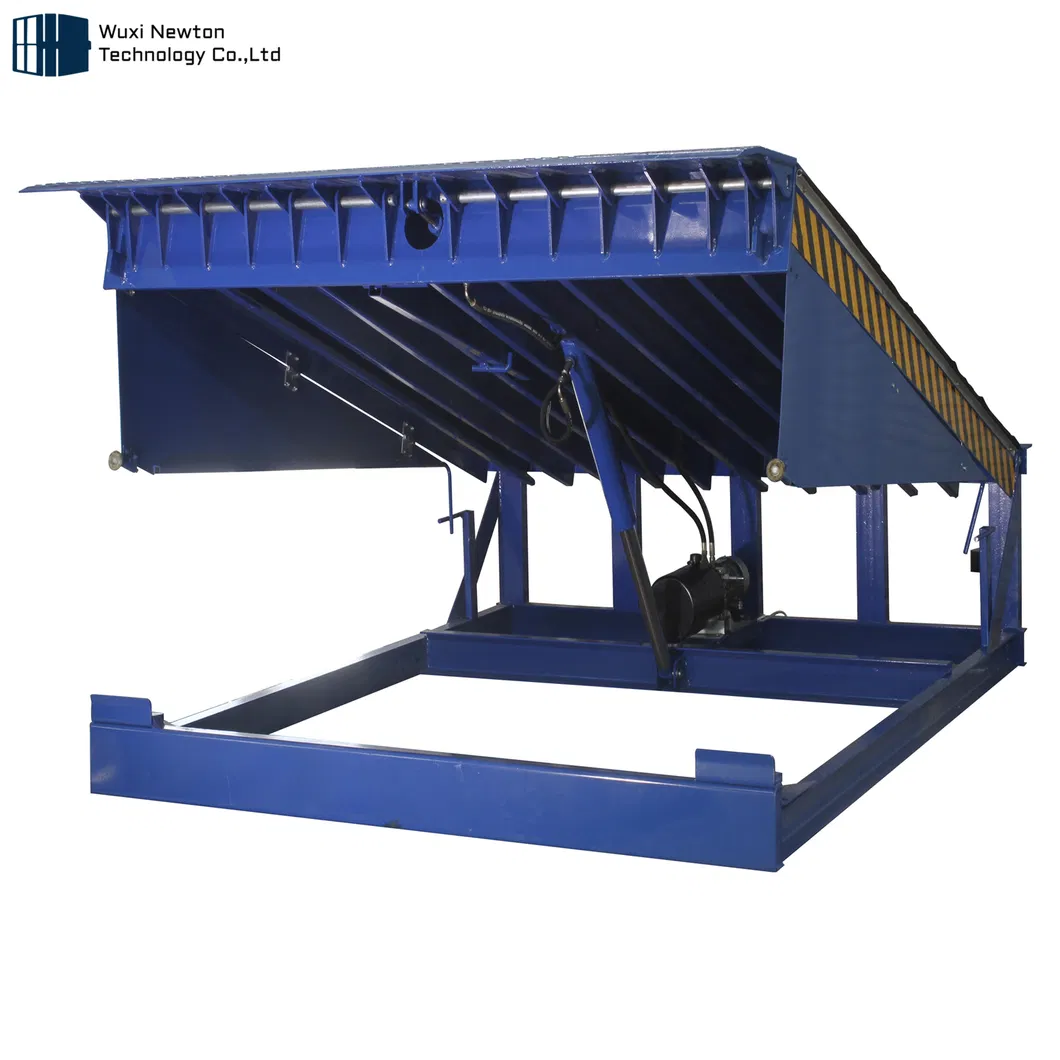

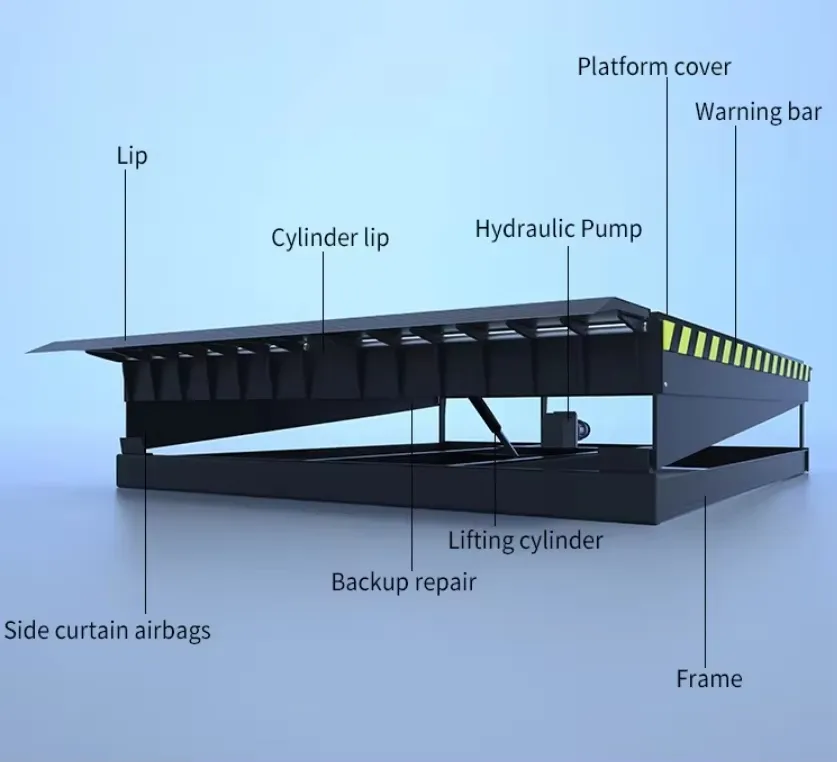

Hydraulic Dock Leveler
Push-button activation, the safest and strongest type.

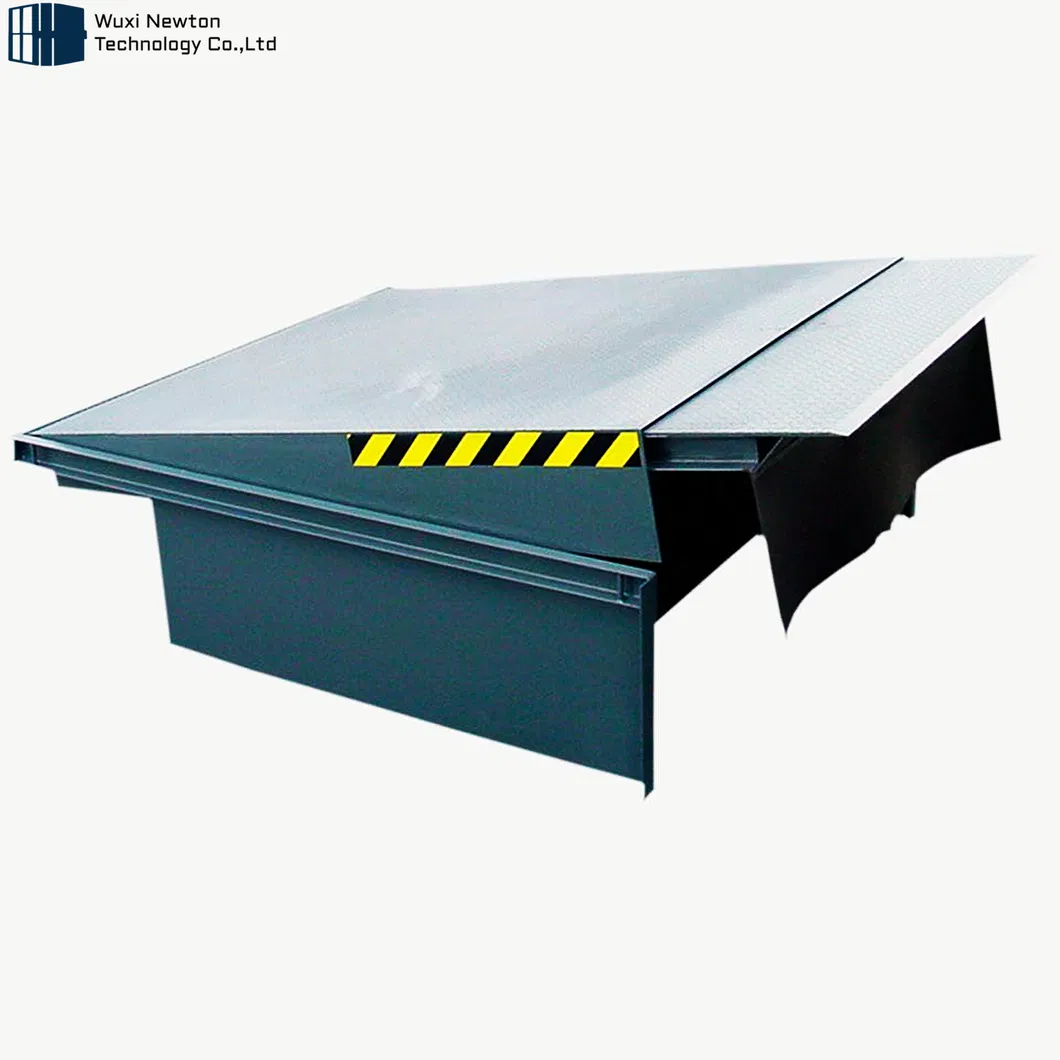

Telescopic Dock Leveler
Features a telescopic lip (1000mm) for precise positioning.

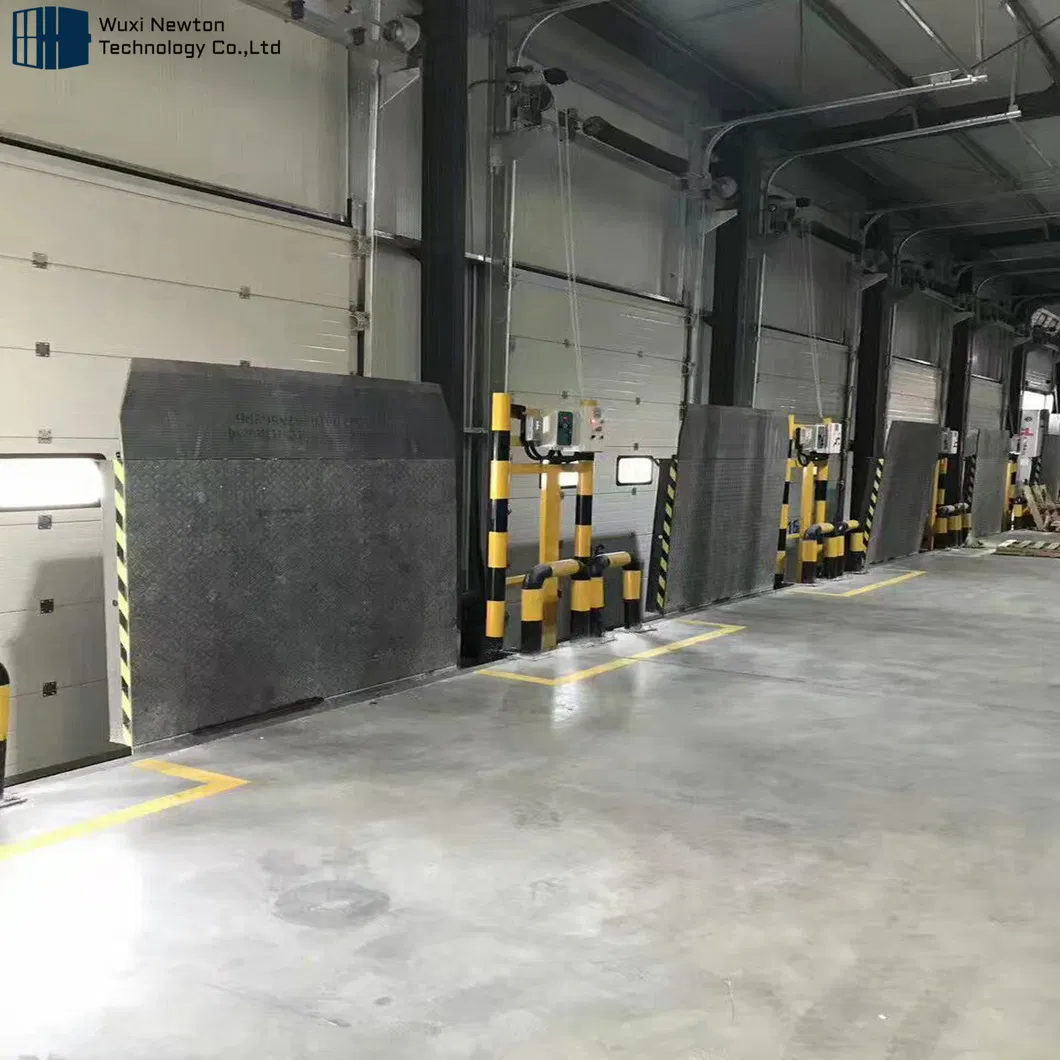

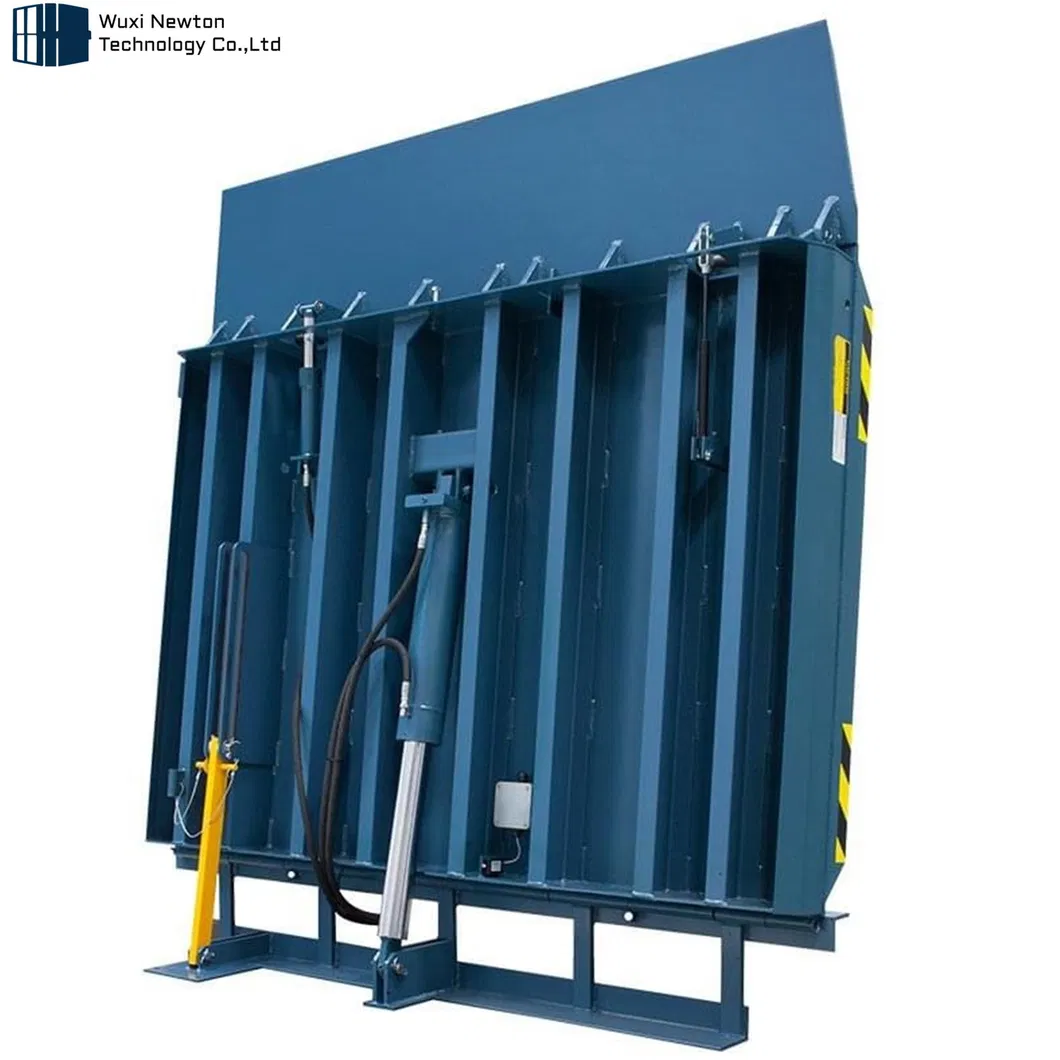

Vertical Dock Leveler
Designed for sanitation, climate control, and safety.
| Parameter | Standard Value |
|---|---|
| Maximum Bearing Weight | 6000kg (60KN) / 10000kg (10KN) |
| Hydraulic Cylinder Power | 1.1KW |
| Power Supply | 380V, Three Phases |
| Control Unit Protective Level | IP54 / IP55 |
| Working Temperature | -30 up to +50 degrees |
| Spraying Thickness | 60~90 um |
Available in 220V/380V options with emergency stop buttons.
