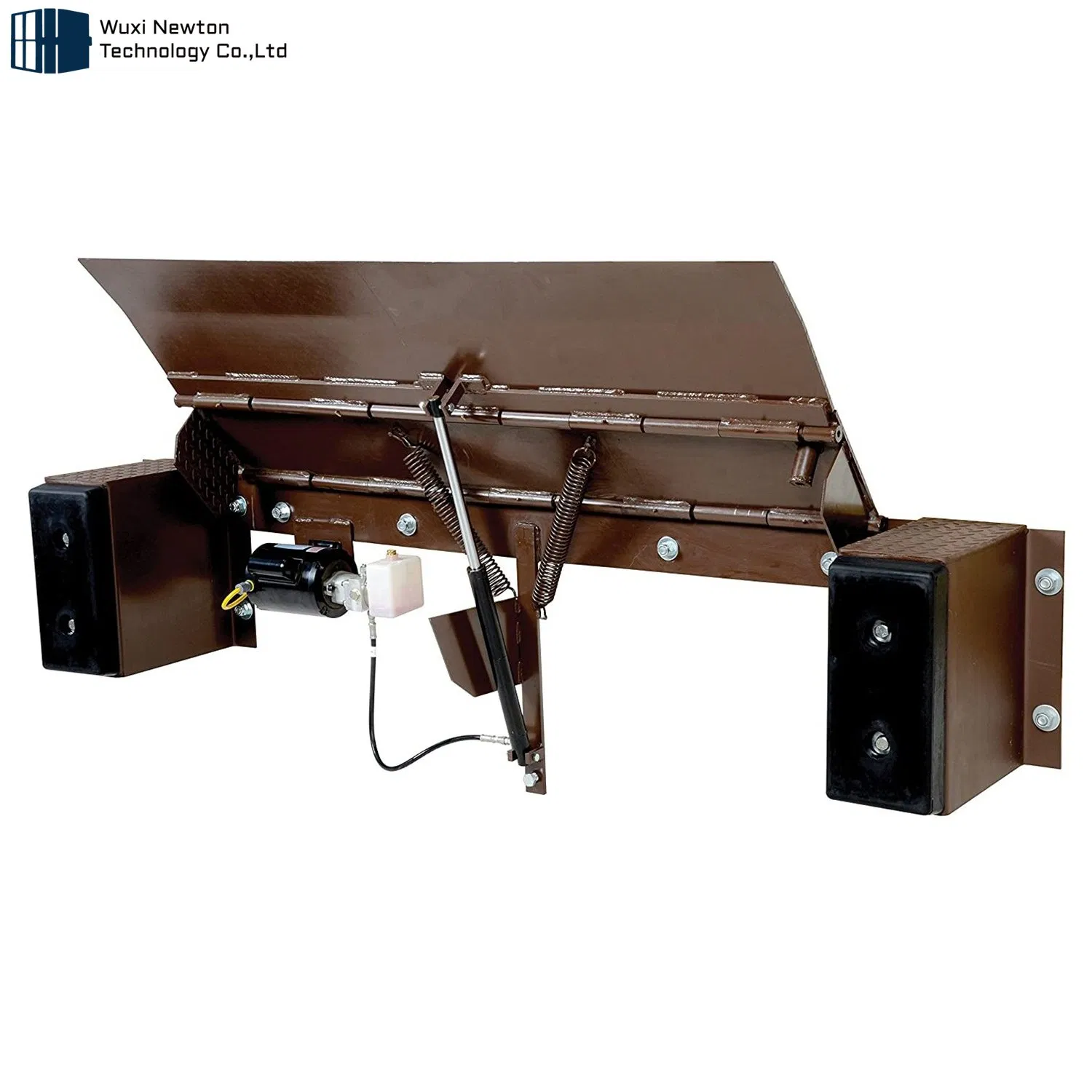

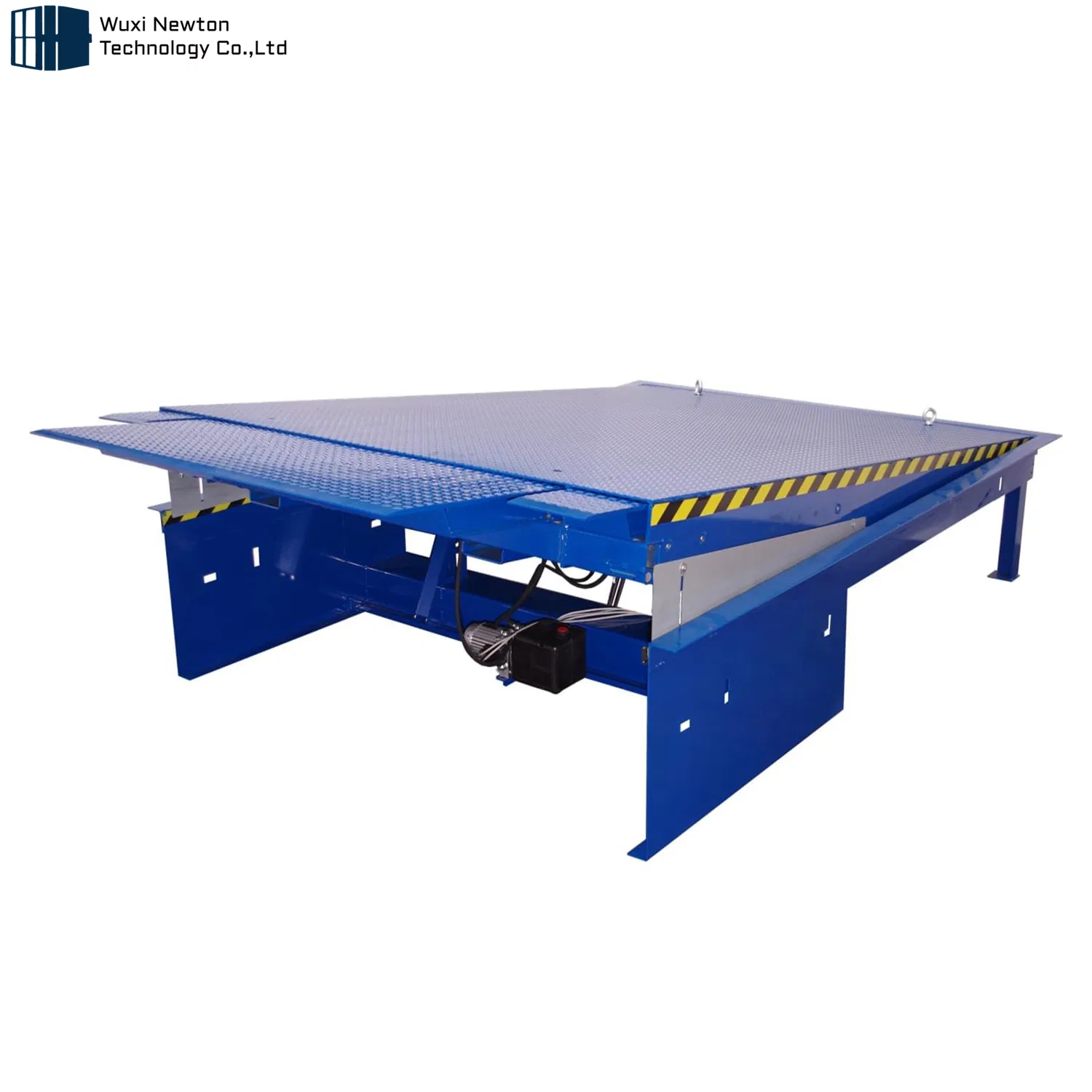

Steel Construction Swing Lip Electric Vertical Dock Leveler with Power Unit

Customization:	Available
After-sales Service:	Available
Warranty:	5 Years

Send Inquiry

Product Description

Overview - Basic Info

Model NO.

NTDL

Application

Workshop, Shipboard, Warehouse, Building Crane, Logistics

Lift Mechanism

Articulated Lift

Driven Type

Hydraulic

Upper Plate

8mm Thickness Steel

Swinging Lip

Single 16mm Thickness Steel

Safety System

Self-Locking, Lip Emergency Stop

Loading Capacity

10000kg

Working Range

-300 to +350mm

Supply Voltage

380V/50Hz

Product Parameters

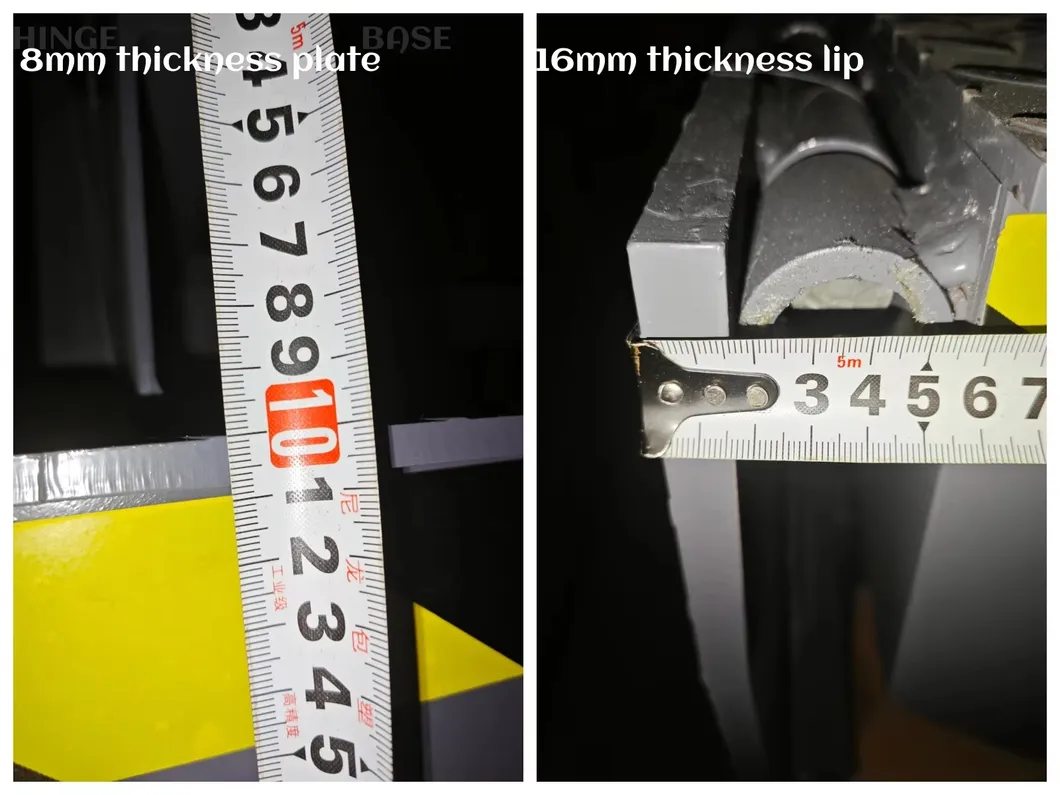

Upper Plate	8 mm thickness, anti-skate steel plate
Swinging Lip	Single 16 mm thickness, 400mm length
Adjustment Time	Rise Time ≤ 16S, Fall time ≤ 10S
Working Range	+300mm/260~300mm
Power	380V/220V
Electric Control Box	24V weak current control
Service Life	≥ 200,000 times
Operating Temperature	-25ºC ~ +50ºC
Noise	< 50db (±5db)

Product Description

In the field of logistics, our dock leveler can realize fast and safe loading and unloading process. The dock leveler can balance the height difference between the platform ground and the dock of different transport vehicles. Whether it is a flatbed truck or a container truck, the dock leveler can meet the requirements. The sturdy steel structure design and high-quality materials provide a reliable choice for all loading and unloading yards.

We can customize according to your needs, such as platform size, load capacity, and lifting height.

After the transport vehicle approaches, the platform door opens. By pressing the control button, the platform rises to the highest position, the lip plate automatically opens. Upon releasing the button, the platform falls until the lip plate overlaps with the vehicle compartment, enabling efficient loading and unloading.

Main Dock Leveler Types

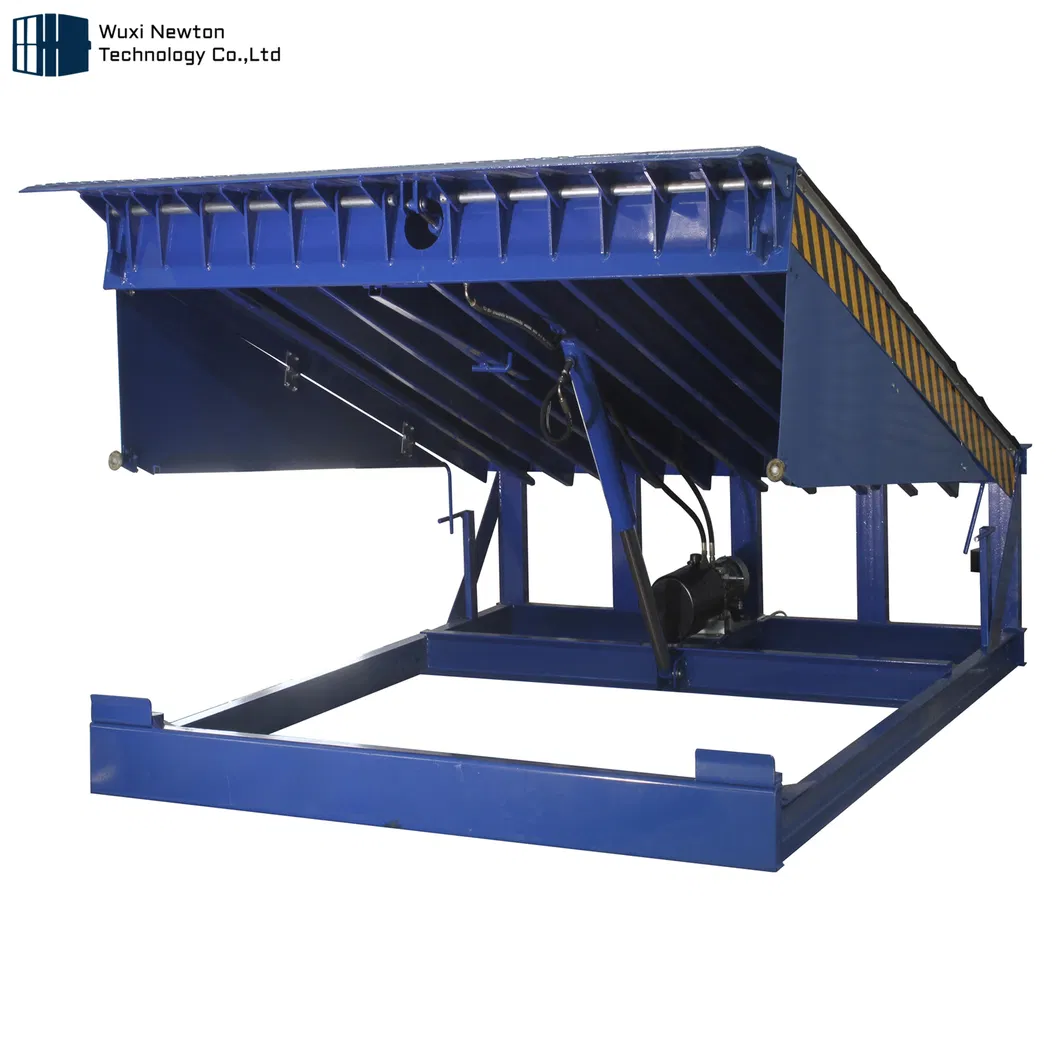

Hydraulic Dock Leveler

Hydraulic Dock Levelers utilize push-button activation and are the safest, strongest and most reliable type of loading dock leveler.

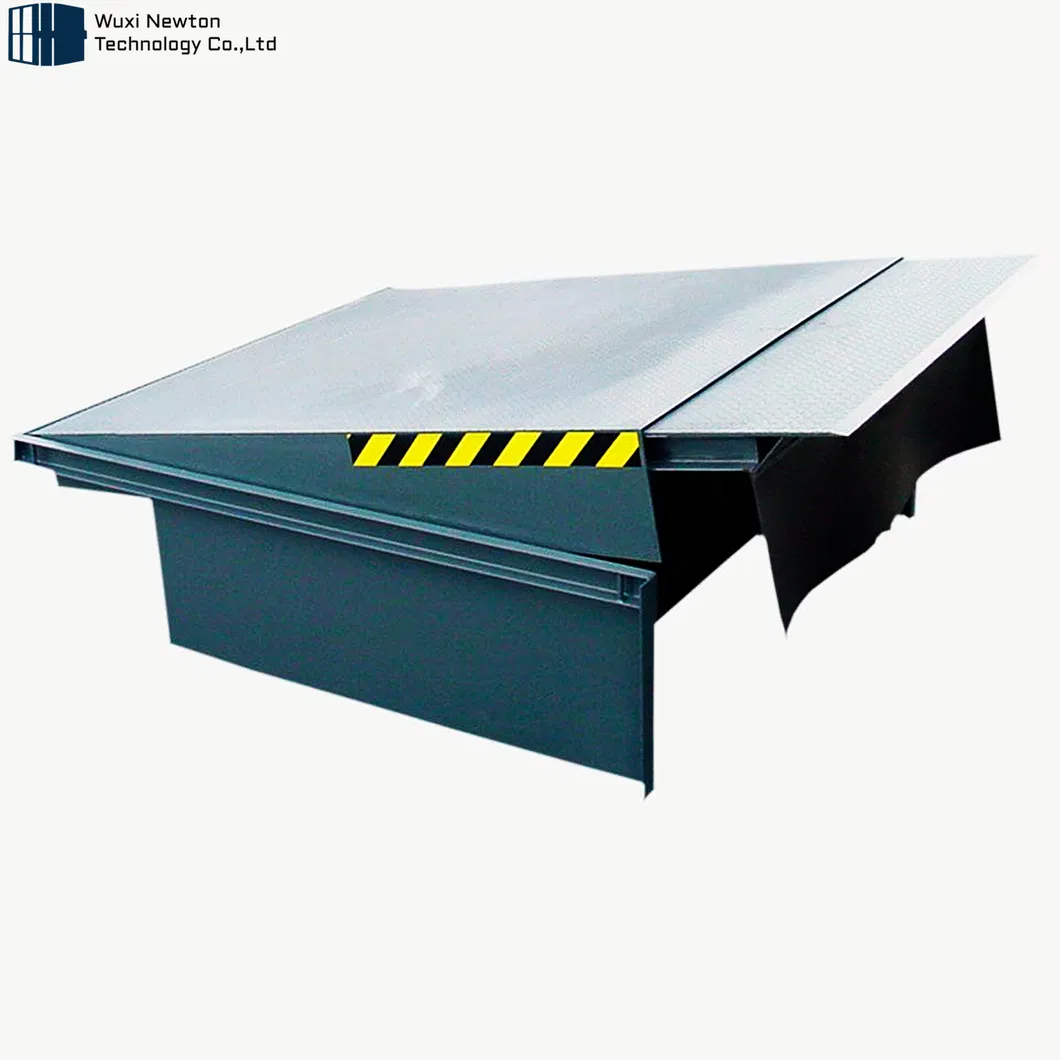

Telescopic Dock Leveler

The dock levelers with telescopic lip (1000mm) allow you to adapt to all loading and unloading situations including end loads.

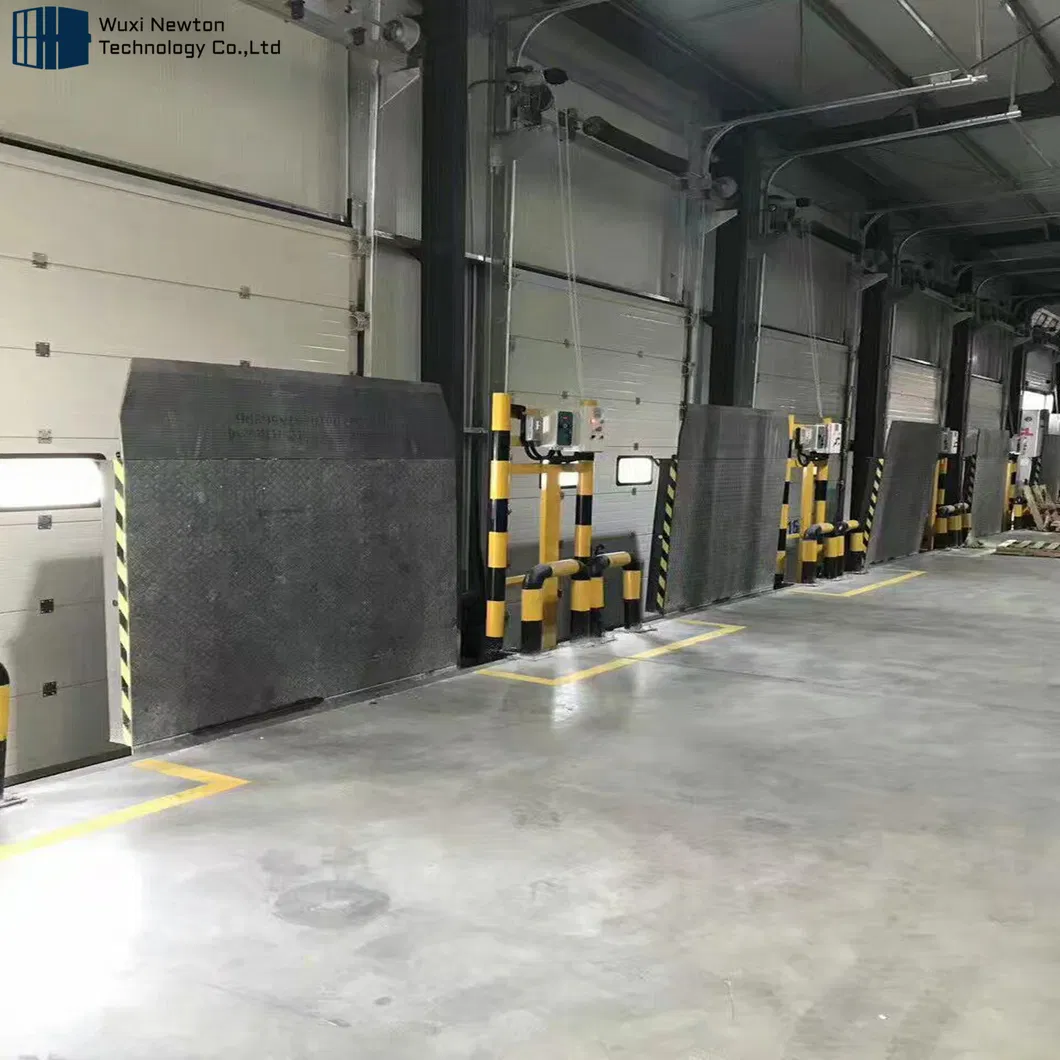

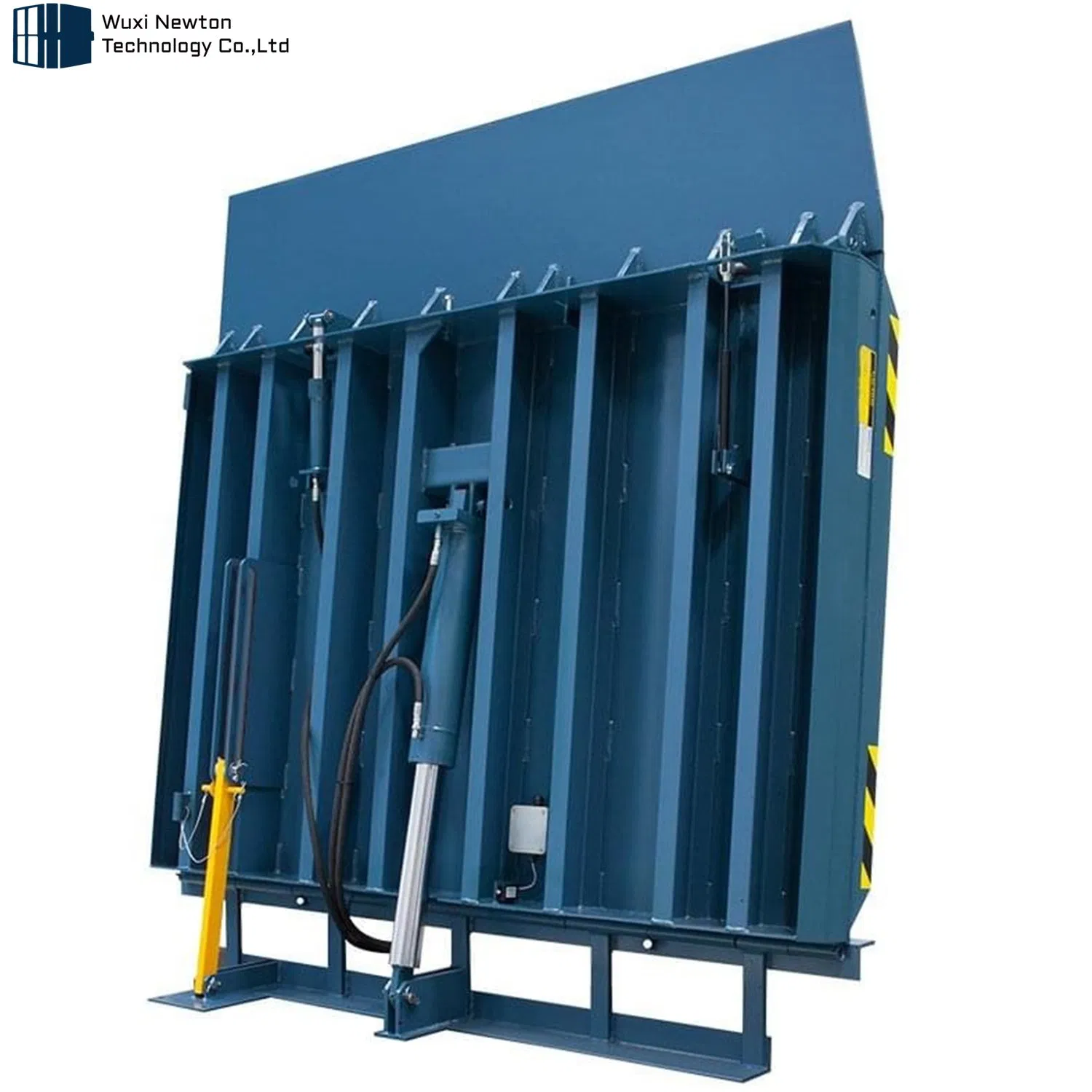

Vertical Dock Leveler

Vertical dock leveler designed for enhanced pedestrian safety, sanitation, and environmental control.

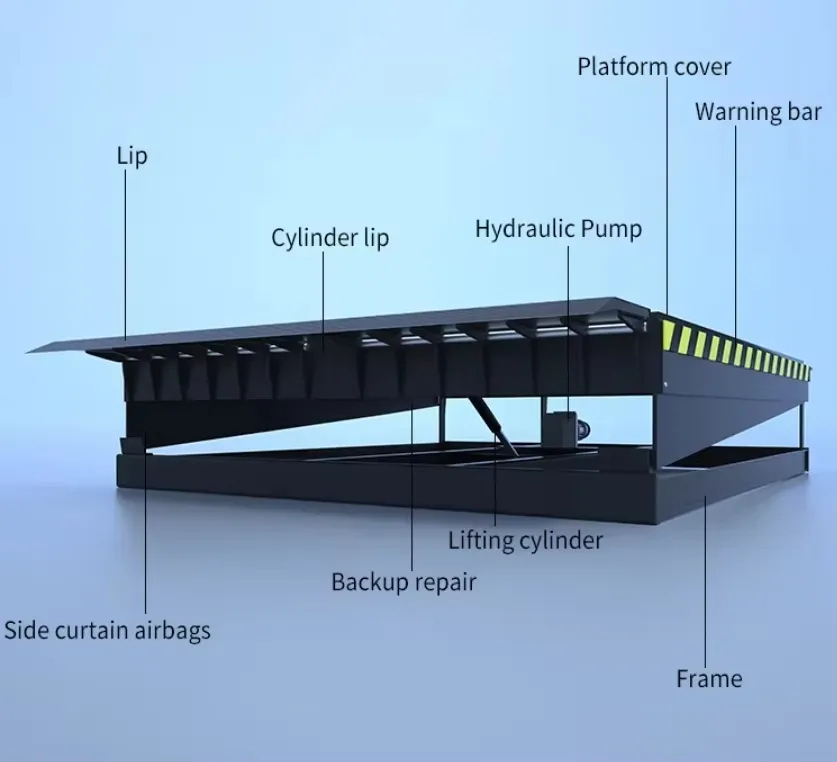

Technical Components & Performance

Solenoid valve

Anti-explosion valve

Feet protection plate

Maintenance rod

High quality rubber sealing strip

Open type hinge

Anti-rust galvanized parts

Baking treatment

Parameter	Value
Maximum bearing weight	6000kg (60KN) / 10000kg (10KN)
Hydraulic cylinder power	1.1KW
Power	380V, three phases
Control unit protective level	IP54
Hydraulic oil	Mobile VG46
Spraying thickness	60~90 um
Working Temperature	-30 up to + 50 degree

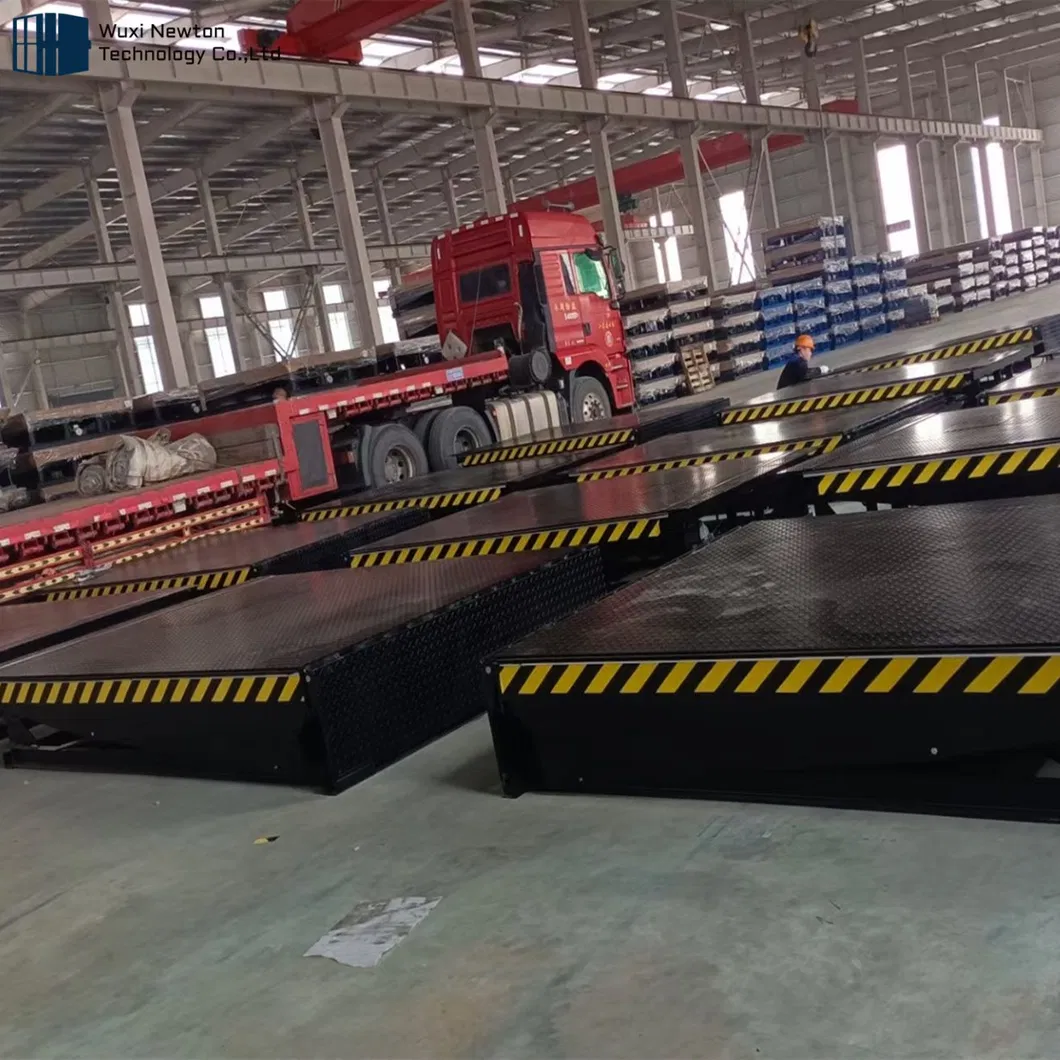

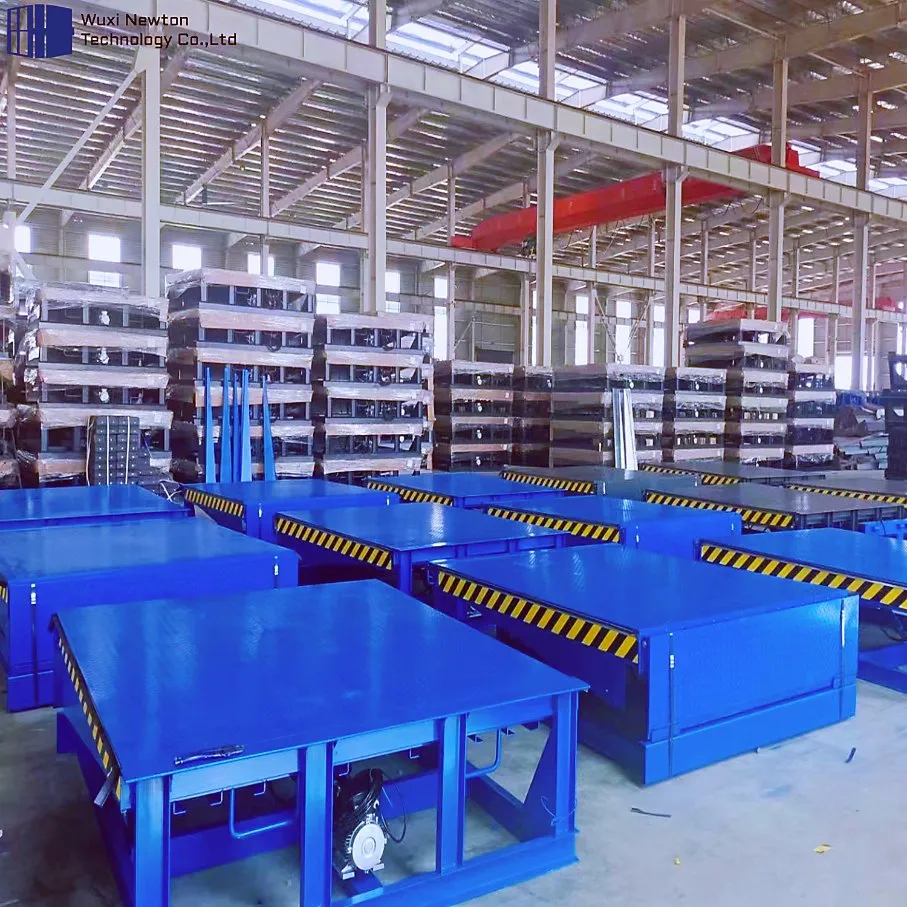

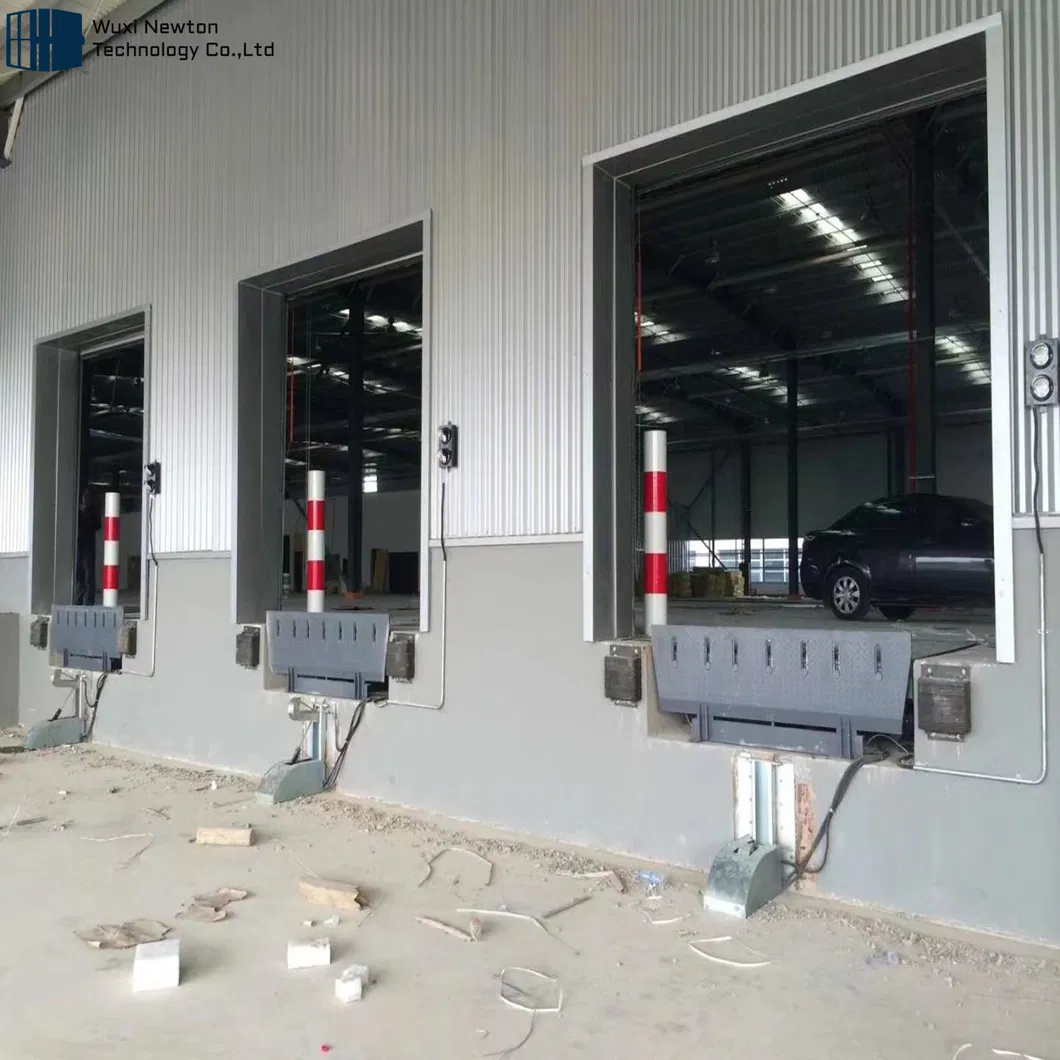

Product Display

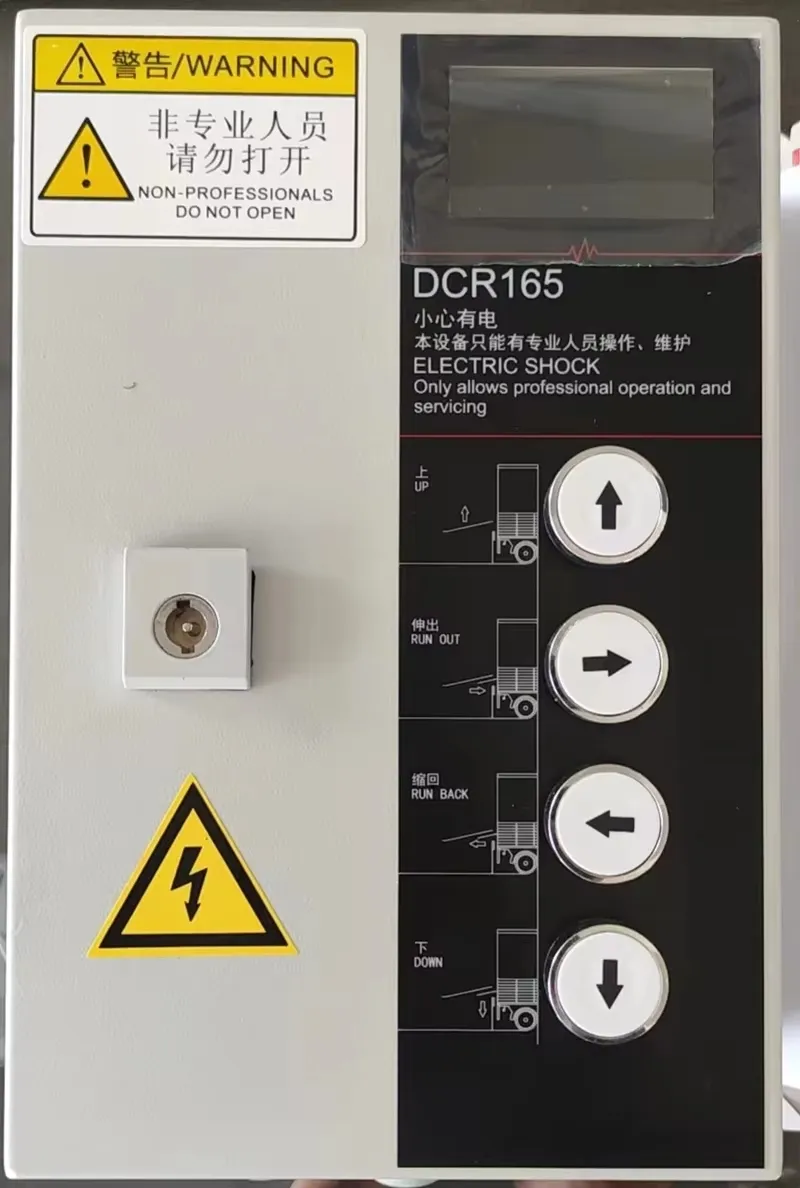

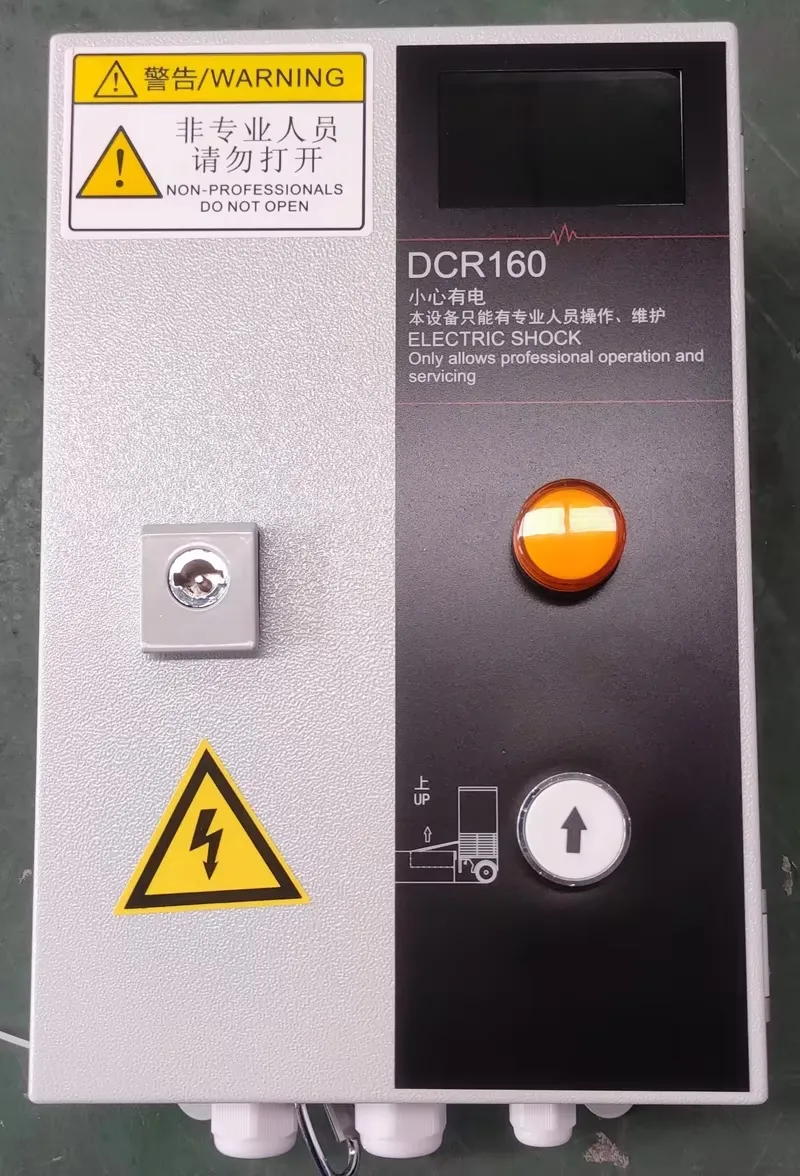

Control System

Hydraulic and Telescopic Controller Features:
- Supports 220V/380V power supply
- Equipped with emergency stop button
- IP55 Protection Grade

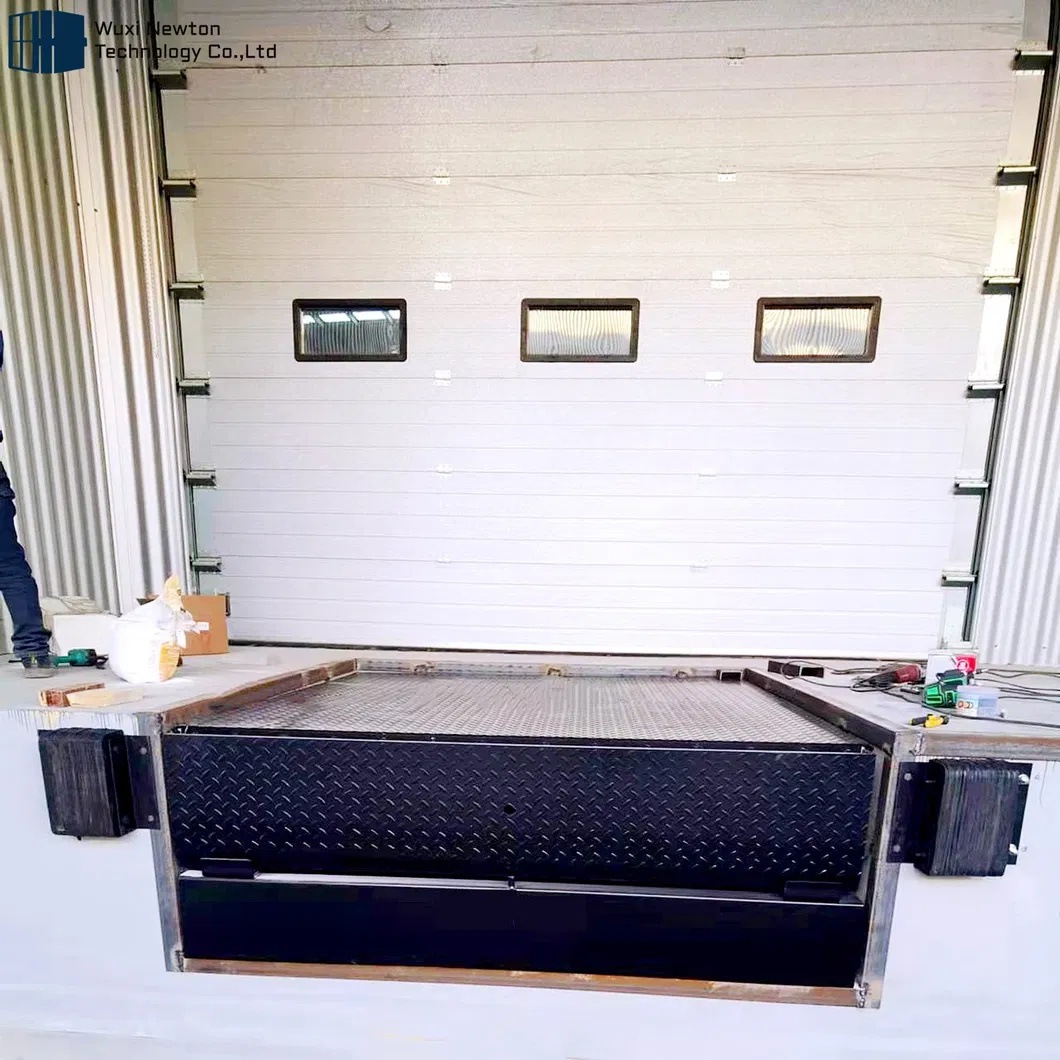

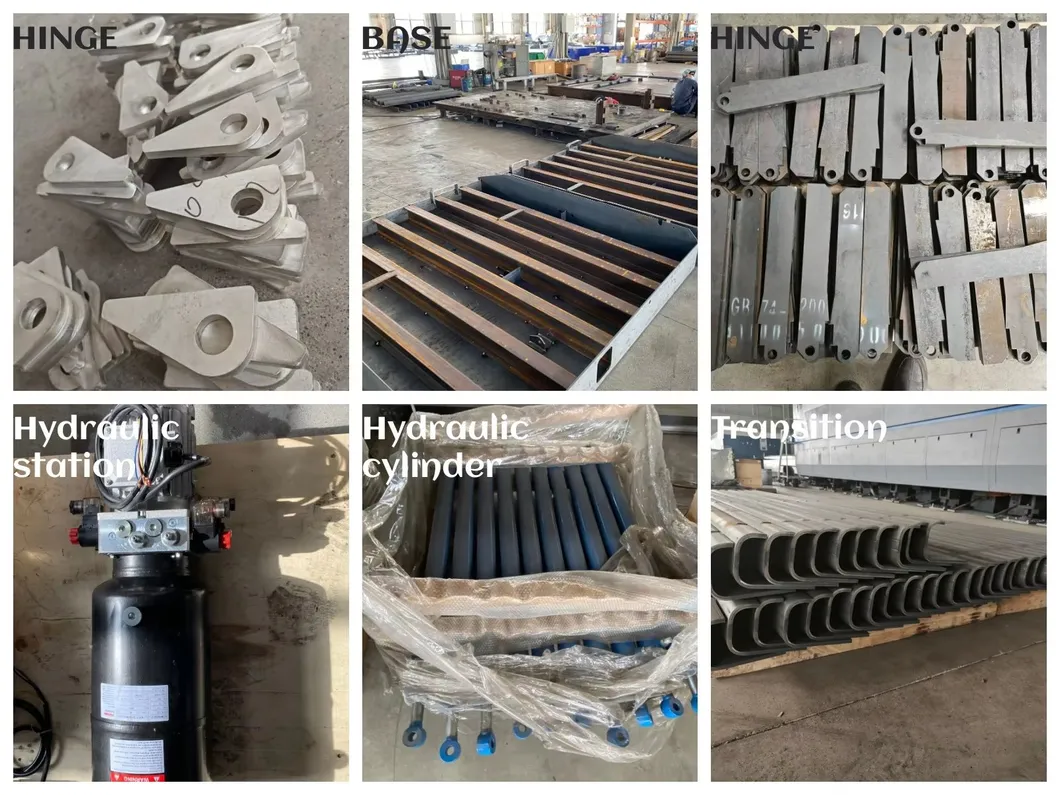

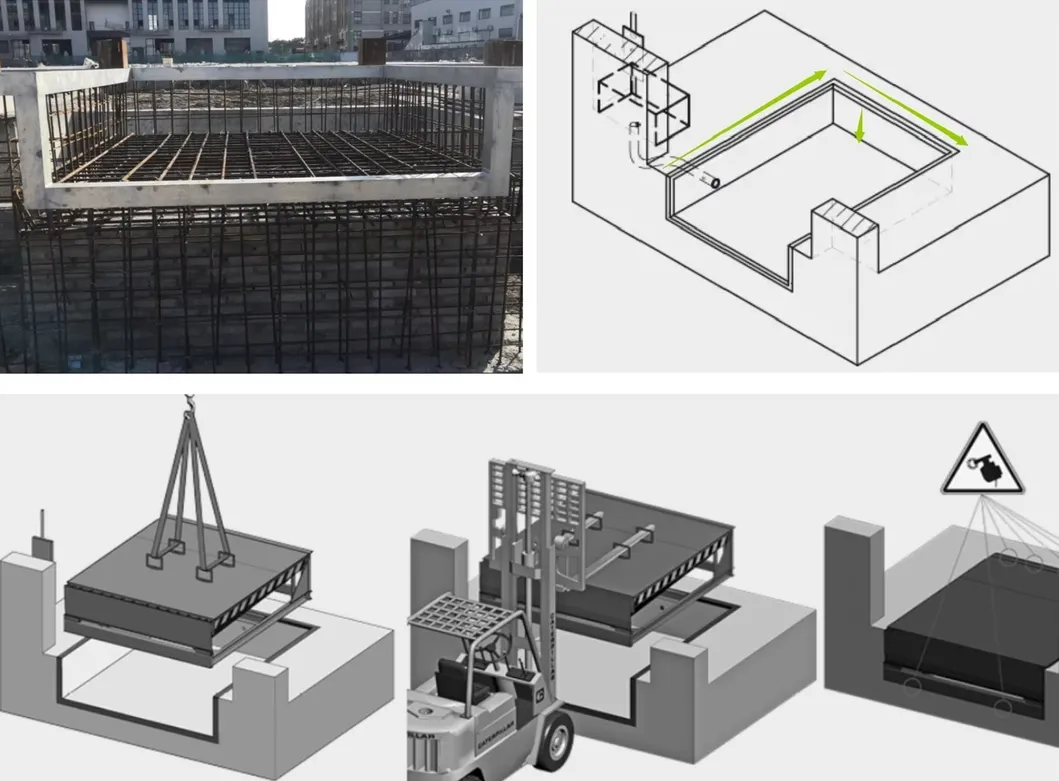

Detailed Photos & Installation

Frequently Asked Questions

Q1: Are you a professional manufacturer? A: Yes, we have been a dedicated manufacturer in this industry for over 20 years, serving customers globally with high-quality loading dock solutions.

Q2: What core products do you provide for logistics? A: Our main range includes hydraulic dock levelers, high-speed PVC doors, industrial folding doors, sectional garage doors, and various types of dock shelters.

Q3: Is customization available for specific site requirements? A: Absolutely. We provide full customization services for platform dimensions, load capacities, and specialized lifting heights as per your requirements.

Q4: Can I request a sample of the materials? A: Yes, we can provide material samples for your review to ensure the quality meets your project standards.

Q5: What is the typical lead time for an order? A: Typically, our production and delivery lead time is 15-20 days following the receipt of the initial deposit.

Q6: What are the standard payment terms? A: We generally accept TT payments, requiring a 30% deposit with the 70% balance settled against the Bill of Lading.
