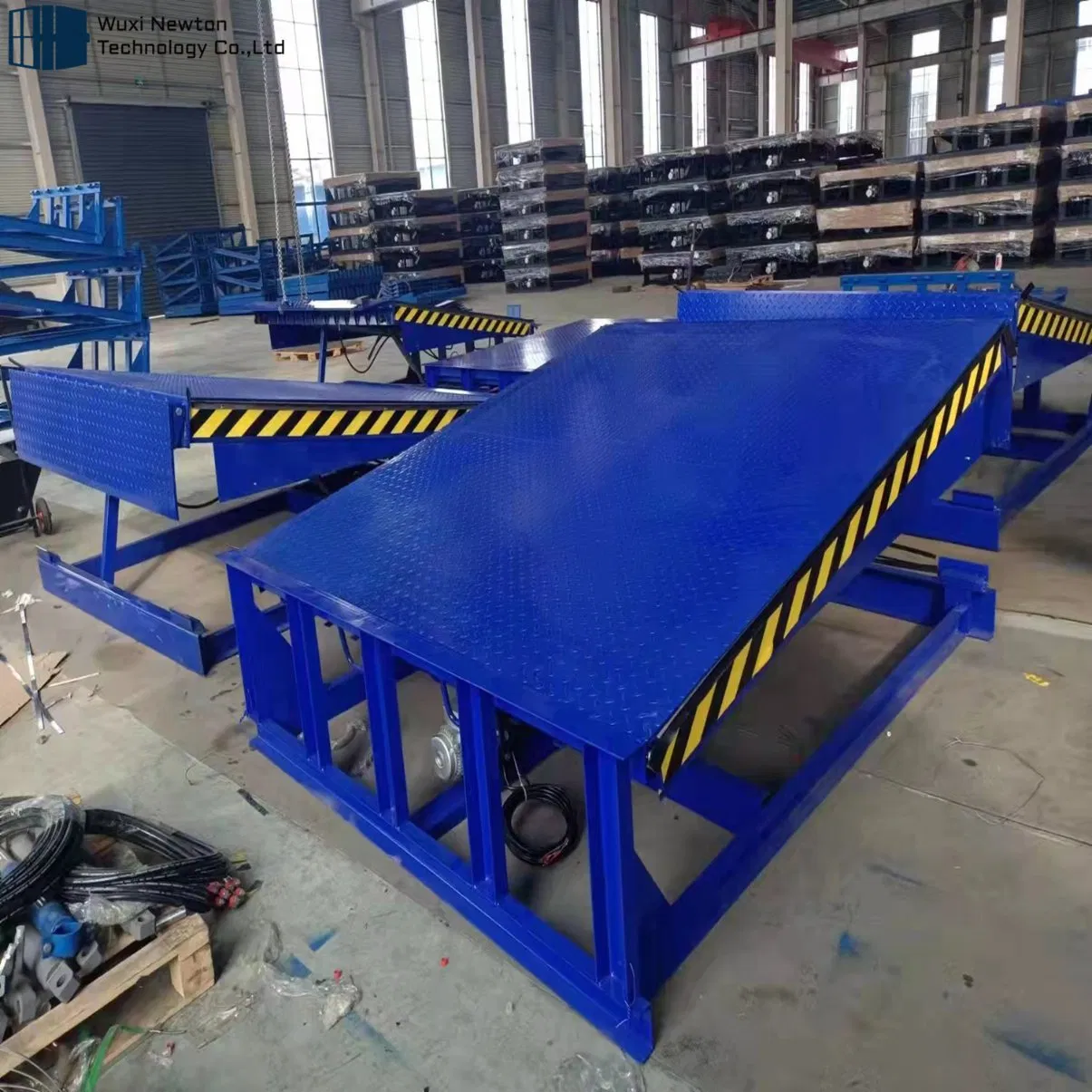

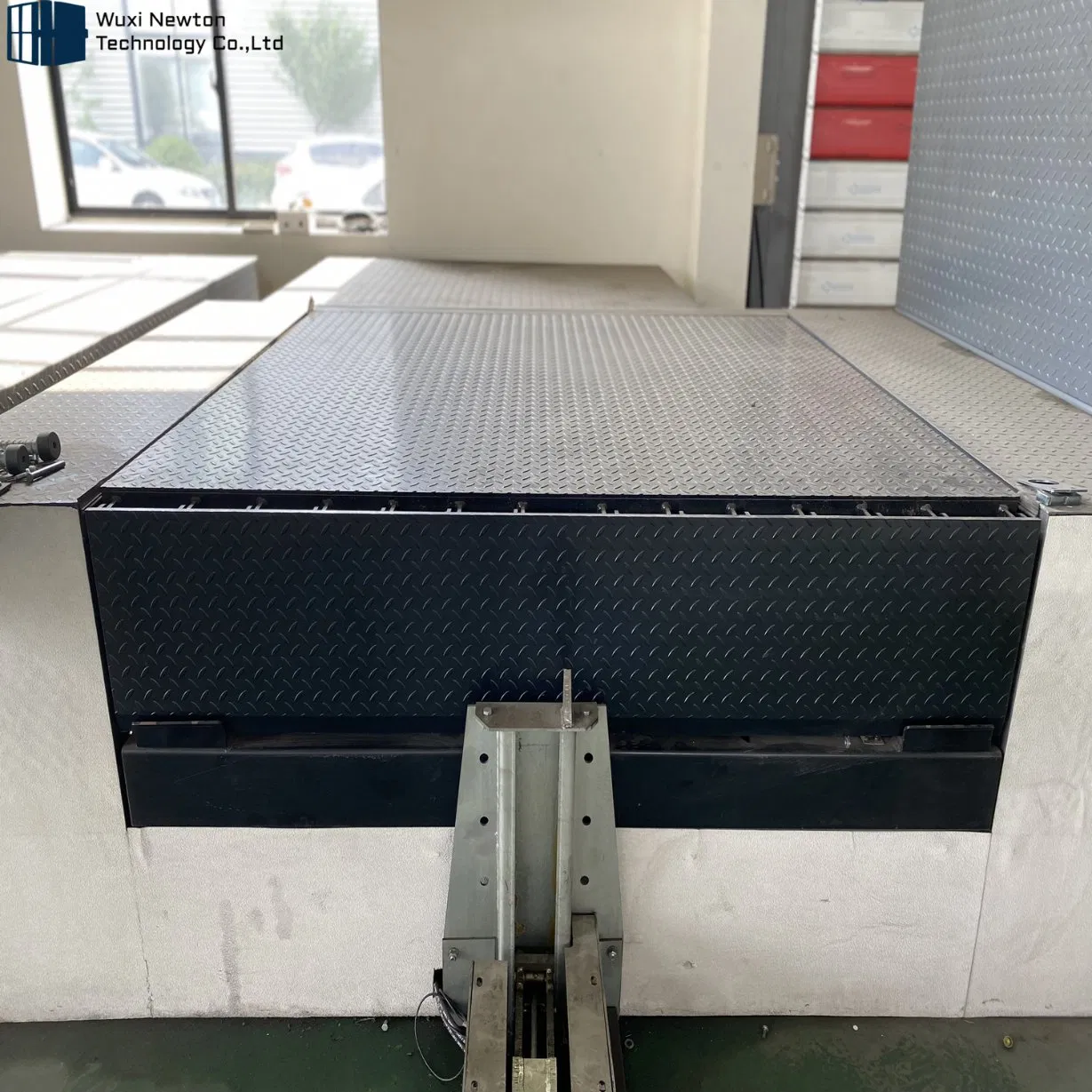

Factory Direct Loading Unloading Steel Dock Leveler for Unloading Goods

1 / 5

Factory Direct Loading Unloading Steel Dock Leveler for Unloading Goods

Customization:	Available
After-sales Service:	Available
Warranty:	5 Years

Send Inquiry

Product Description

Basic Information

Model NO.

NTDL

Application

Workshop, Shipboard, Warehouse, Building, Logistics

Lift Mechanism

Articulated Lift

Driven Type

Hydraulic

Feature

Explosion-Proof, Insulating

Loading Capacity

10000kg

Upper Plate

8mm Thickness Steel

Swinging Lip

16mm Thickness Steel

Safety System

Self-Locking, Lip Emergency Stop

Working Range

-300 to +350mm

Supply Voltage

380V/50Hz

Motor Power

0.75kw

Product Parameters

Specification	Details

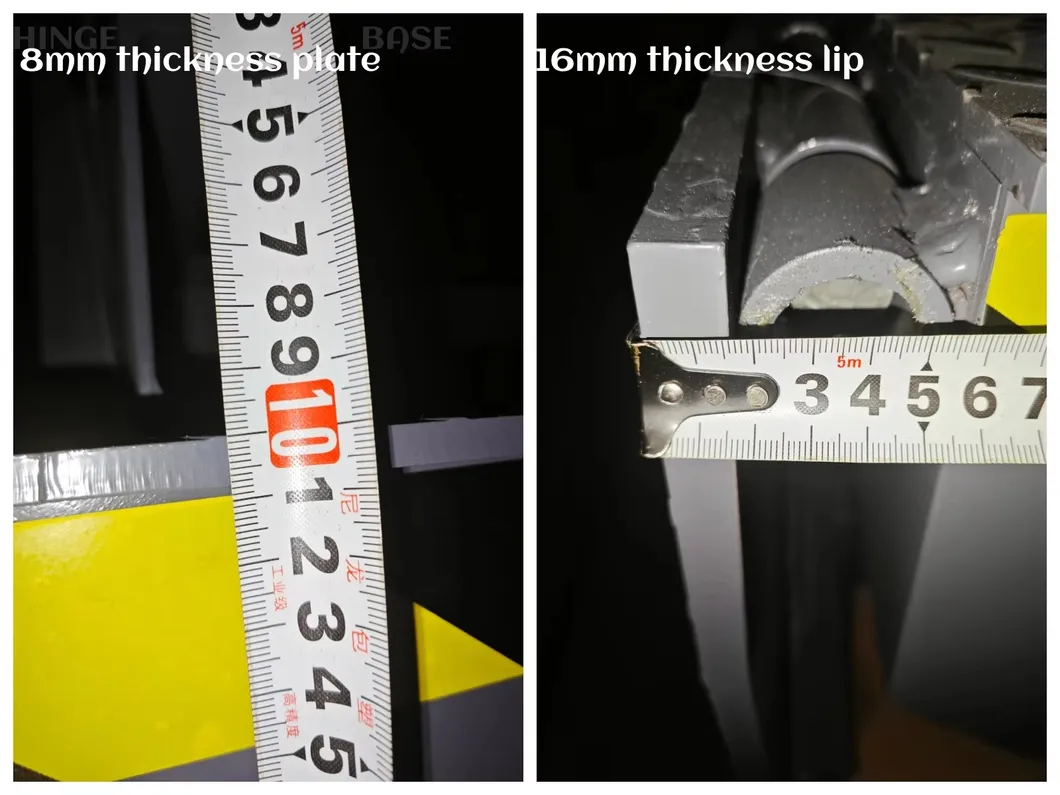

Upper Plate	8 mm thickness, anti-skate steel plate
Swinging Lip	Single 16 mm thickness, 400mm length
Adjustment Time	Rise Time ≤16S, Fall time ≤10S
Working Range	+300mm/260~300mm
Power	380V / 220V
Electric Control Box	24V weak current control
Anticollision Block	Laminated belt stamping combined
Service Life	≥200,000 times
Operating Temp	-25ºC ~ +50ºC
Noise Level	<50db (±5db)

Product Description

In the field of logistics, our dock leveler realizes a fast and safe loading and unloading process. It balances the height difference between the platform ground and the dock of different transport vehicles. Whether it is a flatbed truck or a container truck, the dock leveler meets all requirements. The sturdy steel structure design and high-quality materials provide a reliable choice for all loading and unloading yards.

"We can customize according to your needs, including platform size, load capacity, and lifting height."

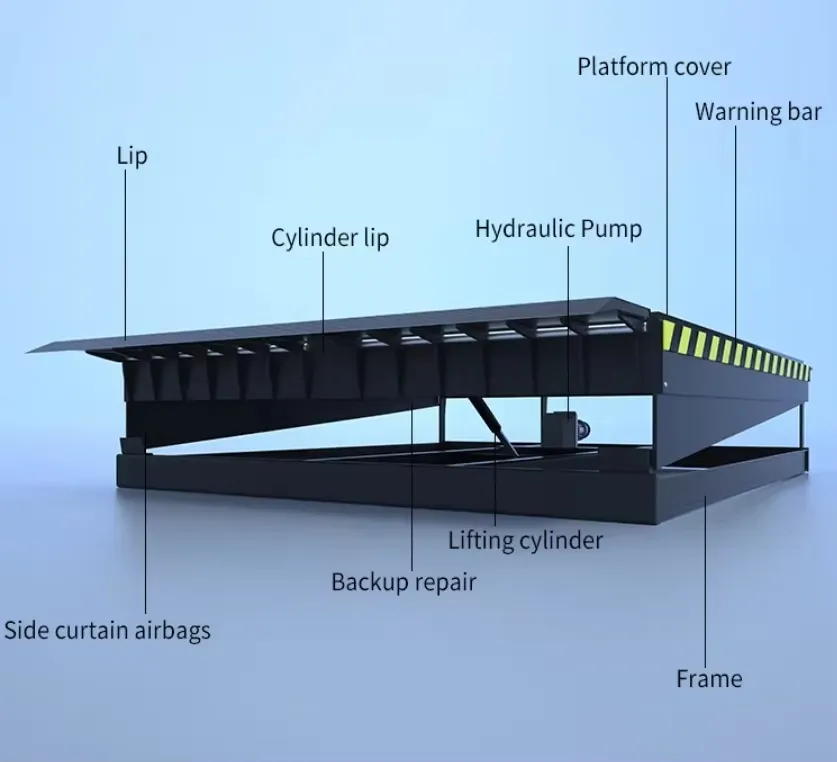

Core Types & Features

💧

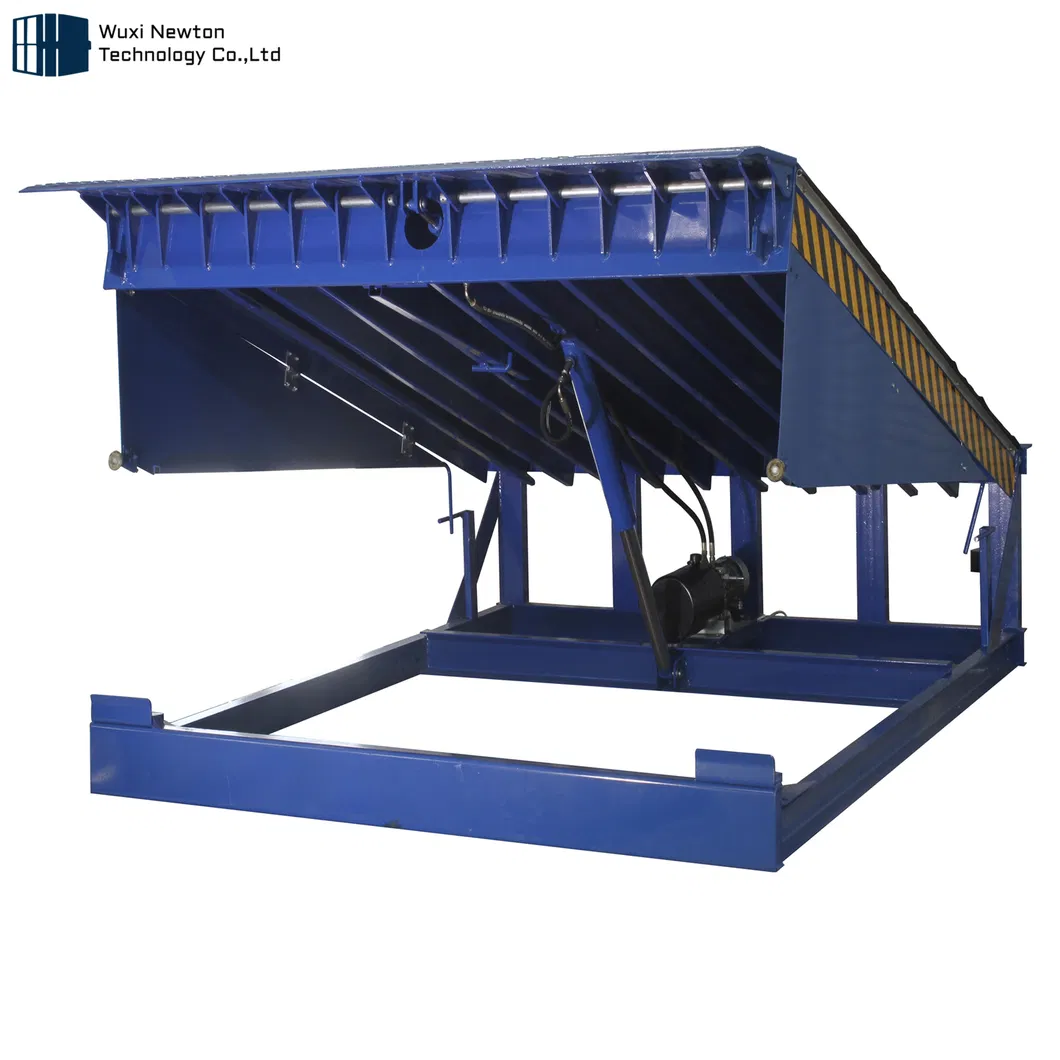

Hydraulic Dock Leveler

Utilizes push-button activation; the safest and most reliable type of loading dock leveler.

🔭

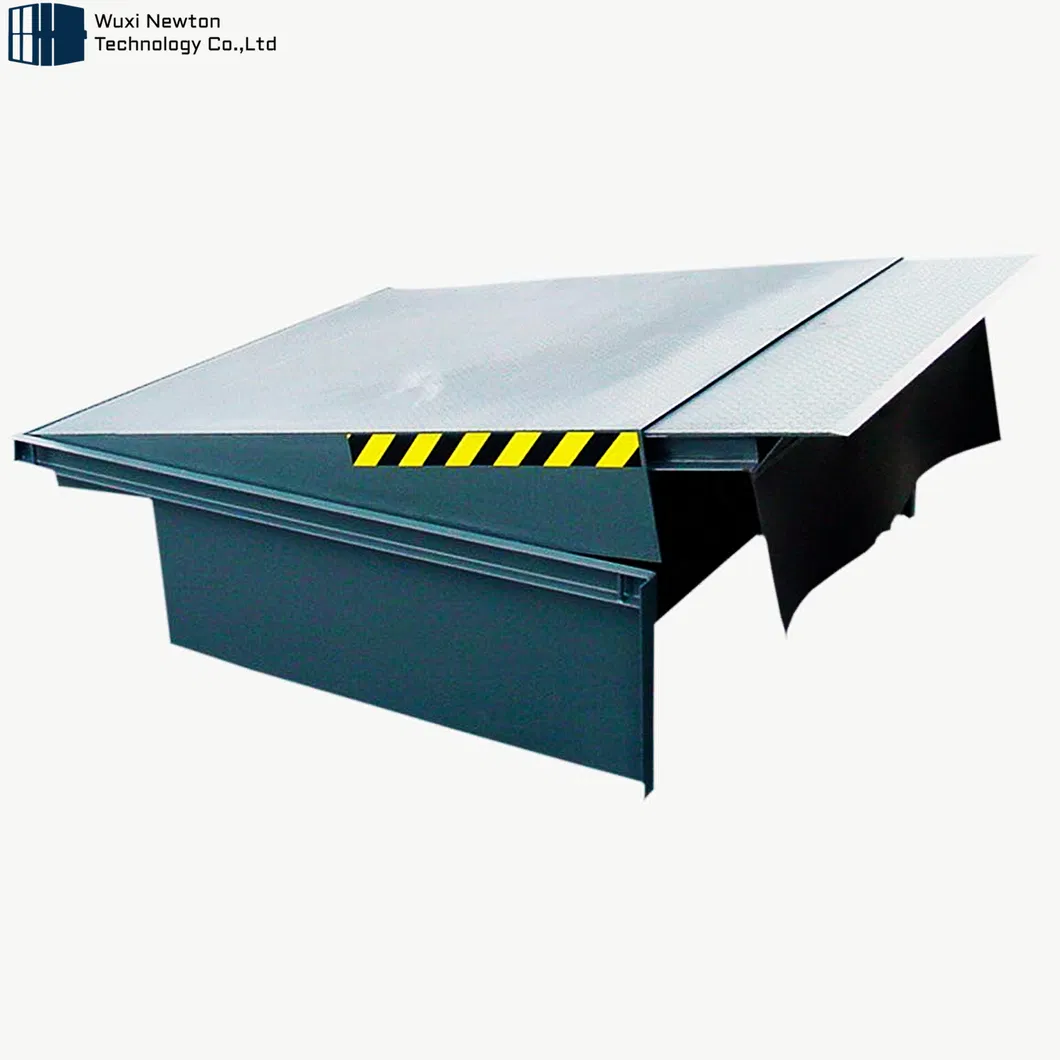

Telescopic Dock Leveler

Features a telescopic lip (1000mm) to adapt to all loading situations including end loads.

↕️

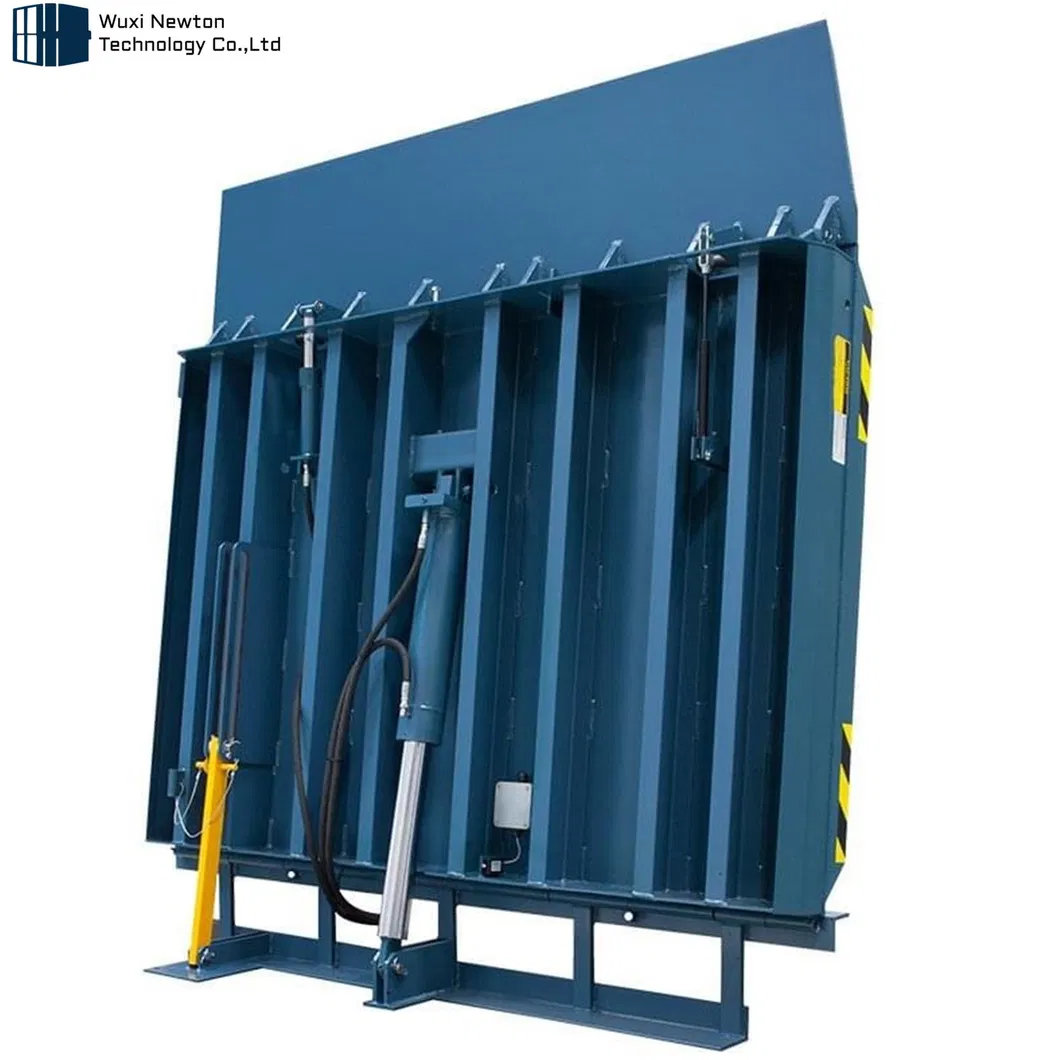

Vertical Dock Leveler

Designed for enhanced pedestrian safety, sanitation, and environmental control.

Technical Specification

Length (mm)	2000	2500	3000	3500	4000	4500
Width (mm)	-	1800	2000	2200	-	-
Upward (mm)	240	304	365	425	485	550
Downward (mm)	300	300	300	300	350	350

Performance Data

Maximum Bearing Weight	6000kg (60KN) / 10000kg (10KN)
Hydraulic Cylinder Power	1.1KW
Control Unit Protective Level	IP54
Spraying Thickness	60~90 um
Working Temperature	-30 up to +50 degrees

Product Display

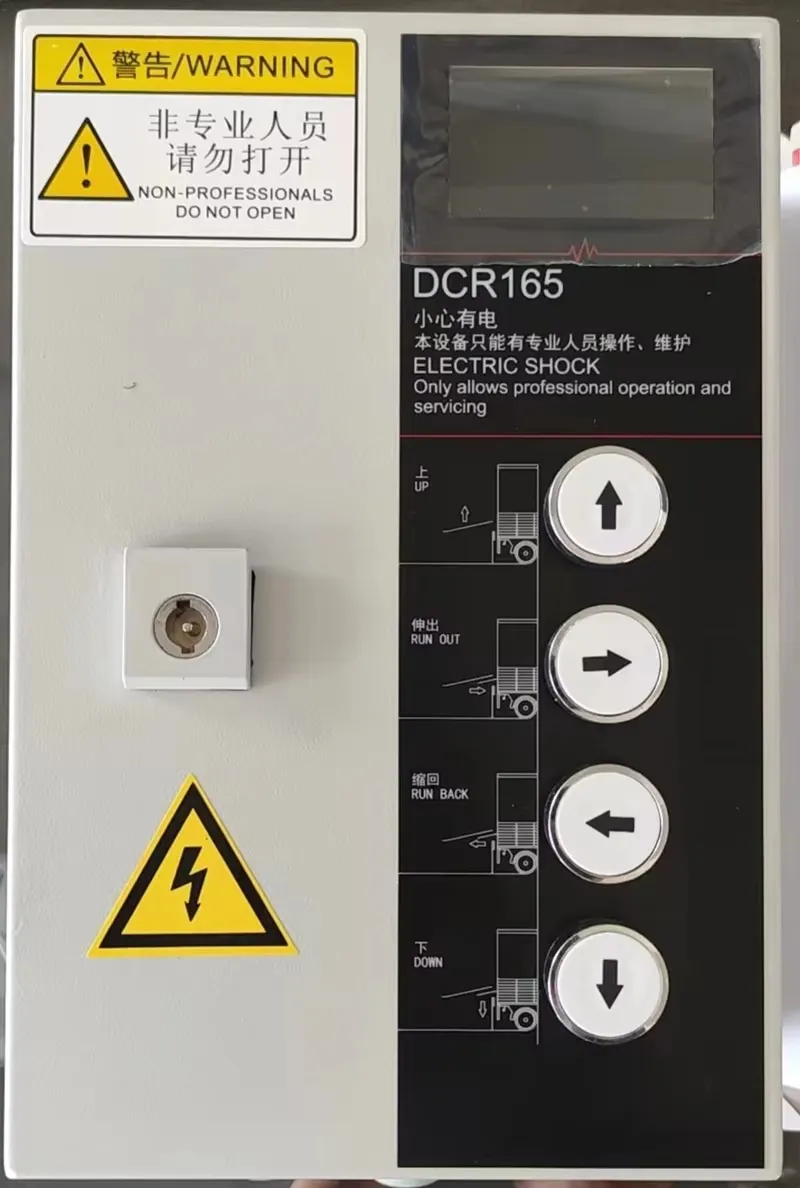

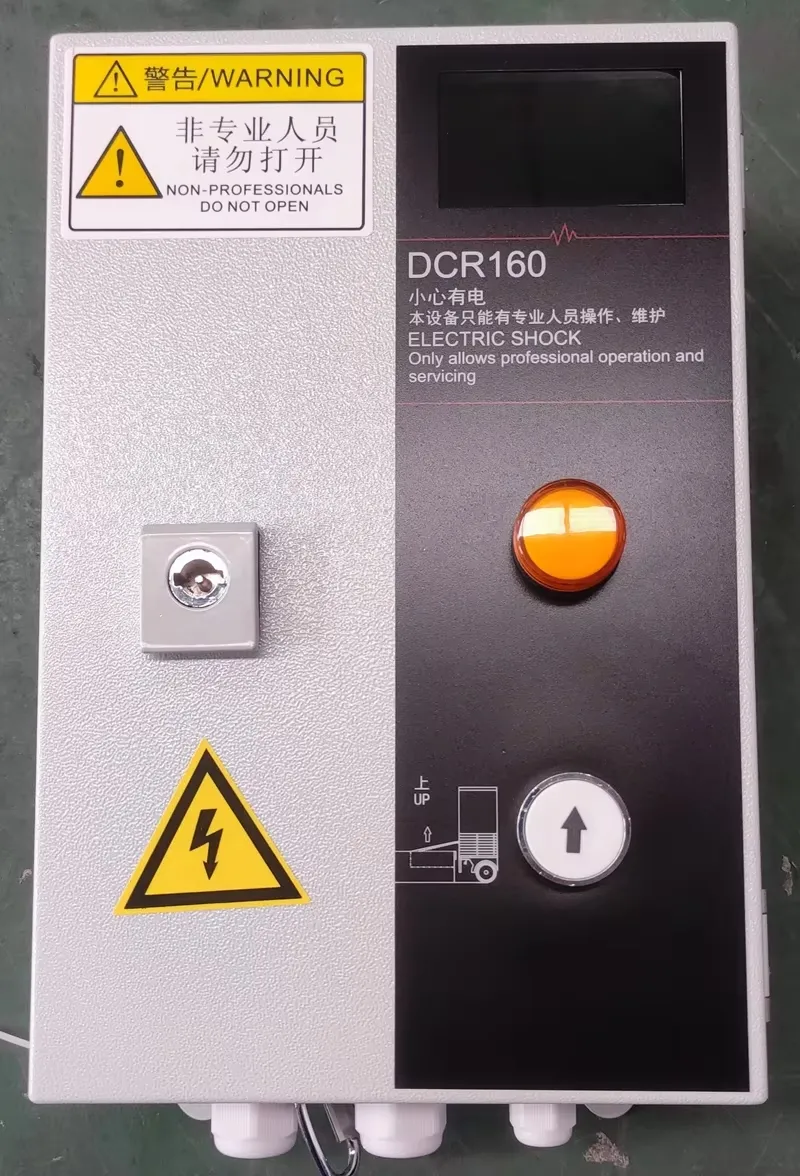

Control System

Hydraulic Controller
220V/380V | IP55

Telescopic Controller
220V/380V | IP55

Equipped with emergency stop buttons for maximum operation security.

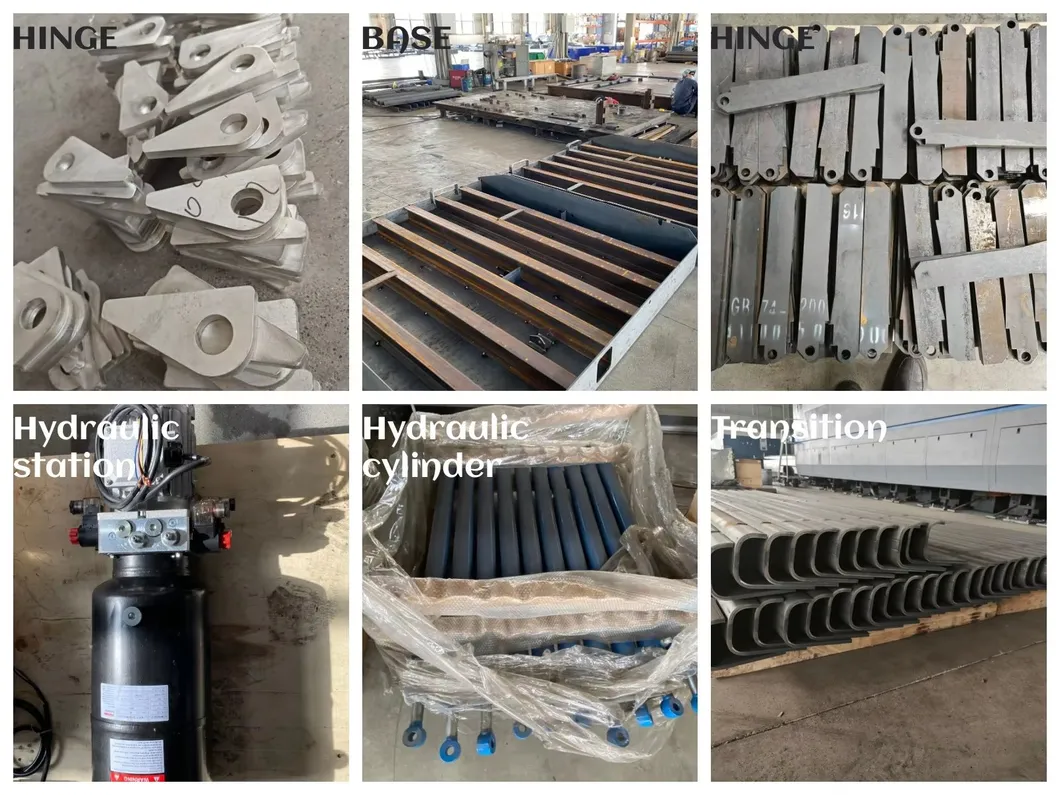

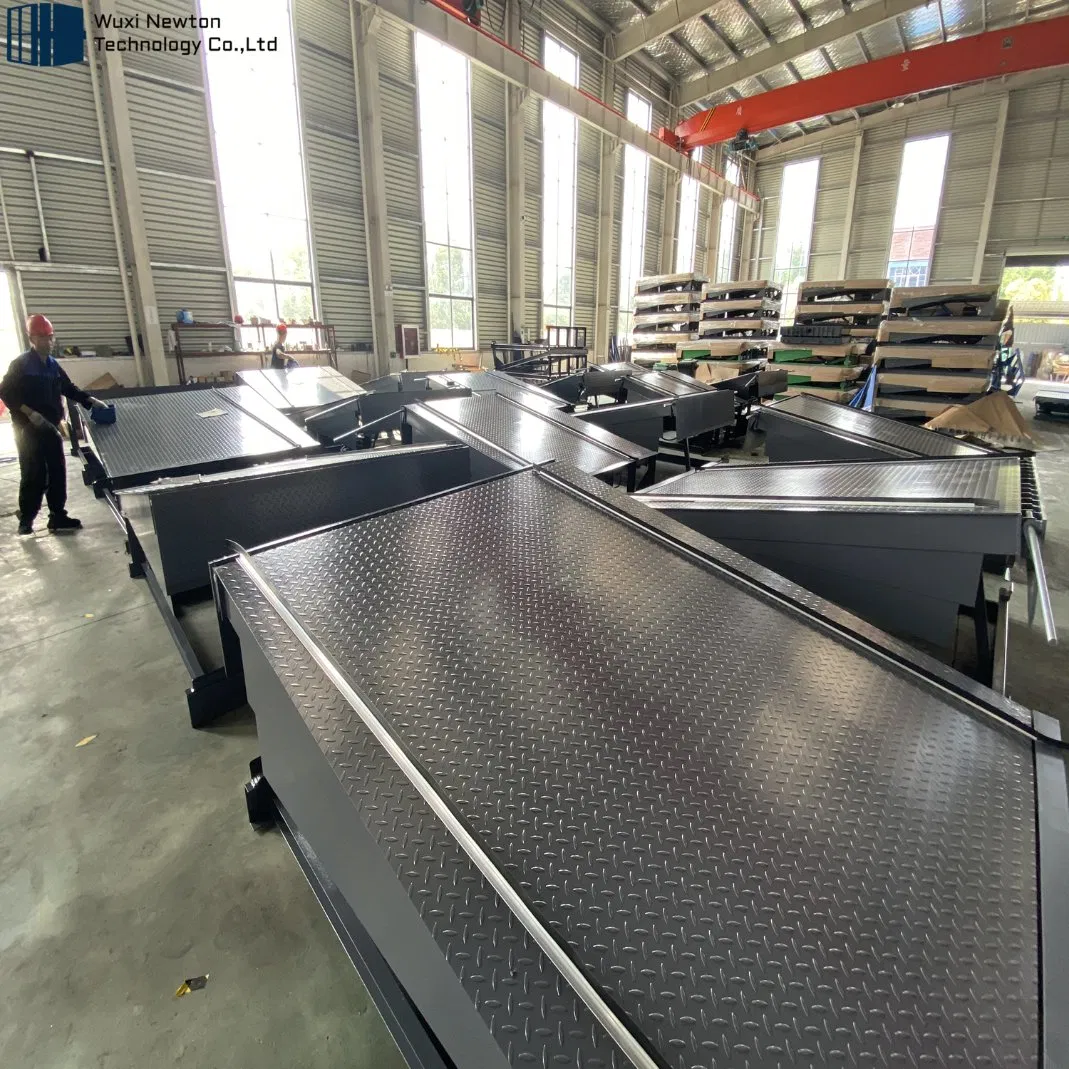

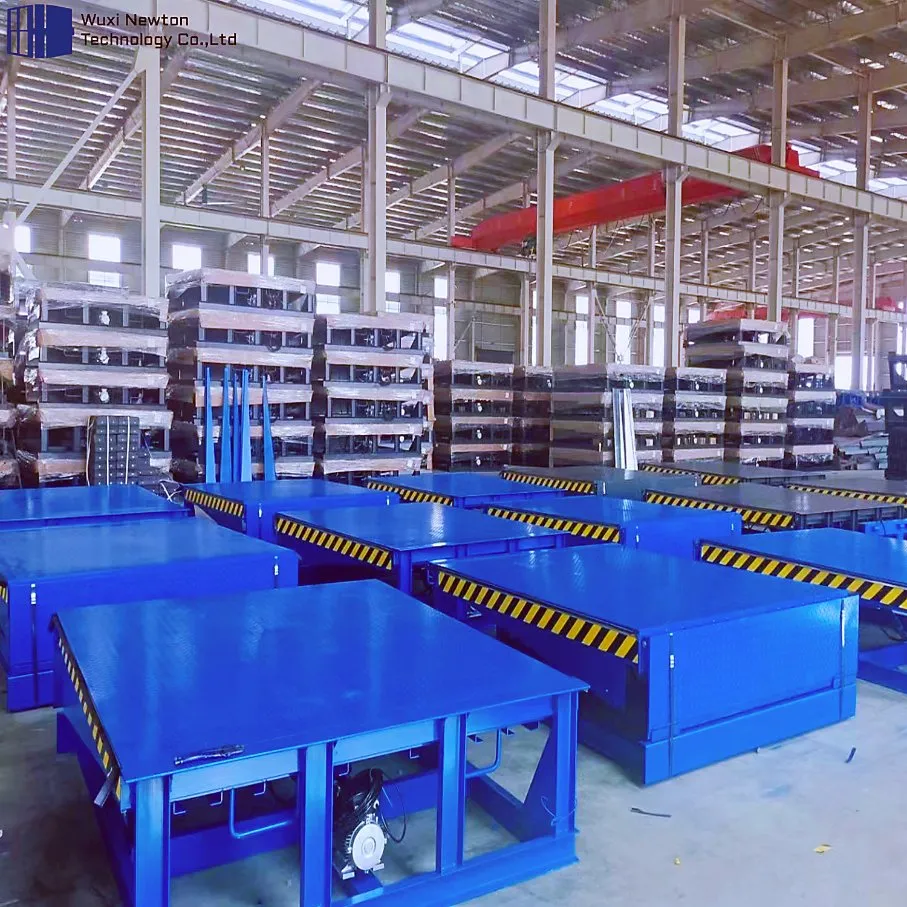

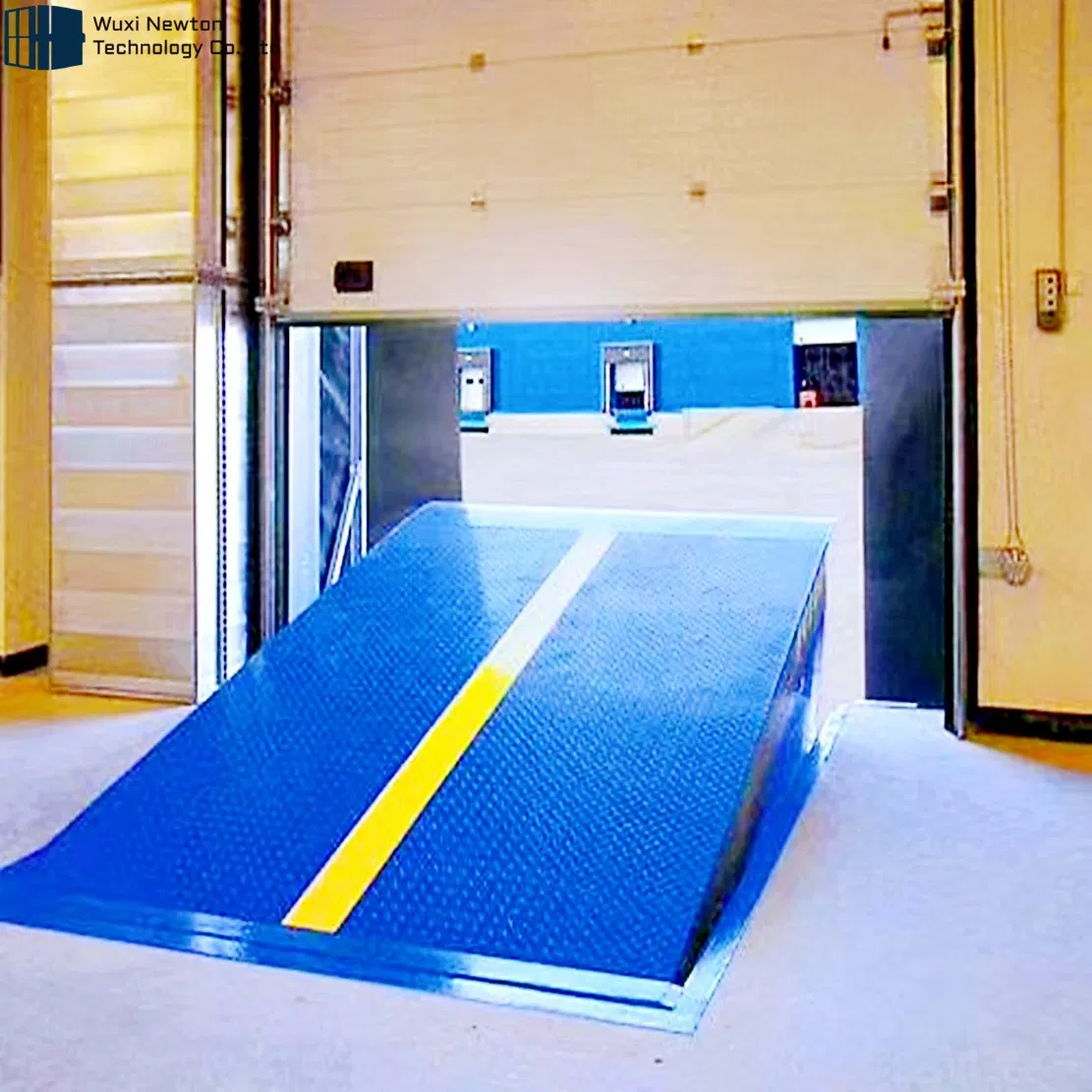

Detailed Photos

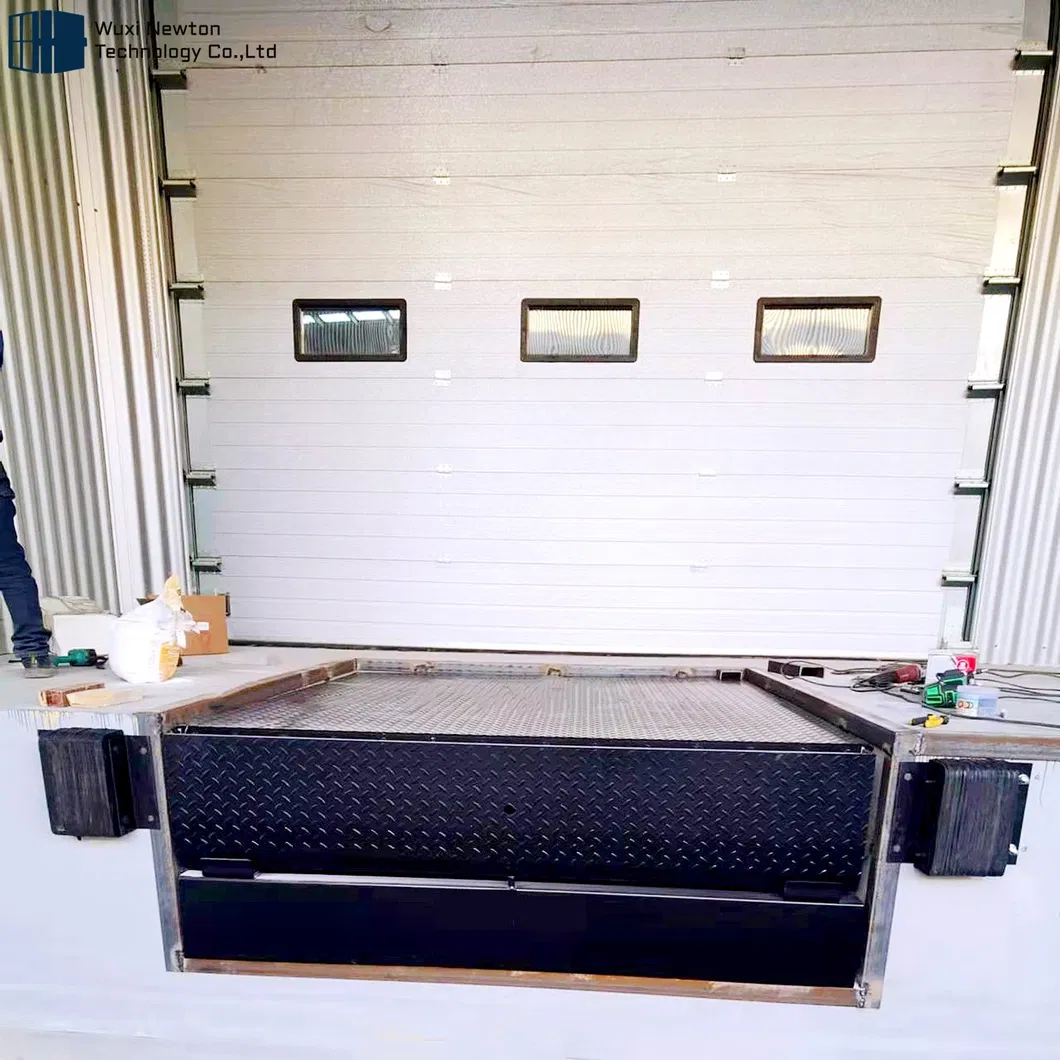

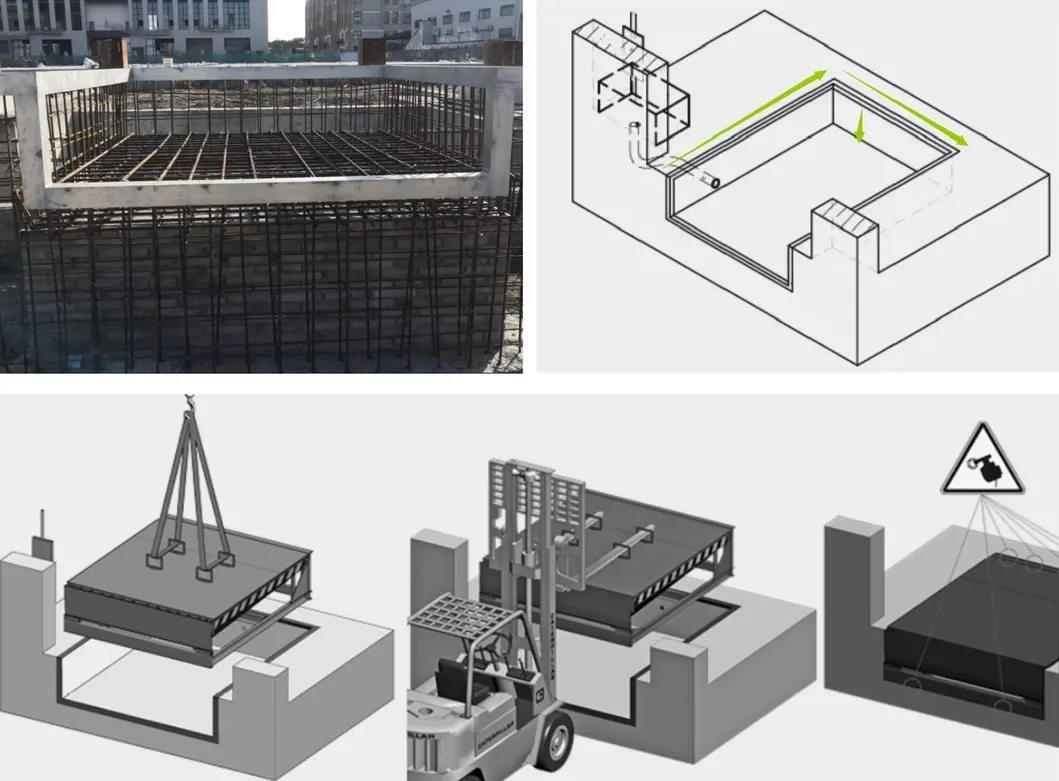

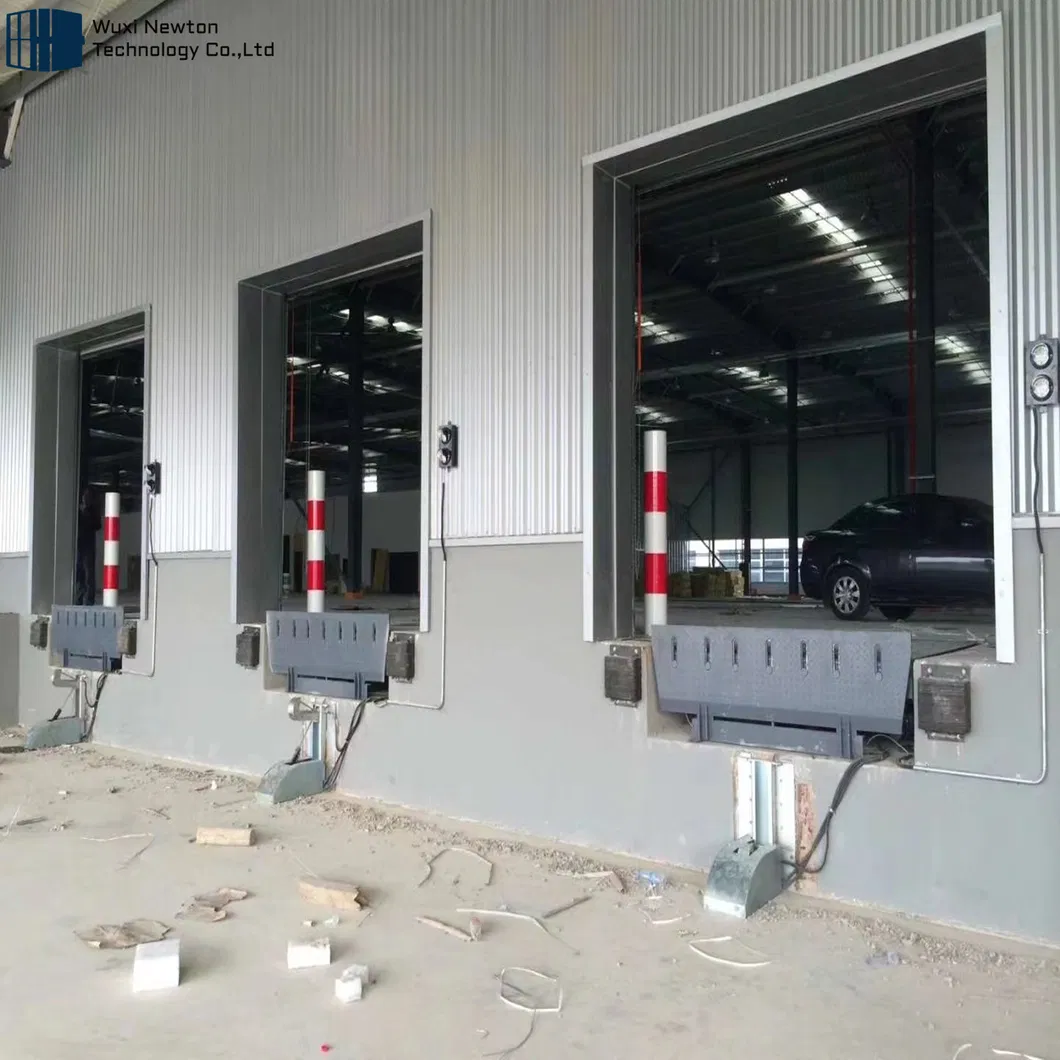

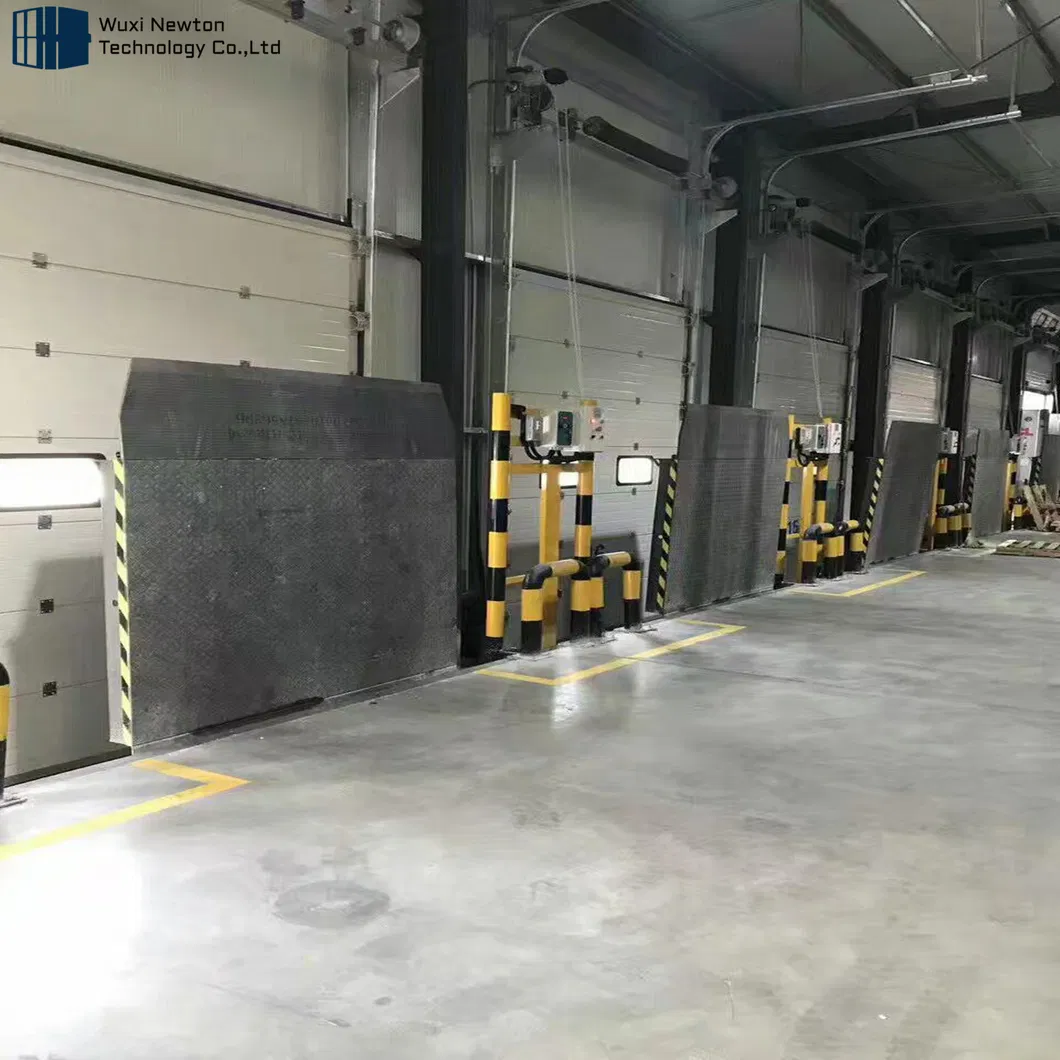

Installation Instructions

Frequently Asked Questions

Are you a manufacturer for these dock levelers?

Yes, we have been a manufacturer in this industry for more than 20 years, cooperating with customers globally to provide high-quality loading dock solutions.

What are the main products available?

Our range includes industrial folding doors, sectional garage doors, high-speed PVC doors, hydraulic dock levelers, and various types of dock shelters.

Is customization available for specific site requirements?

Yes, we provide full customization services according to your specific requirements for size, load capacity, and lifting height.

Can I request a sample of the product?

Yes, we can provide samples for quality verification. Please note that shipping costs are typically handled by the customer's side.

What is the standard lead time for orders?

Normally, our lead time is 15-20 days upon receiving the deposit, depending on the order volume and customization details.

What are the accepted payment terms?

We accept TT payments, typically with a 30% deposit and the remaining 70% balance paid against the Bill of Loading.
