| Model | NTDL |
|---|---|
| Application | Workshop, Shipboard, Warehouse, Building, Logistics |
| Lift Mechanism | Articulated Lift |
| Driven Type | Hydraulic |
| Certification | ISO 9001 |
| Loading Capacity | 10,000kg |

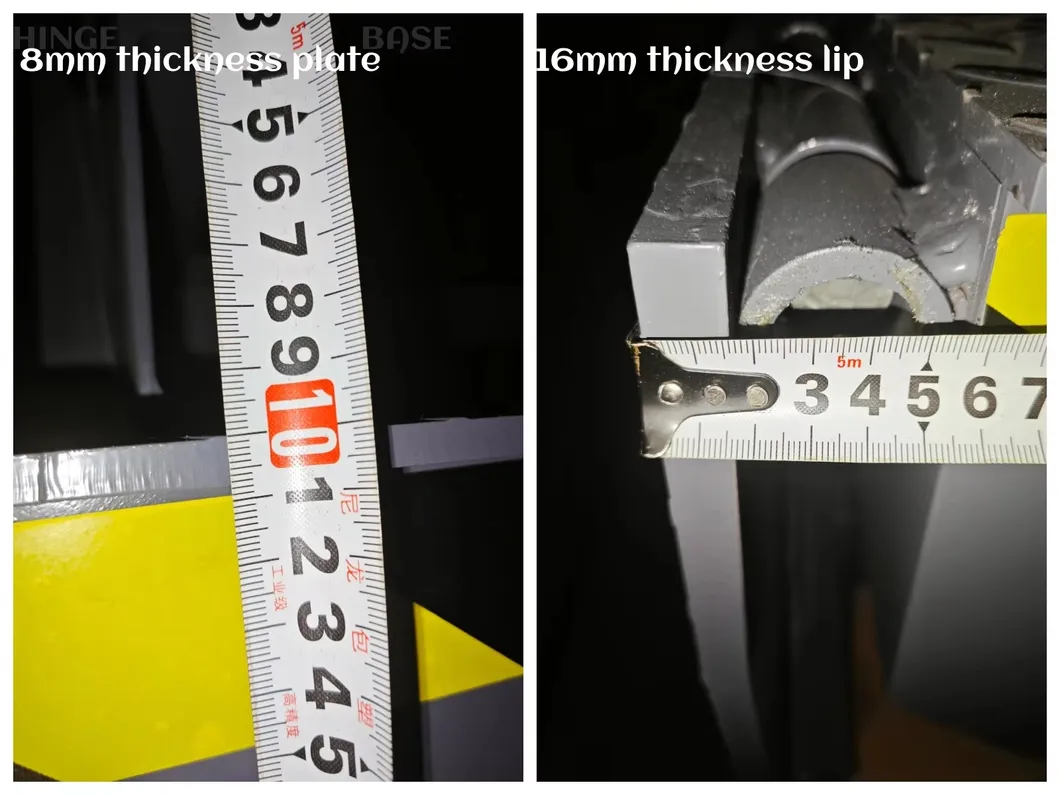

| Upper Plate | 8mm Thickness Anti-skid Steel |
| Swinging Lip | Single 16mm Thickness Steel |
| Safety System | Self-Locking, Lip Emergency Stop |
| Working Range | -300 to +350mm |
| Power | 380V/50Hz, 0.75kw - 1.1kw |

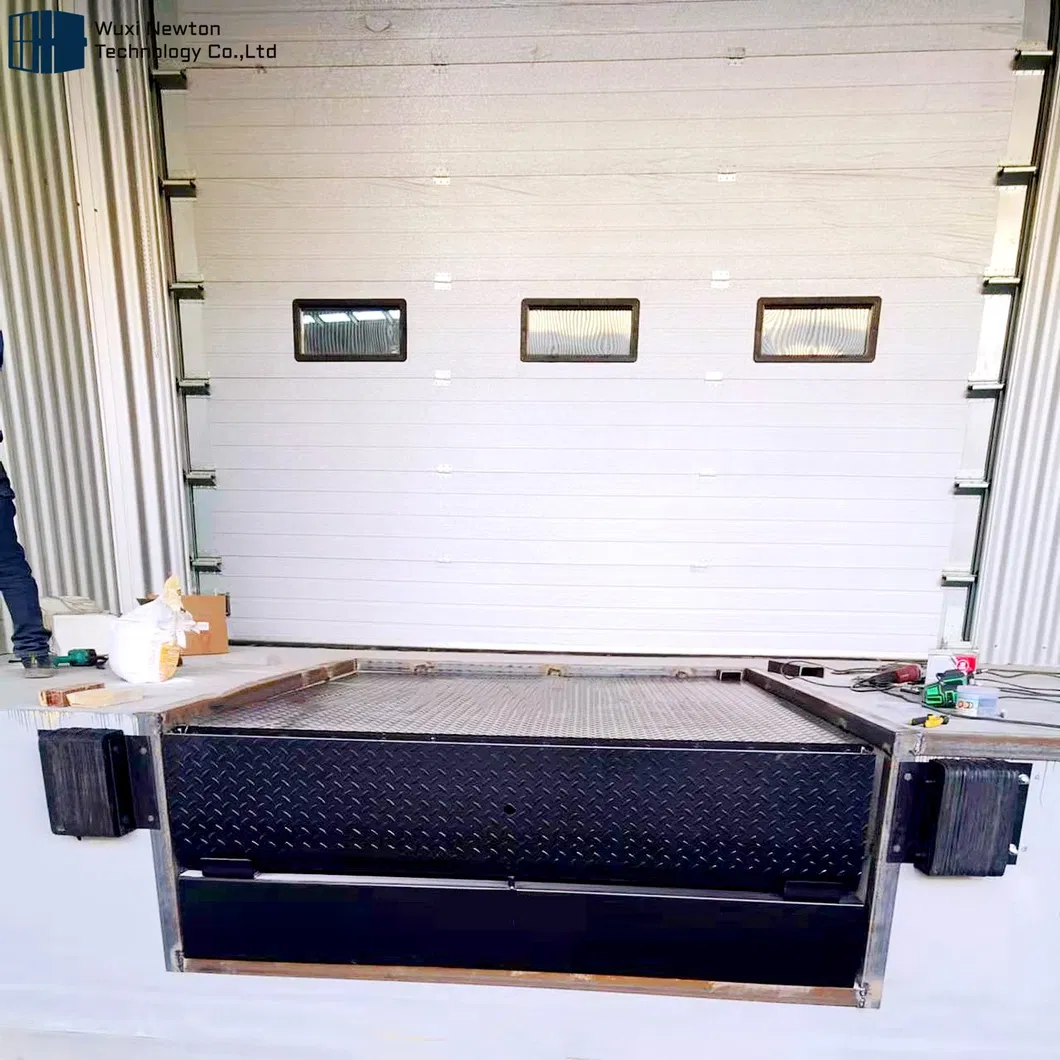

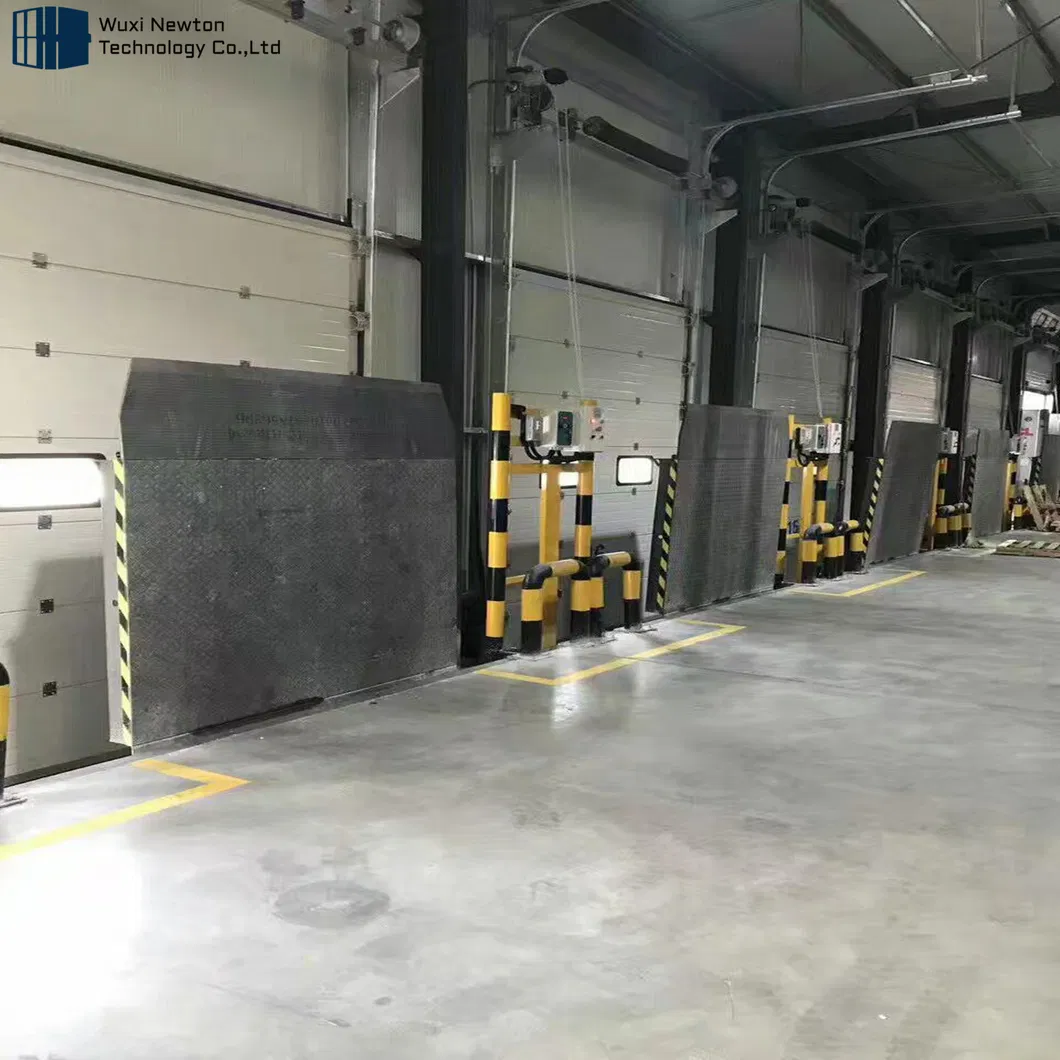

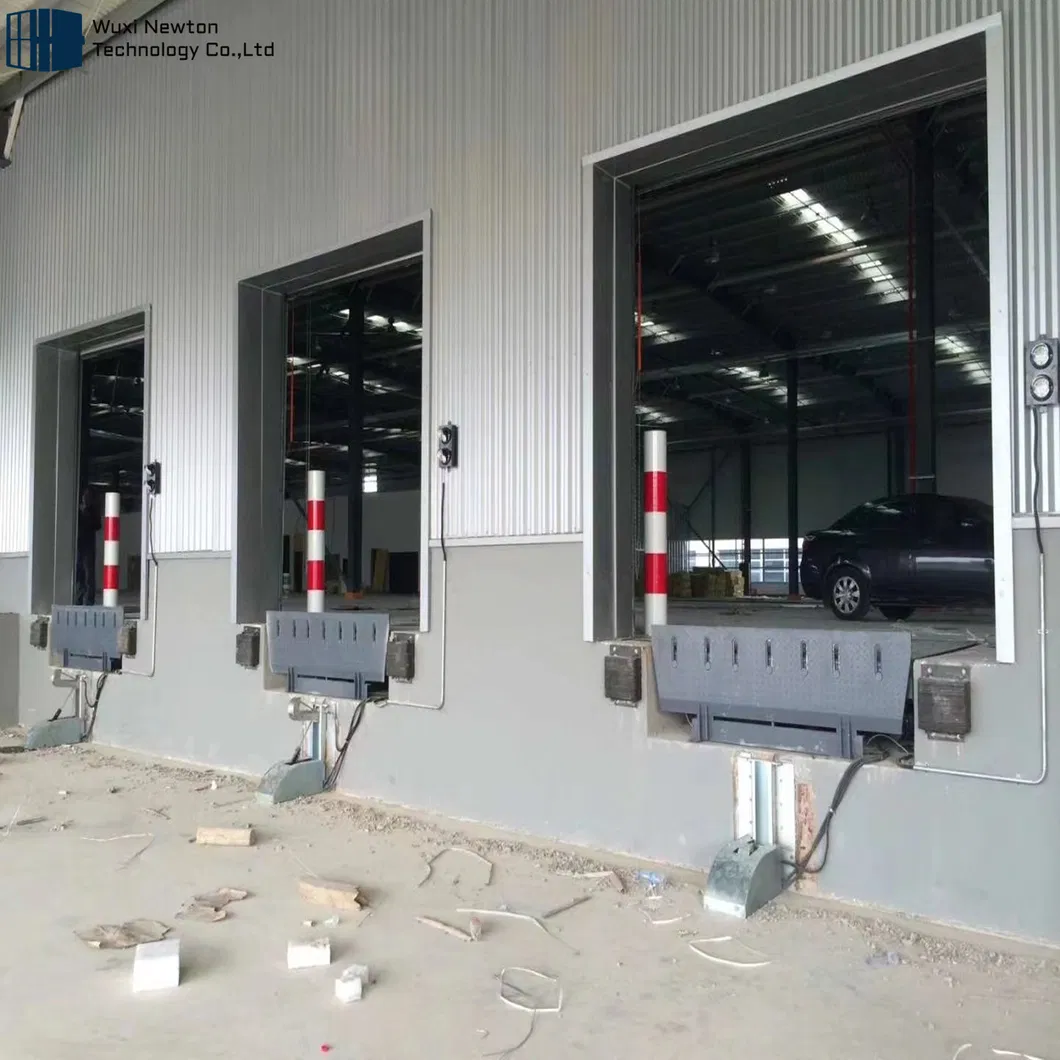

In the field of logistics, our dock leveler realizes fast and safe loading and unloading processes. It effectively balances the height difference between the platform ground and various transport vehicles. Whether it is a flatbed truck or a container truck, the sturdy steel structure and high-quality materials provide a reliable choice for all loading and unloading yards.
| Adjustment Time | Rise Time ≤16S, Fall time ≤10S |
|---|---|
| Service Life | ≥ 200,000 times |
| Operating Temp | -25ºC to +50ºC |
| Noise Level | < 50db (±5db) |

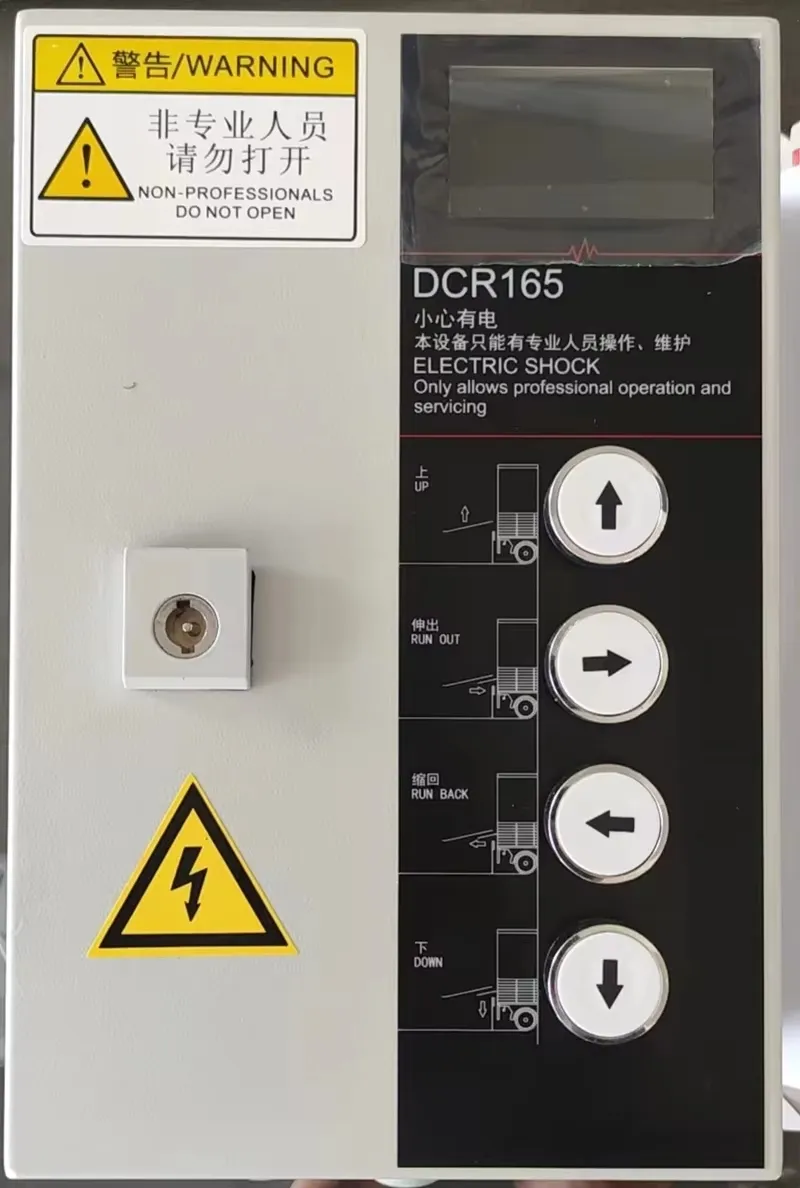

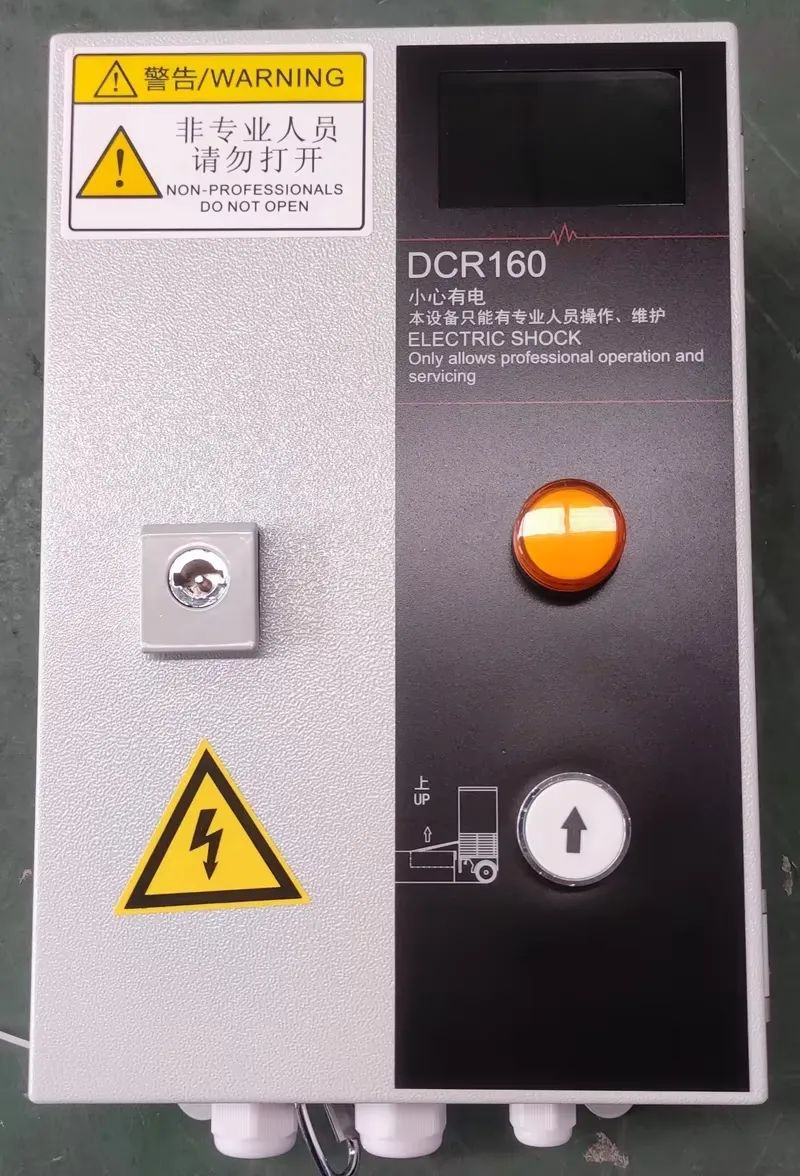

| Control Box | 24V weak current control |
| Anti-collision | Laminated belt stamping combined |
Utilizes push-button activation and is the safest, strongest, and most reliable type of loading dock leveler.

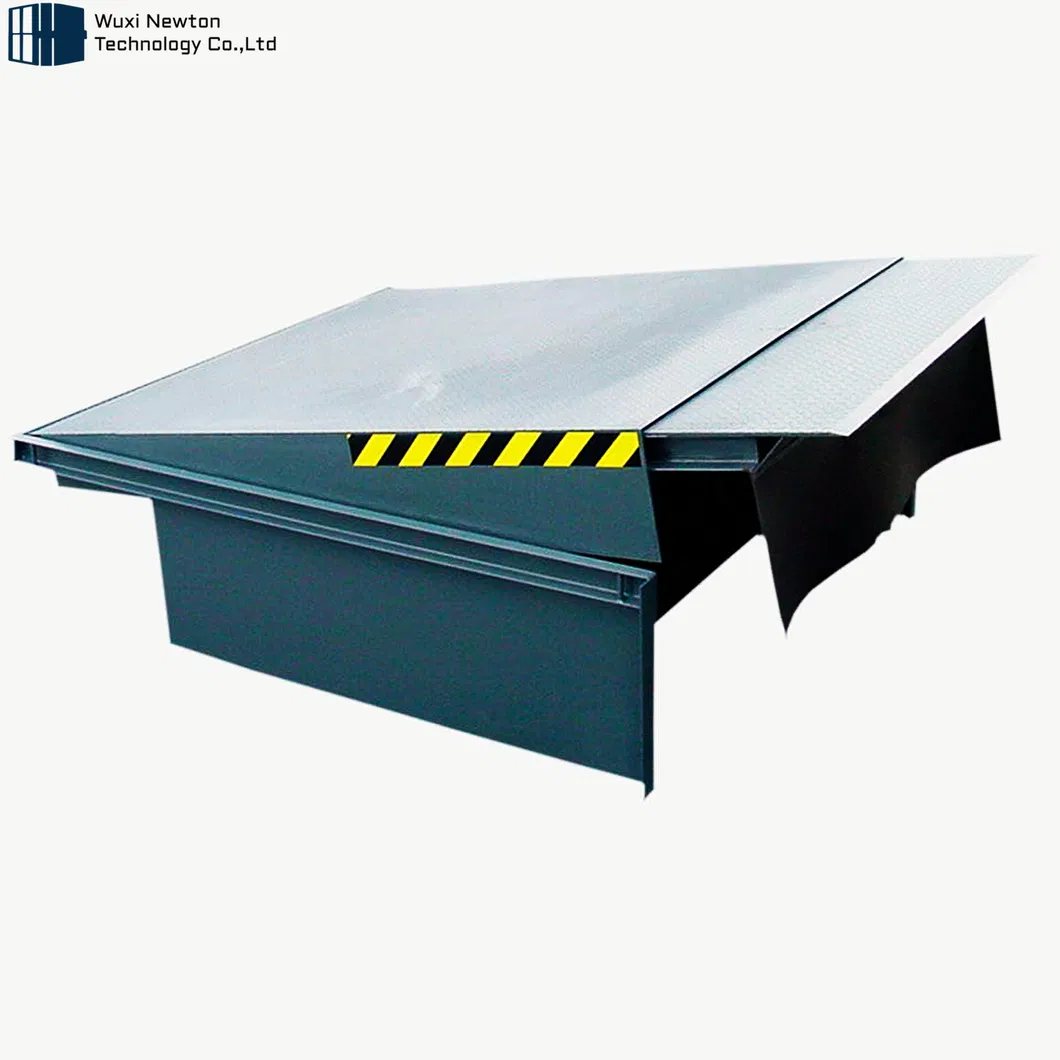

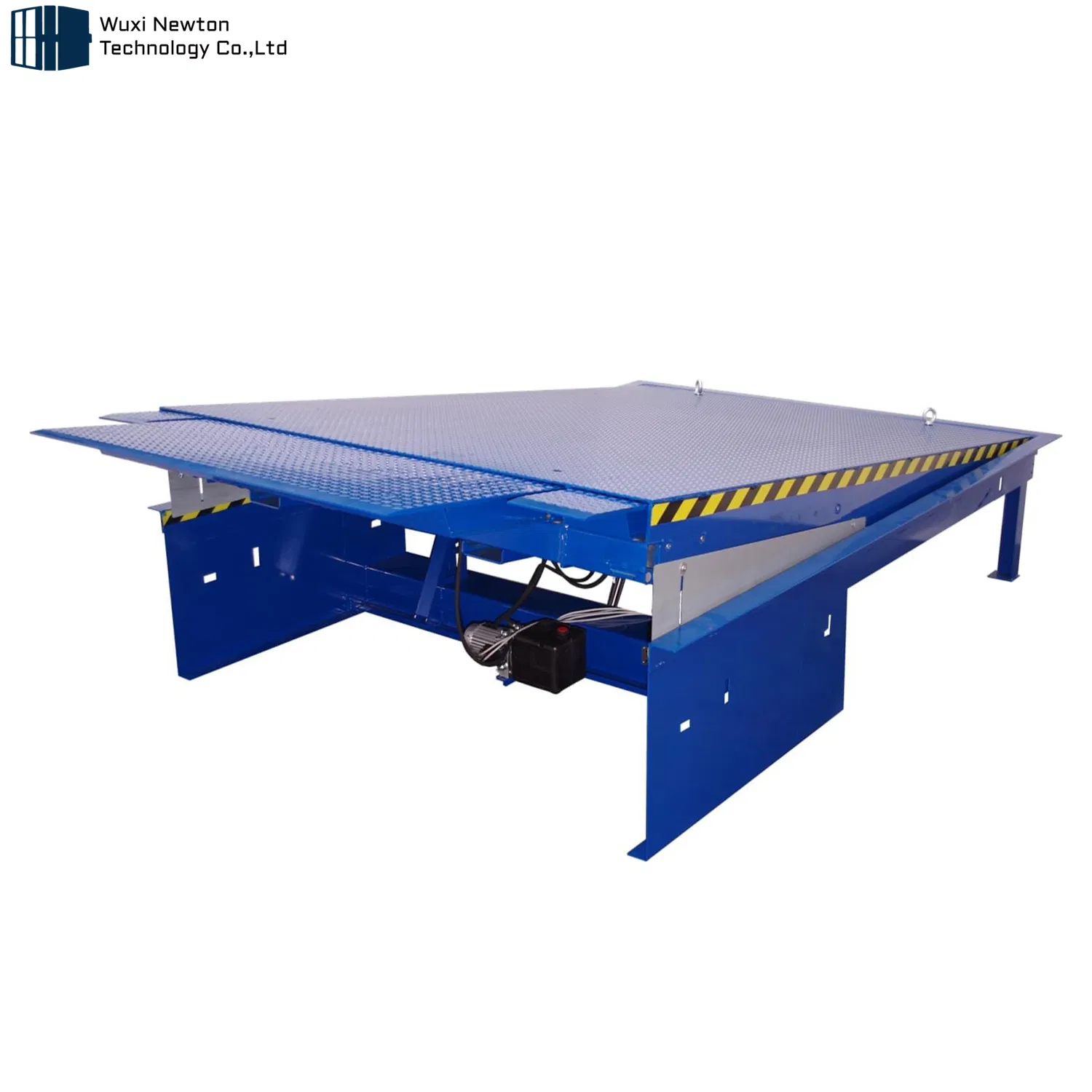

Features a telescopic lip (1000mm) allowing adaptation to all loading situations, including end loads.
Designed for enhanced pedestrian safety, sanitation, and superior environmental control.
Options include 220V/380V power supply, emergency stop buttons, and IP55 protection rating for industrial environments.
