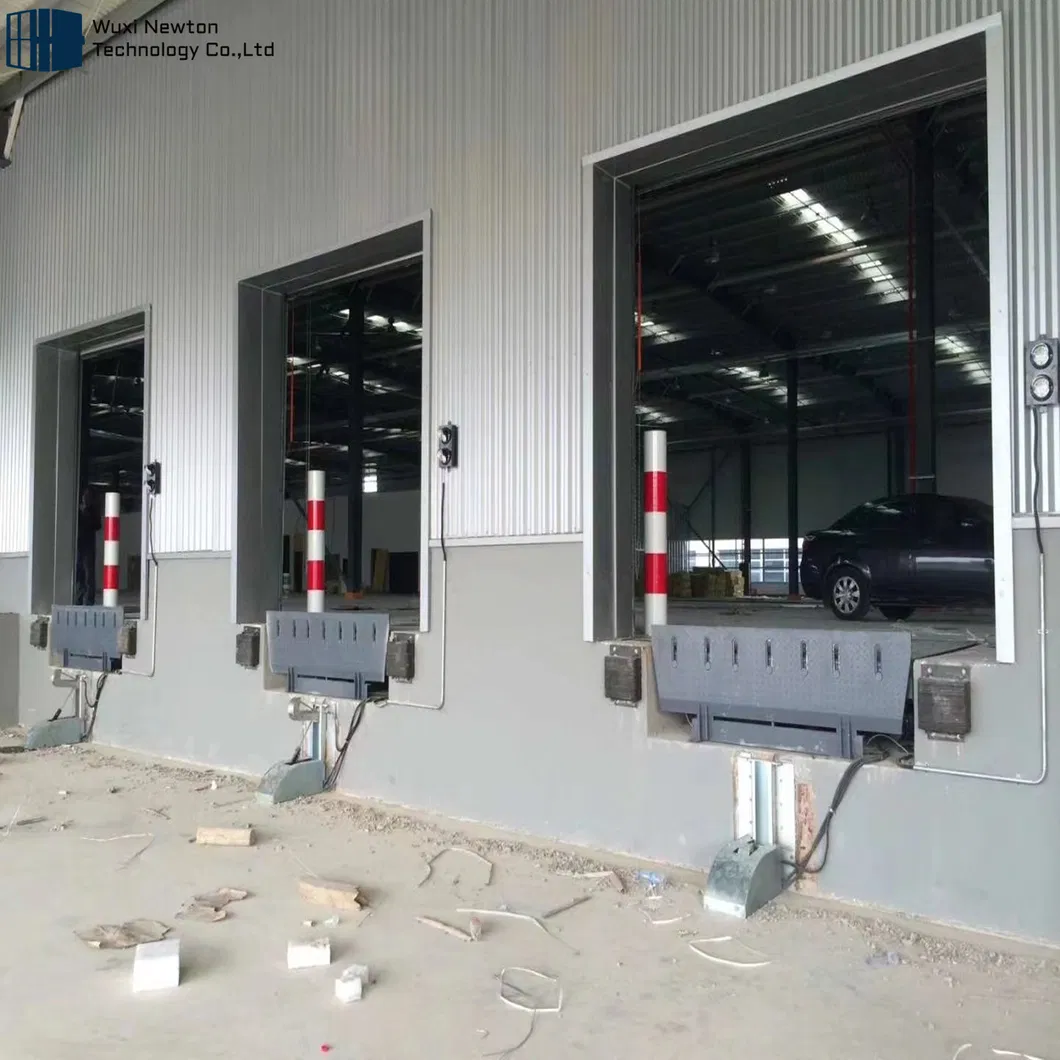

In the field of logistics, our dock leveler can realize fast and safe loading and unloading process. The dock leveler can balance the height difference between the platform ground and the dock of different transport vehicles. Whether it is a flatbed truck or a container truck, the dock leveler can meet the requirements. The sturdy steel structure design and high-quality materials provide a reliable choice for all loading and unloading yards.
We can customize according to your needs, such as platform size, load capacity, and lifting height.
After the transport vehicle approaches, the platform door opens. Keep pressing the control button, the platform rises to the highest position, the lip plate automatically opens. Release the control button, the platform falls until the lip plate overlaps with the transport vehicle compartment plate. After loading and unloading, keep pressing the control button to reset the platform.

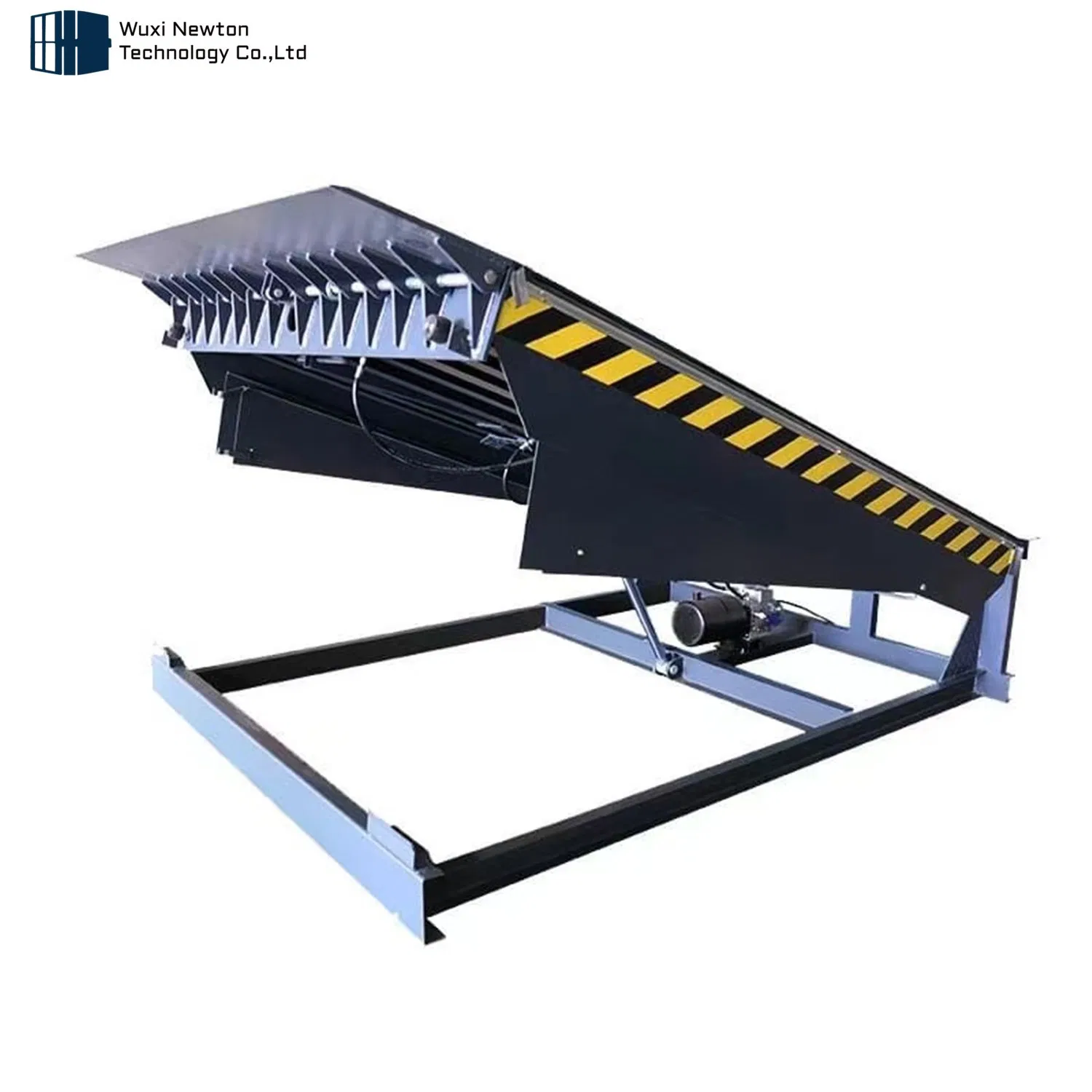

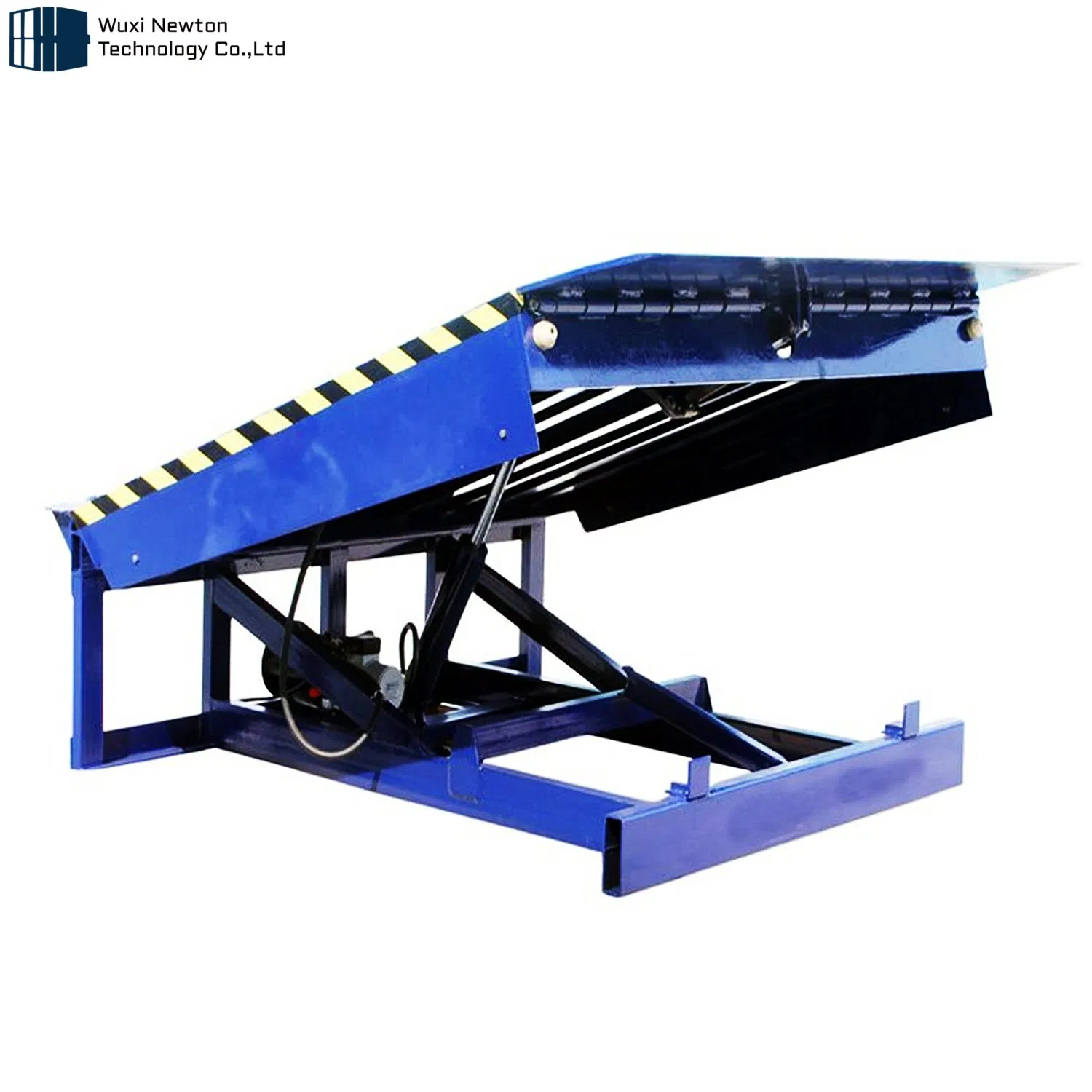

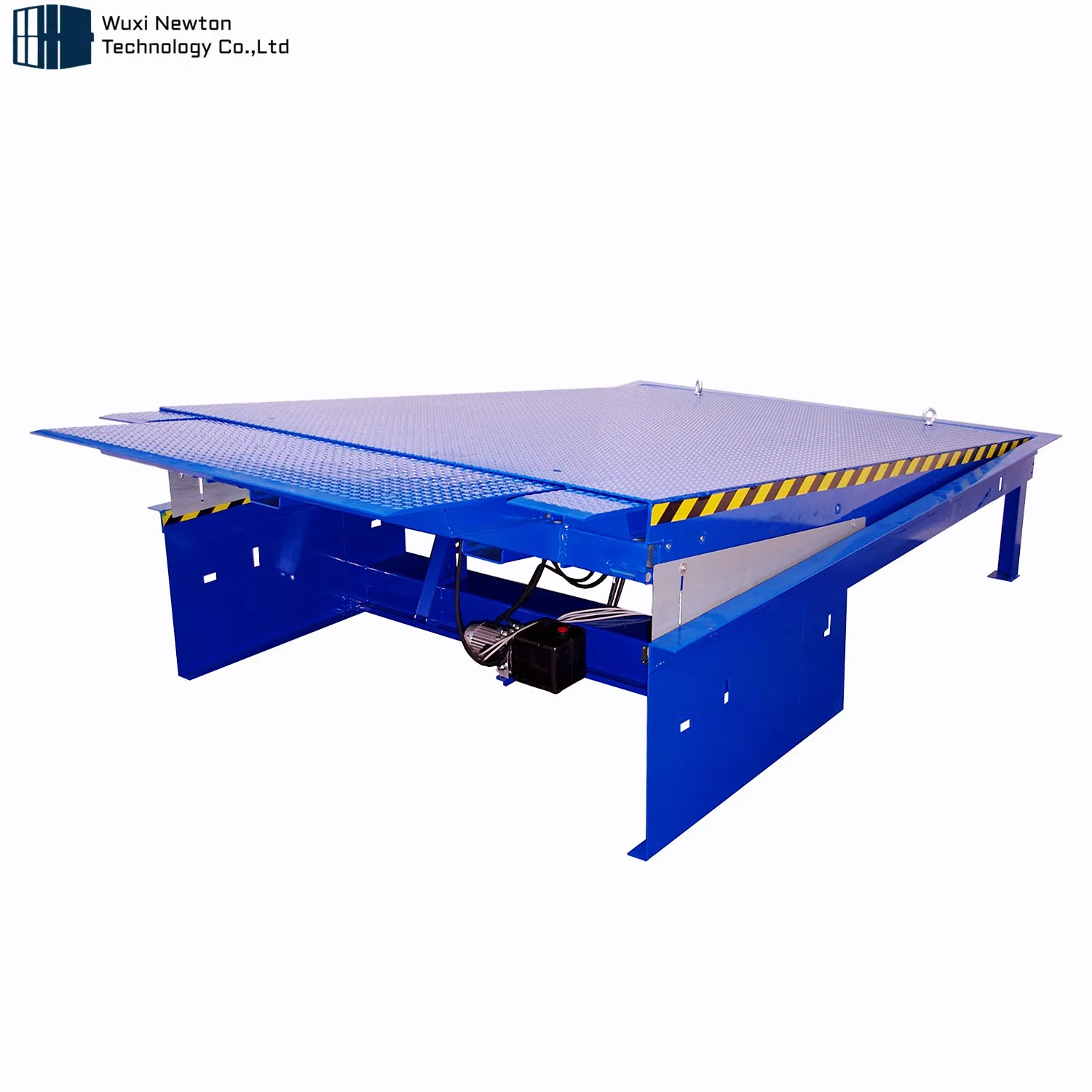

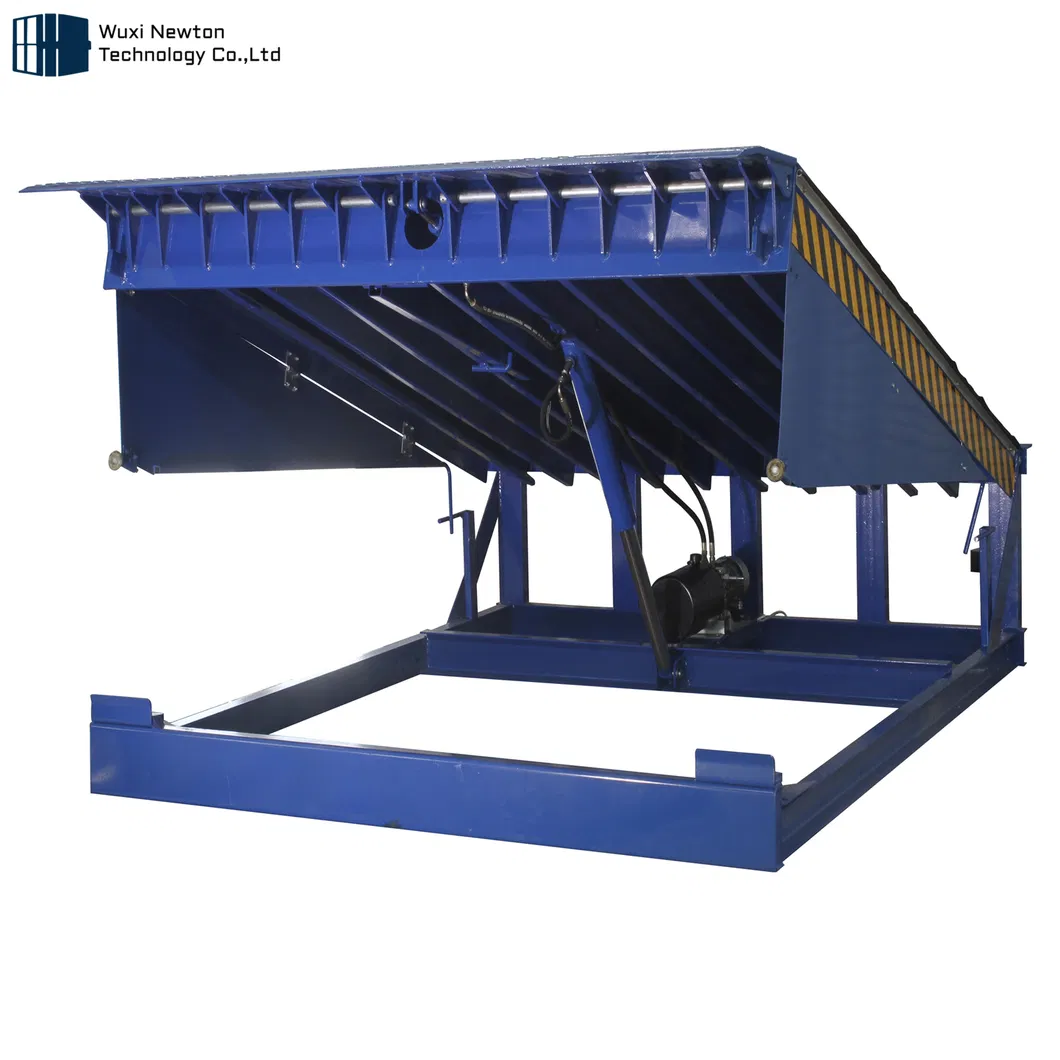

Hydraulic Dock Leveler
Safest and most reliable type using push-button activation.

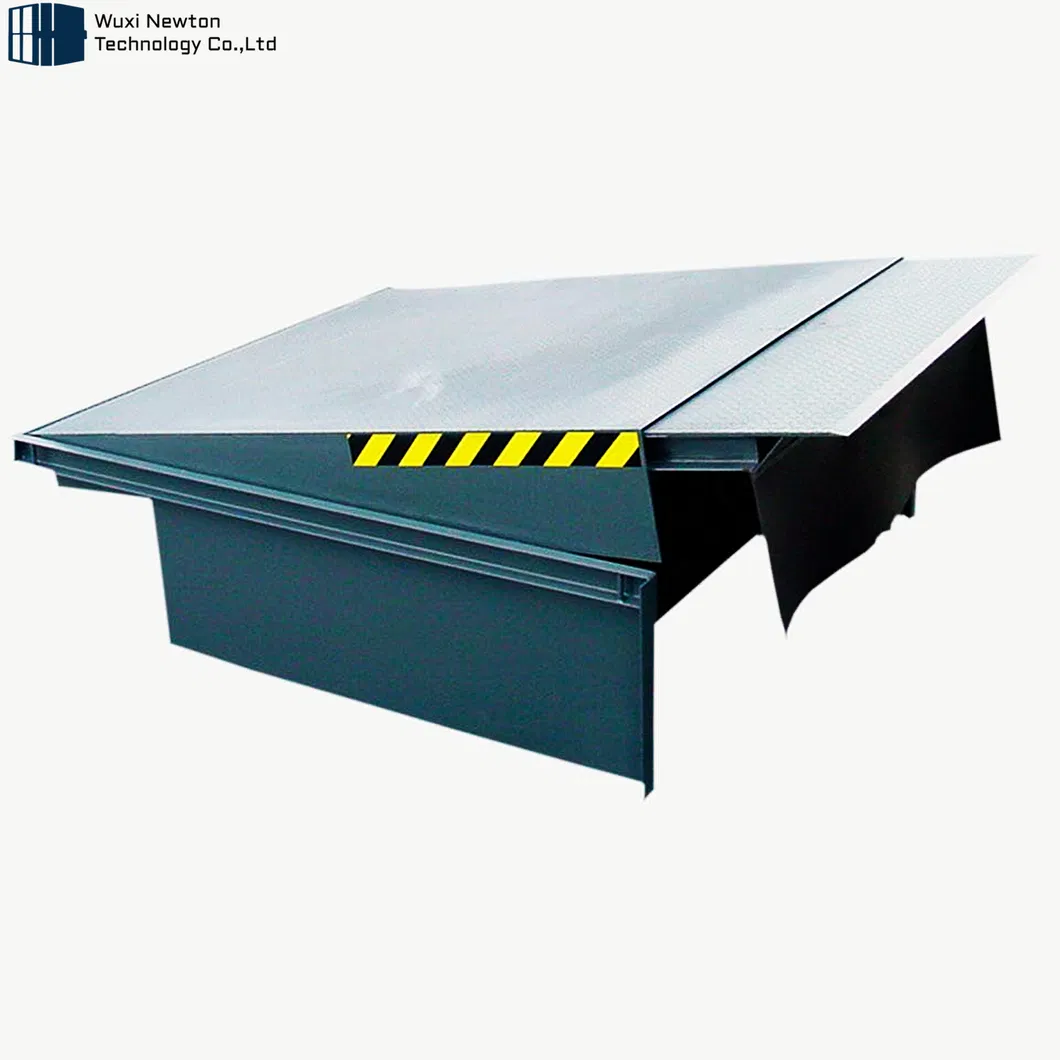

Telescopic Dock Leveler
Features a telescopic lip (1000mm) to adapt to all loading situations.

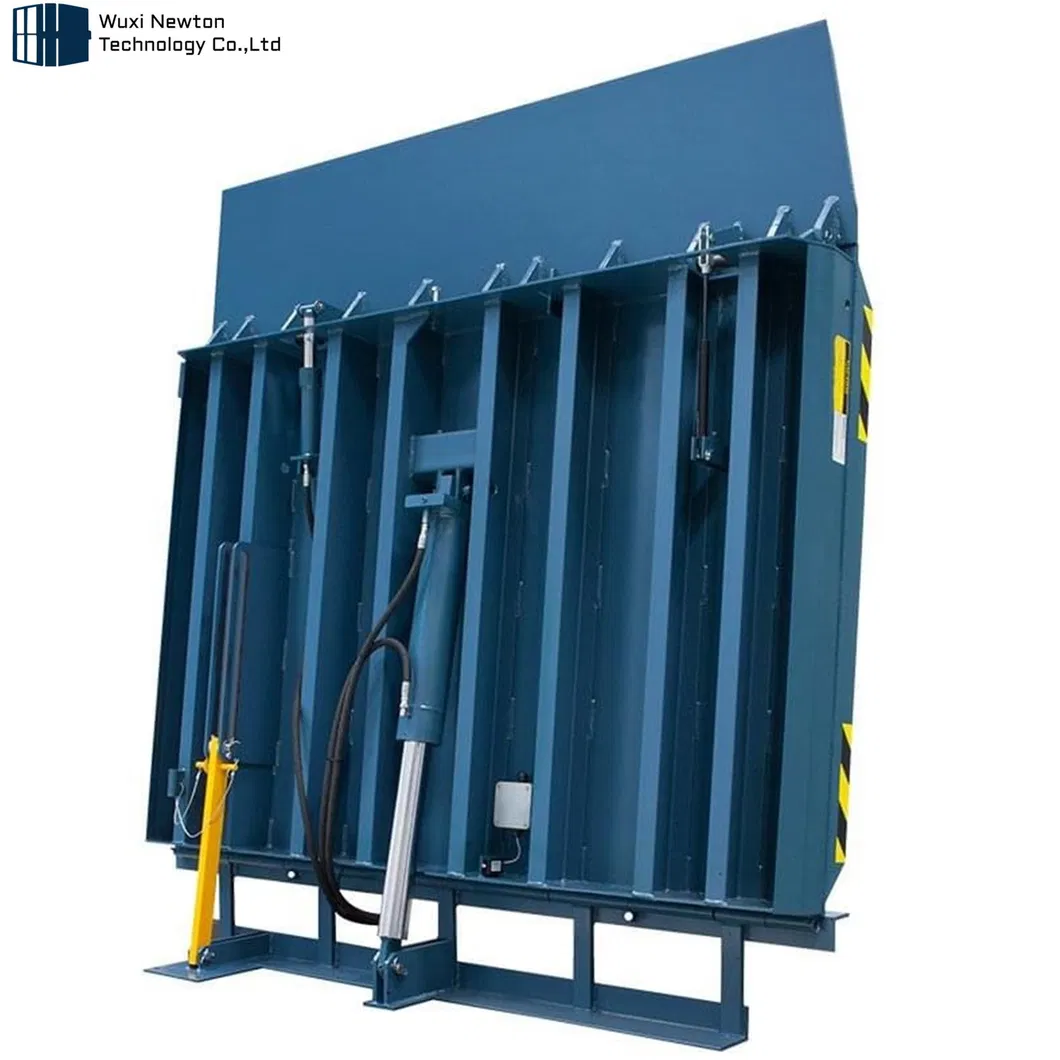

Vertical Dock Leveler
Designed for enhanced pedestrian safety and environmental control.
| Feature | Specification |
|---|---|

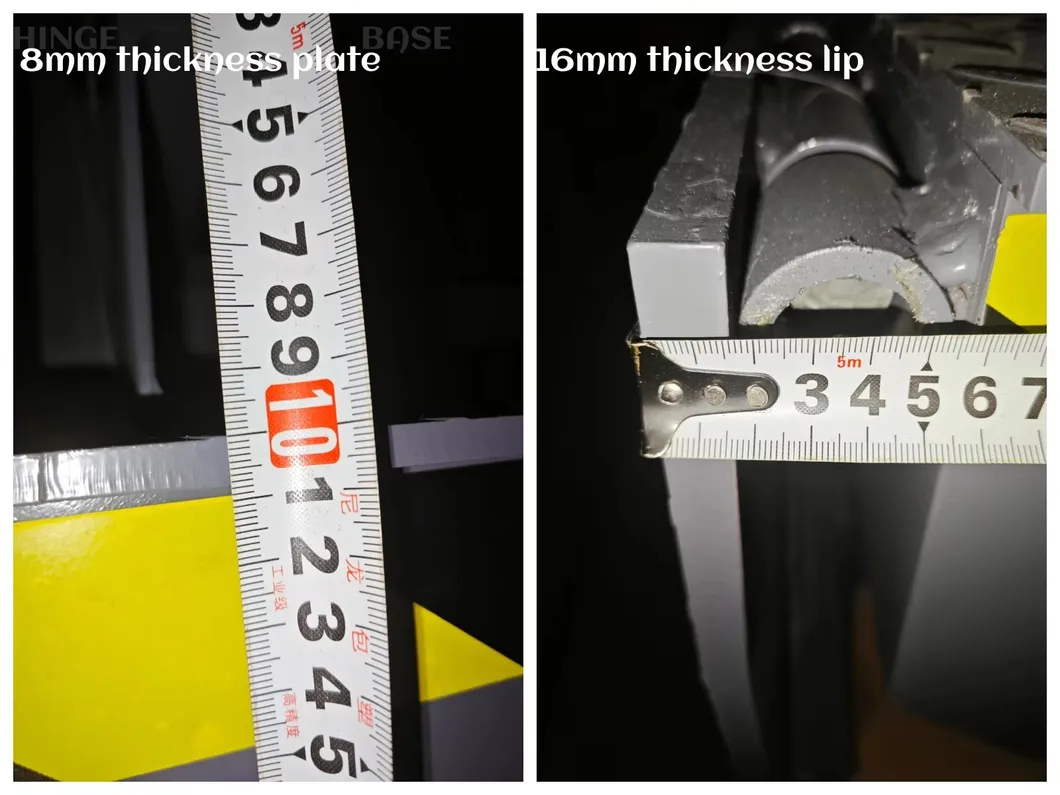

| Upper Plate | 8 mm thickness, anti-skate steel plate |
| Swinging Lip | Single 16 mm thickness, 400mm length |
| Adjustment Time | Rise Time ≤ 16S, Fall time ≤ 10S |
| Working Range | +300mm / 260~300mm |
| Power | 380V / 220V |
| Electric Control Box | 24V weak current control |
| Service Life | ≥ 200,000 times |
| Operating Temperature | -25ºC ~ +50ºC |
| Noise | < 50db (±5db) |
| Maximum bearing weight | 6000kg (60KN) / 10000kg (10KN) |
| Hydraulic cylinder power | 1.1KW |
| Control unit protective level | IP54 |
| Hydraulic oil | Mobile VG46 |
| Spraying thickness | 60~90 um |

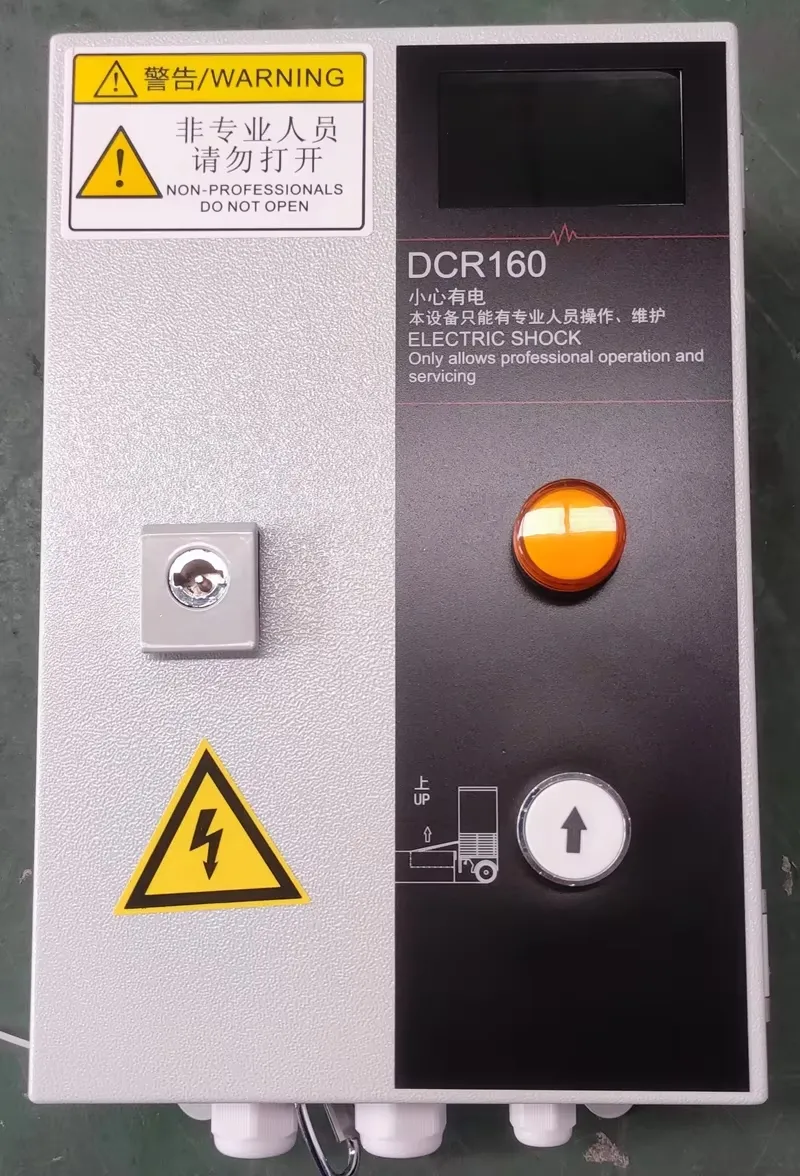

Hydraulic & Telescopic Dock Leveler Controllers
Note: Product details may vary depending on the model and specifications.
