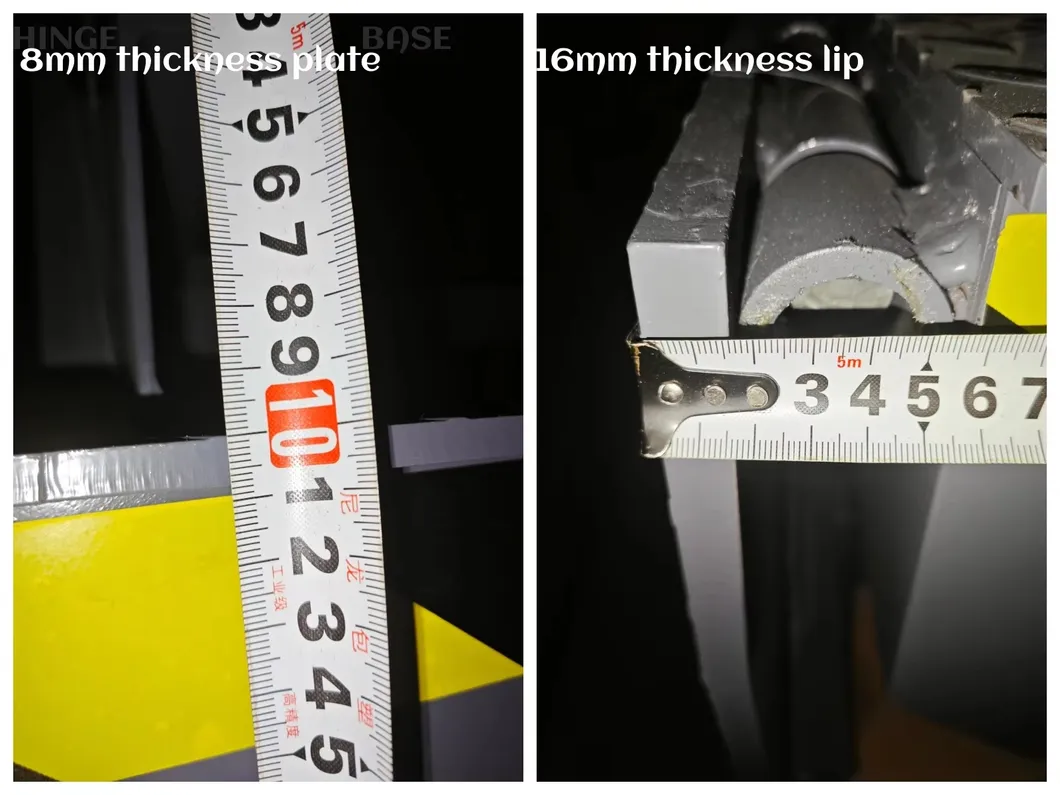

| Upper Plate | 8 mm thickness, anti-skate steel plate |
| Swinging Lip | Single 16 mm thickness, 400mm length |
| Adjustment Time | Rise Time ≤ 16S, Fall time ≤ 10S |
| Working Range | +300mm / 260~300mm |
| Power | 380V / 220V |

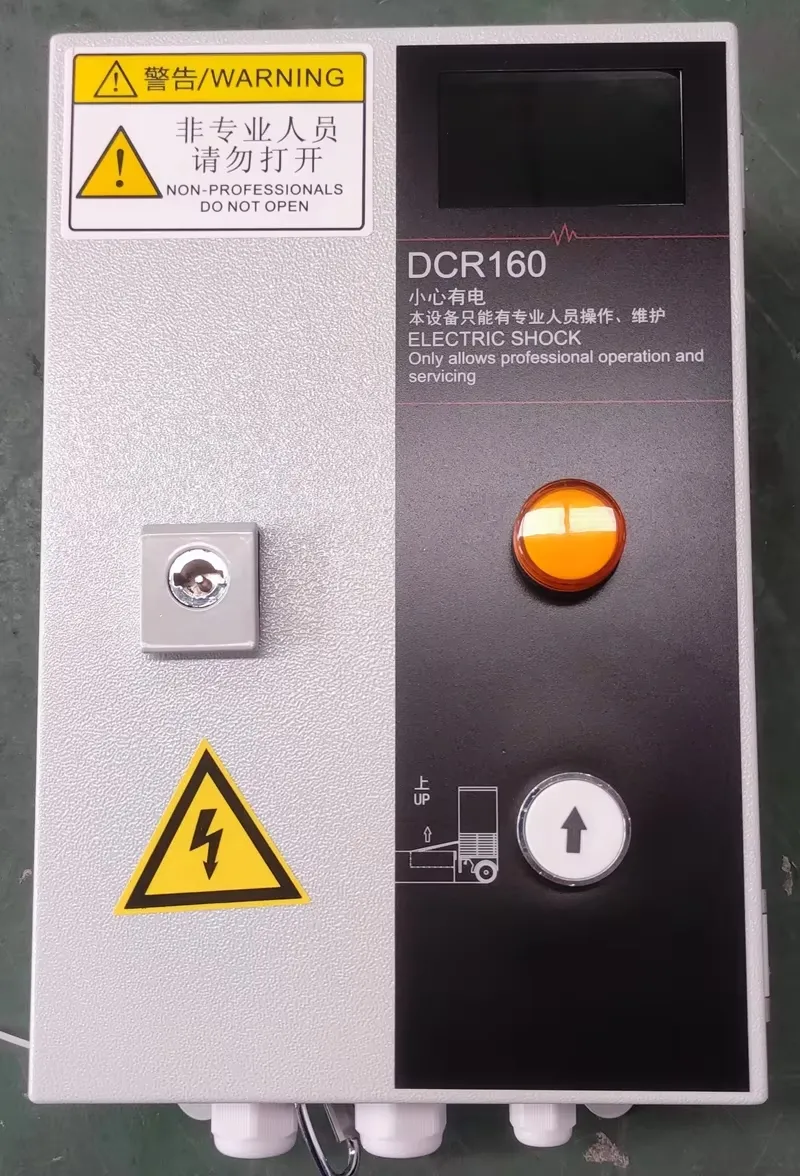

| Electric Control Box | 24V weak current control |
| Service Life | ≥ 200,000 times |
| Operating Temp | -25ºC to +50ºC |
| Noise | < 50db (±5db) |

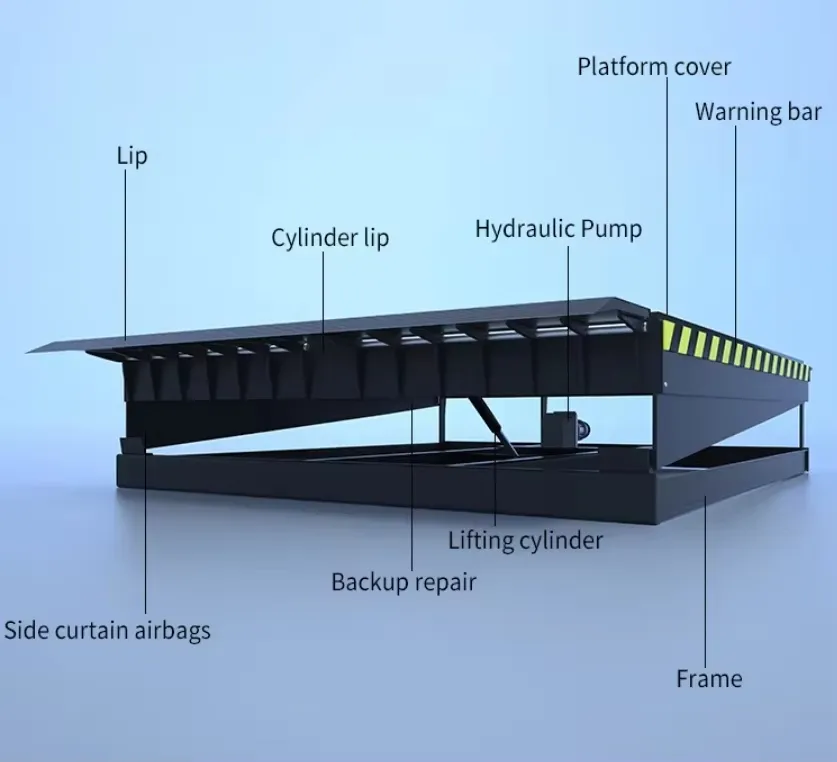

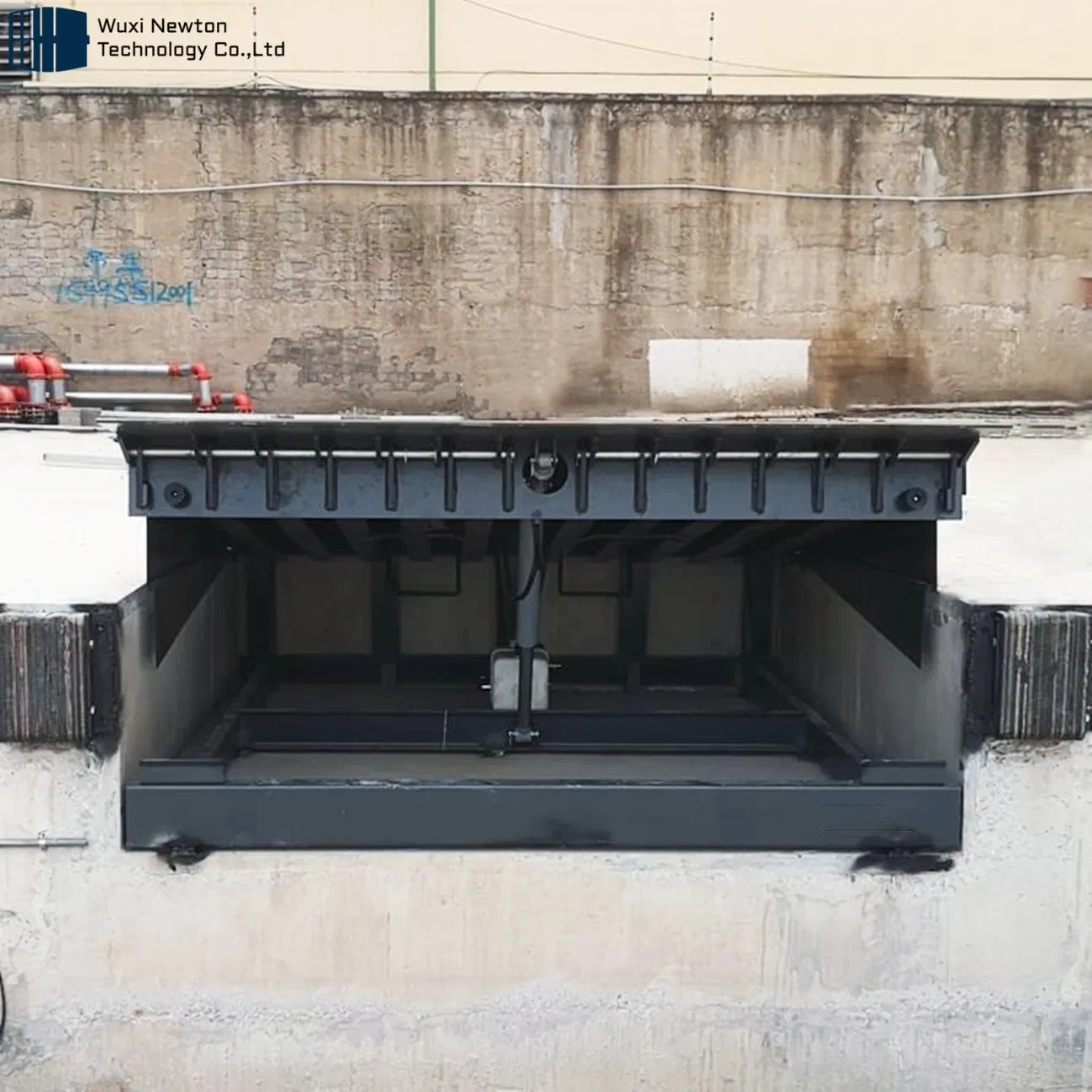

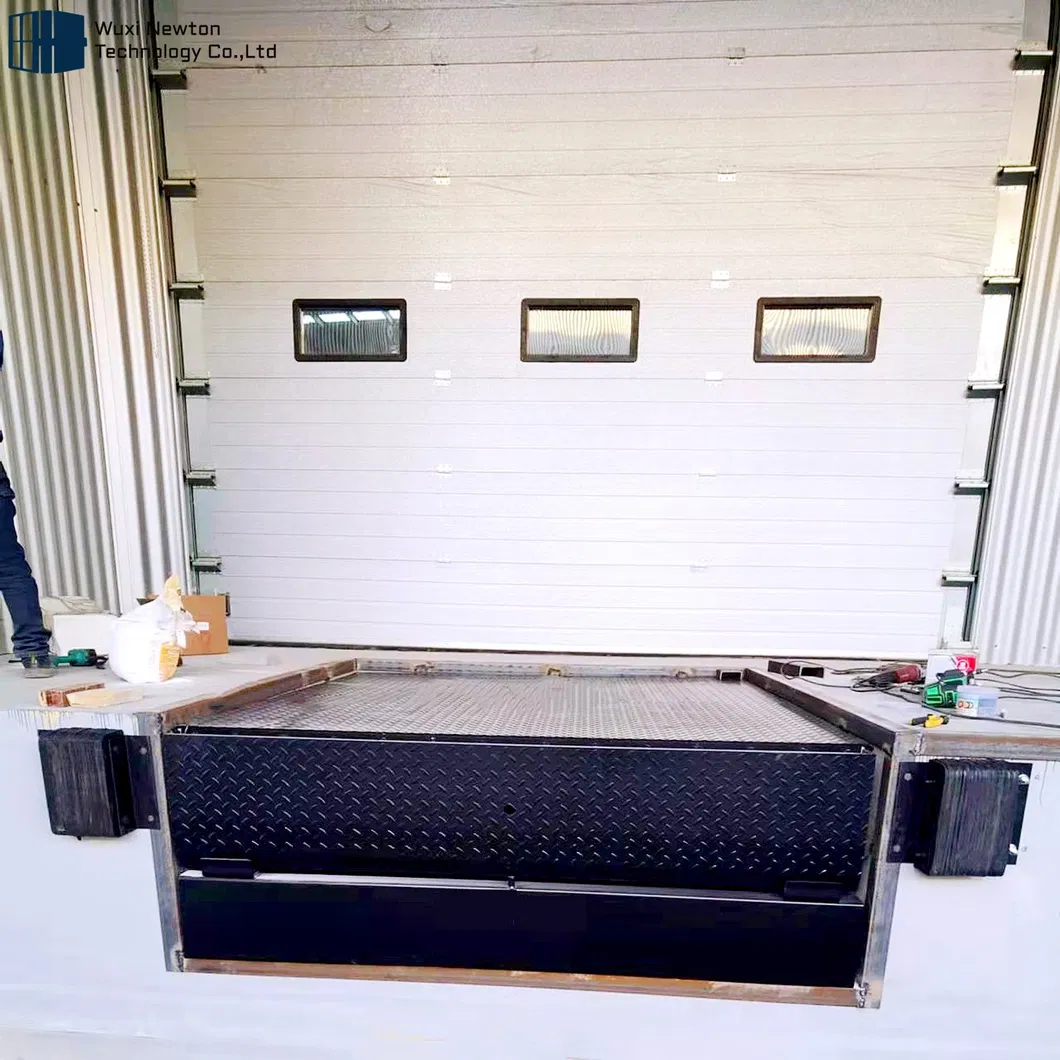

In the field of logistics, our dock leveler realizes fast and safe loading and unloading processes. It balances height differences between the platform ground and the docks of various transport vehicles. Whether using flatbed or container trucks, the dock leveler provides a sturdy steel structure design and high-quality materials for reliability in all loading yards.

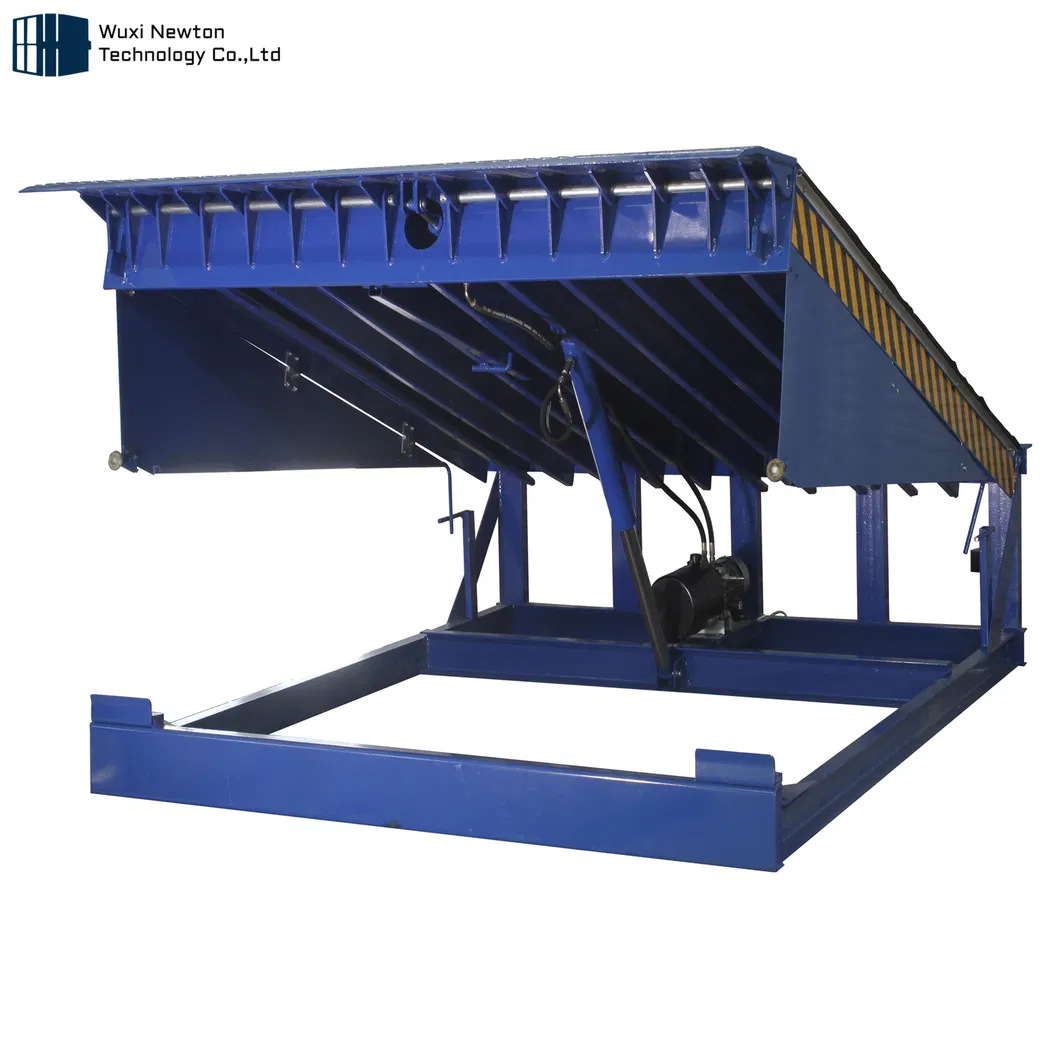

Safest, strongest, and most reliable type of loading dock leveler with push-button activation.

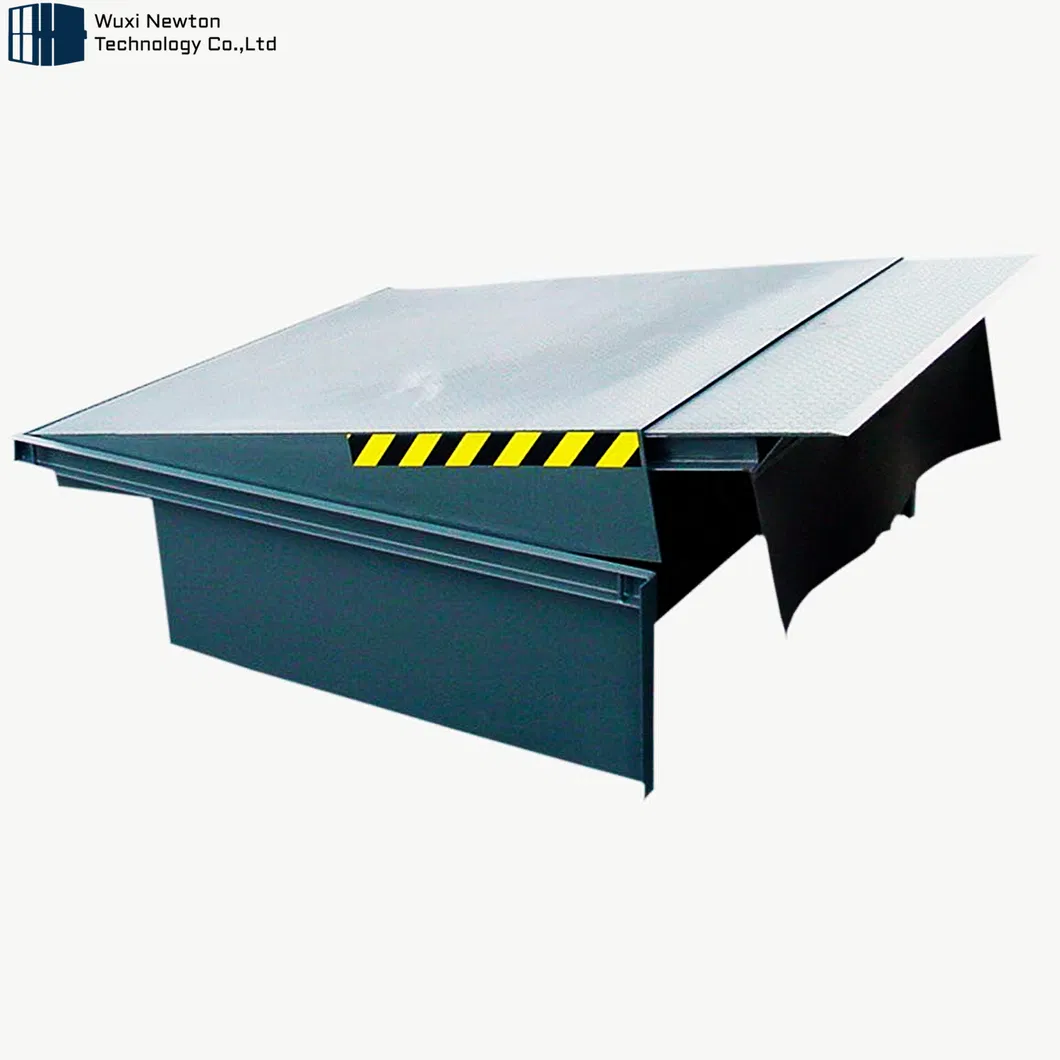

Equipped with a telescopic lip (1000mm) to adapt to all loading situations, including end loads.
| Specification Item | Details |
|---|---|
| Maximum Bearing Weight | 6000kg (60KN) / 10000kg (100KN) |
| Hydraulic Cylinder Power | 1.1KW |
| Control Power | 24V (Protective Level IP54) |
| Surface Treatment | Cleanliness Sa 2, Thickness 60~90 um |
| Hydraulic Oil | Mobile VG46 |
Available Options:
