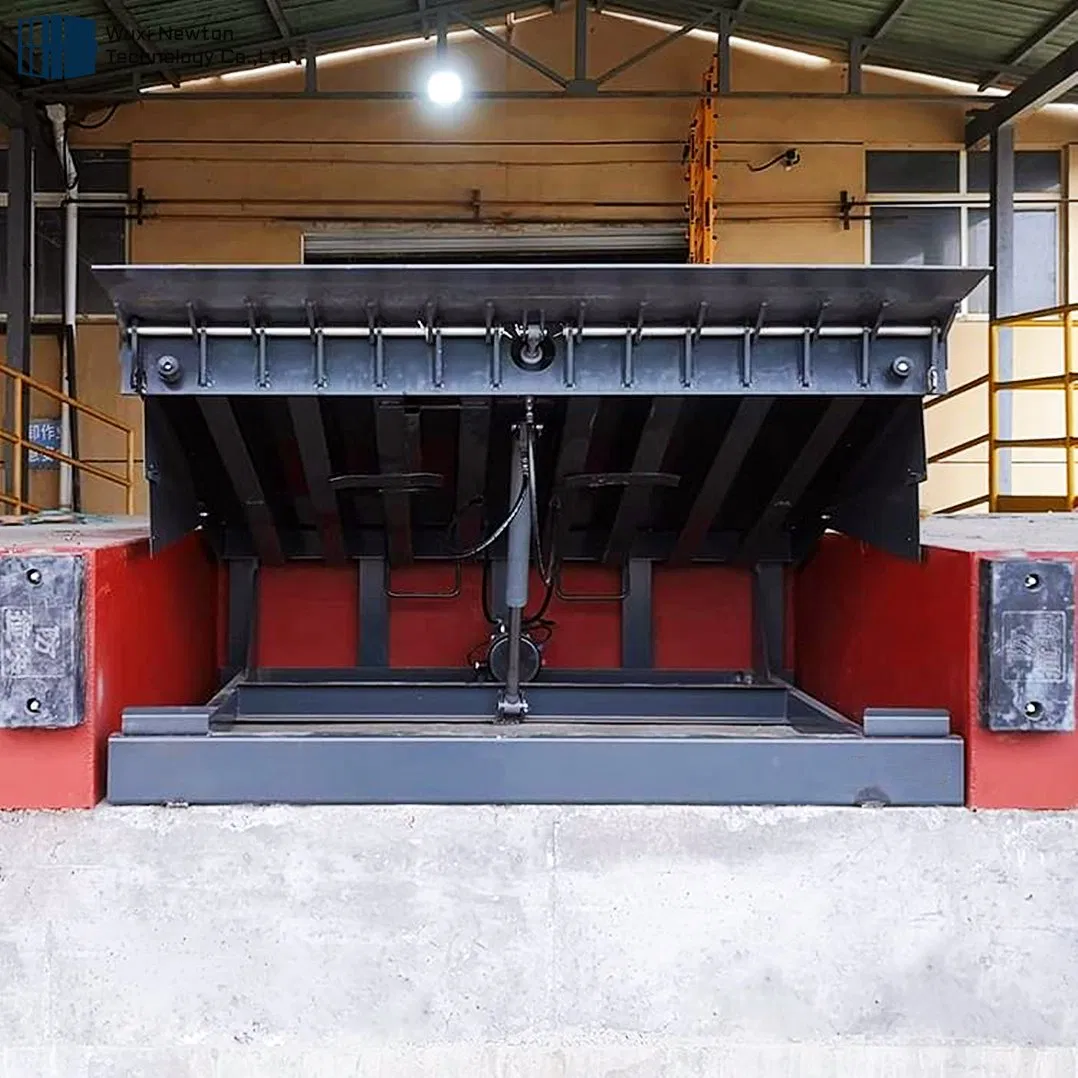

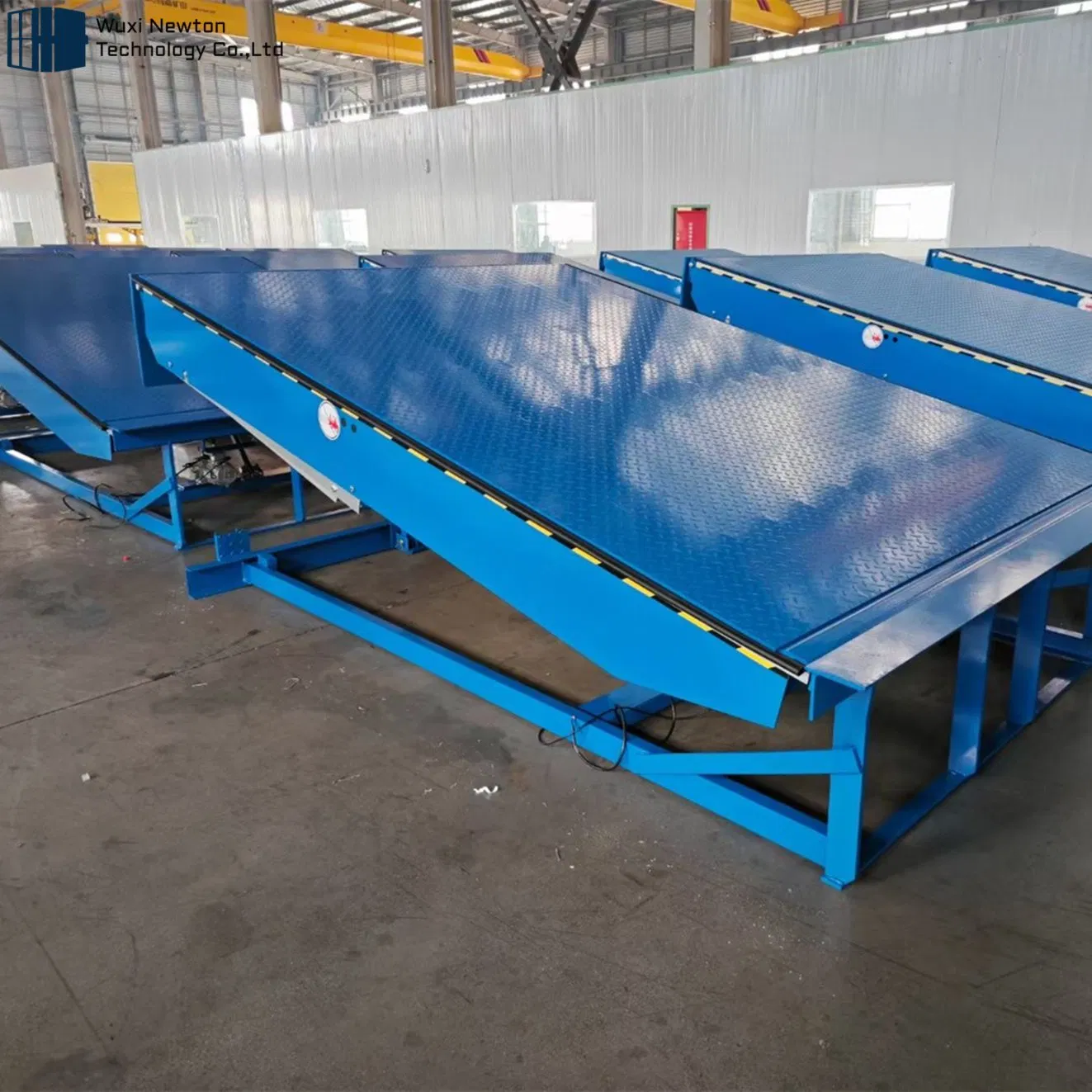

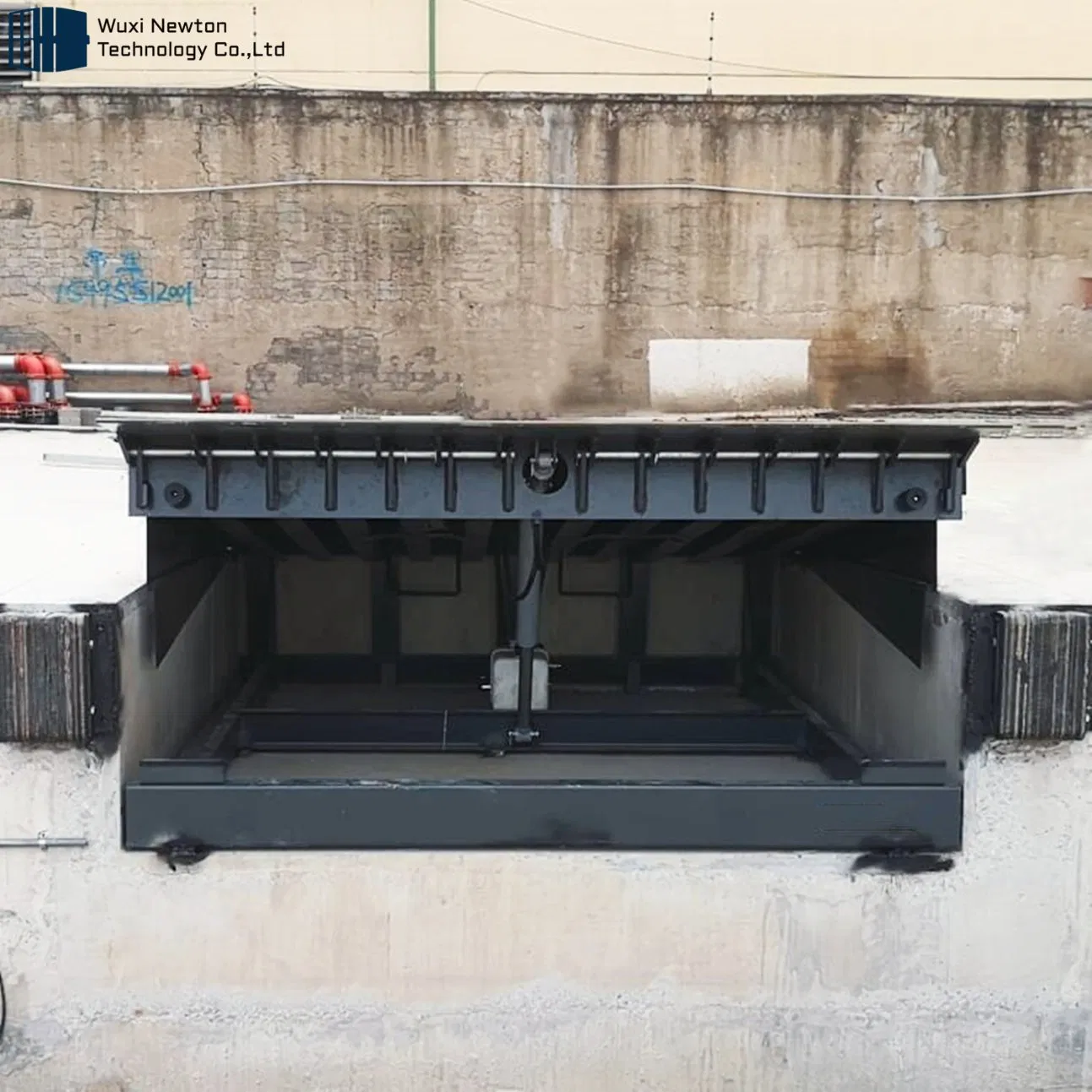

Top Quality Steel Construction Adjustable Edge Dock Leveler for Logistics

Customization:	Available
After-sales Service:	Available
Warranty:	5 Years

Basic Information

Model NO.

NTDL

Application

Workshop, Shipboard, Warehouse, Building, Logistics

Lift Mechanism

Articulated Lift

Driven Type

Hydraulic

Loading Capacity

10000kg

Upper Plate

8mm Thickness Steel

Swinging Lip

Single 16mm Thickness Steel

Safety System

Self-Locking, Lip Emergency Stop

Working Range

-300 to +350mm

Certification

ISO 9001

Product Description

In the field of logistics, our dock leveler can realize fast and safe loading and unloading process. The dock leveler can balance the height difference between the platform ground and the dock of different transport vehicles. Whether it is a flatbed truck or a container truck, the dock leveler can meet the requirements. The sturdy steel structure design and high-quality materials provide a reliable choice for all loading and unloading yards.

We can customize according to your needs, such as platform size, load capacity, and lifting height.

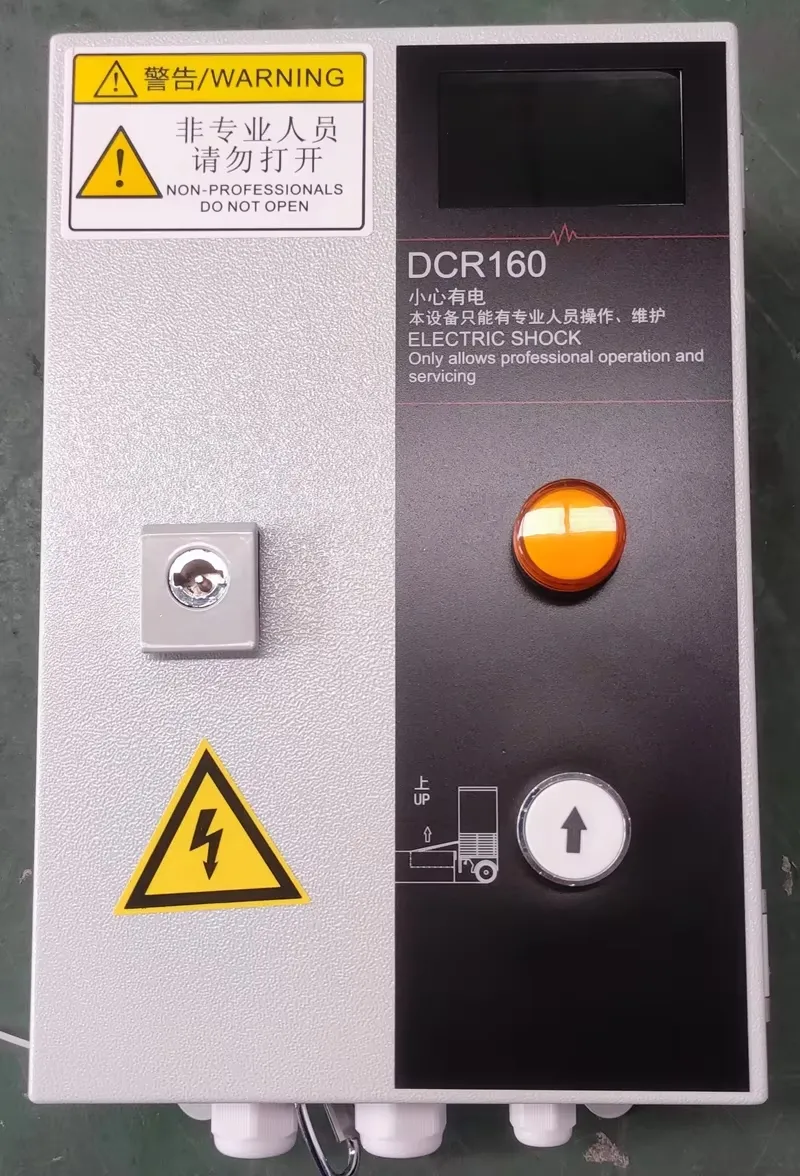

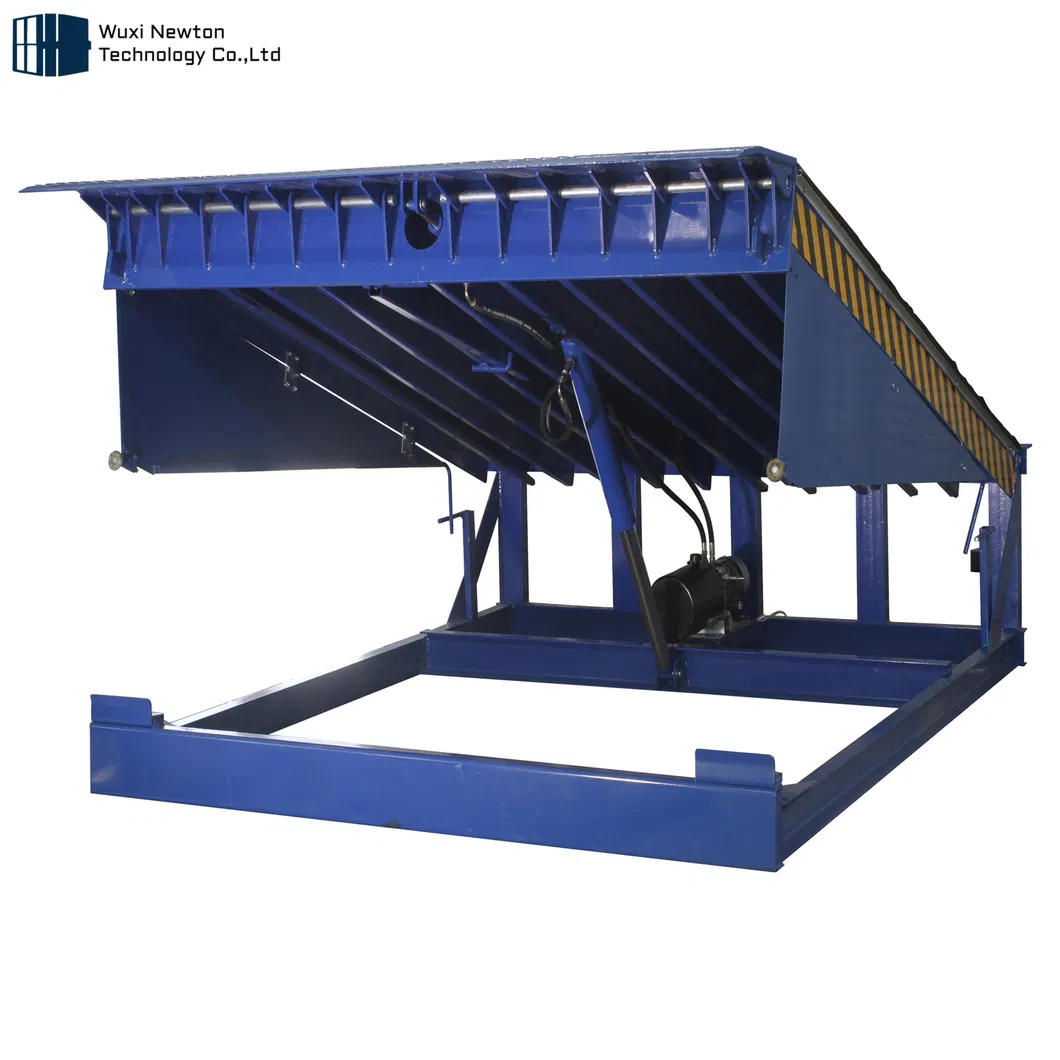

Hydraulic Dock

Safest and most reliable type using push-button activation.

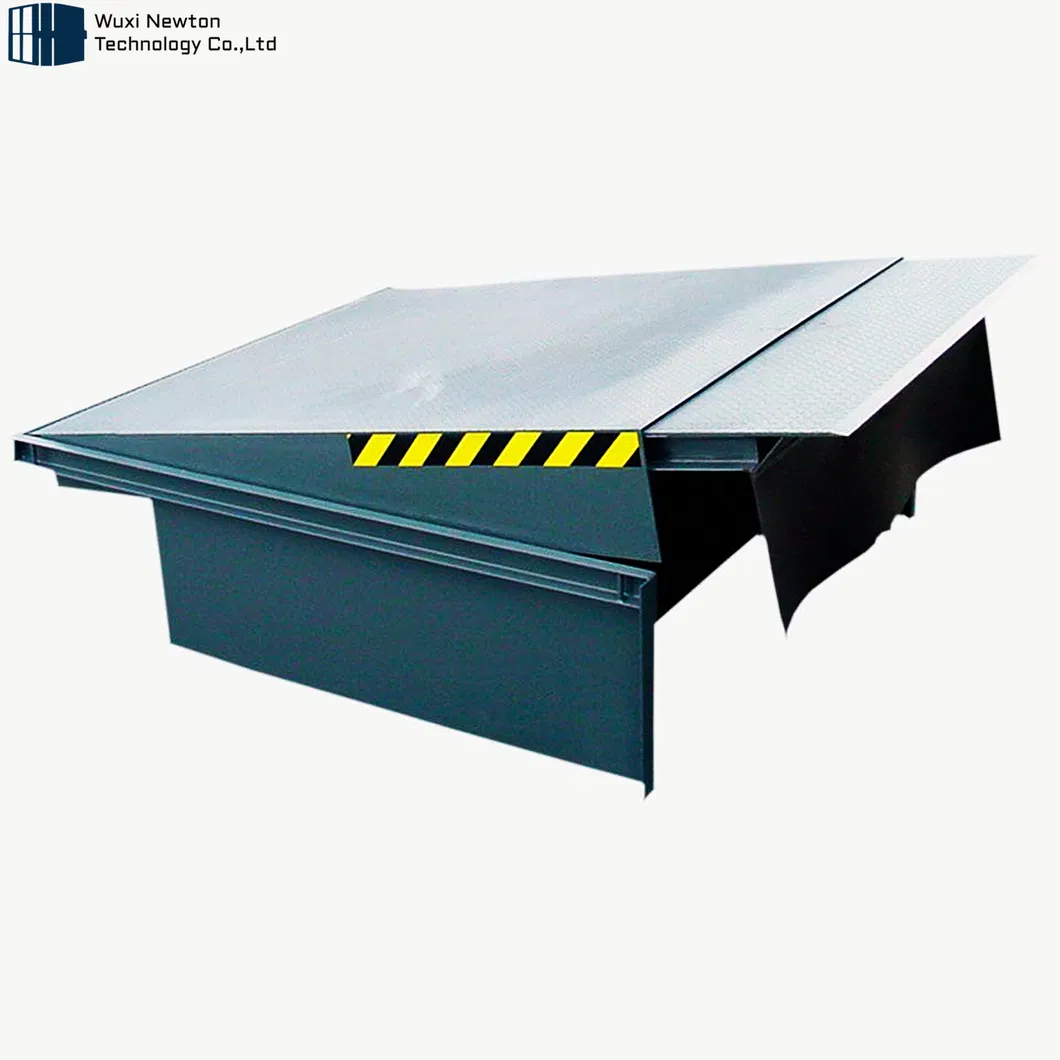

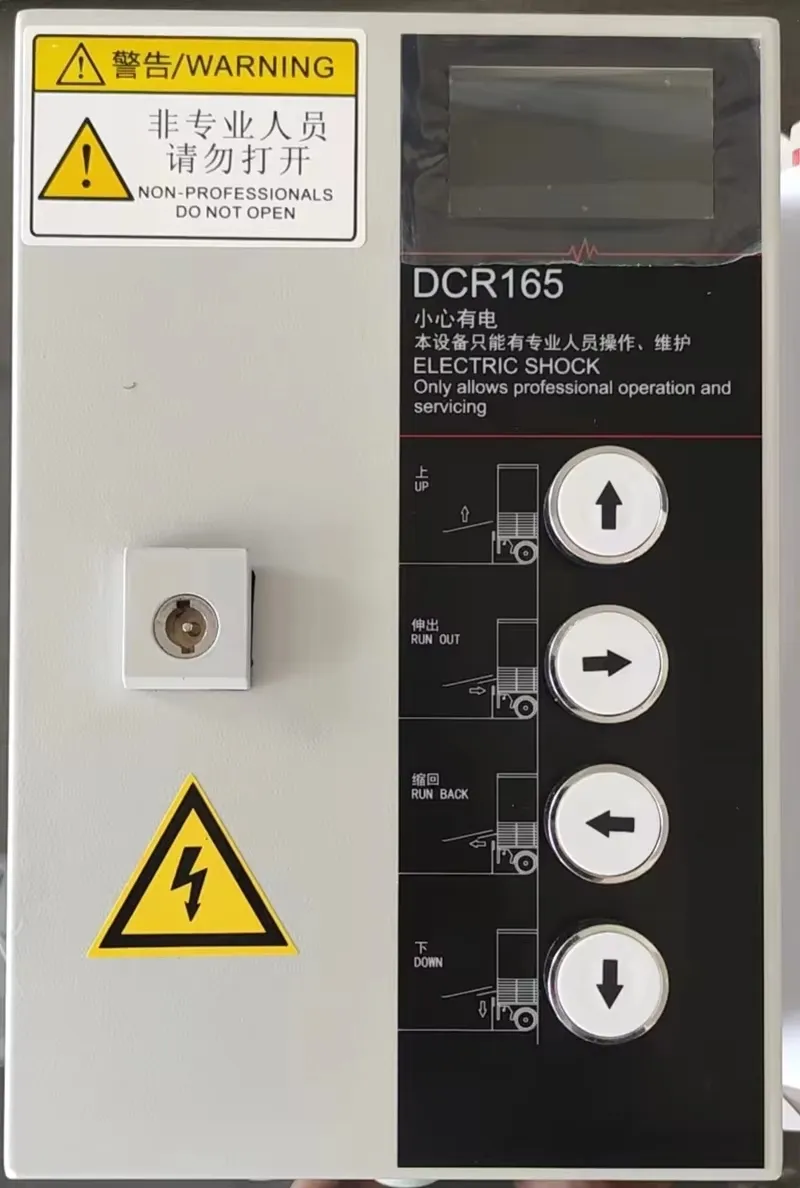

Telescopic Lip

Allows adaptation to all loading situations including end loads.

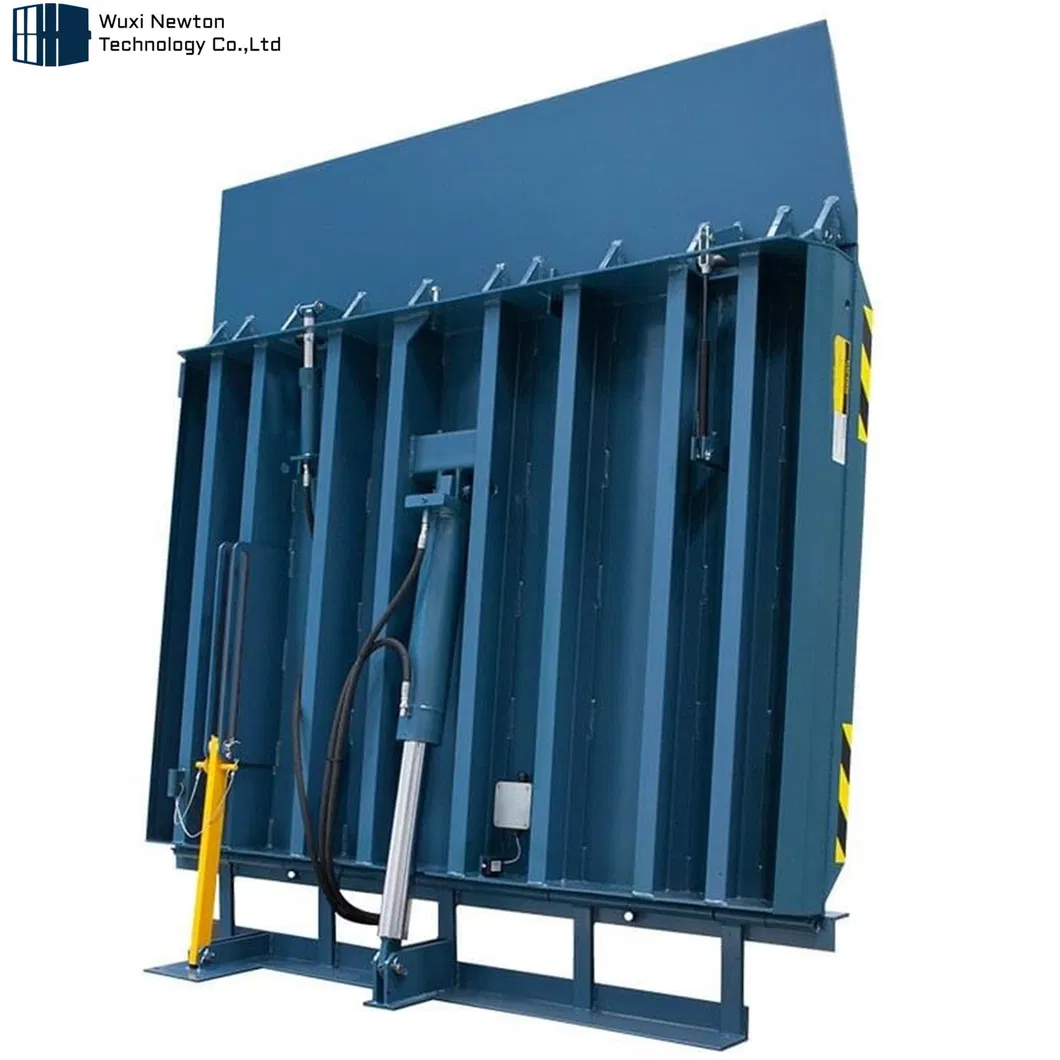

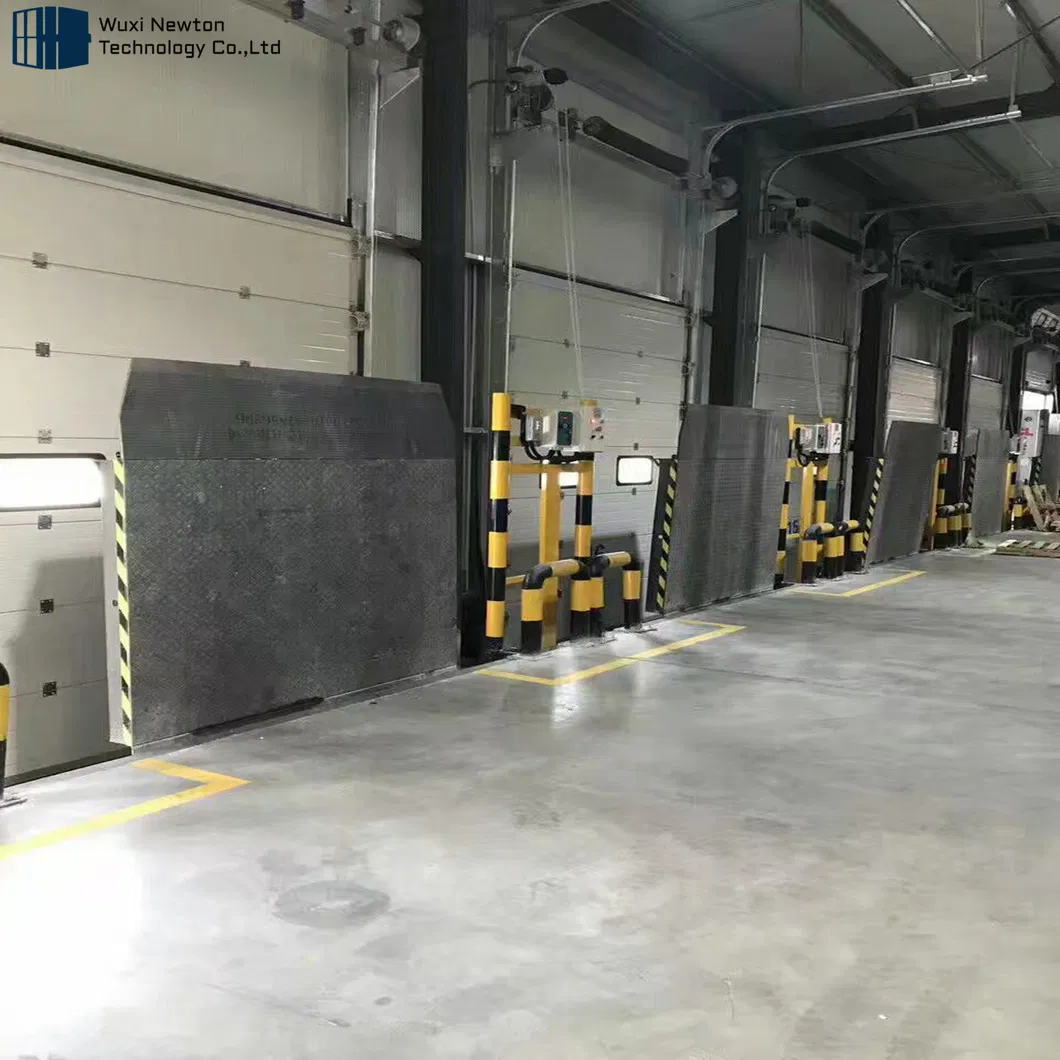

Vertical Type

Designed for enhanced safety, sanitation, and environmental control.

Technical Specifications

Parameter	Details
Upper Plate	8 mm thickness, anti-skate steel plate
Swinging Lip	Single 16 mm thickness, 400mm length
Adjustment Time	Rise Time ≤16S, Fall time ≤10S
Power	380V / 220V
Operating Temperature	-25ºC to +50ºC
Noise Level	<50db(±5db)
Maximum Load	6000kg (60KN) / 10000kg (10KN)
Hydraulic Oil	Mobile VG46
