| Specification | Details |
|---|---|

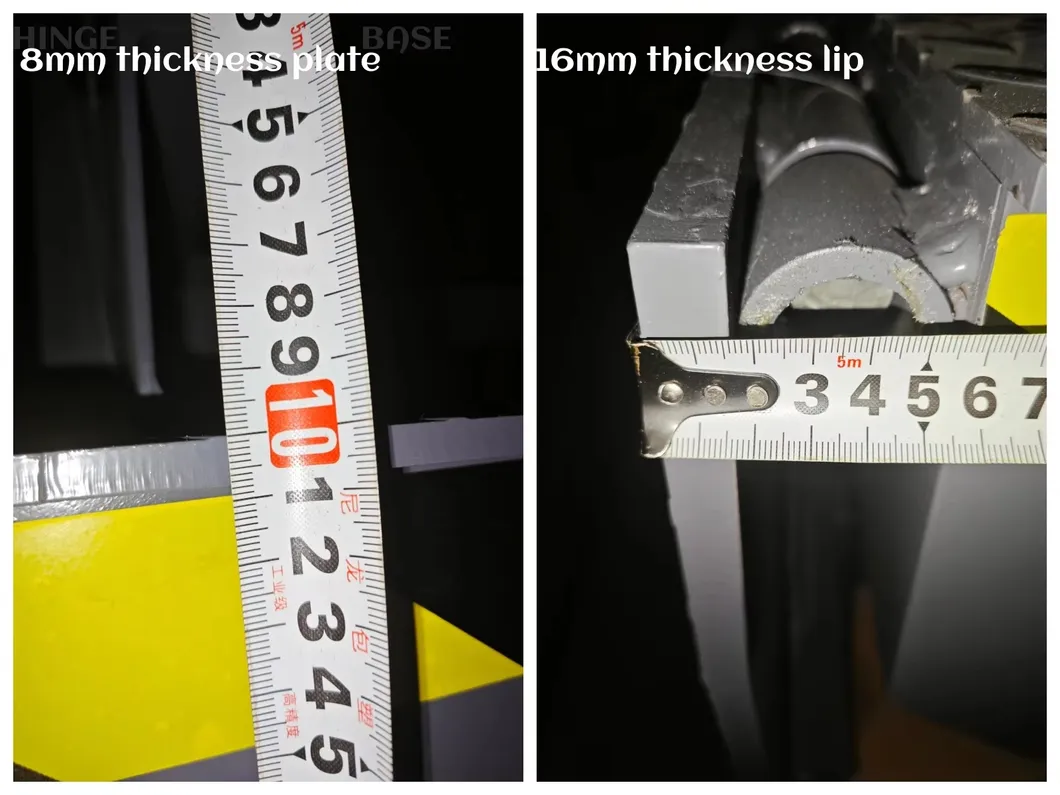

| Upper Plate | 8 mm thickness, anti-skate steel plate |
| Swinging Lip | Single 16 mm thickness, 400mm length |
| Adjustment Time | Rise Time ≤16S, Fall time ≤10S |
| Working Range | +300mm/260~300mm |
| Power | 380V/220V |

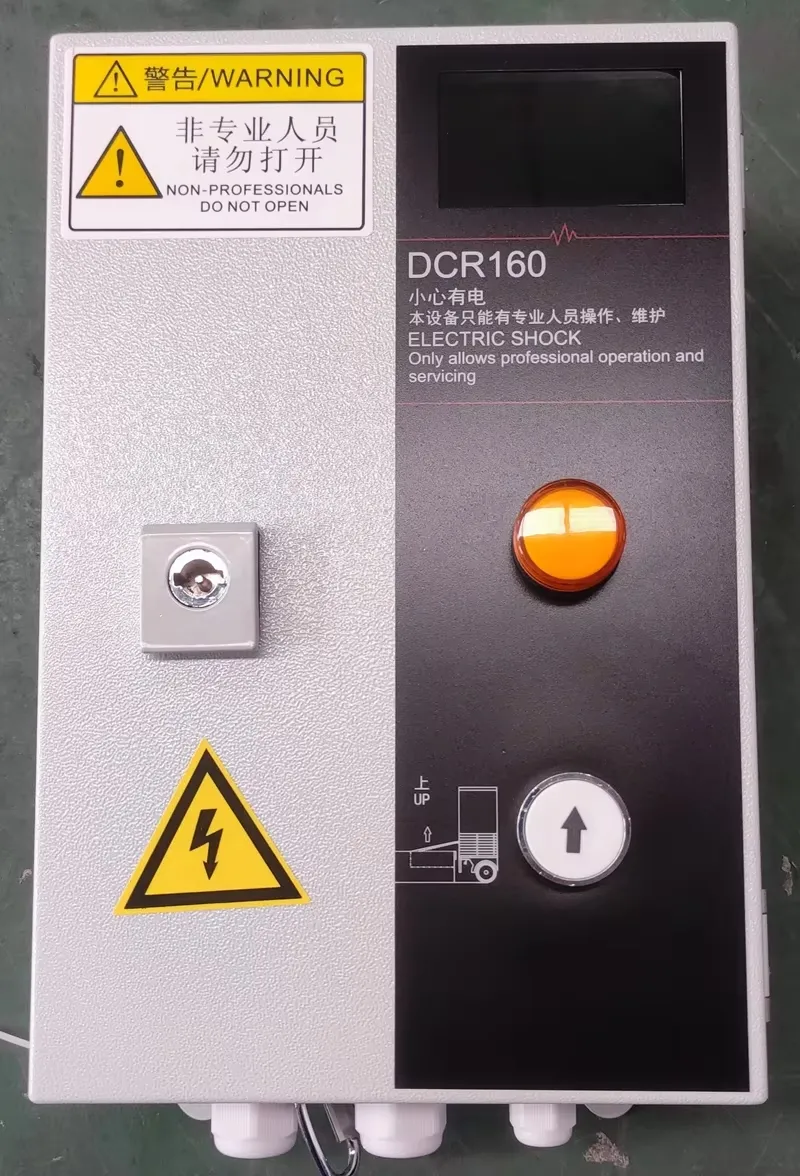

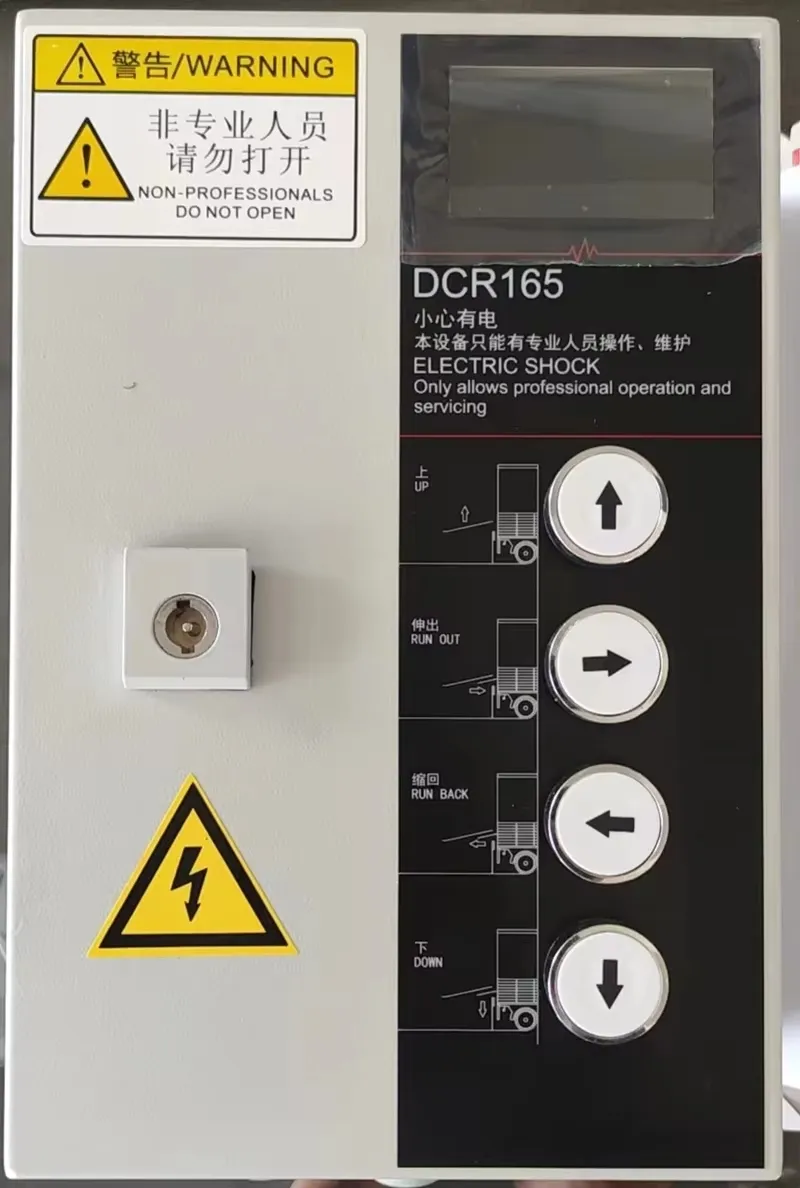

| Electric Control Box | 24V weak current control |
| Service Life | ≥200,000 times |
| Operating Temperature | -25ºC to +50ºC |
| Noise | <50db(±5db) |

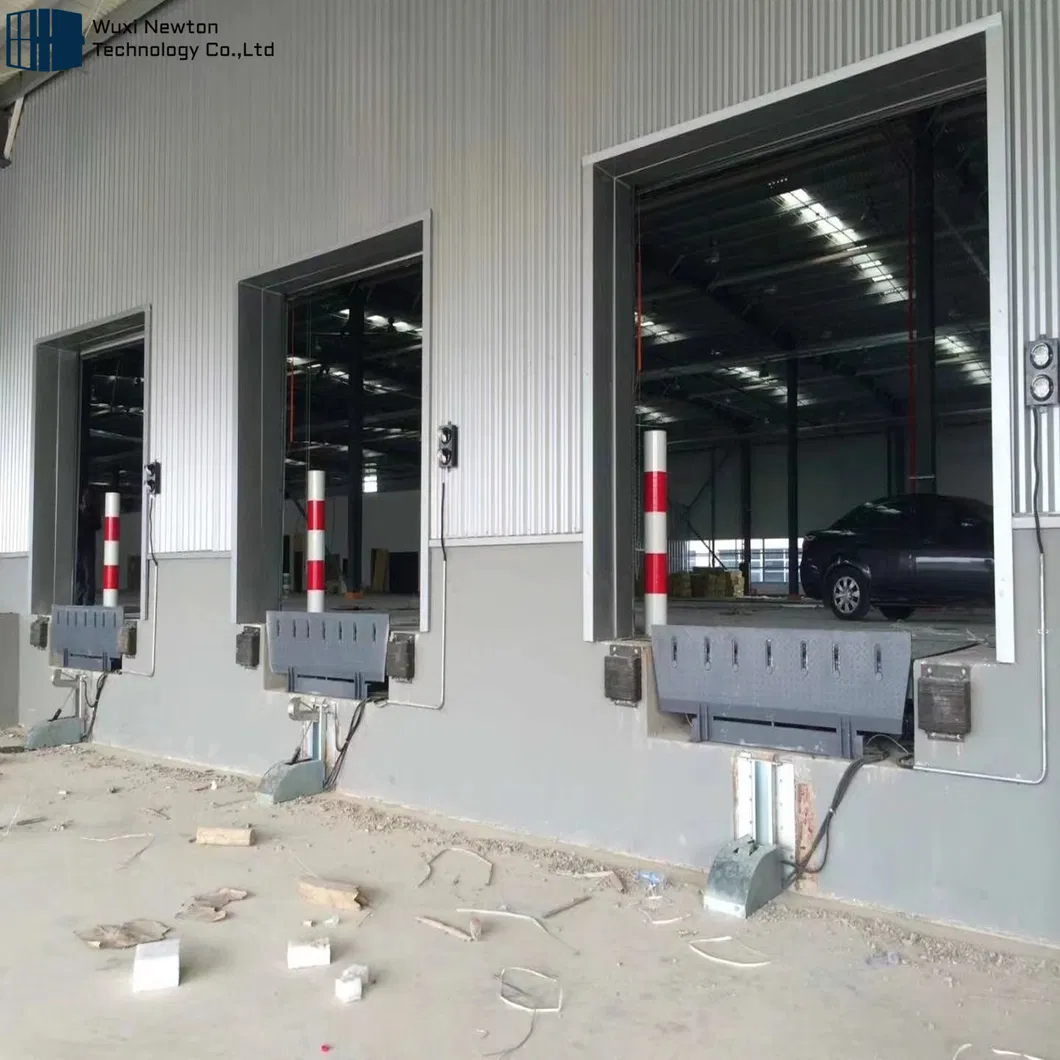

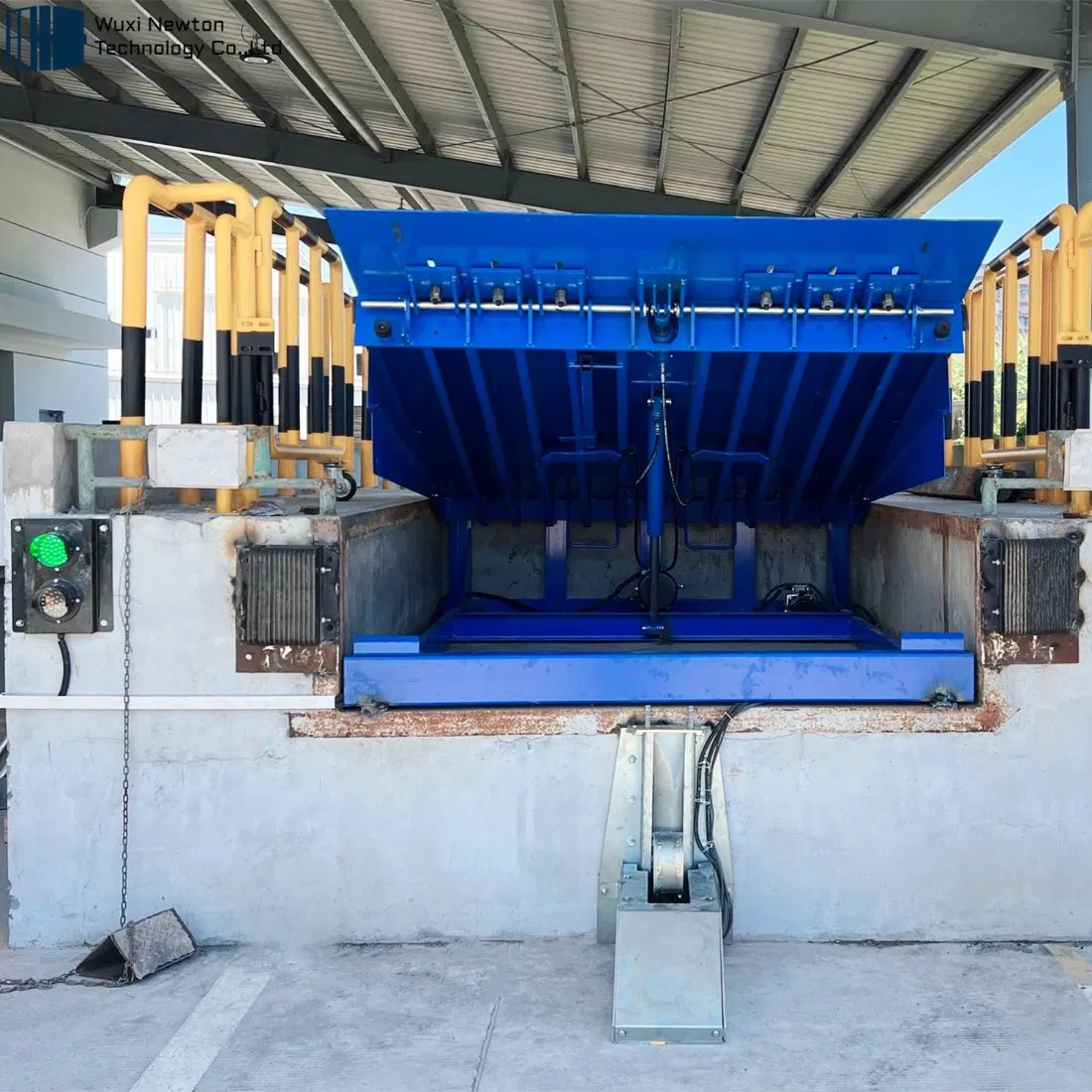

In the field of logistics, our dock leveler can realize fast and safe loading and unloading process. The dock leveler can balance the height difference between the platform ground and the dock of different transport vehicles. Whether it is a flatbed truck or a container truck, the dock leveler can meet the requirements. The sturdy steel structure design and high-quality materials provide a reliable choice for all loading and unloading yards.

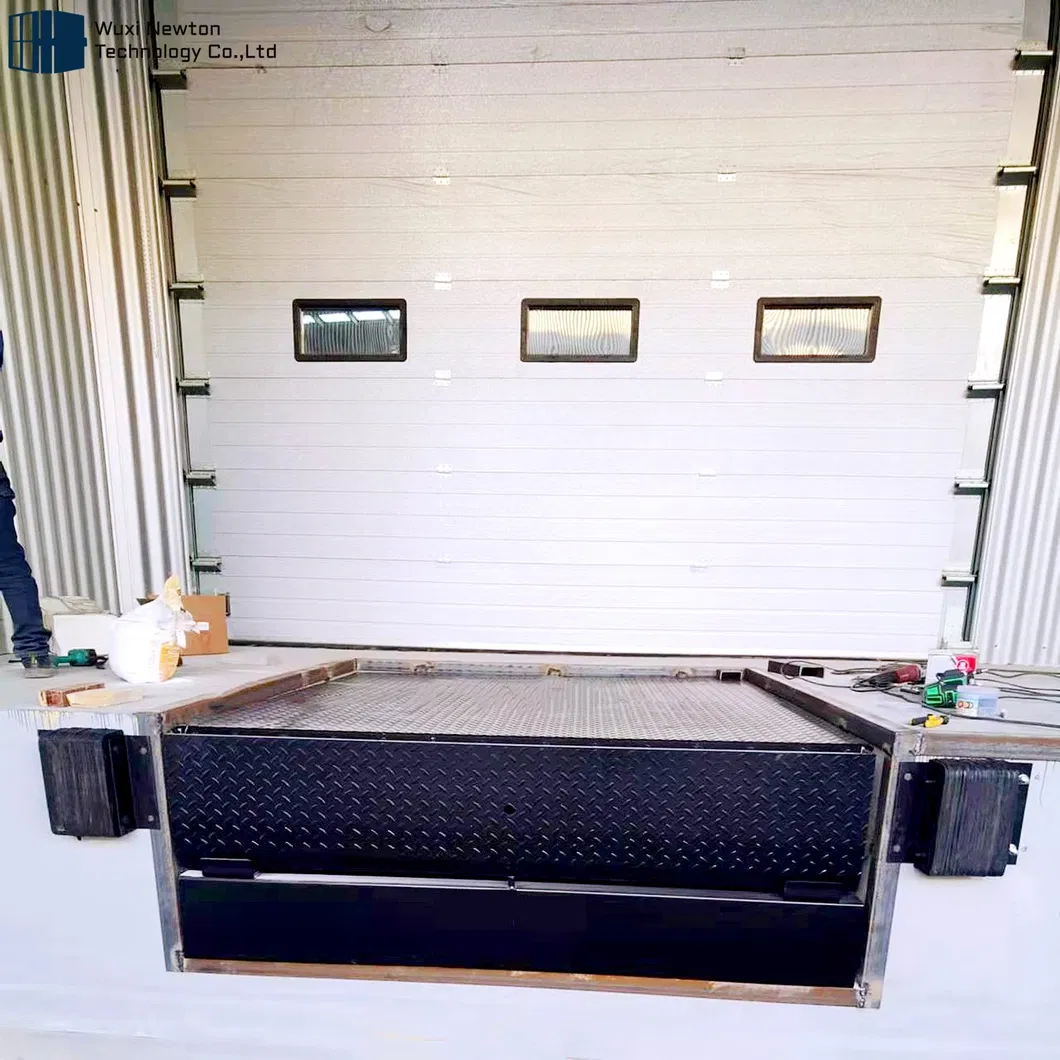

After the transport vehicle approaches, the door opens. By pressing the control button, the platform rises to the highest position, and the lip plate automatically opens. Releasing the button allows the platform to fall until the lip plate overlaps with the vehicle compartment, enabling safe loading and unloading.

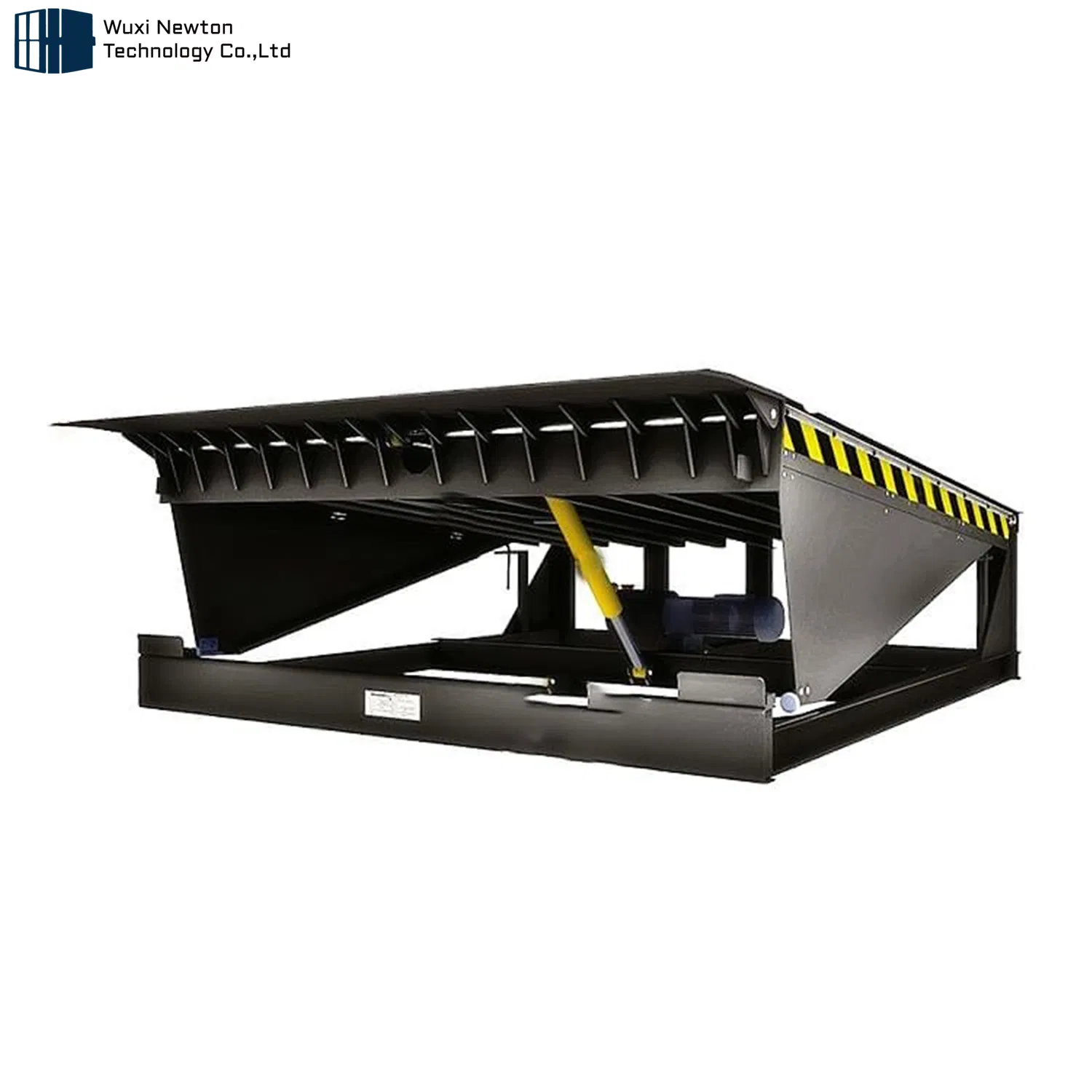

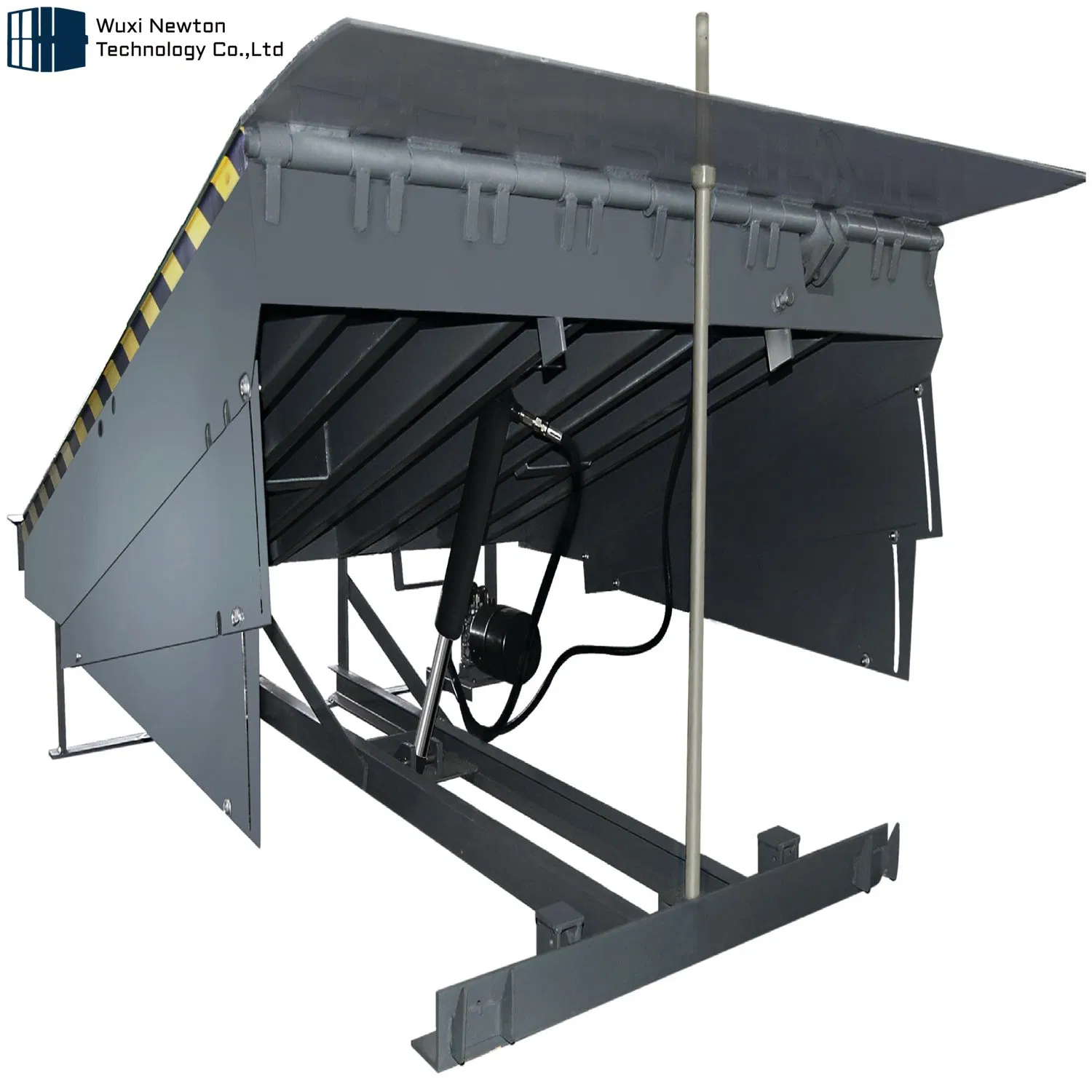

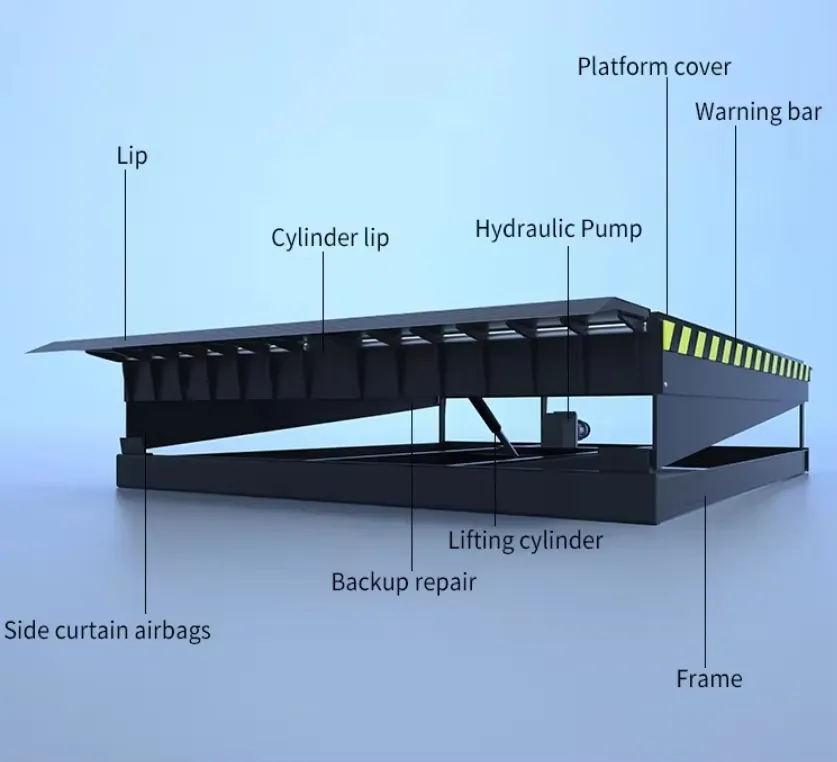

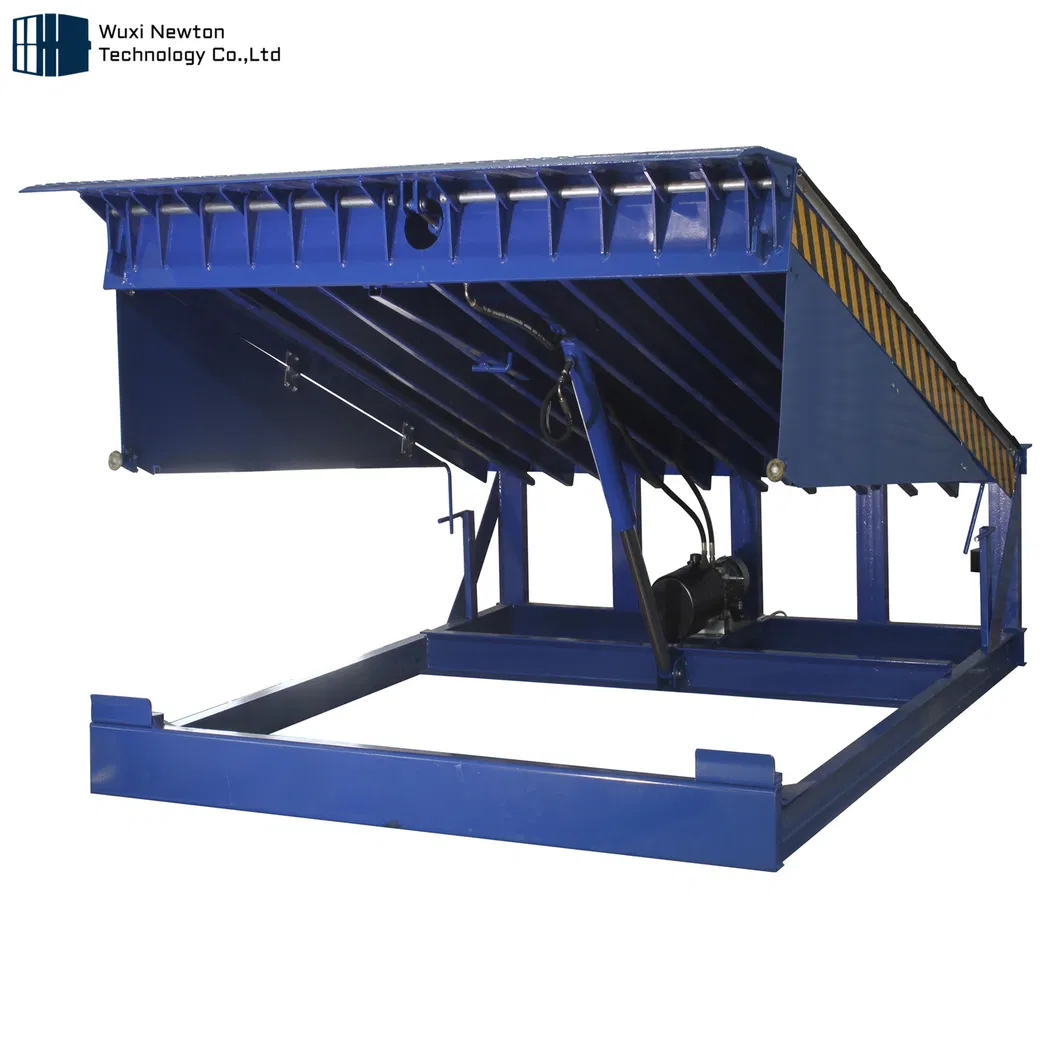

Hydraulic Dock Levelers utilize push-button activation and are the safest, strongest, and most reliable type of loading dock leveler.

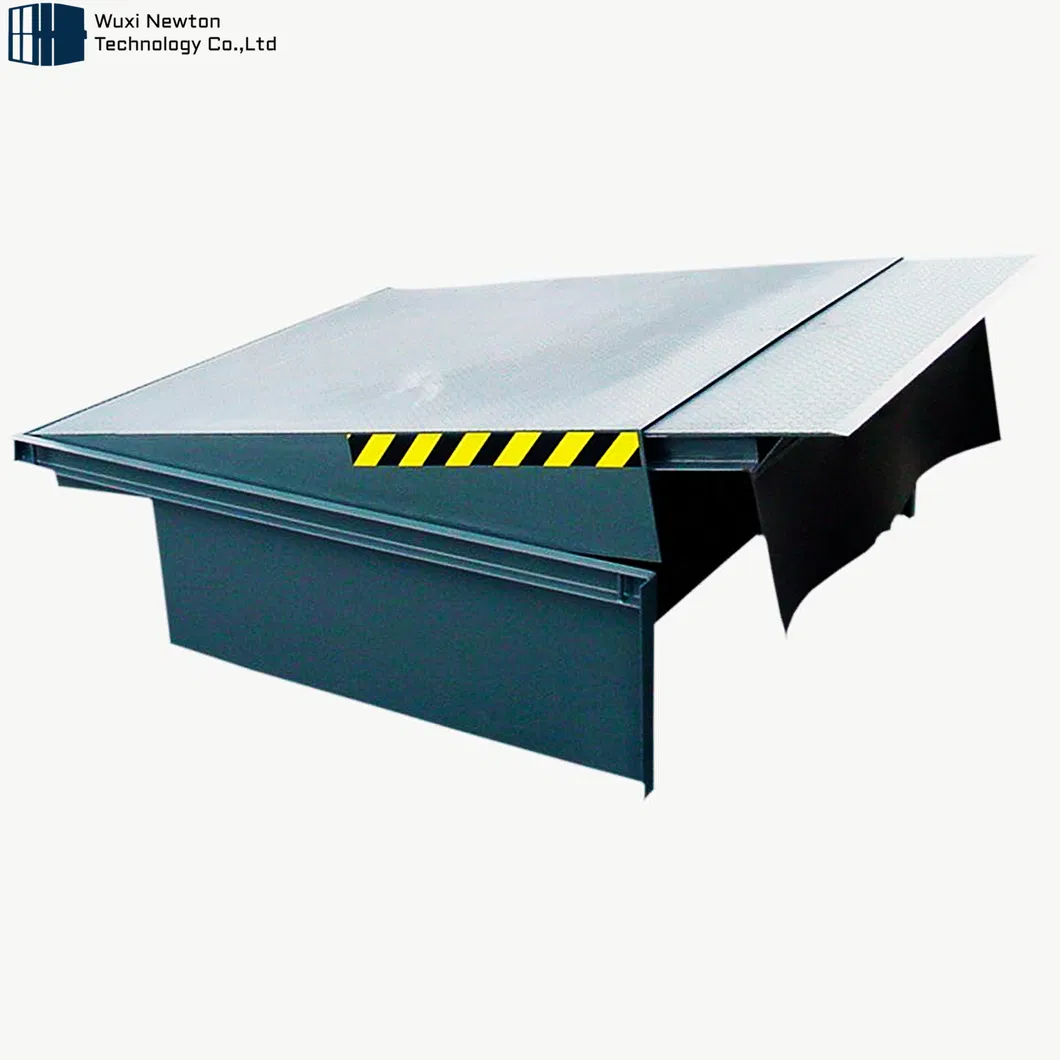

The dock levelers with telescopic lip (1000mm) allow you to adapt to all loading and unloading situations, including end loads.

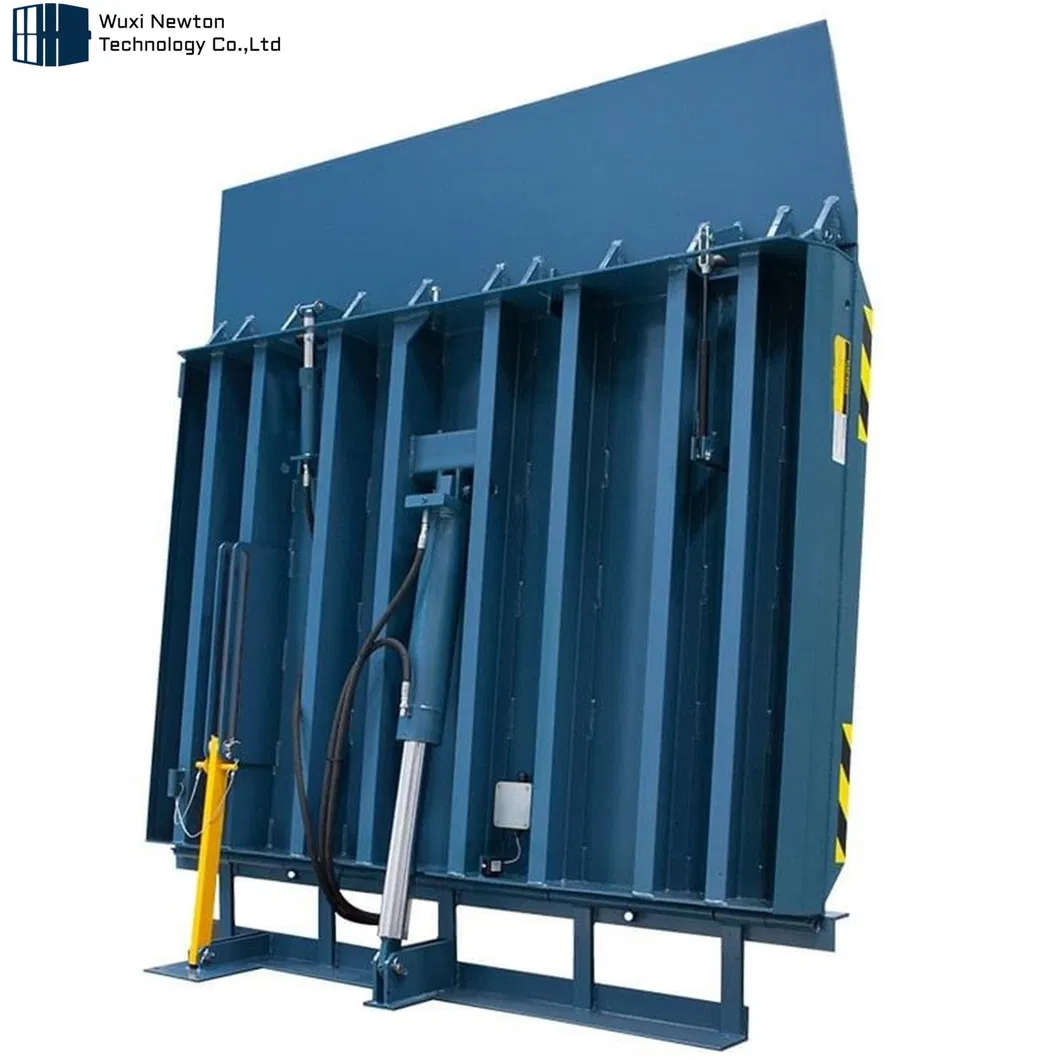

Designed for enhanced pedestrian safety, sanitation, and environmental control.
| Max Bearing Weight | 6000kg - 10000kg |
| Cylinder Power | 1.1KW |
| Control Unit Level | IP54 |
| Spraying Thickness | 60~90 um |
