■ Basic Information
Lift Mechanism
Hydraulic Cylinder
Certification
CE, ISO 9001
Voltage
220V 50Hz / 380V 50Hz
Specification
2000*2000*600 mm
■ Packaging & Delivery
Package Size
200.00cm * 200.00cm * 60.00cm
■ Product Visuals

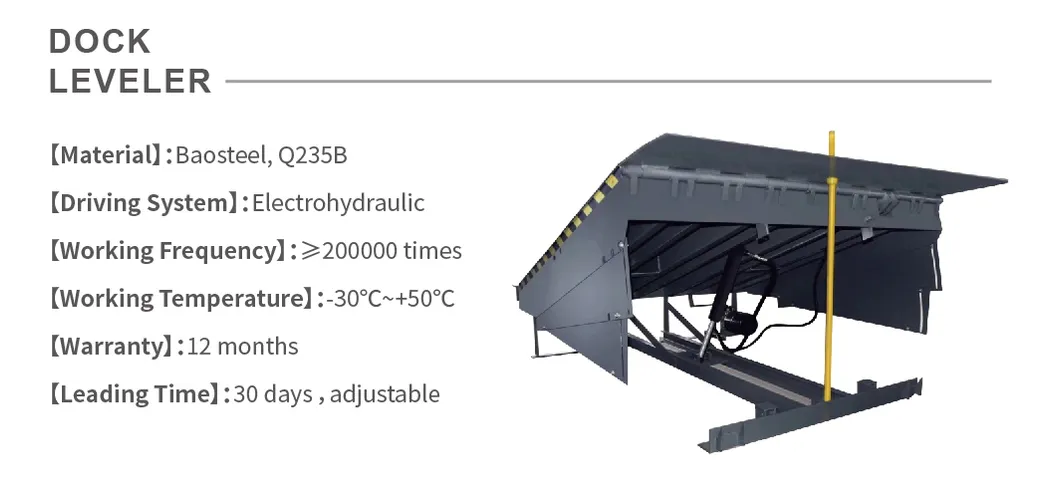

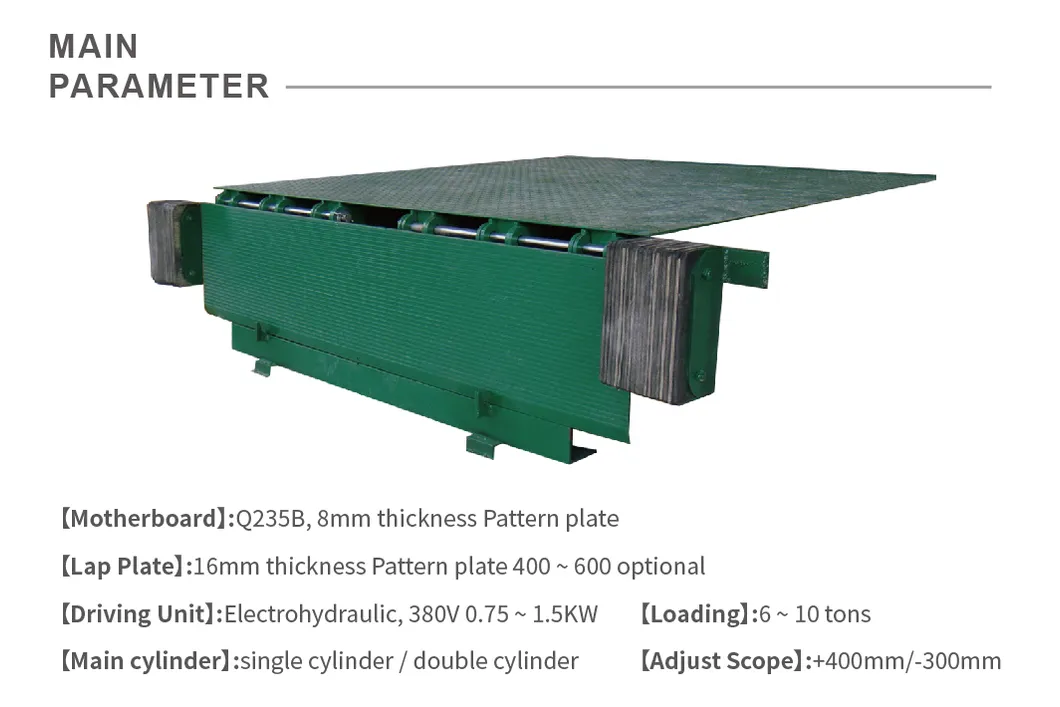

■ Technical Parameters
| DETAILED SPECIFICATIONS |

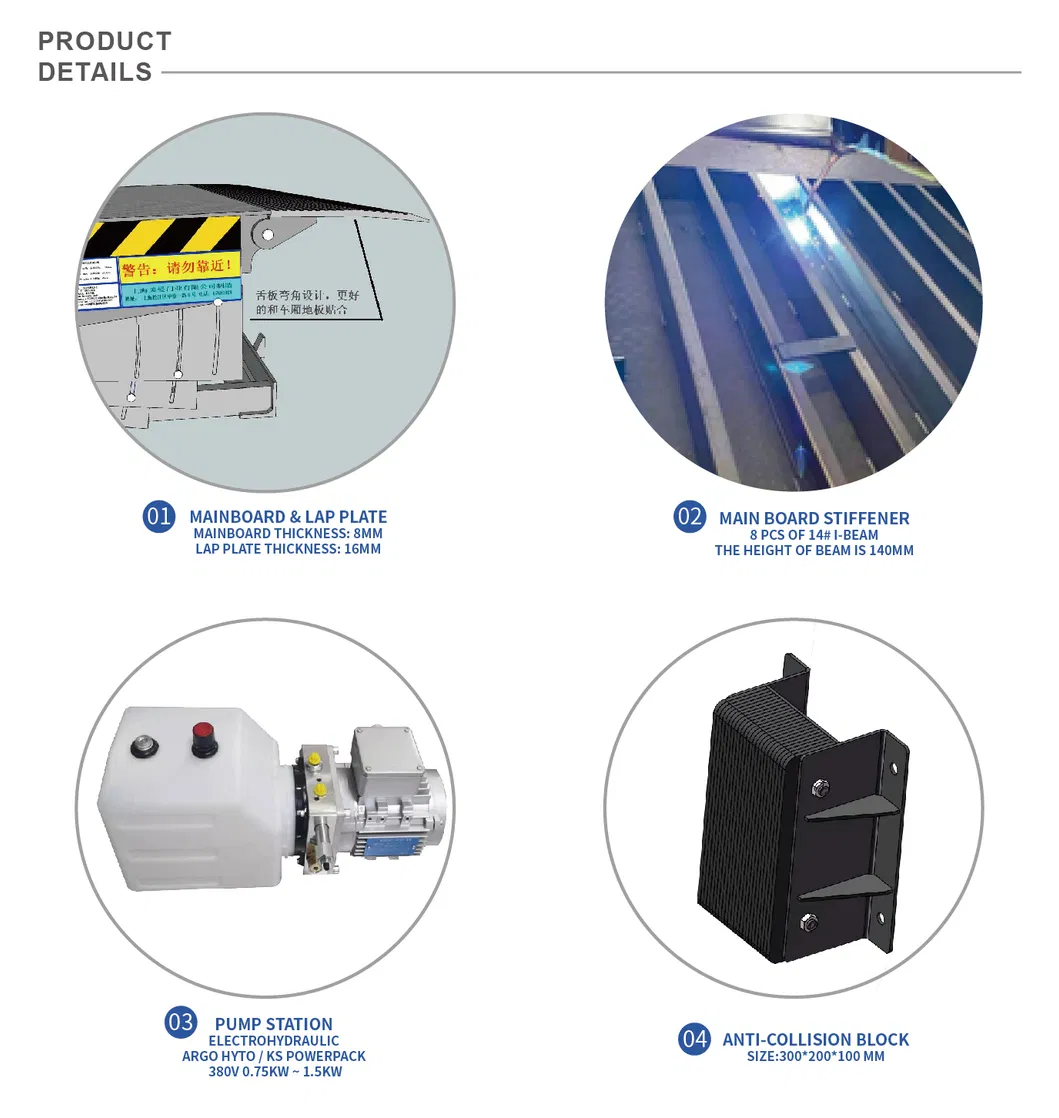

| Main Board |
Q235B steel plate with anti-slide pattern, thickness: 6 / 8 mm; blasting surface treatment and powder coating |
| Lap Plate |
Q235B steel plate with anti-slide pattern, thickness: 14 / 16mm; blasting and powder coating |
| Loading Weight |
Dynamic load: 6T / 8T / 10T / 12 T / 15T |
| Driving System |
Electrohydraulic, 380V 0.75KW ~ 1.5KW powerpack |
| Adjust Scope |
+400mm / -300mm |
| Adjust Time |
Up ≤ 16S; Down ≤ 10S |
| Safety Features |
Explosion proof valve, Side Baffles (Automatic retraction) |
| Working Temp |
-30ºC ~ +50ºC |
| Working Frequency |
≥ 200,000 times |
■ Professional Capabilities
✔
Professional enterprise engaged in industrial door design, manufacturing, and installation.
✔
Utilizes advanced equipment and technology to provide customized professional solutions.
✔
Main product range includes steel doors, fire doors, high speed doors, sectional doors, and logistic docking systems.
✔
Certified with ISO9001: 2000 Management Certification and CE Certification.
? Frequently Asked Questions
1. What is the dynamic load capacity of the dock leveler?
The loading bay dock leveler supports a wide range of dynamic loads, including 6T, 8T, 10T, 12T, and 15T models.
2. What safety features are included in the hydraulic system?
It is equipped with an explosion-proof valve and side safety baffles with automatic retraction to ensure operator safety during unloading.
3. Can the dock leveler operate in extreme temperatures?
Yes, the system is designed to work efficiently in a temperature range from -30ºC to +50ºC using 32# anti-wear hydraulic oil.
4. What is the standard adjustment scope for the platform?
The platform offers an adjustment scope of +400mm upwards and -300mm downwards to accommodate different truck heights.
5. What materials are used for the main board and lap plate?
Both are constructed from Q235B high-strength steel plate with an anti-slide pattern, featuring thickness between 6mm to 16mm depending on the model.
6. Does the product meet international quality standards?
Yes, the product is fully compliant with CE and ISO 9001 certifications, ensuring high quality and safety standards.
