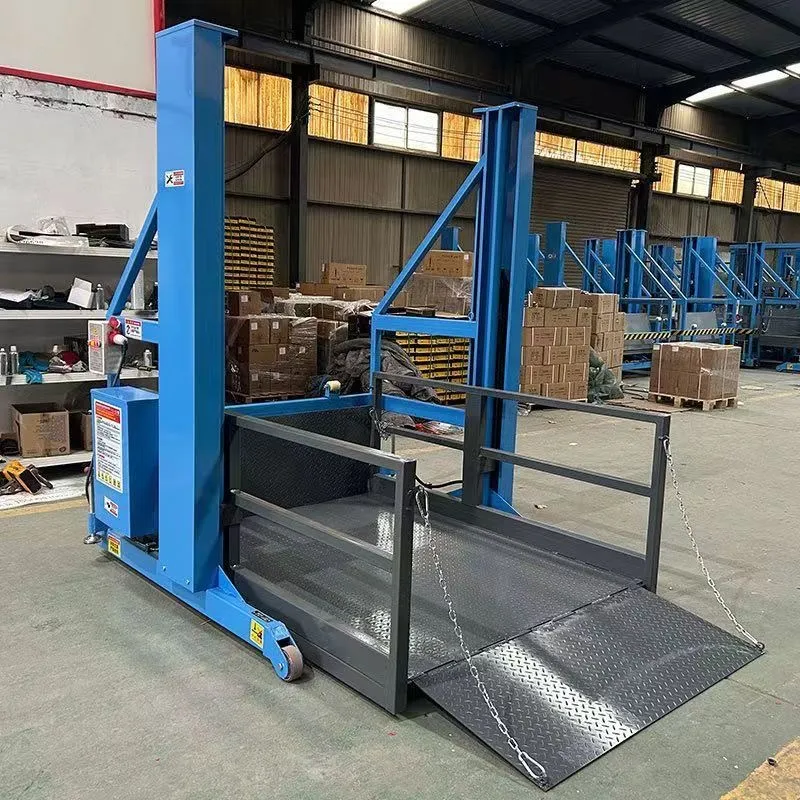

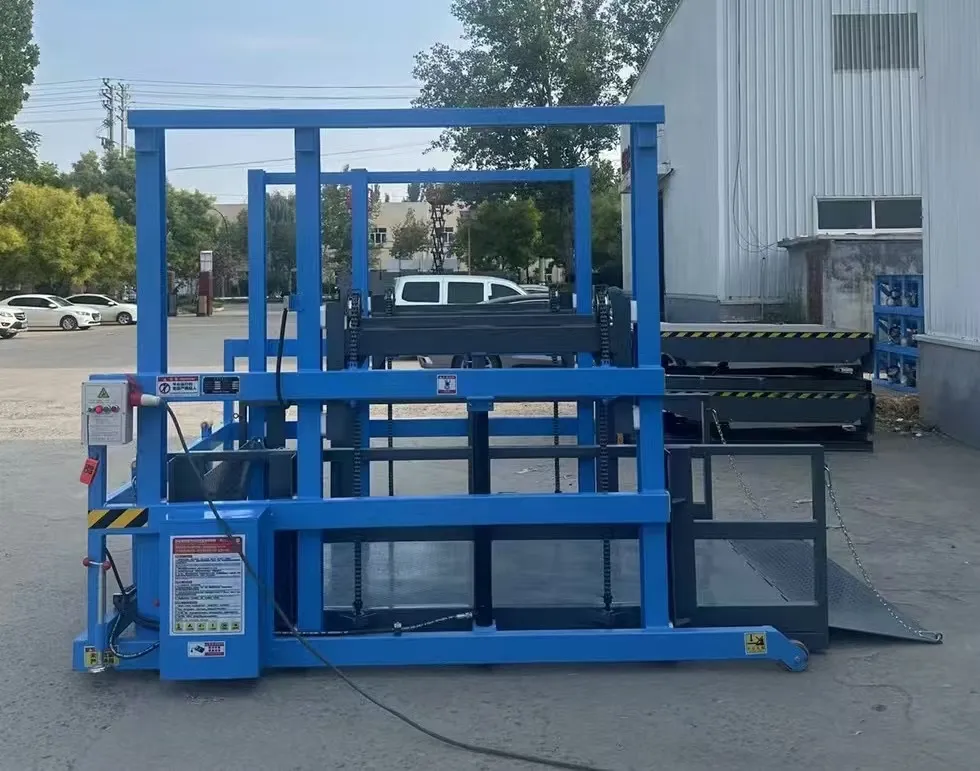

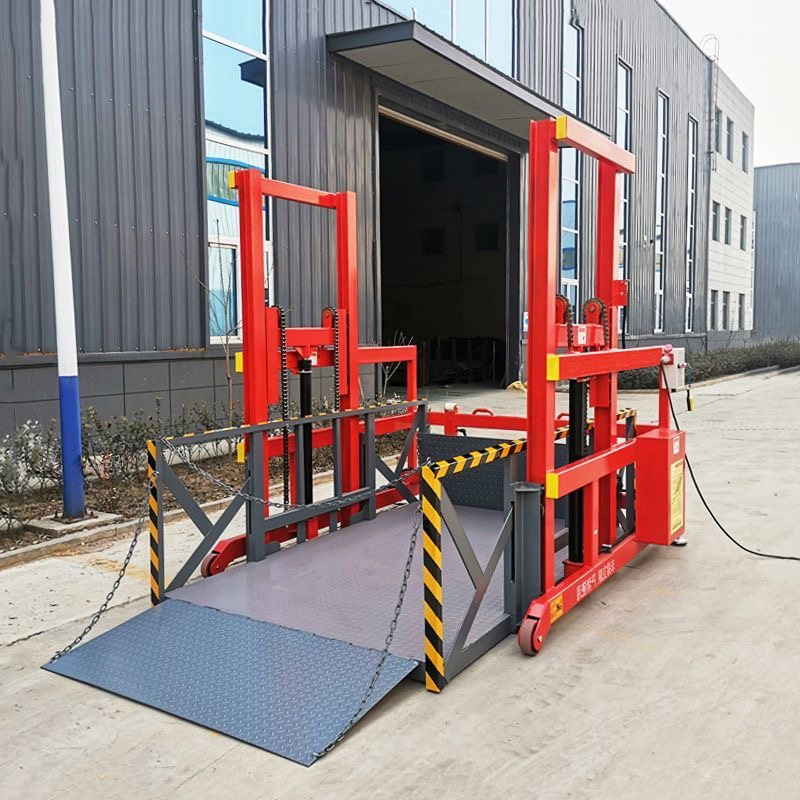

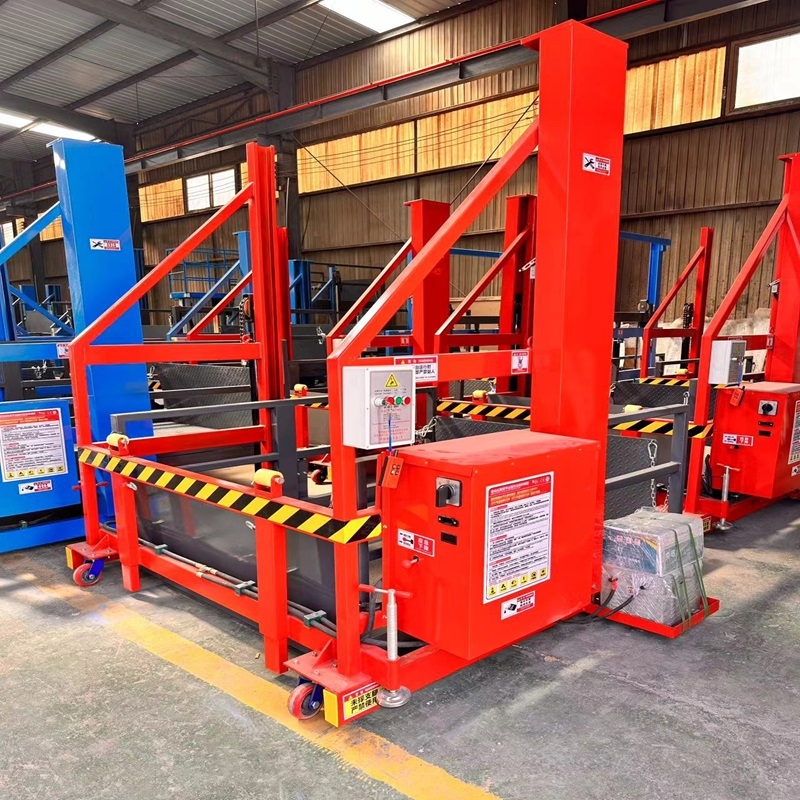

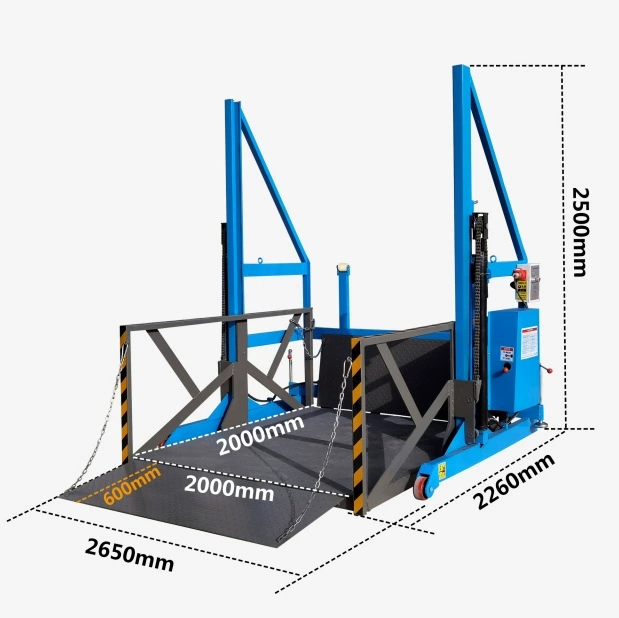

The mobile loading and unloading platform adopts high-strength guide rail structure, hydraulic lifting, and convenient movement. It requires no pits and can be used with manual or electric pallet trucks to achieve one-person rapid loading and unloading operations. It is a safe and efficient modern platform controlled by 24V safe voltage with wireless remote control, industrial waterproof aviation plug (IP44), power failure emergency descending device, and travel limit device.

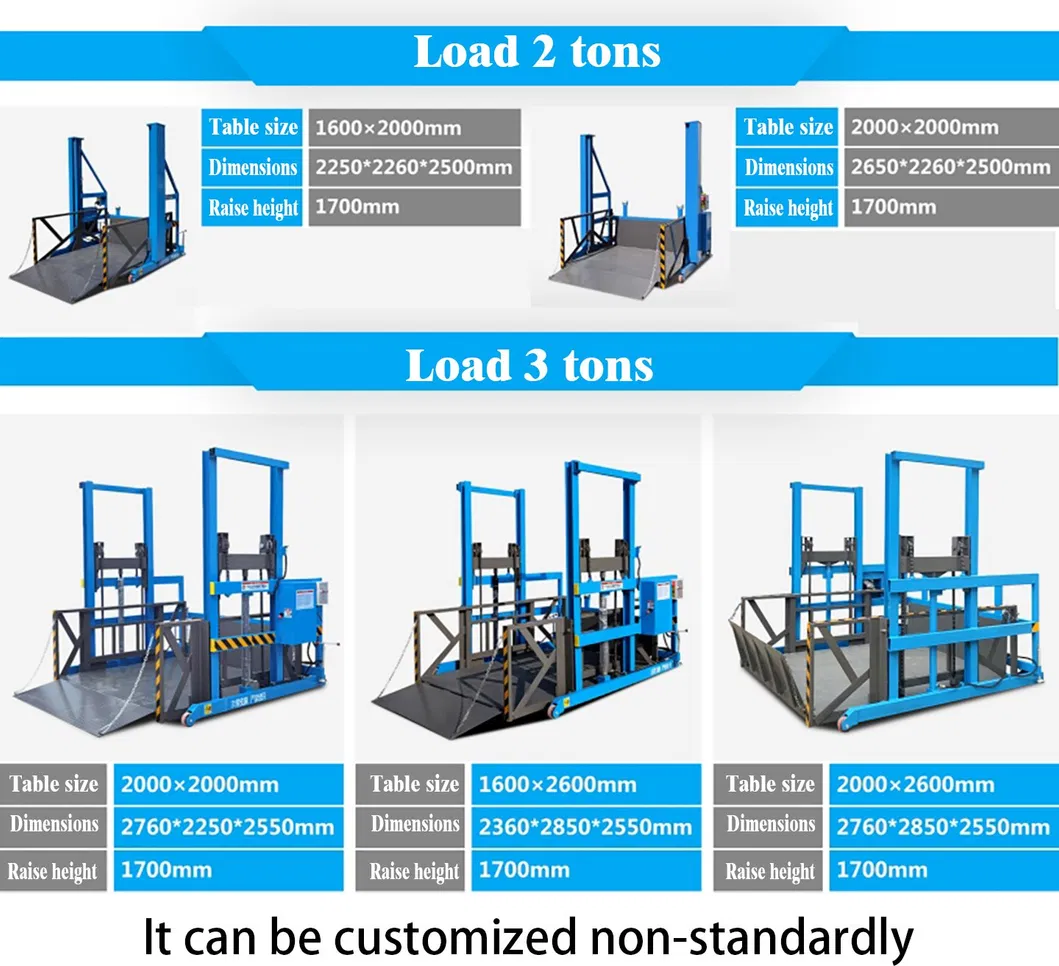

Model
Table Size
Lifting Height
Load Capacity
Panel Material
Power
Dead Weight
SJYD-2T

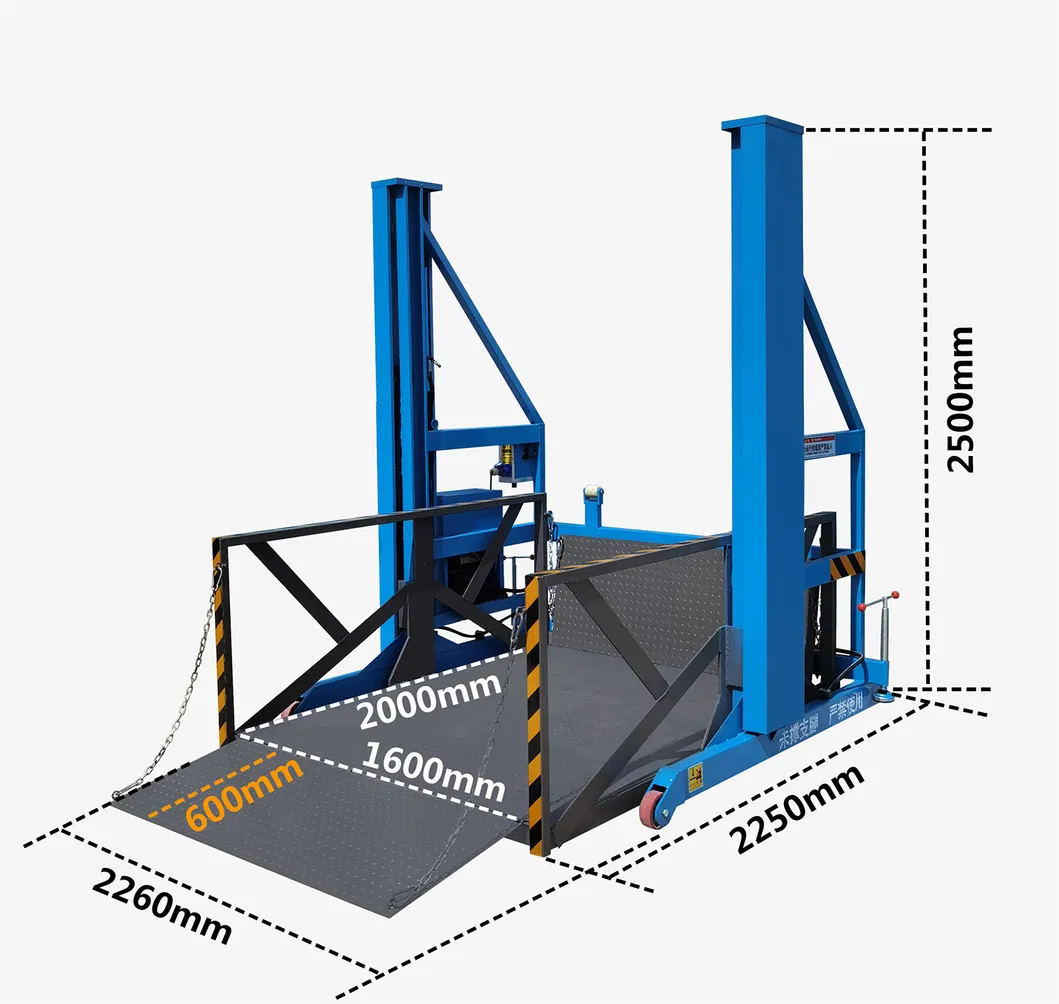

1600*2000mm
1700mm
2000KG
4.5mm Patterned steel plate
2.2kw/3kw
718KG

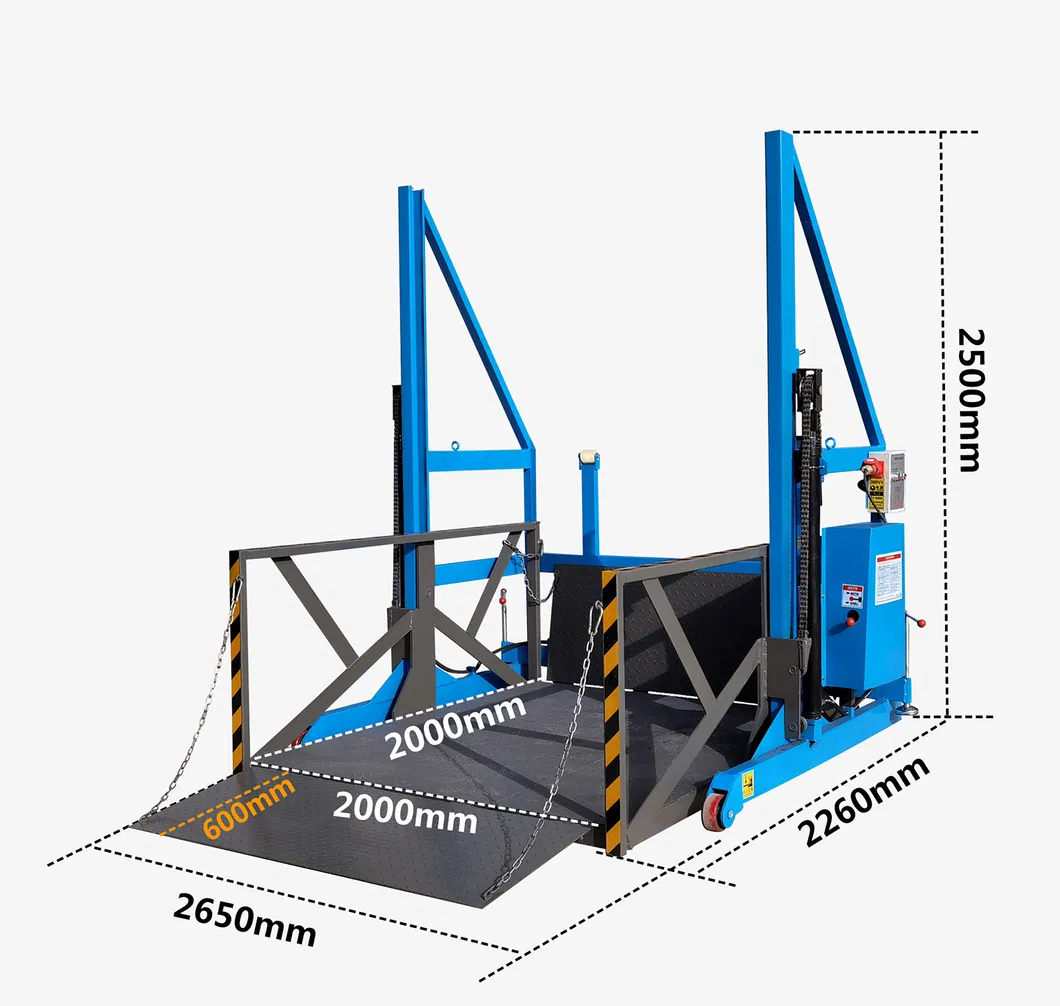

2000*2000mm
1700mm
2000KG
4.5mm Patterned steel plate
2.2kw/3kw
800KG
SJYD-3T
1600*2000mm
1700mm
3000KG
4.5mm Patterned steel plate
4kw
988KG

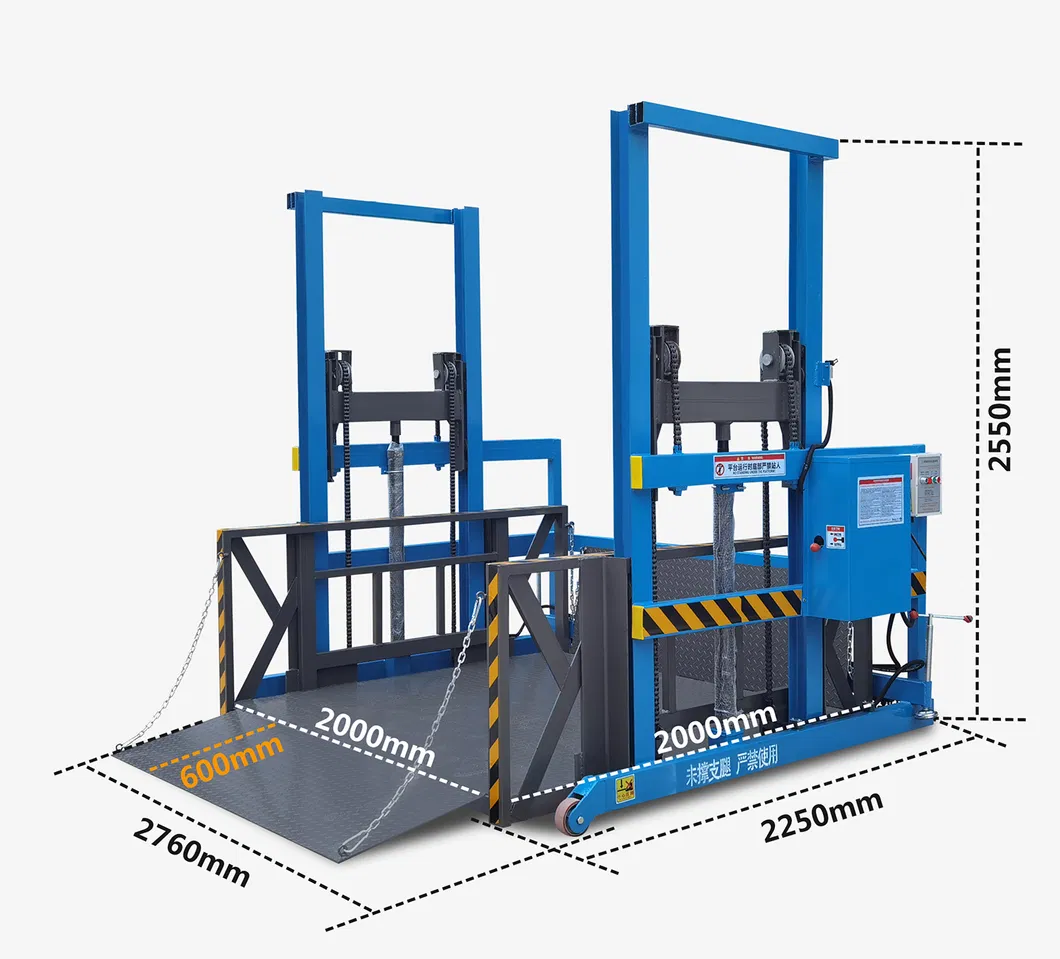

2000*2000mm
1700mm
3000KG
4.5mm Patterned steel plate
4kw
1060KG
1600*2600mm
1700mm
3000KG
4.5mm Patterned steel plate
4kw
1108KG
2000*2600mm
1700mm
3000KG
4.5mm Patterned steel plate
4kw
1200KG

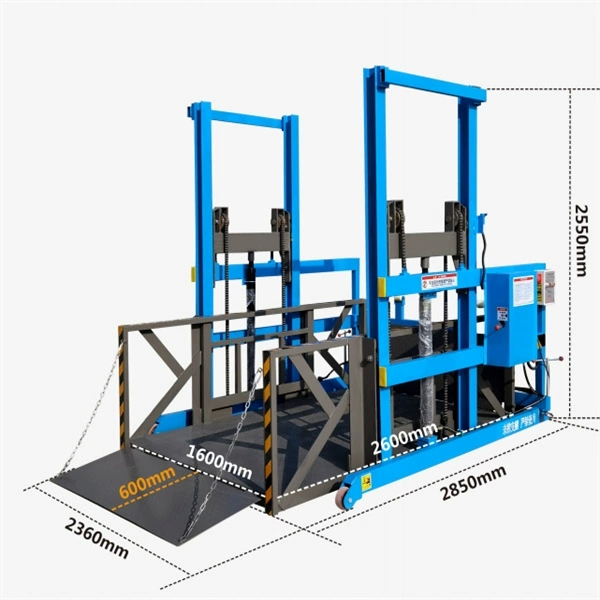

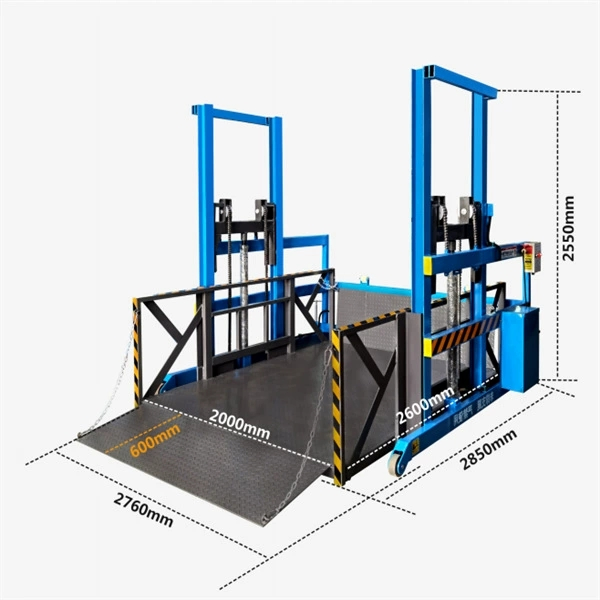

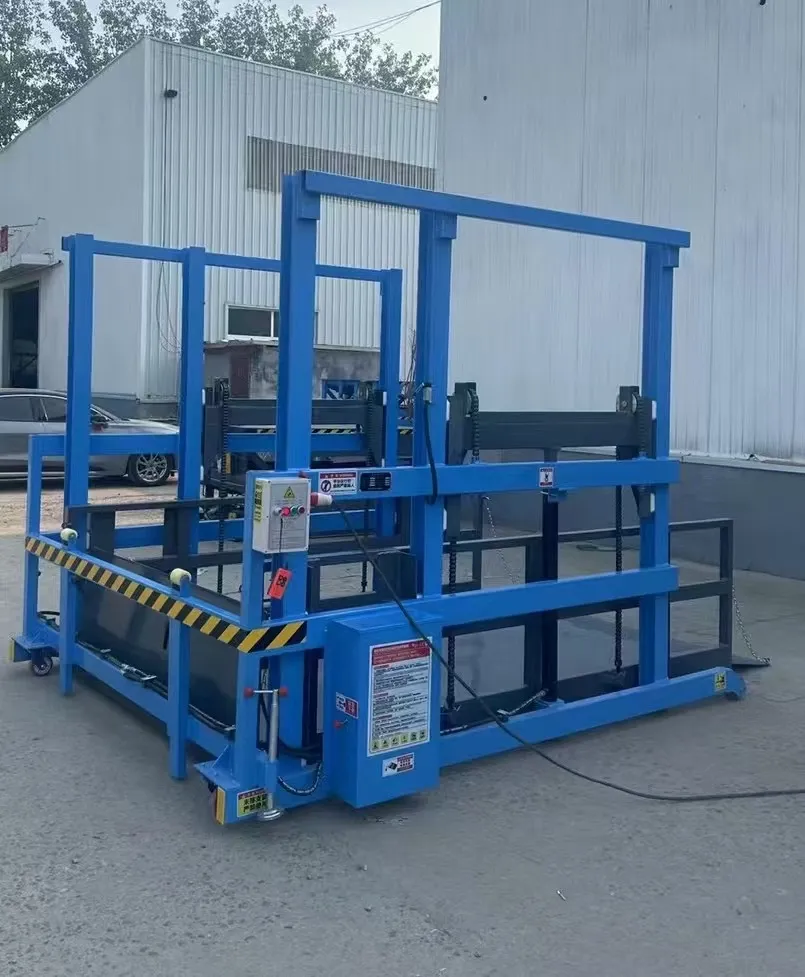

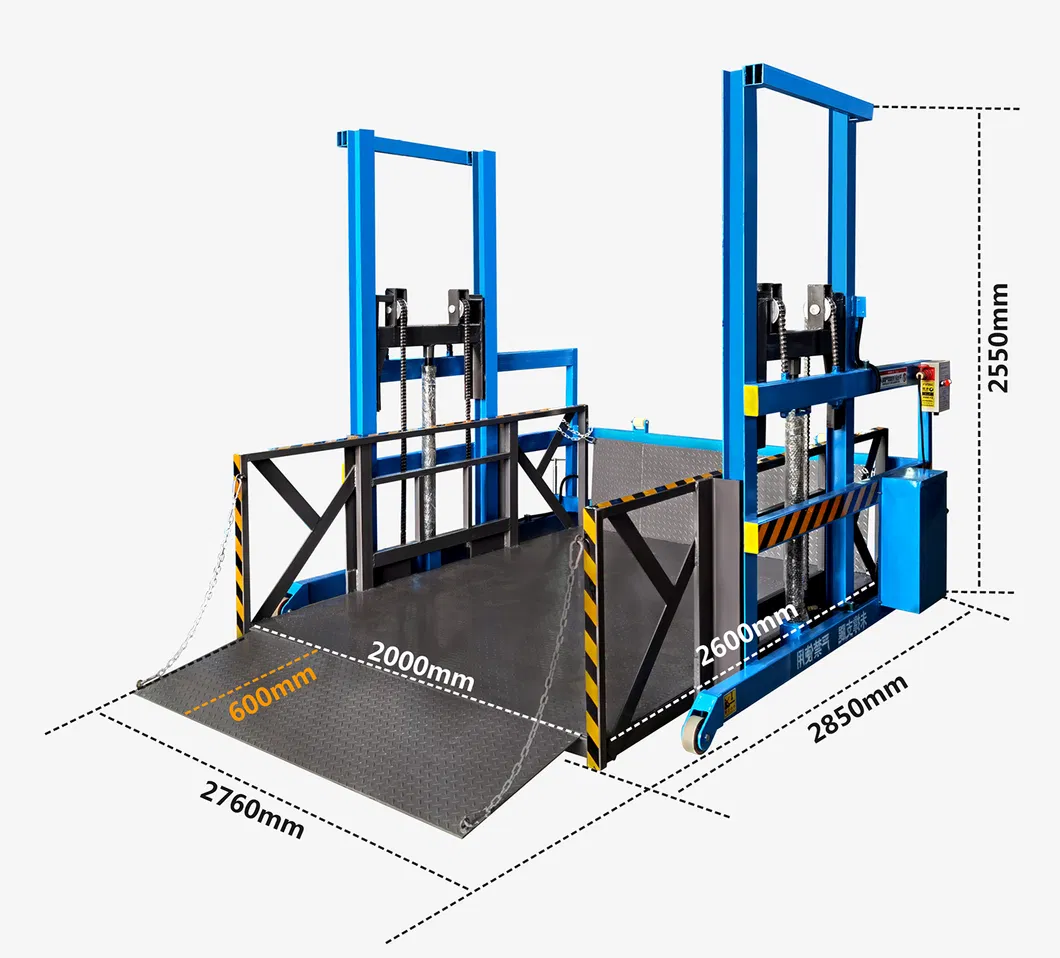

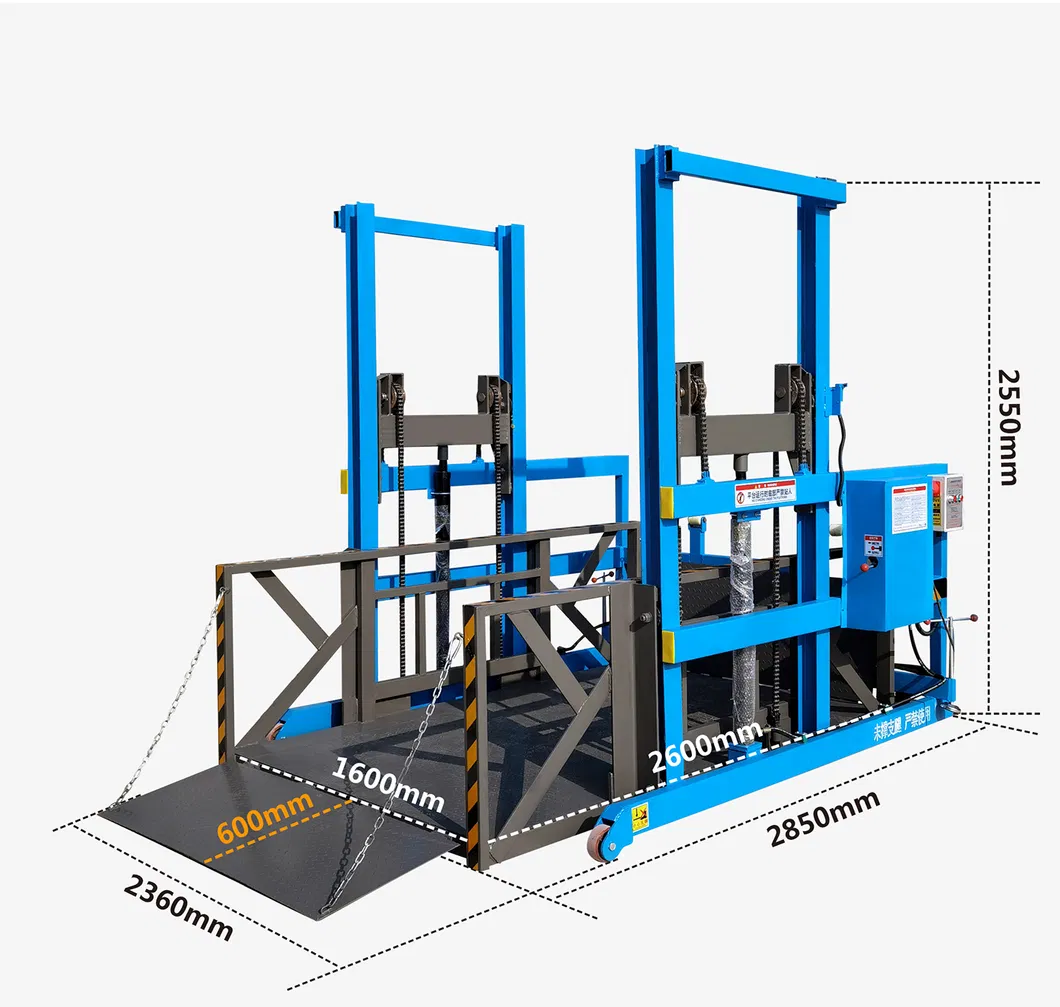

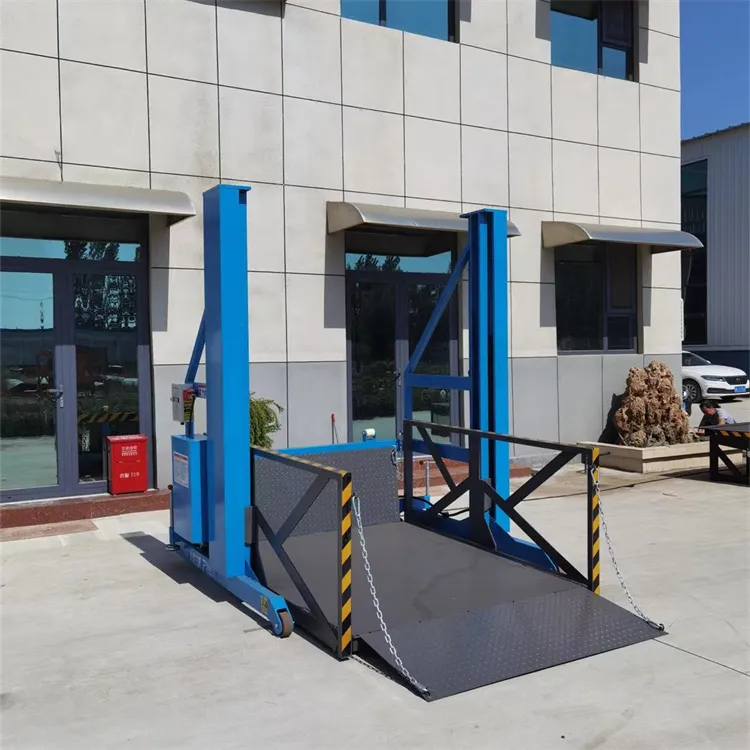

Visual Display
Frequently Asked Questions
What is the maximum load capacity of these platforms?
The platforms come in two main specifications: 2T (2000KG) and 3T (3000KG) capacity models.
Does the mobile loading platform require a foundation pit?
No, one of the primary advantages of this mobile platform is that it requires no pits, making it easy to move and use anywhere.
How is the lifting height and table size determined?
The standard lifting height is 1700mm with a minimum height of 8mm. Table sizes are customizable, with standard options like 1600*2000mm and 2000*2600mm.
What safety features are included in the hydraulic system?
The system includes a 24V safe voltage control, a power failure emergency descending device, and a travel limit device for maximum safety.
Is the equipment suitable for outdoor use?
Yes, it features an industrial waterproof aviation plug with an IP44 protection rating, suitable for various workshop and loading dock environments.
What type of power and control does it use?
It uses hydraulic drive powered by 2.2kw to 4kw motors (depending on the model) and is operated via a wireless remote control.
