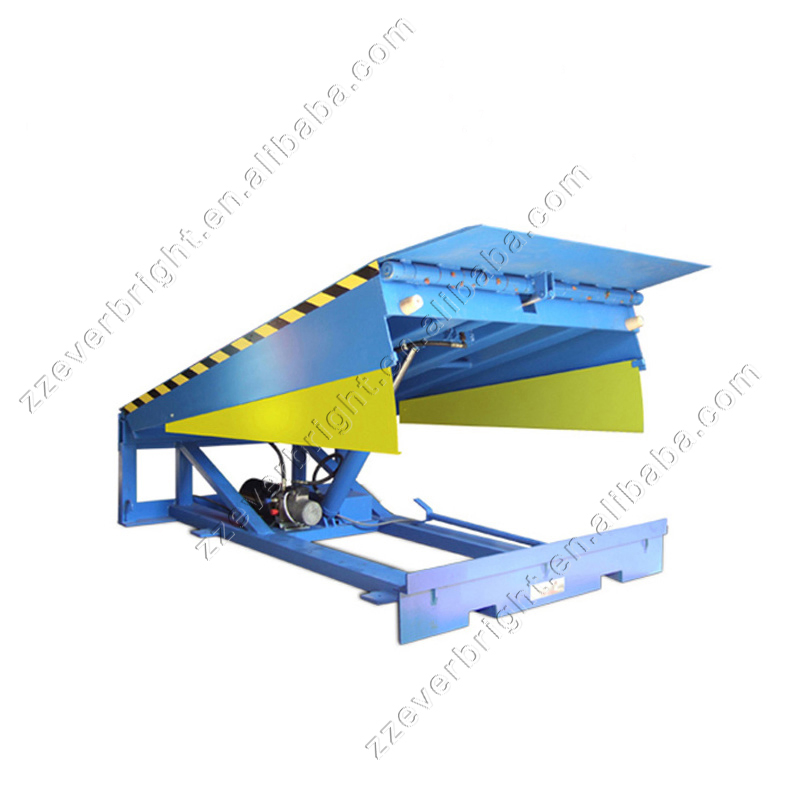

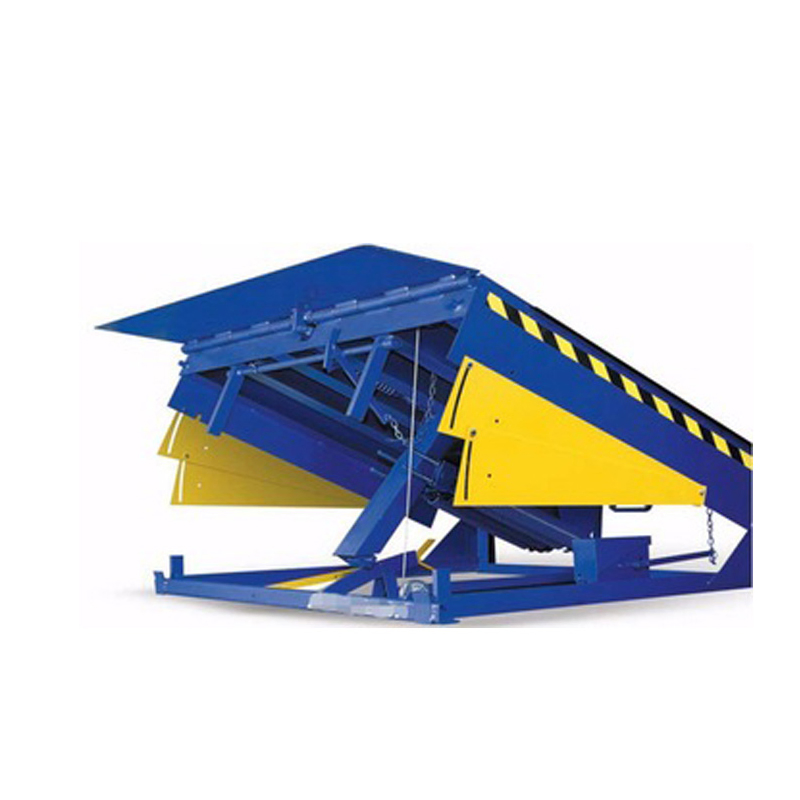

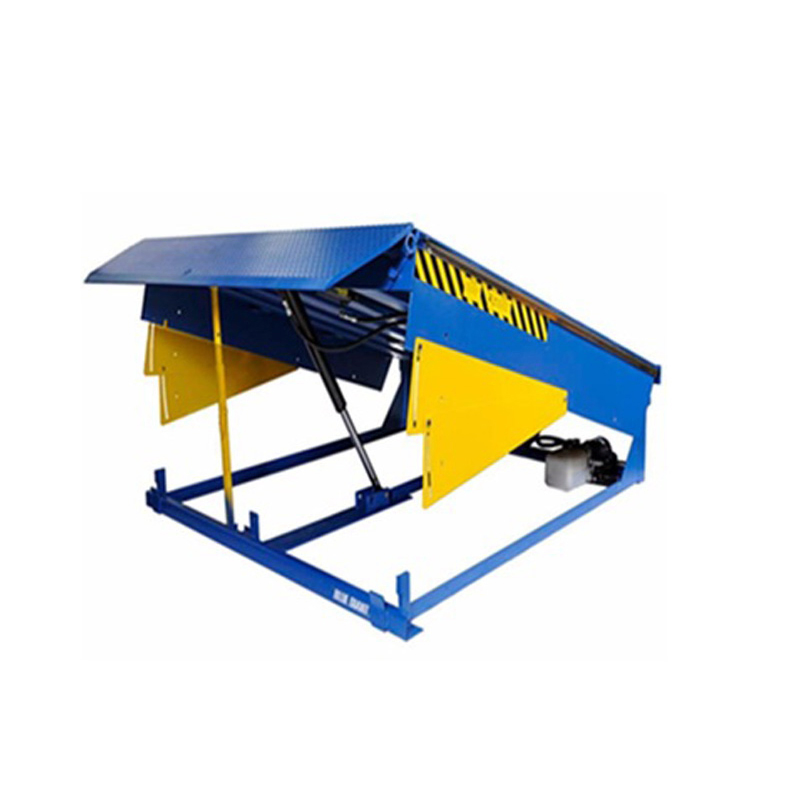

Lift Dock Platform Hydraulic Loading Dock Level Platform

Customization:	Available
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism:	Telescoping Lift

📋

Basic Info.

Model NO.

DL-001

Carrying Capacity

Weight Level

Moves

Stationary

Driven Type

Hydraulic

Running Mode

Stationary

Certification

CE

Product Name

Dock Leveler

Power

1.1kw

Voltage

220/380V

Capacity

6000kg-12000kg

Material

High-Duty Steel Structure

MOQ

1 Set

HS Code

8428909090

🏗️

Product Description

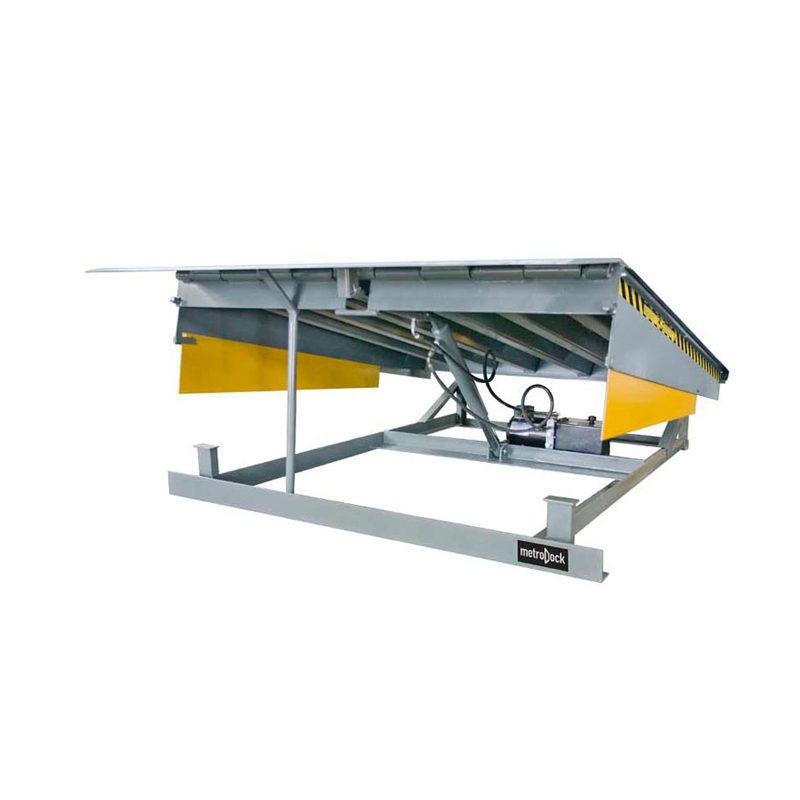

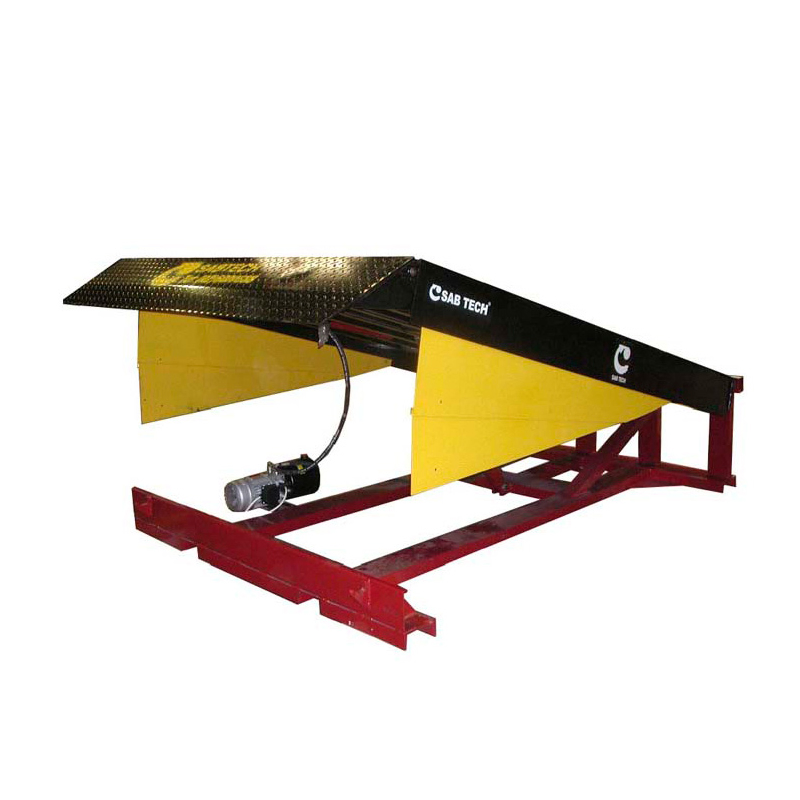

Lift dock platform hydraulic loading dock level platform

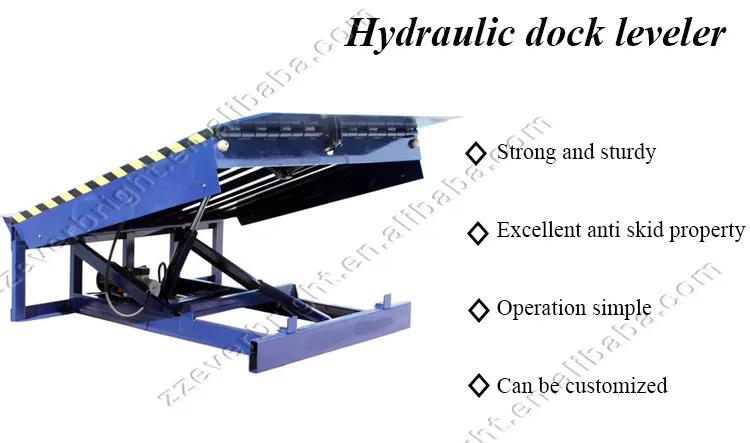

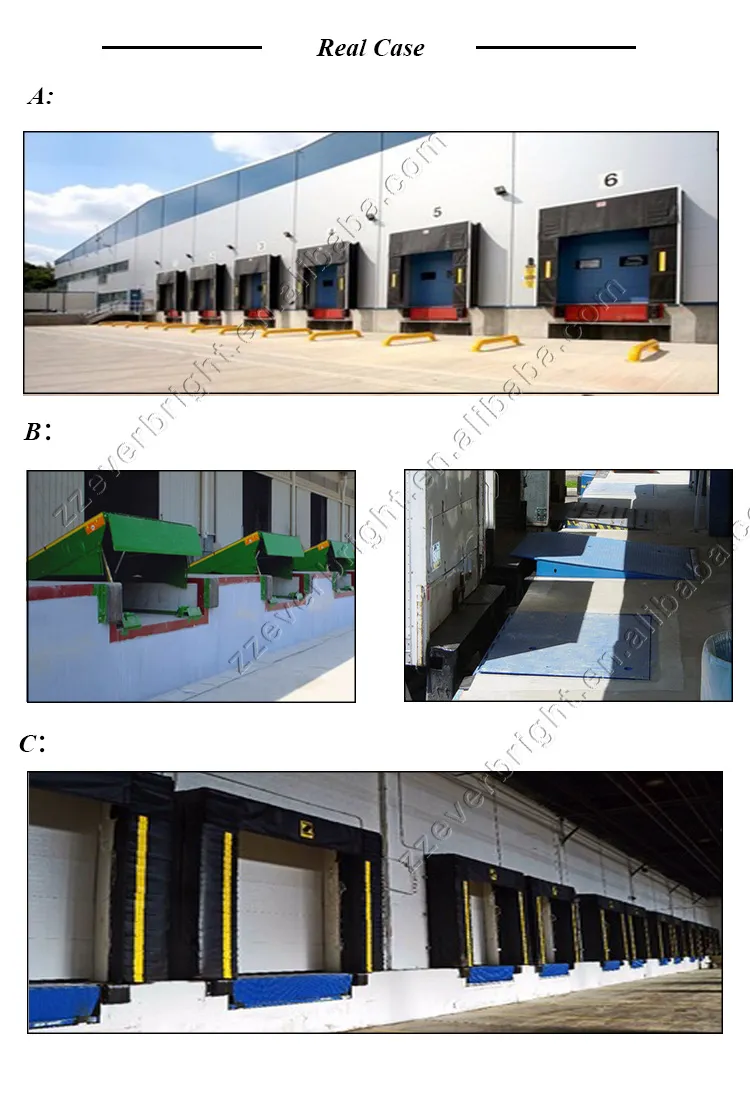

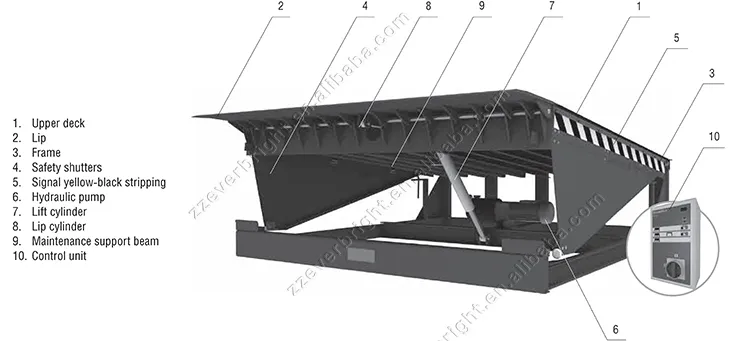

Dock levelers are efficiently used for handling heavy loads and it also with comprehensive safety configuration. When activated, the leveler is lifted and the lip opens while turning. Next, the platform is lowered until it reaches the floor of the vehicle body. The system is ready for operation. After the work is completed the levelers is lifted, the lip lowers and takes a vertical position, then the platform is returned its original position. They are used in various applications, such as warehouse, stations, shipping dock, postal transportation and express delivery. Installation can be carried out by both, embedded and suspended installing methods.

📊

Technical Parameter

Parameter	Value / Specification
Size	20002000600mm (or customized)
Load capacity	6000KG/8000KG/10000KG/12000KG
Maximum point load	Top sheet 8mm / 6,5 N/mm2
Motor hydraulic unit	1.1KW
Supply voltage	380v, 3 phases
Control voltage	24V
Protection class	IP54
Working fluid	Mobile DTE 10 EXCEL
Surface cleaning	Sa2
Painted layer thickness	60-90um
Temperature range	-30 to +50ºC

📸

Product Gallery

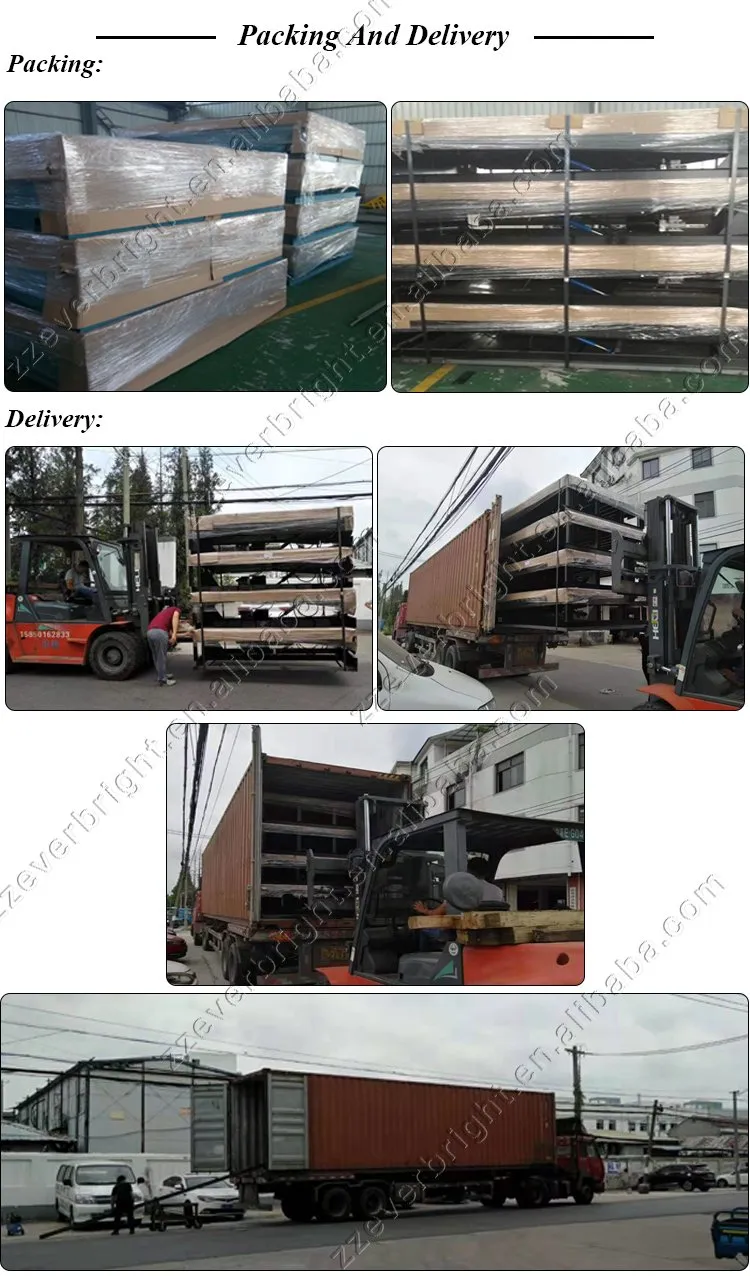

Packing & Delivery: Standard export packaged (plywood box). Delivery within 7-25 days after deposit via sea or other transport methods.

We specialize in the Doors & Windows industry managed by an experienced team. The product scope covers industrial lifting doors, commercial doors, dock equipment, and motors. All products are marked by excellent quality and long service life across Europe, Asia, America, and Australia.

🛠️

Our Service

✅ Professional engineers check and test machines before delivery.

✅ 12-month warranty for all machine accessories.

✅ Custom sizes, colors, and materials available.

✅ Free samples and specific designs based on requirements.

Additional Offers:

🔹 Professional CAD drawings
🔹 Stamped engineered drawings
🔹 Custom designs built to meet specific needs

⭐

Recommend Products

❓

Frequently Asked Questions

Q1: What is the standard load capacity for these dock levelers? A: Our standard capacities range from 6,000kg to 12,000kg, suitable for various industrial loading requirements.

Q2: Can the size and color of the dock leveler be customized? A: Yes, we offer full customization for size, color, and material to match your specific facility needs.

Q3: What kind of power supply is required? A: The standard supply voltage is 380V (3 phases) with a 1.1KW motor hydraulic unit, but 220V options can be discussed.

Q4: What is the typical lead time for an order? A: Delivery usually takes between 7 to 25 days after the deposit is received, depending on the order volume and customization.

Q5: Is the product certified for international use? A: Yes, our dock levelers are CE certified and meet essential safety and performance standards for global markets.

Q6: How are the units packaged for shipping? A: We use standard export-grade plywood boxes or customized packaging to ensure the equipment remains protected during sea or land transport.
