Loading Dock Platform Suspended Platform

Customization: Available
After-sales Service: Installation
Warranty: 1 Year

Product Description

Basic Information
Model NO.
zlp200/zlp500/zlp630/zlp800/zlp1000
Application
Building Crane
Lift Mechanism
Rack&Pinion
Carrying Capacity
OEM
Moves
Moving
Driven Type
Rack&Pinion
Running Mode
Moving
Feature
Explosion-Proof
Certification
CE, ISO 9001
Usage
Electrical Work Gondola Equipment
Surface Treatment
Painted, Hot Galvanized
Material
Steel, Aluminum Alloy
Rated Load(Kg)
200, 500, 630, 800, 1000
Voltage
220-440V, 50-60Hz, 3phase
Max. Lifting Height
300 M
Origin
China
Product Description

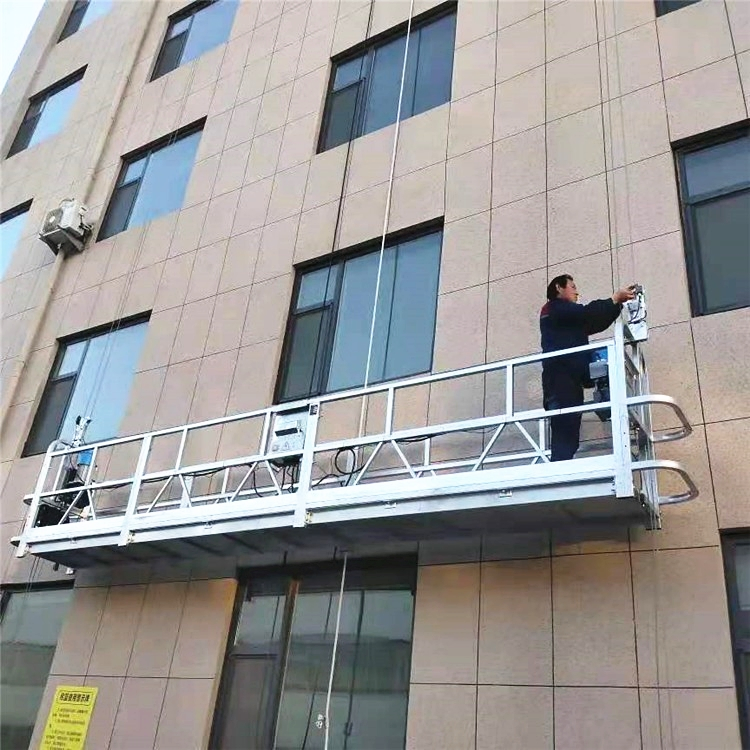

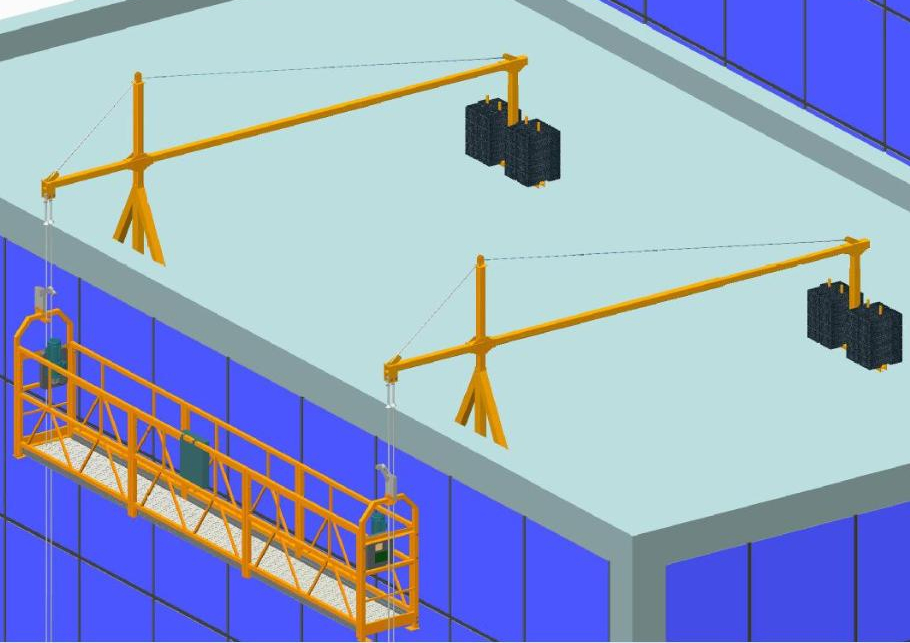

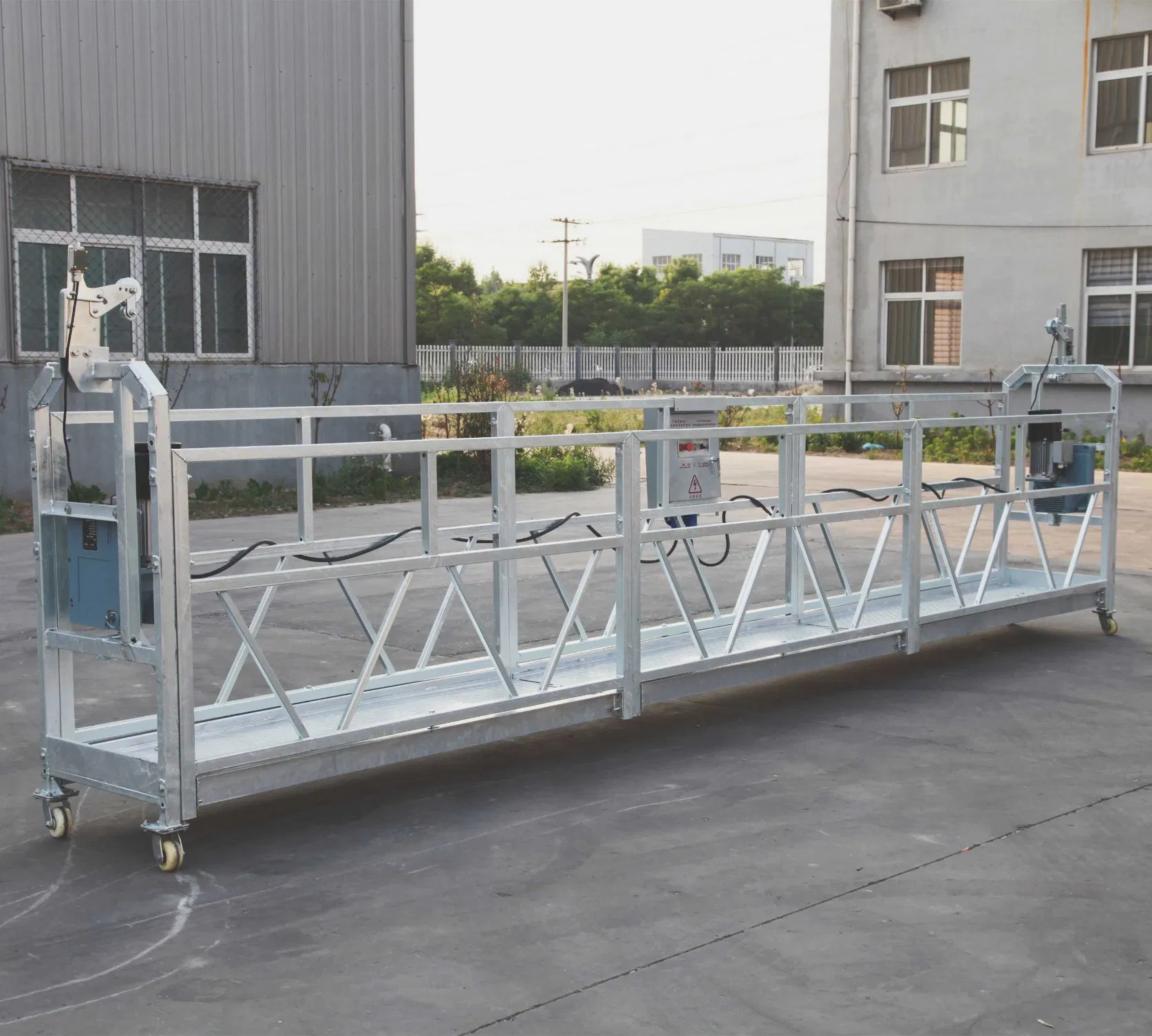

Loading Dock Platform Suspended Platform is through the top of suspension mechanism on the roof of buildings, hanging with wire rope along building facades, the motor assembly with two sides of gondola and drive the load which inside the gondola up and down. Work gondola has a strong adaptability to construction sites; it is always used for wall cleaning, maintenance, decoration, windows or other kind glasses cleaning, installation, maintenance or high buildings surface painting works.
We pay all our attention to the Construction work cradle, working construction cradle, hanging construction cradle, construction cradle design and manufacturing. Wall construction cradle for high buildings and windows cleaning is a good tool to make work efficiently.
Loading Dock Platform Suspended Platform
Technical Parameters
Model ZLP500 ZLP630 ZLP800 ZLP1000
AppearancePainting / Hot Galvanized
Fabrication MaterialSteel / Aluminum Alloy
Rated Load500kg630kg800kg1000kg
Lifting Speed9-11m/min9-11m/min8-10m/min8-10m/min
Motor Power2x1.5kw2x1.5kw2x1.8kw2x2.2kw
Diameter of Steel Rope8.3mm8.3mm9.1mm10.2mm
Max Lifting Height300m300m300m300m
Voltage (3 Phases)220v/380v/415v/440v, 50hz/60hz (OEM)
Products Show

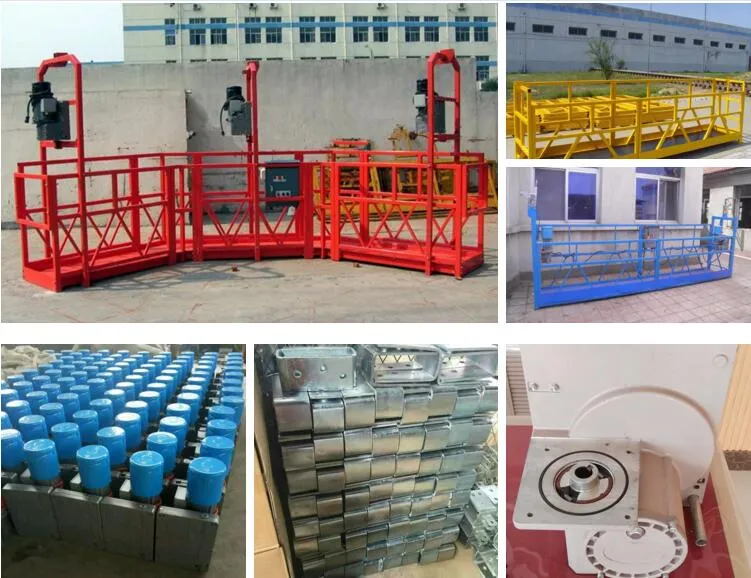

Main Parts
Main Parts list
  • Construction cradle (basket): Steel or Aluminum Alloy (painted or hot galvanized)

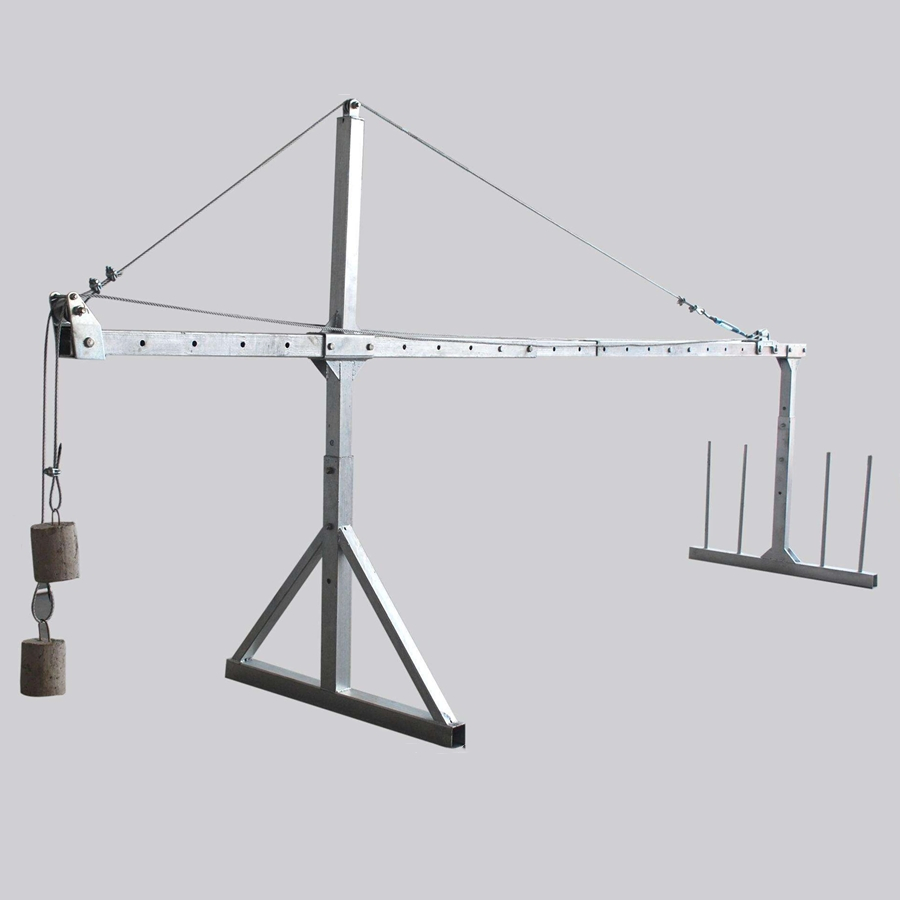

  • Suspension Mechanism: Steel (painted or hot galvanized)
  • Electric hoists: LTD6.3 or LTD8
  • Safety Lock: LST30
  • Electric control box: Along with hoists
  • Steel wire rope: 8.3mm, 8.6mm or 9.1mm
  • Safety rope: 18mm, 20mm
  • Electric cable: 3*2.5+2*1.5
  • Counterweights: Cement, cement with steel cover & Iron counterweight
  • Spare parts

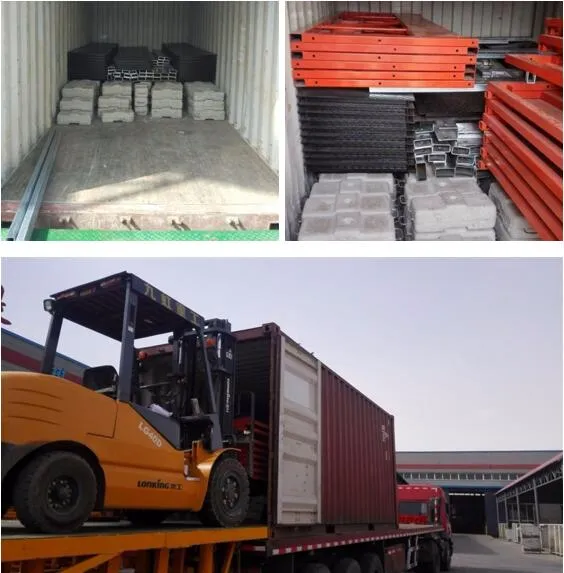

Packing and Shipping
Package Item Platform Counter Weight Hoist & Safety Lock Control Panel & Others
Method Film Pallet Wooden Case Carton Box
Loading Dock Platform Suspended Platform Packaging
Suspended Platform Customization
Project Showing Case

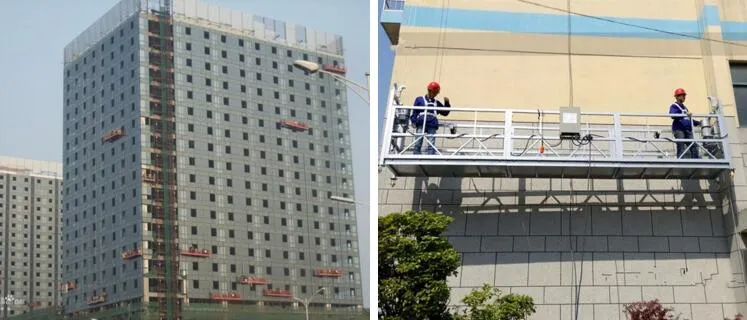

Case Study 1
Case Study 2
Frequently Asked Questions
Q: What is the main application of a suspended platform? A: It is primarily used for high-rise building facade construction, decoration, cleaning, and maintenance, such as wall painting, window cleaning, and glass installation.
Q: What materials are available for the platform basket? A: We offer platforms made of both Steel (with painted or hot-galvanized surface treatment) and Aluminum Alloy to suit different environmental requirements.
Q: What is the maximum lifting height for these platforms? A: The standard maximum lifting height is up to 300 meters, depending on the specific model and wire rope configuration.
Q: Can the platform voltage be customized? A: Yes, we provide OEM services for voltage requirements, including 220V, 380V, 415V, and 440V at both 50Hz and 60Hz.
Q: What safety features are included in the system? A: The system includes safety locks (LST30), emergency stop buttons, top limit switches, and safety ropes to ensure maximum protection during high-altitude operations.
Q: How are the components packaged for international shipping? A: Components are securely packed using a combination of film, pallets, wooden cases, and carton boxes to ensure safe transport.
