🚚 Product Description

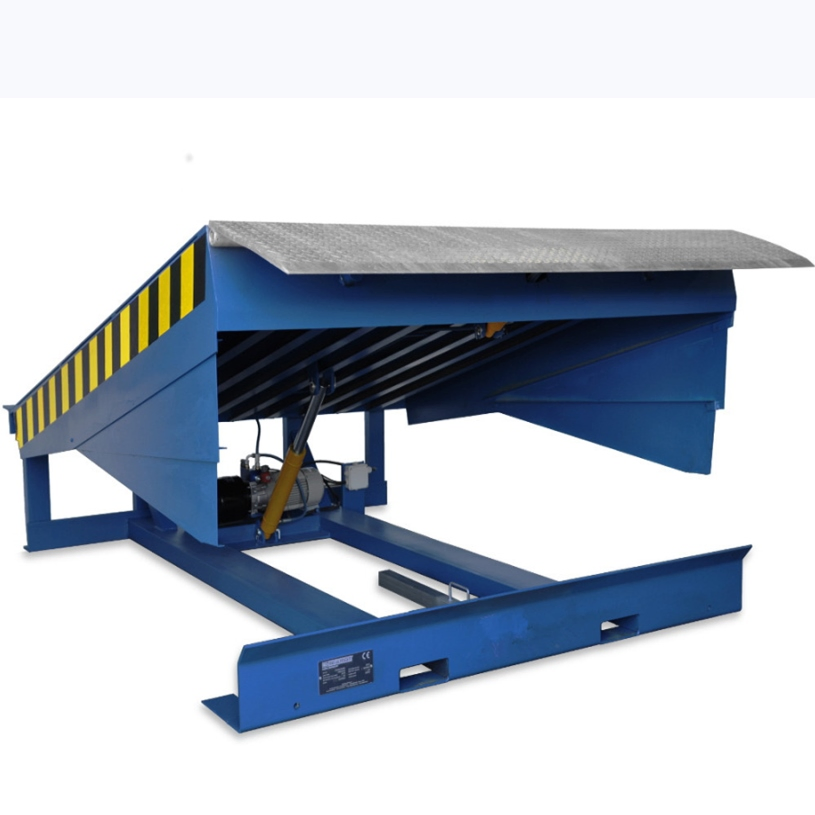

Automatic Stationary Fixed Hydraulic Dock Leveler: Used in loading bays or docks to realize forklifts entering the truck containers directly. It significantly improves loading and unloading efficiency, making it an essential component for modern warehouses and factories.

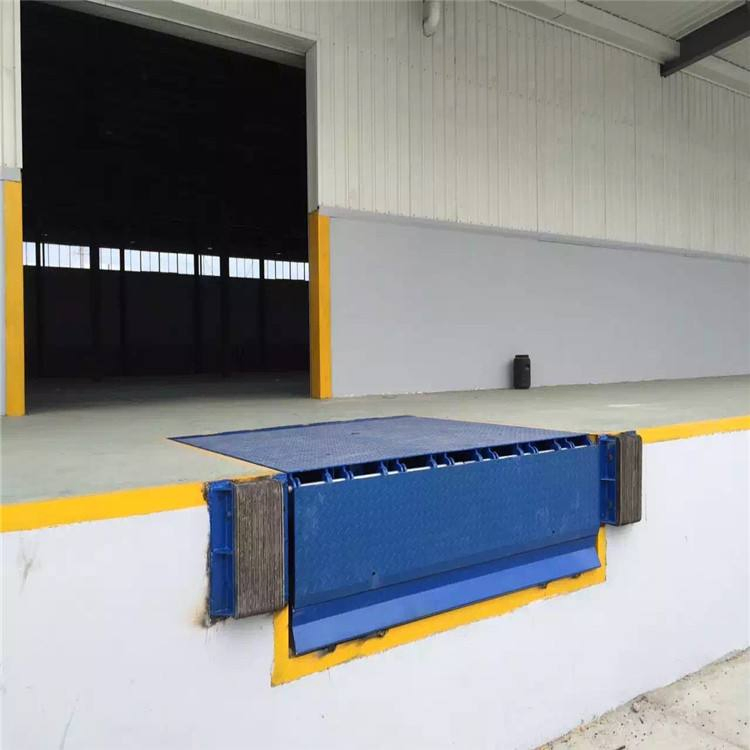

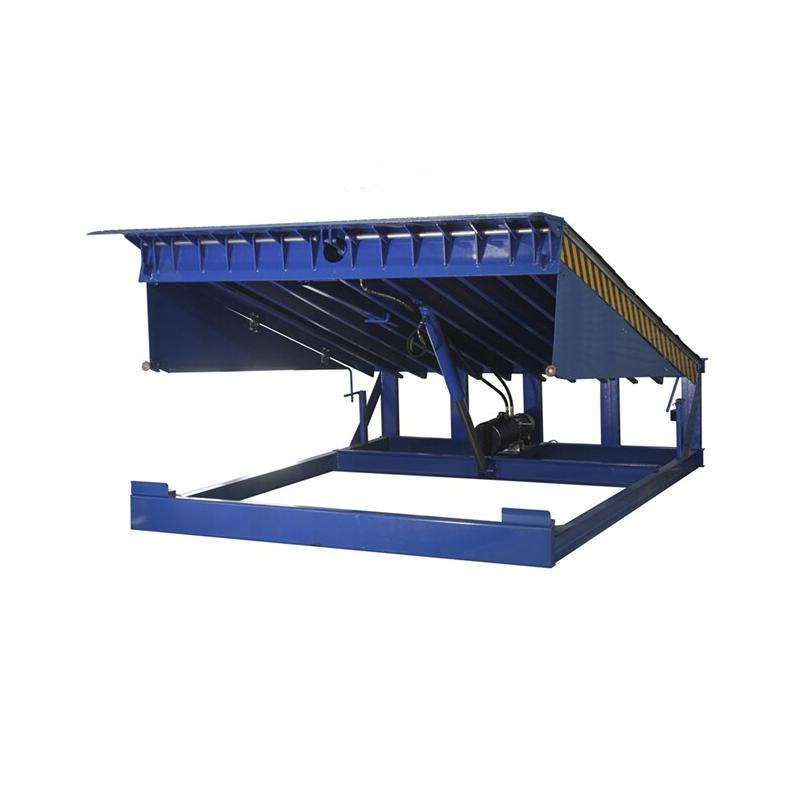

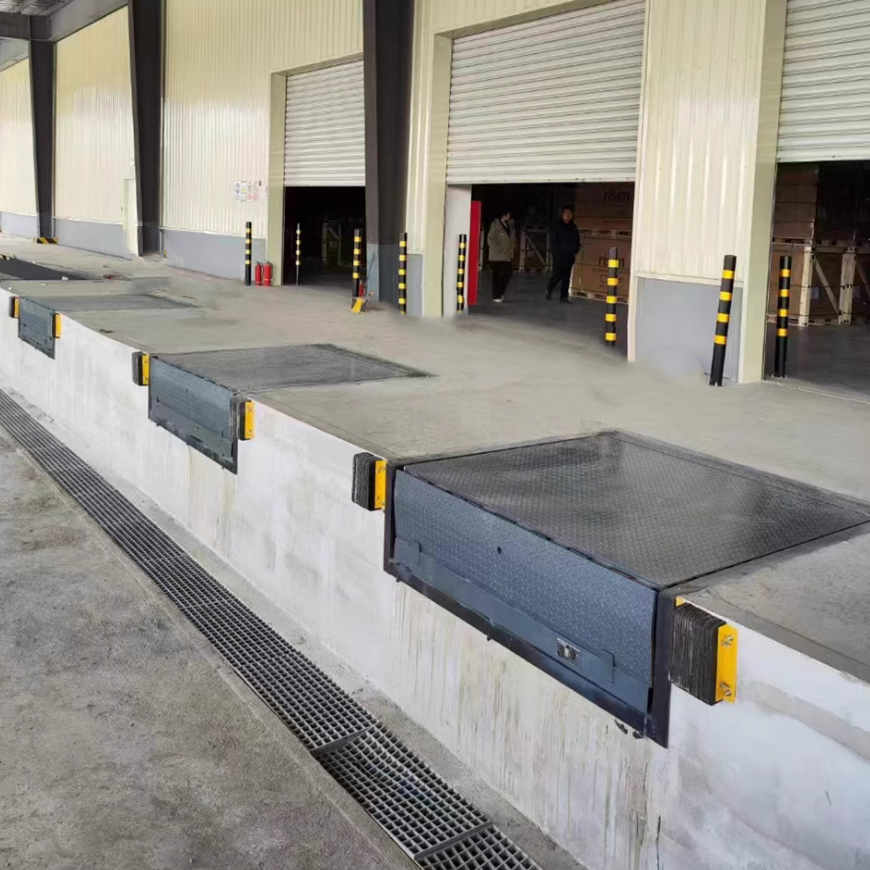

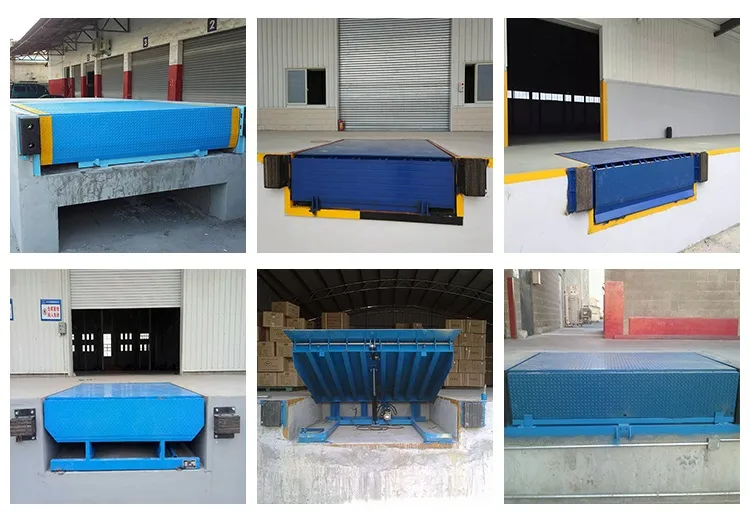

The stationary fixed dock leveler is placed into a pre-built concrete pit on the loading bay. A hydraulic motor drives the platform up and down, creating a seamless bridge between the facility floor and the truck bed. This allows forklifts or trolleys to transfer goods quickly and safely, saving labor and increasing throughput.
🛠 Key Features & Advantages
High Load Capacity
The assembly bears 120% of standard nominal load capacity. Under 24-hour static pressure, deformation is within 3mm and recovers fully after release.
Anti-Skid Surface
Platform ground is made from high-strength 8mm+ thick steel plate with groove milling for maximum safety and slip resistance.
Heat-Treated Hinge
Hinge and shafts undergo super-high-temperature heat treatment to significantly reduce long-term deformation.
European Hydraulic System
Imported hydraulic drive station ensures stable power, low operating temperatures, and high-frequency performance without oil leaking.
Durable Coating
Surface treated with epoxy resin paint, providing high anti-corrosive properties and long-lasting durability in industrial environments.
❓ Frequently Asked Questions
What is the primary function of a stationary dock leveler?

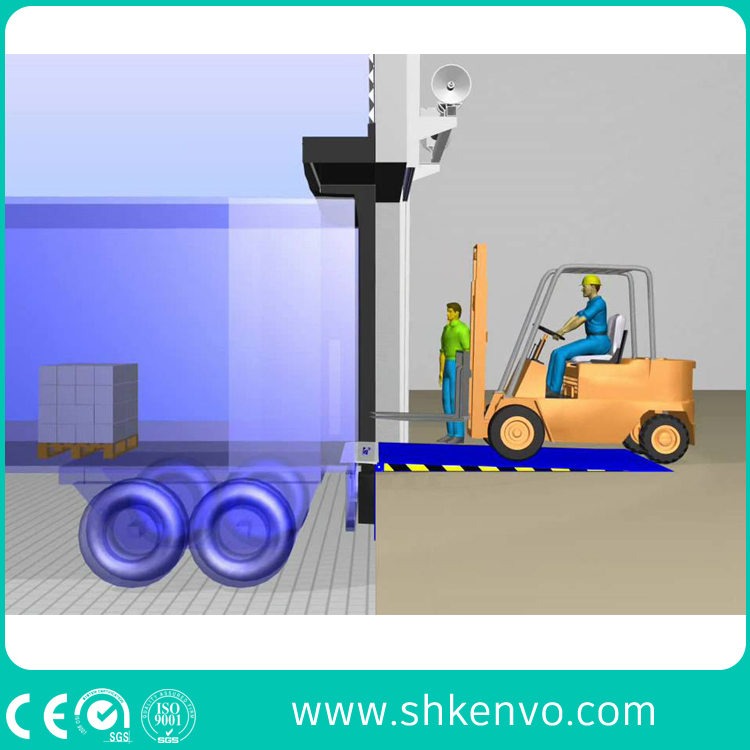

It bridges the gap and height difference between the warehouse floor and truck containers, allowing forklifts to drive directly into the truck for efficient loading and unloading.
What are the available loading capacities?
Standard models support 6 Ton, 10 Ton, and 15 Ton capacities, meeting most industrial and logistics requirements.
Does the platform provide enough grip for forklifts?
Yes, the platform surface is made of 8mm+ thick steel with specialized groove milling to provide an anti-skid surface for safety.
What power supply is needed for operation?
The system can be configured for either 1-Phase 220V or 3-Phase 380V, with a power range of 0.75kw to 1.5kw.
Can the size of the dock leveler be customized?
While the standard size is 2500*2000*500mm, we provide customization options to fit specific pit dimensions and facility requirements.
Are these levelers suitable for high-frequency use?
Yes, they feature high-quality European hydraulic stations that maintain low oil temperatures, allowing the equipment to operate under high-frequency conditions reliably.
