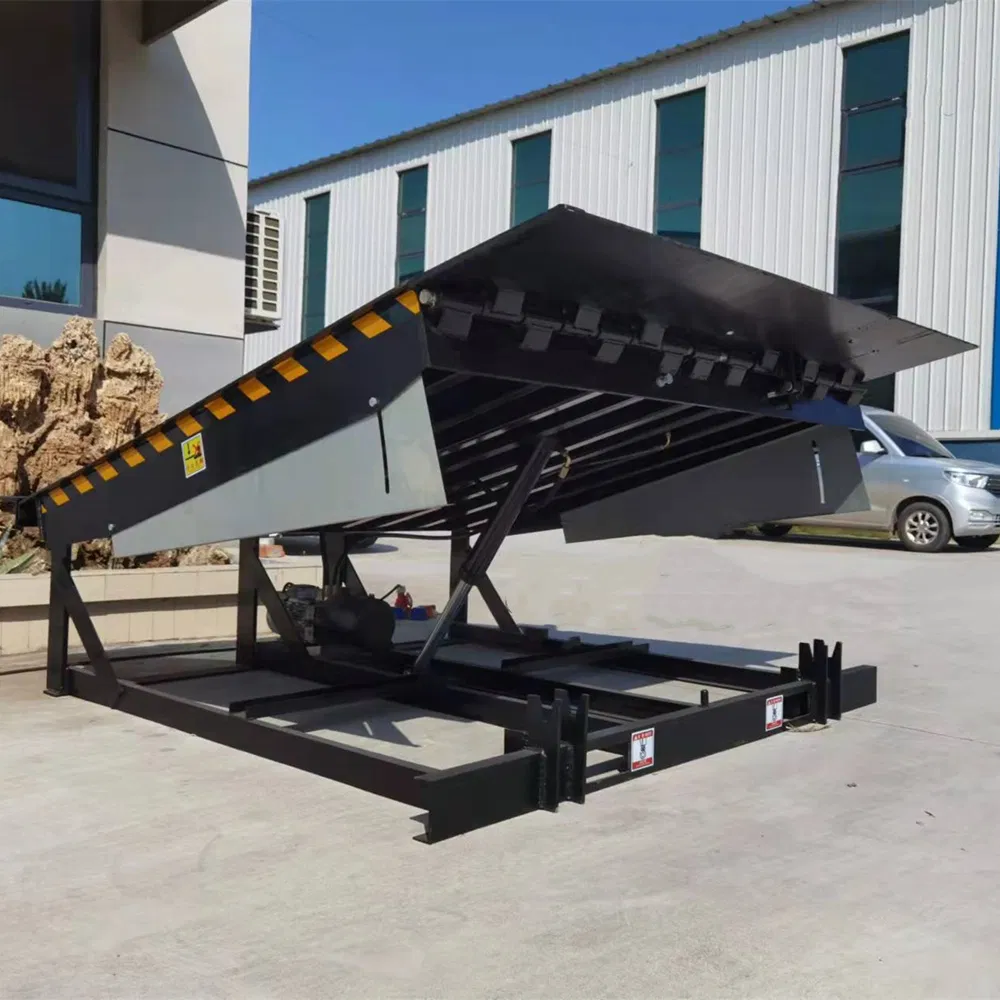

Mechanical Cylinder Dock Equipment for Warehouse Loading Bay

Customization: Available
After-sales Service: Spare Parts for Direct Replacement
Warranty: 18 Month Since Shipping Date

Product Description

Technical Specifications
Model NO.
DL
Application
Warehouse Loading Dock
Lift Mechanism
Hydraulic Driving
Carrying Capacity
6-15 Ton
Moves
Stationary
Feature
Explosion-Proof, Automatic
Certification
CE, RoHS, ISO 9001
Standard Size
2500*2000*500 (Customized)
Up-Down Scope
Up+350mm, Down-300mm
Surface Treatment
Powder Coated
Power Supply
1-Phase 220V / 3-Phase 380V
Work Power
0.75kw-1.5kw
Package Weight
800.00kg
Production Capacity
10000 PCS/Year
Product Description

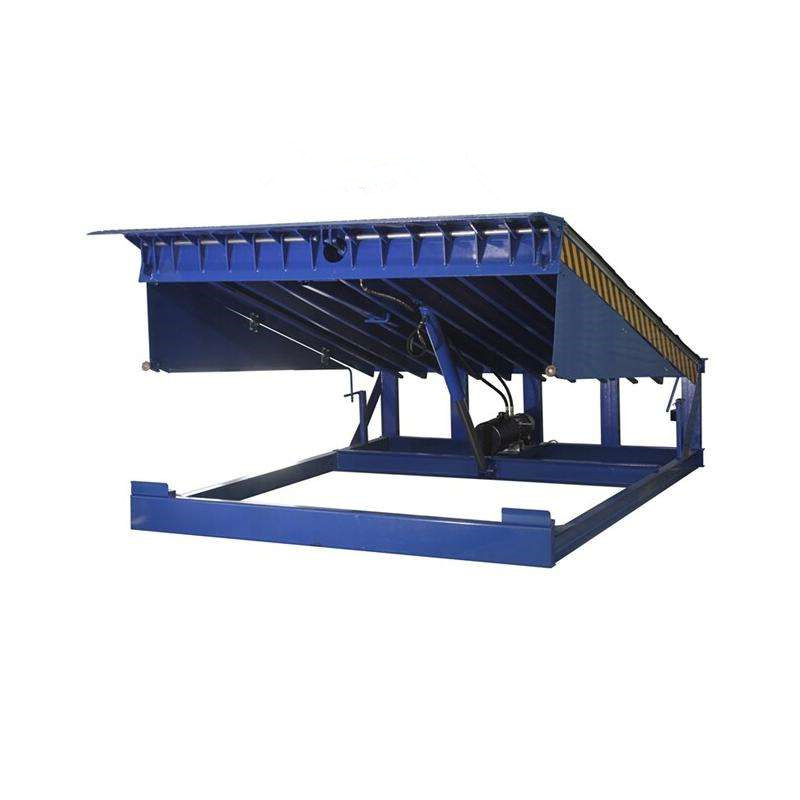

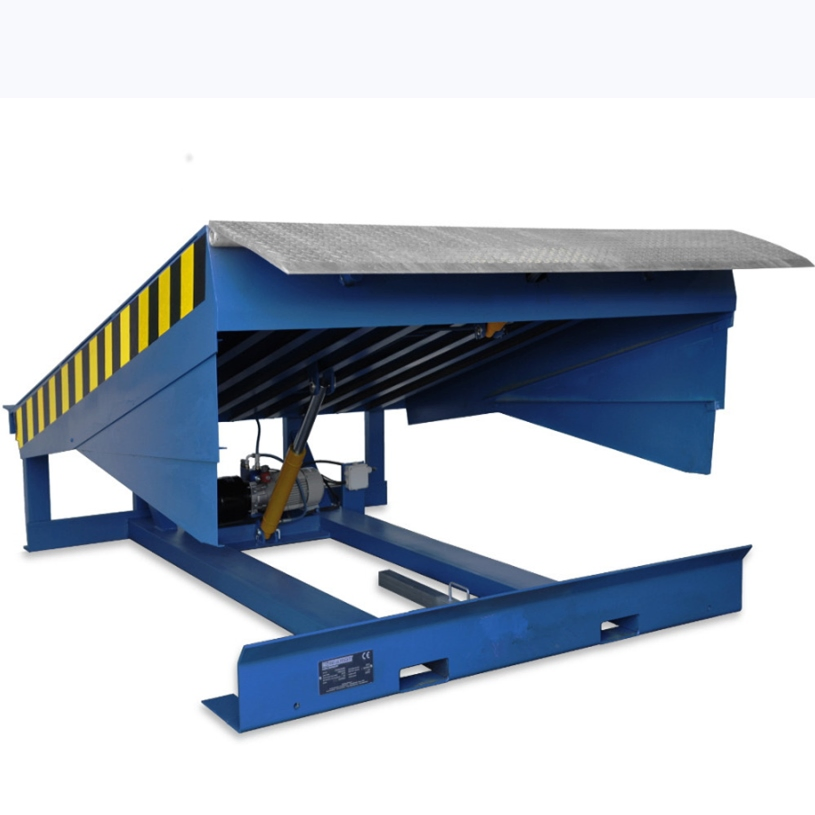

Automatic Stationary Fixed Hydraulic Dock Leveler: Used in loading bays or docks to facilitate forklifts entering truck containers directly. It significantly improves loading and unloading efficiency, making it an essential component for modern warehouses and factories.

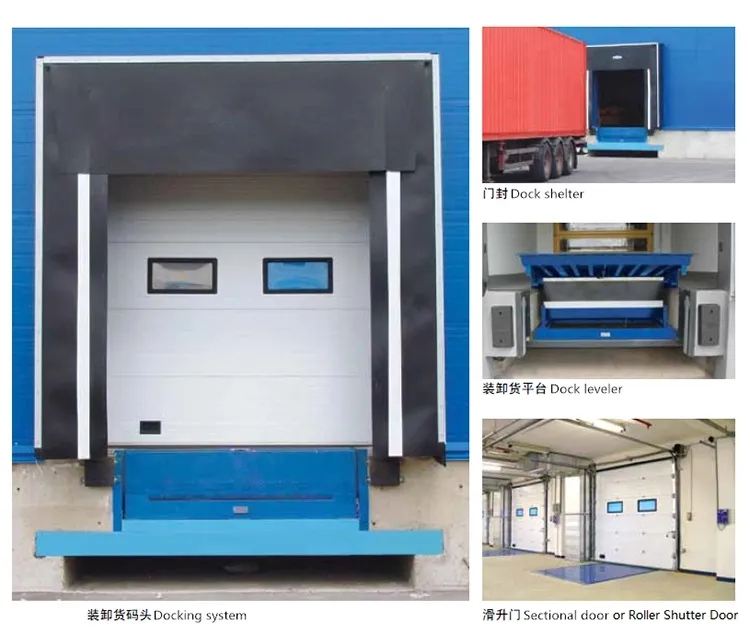

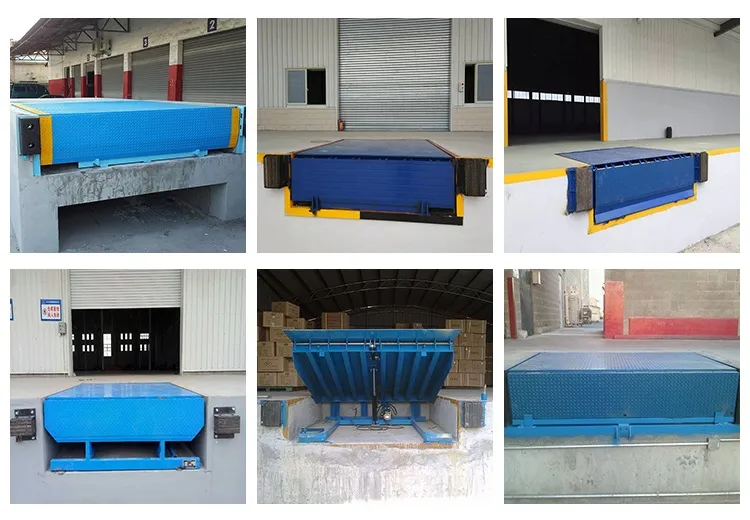

Hydraulic Dock Leveler

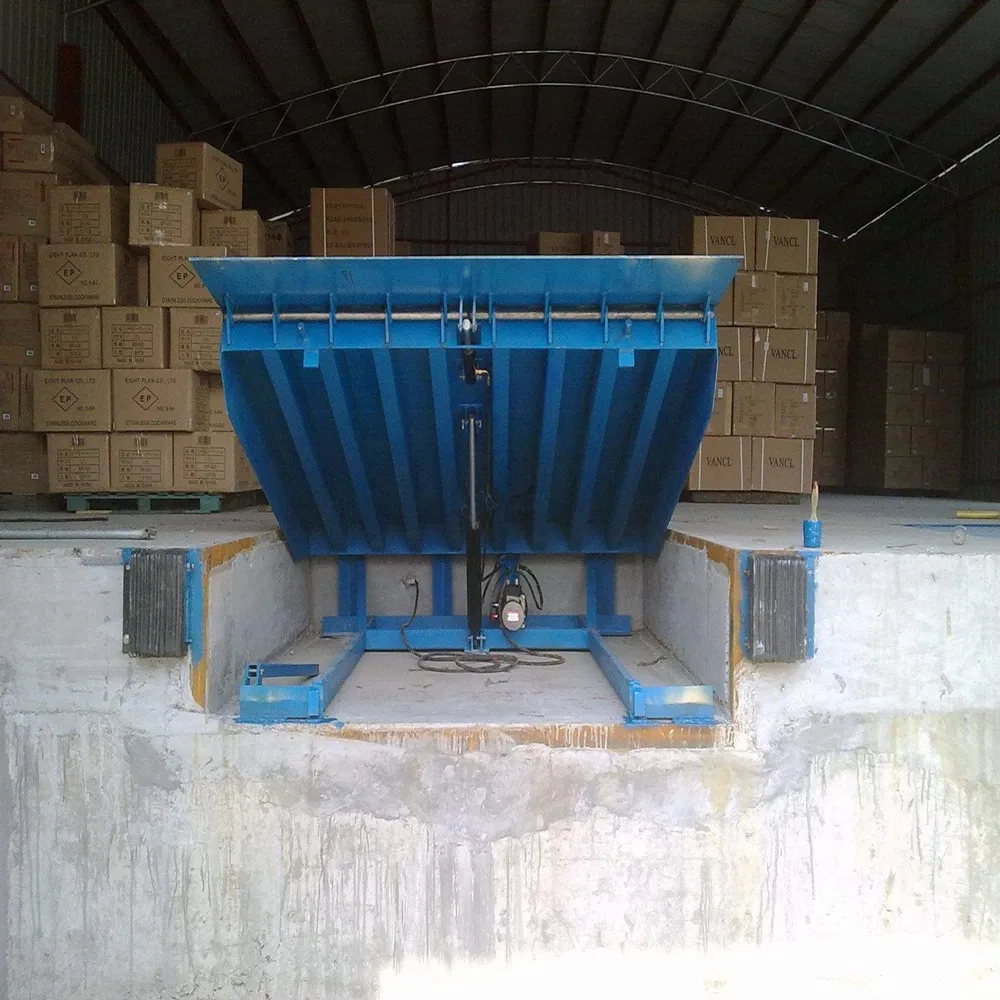

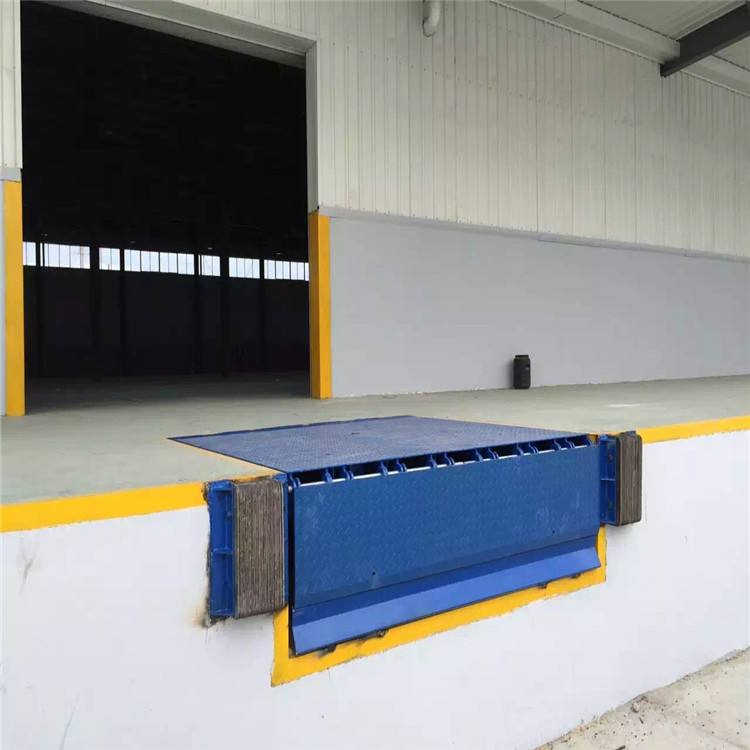

The stationary fixed dock leveler is placed into a pre-built concrete pit. A hydraulic motor drives the platform up and down, realizing a seamless joint between the room ground and the truck floor. This allows forklifts or trolleys to transfer goods quickly, saving labor and increasing productivity.

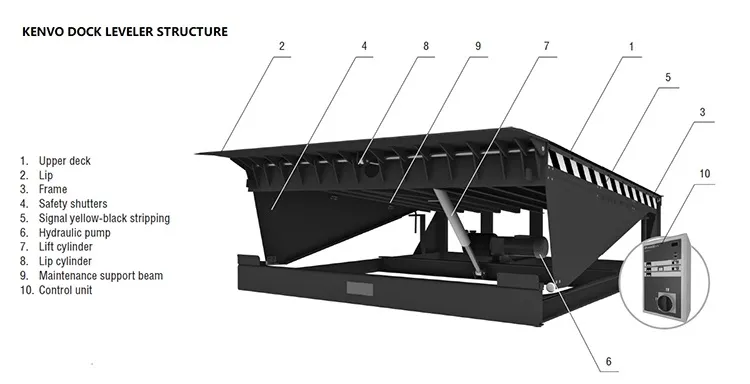

Dock Ramp Description
Key Features
The assembly can bear 120% of standard nominal load capacity; deformation recovers fully after pressure release.
High-strength 8mm+ thick steel plate platform with anti-skid groove milling surface.
Heat-treated Hinge and Shaft for superior durability and reduced deformation.
European-imported hydraulic drive station ensuring stable power and low oil temperature for high-frequency use.
Epoxy resin paint coating for high anti-corrosive and durable surface protection.
Visual Overview
Frequently Asked Questions
What is the primary function of a stationary dock leveler?
It bridges the gap between the warehouse floor and a truck container, allowing forklifts to drive directly into the truck for efficient loading and unloading.
What is the maximum weight capacity available?
Our dock levelers support a carrying capacity range from 6 Ton up to 15 Ton, suitable for various heavy-duty industrial needs.
Is the platform surface safe for forklifts in wet conditions?
Yes, the platform is made from high-strength steel plate with a groove-milled anti-skid surface to ensure safety during operation.
What kind of maintenance does the hydraulic system require?
The hydraulic drive station is imported from Europe and designed for high-frequency use with low oil temperatures and high-standard seals to avoid leaking.
Can the size and color be customized?
Yes, while the standard size is 2500*2000*500mm, we offer customization for sizes and colors including Blue, Grey, Black, and Yellow.
What makes the structure durable against heavy loads?
The overall assembly is designed to bear 120% of nominal load, and critical components like hinges and shafts are heat-treated to prevent deformation.
