Basic Information
Model NO.:DL
Application:Warehouse Loading Dock
Lift Mechanism:Hydraulic Cylinder
Carrying Capacity:6-15 Ton
Moves:Stationary
Driven Type:Hydraulic
Feature:Explosion-Proof, Insulating, Automatic
Certification:CE, RoHS, ISO 9001
Standard Size:2500*2000*500 (Customized Available)
Surface Treatment:Powder Coating
Power Supply:1-Phase 220V / 3-Phase 380V
Motor Brand:Europe Brand
Packaging & Delivery
Package Size:200.00cm * 200.00cm * 60.00cm
Package Gross Weight:800.000kg
Transport Package:Plastic Film
Production Capacity:10000 PCS/Year
Product Description

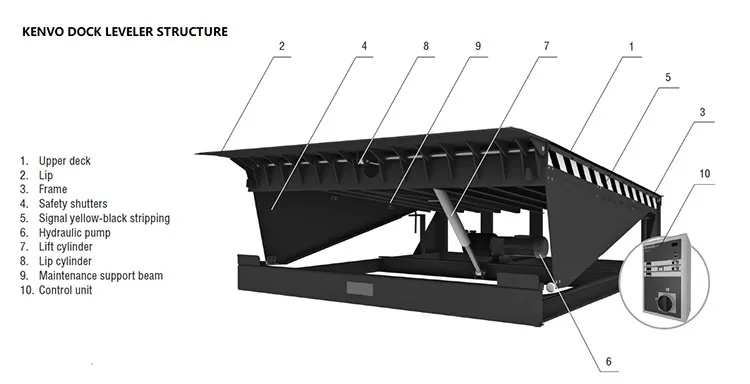

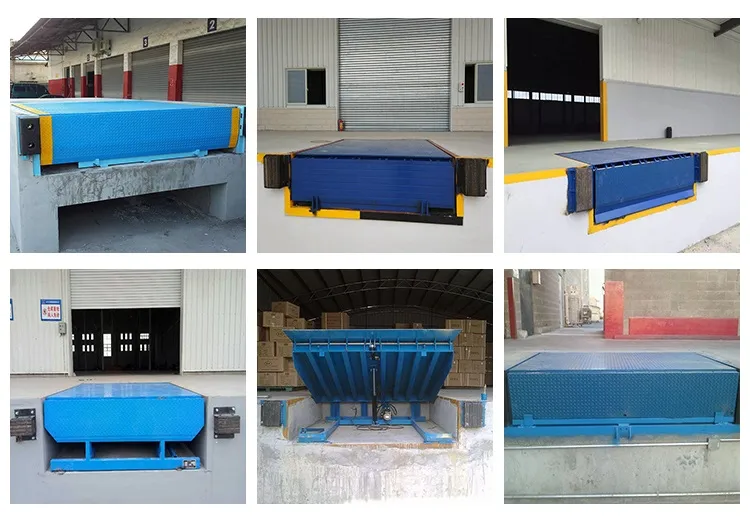

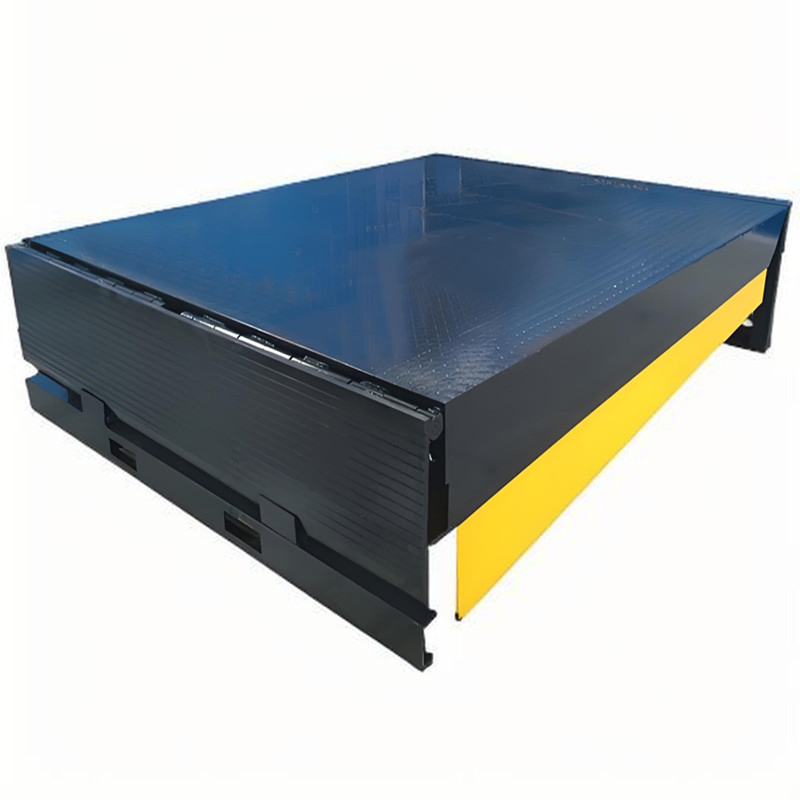

Automatic Stationary Fixed Hydraulic Dock Leveler or Dock Ramp:
Used in loading bays or docks, to realize forklifts entering the truck containers directly. It can improve the loading and unloading efficiency significantly, making it ideal for modern warehouses and factories.
Overview & Function

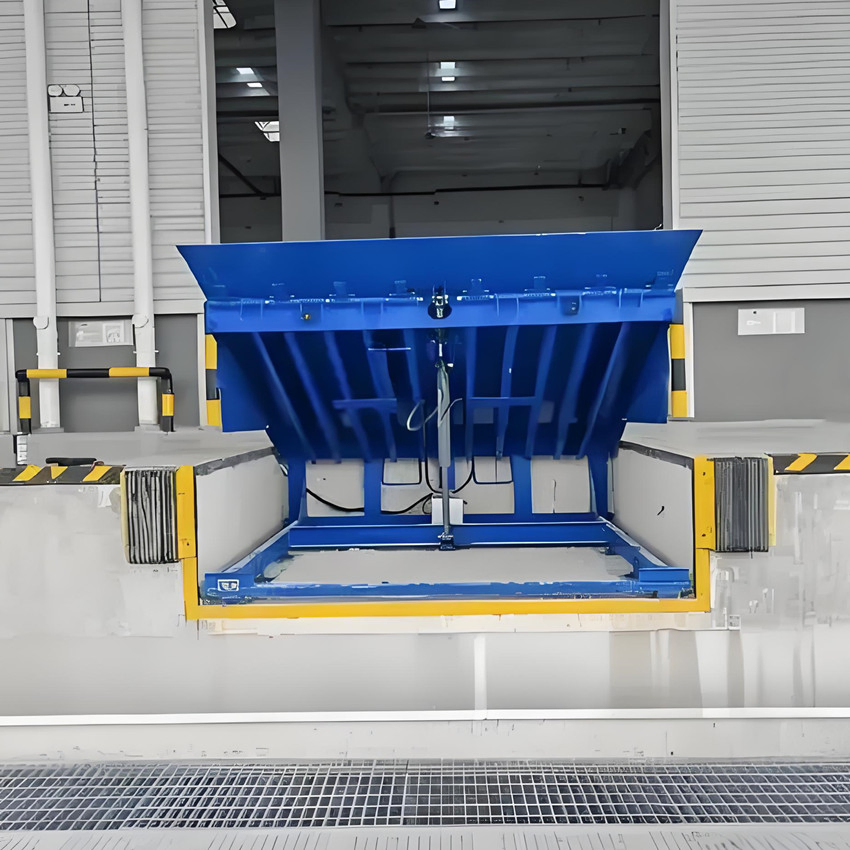

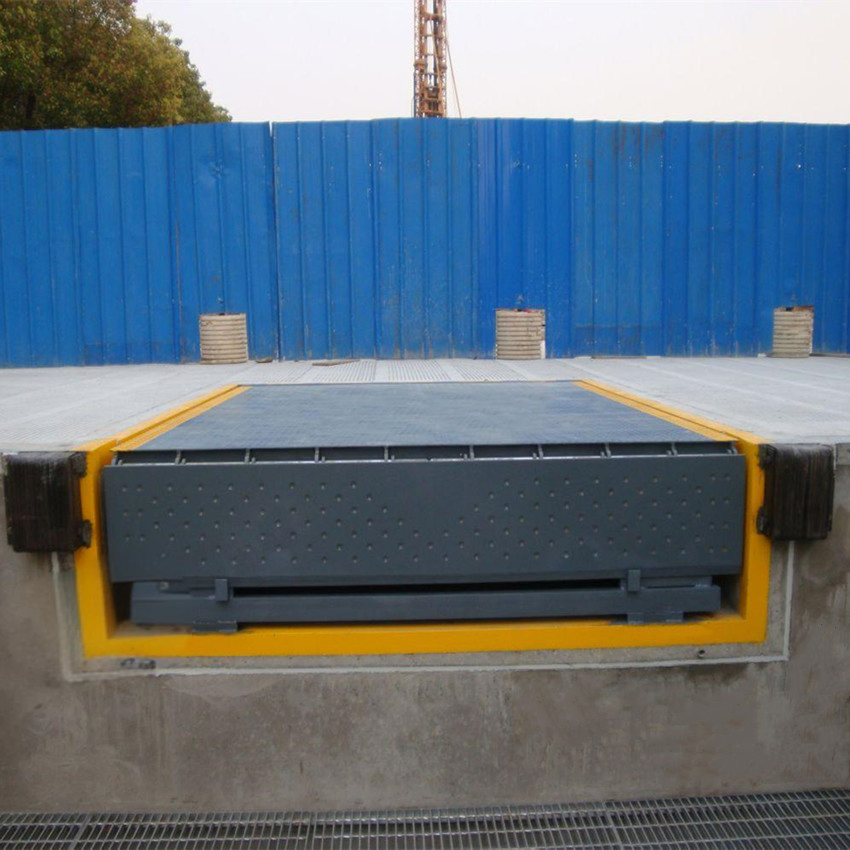

The Dock Ramp or Loading Ramp is essential for logistics centers and dispatch areas. It bridges the gap between the loading bay floor and the truck container floor, allowing forklifts or trolleys to transfer goods seamlessly. This stationary fixed leveler is placed into a pre-built concrete pit, utilizing a hydraulic motor to adjust the platform height, saving labor and increasing efficiency.

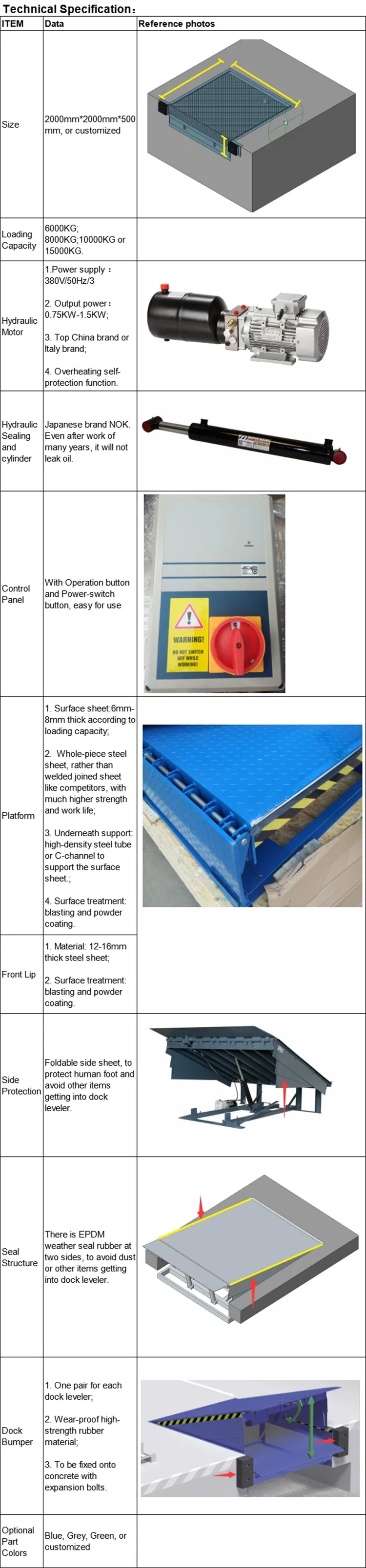

Key Features
- High Load Bearing: Assembly can bear 120% of standard nominal load capacity. Static pressure deformation is within 3mm and recovers after release.
- Anti-Skid Surface: Platform made from high-strength 8mm+ thick steel plate with groove milling.
- Durable Components: Hinge and Shaft are heat-treated to reduce deformation under high temperatures.
- European Hydraulic System: Imported drive station ensures stable power, low oil temperature, and leak-proof performance.
- Anti-Corrosive Coating: Treated with epoxy resin paint for long-term durability.

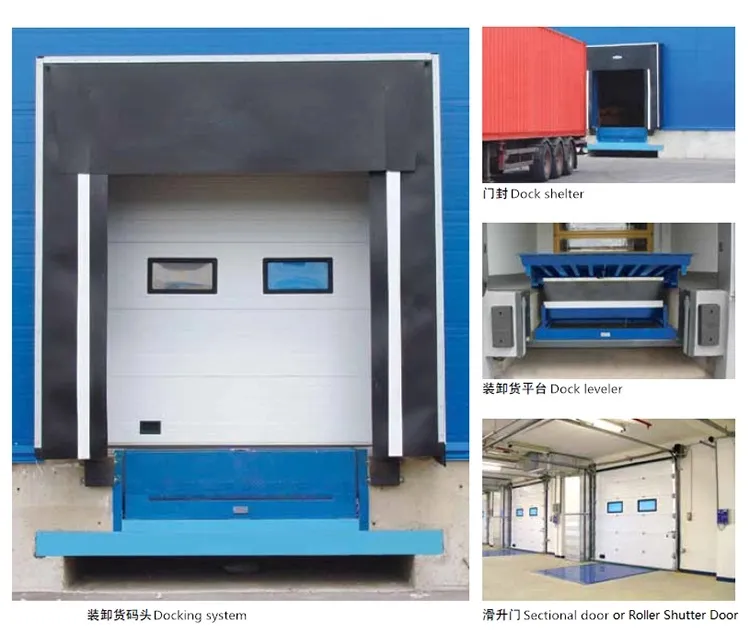

Complete Loading Bay Solutions

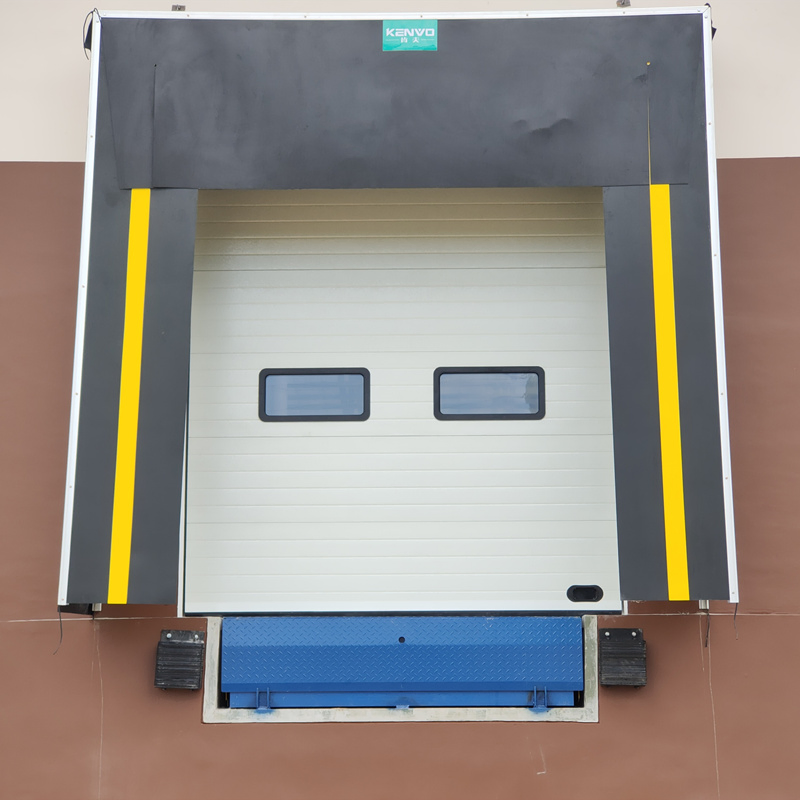

A complete Loading Bay assembly typically includes an Overhead Door, Dock Leveler, and Dock Shelter/Seal. These components work together to protect the indoor environment and optimize logistics operations.
Frequently Asked Questions
Q1: What is the primary use of a stationary hydraulic dock leveler?
A: It is primarily used in loading bays to bridge the height gap between the warehouse floor and truck containers, allowing forklifts to drive directly into the truck for efficient loading and unloading.
Q2: What is the load capacity of this equipment?
A: The standard carrying capacity ranges from 6 to 15 tons, and the assembly is designed to withstand 120% of its nominal load capacity.
Q3: Does the platform have anti-skid properties?
A: Yes, the platform is made from high-strength steel plate (8mm or thicker) with a groove-milled surface to ensure maximum traction for forklifts.
Q4: What power supply is required for operation?
A: It supports both 1-Phase 220V and 3-Phase 380V power supplies to suit different industrial requirements.
Q5: Is the dock leveler resistant to corrosion?
A: Yes, the entire unit is coated with epoxy resin paint, which provides excellent durability and high anti-corrosive protection.
Q6: Can the size of the dock leveler be customized?
A: While the standard size is 2500*2000*500mm, customization is available to meet specific warehouse or pit requirements.
