Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Scissor Lift
Material
High-Duty Steel Structure
Control Mode
Control Panel at Each Floor

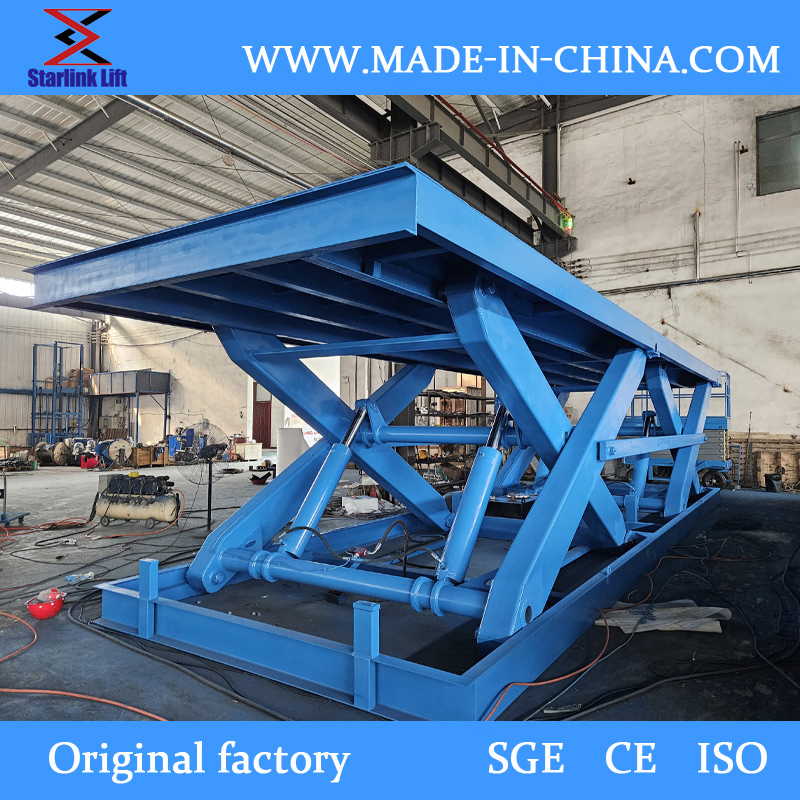

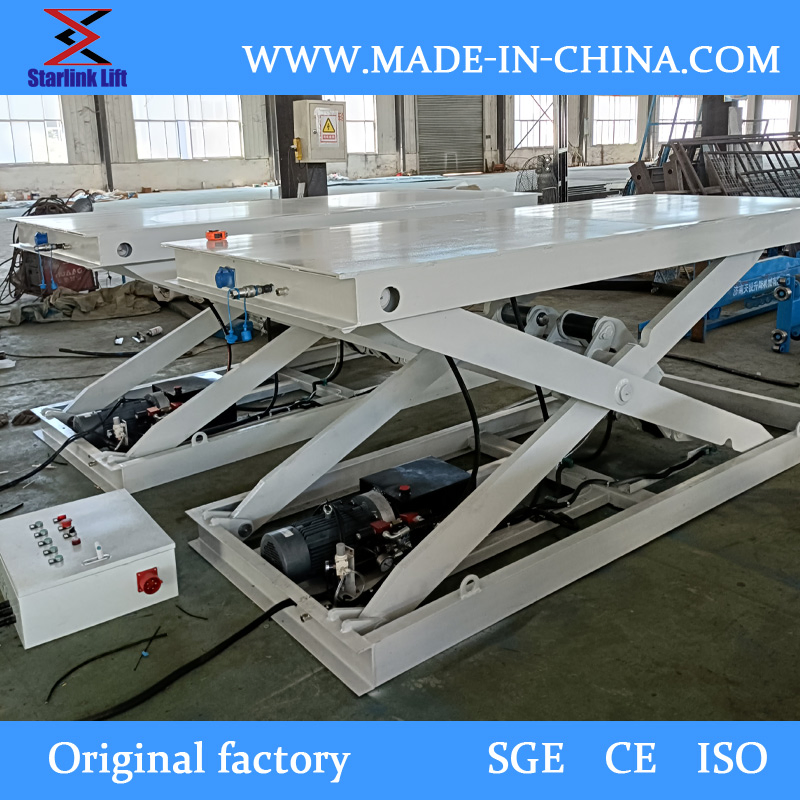

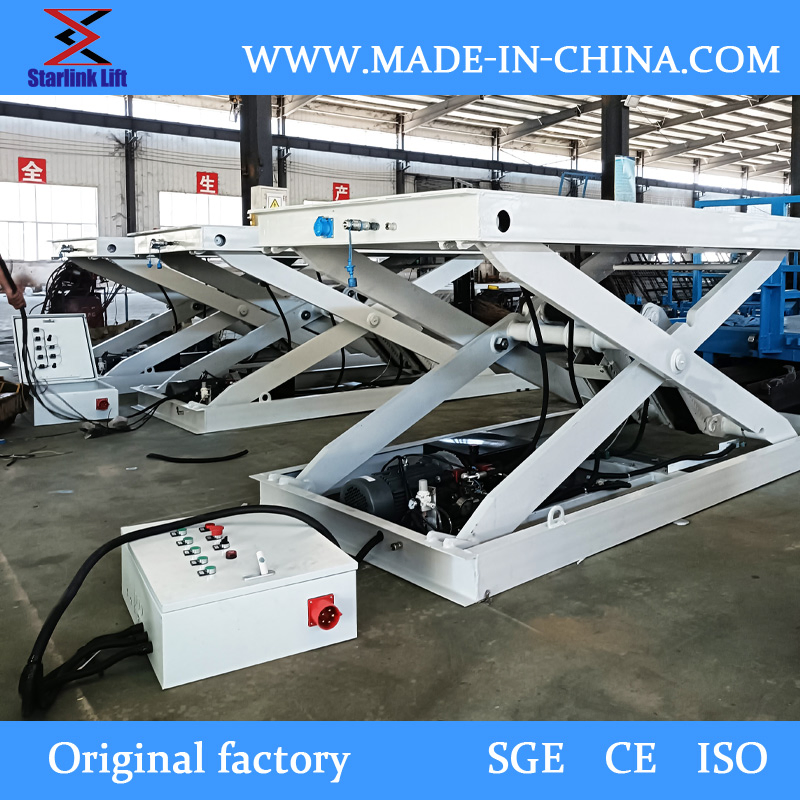

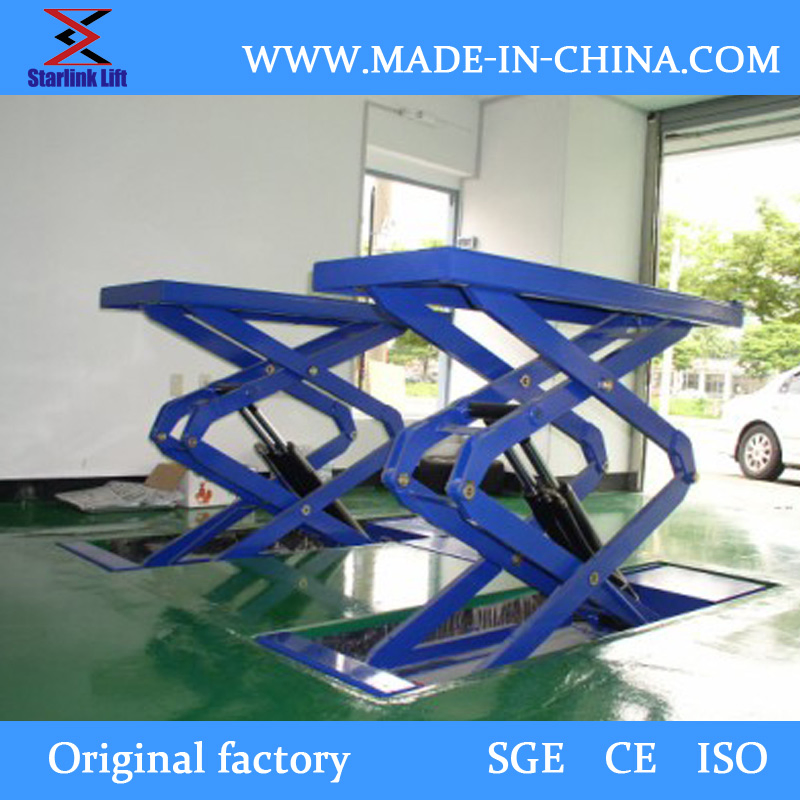

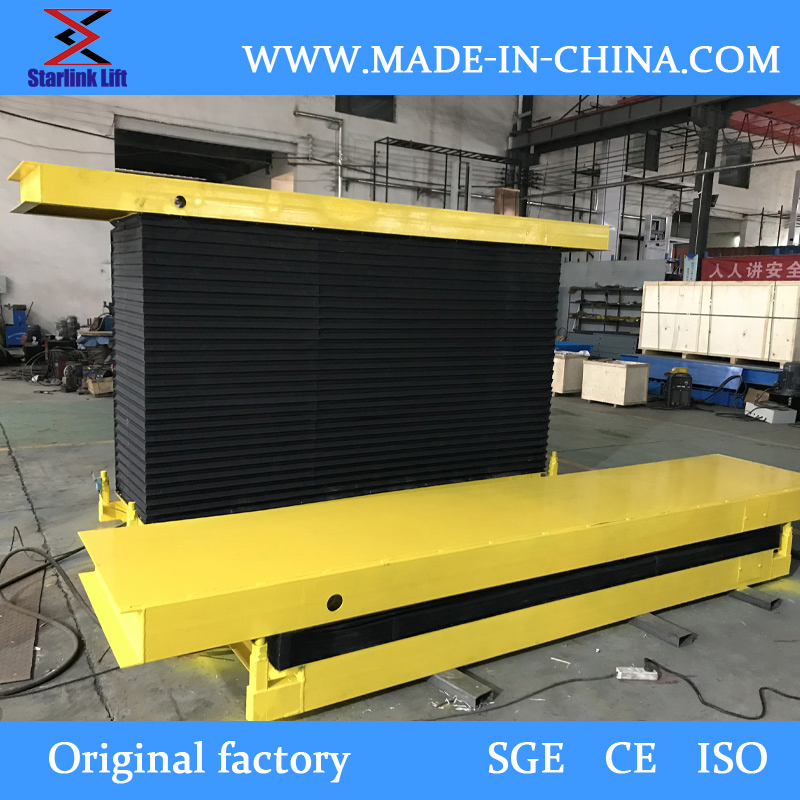

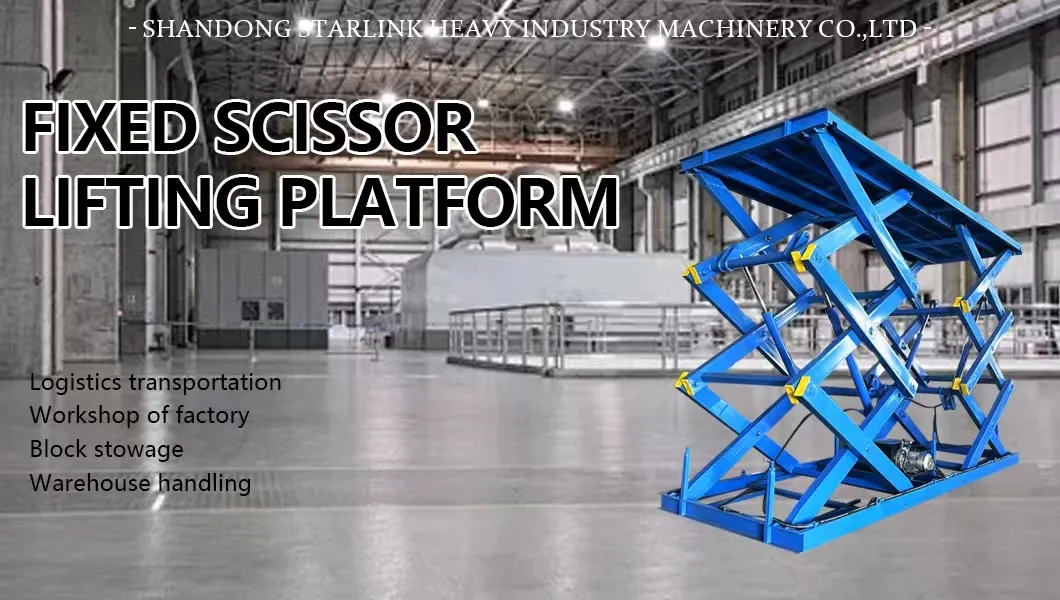

Fixed hydraulic lift is a fixed transportation equipment that lifts goods from one height to another. Because of its large weight, volume and safety, fixed hydraulic lift is a special form of high altitude lifting platform, which should be classified as lifting machinery. As a special hydraulic lifting platform product for transporting goods between the building floors, the main function is to carry various kinds of goods between working floors; at present, fixed hydraulic lifts are mostly used for the lifting of vehicles in the three-dimensional garage and the basement garage.
⚙️

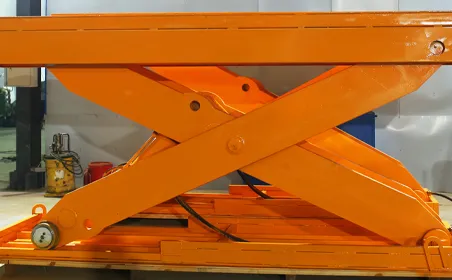

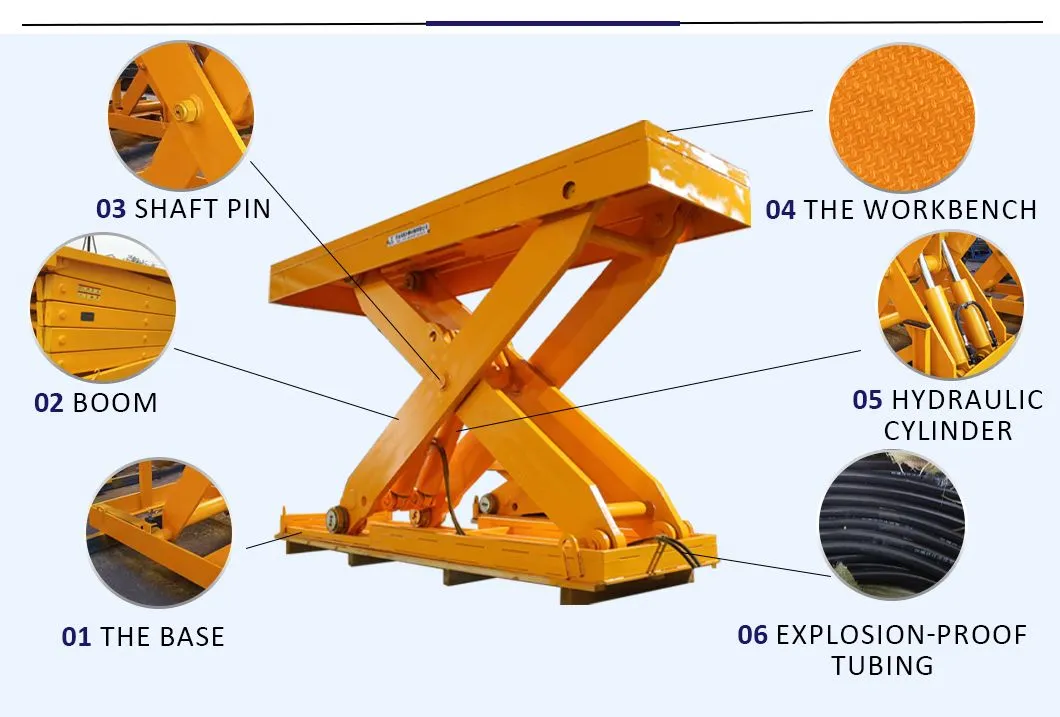

Thickened Scissors
Anti-pinch design, selected high-quality steel to improve equipment stability.
⚠️
Safety Systems

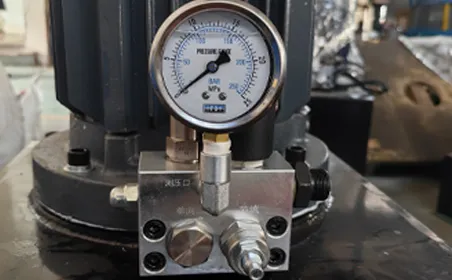

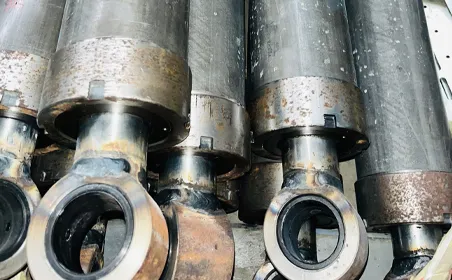

Equipped with emergency descent manual adjustment to prevent unexpected situations and protect cargo safety. High-performance hydraulic cylinders ensure low working pressure and extended component life.
💪
Premium Material & Components

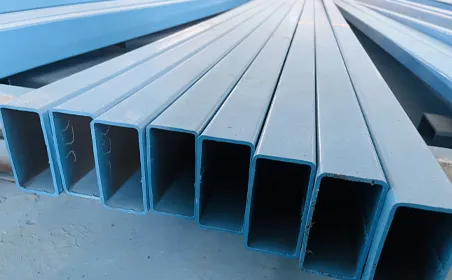

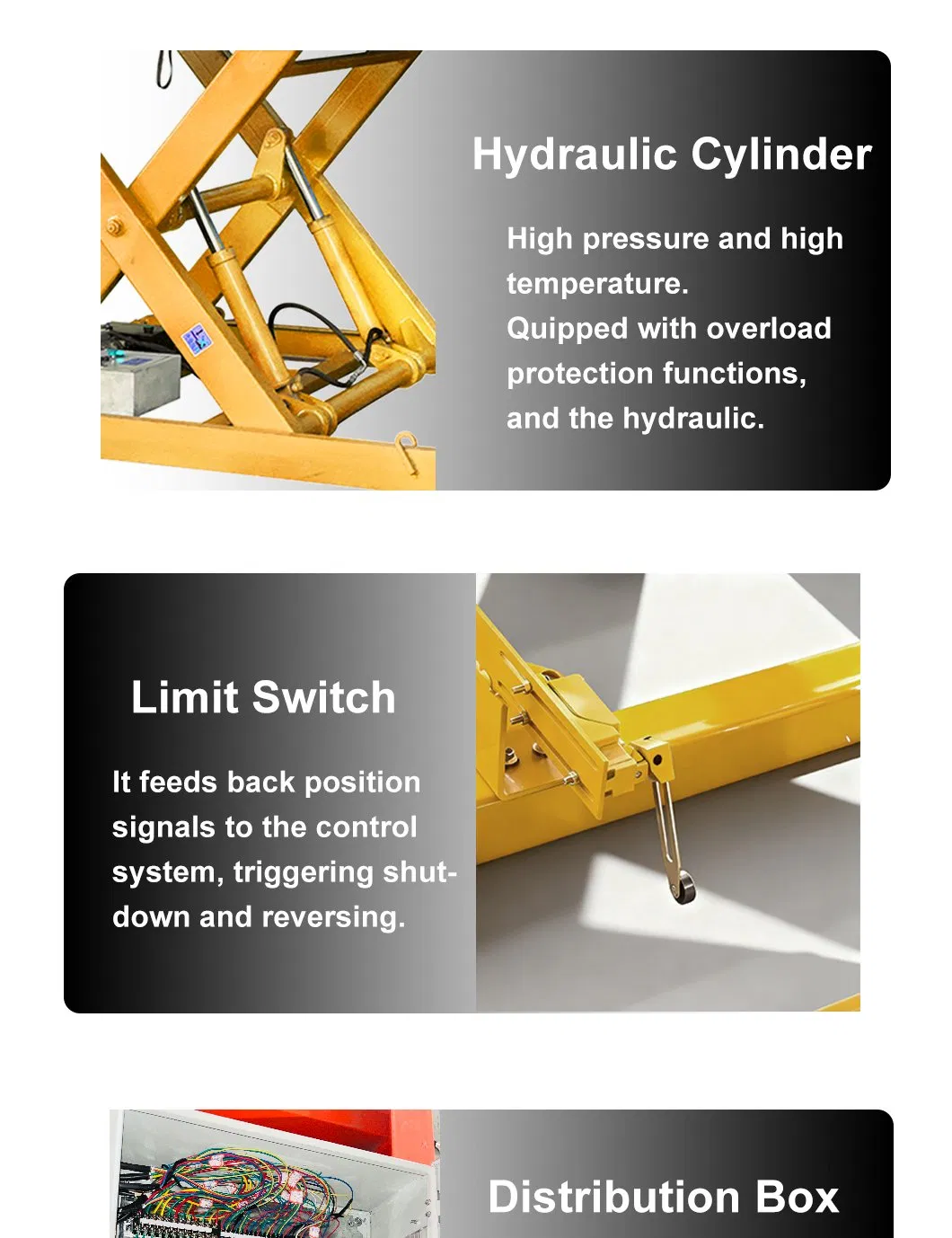

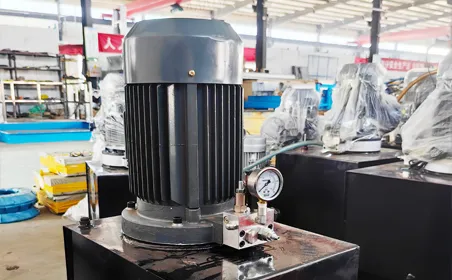

Selected high-strength manganese steel (17% higher rigidity than ordinary steel). Heavy-duty chains provide 10x safety factor. Compact, high-efficiency pump stations ensure reliable, leak-free performance.
| Model |
Load (kg) |
CH (mm) |
Stroke (mm) |
L x W (mm) |
Voltage (v) |
| SLGJ2.5-3 | 2500 | 500 | 3000 | 2500*5500 | 220/380/415 |
| SLGJ3-3 | 3000 | 500 | 3000 | 2500*5500 | 220/380/415 |
| SLGJ3.5-3 | 3500 | 600 | 3000 | 2500*5500 | 220/380/415 |
| SLGJ4-3 | 4000 | 600 | 3000 | 2500*5500 | 220/380/415 |
| SLGJ5-3 | 5000 | 600 | 3000 | 2500*5500 | 220/380/415 |
| SLGJ3-4.5 | 3000 | 700 | 4500 | 2500*5500 | 220/380/415 |
| SLGJ4-4.5 | 4000 | 800 | 4500 | 2500*5500 | 220/380/415 |
| SLGJ5-4.5 | 5000 | 800 | 4500 | 2500*5500 | 220/380/415 |
| SLGJ3-6 | 3000 | 800 | 6000 | 2500*5500 | 220/380/415 |
| SLGJ4-6 | 4000 | 800 | 6000 | 2500*5500 | 220/380/415 |
| Customizable solutions can be provided according to special requirements |

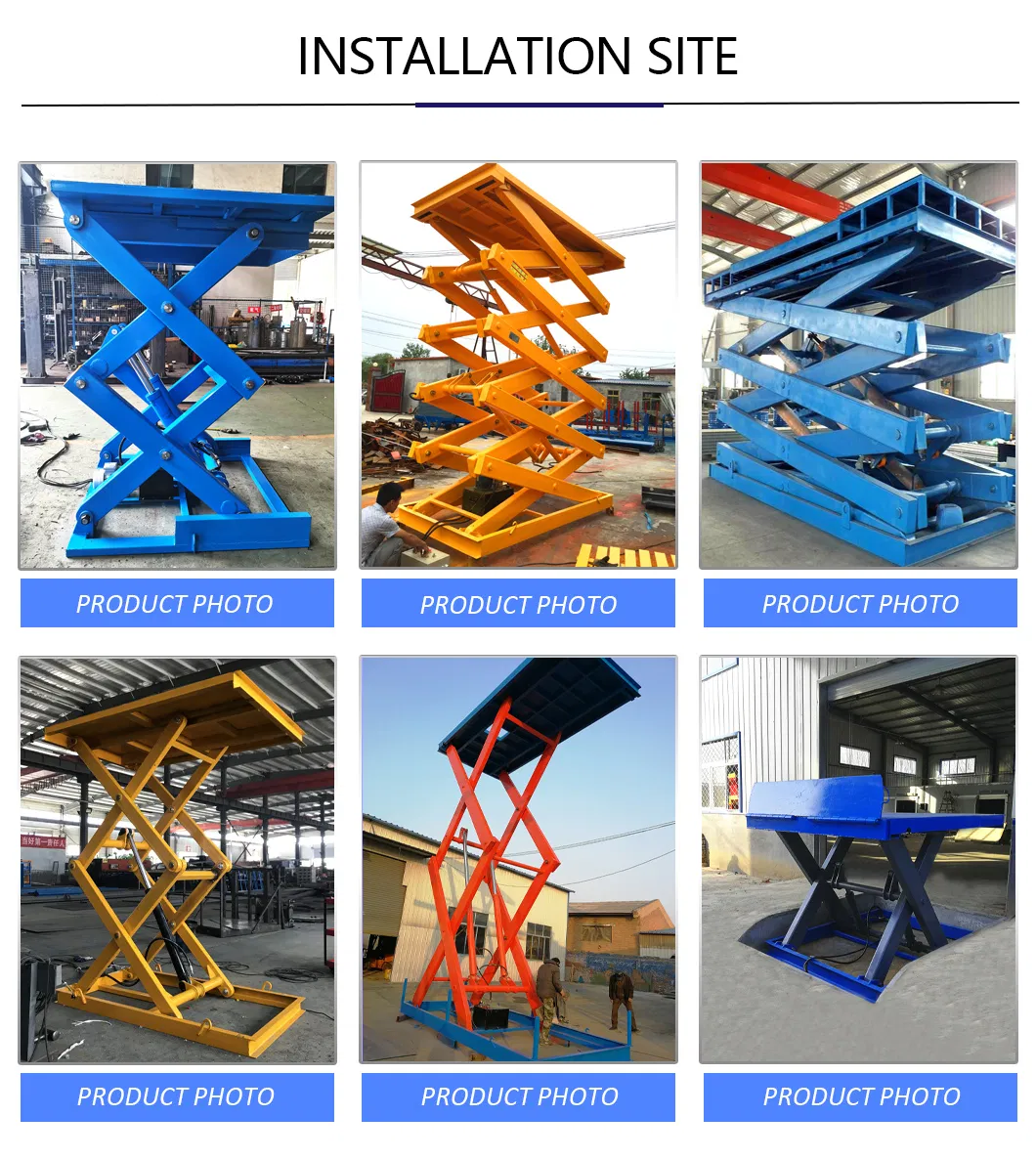

Installation Showcase

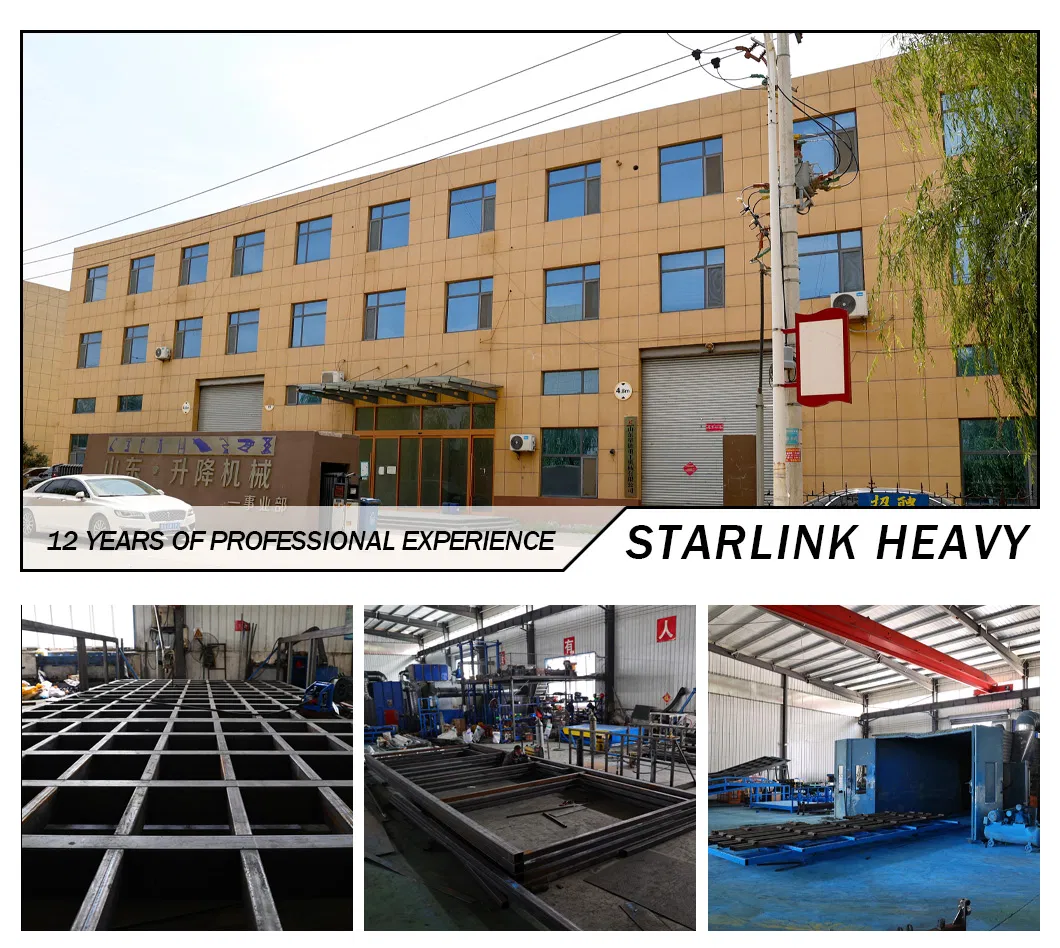

Professional Manufacturing
As a professional production and development enterprise for various lifting platforms, our main products include Hydraulic Scissor lifts, Trailer boom lifts, and Home Lifts. With a business philosophy of "quality first, customer first, integrity-based," we have become a leading domestic hydraulic equipment manufacturer.
All products are in line with national and industry standards and have passed ISO9001-2000 quality system certification. Our products are exported to more than 50 countries worldwide, including Europe, the United States, the Middle East, Southeast Asia, and South Africa. All products can be designed and manufactured according to your specific requirements.
Frequently Asked Questions
What are the primary applications for a stationary scissor lift?
They are widely used in workshops, warehouses, and building sites for transporting goods between floors, as well as in multi-level garages for vehicle lifting.
Can the platform size and load capacity be customized?
Yes, we provide fully customizable solutions. Platform dimensions, lifting height, and carrying capacity can be tailored to meet your specific operational requirements.
What safety features are integrated into the hydraulic system?
The lift includes thickened anti-pinch scissors, an emergency descent valve for manual lowering during power failure, and heavy-duty chains with high safety ratings.
What materials are used in construction?
We use high-duty manganese steel, which offers 17% higher rigidity compared to standard steel, ensuring structural stability and long-term durability.
What power supply is required for operation?
Standard models support 220V, 380V, or 415V AC power. We can adjust the electrical configuration based on your local industrial power standards.
How is the equipment protected during international shipping?
We utilize a multi-layer protection system including steel pallets, buffer sponges, bubble bags, and waterproof wrapping to ensure the product arrives in perfect condition.
