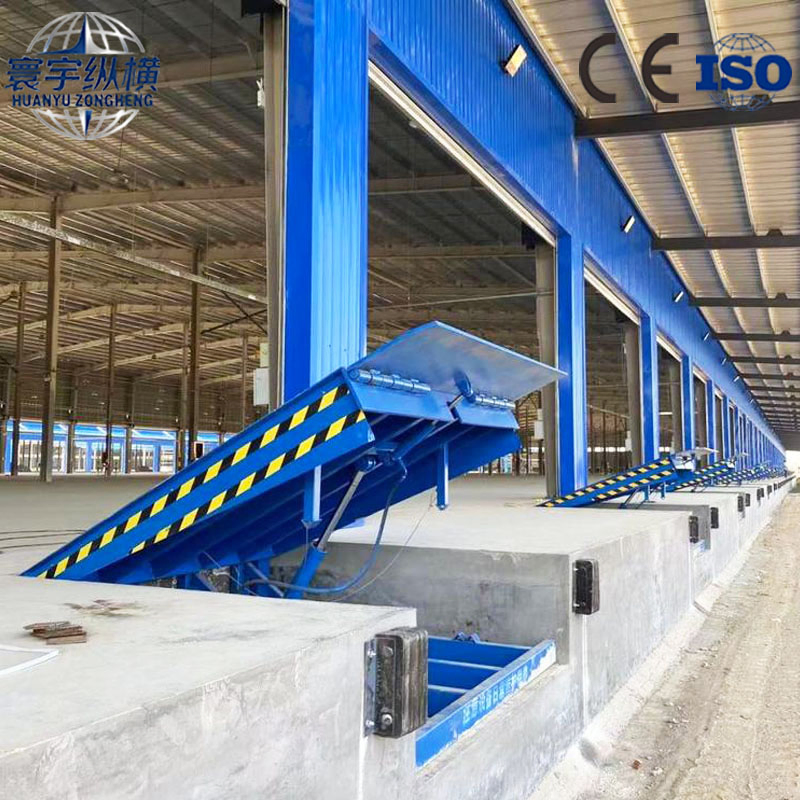

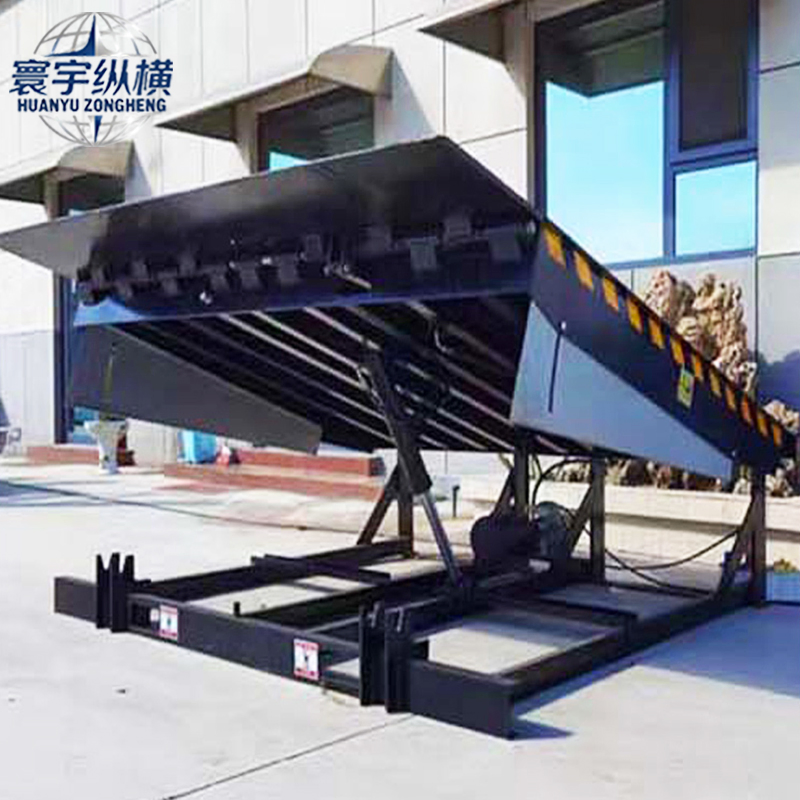

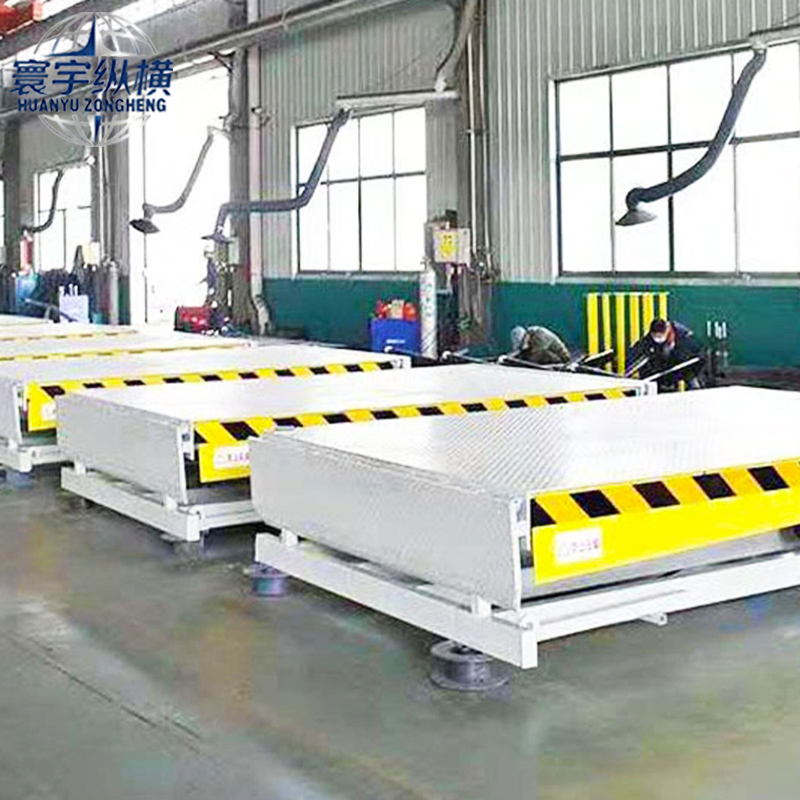

High Performance Flip Lip Dock Leveler 600mm Vertical Travel Range Loading Equipment for Logistics Centers

Customization: Available
After-sales Service: Online Support
Warranty: 1 Year

Product Description

Basic Information
Application:Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism:Telescoping Lift
Carrying Capacity:Weight Level
Moves:Stationary
Driven Type:Hydraulic
Certification:GS, CE, RoHS, ISO 9001
Load:6000-15000kgs
Material:Steel
Production Capacity:10000 Sets/Month
HS Code:8428909090
Product Description

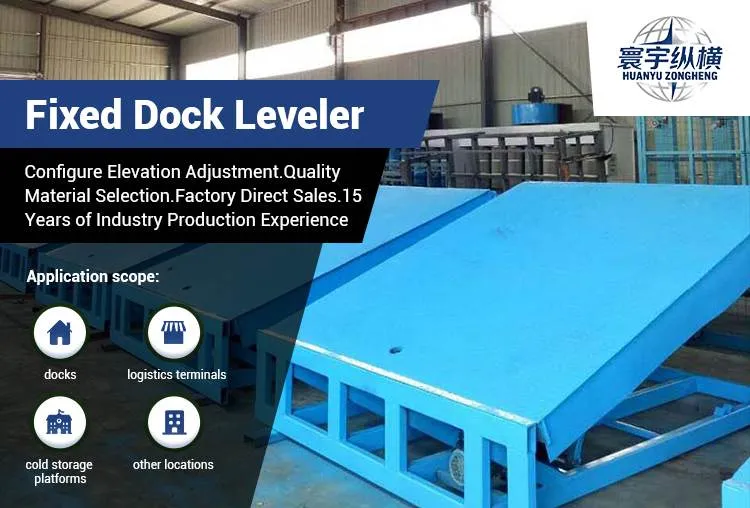

Dock Leveler Loading Equipment High Performance Flip Lip Dock Leveler

Main Shaft Wholesale Loading Equipment Dock Leveler Fixed Hydraulic Platform

The Dock Leveler is designed for use in docks, logistics terminals, cold storage platforms and other locations where the efficient loading and unloading of goods is essential.

We offer a wide range of dock levelling solutions, including Hydraulic dock levelers, Telescoping lip dock levelers, Mechanical dock levelers, Vertical standing dock levelers, Air-powered dock levelers, EOM dock levelers and EOD dock levelers.

Model Capacity (Tons) Platform Size Distance Lip Board Size Motor Power
DCGQ662500*2000mm100400mm0.75KW
DCGQ882500*2000mm100400mm0.75KW
DCGQ10102500*2000mm100400mm0.75KW
DCGQ12122500*2000mm100400mm0.75KW
DCGQ662000*2000mm100400mm0.75KW
DCGQ882000*2000mm100400mm0.75KW

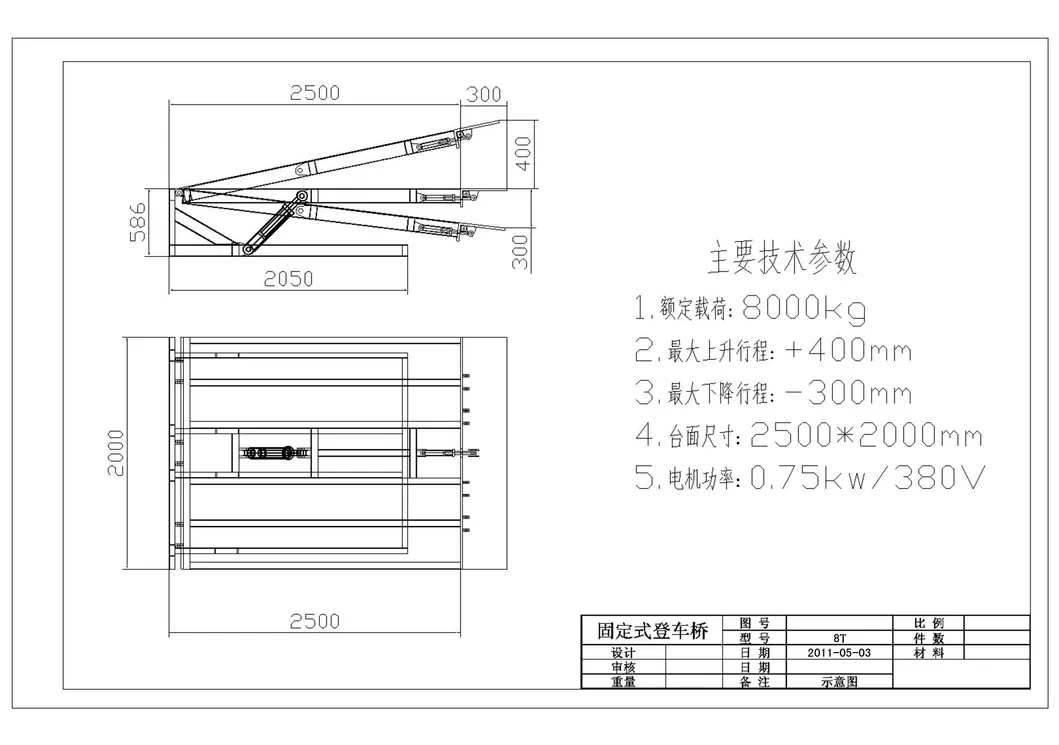

Dock Leveler Detail 1

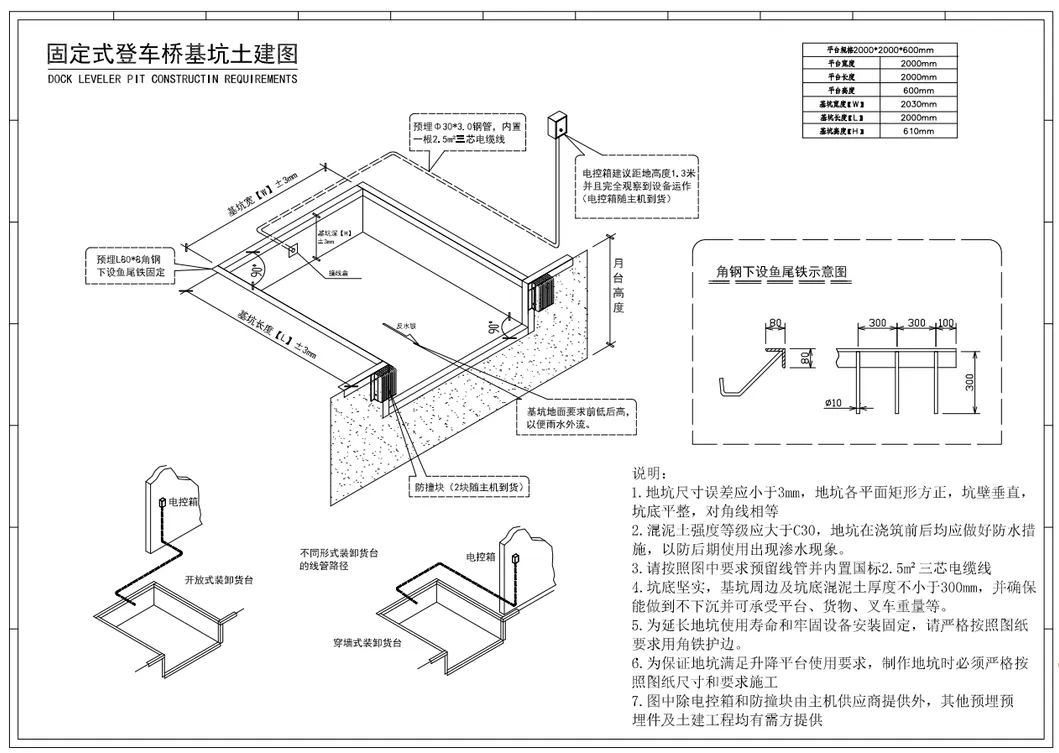

Dock Leveler Detail 2

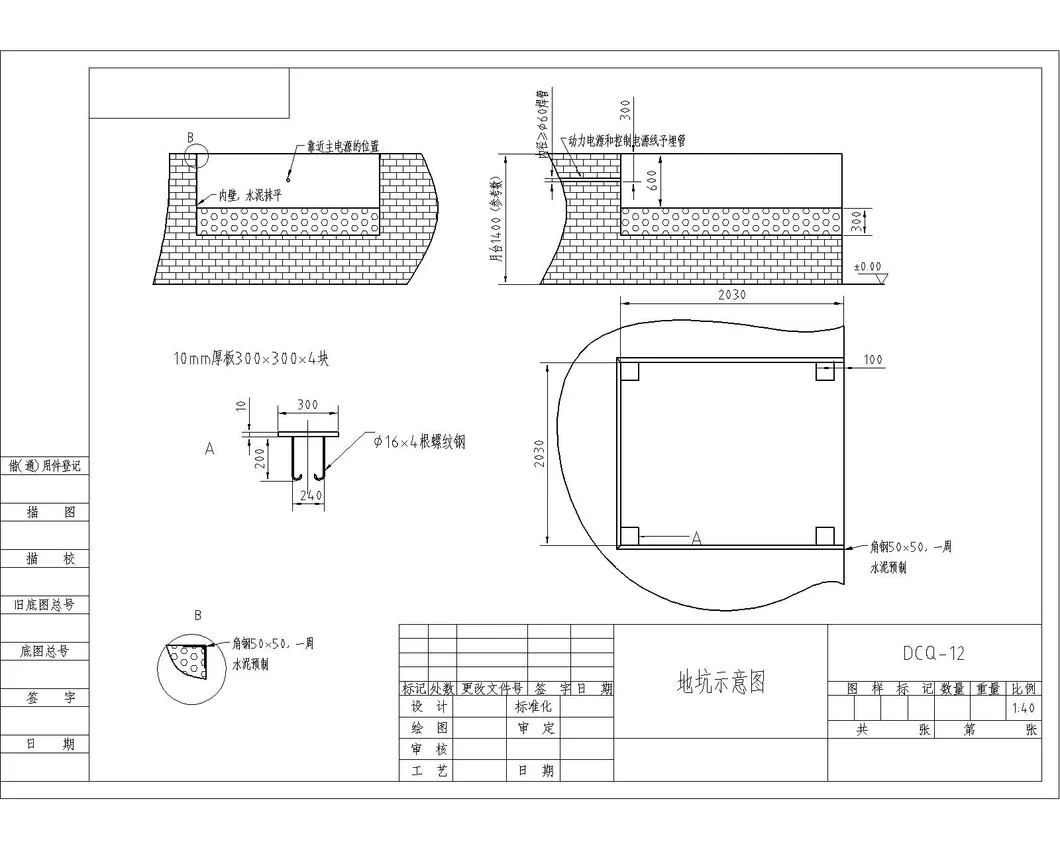

Dock Leveler Detail 3
Fixed Hydraulic Dock Leveler Features

Excellent auxiliary equipment for efficient material handling. It can move freely within containers, providing lightweight and efficient operation. Equipped with anti-slip surfaces, anti-crush aprons, and emergency stop devices to minimize accident risks and ensure the safety of personnel and goods.

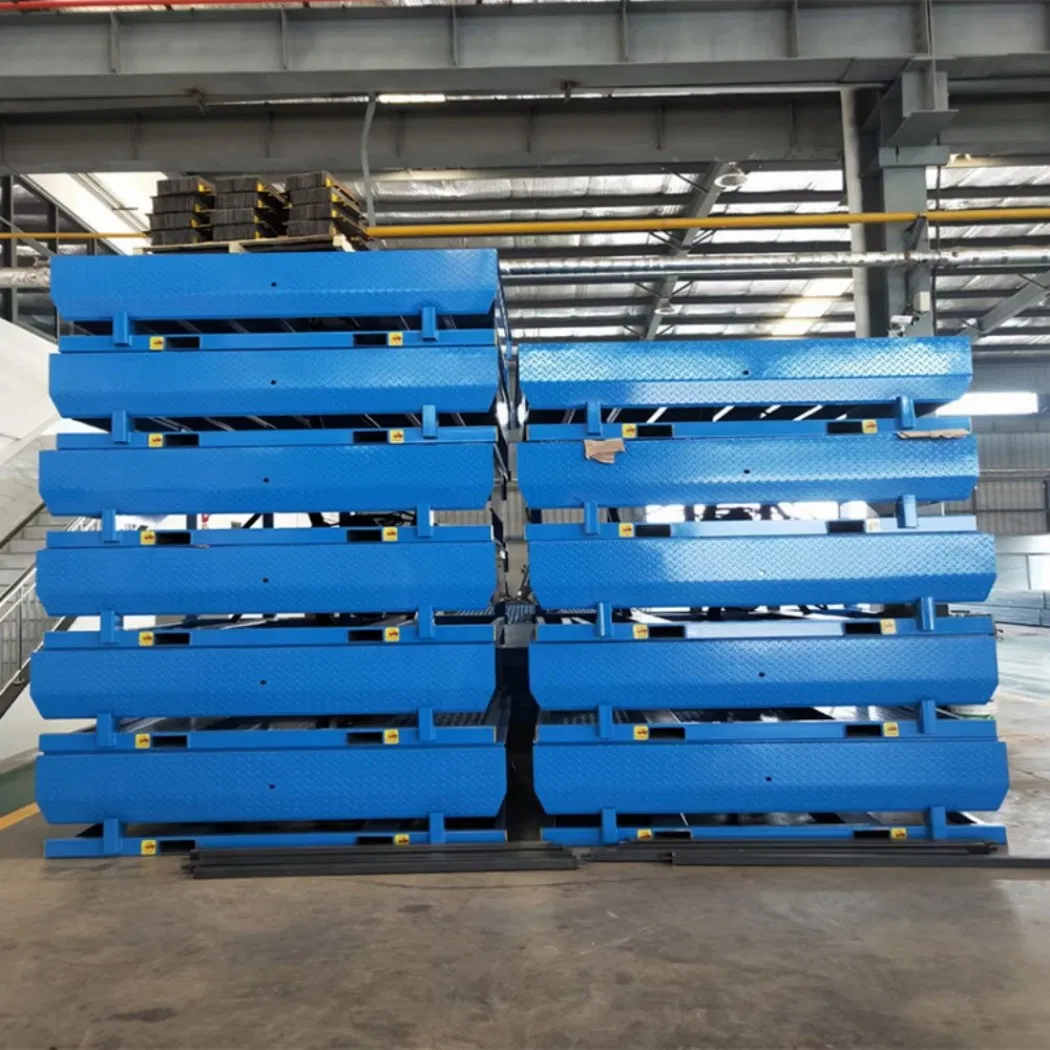

Hydraulic Dock Leveler 1

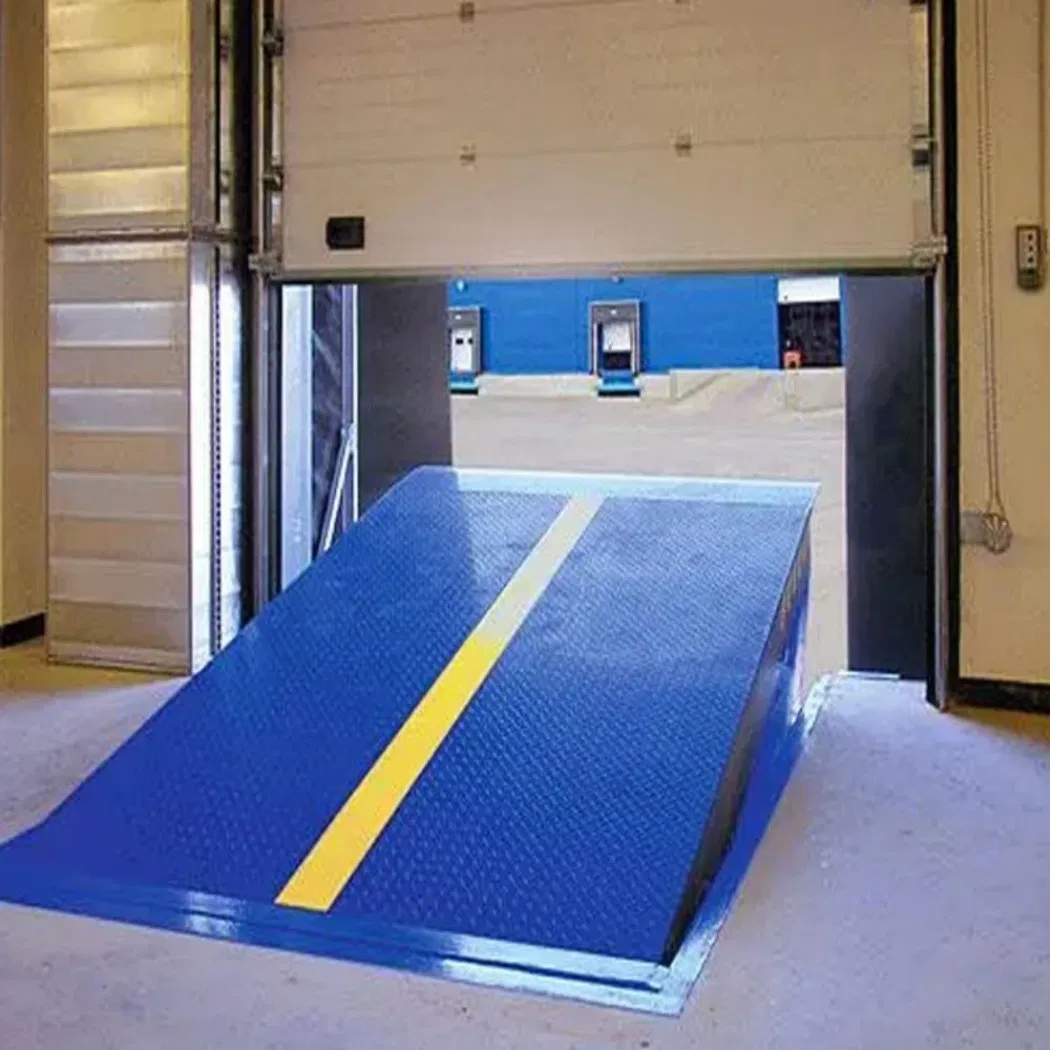

Hydraulic Dock Leveler 2

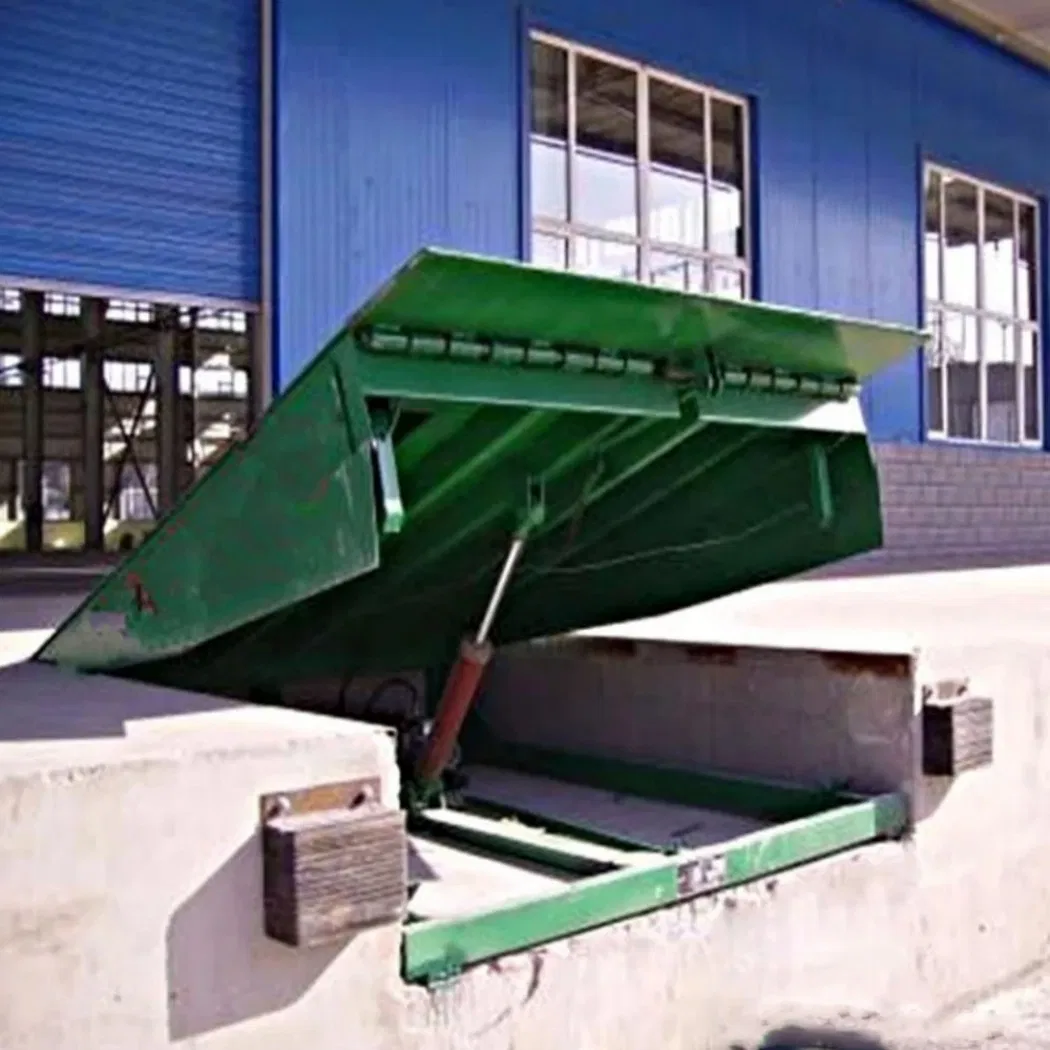

Hydraulic Dock Leveler 3
⚙️
System: Free maintenance design idea for long run applications.
💧
Design: Hydraulic driving system for main deck and lip; Velocity fuse (≤75 mm) for automatic stopping under heavy load.
🛡️
Safety: Full range foot guards, safety support bars, front tubular hinges, and 25mm diameter latches.
🏗️
Structure: Main deck made of 8mm high-strength non-slip steel; 15mm extension lip; 14# I-beam steel reinforcement.
Company Profile
Company Overview

A modern technology-based manufacturing enterprise integrating design, production, sales, installation, and after-sales service. Our product portfolio consists of multiple series, mainly including Wrapping Machines, lifting work platforms, and vehicle boarding bridges. We undertake the design and production of various non-standard products with guaranteed quality.

The equipment has successively obtained ISO system certification, CE safety certification, and multiple national invention patents. Complying with national industry standards, the products are widely used in glass products, papermaking, chemicals, building materials, textiles, beverages, electronics, food, and metallurgy.

Factory Scene
Our Advantages
Advantage 1
Advantage 2
Advantage 3
Packaging & Shipping
Packaging Process
Frequently Asked Questions
Q: What information should I provide when making an inquiry? A: More details or drawings are better. Please provide: A: lift capacity, B: span, C: lift height, D: crane traveling distance, E: power source.
Q: What is your minimum order quantity (MOQ)? A: Our minimum order quantity is 1 set.
Q: How are the products packaged for shipping? A: The main body is packaged with plywood boxes or plastic woven fabrics; spare parts are secured inside plywood boxes for protection.
Q: What is your standard delivery cycle time? A: Usually within 10, 25, or 40 days after receiving the advance payment. The specific deadline is based on your detailed requirements.
Q: Do you provide additional lifting accessories? A: Yes, we can provide various accessories such as hooks, grab buckets, magnets, pulley blocks, locks, wire ropes, and fiber ropes.
Q: Do you support customized or OEM services? A: Yes, our factory fully supports both OEM and ODM services to meet specific professional needs.
