Complete Bailey Bridge System with Decking and Transom for Fast Installation

1 / 5

Complete Bailey Bridge System with Decking and Transom for Fast Installation

Customization:	Available
After-sales Service:	Online One-on-One Solution
Install:	Online Guidance

Send Inquiry

Product Description

Basic Information

Model NO.

XYSS

Mobility

Adjustable

Usage

Industrial Platform, Transportation, Highway Access

Load Class

Vehicle Class 10 ~ Trailer Class 80

Standard Span

9m to 21m; Max Combined: 76.2m

Core Material

16mn Steel (Truss), 30crmnti Steel (Pin)

Anti-Corrosion

Hot-DIP Galvanizing + Epoxy Zinc-Rich Primer

Service Life

8-15+ Years Depending on Maintenance

Seismic Rating

Intensity 7-8 Degrees

HS Code

7308900000

Product Description

🏗️

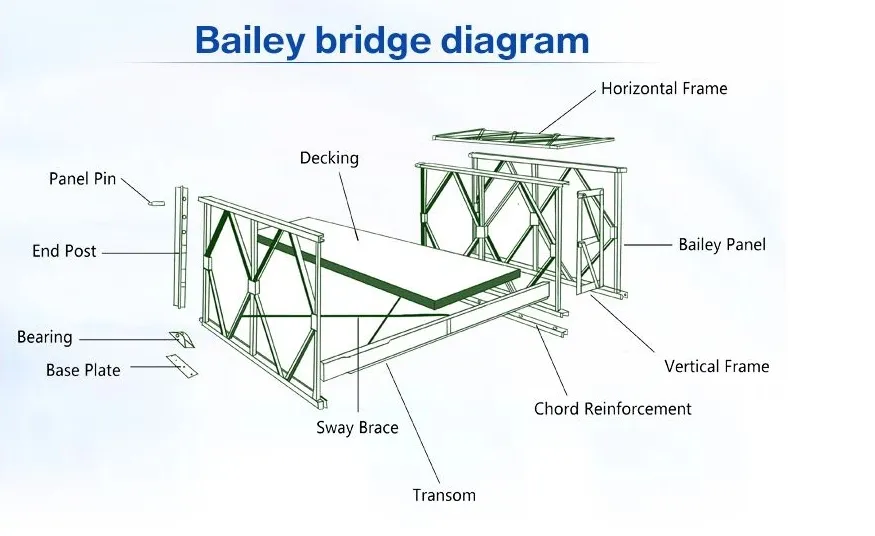

Bailey Bridge: Rapid Deployment Modular System

The Bailey Bridge is a portable, prefabricated modular truss bridge designed for quick assembly using standardized components. It is a vital solution for emergency, temporary, and semi-permanent bridging applications globally.

Key Advantages

Quick Deployment: No heavy machinery needed; manual assembly possible within 5-15 days.
Adjustable Design: Modular panels allow flexible configurations from 10m to 60m+.
High Durability: Civil-grade Q345B steel with 550g/m² Hot-Dip Galvanization.
Cost-Effective: 30% lower cost than concrete bridges and fully reusable.
Extreme Resilience: Withstands 200 km/h wind and 8.0 magnitude earthquakes.

Technical Specifications

Component	Our Standard Specification	Industry Standard	Advantage
Steel Grade	Q345B (Yield ≥345MPa)	Q235 (Yield ≥235MPa)	47% higher strength
Galvanization	550g/m² HDG	275g/m² HDG	2x corrosion protection
Bolts	Grade 8.8	Grade 4.8	100% higher shear strength
Decking	5mm anti-slip steel	3mm flat steel	67% more durable

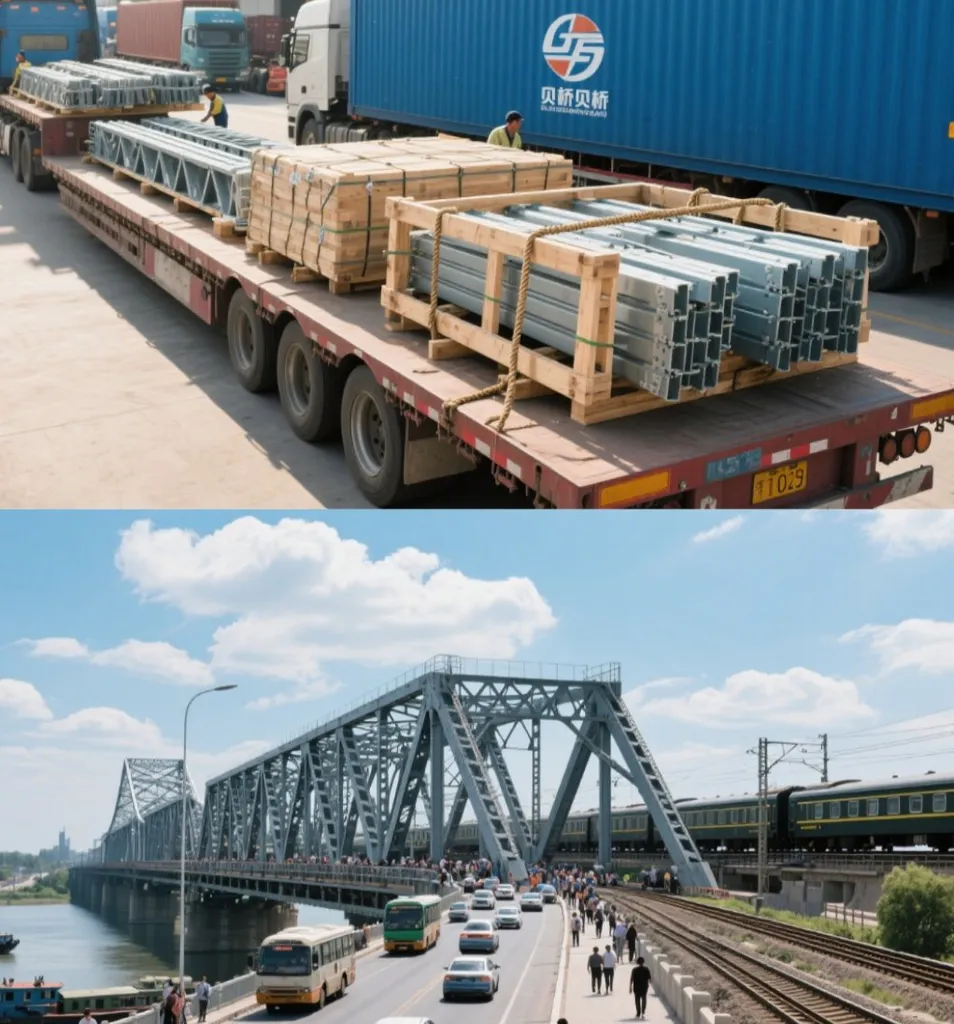

Packing & Delivery

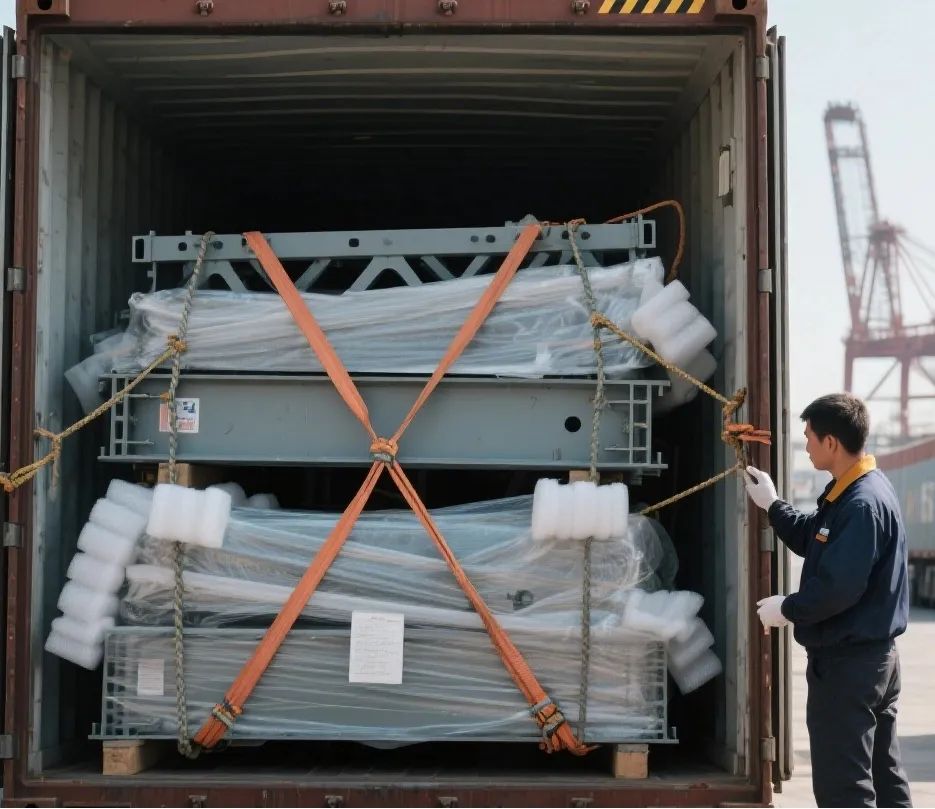

Packaging: Standard export wooden crates or steel frames with anti-rust paper and plastic wrap protection.

Shipping: FOB, CIF, and EXW terms supported. Standard delivery time is 15-30 days after order confirmation.

Quality Assurance & Capacity

📜

Compliance & Certifications: ISO 9001:2015, CE Marking (EN 1090), MIL-STD-810G, and RoHS Compliance.

With over 20 years of experience in steel structure design and manufacturing, our facility covers over 50,000 square meters. We utilize advanced automated equipment, including American Lincoln submerged arc welding machines and CNC cutting tools, producing up to 80,000 tons of steel structures annually.

Frequently Asked Questions

How do you ensure the quality of the Bailey Bridge?

We conduct sample testing before mass production and perform rigorous final inspections before every shipment to ensure compliance with international standards.

What is the typical lead time for production?

For standard components, delivery is usually within 15-30 days. For large-scale projects like a 5,000m² structure, production typically takes 8-10 weeks.

Can the bridge be customized for specific load requirements?

Yes, we offer configurations ranging from 20T to 100T. Customizations in length (3m increments), width (4.2m or 7.2m), and color are also available.

What maintenance is required for the steel structure?

We recommend an annual inspection and a corrosion protection treatment every 5-10 years to ensure a lifespan exceeding 30 years.

Is a professional team required for installation?

While the system is designed for rapid manual assembly without heavy machinery, we recommend a professional team to complete the erection within the optimized 5-15 day timeframe.

What payment methods and terms do you accept?

We accept T/T payments and support various delivery terms including FOB, CFR, CIF, and EXW in multiple currencies such as USD, EUR, and GBP.
