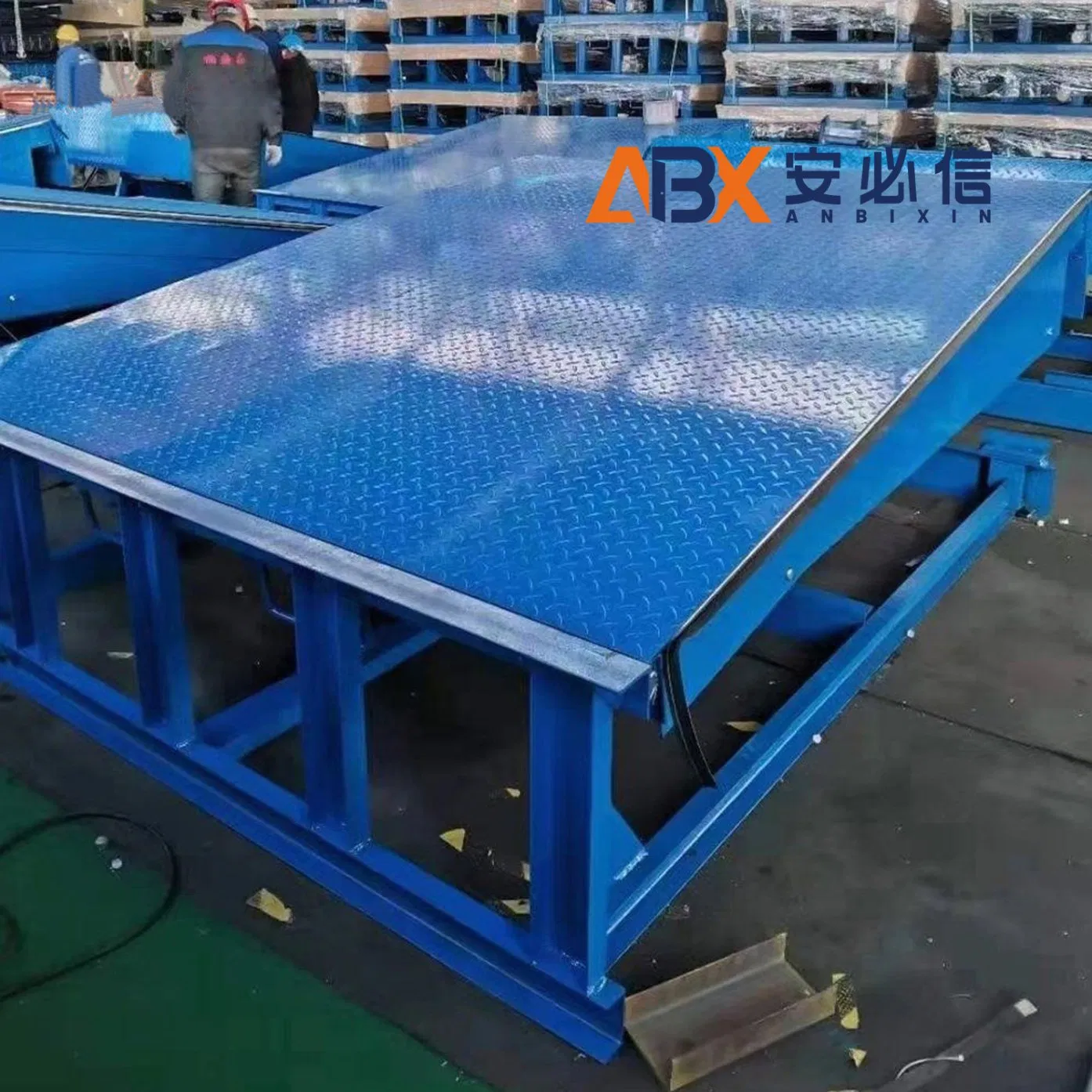

Loading and unloading platforms are suitable for hydraulic, pneumatic, or mechanical installations. It helps users safely and efficiently unload trucks of all heights and sizes.
The main function is to build a bridge between the cargo platform and the transport vehicle, allowing the forklift to travel conveniently for unloading. It automatically adjusts its height according to different vehicle models and changes in the vehicle compartment during loading.
Featuring a high-traction, anti-slip surface and weather-resistant components, our Dock Leveler guarantees reliable performance in wet or icy conditions.
Fully customizable size, capacity, and control systems tailored to your unique architectural and operational requirements.
Advanced hydraulic systems engineered for low energy consumption without sacrificing power or speed.
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Equipment Dimensions | 2000mm Wide, 2500mm Long, 600mm High |
| Pit Size | Width: 2030mm, Length: 2500mm, Height: 610mm |
| Adjustment Range | +300/-300mm |
| Adjustment Time | Up Time ≤ 16s, Down Time ≤ 10s |
| Main Console Panel | 6mm Patterned Board |
| Motherboard Skeleton | L-Shaped Bend |
| Side Body Guard | Automatically Retractable Baffles |
| Hydraulic Oil | 32# Anti-Wear Hydraulic Oil (8MPa +/-1MPa) |
| Base Frame | 10# Channel Steel Welded H-Shaped Frame |
| Service Life | ≥ 200,000 Times |
EFFORTLESS INTEGRATION: Designed to seamlessly bridge the gap between the loading dock and varying truck heights.
SUPERIOR DURABILITY: Constructed with high-strength, industrial-grade steel to withstand heavy loads.
ENHANCED SAFETY: Equipped with full-range toe guards and a velocity fuse to protect workers.
LOW MAINTENANCE: Robust design and high-quality components reduce downtime and ownership costs.
