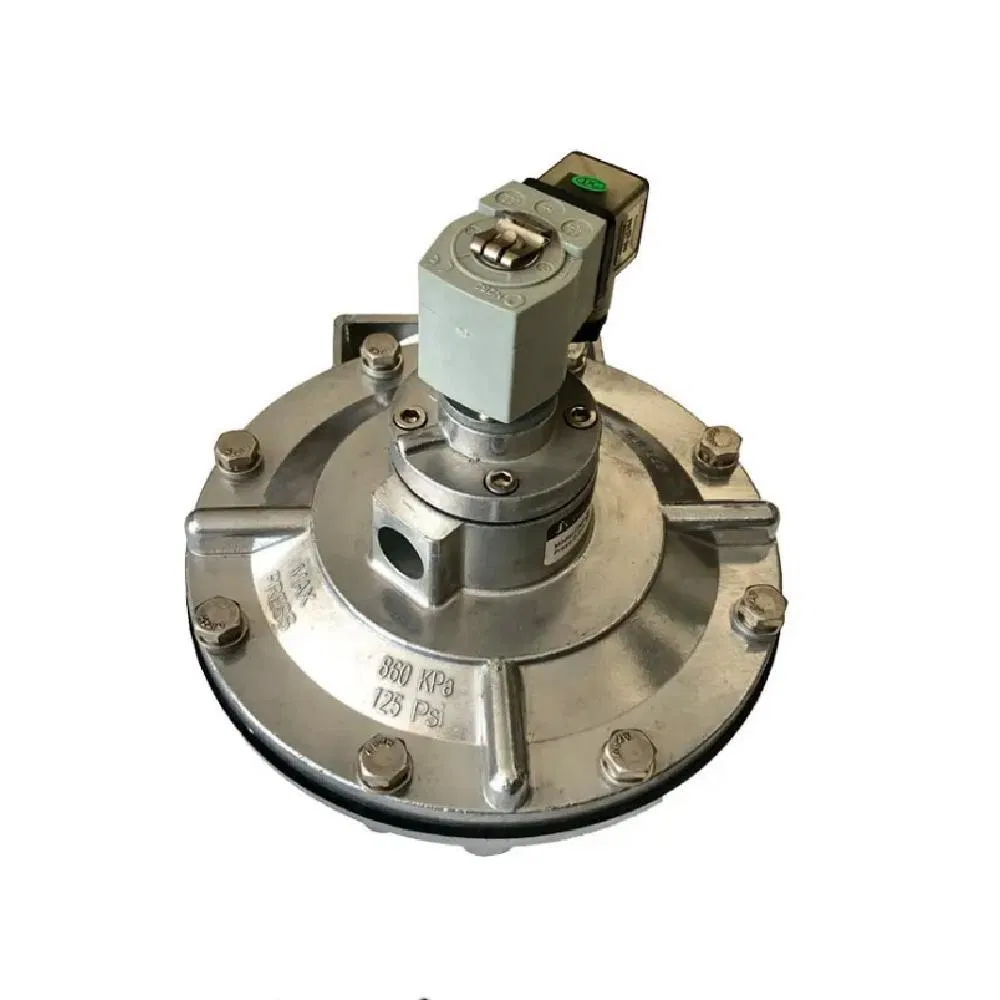

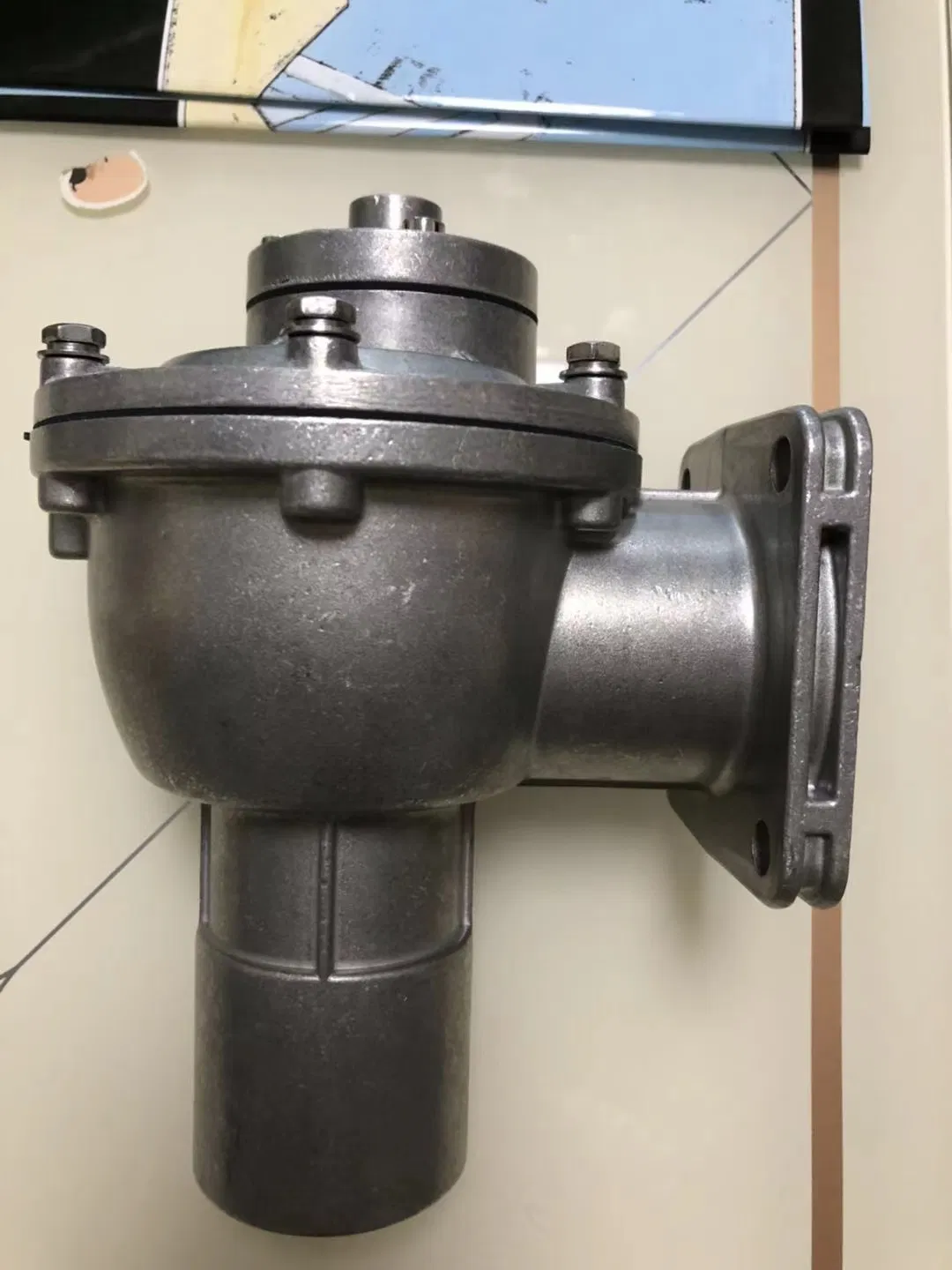

High-Performance Right Angle Solenoid Pulse Valve for Pneumatic Systems

📋

Basic Specifications

Model NO.

G2"

Cartridge Filter

Non-Woven Polyester Fiber

Usage

Industrial Air Dust Cleaning

Filtration Grade

HEPA Filter

Filter Bag Environment

High-Temperature

Certification

CE, ISO, SGS

Name

Solenoid Pulse Valve

Working Voltage

DC24V

Working Medium

Clean Air, Open Air - 20 ºC

Relative Humidity

<85%

Warranty

6 Months

HS Code

8481804090

📦

Packaging & Delivery

Package Size

50.00cm * 40.00cm * 30.00cm

Gross Weight

100.000kg

⭐

Product Overview

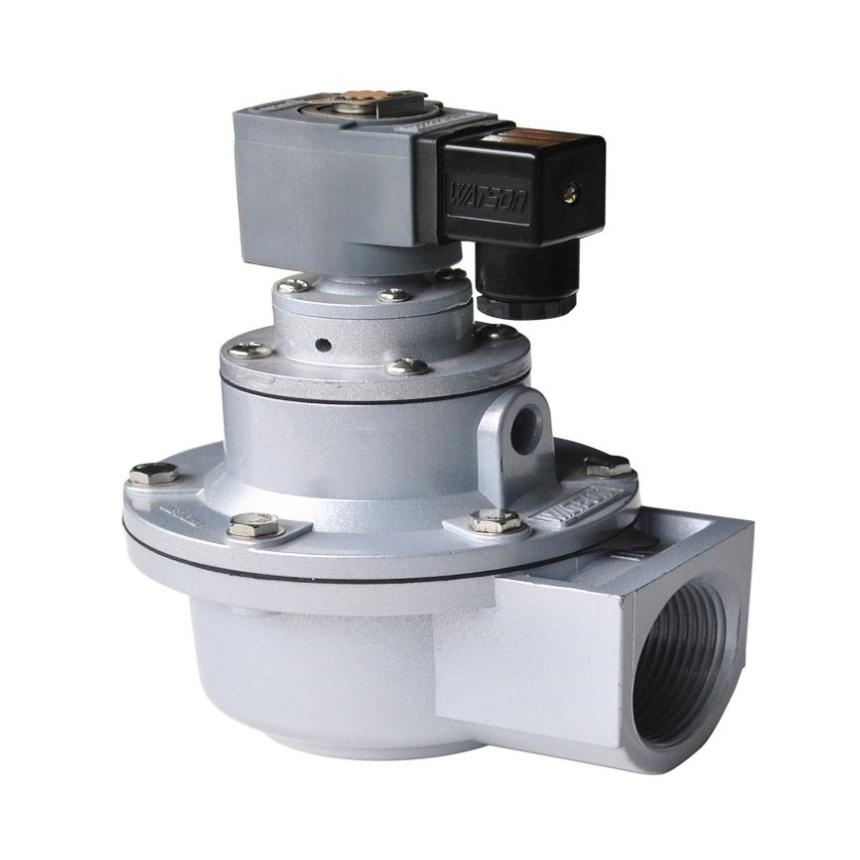

Right Angle Solenoid Pulse Valve

Longer Service Life, More than Twice Service Life in the Same Industry

One Year Free Quality Assurance Service

Applicable environment:
Temperature: -10 to +55 ºC
Relative Humidity: <85%

Injection air source pressure:
0.3-0.6MPa

Working voltage options:
DC24V, 0.8A; AC220V, 0.14A; AC110V, 0.3A

Support:
7*24 Hours Expert Consultation Online

📊

Technical Parameters

Model Name	Right Angle Valve	Usage	Dust Cleaning
Standard	DIN	Application	Industrial Usage
Design temperature	- 10+55 ºC	Specification	Customized

🔍

Product Details & Working Principle

The DMF-Y pulse valve is a submerged type electromagnetic pulse valve. The pulse valve seat is embedded in the air bag for installation, ensuring small resistance, excellent circulation, and high injection volume. It is highly suitable for a wide range of air source pressures.

Right-angle Pulse Valve features: It is characterized by a 90-degree air inlet and outlet pipe. The diaphragm divides the valve into front and rear air chambers. When compressed air connects, it enters the rear chamber via the orifice, closing the diaphragm. Upon an electric signal, the armature opens the vent hole, releasing pressure and allowing the diaphragm to move backward for instant air injection.

📐

Technical Drawings

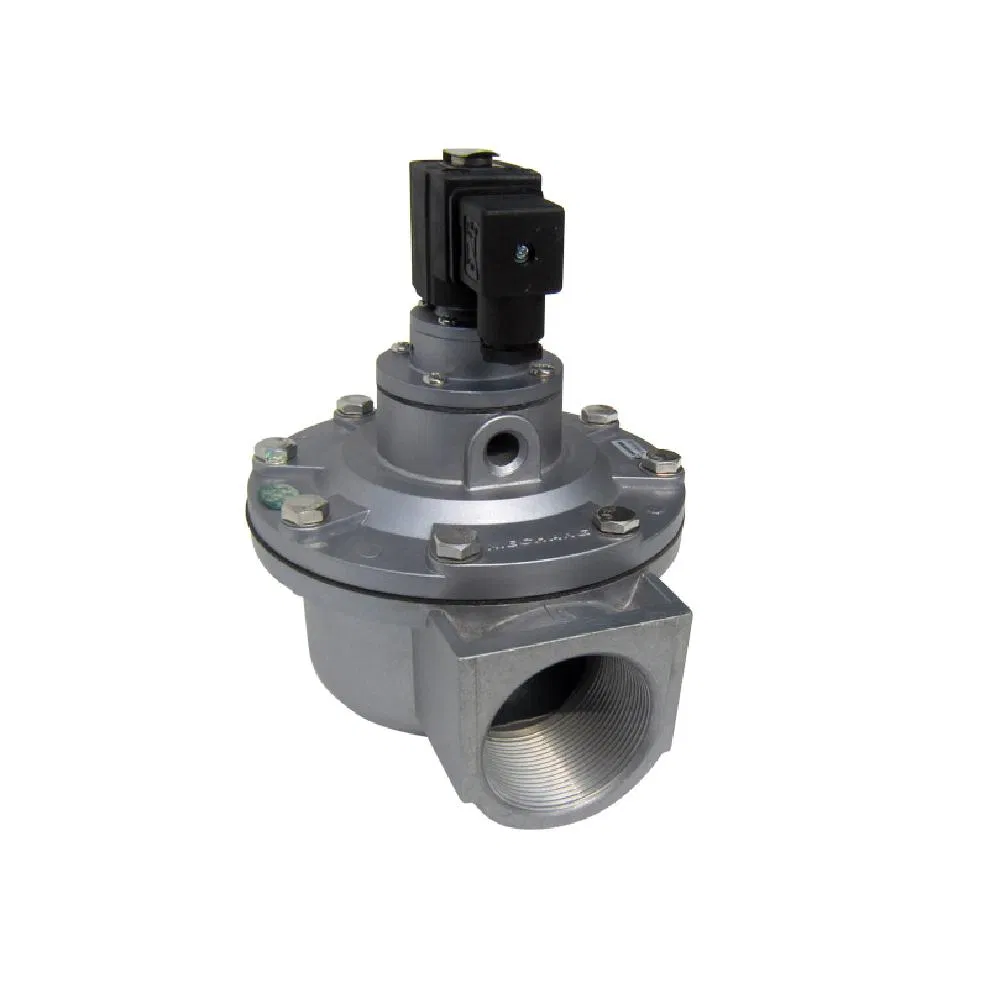

Connection Port: G2"

Connection Port: G2-1/2"

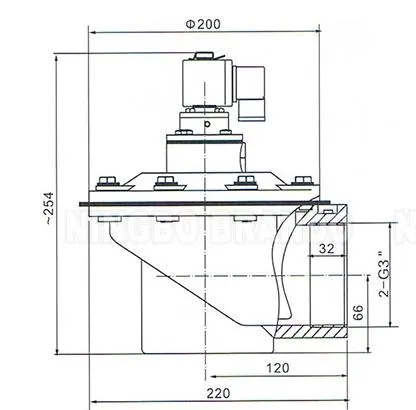

Connection Port: G3"

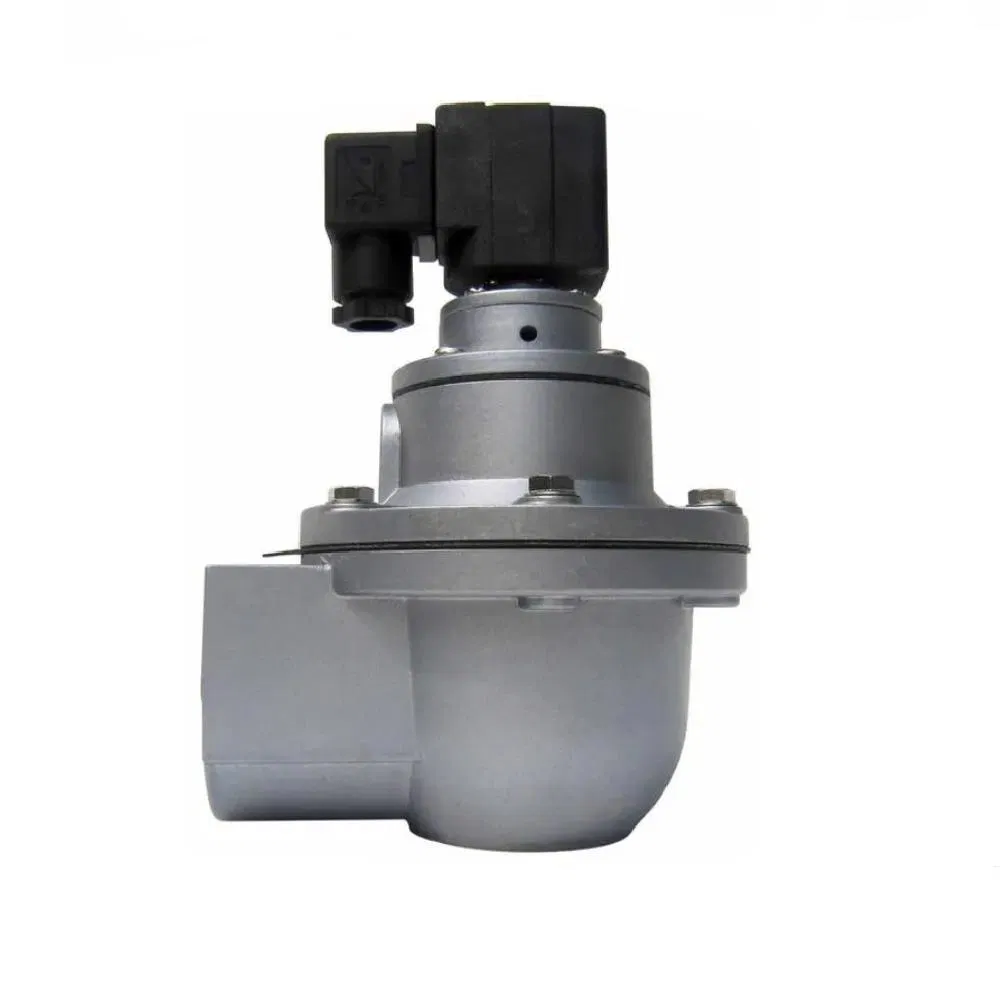

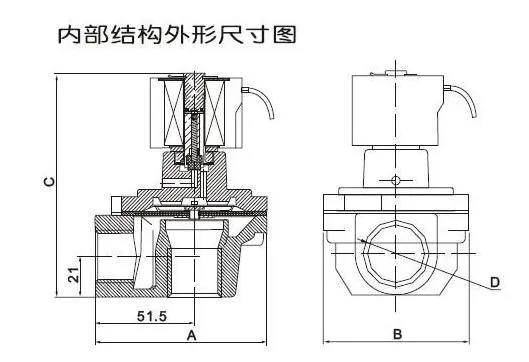

Dimensional Drawing of Internal Structure

🏭

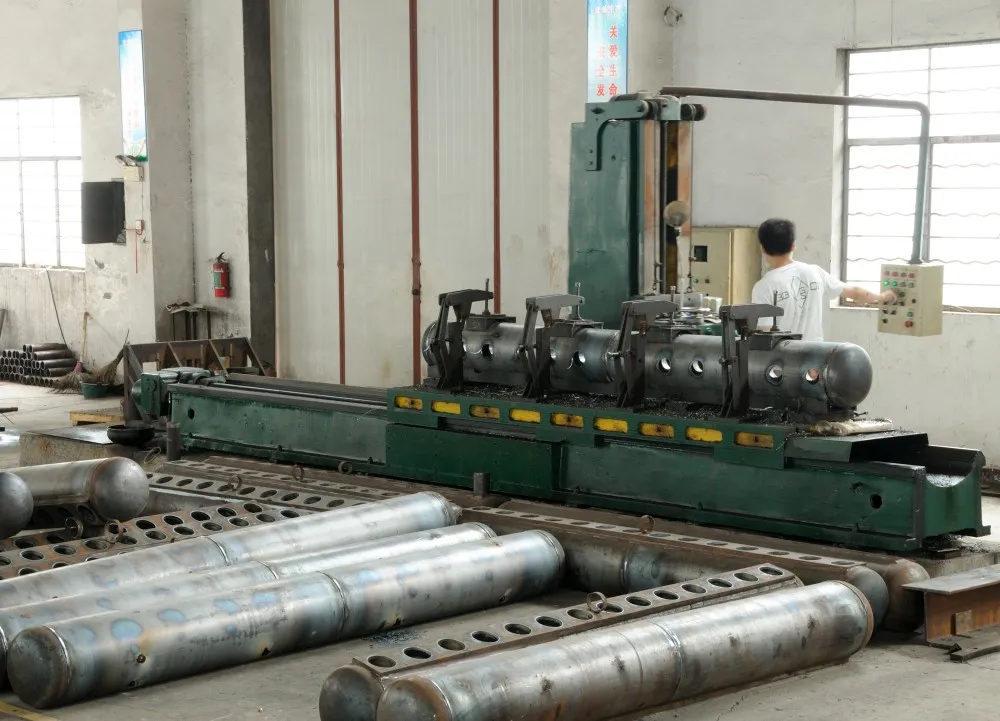

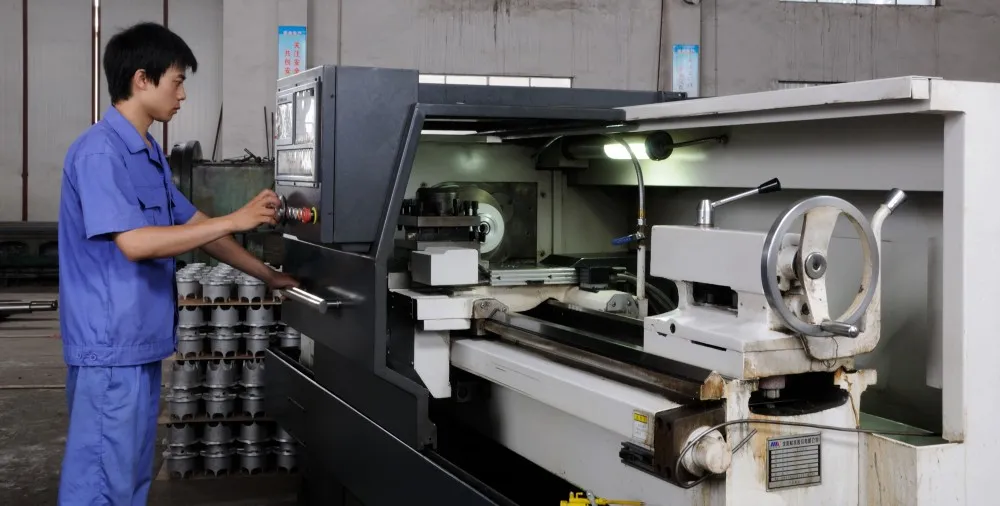

Production Workshop & Certification

🔗

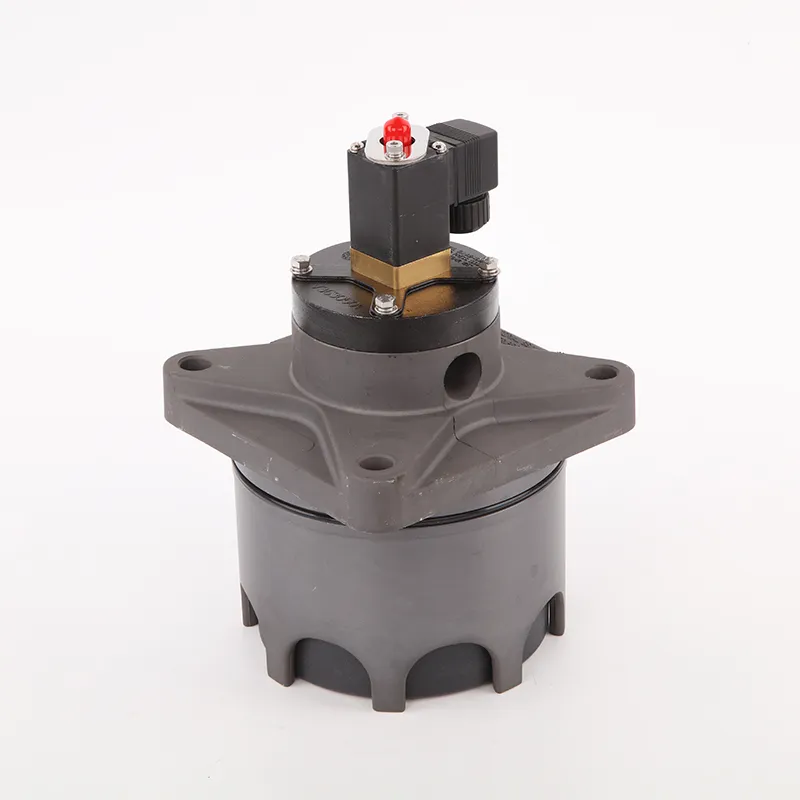

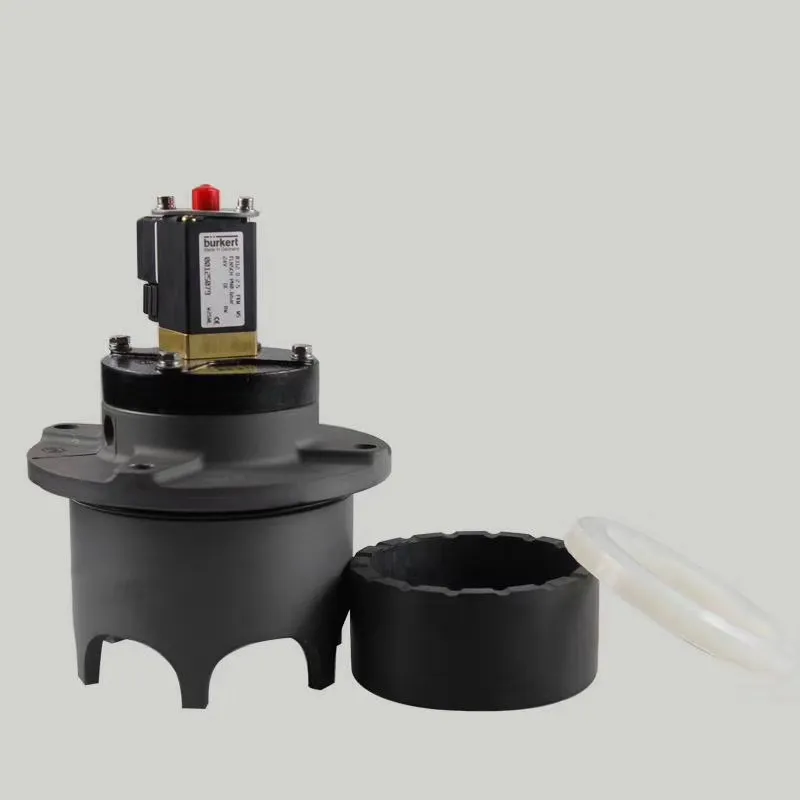

Related Products

❓
