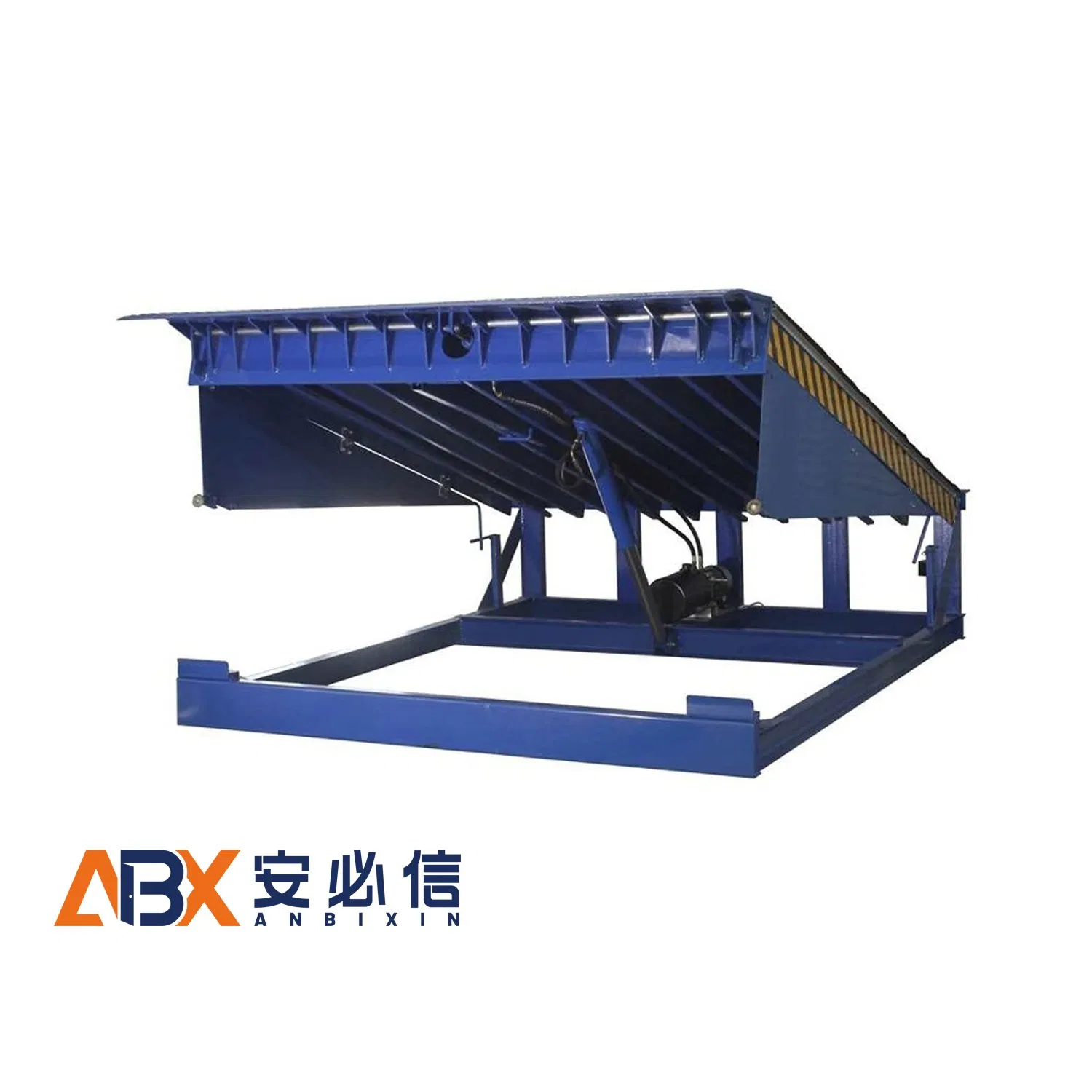

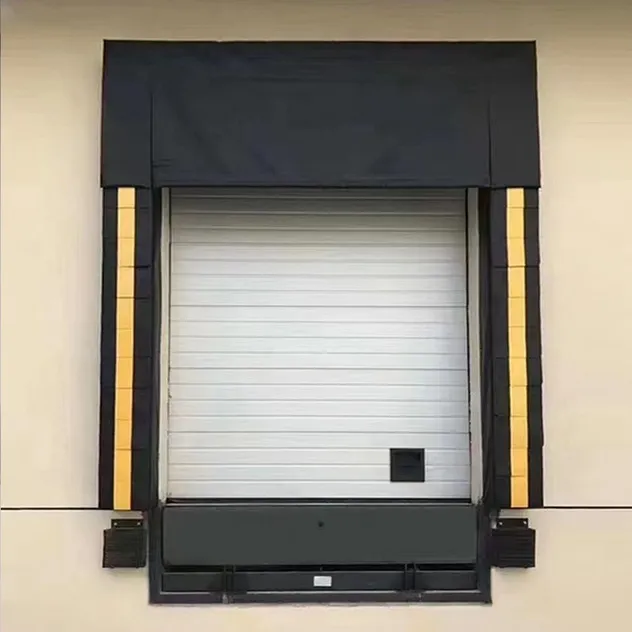

DOCK LEVELER
Loading and unloading platforms are suitable for hydraulic, pneumatic, or mechanical installations. It helps users safely and efficiently unload trucks of all heights and sizes.

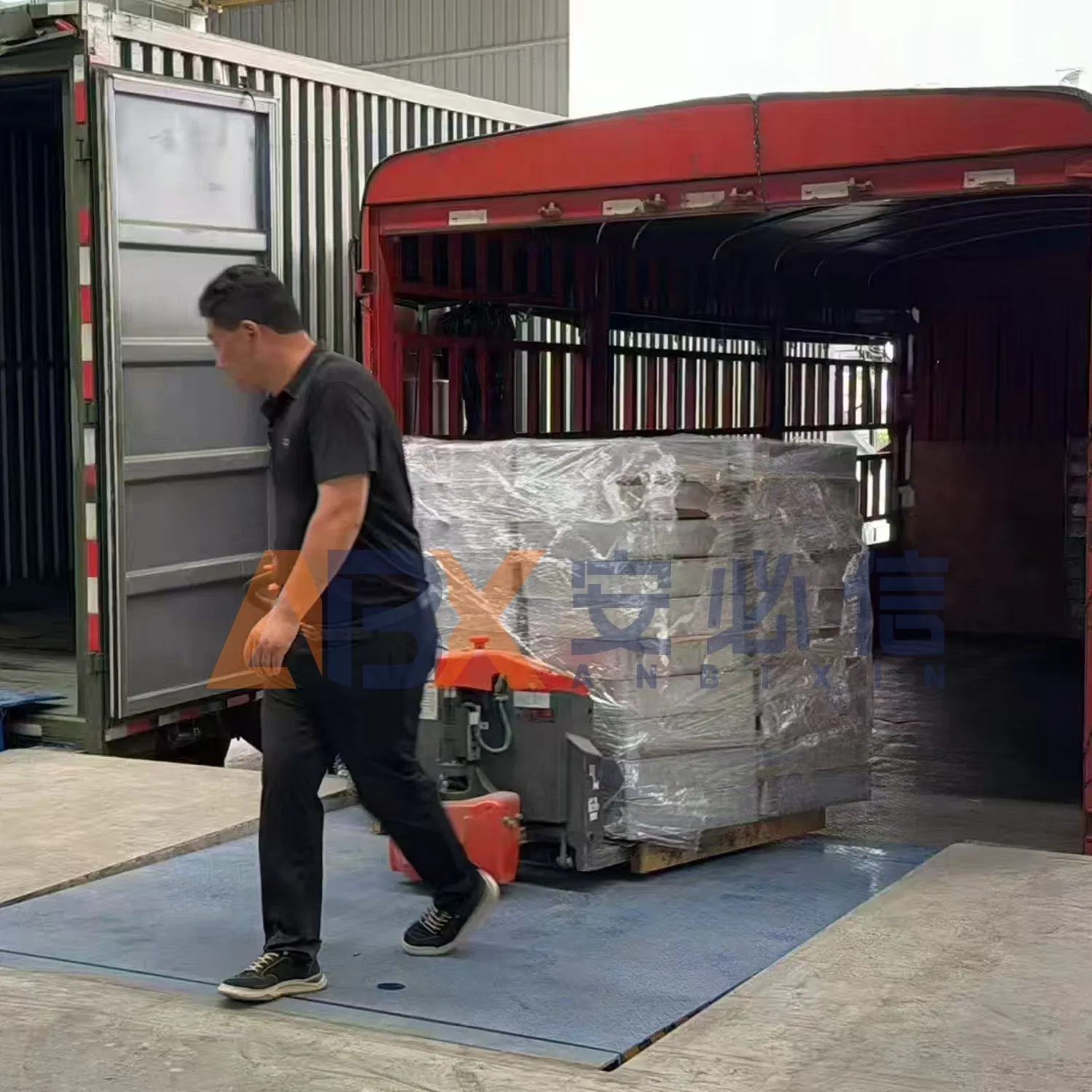

The primary function is to build a bridge between the cargo platform and the transport vehicle, allowing forklifts to travel conveniently for unloading. It automatically adjusts its height according to different vehicle models and changes in the vehicle compartment during the loading process.
Keep operations running smoothly in any weather. Featuring a high-traction, anti-slip surface and weather-resistant components for wet or icy conditions.
Fully customizable solutions including size, capacity, and control systems tailored to your unique architectural requirements.
Advanced hydraulic systems engineered for low energy consumption without sacrificing power or speed.
| SPECIFICATION DETAILS | |
|---|---|
| Adjustment Range | +300/-300mm |
| Adjust Time | Up ≤16s / Down ≤10s |
| Board Thickness | 12mm (Lip) / 6mm (Main Console Panel) |
| Motherboard Skeleton | L-Shaped Bend |
| Safety Features | Automatically Retractable Side Baffles |
| Hydraulic Oil | 32# Anti-Wear Hydraulic Oil |
| Working Pressure | 8MPa +/-1MPa |
| Base Frame | 10# Channel Steel H-Shaped Structure |
| Operational Life | ≥ 200,000 Times |
EFFORTLESS INTEGRATION: Designed to bridge the gap between the loading dock and varying truck heights seamlessly.

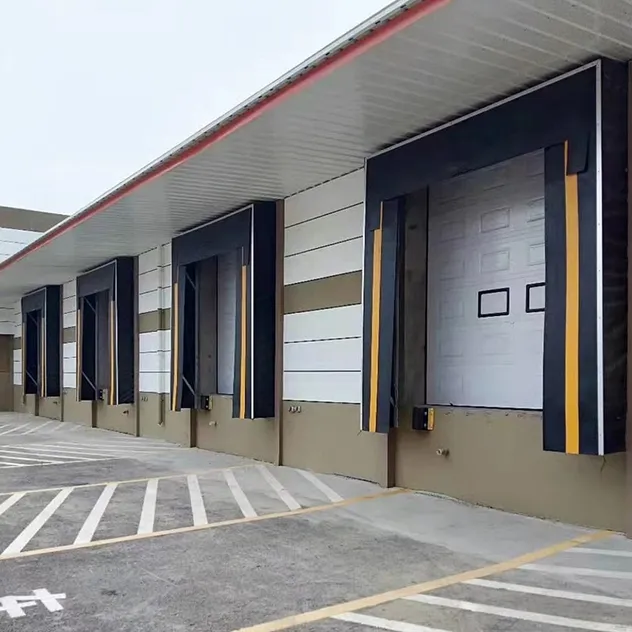

SUPERIOR DURABILITY: Constructed with high-strength, industrial-grade steel to withstand heavy loads and continuous use.
ENHANCED SAFETY: Equipped with full-range toe guards and a velocity fuse to protect workers and equipment.
