Fastlink Industrial Steel Not Rust Hot Sales Loading Dock Lift Systems Container Ramp Levelers
Fastlink Industrial Steel Not Rust Hot Sales Loading Dock Lift Systems Container Ramp Levelers
Fastlink Industrial Steel Not Rust Hot Sales Loading Dock Lift Systems Container Ramp Levelers
Fastlink Industrial Steel Not Rust Hot Sales Loading Dock Lift Systems Container Ramp Levelers
Fastlink Industrial Steel Not Rust Hot Sales Loading Dock Lift Systems Container Ramp Levelers
1 / 5
Fastlink Industrial Steel Not Rust Hot Sales Loading Dock Lift Systems Container Ramp Levelers
Fastlink Industrial Steel Not Rust Hot Sales Loading Dock Lift Systems Container Ramp Levelers
Fastlink Industrial Steel Not Rust Hot Sales Loading Dock Lift Systems Container Ramp Levelers
Fastlink Industrial Steel Not Rust Hot Sales Loading Dock Lift Systems Container Ramp Levelers
Fastlink Industrial Steel Not Rust Hot Sales Loading Dock Lift Systems Container Ramp Levelers

Fastlink Industrial Steel Not Rust Hot Sales Loading Dock Lift Systems Container Ramp Levelers

Customization: Available
After-sales Service: 2years
Warranty: 1year
Send Inquiry

Product Description

Basic Specifications
Model NO.
DLS-SHK
Application
Workshop Crane, Warehouse Crane
Lift Mechanism
Hydraulic
Carrying Capacity
Weight Level
Moves
Stationary
Driven Type
Hydraulic
Feature
Efficient, Safe and Intelligent Control
Certification
CE
Dynamic Load
6.8t / 10t / 15t
Table Size
W2000mm*L2500mm*H600mm
Opening Mode
Electro-Hydraulic
Lip Length
400mm
Packaging & Delivery
Package Size
200.00cm * 200.00cm * 60.00cm
Gross Weight
750.000kg
Transport Package
Wooden Box
Production Capacity
50000 PCS/Year
Product Description

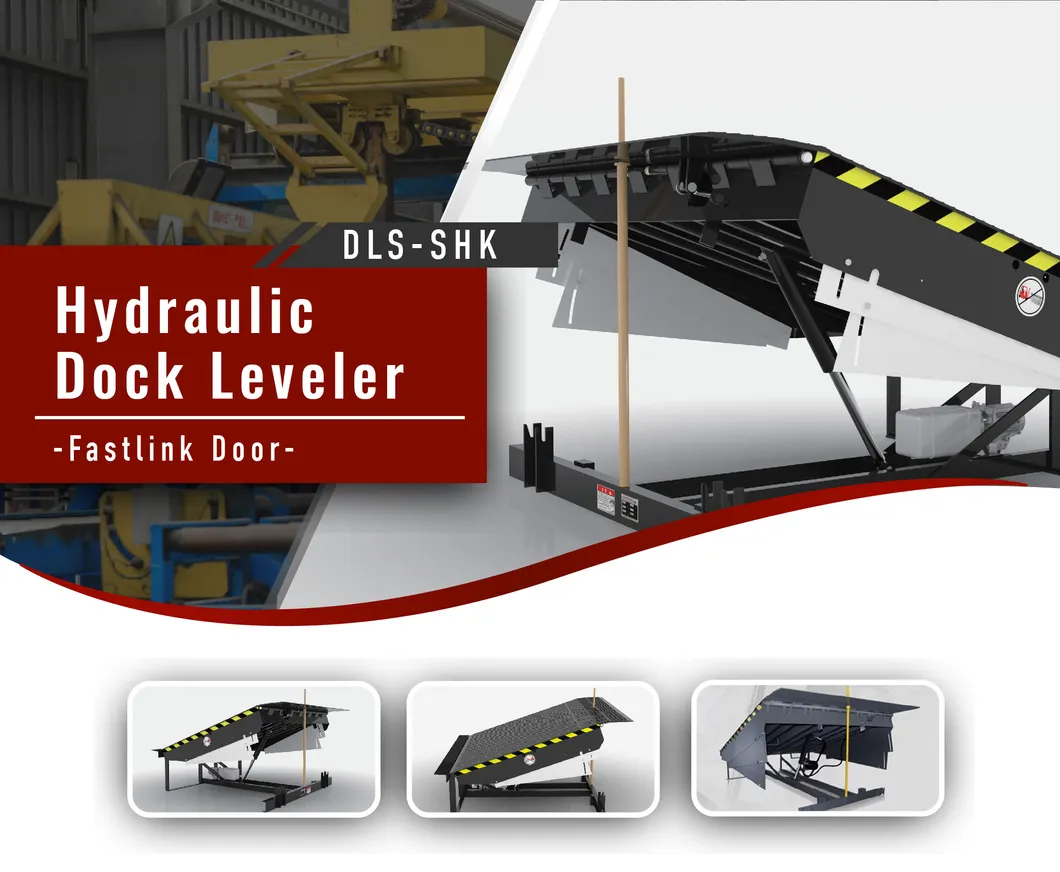

Loading Dock Lift Systems Container Ramp Levelers
Technical Attributes
Industry AttributesDock Leveler
MaterialHigh Strength Steel
Application ScenariosIndustrial plants, logistics and warehousing buildings
Opening ModeElectro-hydraulic

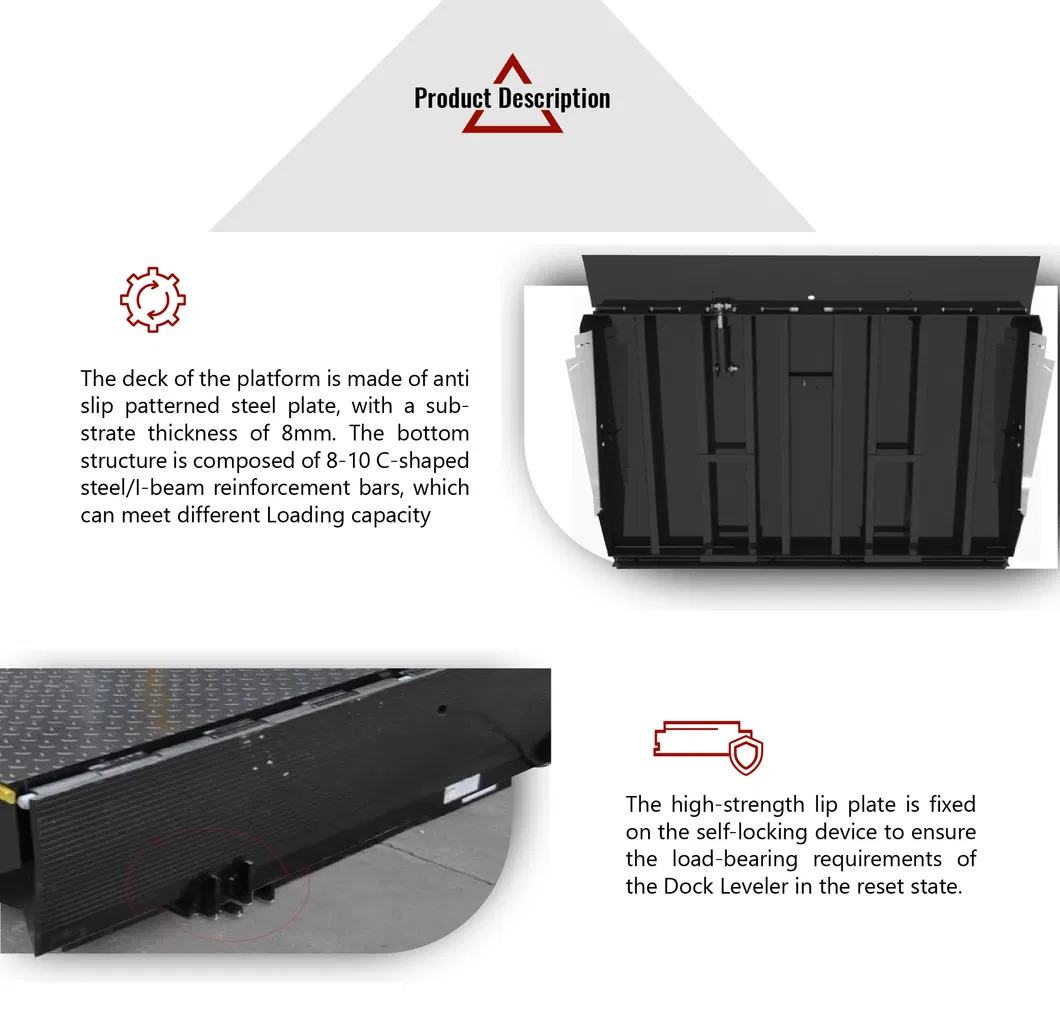

Deck PlateNon-slip pattern steel plate, substrate thickness 8mm
Lip Plate FeaturesThickness 14/15mm, double 5-degree arch design for better lap area

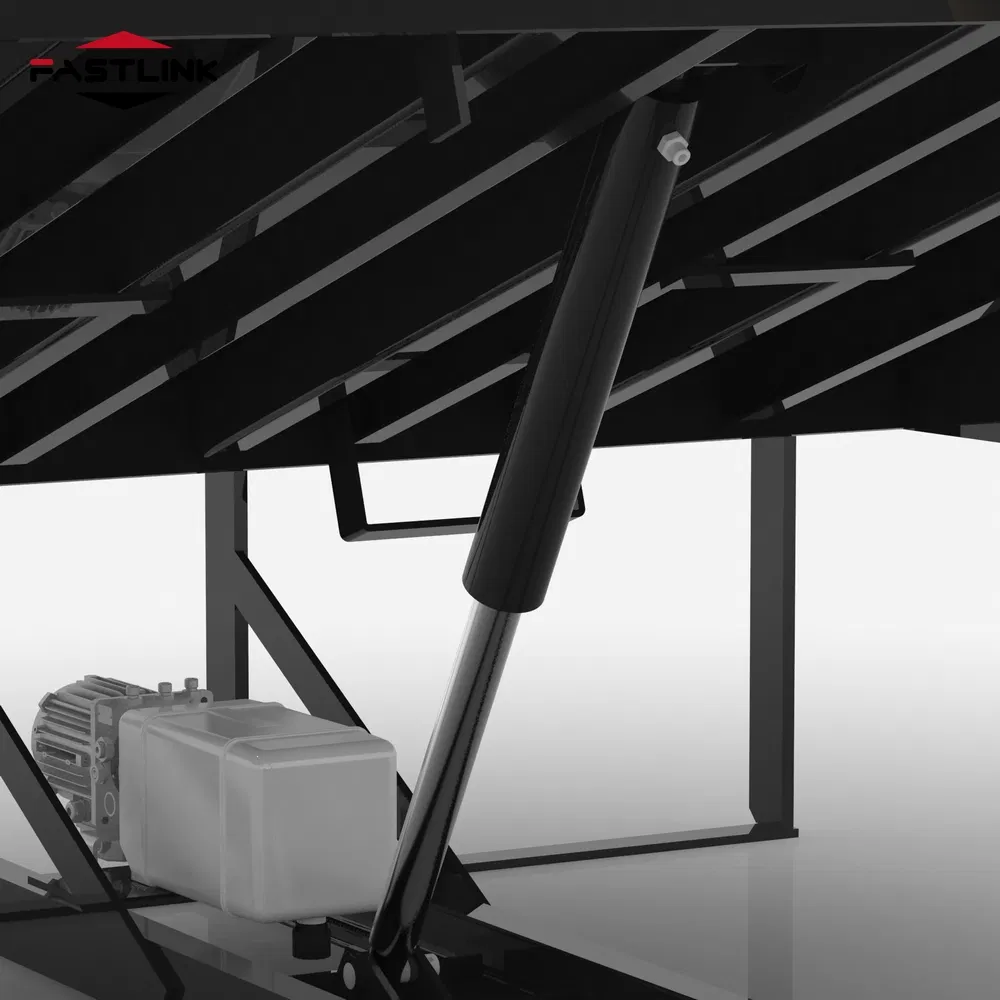

Hydraulic SystemIntegrated hydraulic power unit for reliable operation and low maintenance
Intelligent ControlFault code display, operation status, fire linkage, interlock function
Security ConfigurationMaintenance support rods and side foot protectors for operator safety

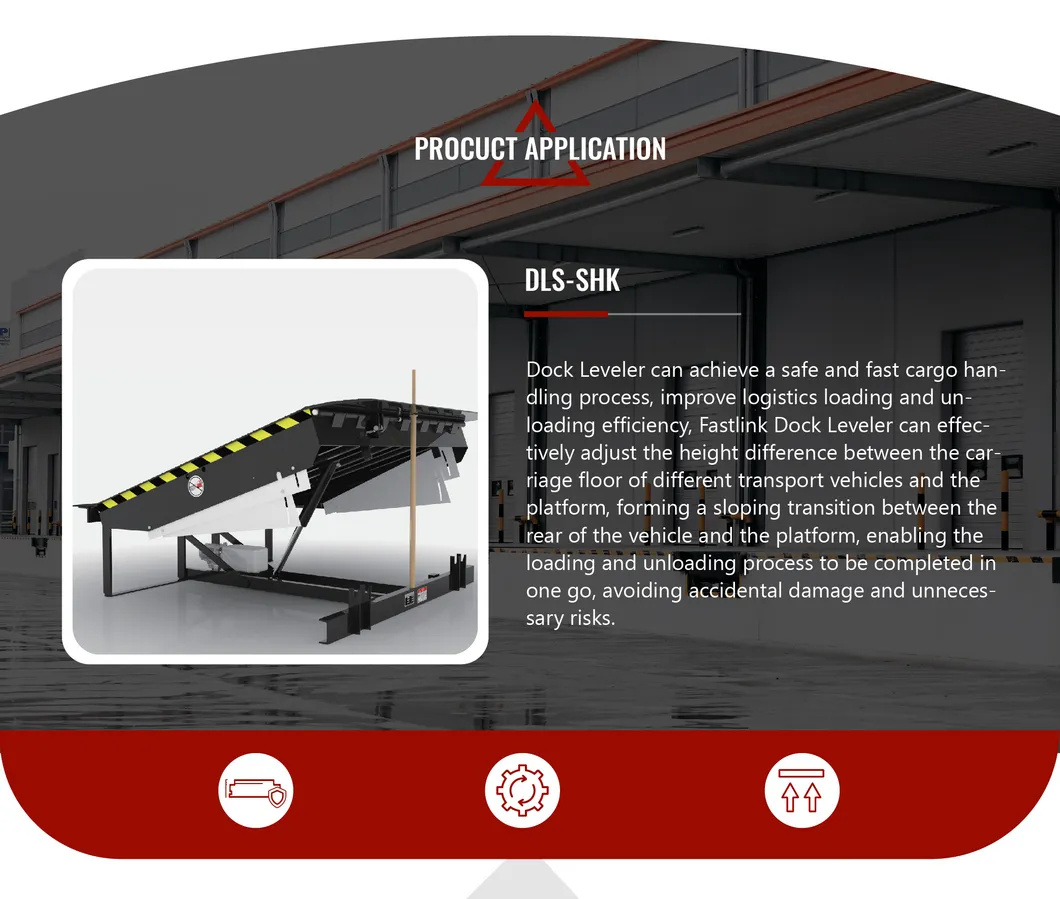

Industrial Steel Dock Leveler
Dock Lift Systems
Container Ramp

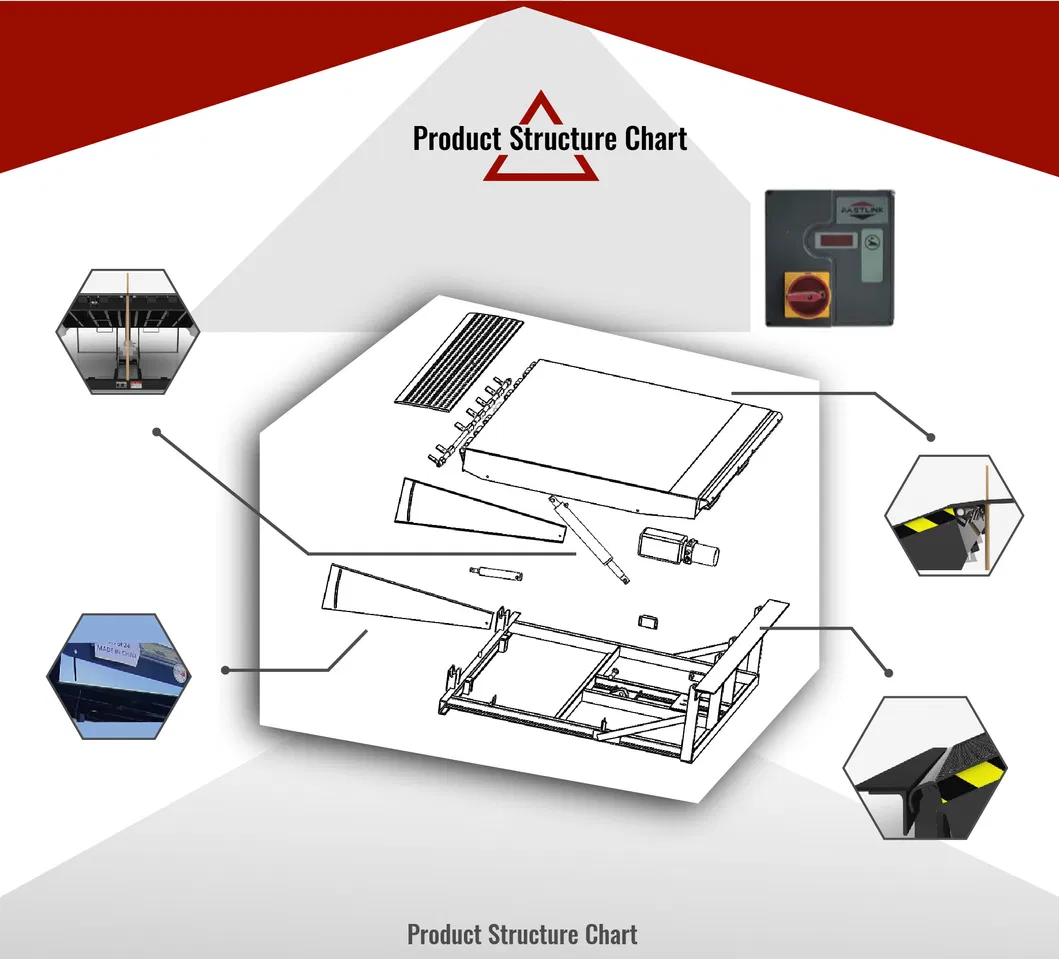

Hydraulic Dock Leveler Details

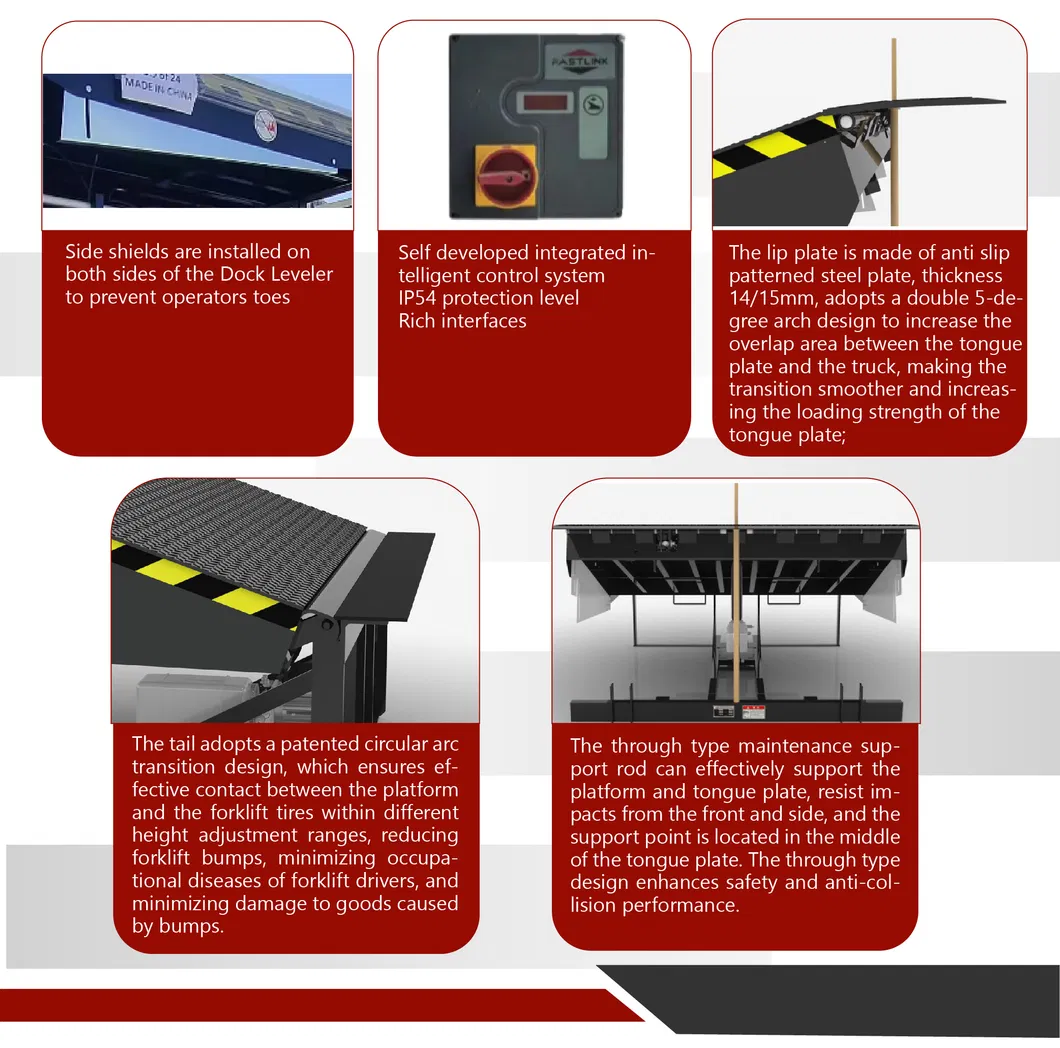

Loading Dock Components
Intelligent Control System

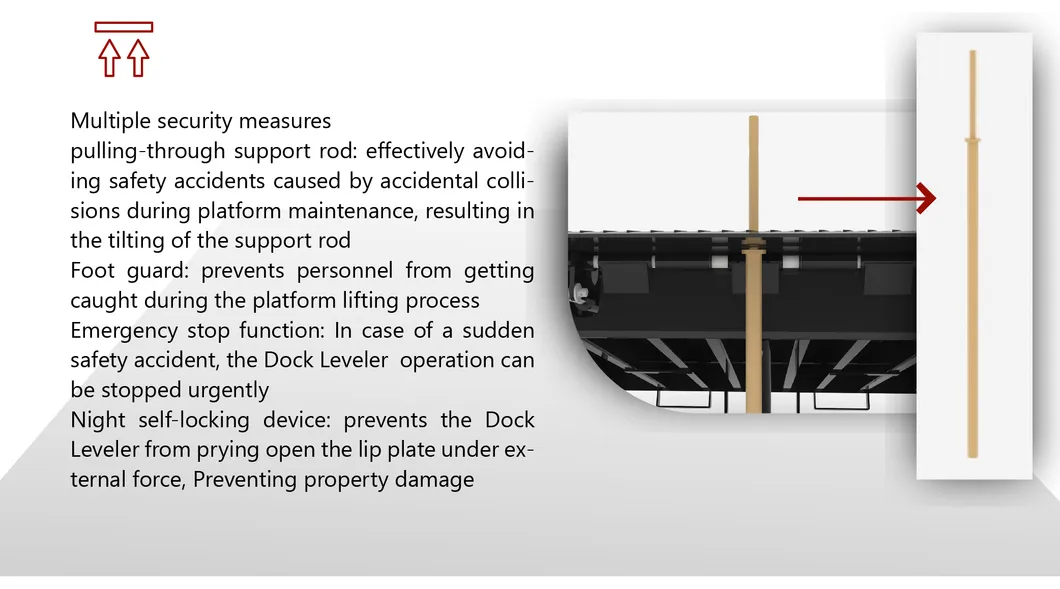

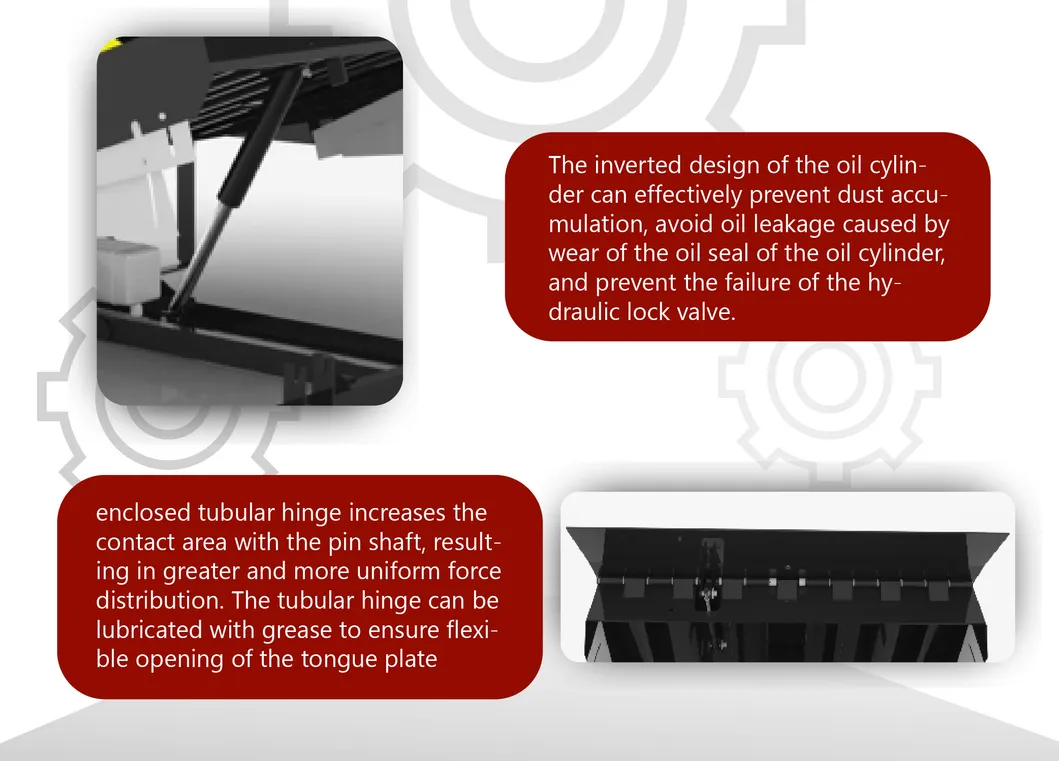

Safety Features

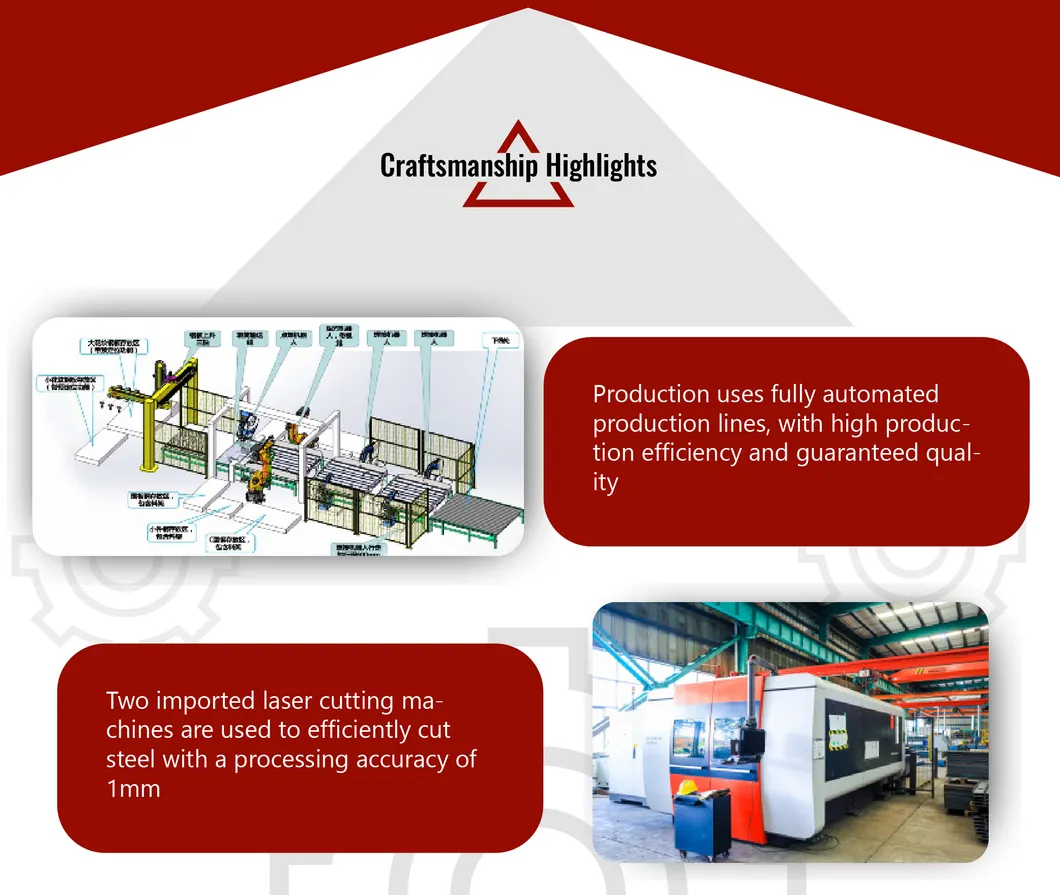

Manufacturing Process

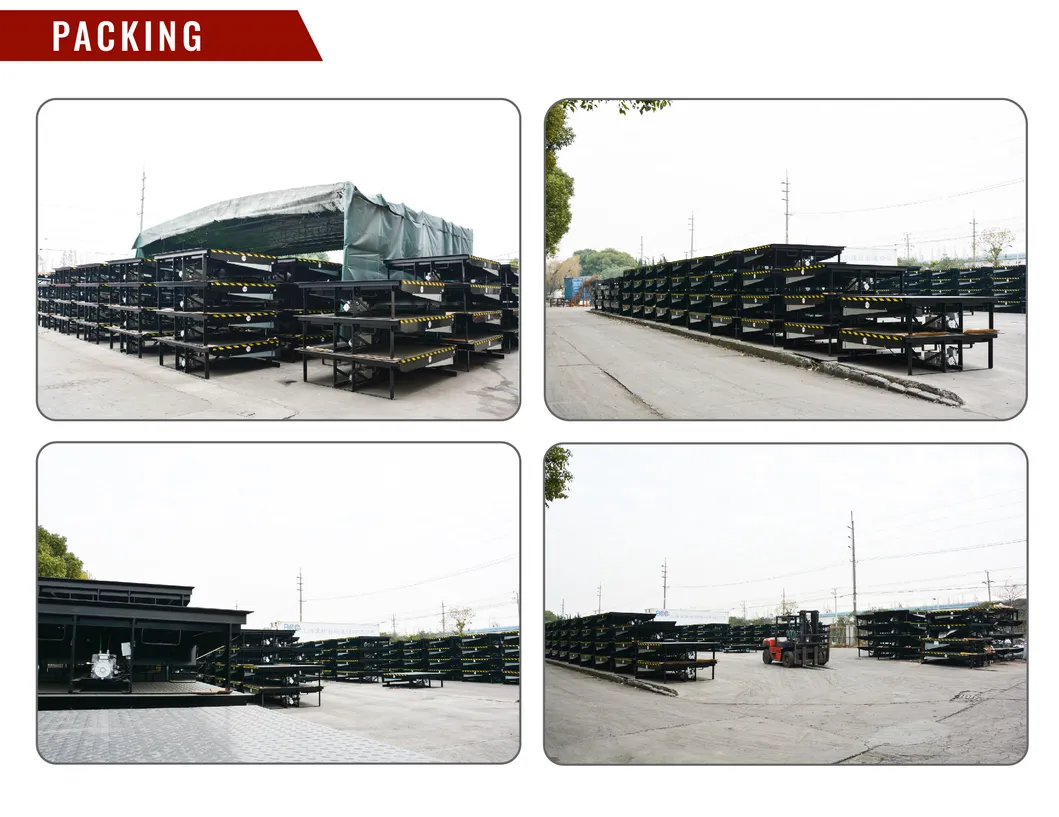

Packaging Info
Installation Guide
Dock Leveler Options

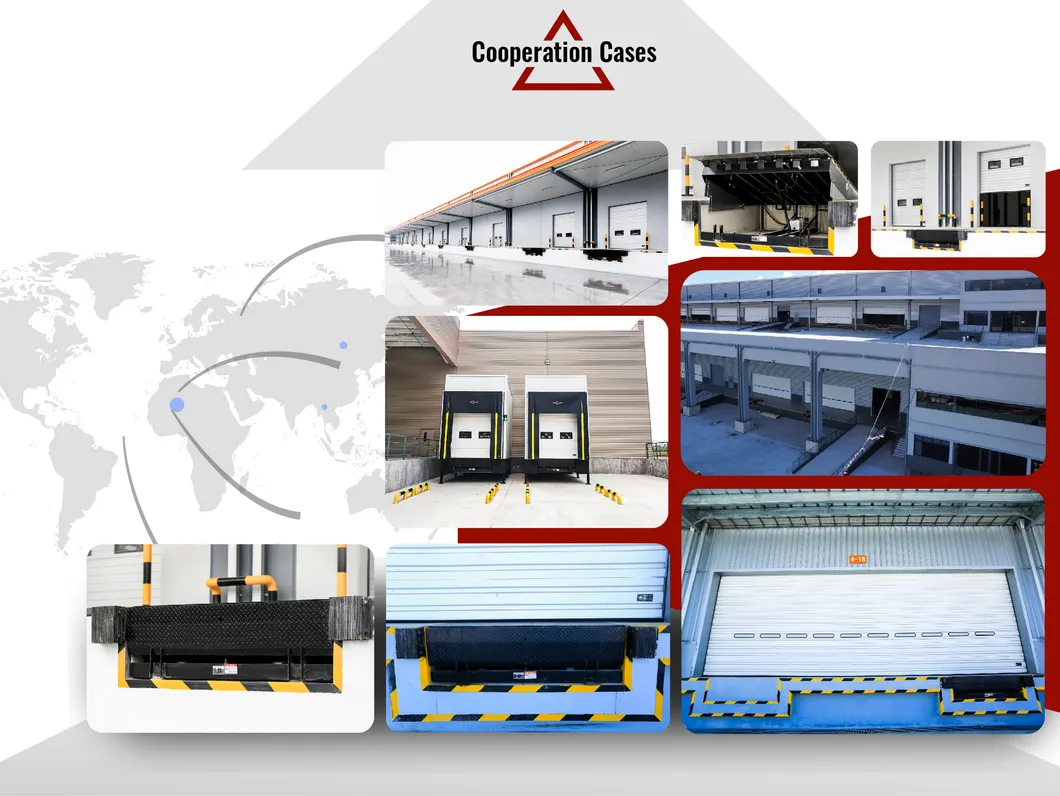

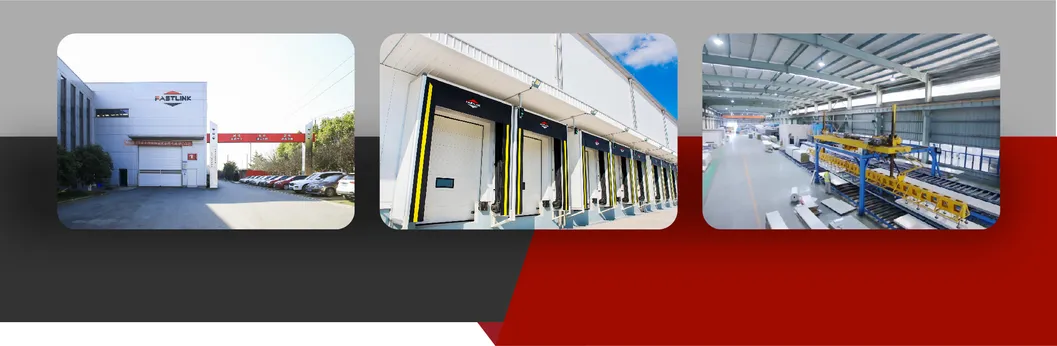

Case Reference
Contact for Selection
Frequently Asked Questions
How do I choose the right length for the Hydraulic Dock Leveler?
The length of the platform depends mainly on the difference between the height of the carriage floor and the height of the loading dock. A general formula is: Platform length L = height difference / 0.125.
What are the standard dimensions for these dock levelers?
While sizes can be customized, a common selection is W2000mm * L2000mm * H600mm. The minimum size starts at W1400mm * L2000mm.
What is the difference between dynamic and static platform loads?
Dynamic load is the maximum weight of the forklift and cargo combined during operation. Static load is the maximum weight the platform can support in a stationary, reset position.
What safety features are integrated into the system?
The system includes penetrating maintenance support rods to protect during service and side foot protectors to prevent injuries during the platform's operation.
Is the control system capable of advanced management?
Yes, the intelligent control system features fault code displays, operation status monitoring, and can be linked with fire systems or interlocking functions for warehouse safety.
What materials are used for the deck and lip plates?
The deck uses high-strength non-slip pattern steel plate (8mm thickness), and the lip plate uses anti-slip tread steel plate (14/15mm thickness) with a double 5-degree arch design.
