| Model NO. | DL013 | Rated Load | Net 8 Tons, Dynamic 6 Tons |
| Driven Type | Hydraulic | Power Form | Electric-Hydraulic |
| Certification | GS, CE, RoHS, ISO 9001 | Equipment Dimensions | 2000mm(W) x 2500mm(L) x 600mm(H) |
| Feature | Explosion-Proof, Insulating | Pit Size | 2030mm(W) x 2500mm(L) x 610mm(H) |

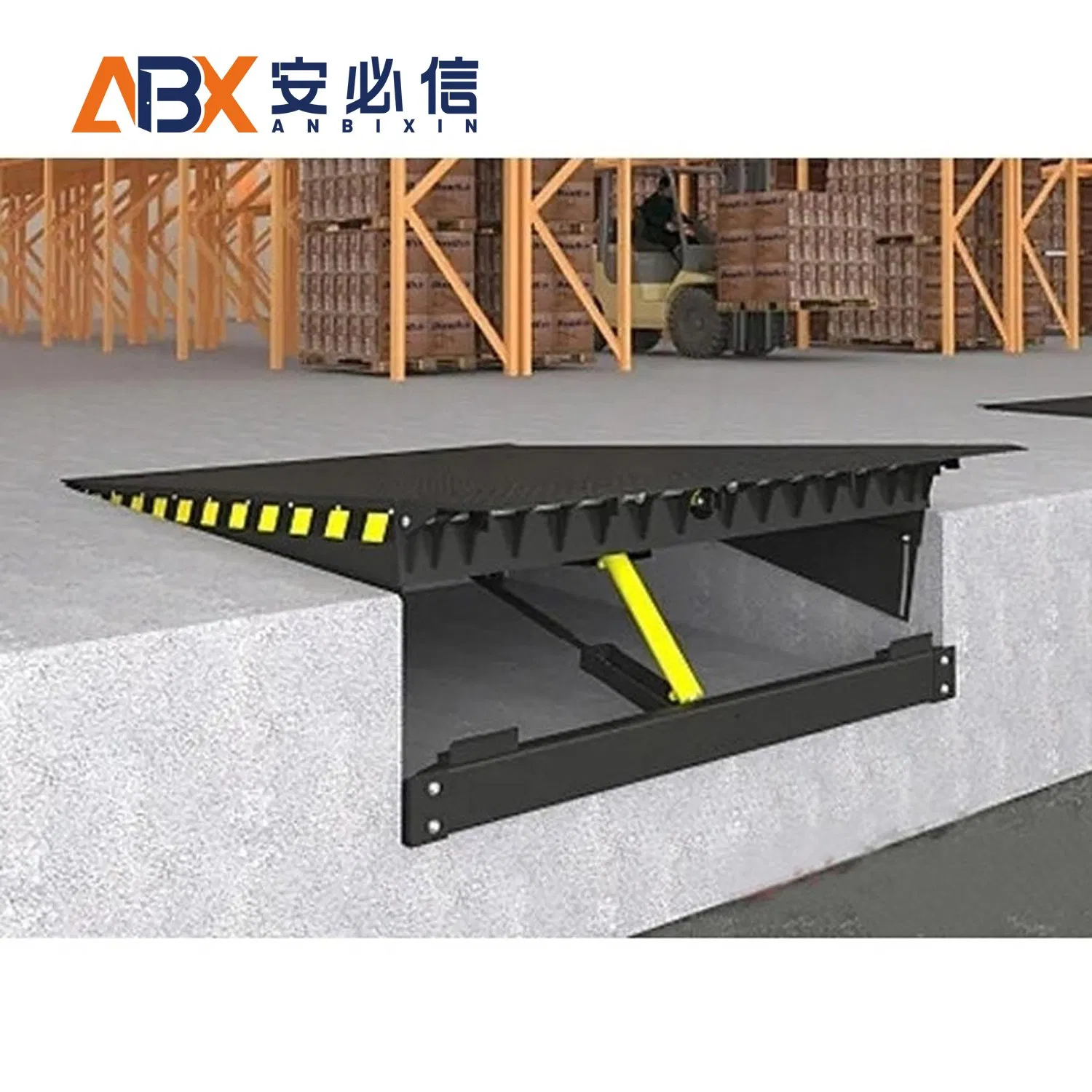

Loading and unloading platforms are suitable for hydraulic, pneumatic, or mechanical installations. It helps users safely and efficiently unload trucks of all heights and sizes.
The main function is to build a bridge between the cargo platform and the transport vehicle, allowing the forklift to travel conveniently for unloading.
It can automatically adjust its height according to different vehicle models and changes in the vehicle compartment during loading. This product is specially designed in terms of dimensions and load-bearing capacity to meet varied industrial needs.
Featuring a high-traction, anti-slip surface and weather-resistant components, ensuring reliable performance in wet, icy, or challenging conditions.
Fully customizable solutions for size, capacity, and control systems tailored to your unique architectural and operational requirements.
Advanced hydraulic systems engineered for low energy consumption without sacrificing power or speed. Ideal for green logistics.
| Parameter Item | Specification Details |
|---|---|
| Adjustment Range | +300 / -300 mm |
| Adjust Time | Up ≤ 16s / Down ≤ 10s |
| Board Thickness | 12mm / 400mm length |
| Console Panel Thickness | 6mm Patterned Board |
| Motherboard Skeleton | L-Shaped Bend |
| Support Bar | Foldable bottom for easy installation and maintenance |
| Side Guard Baffles | Automatically Retractable Safety Guards |
| Hydraulic Oil | 32# Anti-Wear Hydraulic Oil (8MPa +/- 1MPa) |
| Anti-Collision Block | Laminated Belt Stamping (300*200*100) |
| Base Frame | 10# Channel Steel Welded H-Shaped Structure |
| Durability | ≥ 200,000 Operating Cycles |
Designed to bridge gaps between docks and varying truck heights for smooth forklift flow.
Constructed with high-strength, industrial-grade steel to withstand heavy loads and continuous use.
Equipped with full-range toe guards and velocity fuses to protect personnel and equipment.
