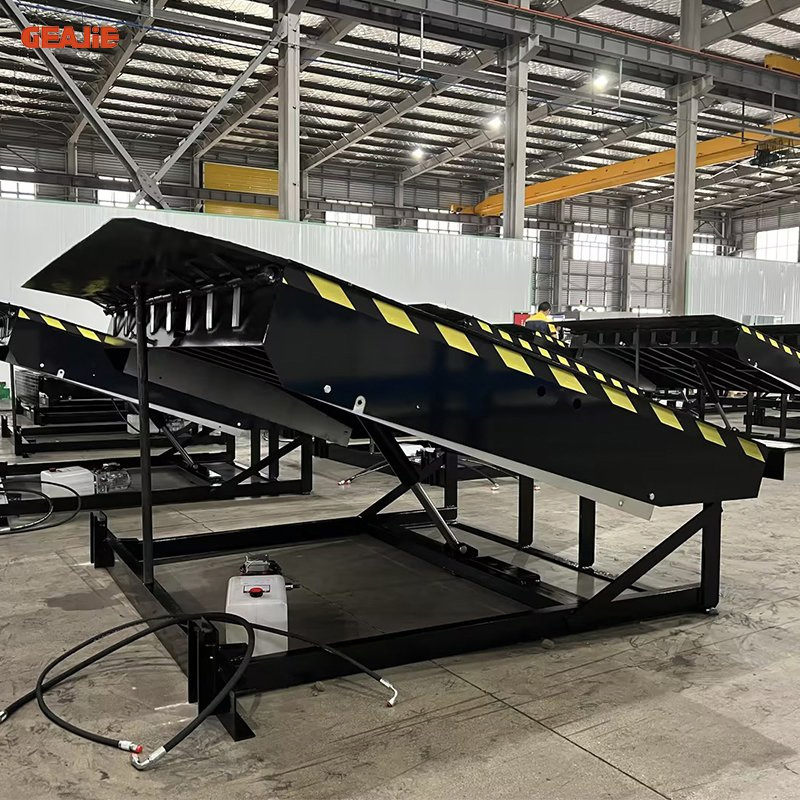

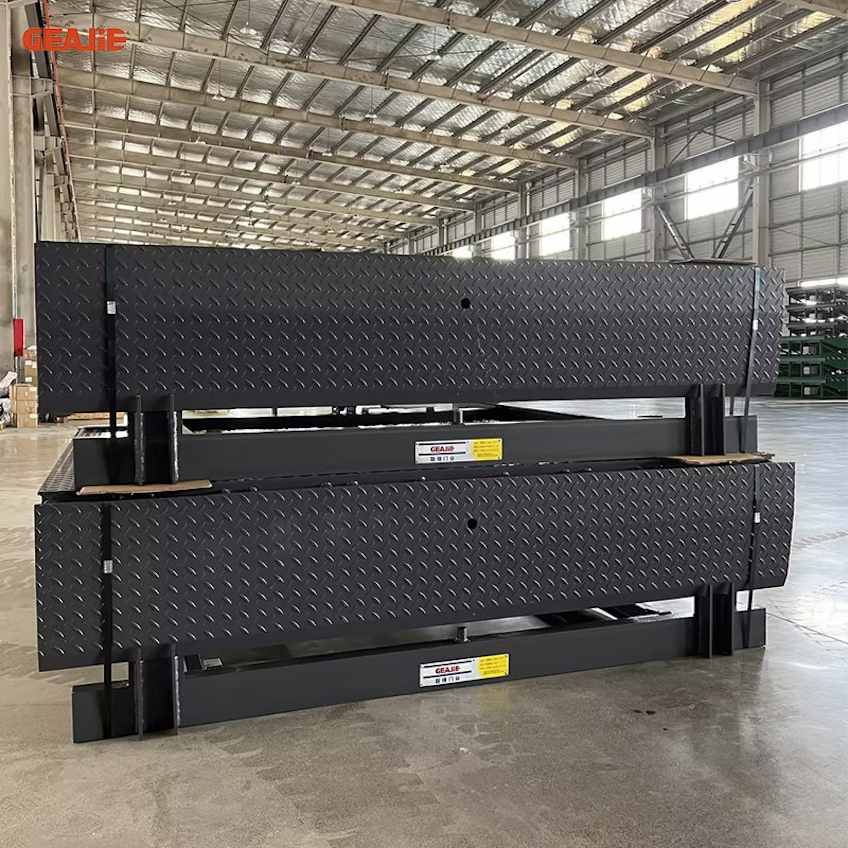

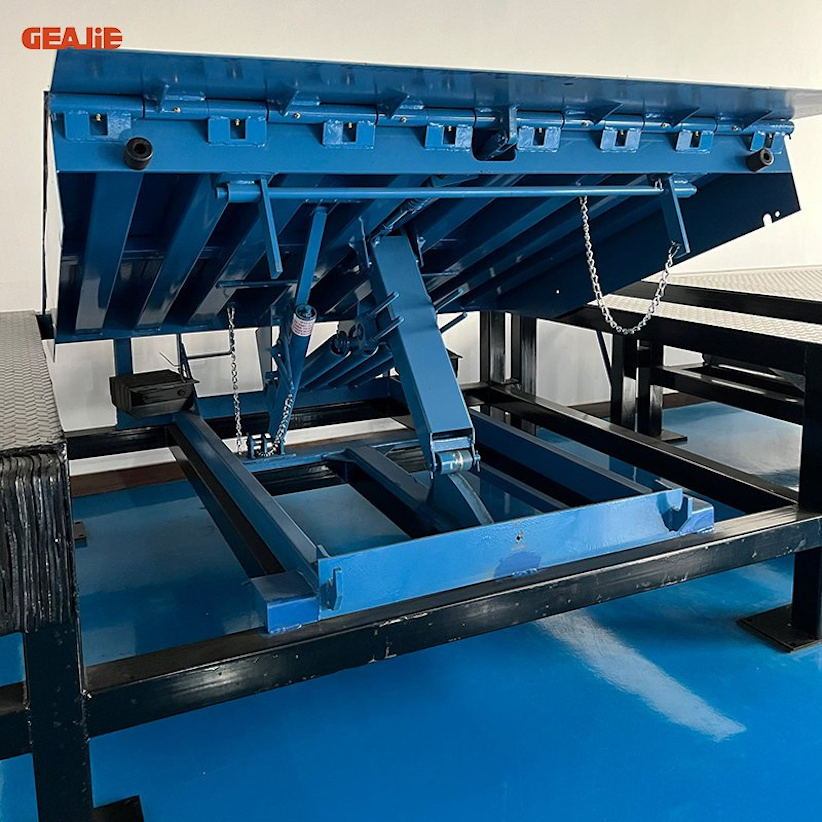

CE Certified Pit Mounted Electric Hydraulic Dock Leveler Container Loading Bay Platform

Customization: Available
After-sales Service: Available
Warranty: 1 Year

Product Description

Basic Information
ApplicationWarehouse Crane, Charge and Discharge
Lift MechanismArticulated Lift
Carrying CapacityWeight Level
MovesStationary
Driven TypeHydraulic
Running ModeStationary
FeatureExplosion-Proof, Insulating
CertificationCE, RoHS, ISO 9001, AAA
TypeWork Platform
Power Supply380V/0.75kw
Hydraulic Power UnitSwiss Bucher Hydraulic System
Loading Capacity10000kg
UsageQuick and Safe Loading and Unloading
OriginChina
Product Description
Pit Mounted Electric Hydraulic Dock Leveler

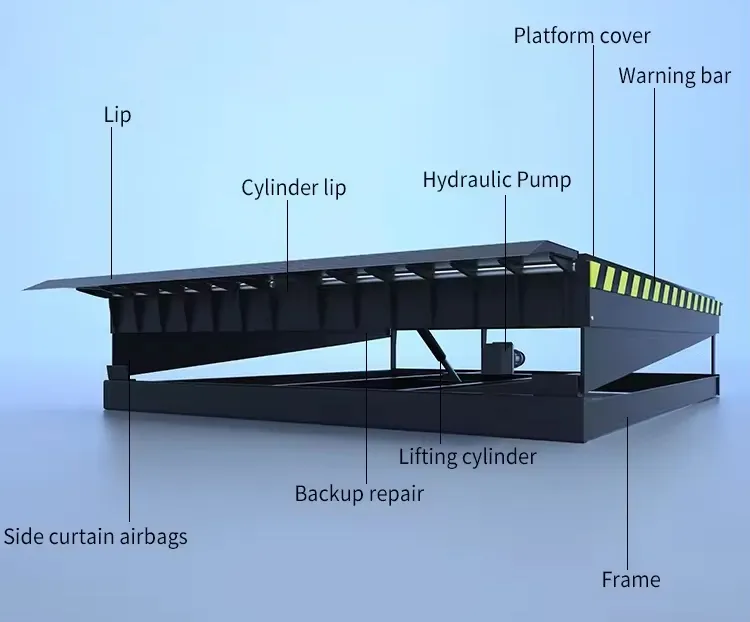

Electric Hydraulic Dock Leveller

Electric Hydraulic Dock Leveller
Product Display

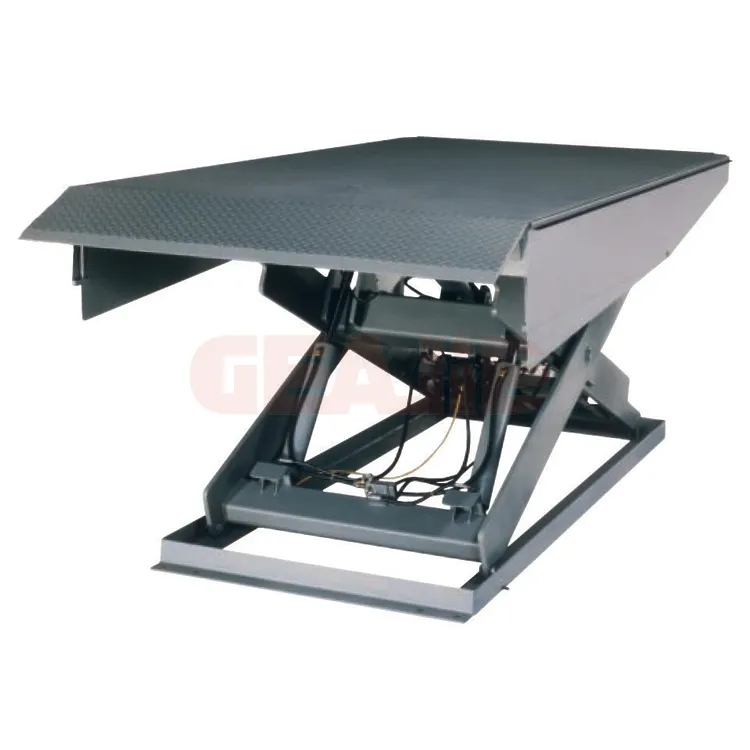

Product Show 1

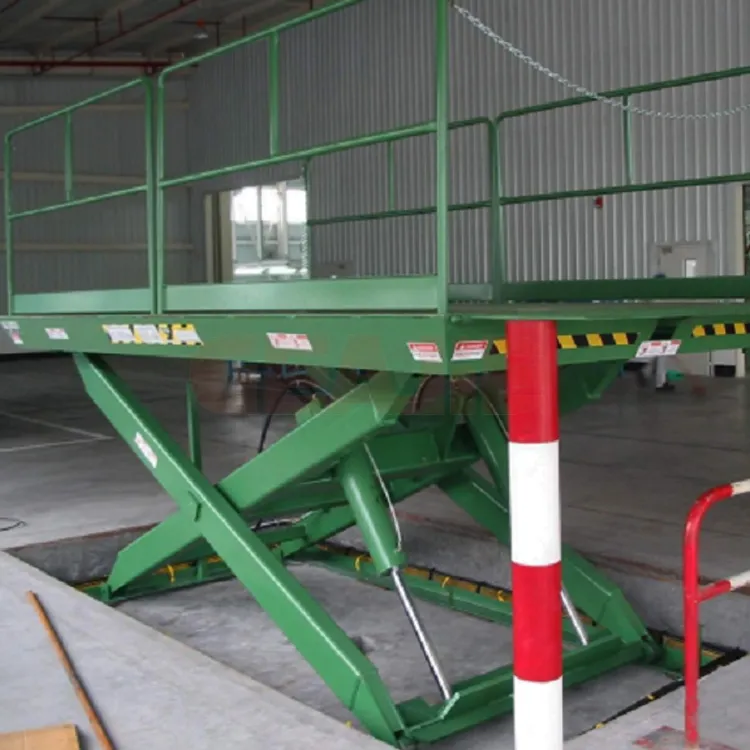

Product Show 2

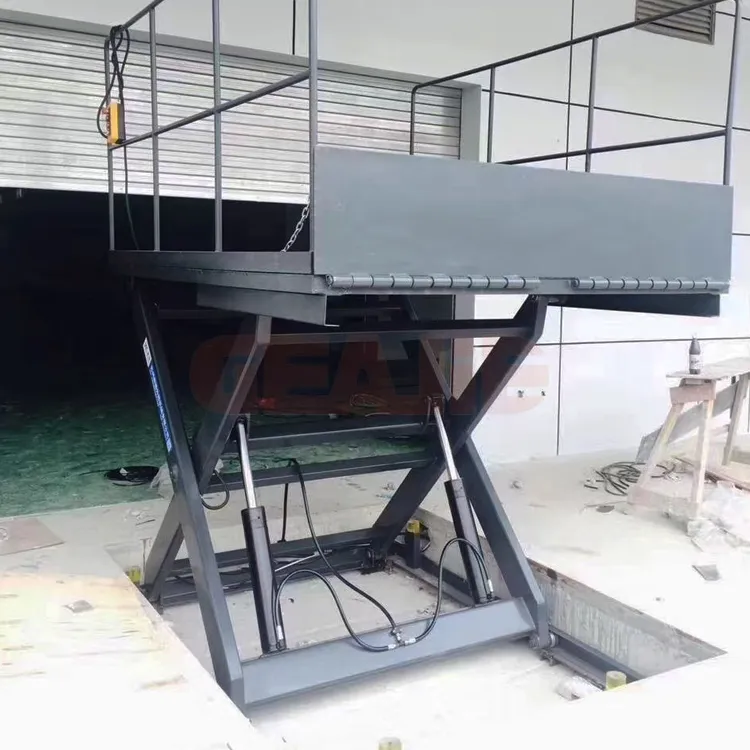

Product Show 3
Technical Parameters
Parameters
Material Description
Application EnvironmentLow temperature environment with high sealing requirements
Load Capacity6-10 tons
Width Options1830mm, 2000mm
Length Options1500mm, 1800mm, 2000mm
Lip Plate500mm
Countertop Structure8mm high-strength anti-skid pattern steel plate with bottom reinforcement
Lip Thickness14mm - 16mm high-strength anti-slip pattern steel
Security ConfigurationAnti-fall function

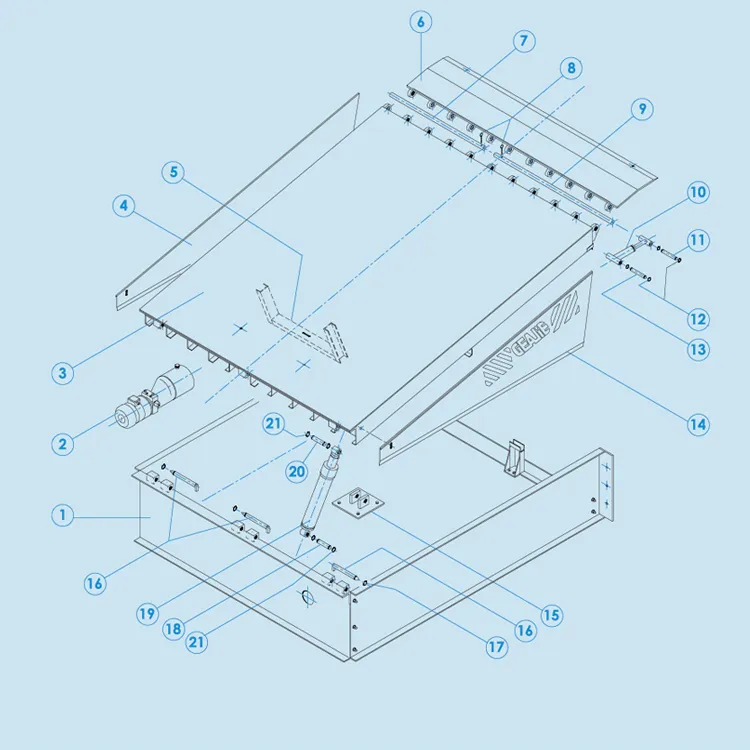

Structural Drawing
Structural Drawing
1. Mould
12. Seeger straight pins of the lip
2. Hydraulic control unit
13. Straight Pin body of the body
3. Upper plate
14. Right foot guard
4. Left foot guard
15. Flange fixing - upper plate cylinder
6. Swinging lip
19. Upper plate cylinder

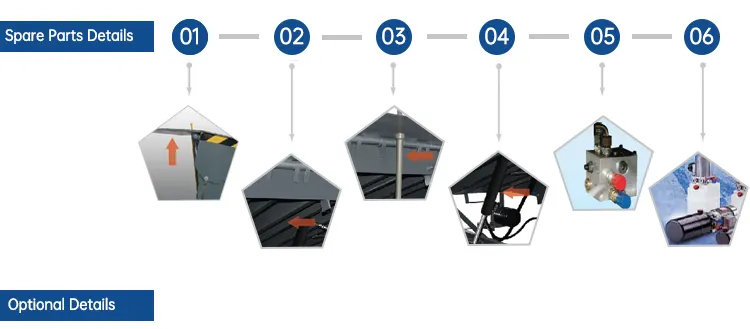

Specifications
Product Advantages
Material: Made of durable steel with corrosion resistance treatment to ensure high load-bearing capacity.
Operating Method: Automated control systems with buttons or switches for efficient lifting and lowering.
Safety Features: Equipped with anti-slip surfaces, safety barriers, and anti-fall sensors.
Adjustability: Height features designed to accommodate various truck and dock heights.
Components: Utilizes high-quality Swiss Bucher Hydraulic Systems for reliability.
Dock Leveler Advantages

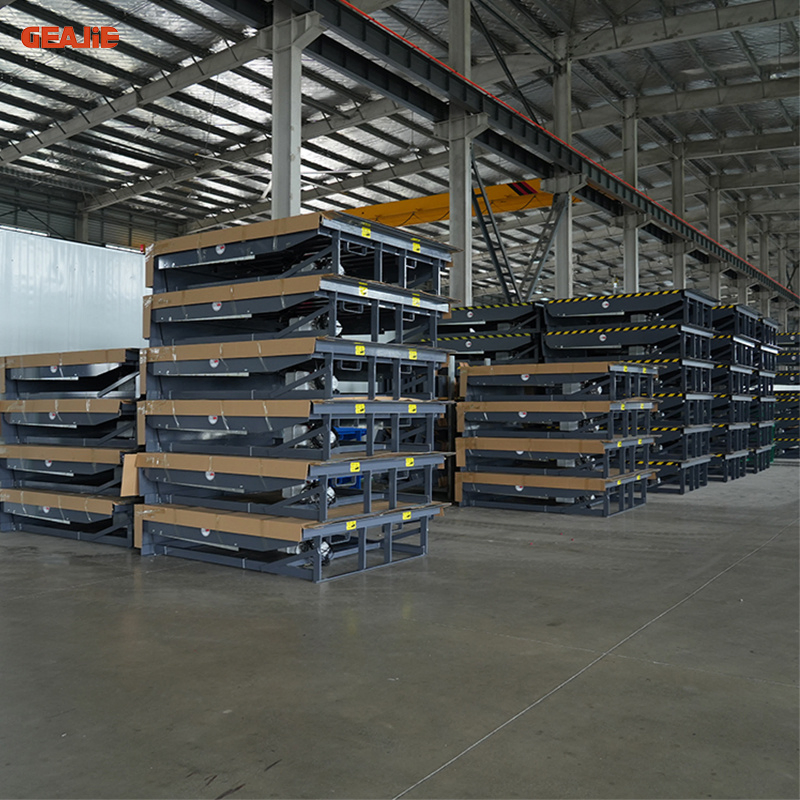

Manufacturing & Quality Control
Factory Image 1

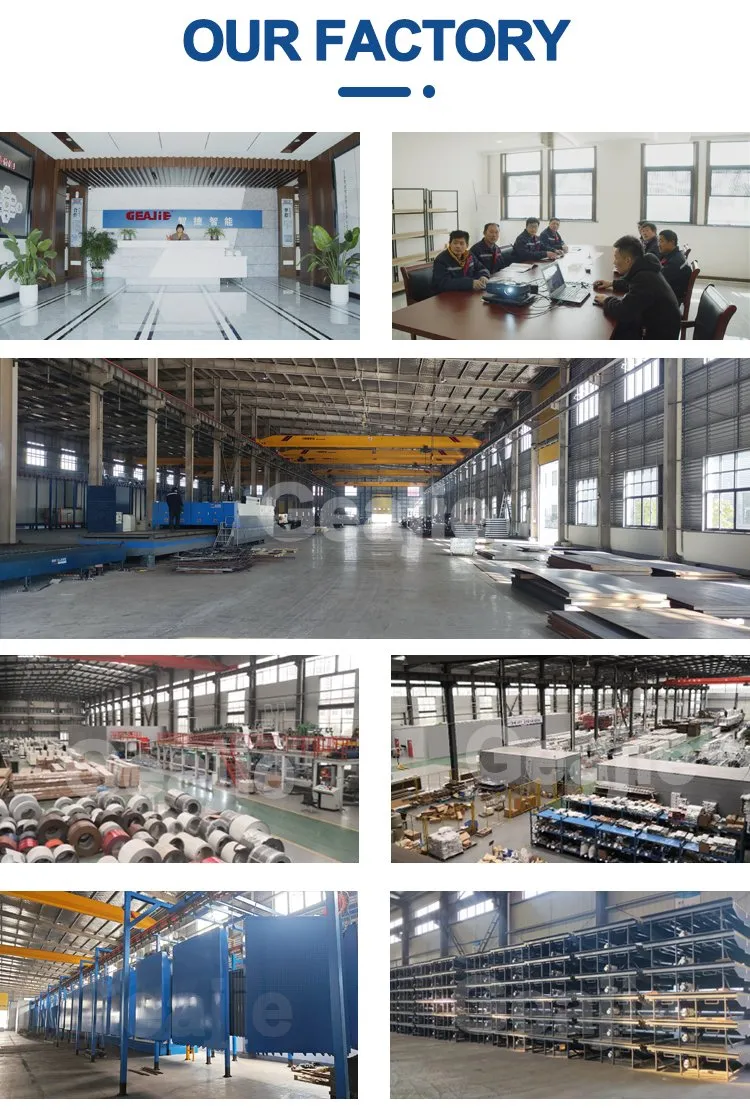

Factory Image 2

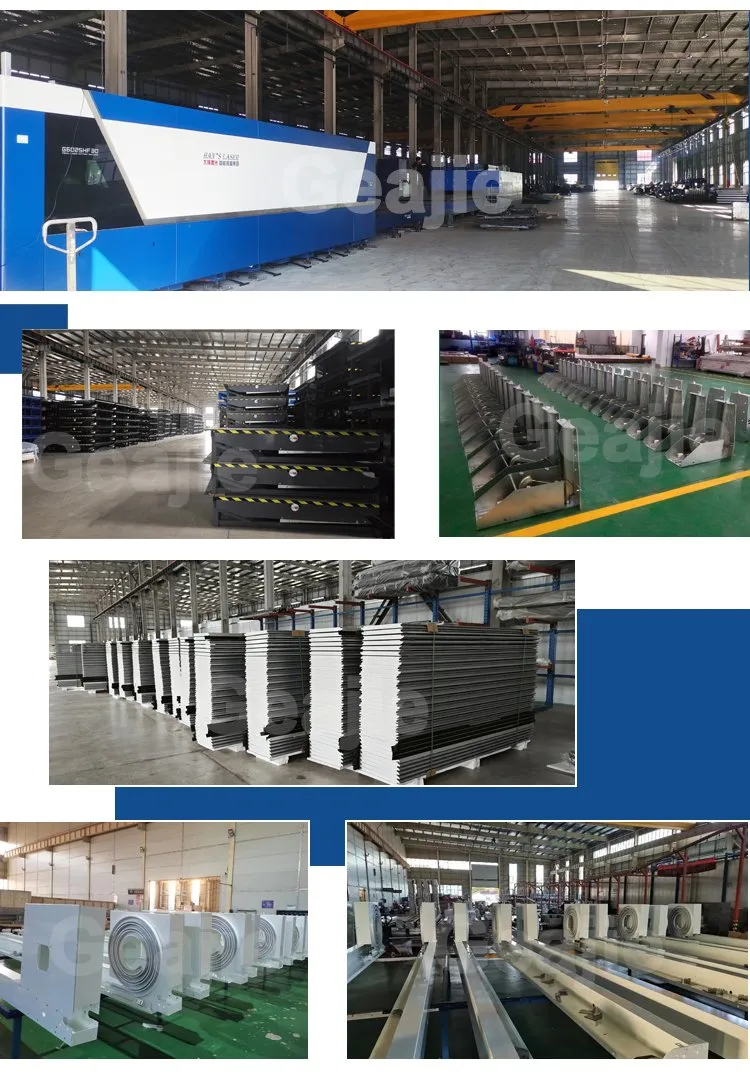

Factory Image 3
Factory Image 4
Frequently Asked Questions
What is the Minimum Order Quantity (MOQ)?
The MOQ for our hydraulic dock leveler is 1 set.
What are the maximum dimensions available for the platform?
The maximum length can reach 6.5 meters and the maximum width is 6 meters, both are adjustable based on your requirements.
Where are these dock levelers typically used?
They are ideal for factory outlets, logistics park outgoing ports, and warehouse loading bays to improve cargo handling efficiency.
Is the installation process difficult?
No, our products are designed for easy installation. We provide structural drawings and guidance for a smooth setup.
What safety configurations are included?
Safety is our priority. Our levelers include anti-fall functions, anti-slip pattern steel plates, and optional foot guards and safety sensors.
Can the color and load capacity be customized?
Yes, we offer non-standard load capacities, sizes, and colors (Black, Gray, Blue, Green, etc.) to match your specific needs.
