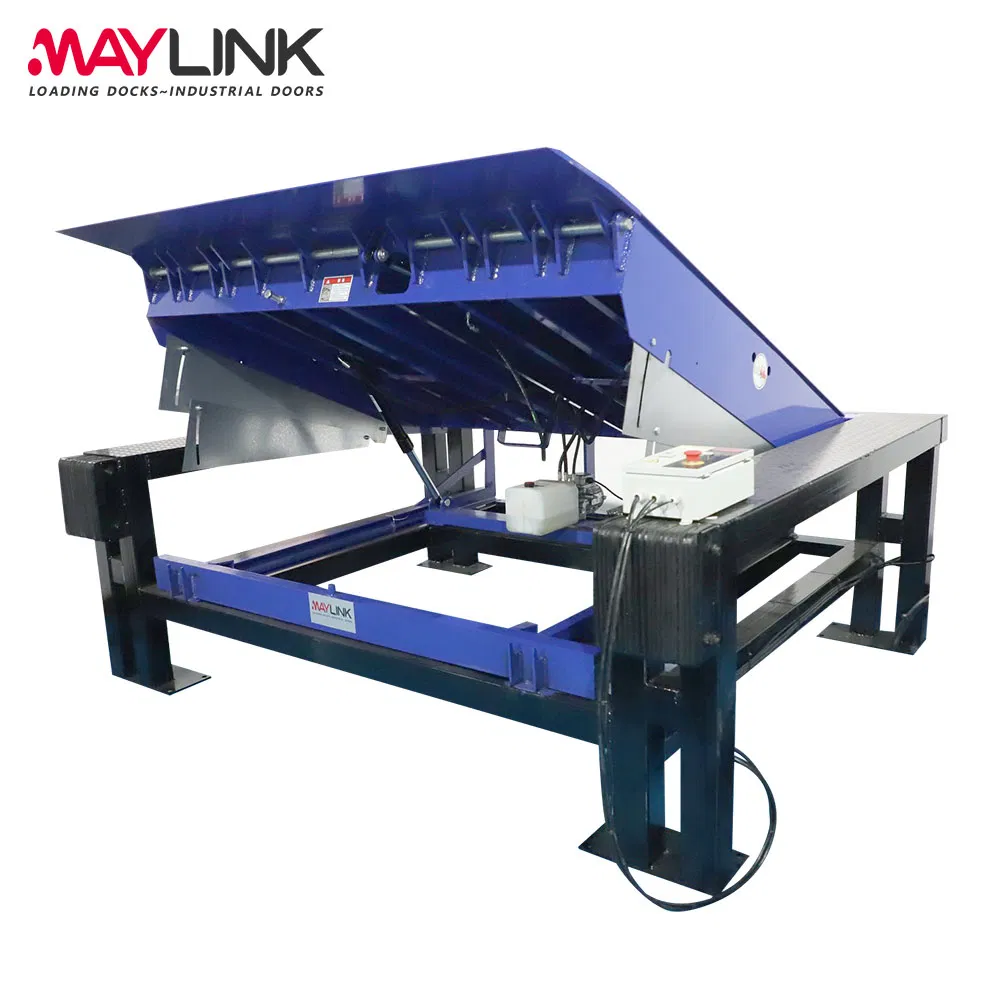

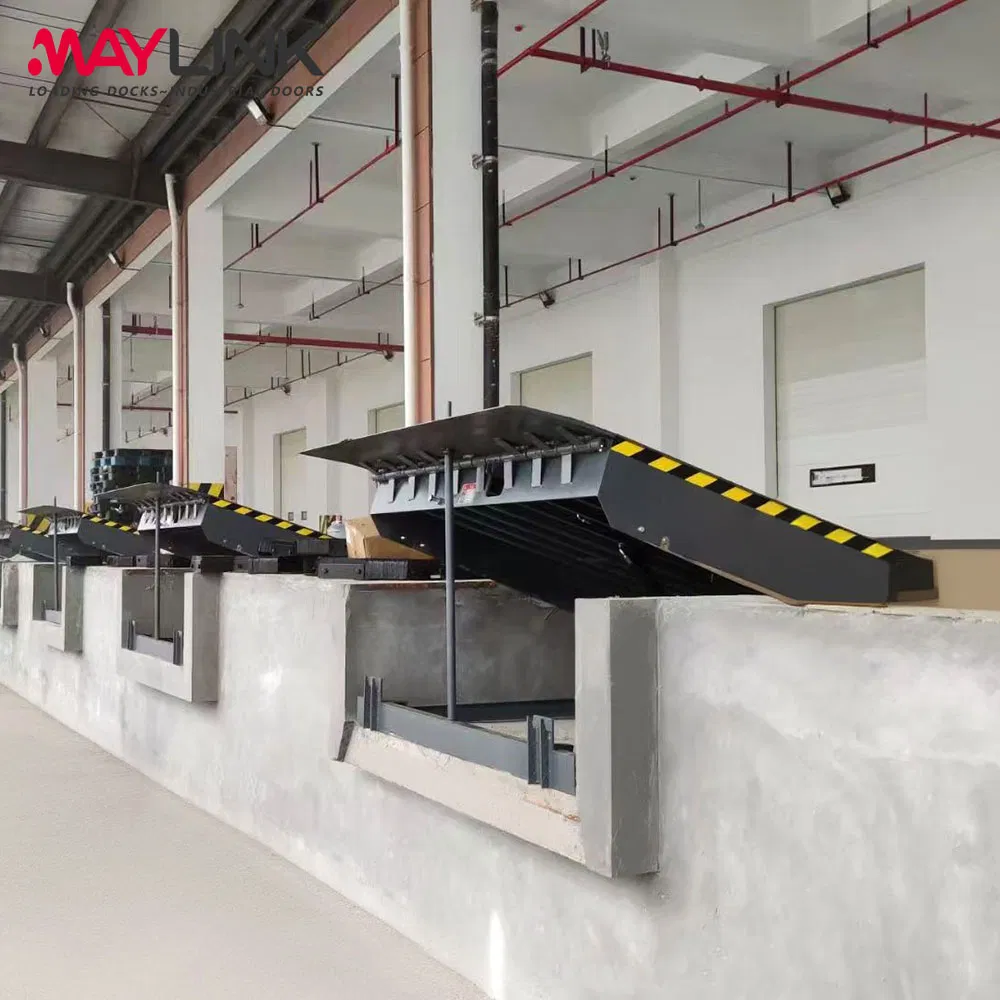

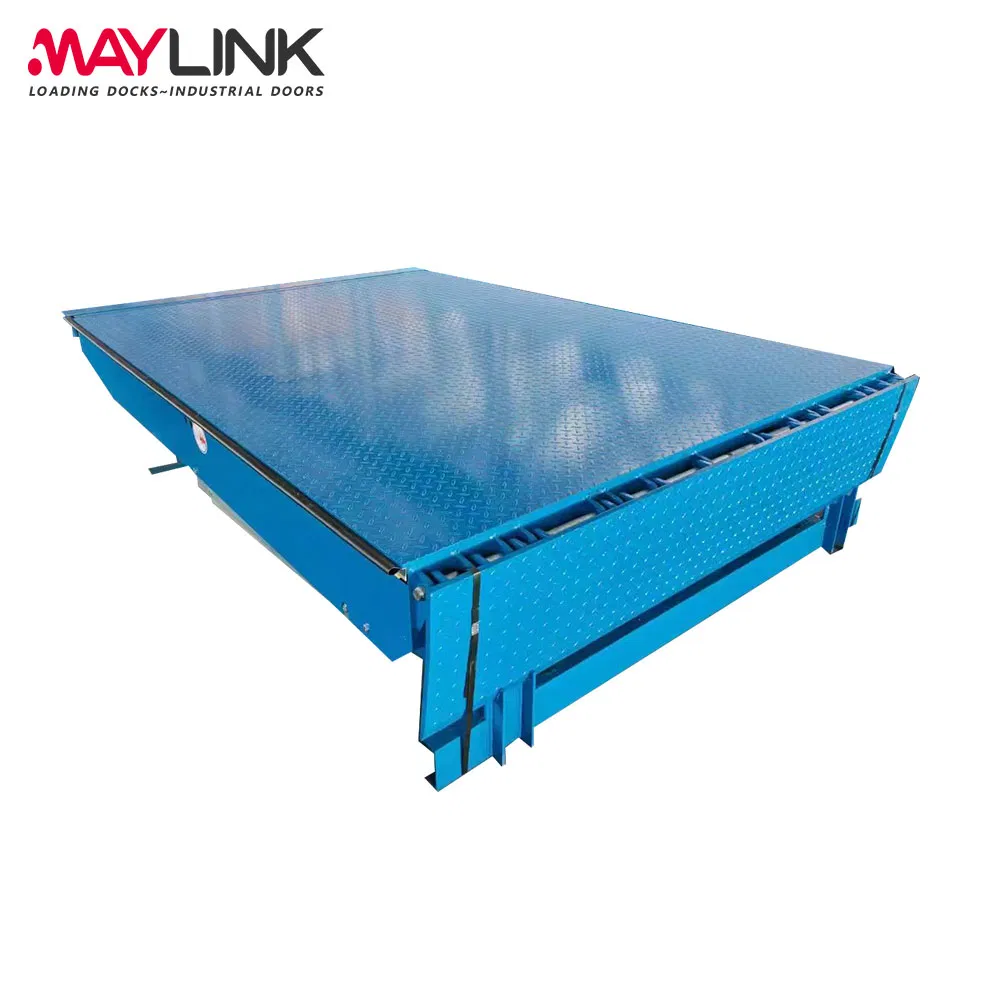

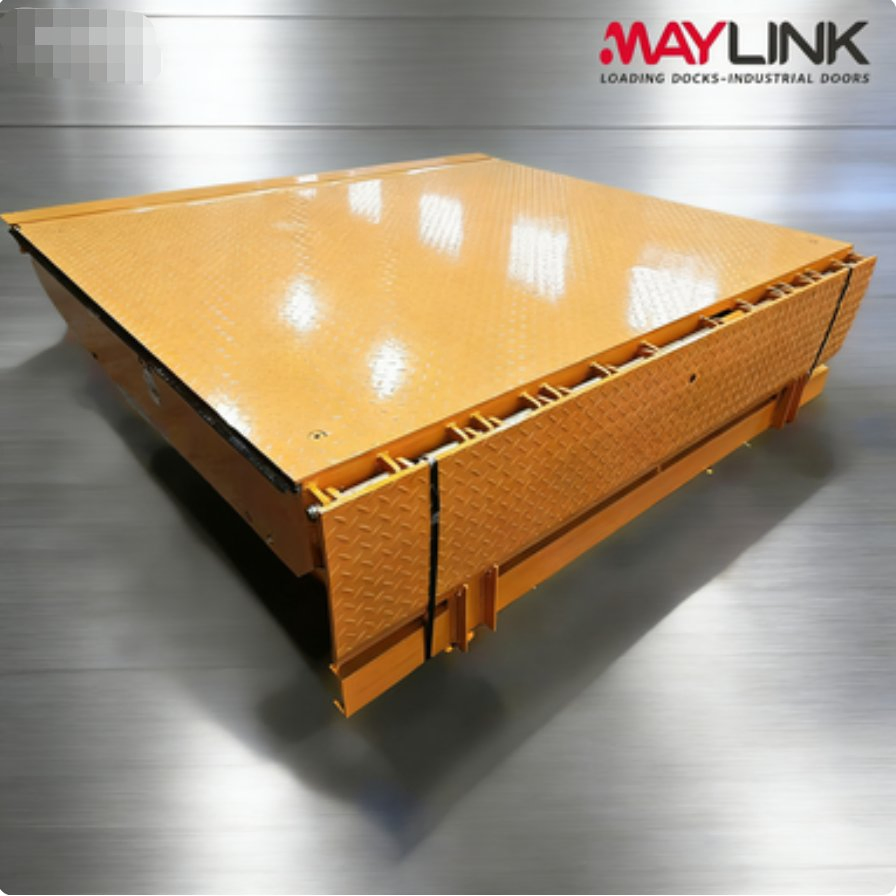

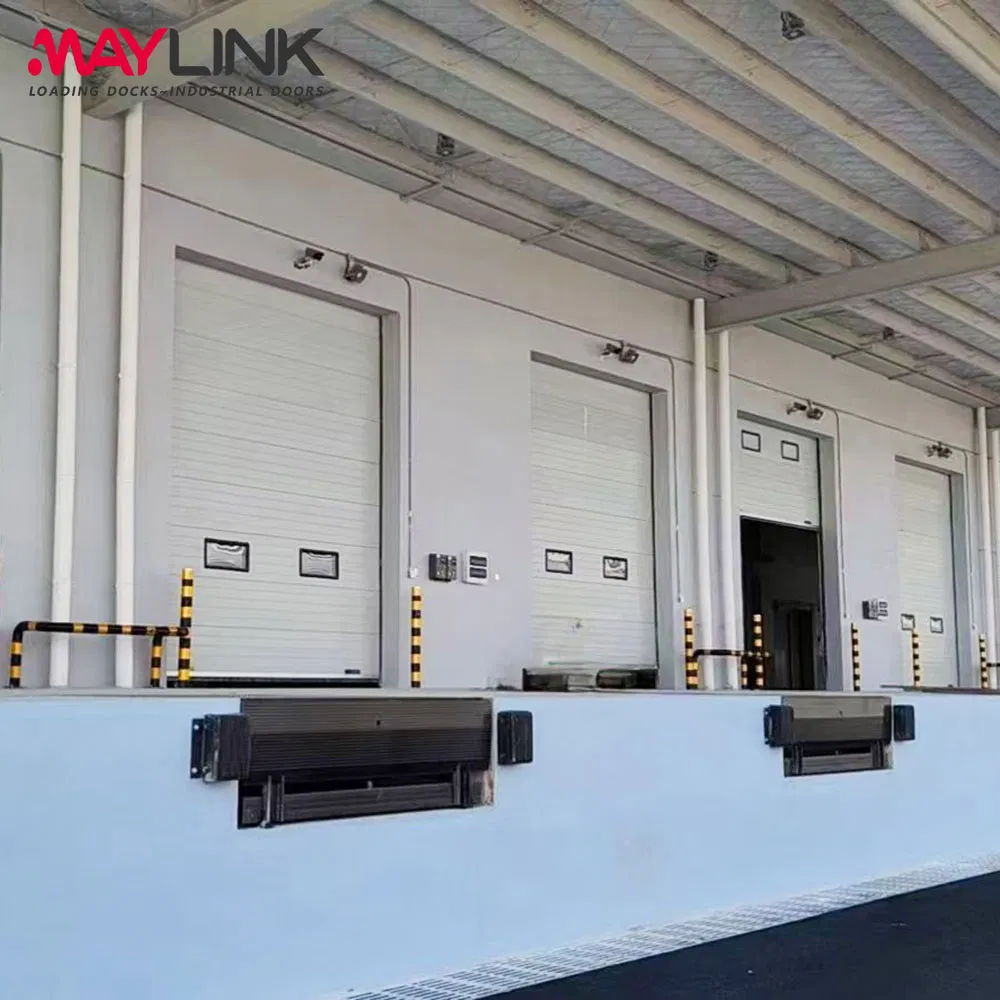

Maylink Pit-Mounted Permanent Installation High Bearing Capacity Full Hydraulic System Loading Dock Leveler

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
MLK-HDL-A114
Application
Warehouse Crane
Lift Mechanism
Warehousing Docking
Carrying Capacity
Middle-Level
Driven Type
Hydraulic

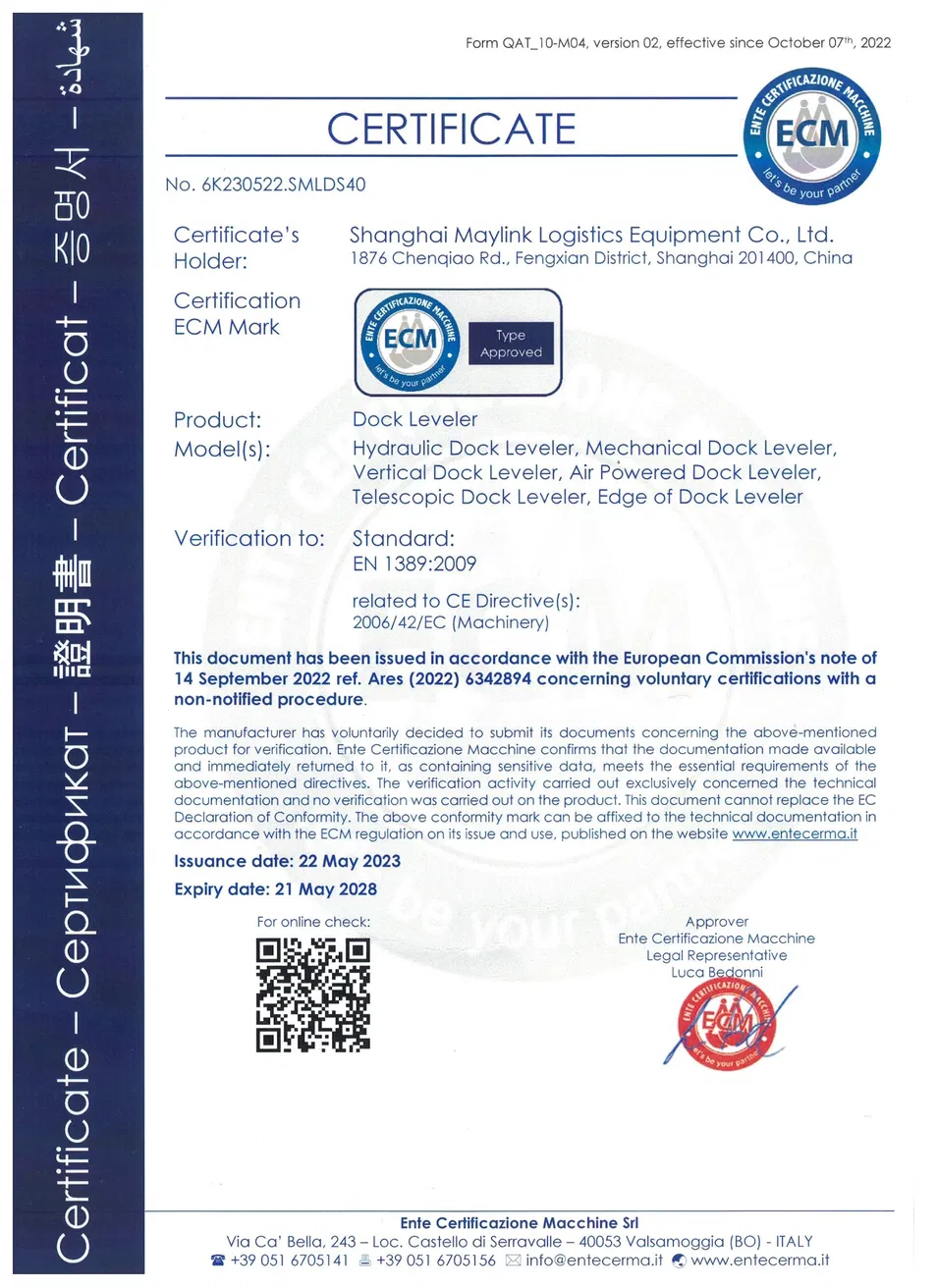

Certification
GS, CE, RoHS, ISO 9001
Size
W2000*L2000*H600mm (Customizable)
Power
3 Phase/380V/50Hz, 0.75/1.1/1.5kw
Load Capacity
Dynamic 8T, Static 16T
Adjust Range
+350mm, -300mm
IP Grade
IP55
HS Code
8428909090
Product Description

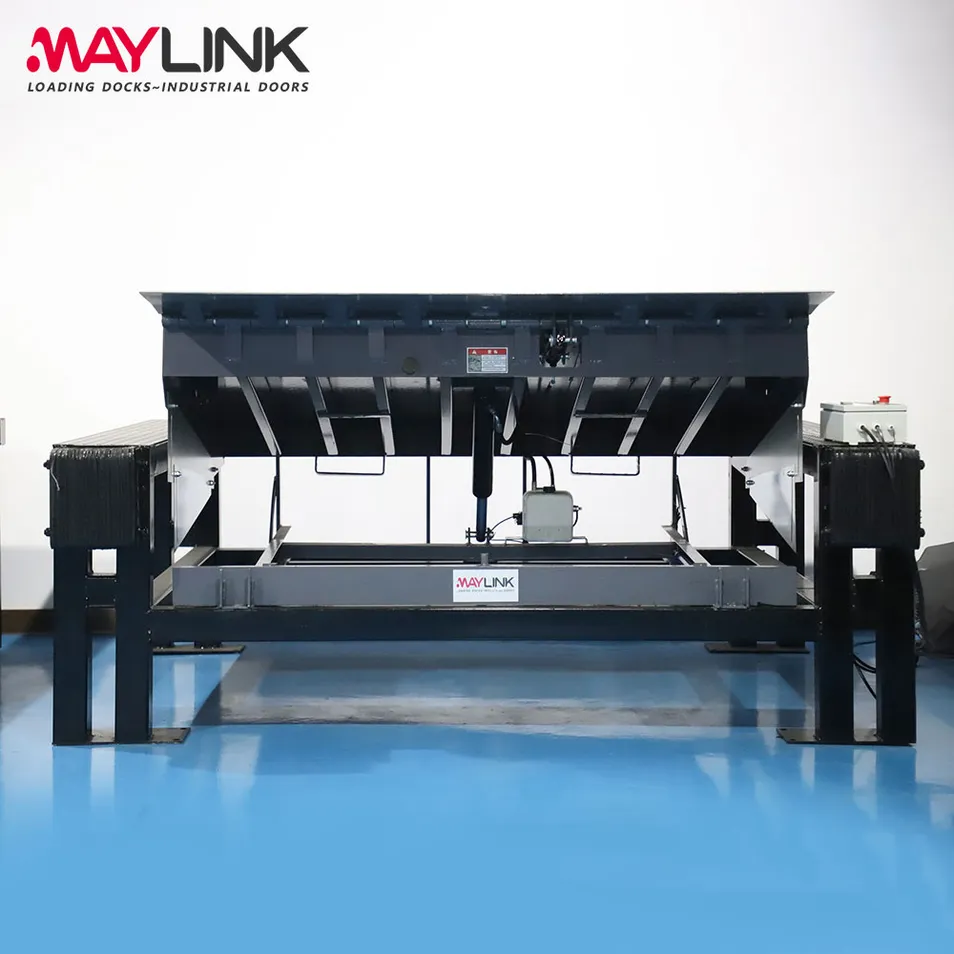

The hydraulic loading dock leveler is designed to bridge height differences between loading docks and truck carriages of varying heights. With the press of a button, the dock plate automatically rises and the lip extends to create a smooth, adjustable slope for forklift access, greatly improving loading and unloading efficiency.

Dock Leveler Video Cover

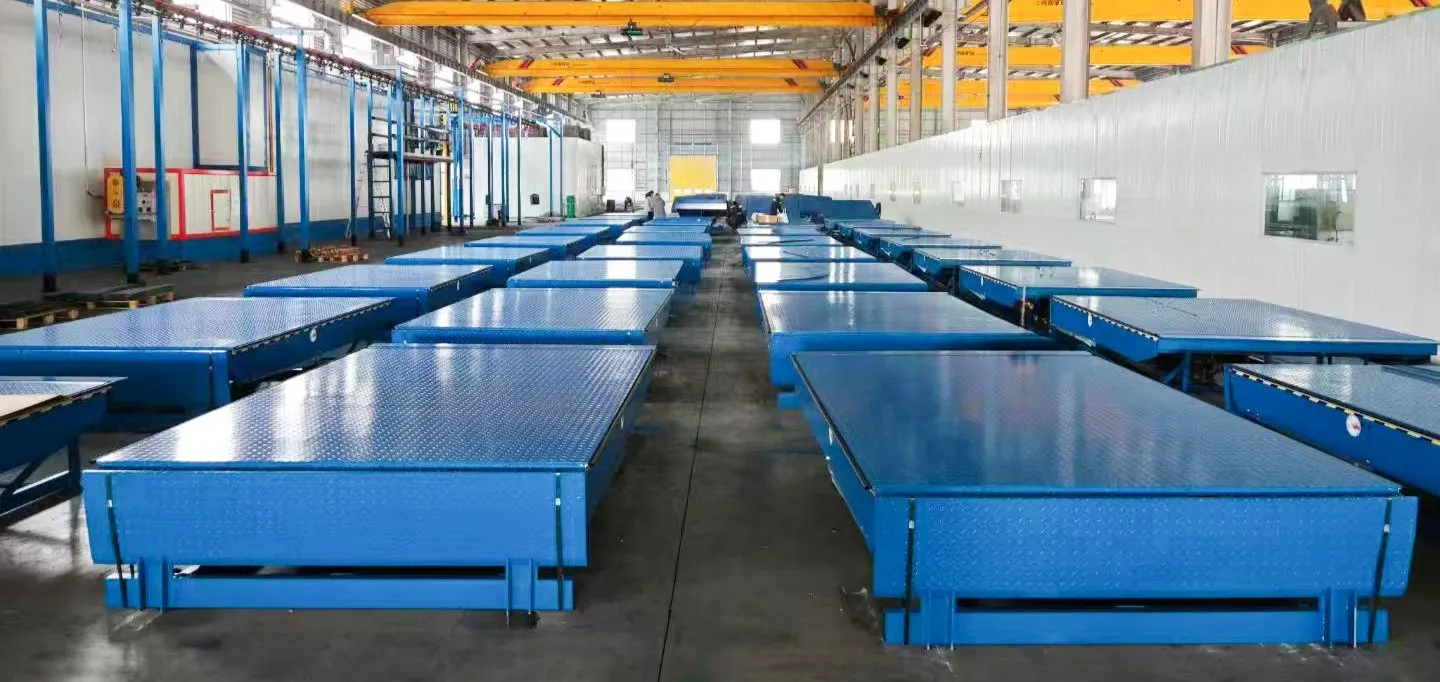

Configuration Chart
SizeW2000×L2000×H500/600mm (Customized available)
Load CapacityDynamic 6.8T - 10T, Static 13.6T - 20T
Dock Plate8mm thick Non-spliced Non-slip pattern steel
Tongue Plate16mm thick Non-slip pattern steel
Hydraulic SystemArgo-Hytos/Bucher Solenoid valve included
Hydraulic OilAviation hydraulic oil (limit -25℃)
Warranty3 years

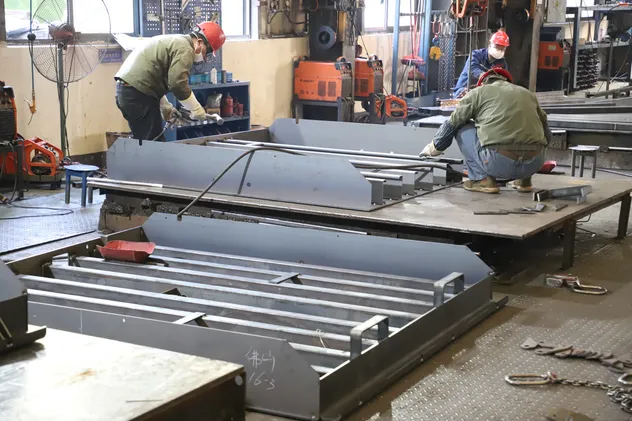

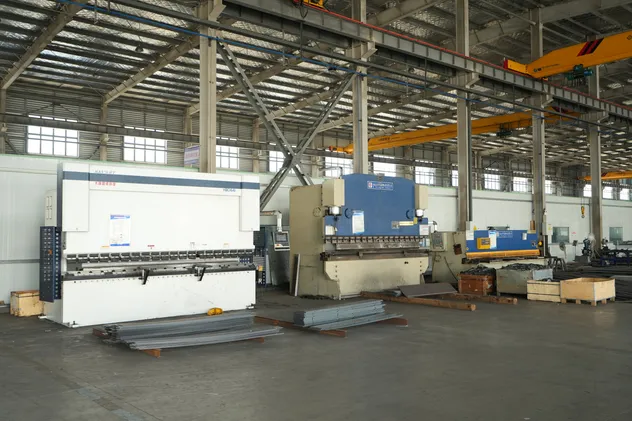

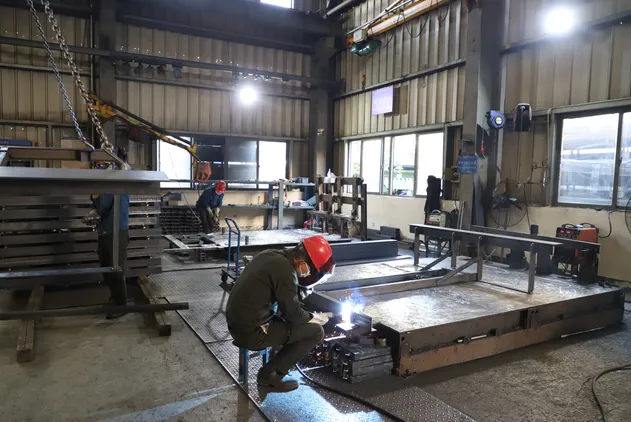

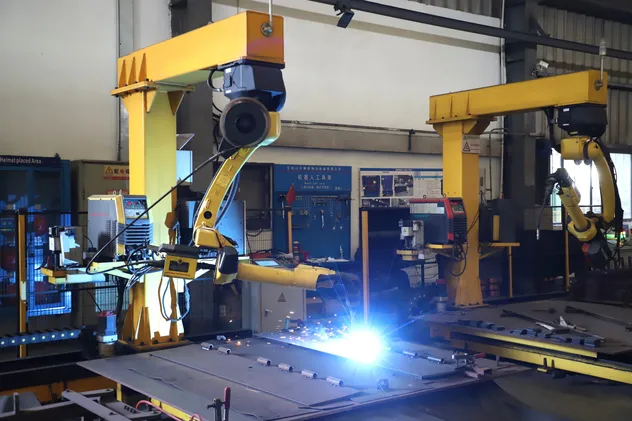

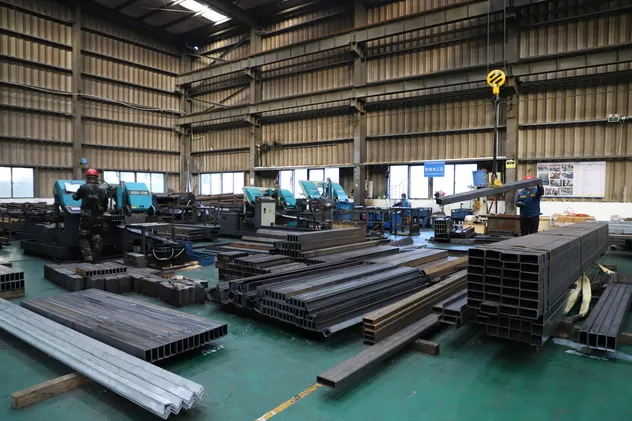

Production Process

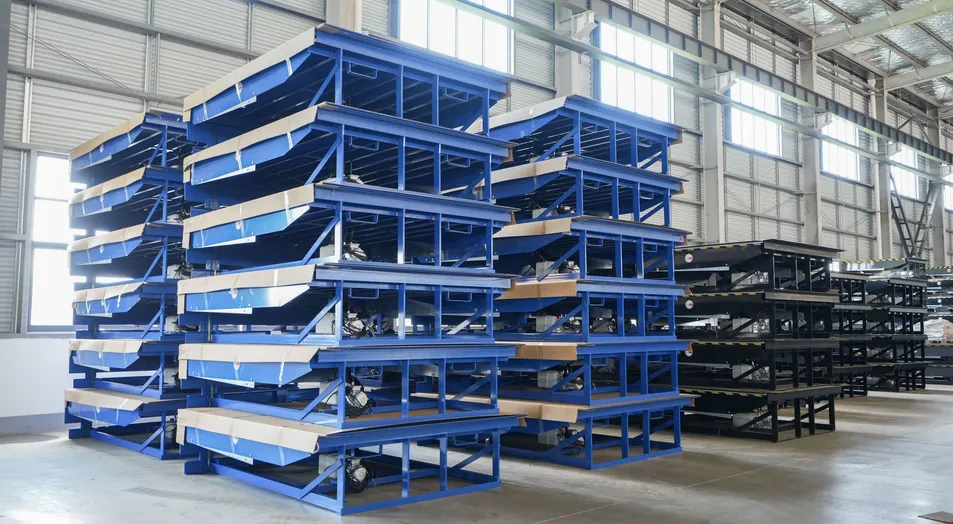

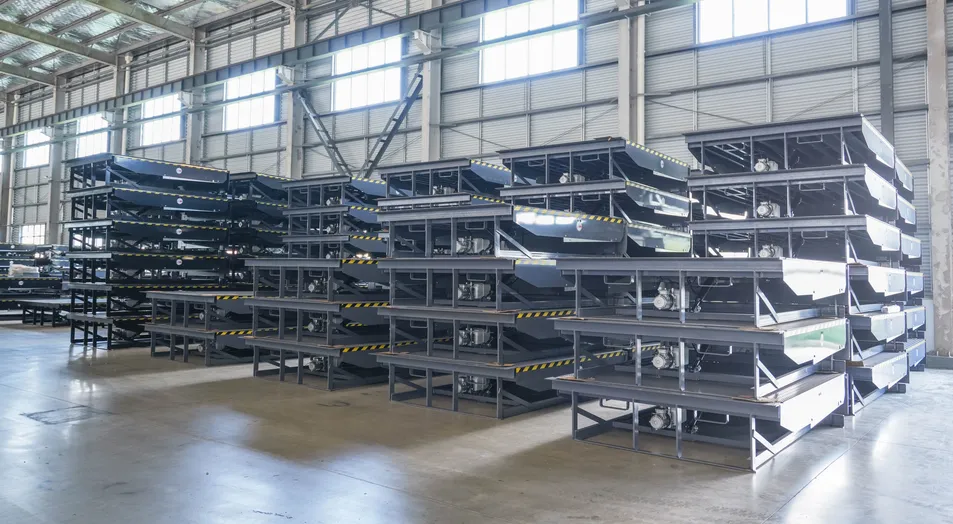

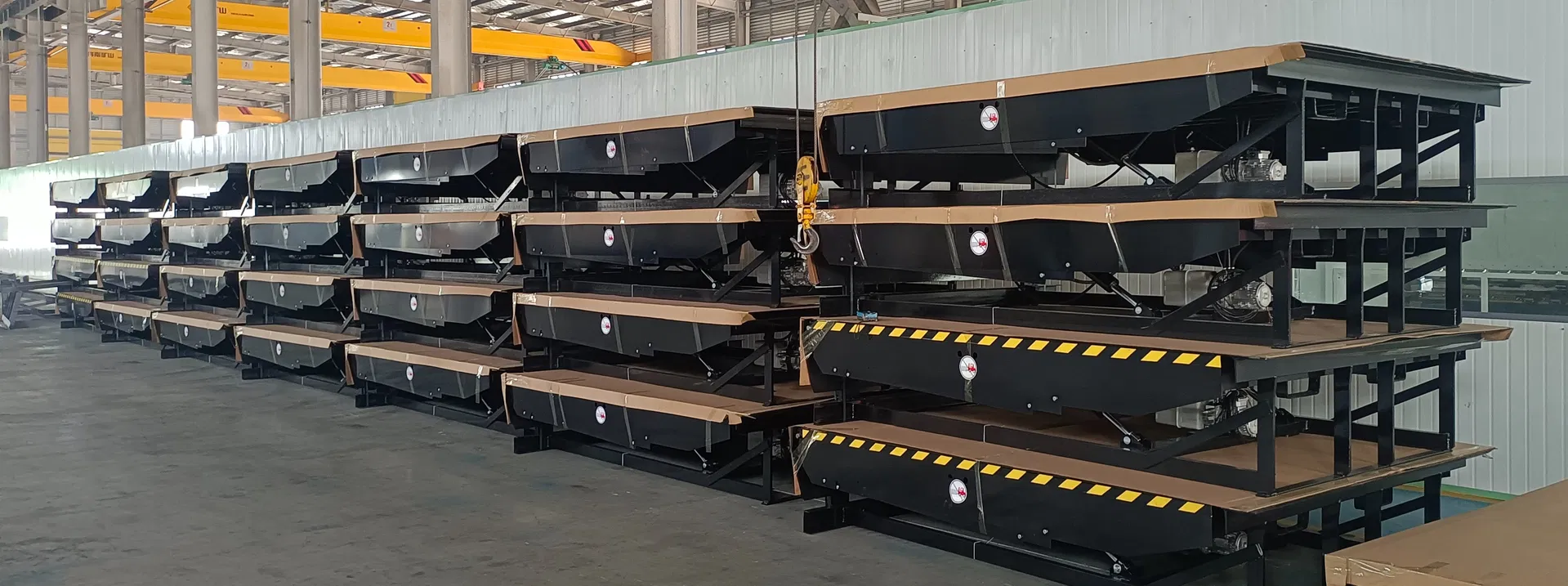

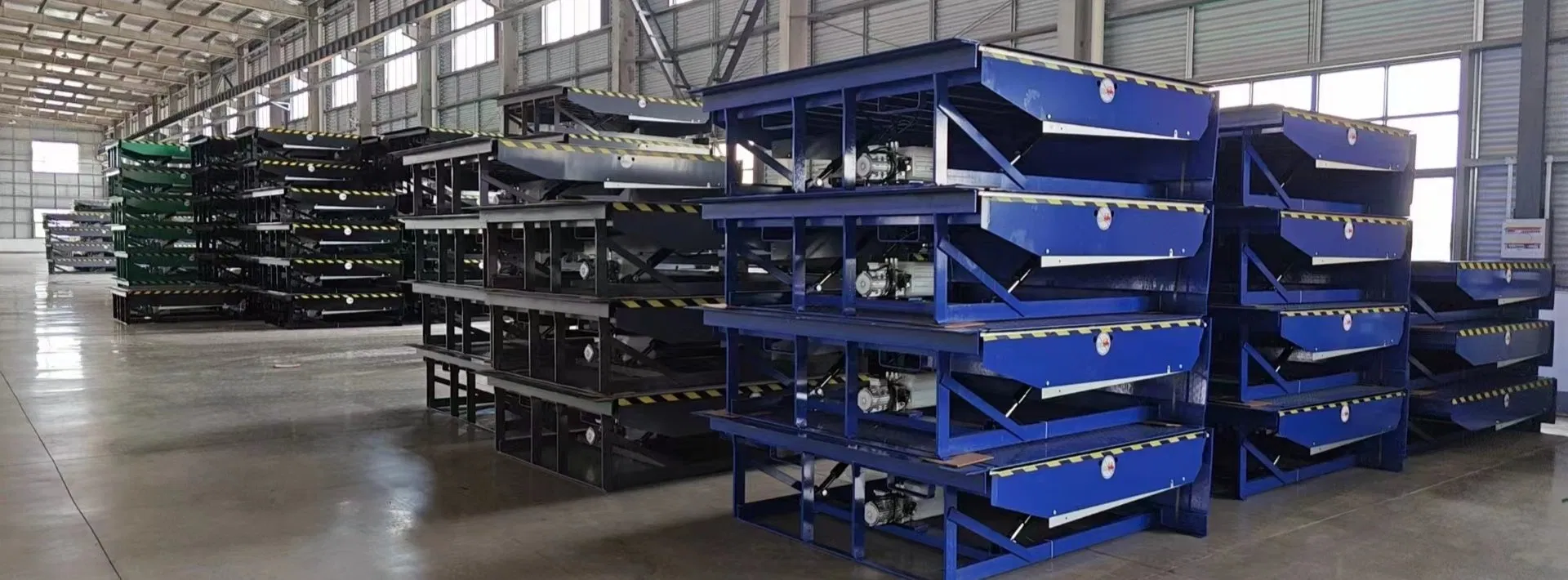

Packing & Delivery

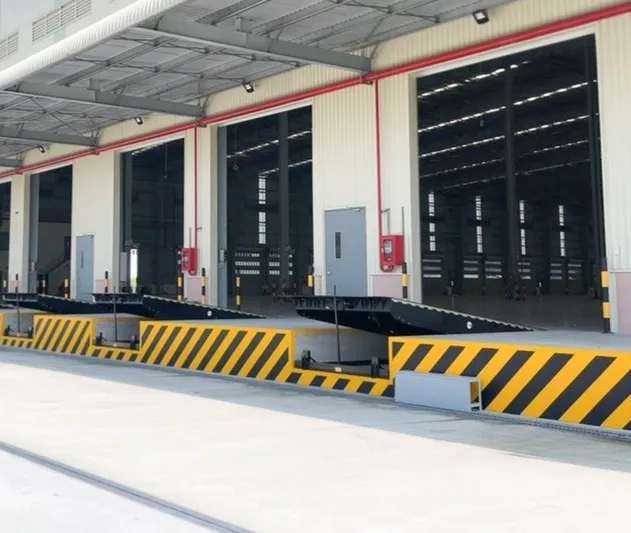

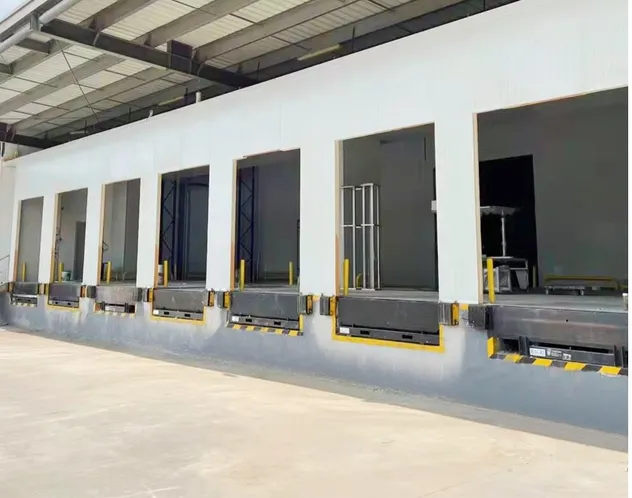

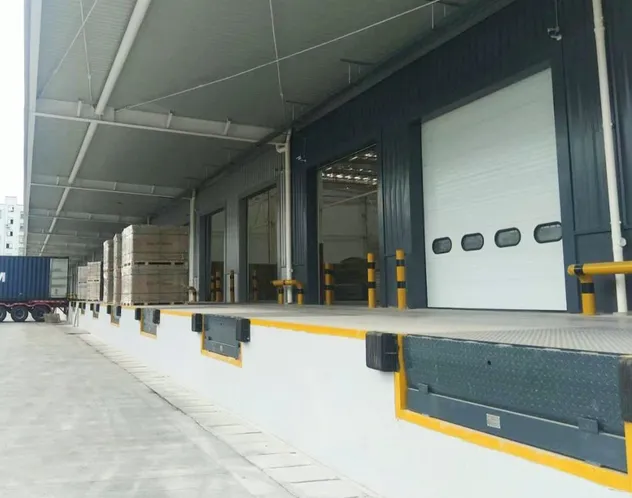

Product Cases

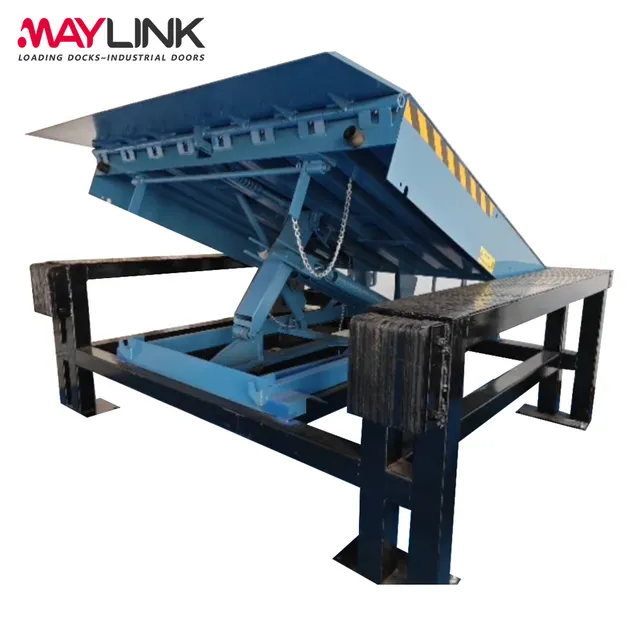

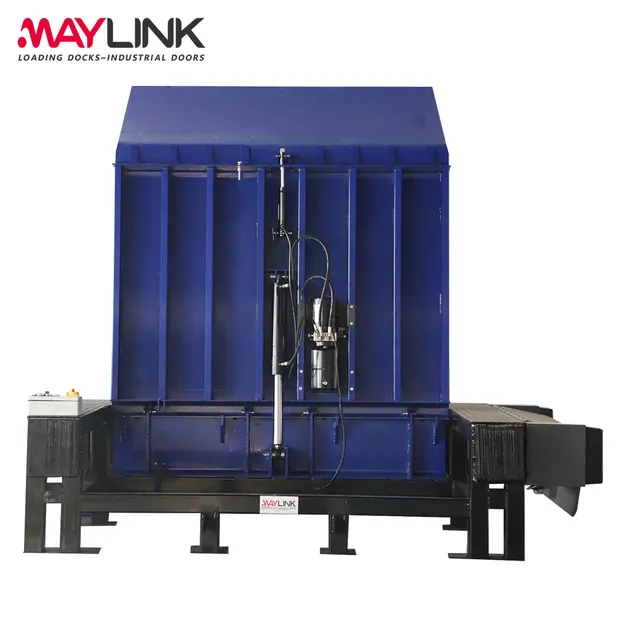

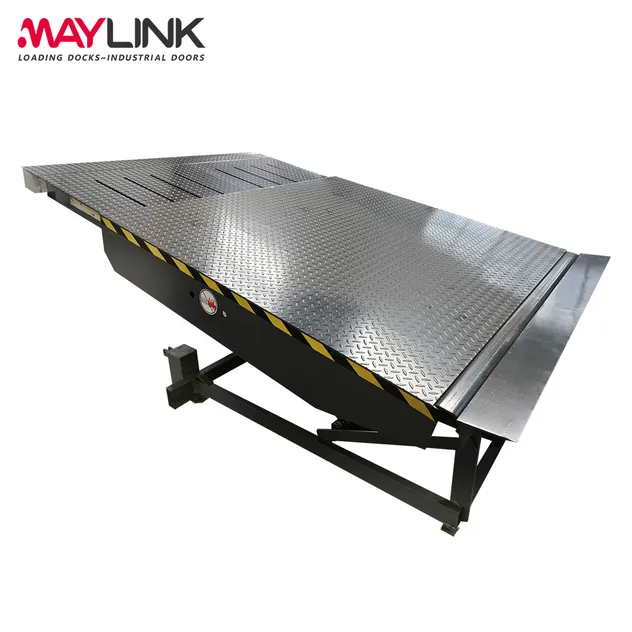

Other Related Solutions

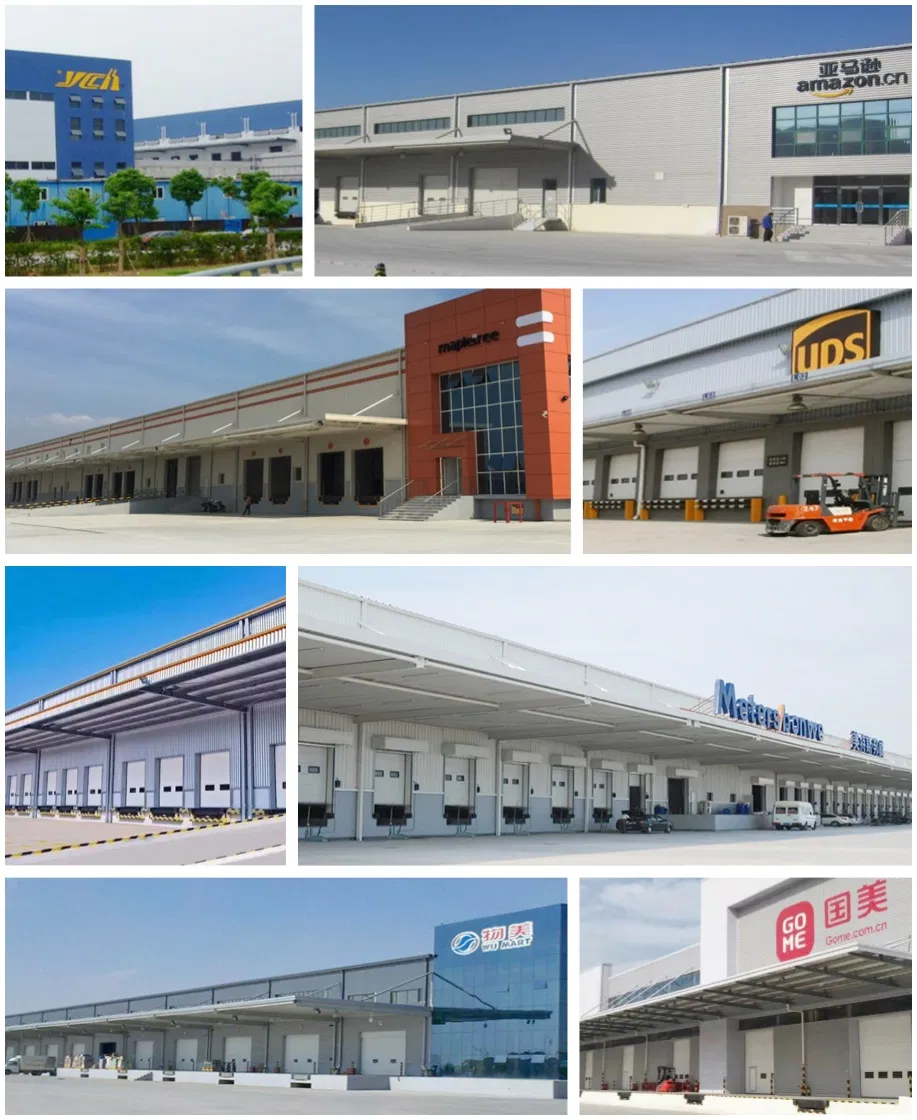

Global Experience

Our solutions have been implemented across various industries worldwide, including strategic partnerships with global logistics and cold chain leaders. We support projects in over 60 countries across Europe, the Americas, Asia, Australia, and the Middle East.

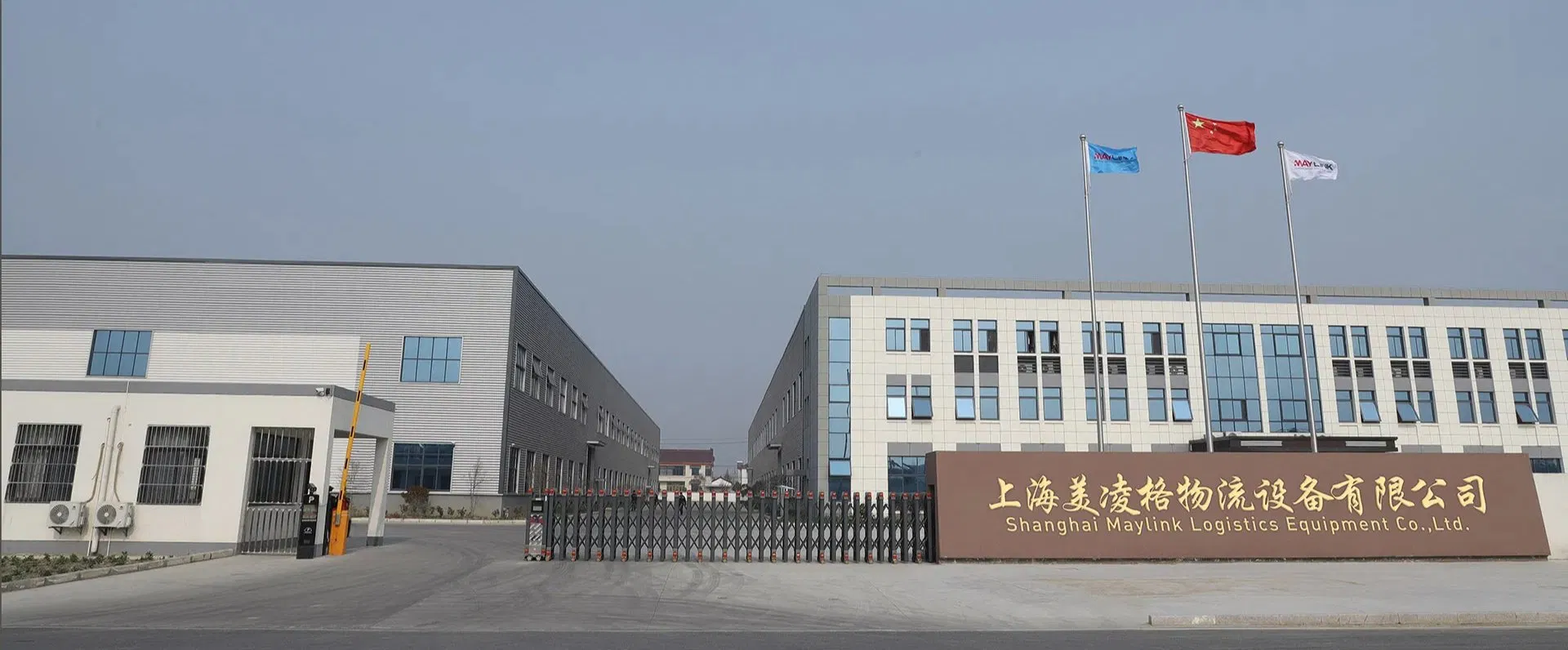

Manufacturing Expertise

As a national high-tech enterprise, we specialize in designing and manufacturing premium industrial doors and comprehensive loading dock equipment. Our CE-certified products deliver top-tier performance for logistics, manufacturing, food & pharma industries. With automated production lines from Germany and Japan, we ensure high-precision manufacturing at scale.

Frequently Asked Questions
1. What is the standard load capacity of the hydraulic dock leveler? The standard dynamic load capacity is 8 tons, with a static load capacity of 16 tons. We also offer heavy-duty configurations up to 20 tons for specialized requirements.
2. Can the size of the dock leveler be customized? Yes, while the standard size is W2000*L2000*H600mm, we provide fully customized sizes to fit your specific pit dimensions and truck docking needs.
3. What safety features are included in the system? Each unit includes an emergency stop button, telescopic toe guards for safety, lip locks, and non-slip pattern steel surfaces to prevent accidents during wet or oily conditions.
4. What is the typical lead time for an order? Standard production lead time is typically between 2 to 4 weeks depending on the order volume and customization requirements.
5. Is the equipment suitable for low-temperature environments? Yes, we use aviation-grade hydraulic oil that remains operational in temperatures as low as -25℃, making it suitable for cold storage applications.
6. What kind of maintenance is required? The hydraulic system is fully sealed to minimize maintenance. Periodic inspection of the pivot points and ensuring the pit is free of debris is generally sufficient for long-term reliable operation.
