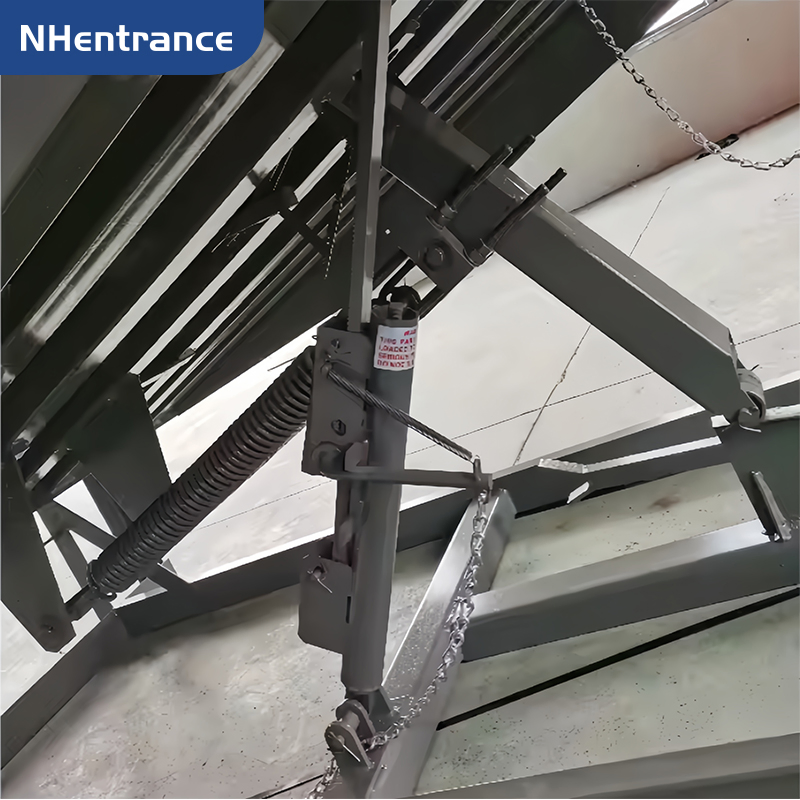

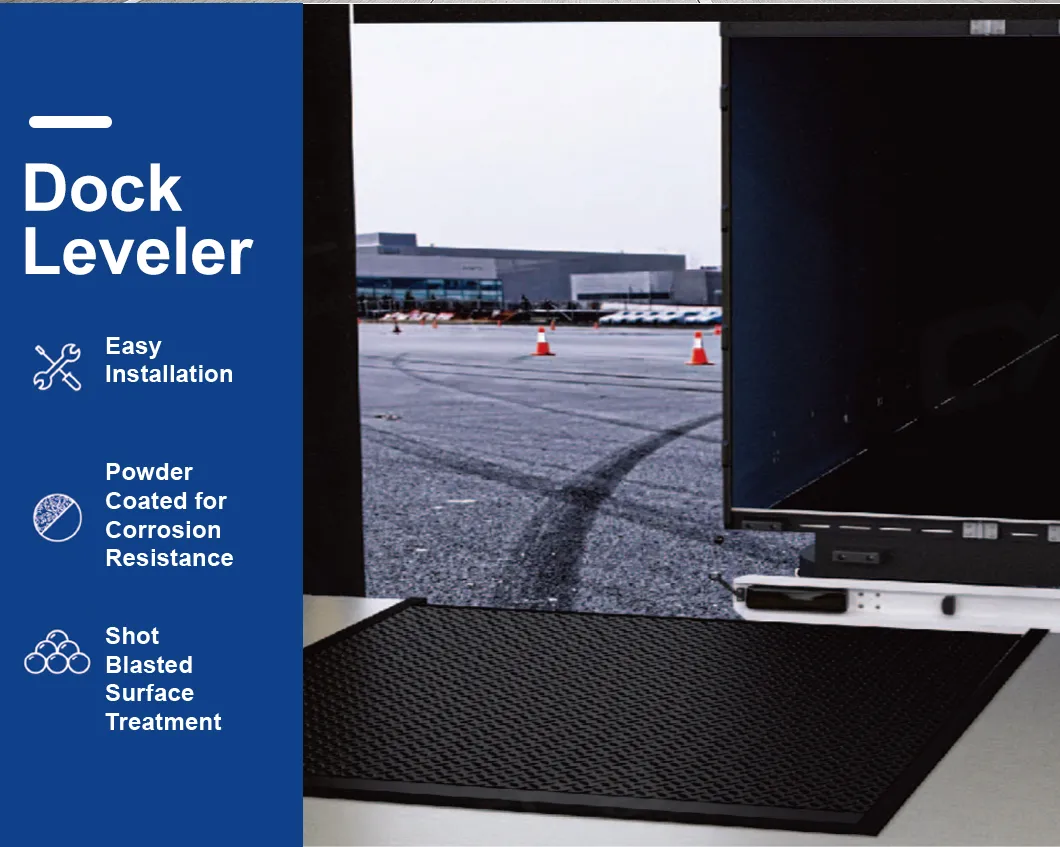

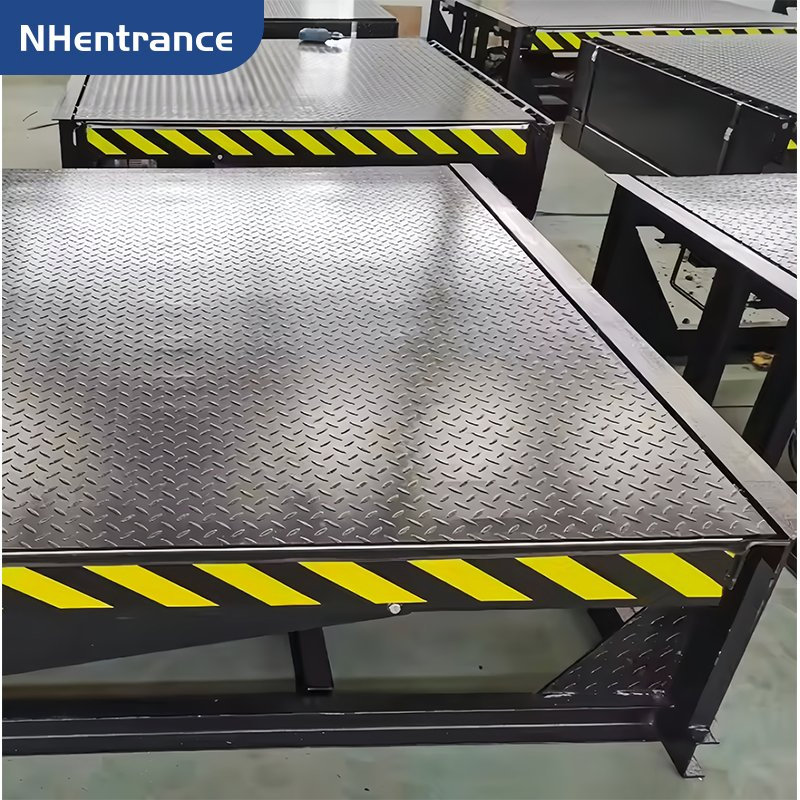

The Mechanical Dock Leveler is a manually operated system designed to bridge the gap between loading docks and trucks, ensuring safe and efficient material handling. Equipped with a pull chain activation system and a spring-loaded mechanism, this dock leveler enables smooth operation without the need for electrical power or hydraulic assistance.

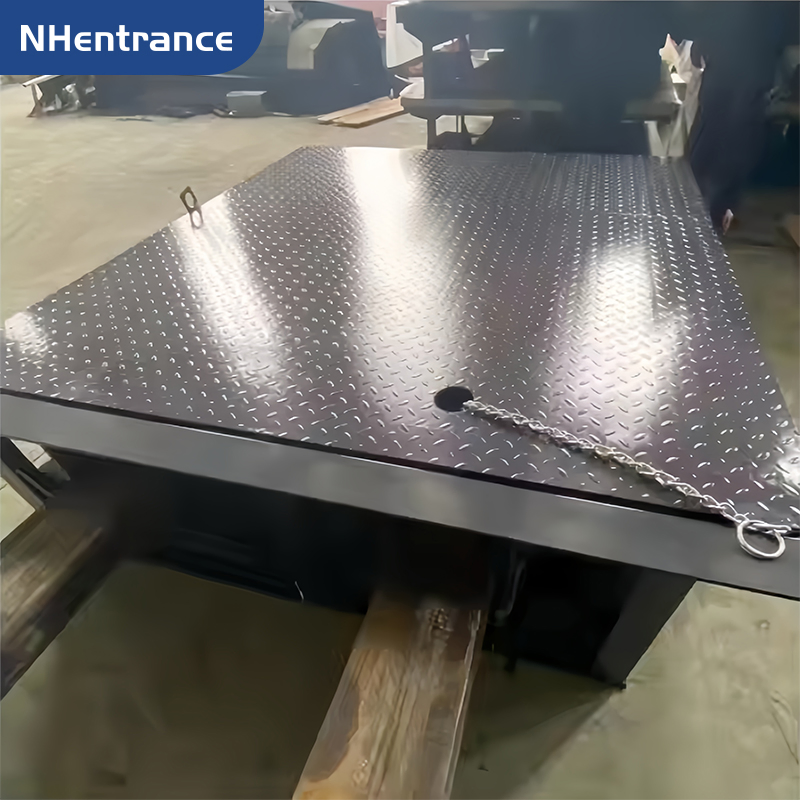

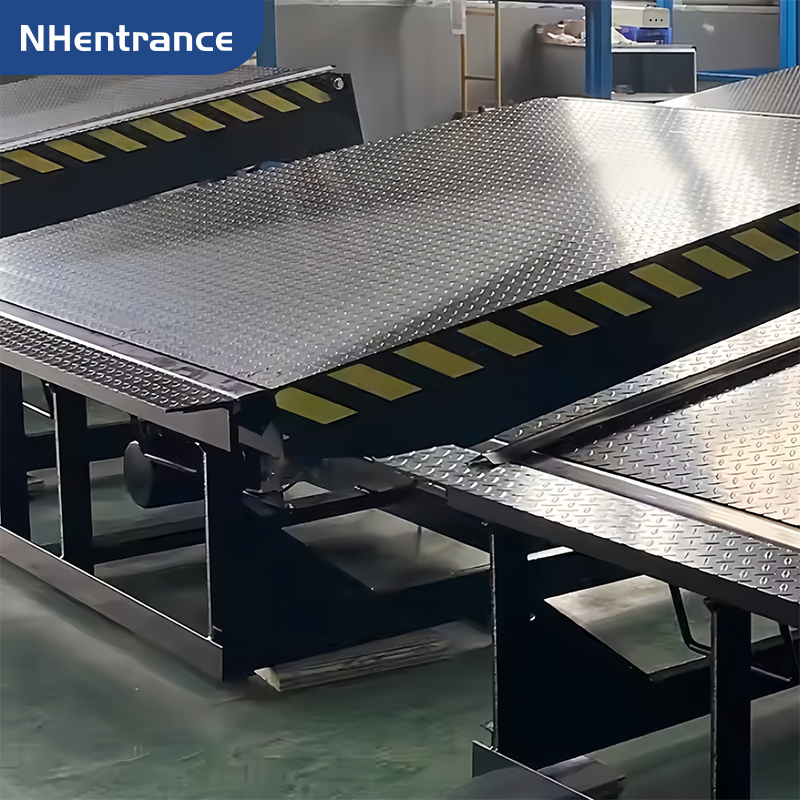

The robust heavy-duty steel platform with an anti-slip diamond plate surface provides excellent durability and traction, making it ideal for warehouses, logistics centers, and industrial facilities. It is pit-mounted and available in various sizes and weight capacities to accommodate different loading requirements.
| Size Specification | Width | Length | Height |
|---|---|---|---|
| 2000*2000 | 2000mm | 2000mm | 600mm |
| 2000*2500 | 2000mm | 2500mm | 600mm |
| 2000*3000 | 2000mm | 3000mm | 600mm |
| 2000*4000 | 2000mm | 4000mm | 600mm |
Note: Other dimensions and specifications can be customized for selection (accepting all kinds of non-standard size customization).
| Dynamic Load | Panel Thickness | Base Frame | Static Load | Scope of Use |
|---|---|---|---|---|
| 6 Tons | 6mm | 100 Channel | 8 Tons | 2.5 Ton Forklift |
| 8 Tons | 8mm | 100 Channel | 10 Tons | 3 Ton Forklift |
| 10 Tons | 8mm | 100 Channel | 12 Tons | 3.5 Ton Forklift |
| 14 Tons | 10mm | 100 Channel | 16 Tons | 3.5 Ton Forklift |

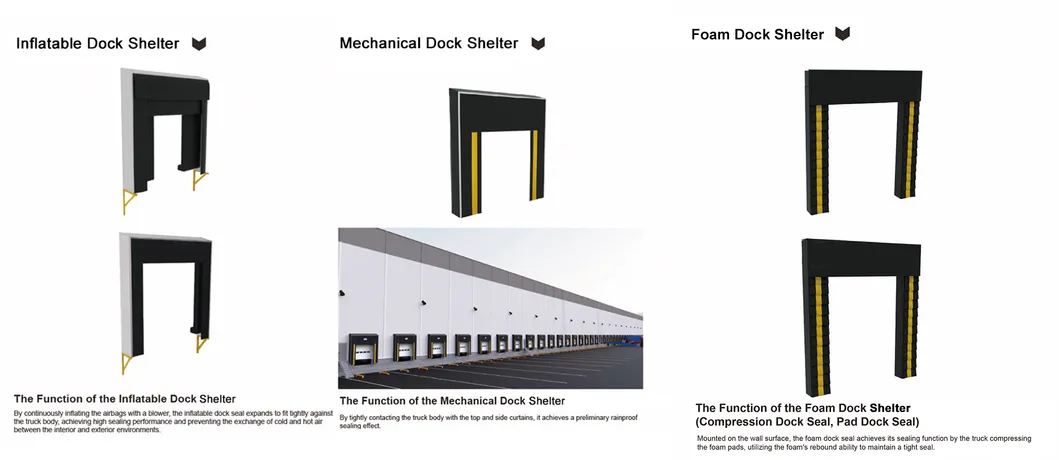

Specializing in high-quality dock levelers and dock shelters with over 20 years of industry expertise, providing innovative solutions tailored to the needs of logistics and warehousing industries.
