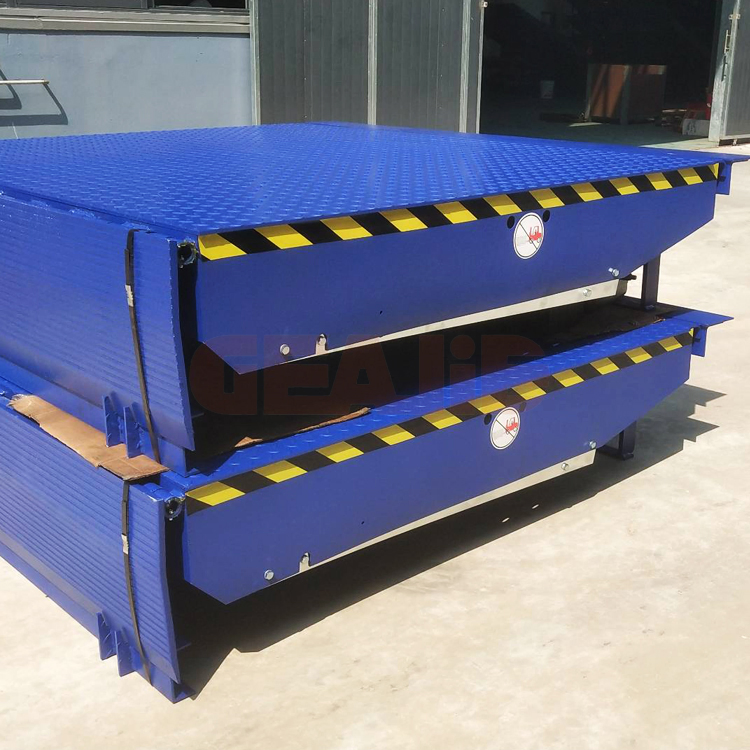

Streamlined Loading Motorized Manufacturers Pit-Mounted Dock Leveler Hydraulic

Customization: Available
After-sales Service: Available
Warranty: 1 Year

Product Description

i

Basic Product Information

Model NO.DL04
ApplicationWarehouse Crane, Charge and Discharge
Lift MechanismArticulated Lift
Carrying CapacityWeight Level (10000kg)
Driven TypeHydraulic (Swiss Bucher System)
Power Supply380V / 0.75kw
Working Range-300 to +350mm
Lip PlateStandard 400mm, 500mm Optional
CertificationCE, RoHS, ISO 9001, AAA
SpecificationW2130 * L2210 * H500/600

Electric Hydraulic Dock Leveller

Dock Leveler

This streamlined motorized pit-mounted hydraulic dock leveler is designed for quick and safe loading and unloading operations in logistics environments.

📷

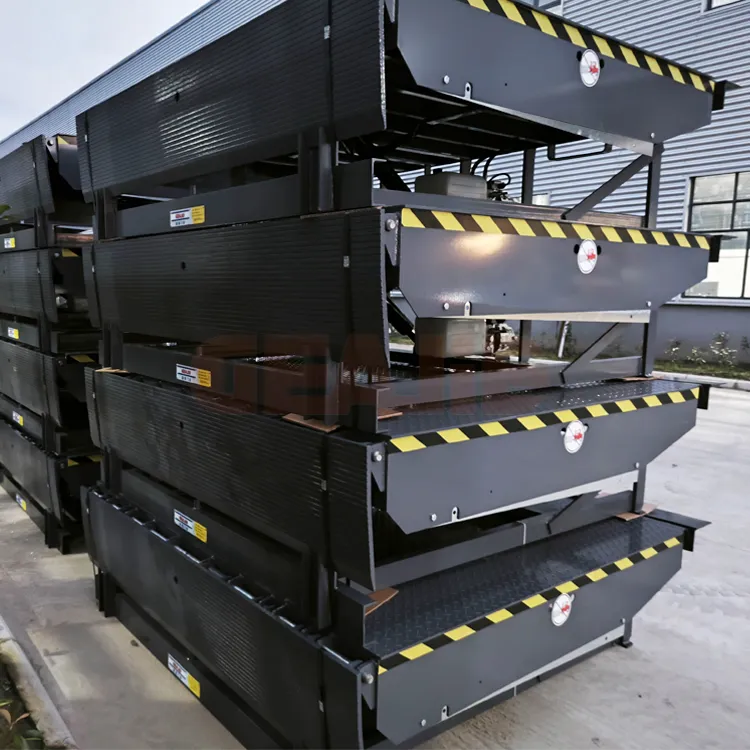

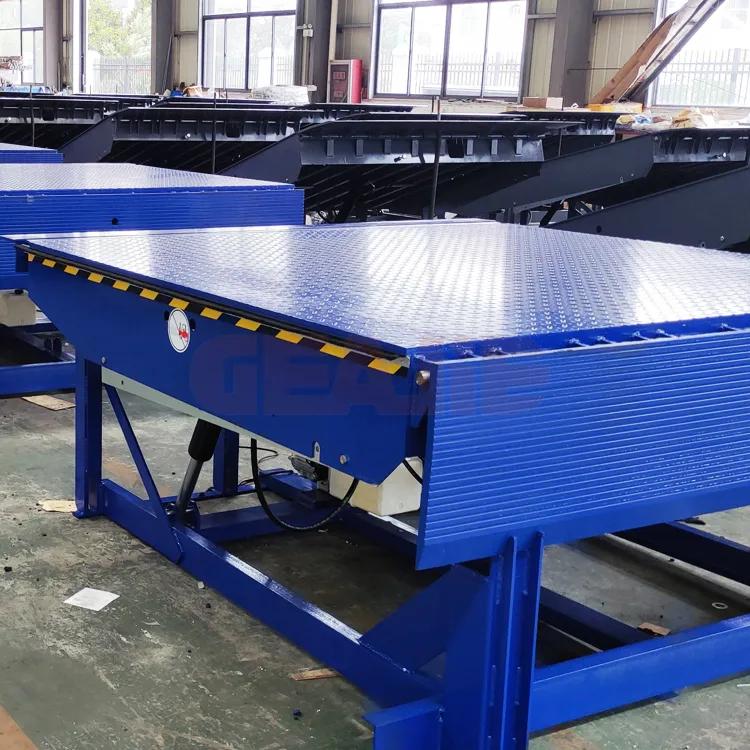

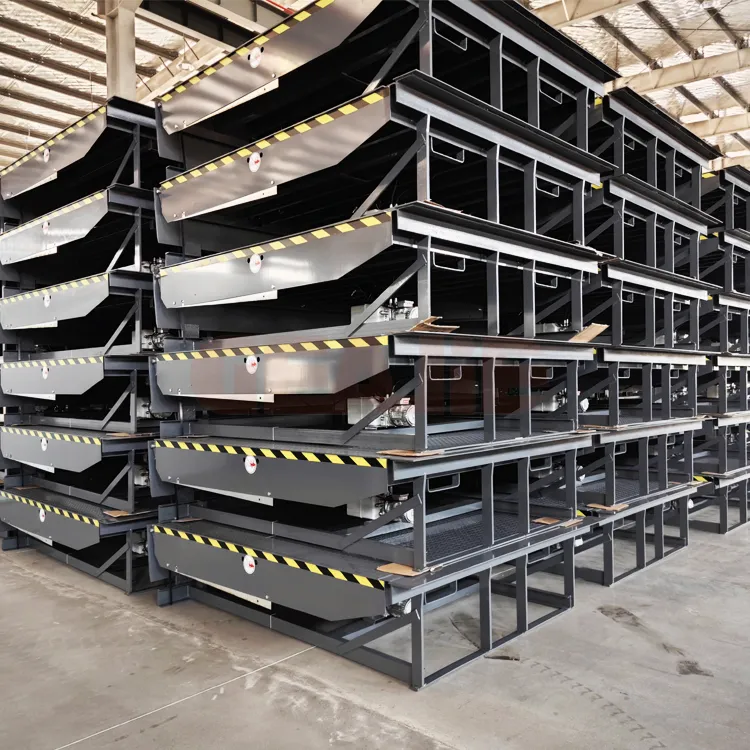

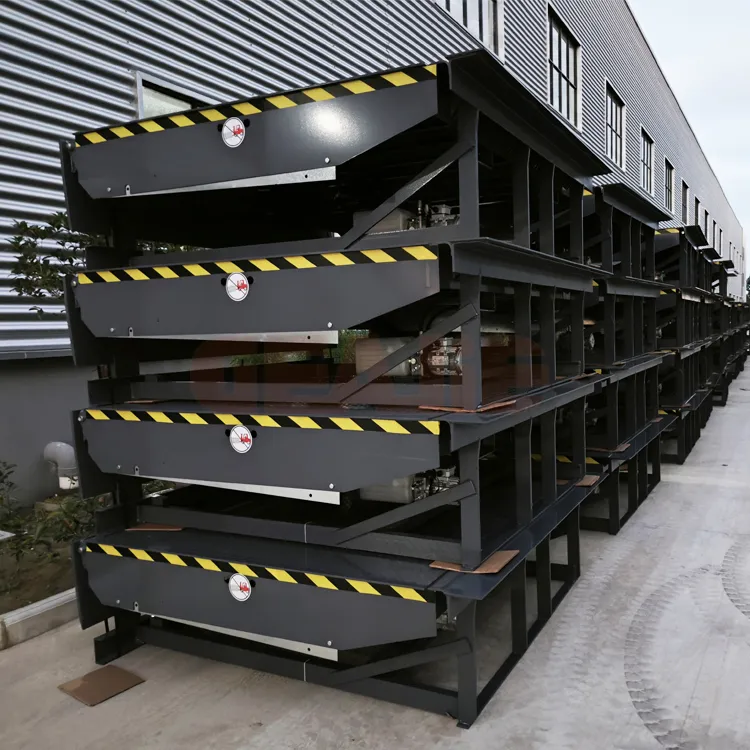

Product Show

Material & Technical Details

Feature Specifications
Load Capacity6-25 tons
Standard Width1830mm, 2000mm, 2130mm
Standard Length2000mm, 2500mm, 3000mm, 3500mm
Countertop Structure8mm high-strength anti-skid pattern steel plate
Lip Thickness14mm, 16mm, or 20mm based on load
Security ConfigurationAnti-fall function, anti-pinch protection, maintenance support rod
📐

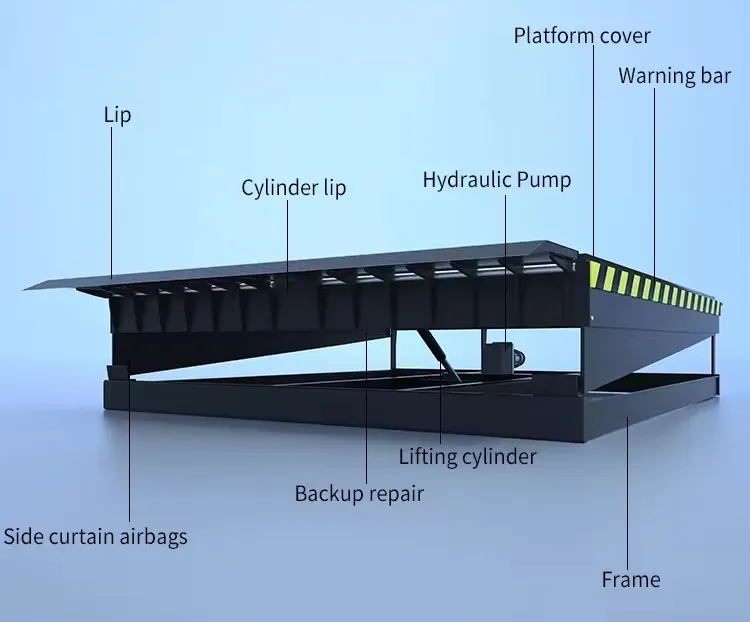

Structural Components

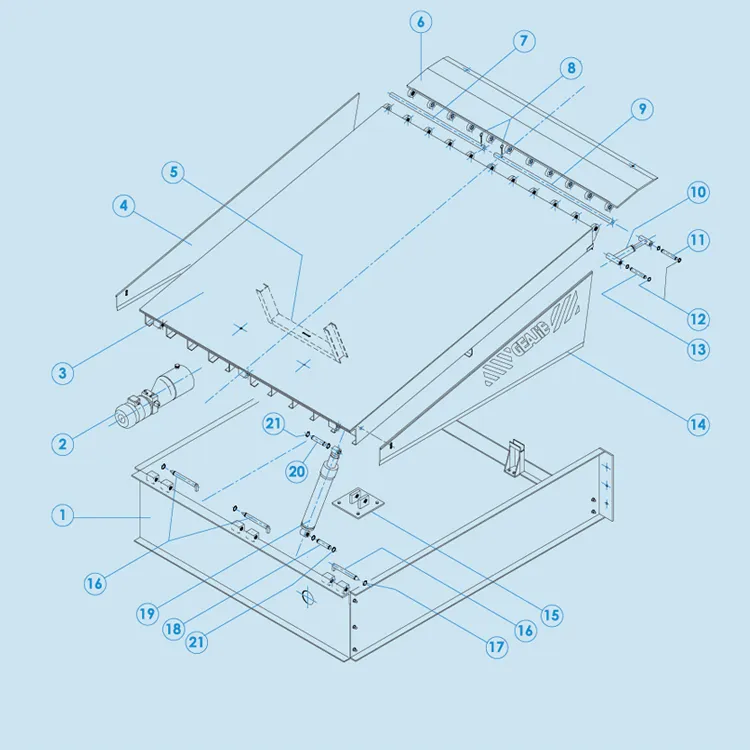

Structural Drawing
1. Mould2. Hydraulic control unit
3. Upper plate4. Left foot guard
6. Swinging lip10. Cylinder of the lip
19. Upper plate cylinder21. Seeger pins

Product Advantages

Durable Material: Made of heavy-duty steel treated for corrosion resistance to ensure long-term industrial durability.
Flexible Operation: Available with automated control systems (buttons/remotes) for enhanced efficiency.
Safety First: Equipped with anti-slip surfaces, safety barriers, and sensors to protect personnel.
High Adjustability: Accommodates various truck heights to ensure smooth transitions during cargo handling.

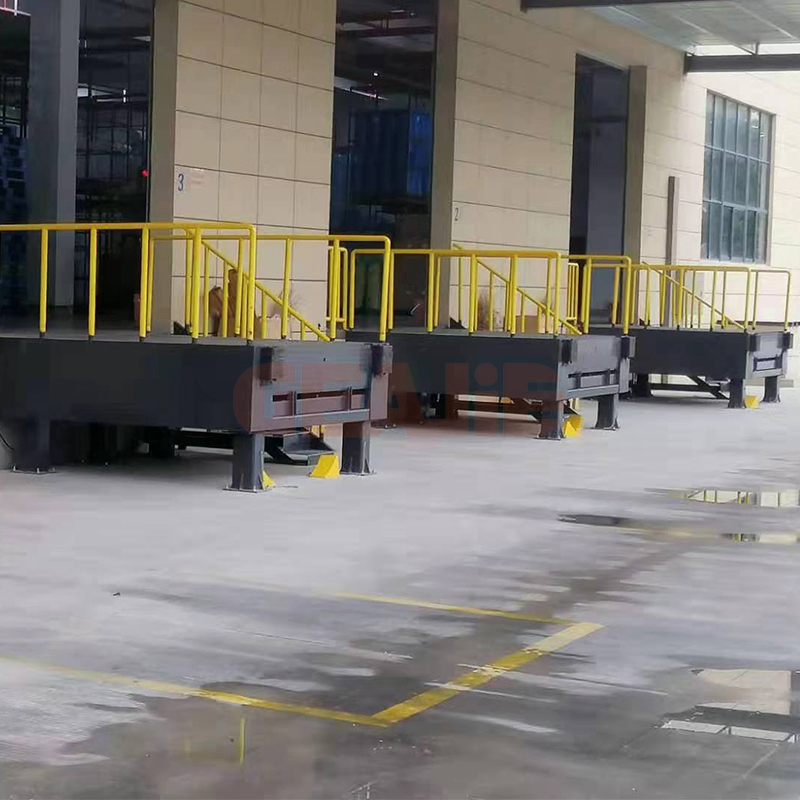

Product Application
📦

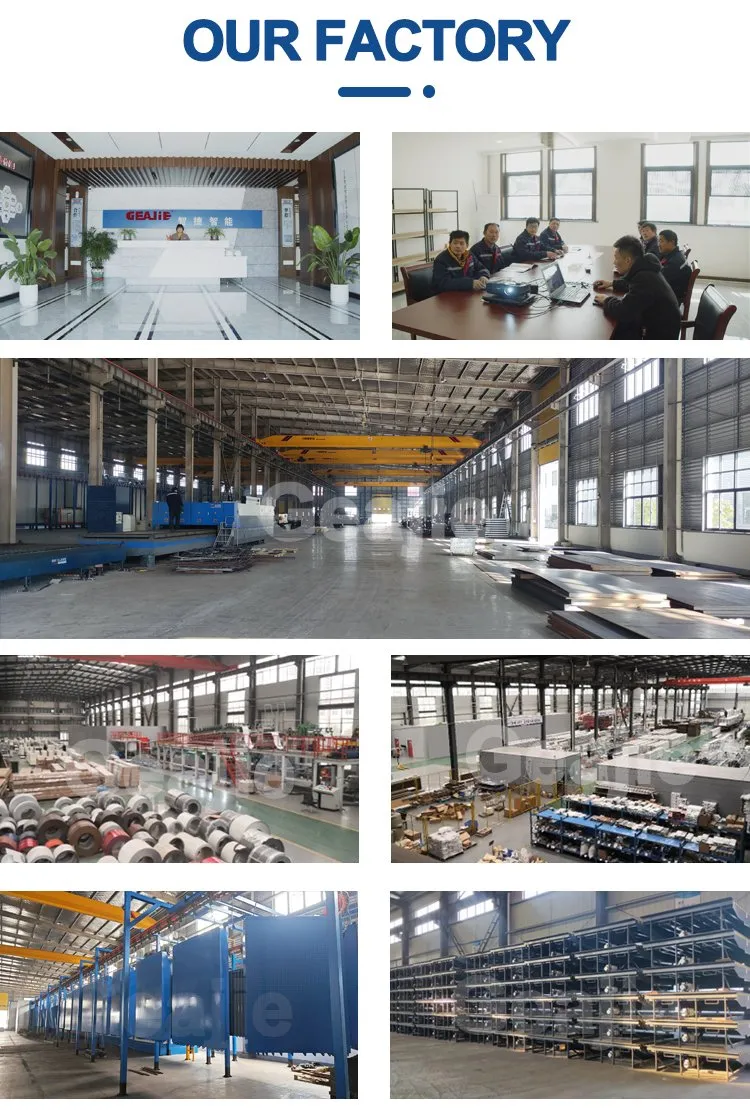

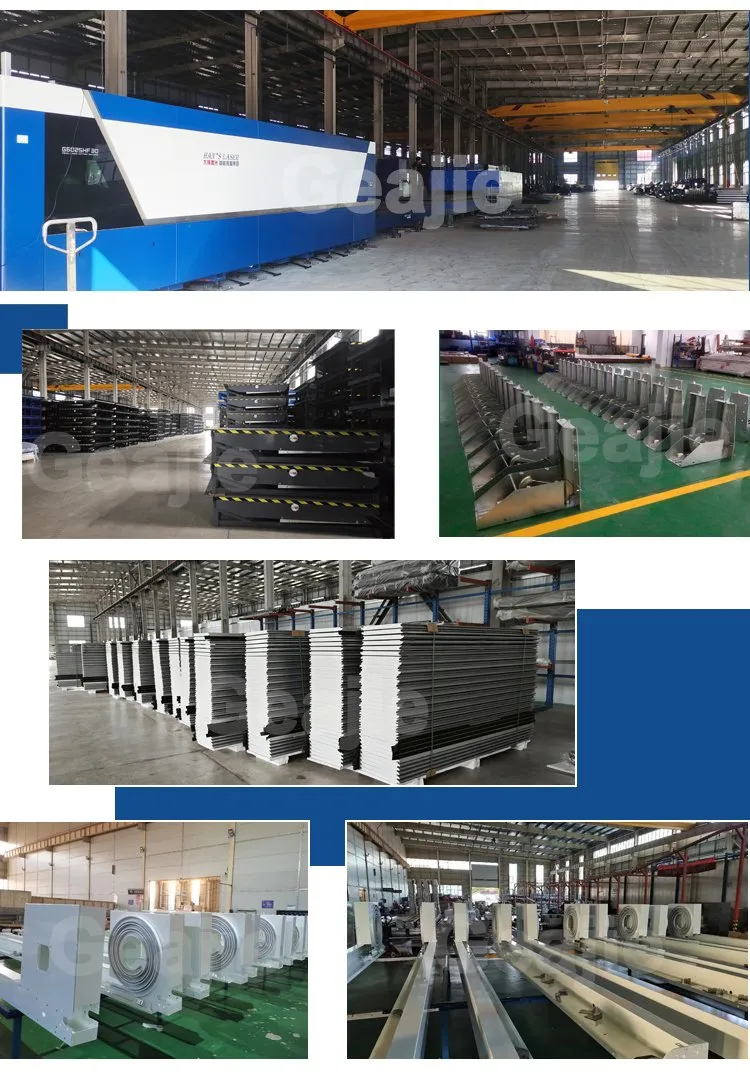

Production & Packaging

?

Frequently Asked Questions

What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 set.
What is the maximum available size?
The maximum length can be 6.5M and the maximum width is 6M (adjustable).
Where is the dock leveler typically used?
It is ideal for factory outlets and outgoing ports in logistics parks.
Is the installation difficult?
No, it is designed to be very easy to install.
What is the main benefit of using a dock leveler?
It significantly improves the efficiency of cargo handling and makes loading/unloading goods safer and easier.
Do you provide customized options?
Yes, we provide non-standard loads, sizes, and colors, including galvanized treatments and specific power requirements like 220V.1PH.50HZ.
