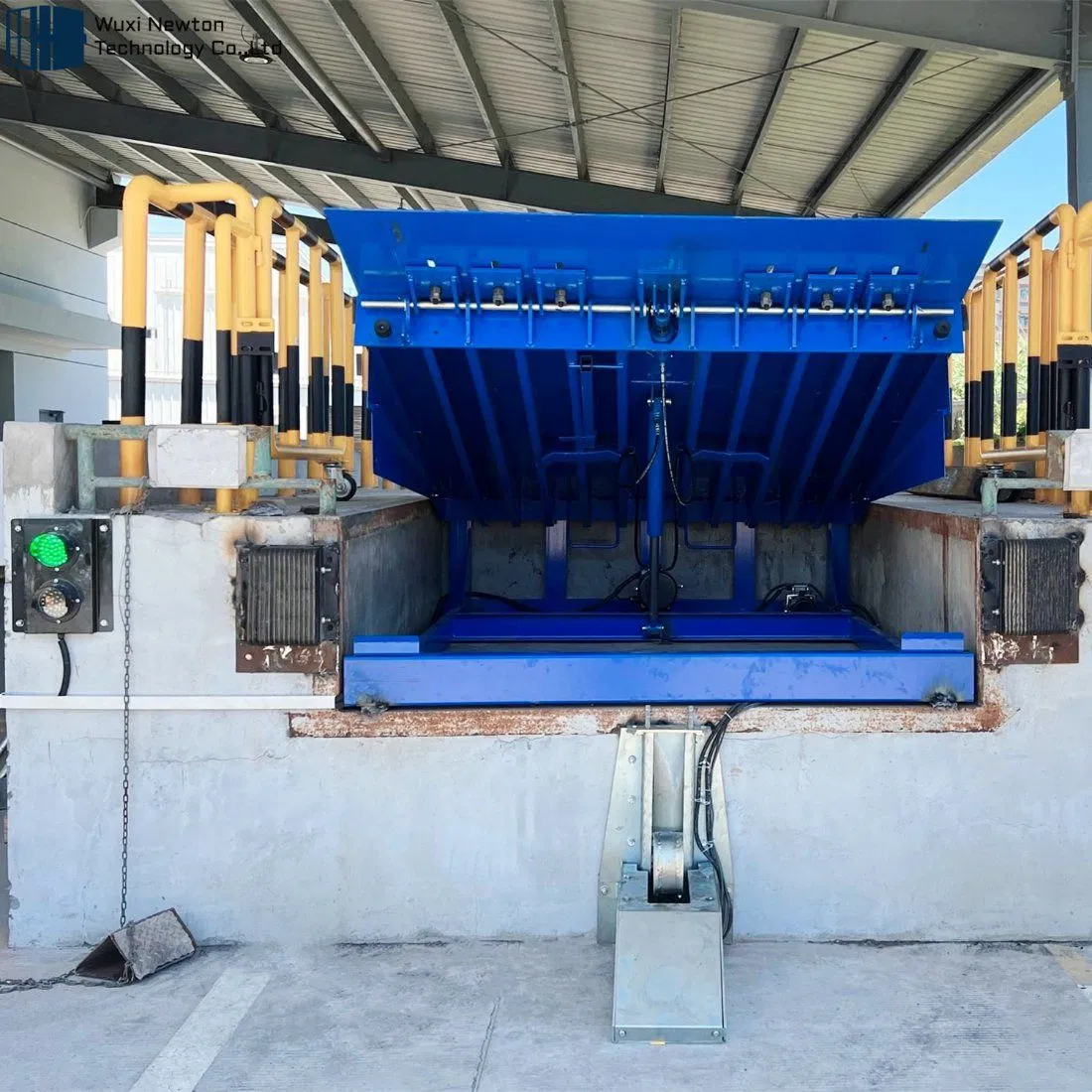

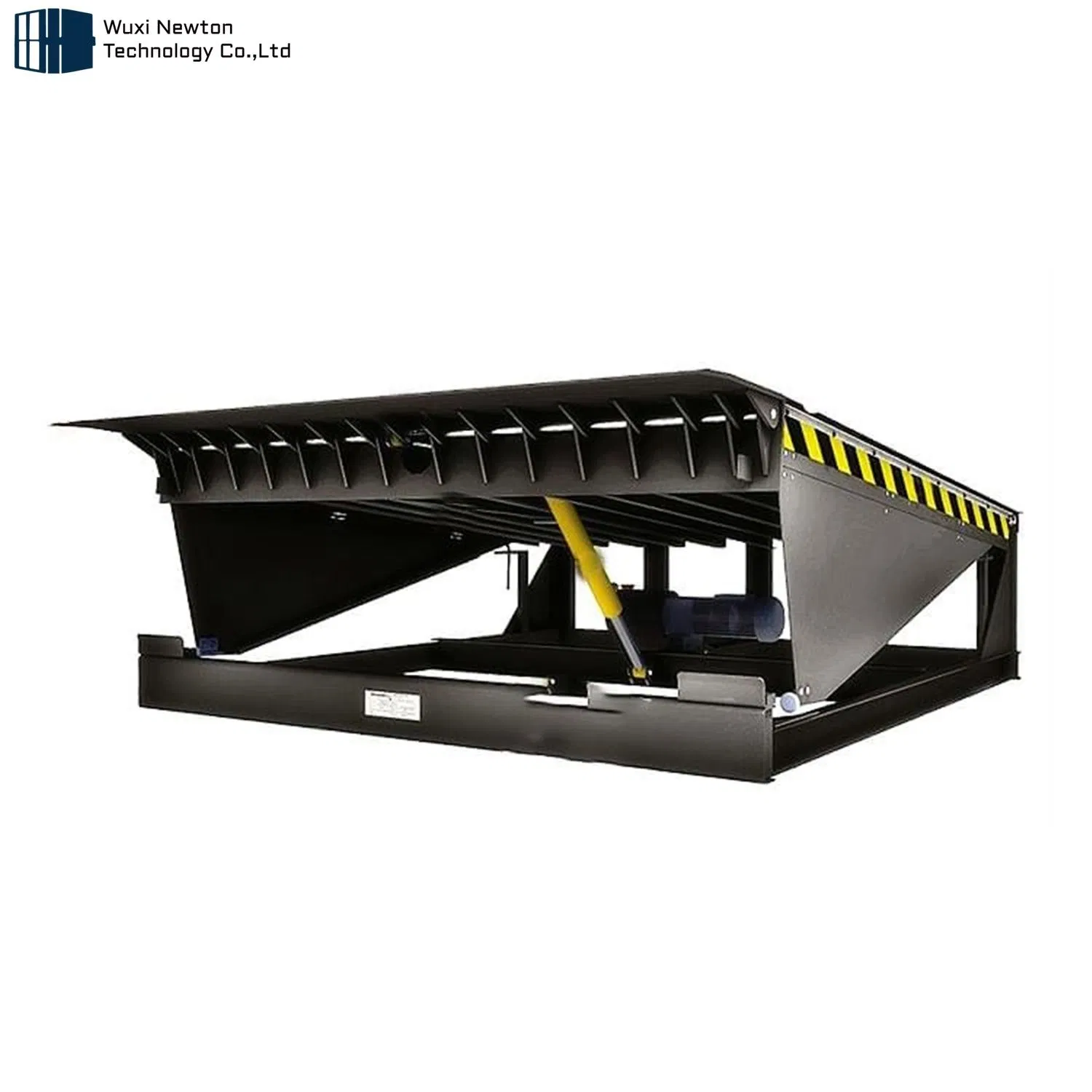

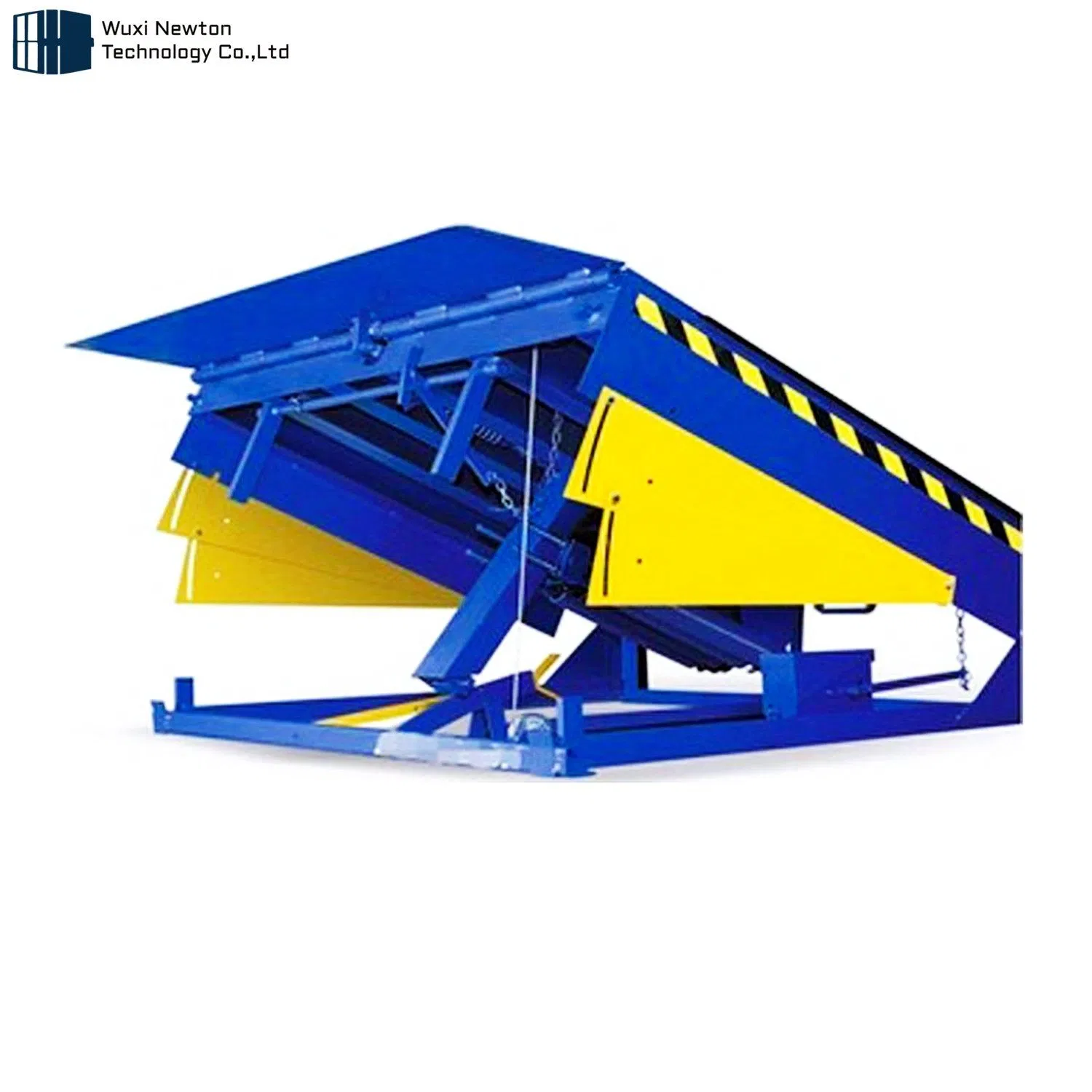

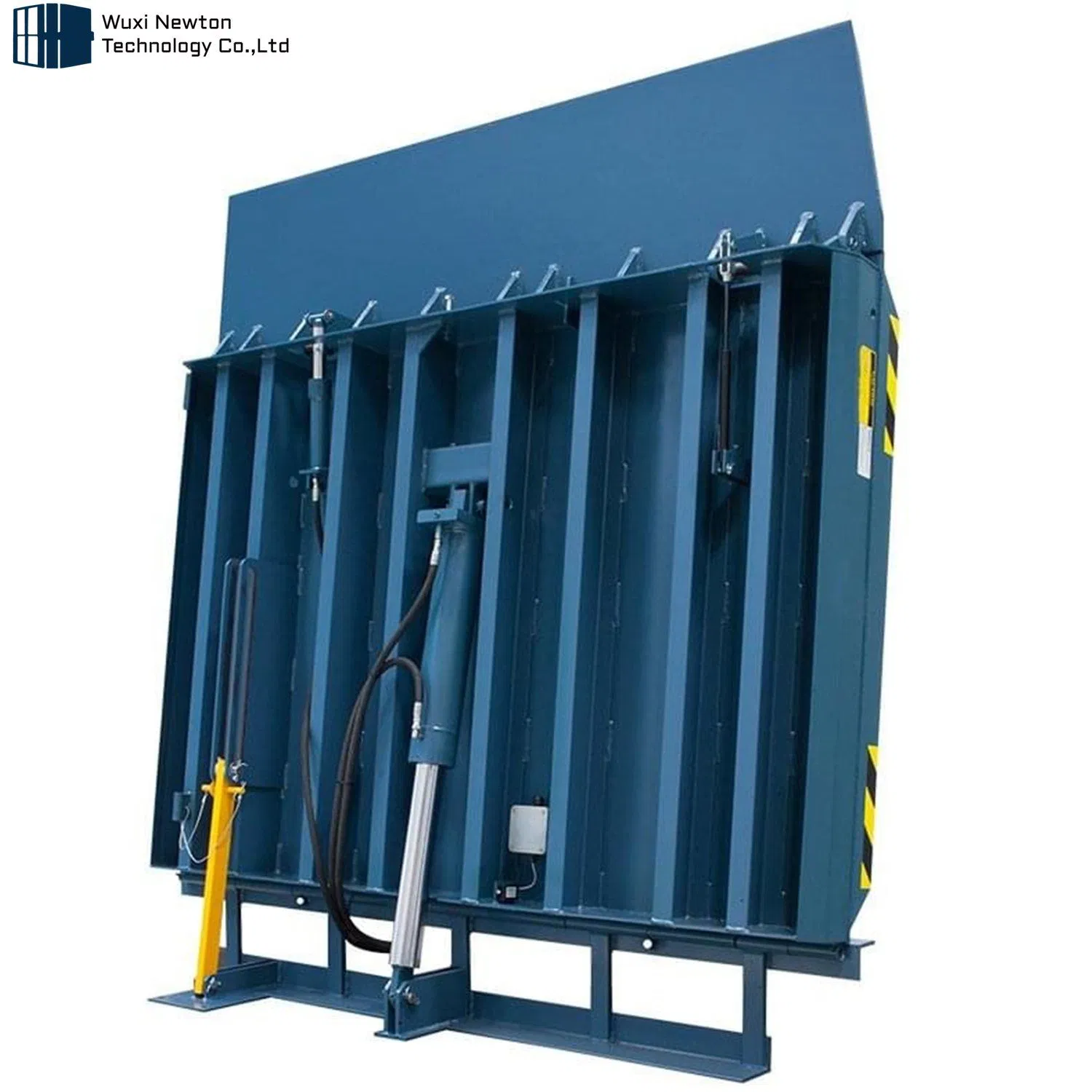

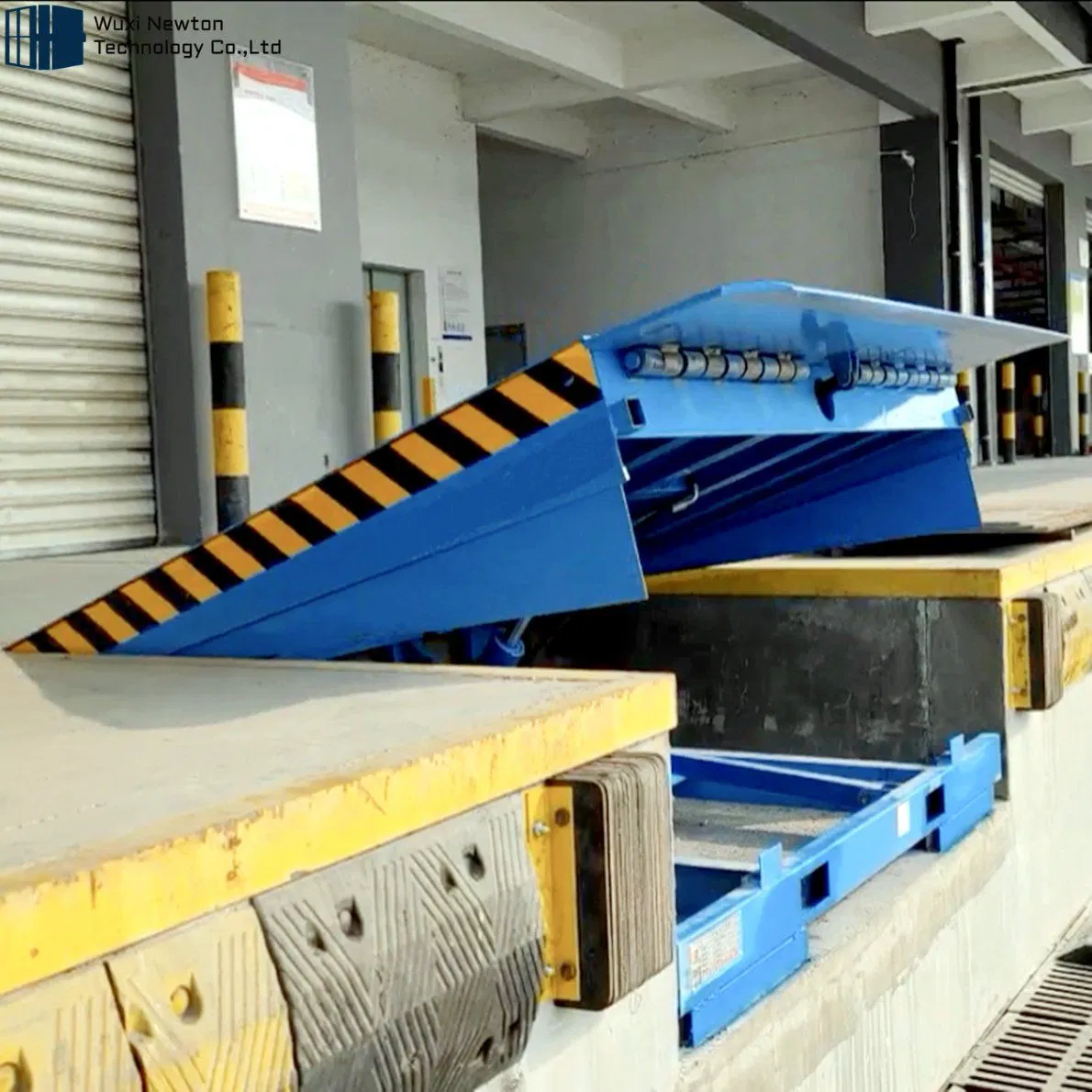

Factory Supplier 6/8/10 Ton Pit-Mounted Dock Ramp Warehouse Loading Dock Leveler
Factory Supplier 6/8/10 Ton Pit-Mounted Dock Ramp Warehouse Loading Dock Leveler
Factory Supplier 6/8/10 Ton Pit-Mounted Dock Ramp Warehouse Loading Dock Leveler
Factory Supplier 6/8/10 Ton Pit-Mounted Dock Ramp Warehouse Loading Dock Leveler
Factory Supplier 6/8/10 Ton Pit-Mounted Dock Ramp Warehouse Loading Dock Leveler
1 / 5
Factory Supplier 6/8/10 Ton Pit-Mounted Dock Ramp Warehouse Loading Dock Leveler
Factory Supplier 6/8/10 Ton Pit-Mounted Dock Ramp Warehouse Loading Dock Leveler
Factory Supplier 6/8/10 Ton Pit-Mounted Dock Ramp Warehouse Loading Dock Leveler
Factory Supplier 6/8/10 Ton Pit-Mounted Dock Ramp Warehouse Loading Dock Leveler
Factory Supplier 6/8/10 Ton Pit-Mounted Dock Ramp Warehouse Loading Dock Leveler

Factory Supplier 6/8/10 Ton Pit-Mounted Dock Ramp Warehouse Loading Dock Leveler

Customization: Available
After-sales Service: Available
Warranty: 5 Years
Send Inquiry

Product Description

Overview Structure Type Specifications Control Installation Workshop

Basic Info.

Model NO.
NTDL
Application
Workshop, Shipboard, Warehouse, Building, Logistics
Lift Mechanism
Articulated Lift
Driven Type
Hydraulic
Product Name
6~15 Ton Container Loading Dock Equipment
Loading Capacity
10000kg
Table Size
2.0*2.0m
Upper Plate
8mm Thickness Steel
Swinging Lip
16mm Thickness Steel
Working Range
-300 to +350mm
Motor Power
0.75kw
Safety System
Self-Locking, Lip Emergency Stop

Product Description

Dock Leveler
In the field of logistics, our dock leveler can realize fast and safe loading and unloading process. The dock leveler can balance the height difference between the platform ground and the dock of different transport vehicles. Whether it is a flatbed truck or a container truck, the dock leveler can meet the requirements. The sturdy steel structure design and high-quality materials provide a reliable choice for all loading and unloading yards.

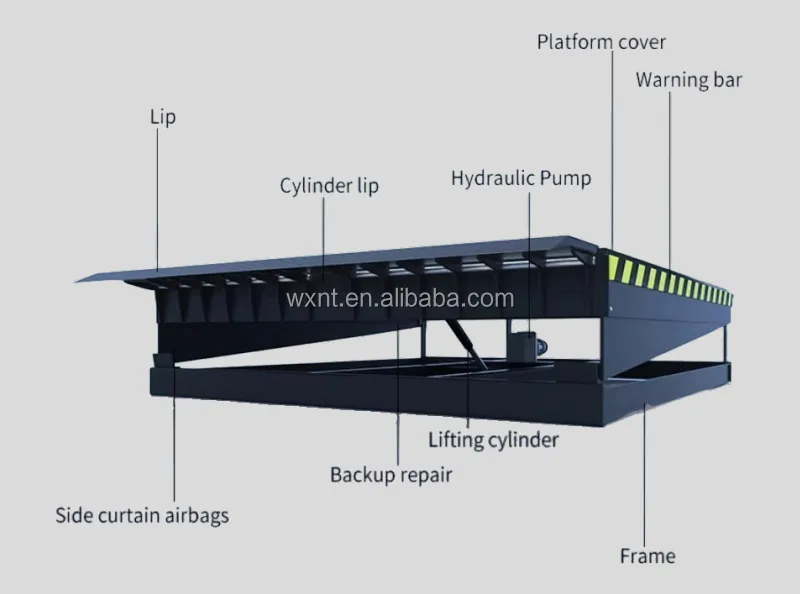

Product Structure

Product Structure

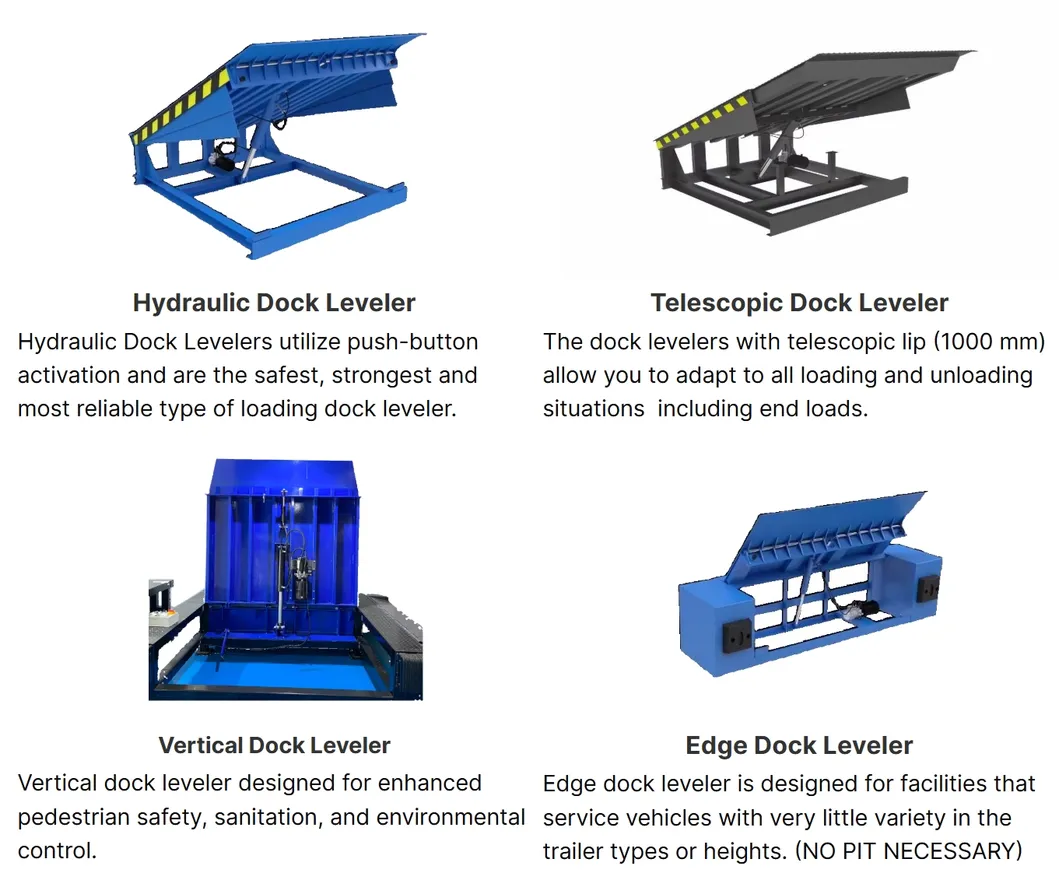

Product Type

Product Type

Technical Specifications

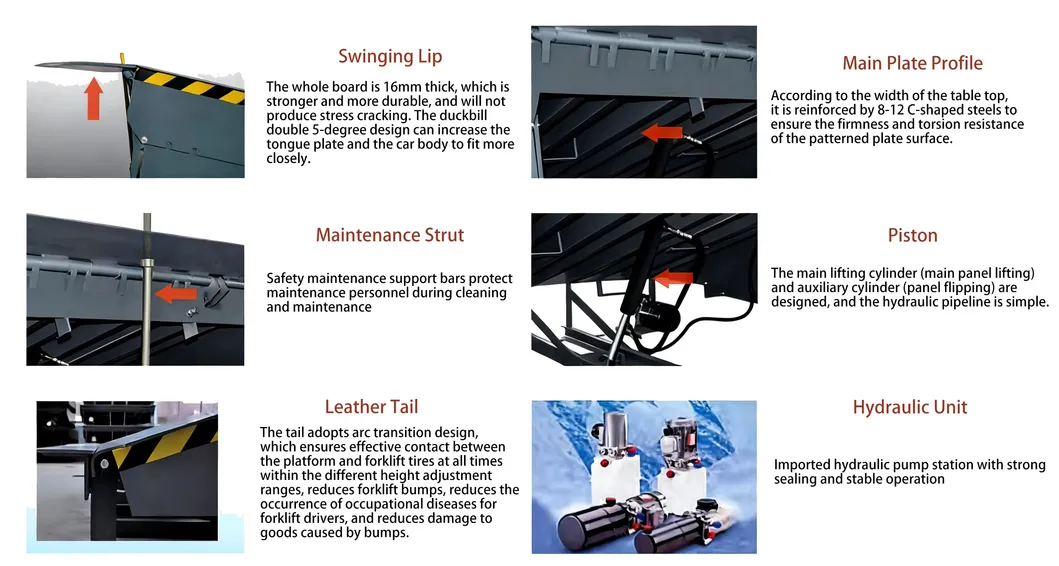

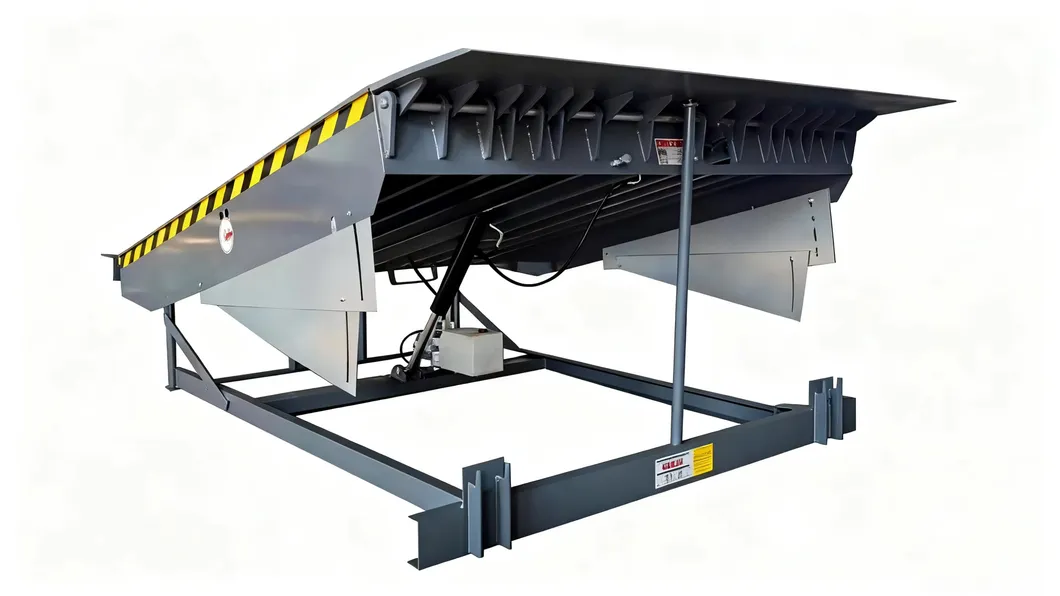

Spec Detail 1 Spec Detail 2
Parameter Details Parameter Details
Standard Size (W*L*H) 2000*2000*500mm Dynamic/Static Load 6000kg/10000kg
Height Adjustment +350mm/-300mm Main Panel 8mm anti-slip steel
Lip Plate 16mm Non-slip steel Standard Colors Dark gray/black
Connected Shaft Diameter 28mm Adjusting Time ≤ 30 seconds
Bone 10X14#"C" STEEL Powertrain Hydraulic pump station
Oil Tank Capacity 5L Safety Features Safety valve, toe guard, support rod

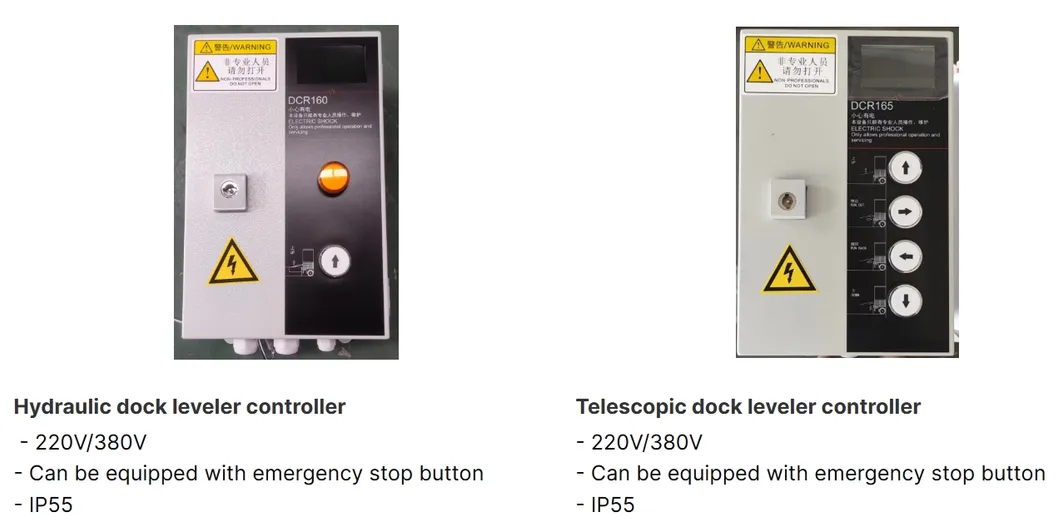

Control System

CPU integrated control system, with screen display, display running status, running times, fault code and interlock, linkage expansion function.
Control System

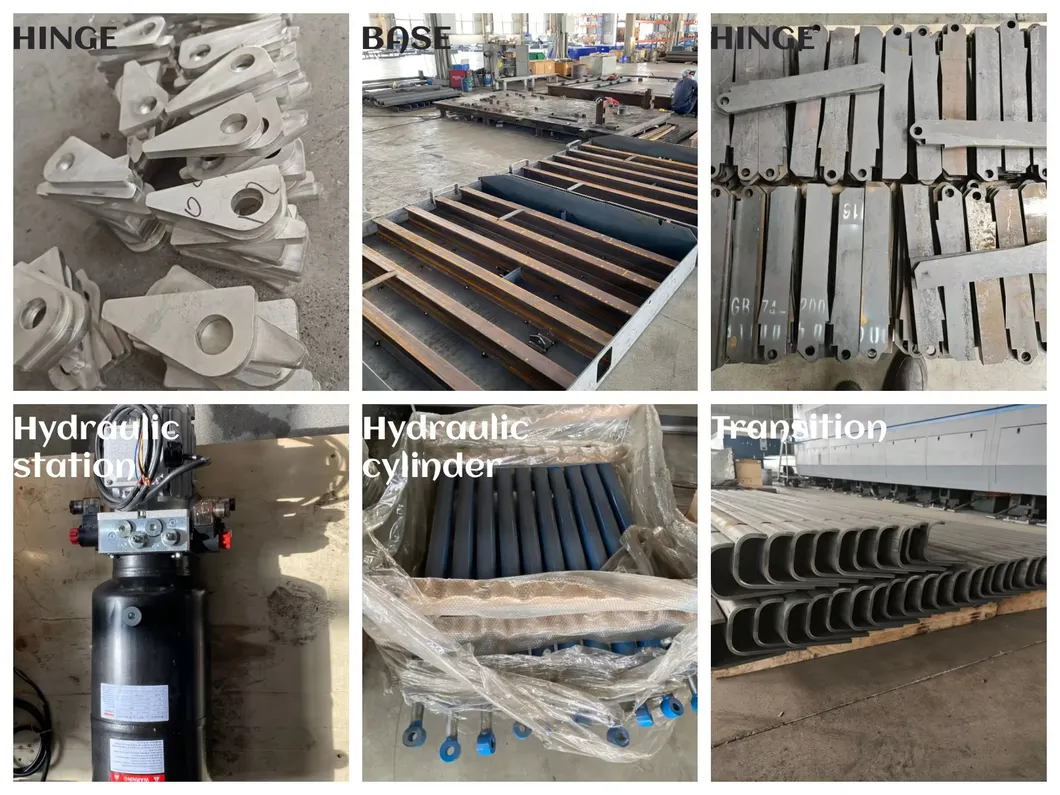

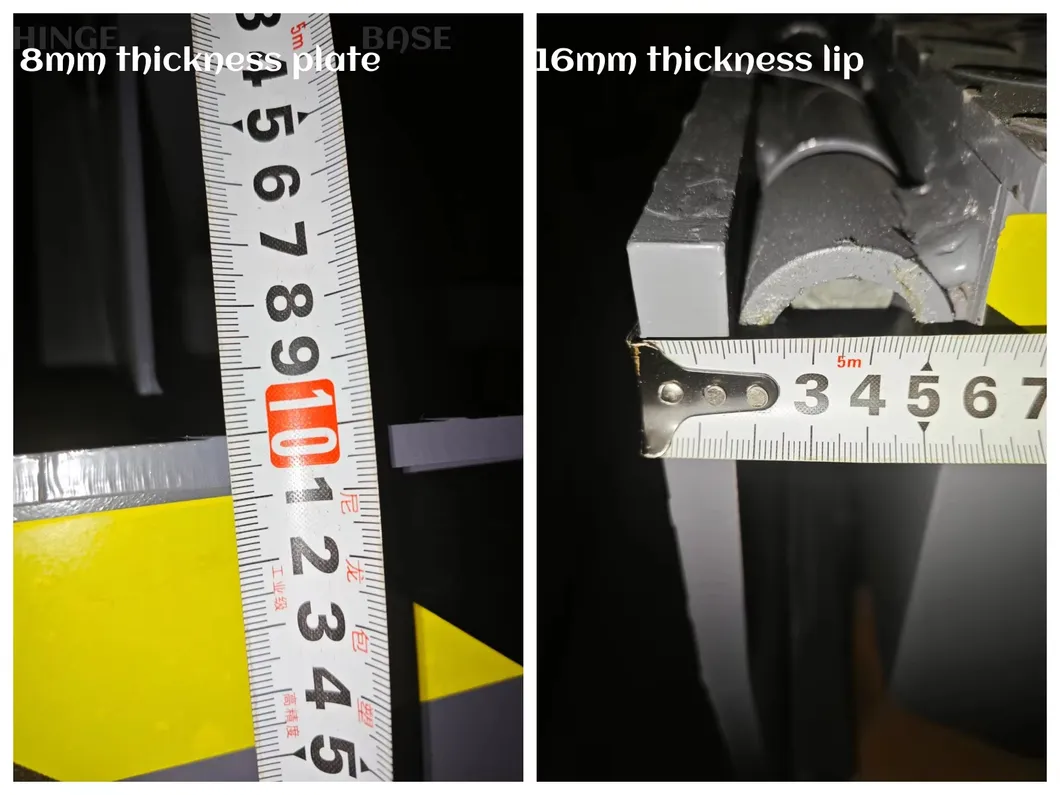

Spare Parts Details

Spare Parts 1 Spare Parts 2

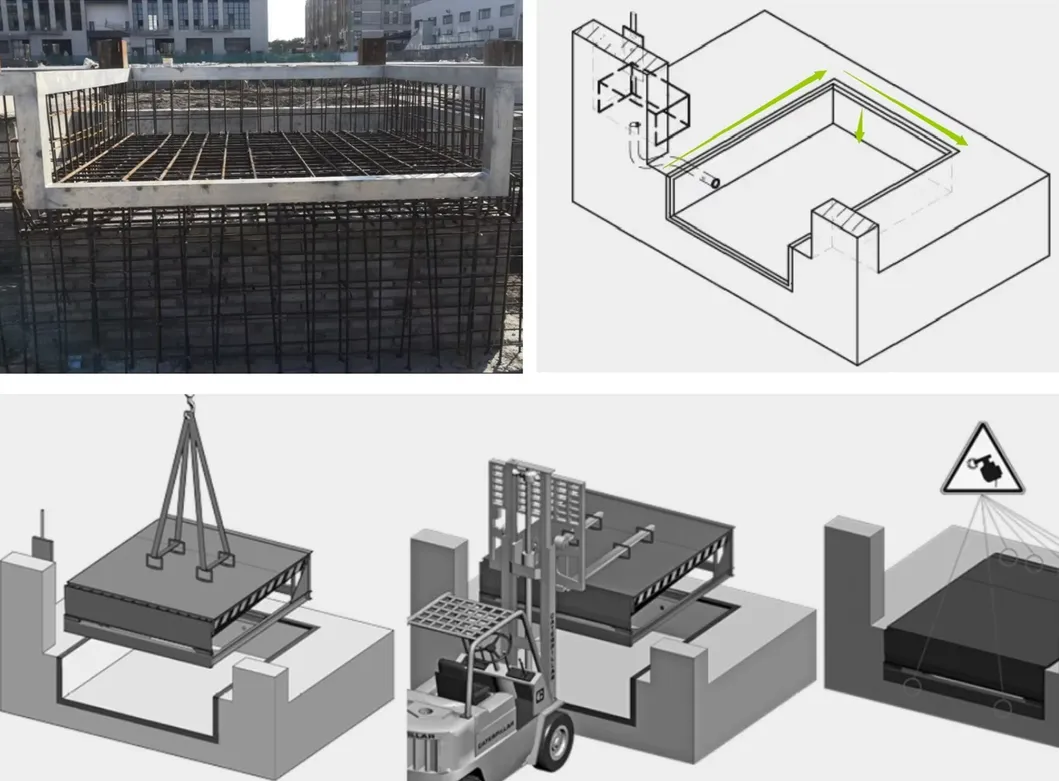

Quick Installation

Our dock leveler is easy for the installation, we can provide you CAD drawing to prepare the pithead accordingly, the instruction manual and the online technical support.
Installation Drawing

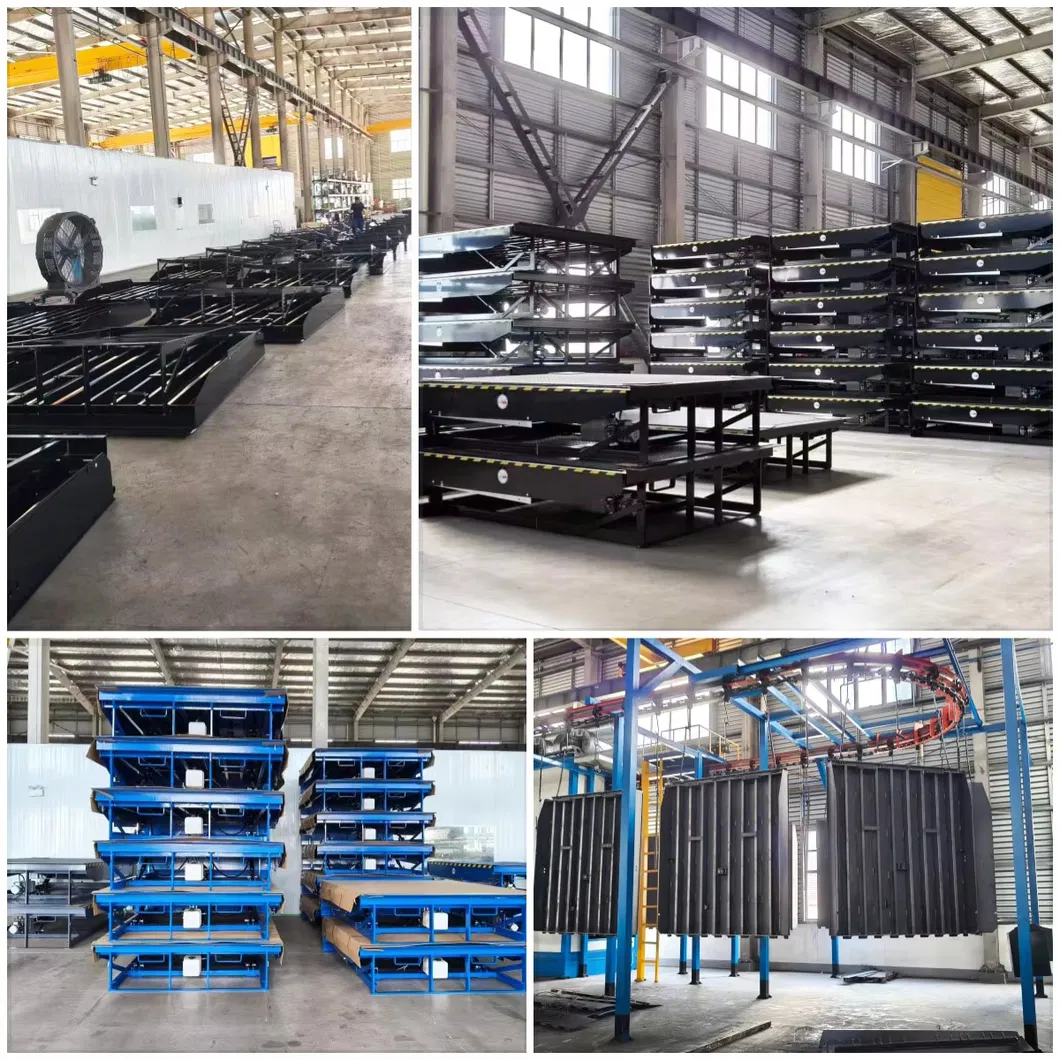

Workshop Display

Workshop 1 Workshop 2 Workshop 3
Workshop Full View

Frequently Asked Questions

1 Are you the manufacturer?
Yes, we are a specialized manufacturer in this industry with over 20 years of experience, serving customers globally.
2 What is your main product range?
Our products include industrial folding doors, sectional garage doors, high-speed PVC doors, hydraulic dock levelers, and various dock shelter equipment.
3 Is customization available for specific requirements?
Yes, we provide comprehensive customization services to meet your specific dimensions, load capacities, and operational requirements.
4 Can I request samples?
Yes, we can provide free samples; however, the shipping cost is to be covered by the customer's side.
5 What is the standard lead time?
Normally, our lead time is 15-20 days upon receiving the deposit.
6 What are your payment terms?
We typically accept TT (Telegraphic Transfer), with a 30% deposit and the 70% balance paid against the Bill of Loading.
