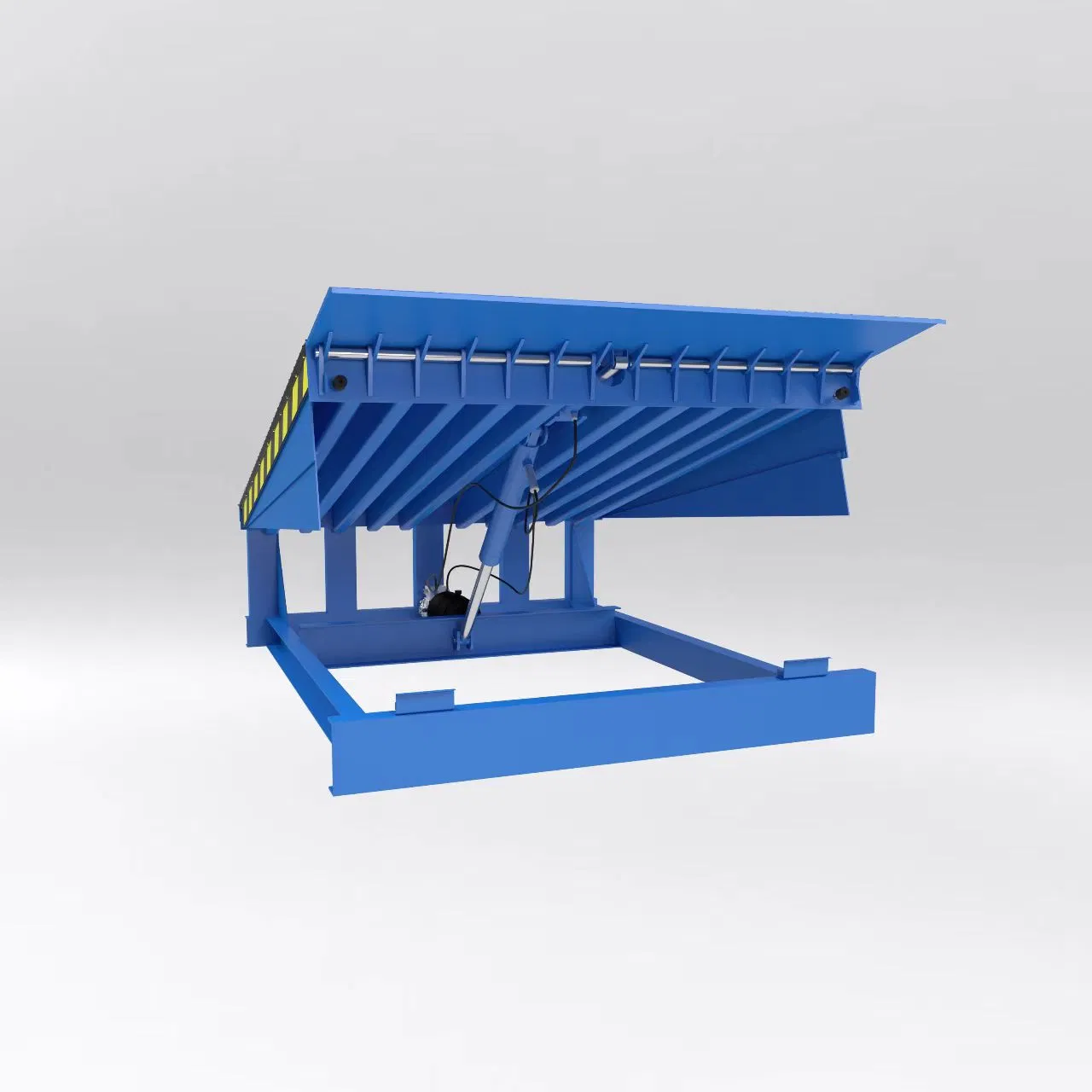

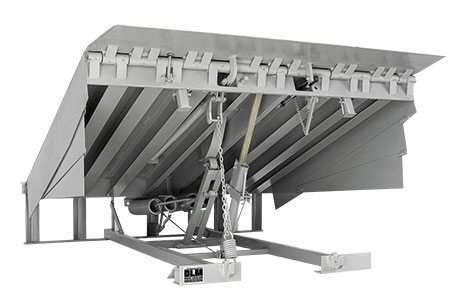

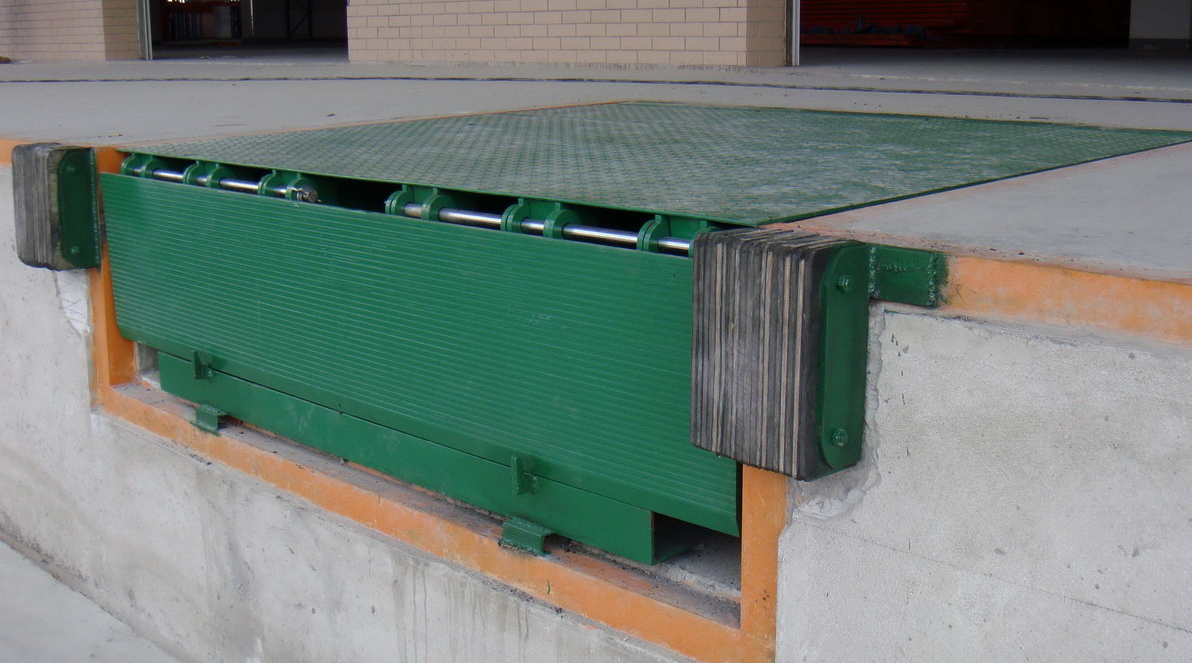

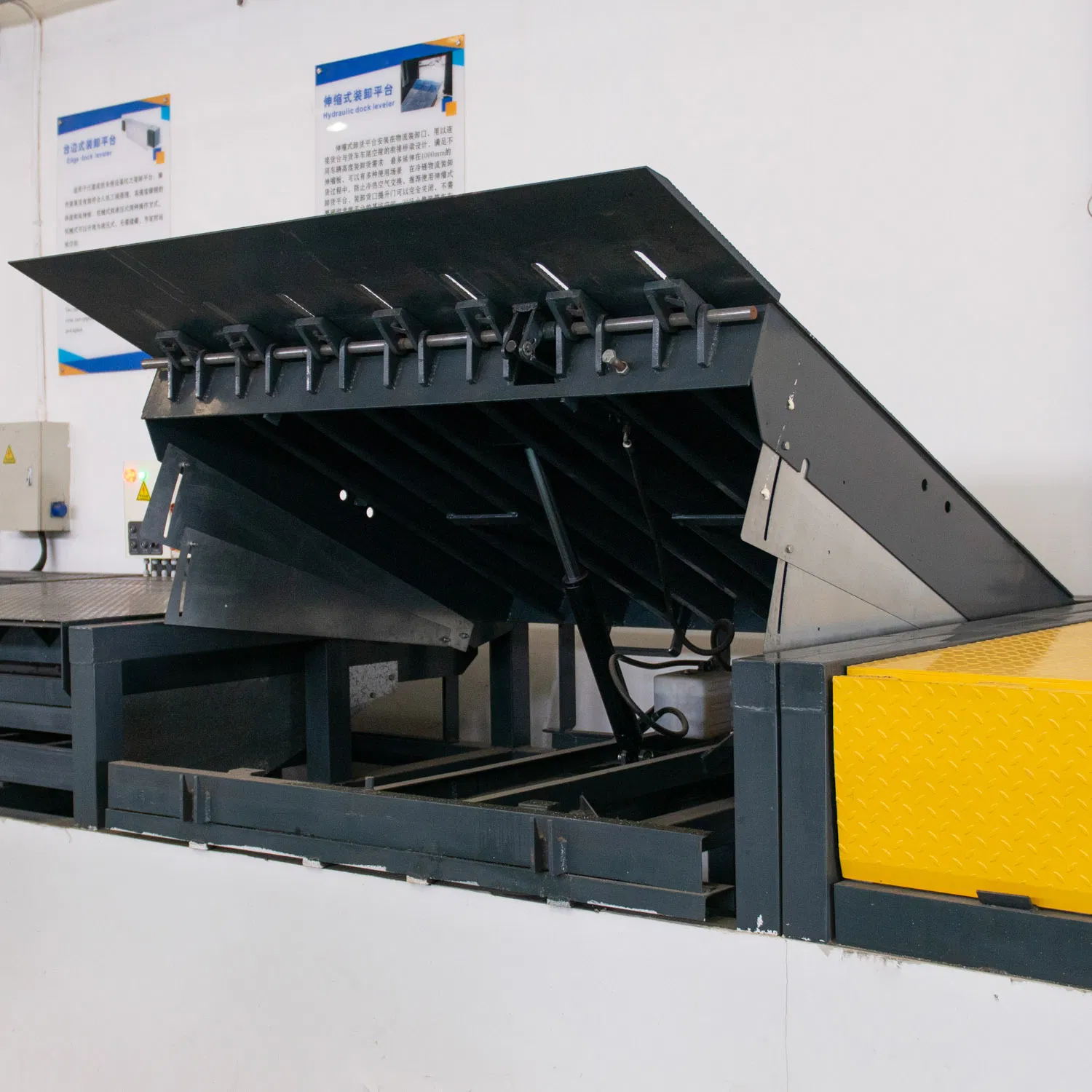

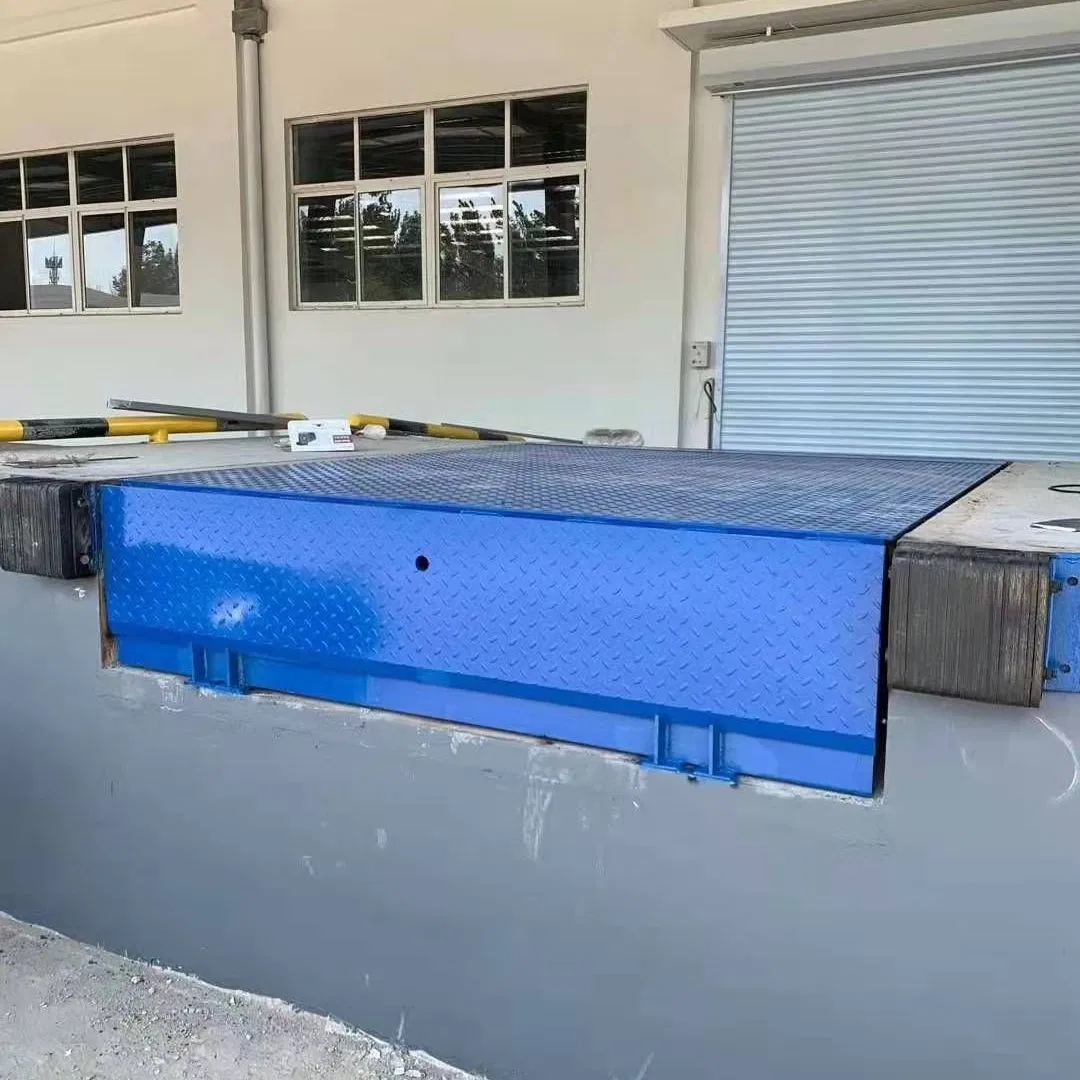

Cold Room Storage Adjustable Heavy Duty Manual Hydraulic Loading Platfrom Dock Leveler
Cold Room Storage Adjustable Heavy Duty Manual Hydraulic Loading Platfrom Dock Leveler
Cold Room Storage Adjustable Heavy Duty Manual Hydraulic Loading Platfrom Dock Leveler
Cold Room Storage Adjustable Heavy Duty Manual Hydraulic Loading Platfrom Dock Leveler
Cold Room Storage Adjustable Heavy Duty Manual Hydraulic Loading Platfrom Dock Leveler
1 / 5
Cold Room Storage Adjustable Heavy Duty Manual Hydraulic Loading Platfrom Dock Leveler
Cold Room Storage Adjustable Heavy Duty Manual Hydraulic Loading Platfrom Dock Leveler
Cold Room Storage Adjustable Heavy Duty Manual Hydraulic Loading Platfrom Dock Leveler
Cold Room Storage Adjustable Heavy Duty Manual Hydraulic Loading Platfrom Dock Leveler
Cold Room Storage Adjustable Heavy Duty Manual Hydraulic Loading Platfrom Dock Leveler

Cold Room Storage Adjustable Heavy Duty Manual Hydraulic Loading Platfrom Dock Leveler

Customization: Available
After-sales Service: Yes
Warranty: 12 Months After Delivery
Send Inquiry

Product Description

📋

Technical Specifications

Model NO.
XF-O-2500
Lift Mechanism
Hydraulic Cylinder
Carrying Capacity
6t / 8t / 10t
Moves
Stationary
Driven Type
Hydraulic
Feature
Explosion-Proof
Certification
CE, ISO 9001
Voltage
220V 50Hz / 380V 50Hz
Power
0.75 Kw / 1.5kw
HS Code
84254290
🖼️

Product Gallery

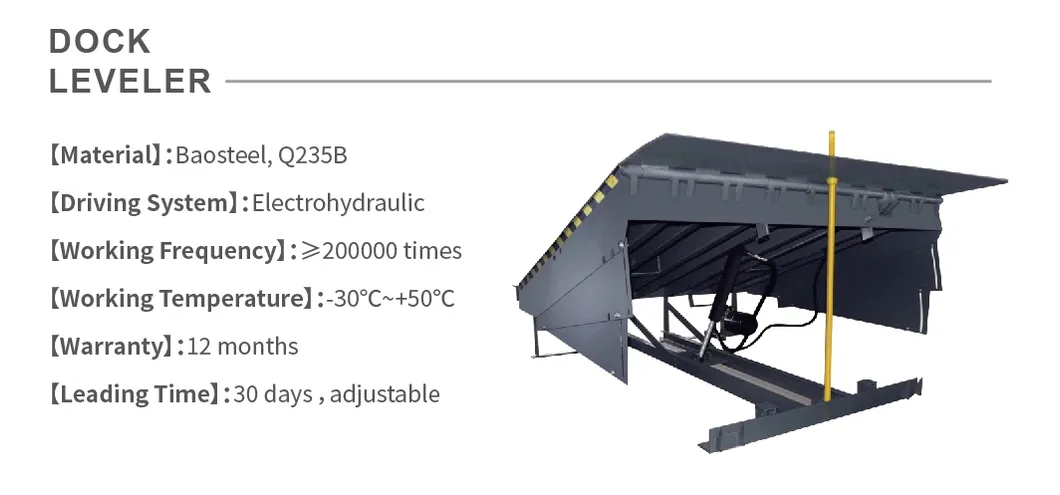

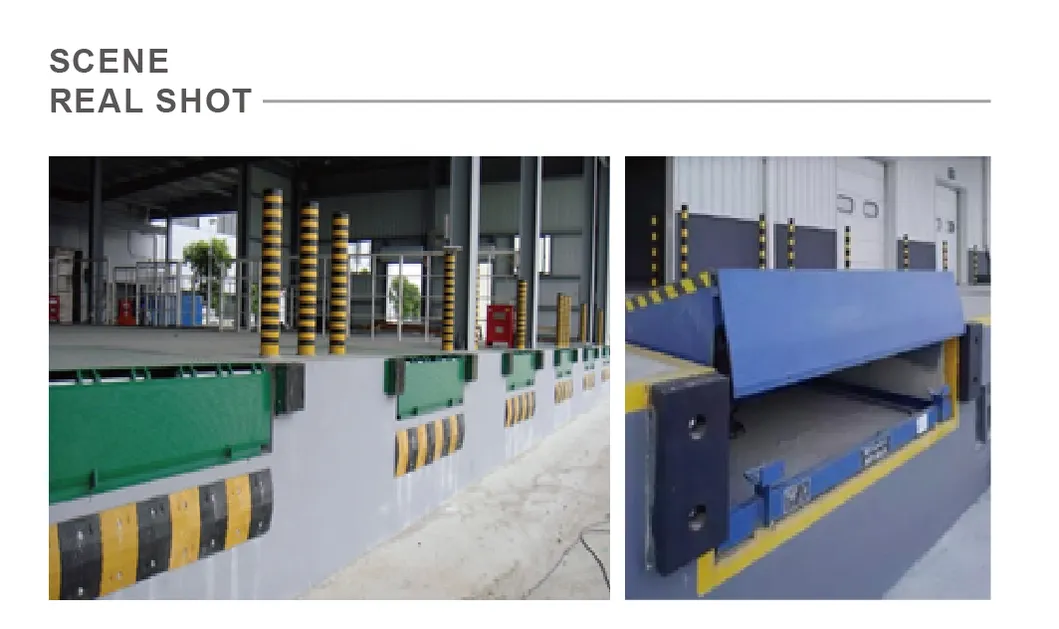

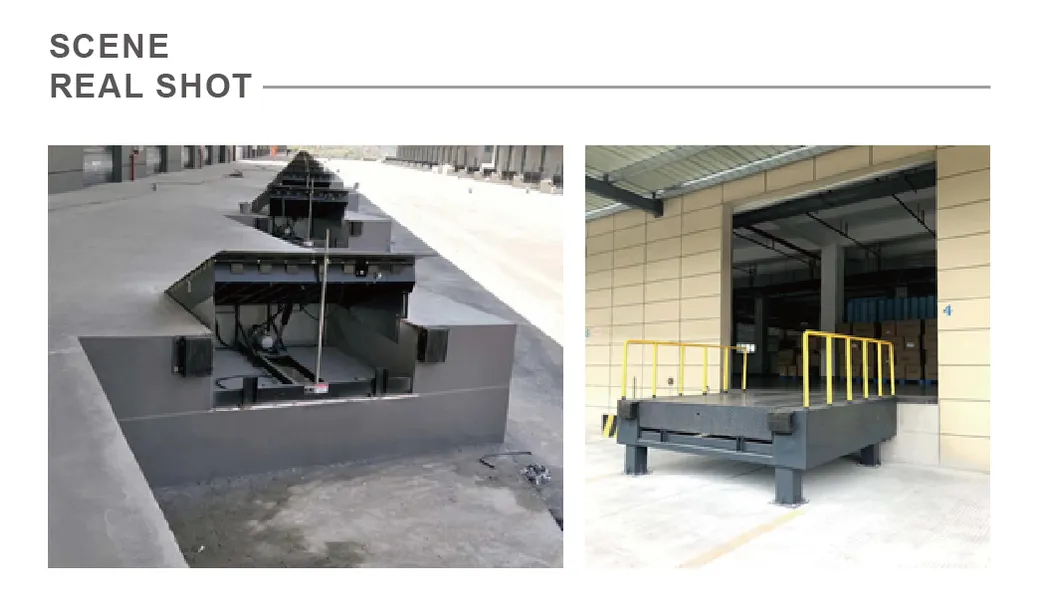

Loading Platfrom Dock Leveler Overview Loading Platfrom Dock Leveler Detail Hydraulic Dock Leveler Structure
⚙️

Detailed Performance Parameters

ENGINEERING SPECIFICATIONS
Main BoardQ235B steel plate with anti-slide pattern, thickness: 6 / 8 mm; blasting surface treatment and powder coating
Lap PlateQ235B steel plate with anti-slide pattern, thickness: 14 / 16mm; surface treatment is blasting and powder coating
HingeOpen type, 8*150mm
Loading WeightDynamic load: 6T / 8T / 10T / 12T / 15T
DrivingElectrohydraulic, 380V 0.75KW ~ 1.5KW
Adjust Scope+400mm / -300mm
Adjust TimeUp ≤ 16S; Down ≤ 10S
Sealing PartsBrand: NOK A505 Complete set of seals for oil cylinder
Side BafflesAutomatic retraction to ensure safety
Working Temperature-30ºC ~ +50ºC
Anti-collision Bumper300*200*100 mm
Safety PartExplosion proof valve
Working Frequency≥ 200,000 times

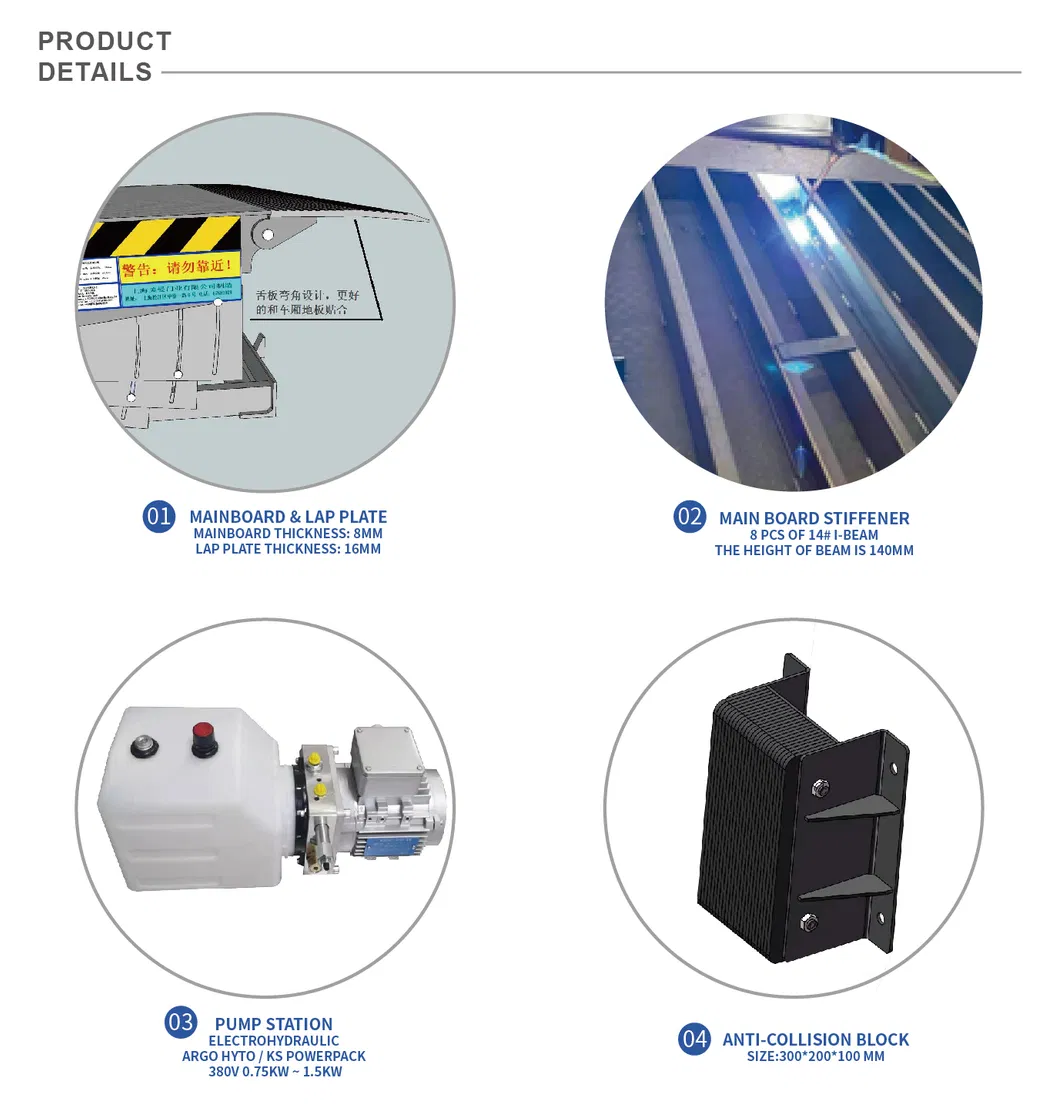

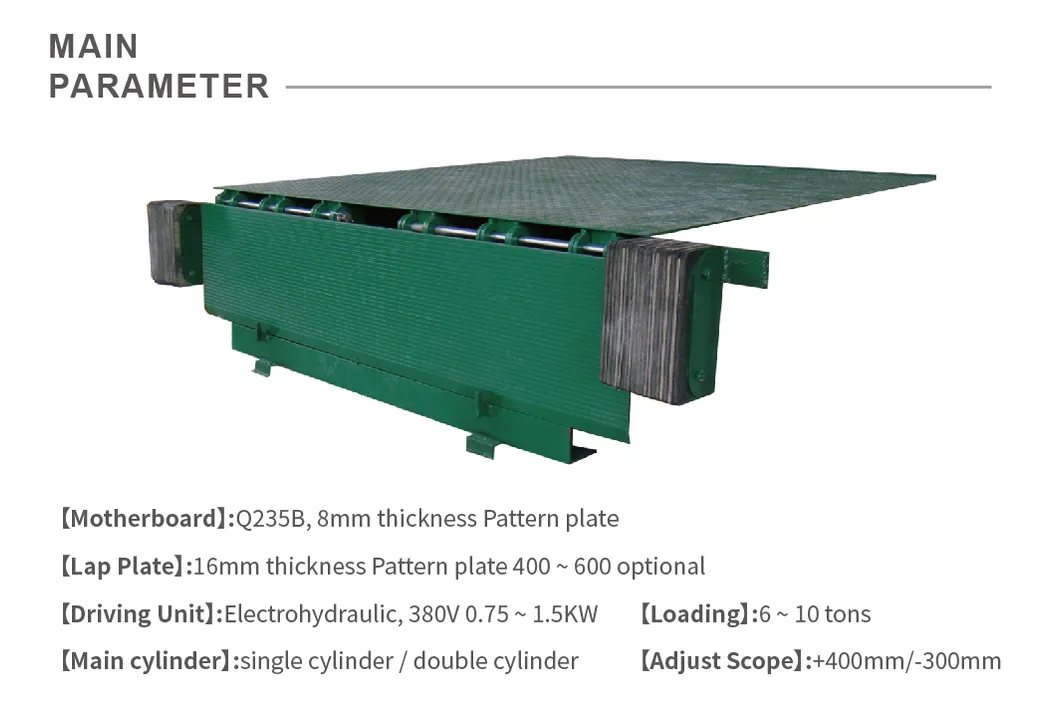

Installation View Product Dimensions Components Detail Packaging View

Key Product Characteristics:

  • Integrated logistic docking system designed for professional heavy-duty use.
  • Advanced blasting and powder coating for superior anti-corrosion protection.
  • Comprehensive certifications including CE and ISO9001:2000.
  • High-durability design rated for over 200,000 working cycles.
❓

Frequently Asked Questions

What is the maximum load capacity of this dock leveler?
The system supports dynamic loading capacities of 6T, 8T, 10T, 12T, and up to 15T, depending on the specific model configuration.
Is this equipment suitable for cold storage environments?
Yes, the unit is designed to operate reliably in a temperature range from -30ºC to +50ºC, making it ideal for cold room storage and various industrial climates.
What safety features are integrated into the hydraulic system?
The dock leveler is equipped with an explosion-proof valve and automatic retraction side baffles to ensure operator and equipment safety during operation.
What material is used for the main platform?
The main board and lap plate are constructed from high-quality Q235B steel plate with an anti-slide pattern, ensuring durability and traction.
What are the power requirements for installation?
The standard driving system is electrohydraulic and compatible with 220V 50Hz or 380V 50Hz power supplies, with a power range of 0.75Kw to 1.5Kw.
How long does it take for the platform to adjust its height?
The adjustment time is highly efficient, with an upward movement speed of ≤ 16 seconds and a downward movement speed of ≤ 10 seconds.
