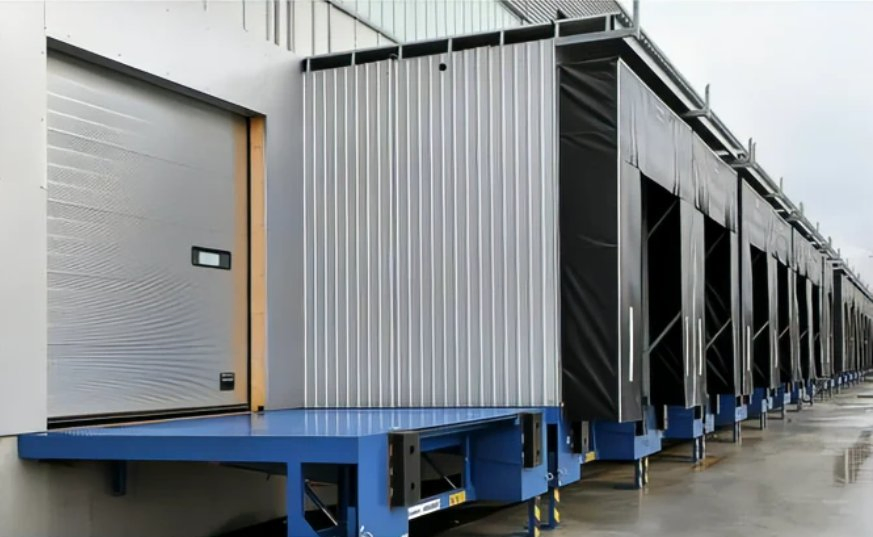

Forklift Platform Cold Storage Load Equipment Single Cylinder Loading Ramp Dock Leveler in Warehouse
Forklift Platform Cold Storage Load Equipment Single Cylinder Loading Ramp Dock Leveler in Warehouse
Forklift Platform Cold Storage Load Equipment Single Cylinder Loading Ramp Dock Leveler in Warehouse
Forklift Platform Cold Storage Load Equipment Single Cylinder Loading Ramp Dock Leveler in Warehouse
Forklift Platform Cold Storage Load Equipment Single Cylinder Loading Ramp Dock Leveler in Warehouse
1 / 5
Forklift Platform Cold Storage Load Equipment Single Cylinder Loading Ramp Dock Leveler in Warehouse
Forklift Platform Cold Storage Load Equipment Single Cylinder Loading Ramp Dock Leveler in Warehouse
Forklift Platform Cold Storage Load Equipment Single Cylinder Loading Ramp Dock Leveler in Warehouse
Forklift Platform Cold Storage Load Equipment Single Cylinder Loading Ramp Dock Leveler in Warehouse
Forklift Platform Cold Storage Load Equipment Single Cylinder Loading Ramp Dock Leveler in Warehouse

Forklift Platform Cold Storage Load Equipment Single Cylinder Loading Ramp Dock Leveler in Warehouse

Customization: Available
After-sales Service: Yes
Warranty: 12 Months After Delivery
Send Inquiry

Product Description

Basic Specifications

Model NO.
XF-O-2500
Lift Mechanism
Hydraulic Cylinder
Carrying Capacity
6t / 8t / 10t
Moves
Stationary
Driven Type
Hydraulic
Running Mode
Stationary
Feature
Explosion-Proof
Certification
CE, ISO 9001
Voltage
220V 50Hz / 380V 50Hz
Power
0.75 Kw / 1.5kw
Transport Package
Wrapping Film
Specification
2000*2000*600 mm
Origin
Made in China
HS Code
84254290
Production Capacity
10000/ Year

Packaging & Delivery

Package Size
200.00cm * 200.00cm * 60.00cm
Package Gross Weight
1000.000kg

Product Description

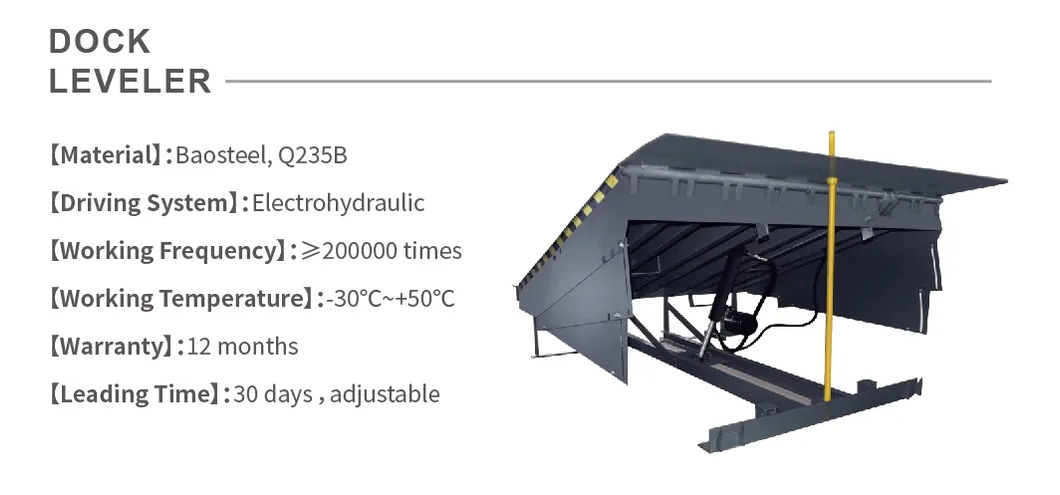

Loading Ramp Dock Leveler

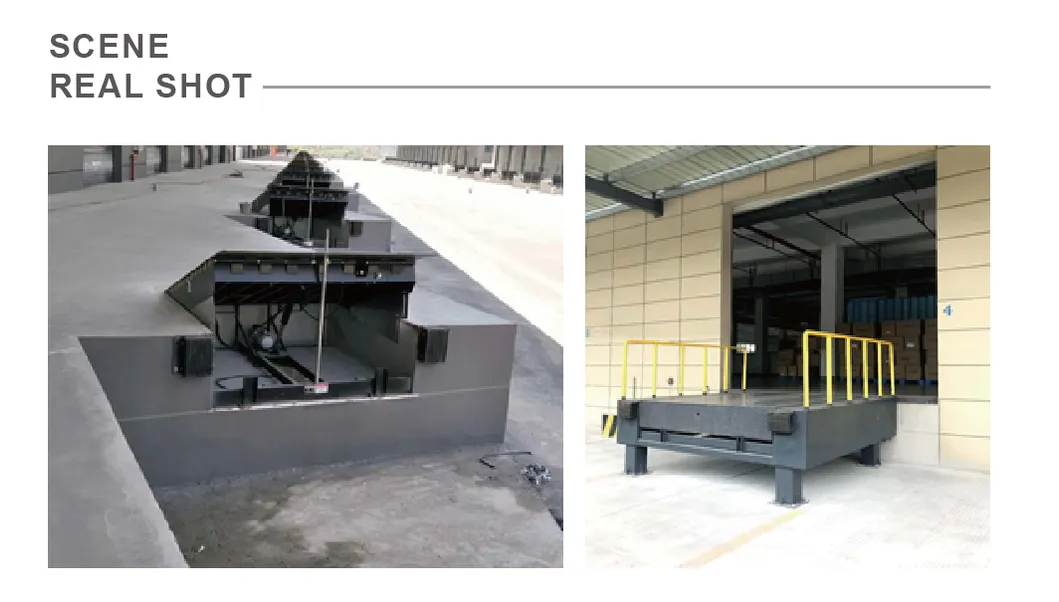

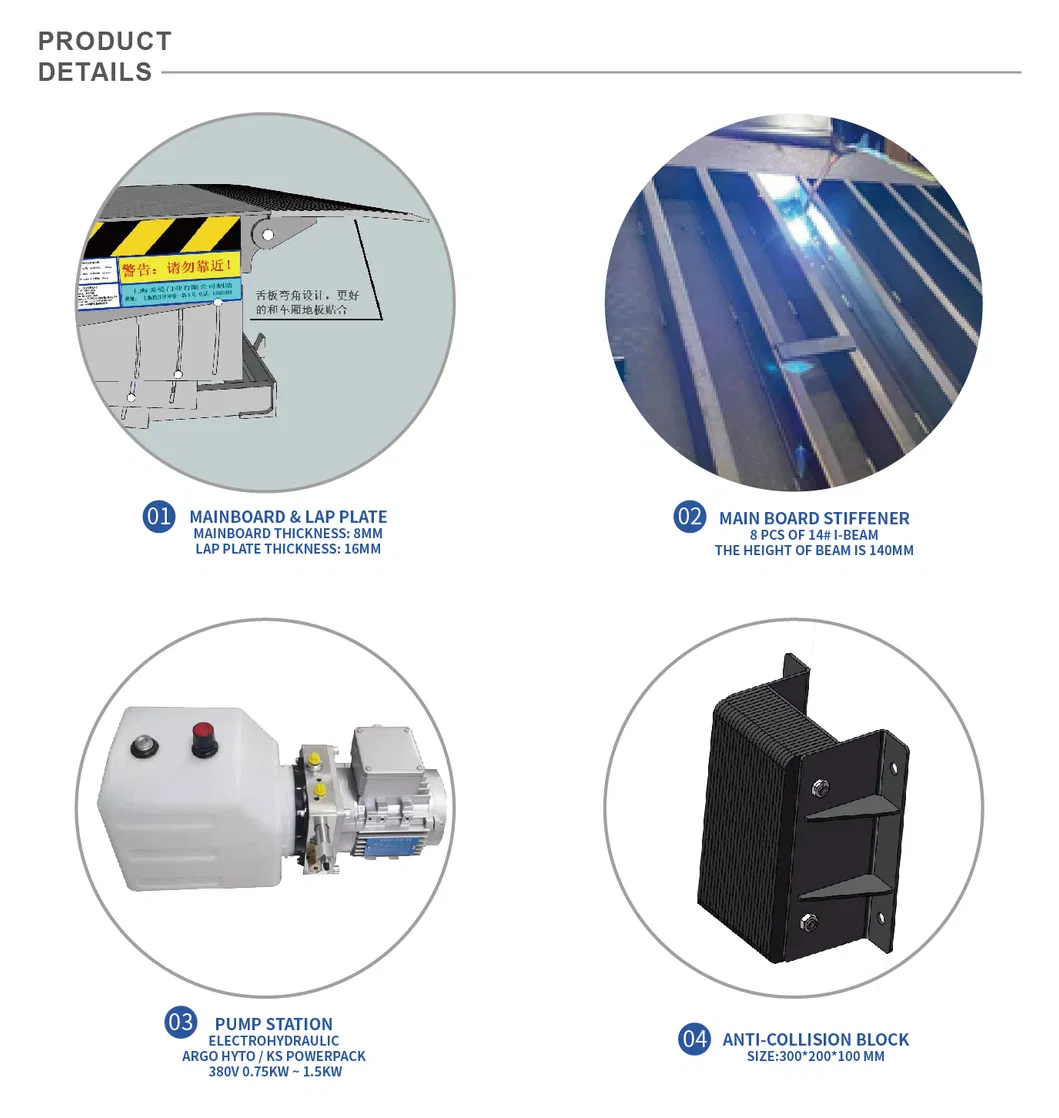

Dock Leveler Detail

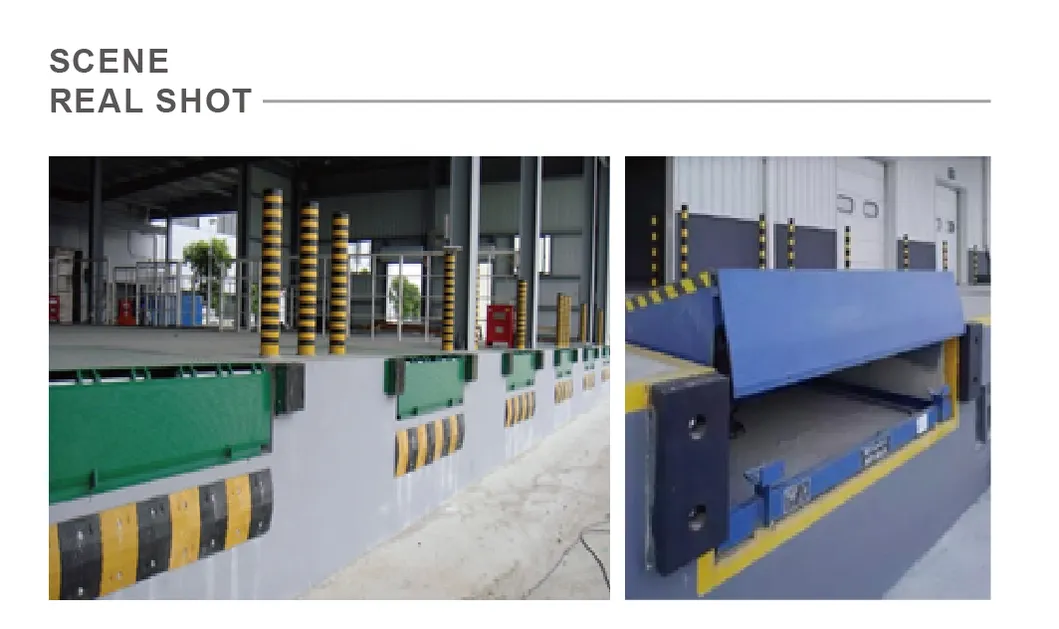

Forklift Platform

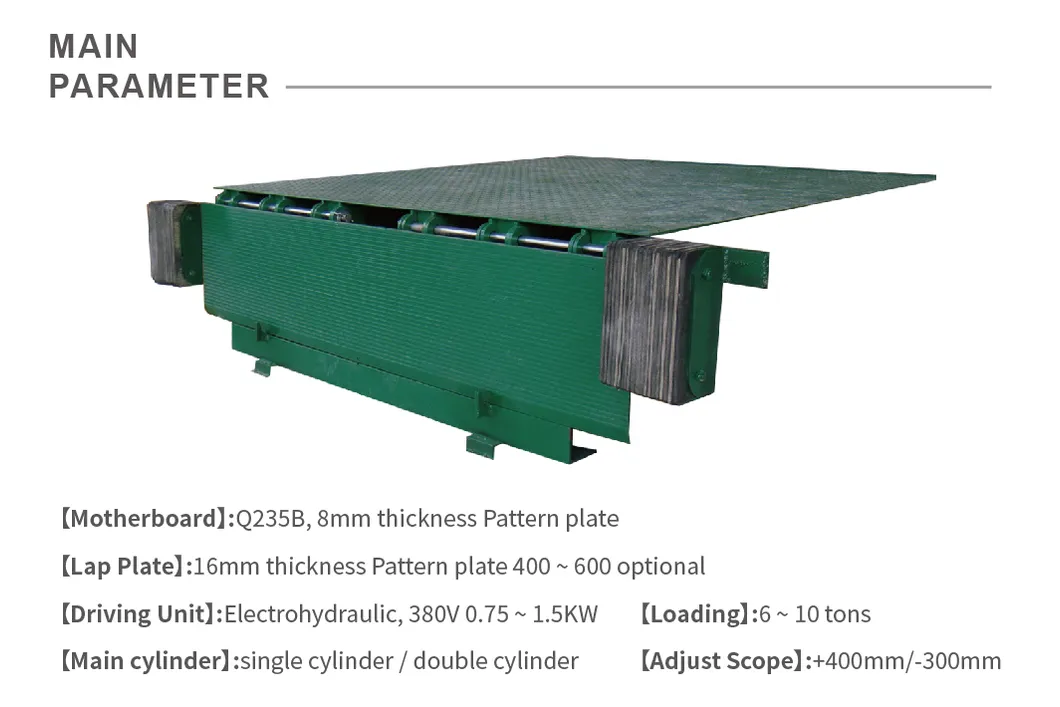

Warehouse Load Equipment
Cold Storage Load Equipment
TECHNICAL PARAMETERS
Main BoardQ235B steel plate with anti-slide pattern, thickness: 6/8 mm; blasting surface treatment and powder coating
Lap PlateQ235B steel plate with anti-slide pattern, thickness: 14/16mm; surface treatment is blasting and powder coating
HingeOpen type, 8*150mm
Loading WeightDynamic load: 6T / 8T / 10T / 12 T / 15T
DrivingElectrohydraulic, Local brand / ARGO HYTO powerpack, 380V 0.75KW ~ 1.5KW
Control SystemStandard 380V English interface
Adjust Scope+400mm / -300mm
Adjust TimeUp ≤ 16S; Down ≤ 10S
Sealing PartsBrand: NOK A505 Complete set of seals for oil cylinder
Main cylinderSingle cylinder / double cylinders
Main Board Stiffener8 pcs of 14# I-Beam, the height of Beam is 140mm
High Pressure Oil PipeT3683-2001; 60mpa
Side BafflesAutomatic retraction to ensure safety
Working Temperature-30ºC ~ +50ºC
Anti-collision Bumper300*200*100 mm
Safety PartExplosion proof valve
Working Frequency≥ 200,000 times
Loading Ramp Structure
Technical Drawing

Frequently Asked Questions

What is the maximum dynamic load capacity of this dock leveler?
The equipment supports various dynamic load capacities including 6T, 8T, 10T, 12T, and up to 15T.
Can this equipment be used in cold storage environments?
Yes, the working temperature range is -30ºC to +50ºC, making it suitable for cold storage loading areas.
What safety features are included?
It is equipped with explosion-proof valves, automatic retraction side baffles, and anti-collision bumpers to ensure operator safety.
What material is used for the main board?
The main board is made of Q235B steel plate with an anti-slide pattern, featuring a thickness of 6mm or 8mm and a powder-coated finish.
What are the power requirements for the hydraulic system?
It supports both 220V 50Hz and 380V 50Hz voltage options with a power range of 0.75 Kw to 1.5 Kw.
What is the estimated service life of the system?
The system is designed for high-frequency use, with a tested working frequency of ≥ 200,000 times.
