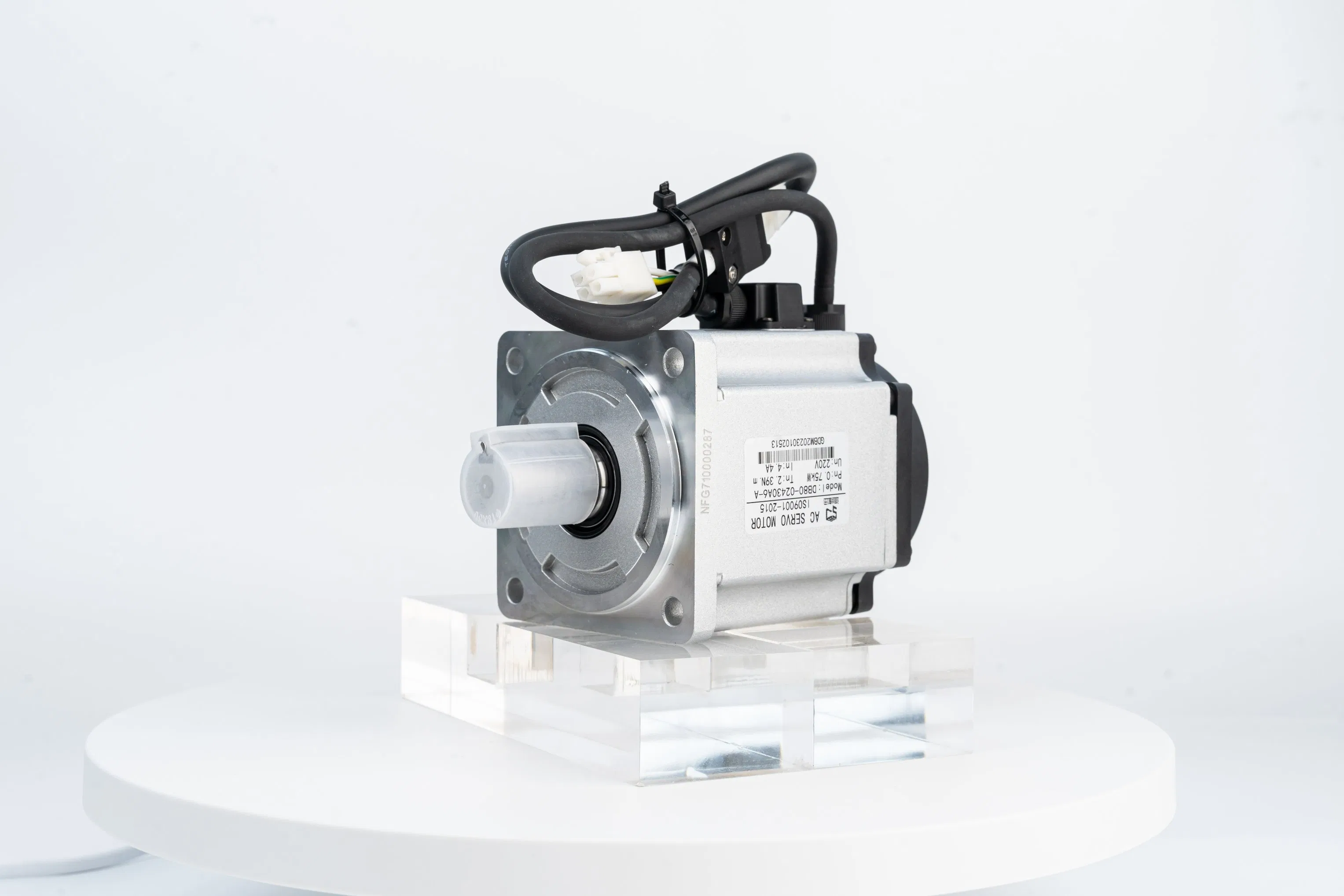

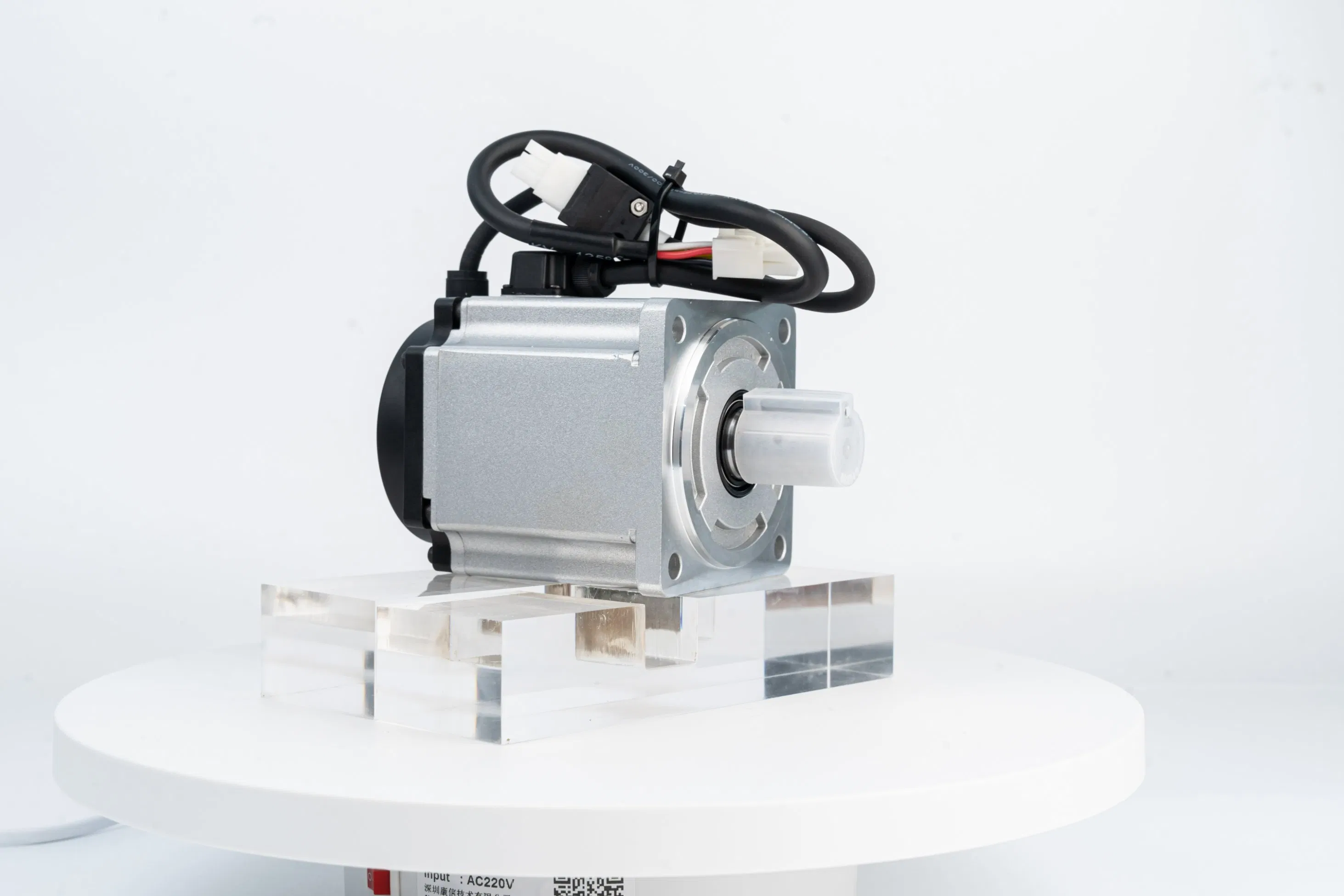

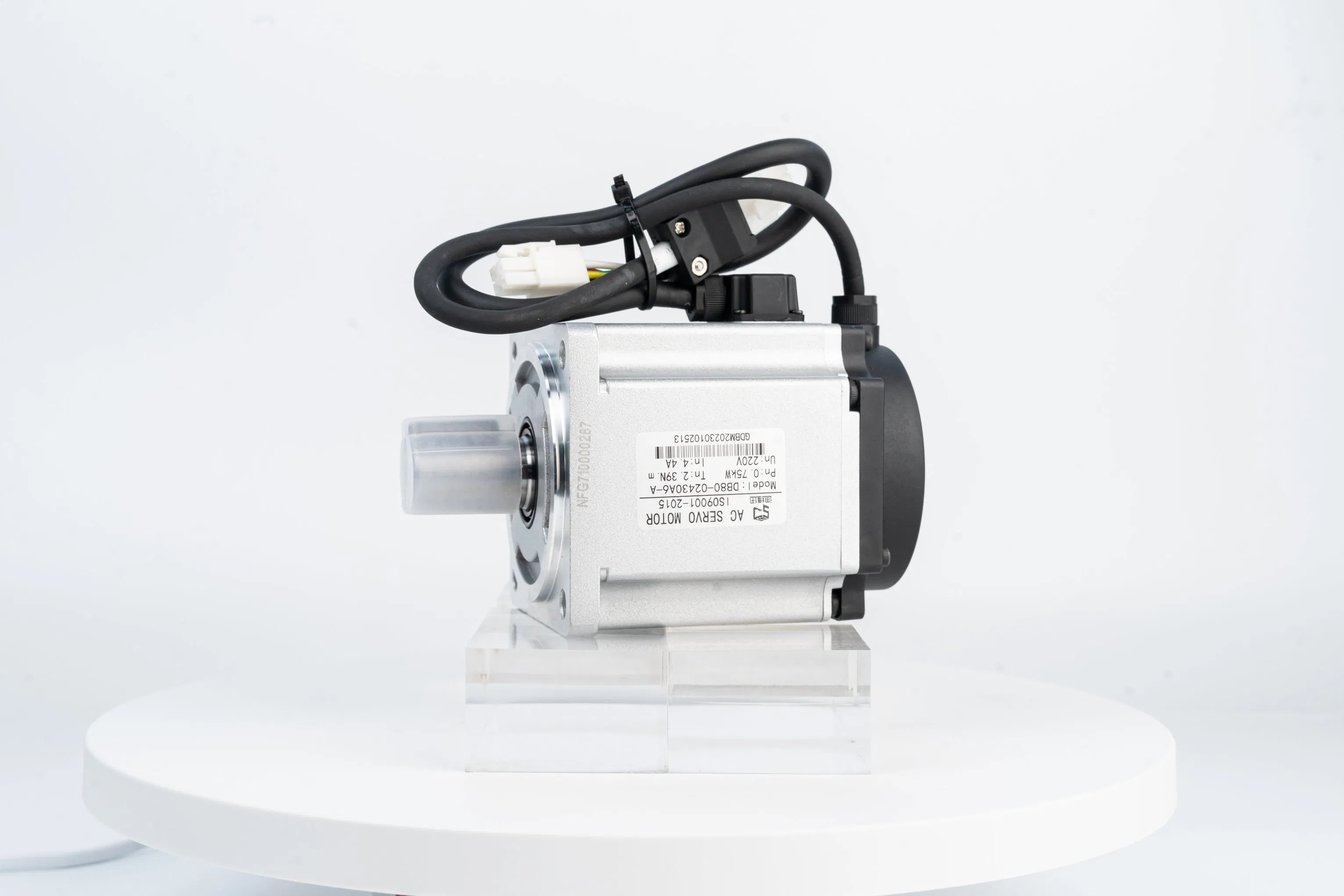

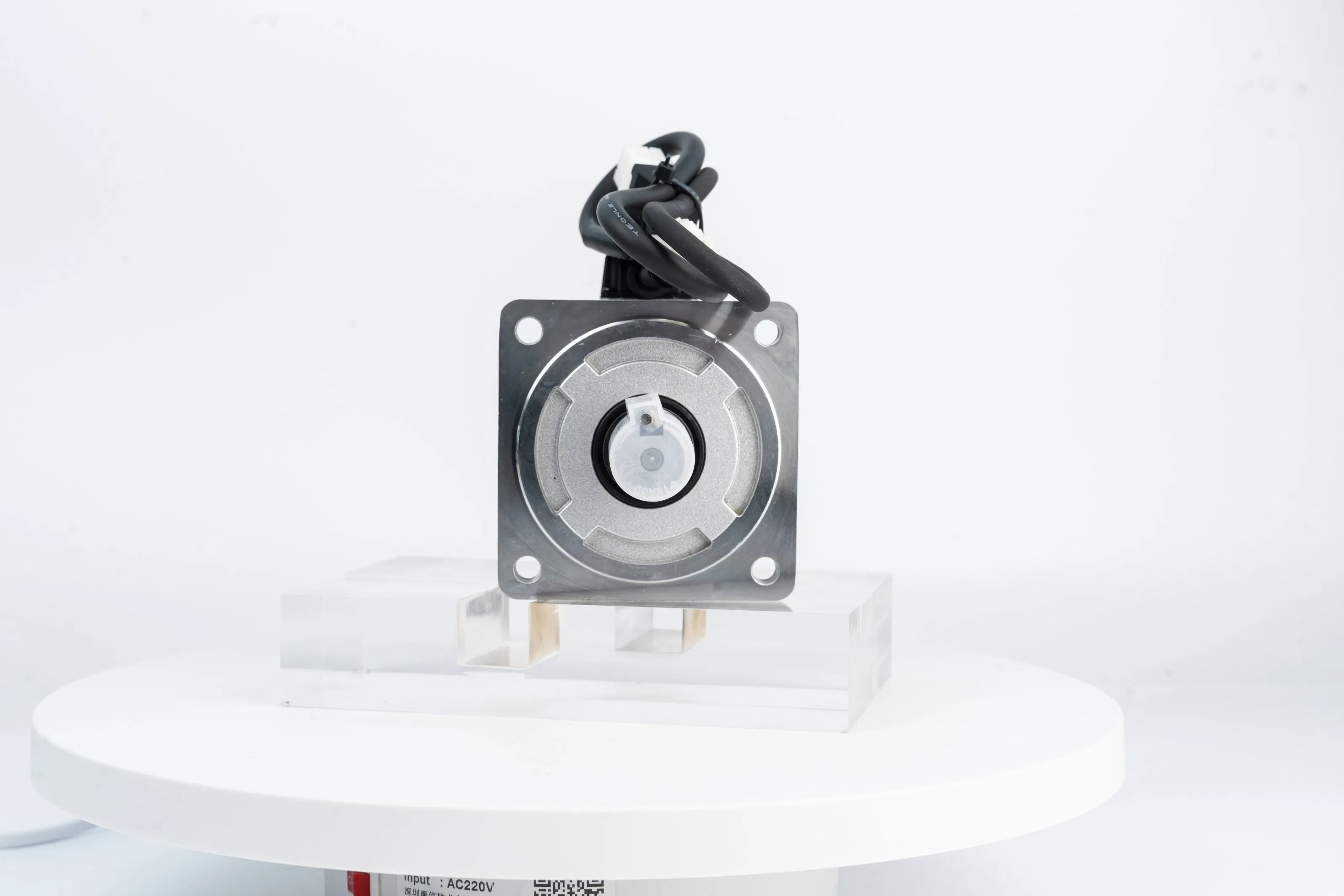

Complete Set Die Casting 45kw Hydraulic Servo System with Servo Motor and Drive
Complete Set Die Casting 45kw Hydraulic Servo System with Servo Motor and Drive
Complete Set Die Casting 45kw Hydraulic Servo System with Servo Motor and Drive
Complete Set Die Casting 45kw Hydraulic Servo System with Servo Motor and Drive
Complete Set Die Casting 45kw Hydraulic Servo System with Servo Motor and Drive
1 / 5
Complete Set Die Casting 45kw Hydraulic Servo System with Servo Motor and Drive
Complete Set Die Casting 45kw Hydraulic Servo System with Servo Motor and Drive
Complete Set Die Casting 45kw Hydraulic Servo System with Servo Motor and Drive
Complete Set Die Casting 45kw Hydraulic Servo System with Servo Motor and Drive
Complete Set Die Casting 45kw Hydraulic Servo System with Servo Motor and Drive

Complete Set Die Casting 45kw Hydraulic Servo System with Servo Motor and Drive

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
PS1100
Work Principle
Vector Control Transducer
Switch Mode
High Carrier Frequency PWM
Circuit Type
Voltage Type
Power Supply
Low Voltage VFD
Transformation
AC-DC-AC
Main Function
Elevator/Textile/Constant Torque
Warranty
3 Years
HS Code
85044099
Product Description
Specialized professional production of AC drives with a comprehensive product family. Frequency inverters cover the power range from 0.4 to 630kW, with voltage ranges between 220V and 480V. Over 300,000 units are operating reliably across diverse industrial sites.
  • Response frequency up to 1.5KHz, ideal for high-speed response applications.
  • Operation menu and parameter modification consistent with Panasonic A5 series servo drivers.
  • Encoder interface compatible with Panasonic A5 series, supports direct operation with A5 and A6 motors.
  • Directly drives direct drive motors and supports up to 23-bit absolute encoders.
  • Equipped with specialized electronic cam and internal position modules.
  • Widely used in manipulators, winding machines, die-cutting, 3C processing, textile, and SCARA robots.

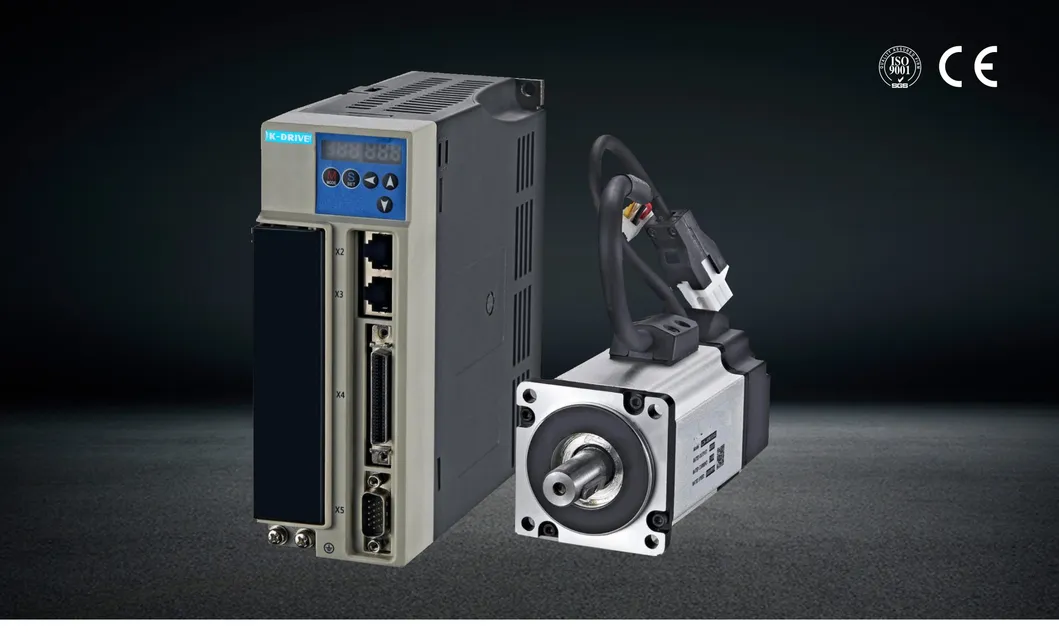

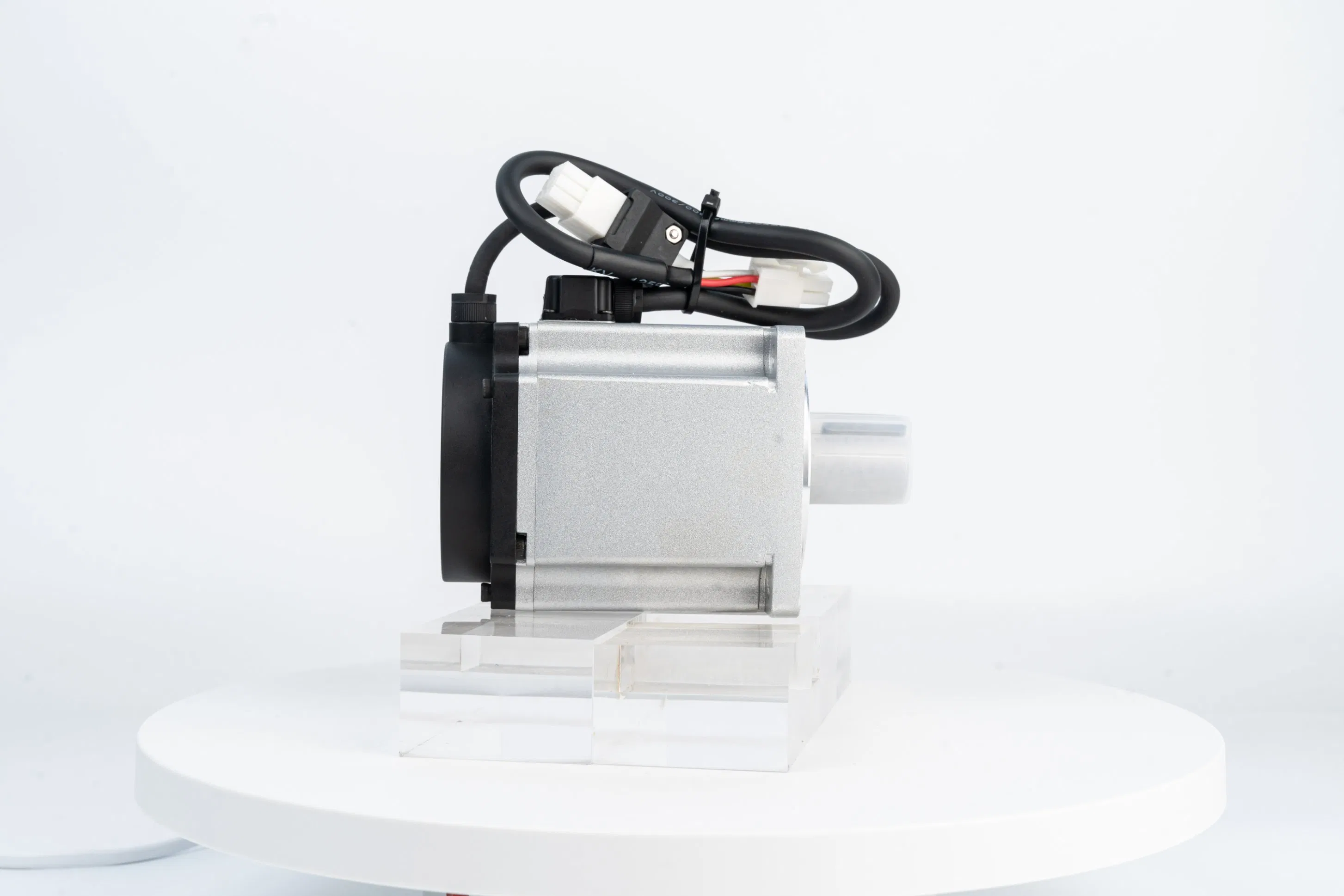

Servo System Motor and Drive
Product Parameters
Performance Features Specifications
Applicable motorsAsynchronous / synchronous motors
Starting torque0.5Hz, 180% (SVC); 0Hz, 200% (VC)
Speed adjustable range1:200 (SVC), 1:1000 (VC)
Ambient temperature-10-50ºC (No derating required for most models)
Rated input voltage208VAC - 480VAC
CommunicationModbus RTU/ASCII, Profibus-DP, CANopen
Position controlFixed length or angular positioning supported
Field weakening controlSupported
AutotuneOnline & Offline support
Ramp-upShort-time ramp-up without tripping

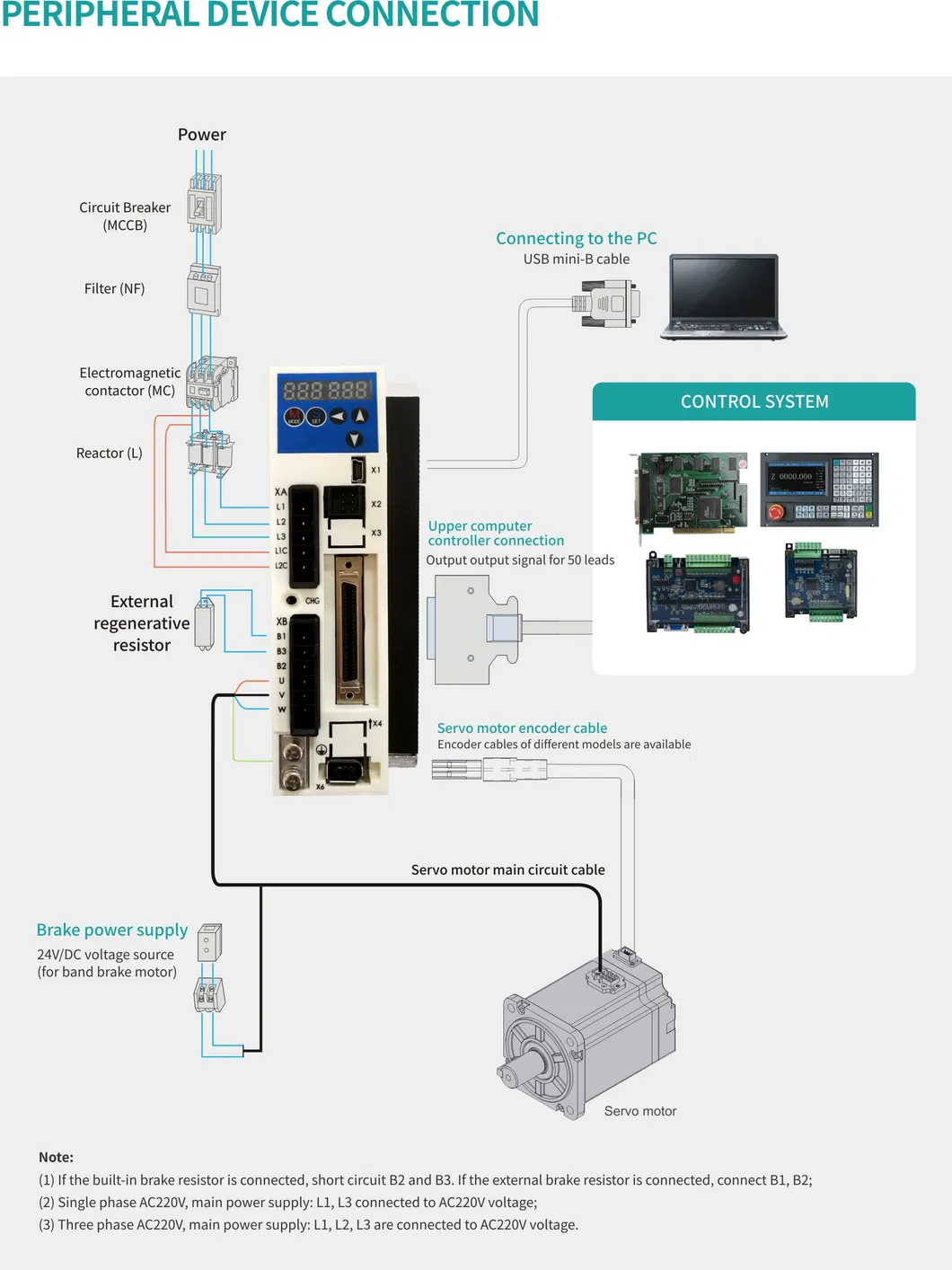

Detailed Parameters 1

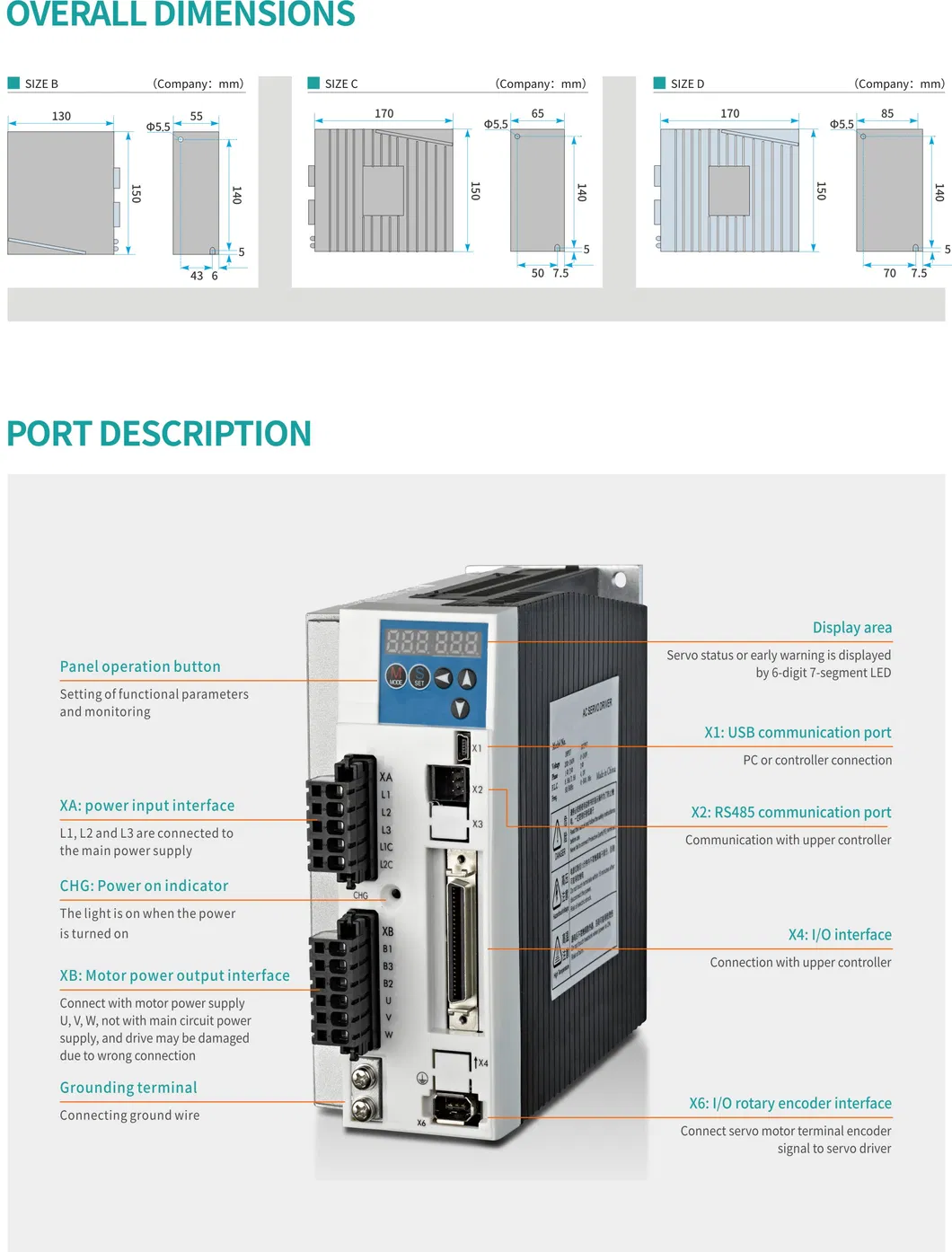

Detailed Parameters 2

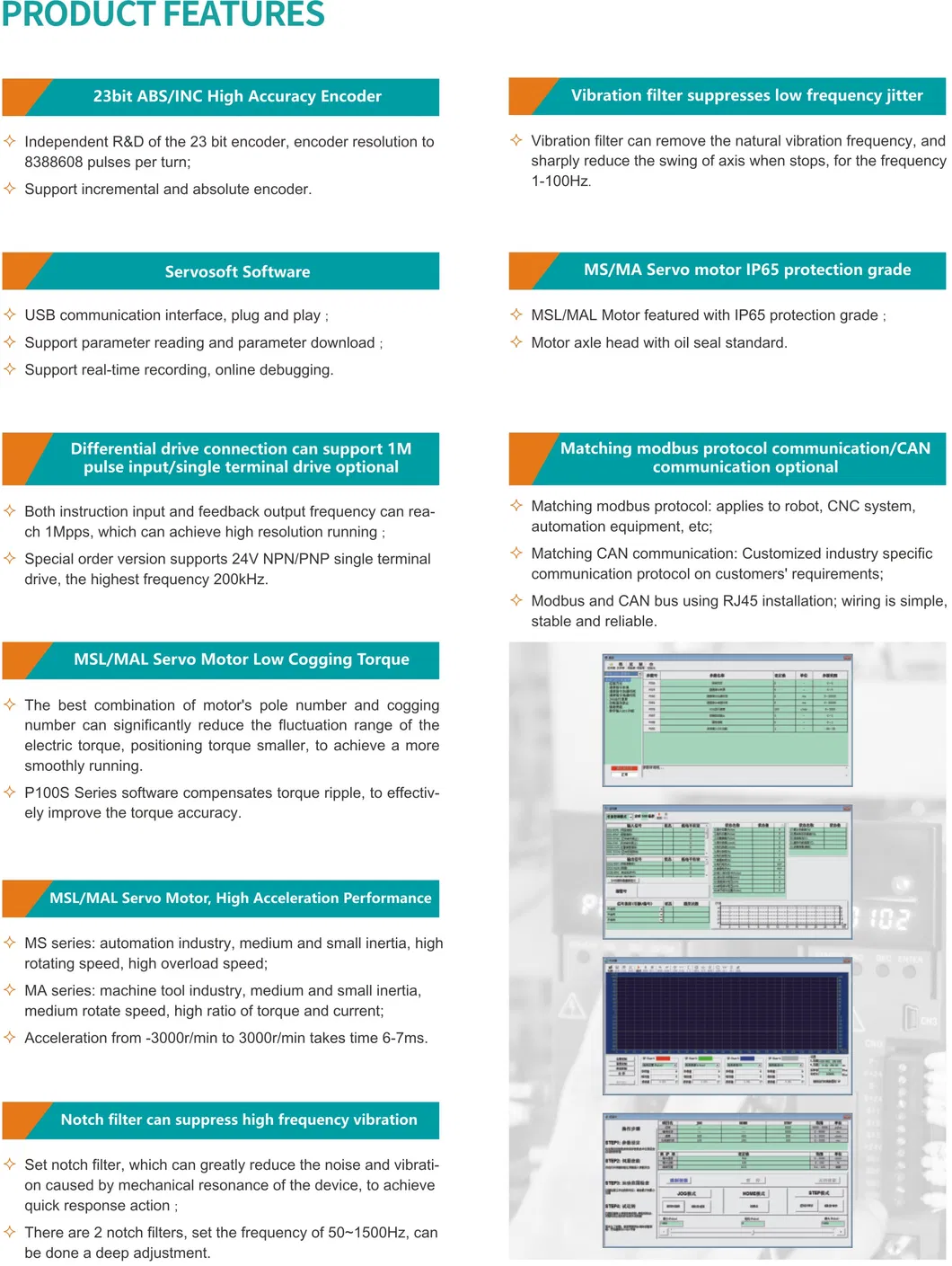

Technical Features
Product Technical Features
Industrial Applications
Application Profile
Frequently Asked Questions
What is the power and voltage range of these inverters?
The power range covers 0.4kW to 630kW, with input voltage options between 208V and 480VAC.
Is this drive compatible with third-party motors?
Yes, it is designed to be highly compatible, specifically matching the menu and interface of Panasonic A5 series, and it supports both asynchronous and synchronous motors.
What is the response speed of the system?
The system offers a high-speed response frequency of up to 1.5KHz, making it suitable for high-precision industrial automation.
What communication protocols are supported?
It supports standard industrial protocols including Modbus RTU/ASCII, Profibus-DP, and CANopen.
What is the standard warranty period?
This product comes with a comprehensive 3-year warranty for peace of mind in industrial environments.
Can it handle high starting torque requirements?
Yes, it provides 180% torque at 0.5Hz in sensor-less vector control and up to 200% torque at 0Hz in closed-loop vector control.
