Customization: Available
After-sales Service: Free Spare Parts Will Be Provided for Any Quality-
Warranty: Free Spare Parts Will Be Provided for Any Quality-
Send Inquiry

Product Description

📋 Basic Information
Model NO.
TP-CL-01
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Articulated Lift
Driven Type
Hydraulic
Certification
GS, CE, RoHS, ISO 9001
Load Capacity
1-10 ton
Lifting Height
0.9m-1.5m
Platform
Anti-Skid High Strength Steel
Control System
CPU Integrated (Manual or Electric)
Operating Temp
-25 ºC ~ + 50 ºC
Pumping Station
Switzerland Bucher
Specification
2000*2000mm*600mm
🏗️ Product Presentation
Stationary Dock Leveler for Warehouse | Custom Size | Electric or Manual Operation

The hydraulic stationary dock leveler is a special auxiliary equipment used for loading and unloading of goods. Its height can be adjusted to match the different heights of lorries. Transport vehicles like forklifts can directly move into the wagon box with goods, requiring only one person for operation. This equipment helps enterprises significantly reduce labor force, improve work efficiency, and speed up the rate of goods flow to achieve greater economic results.
Fixed Dock Leveler
Pit Mounted Dock Leveler
Hydraulic Dock Leveler
📊 Technical Specifications
Model Number Load (T) Platform Size (mm) Overall Size (mm) Power (V/KW)
8A82000*20002000*2000*6001.1kw/380v
8B82000*25002000*2500*600
10A102000*20002000*2000*600
10B102000*25002000*2500*600
12A122000*20002000*2000*600
15A152000*20002000*2000*600
20A202000*20002000*2000*6001.1kw/380v

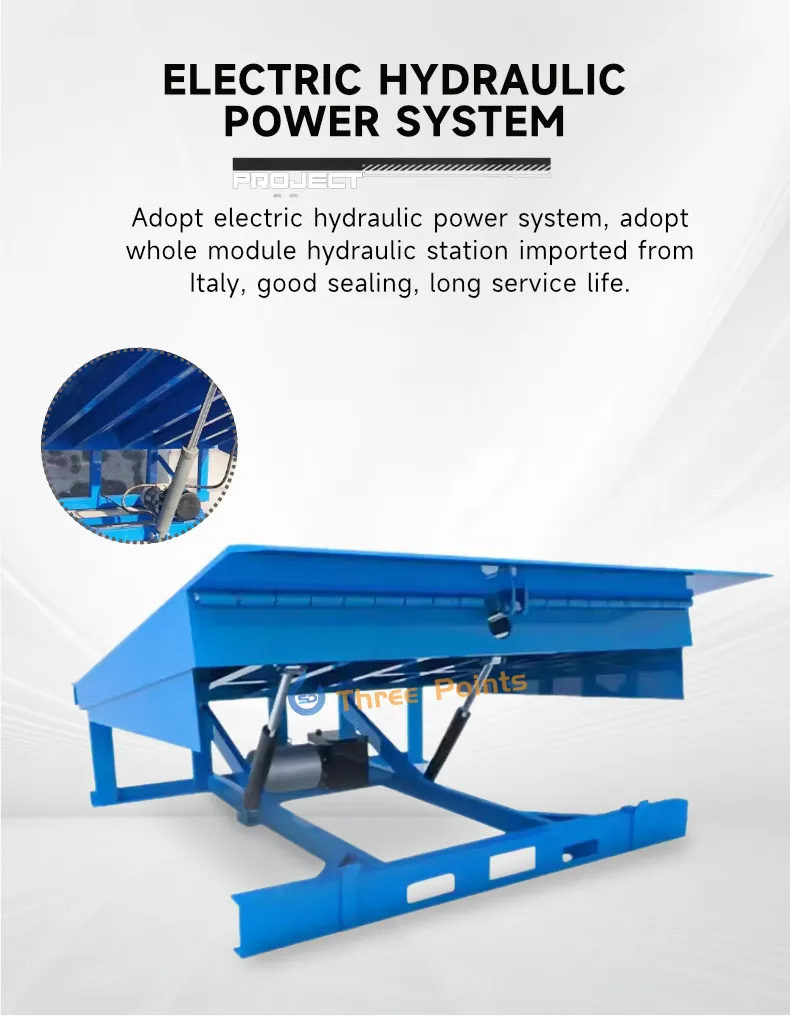

Dock Leveler Detail 1

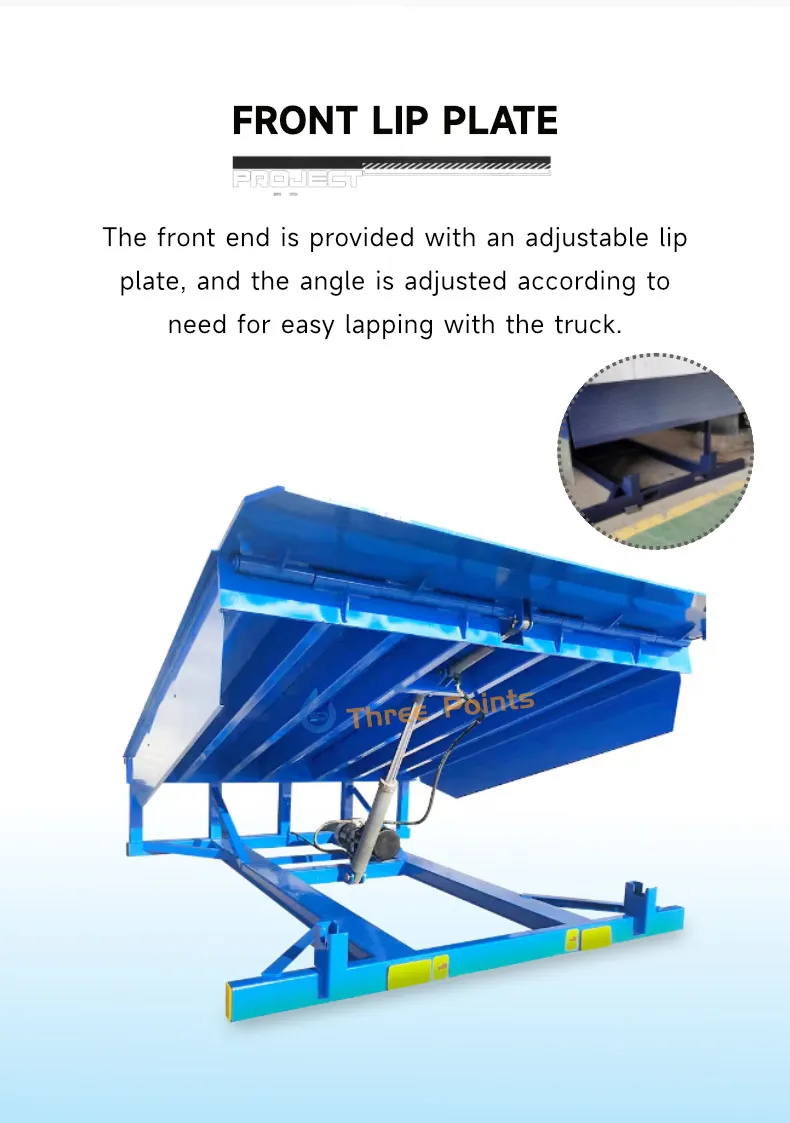

Dock Leveler Detail 2

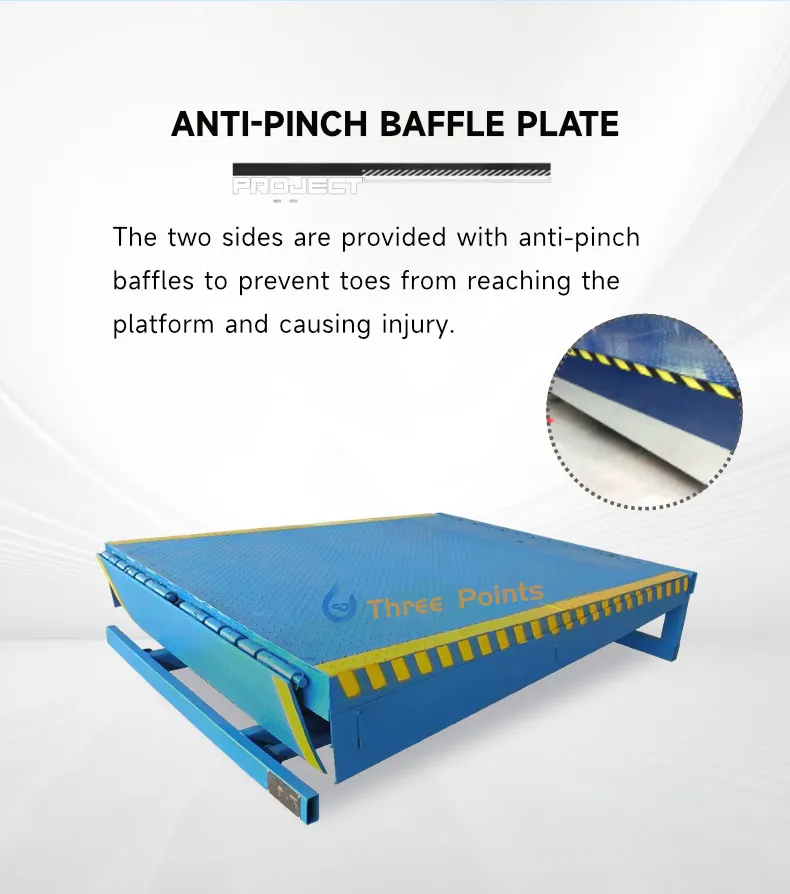

Dock Leveler Detail 3
Full View Leveler
Leveler Mechanism
Installation View
🏭 Professional Manufacturing
Our facility specialized in hydraulic lifting platforms with a focus on quality and innovation. The factory covers 8,000 square meters and is equipped with advanced production lines and strict quality control systems. Our core offerings include:
  • Scissor lifts (mobile, stationary, self-propelled)
  • Dock ramps (mobile and fixed)
  • Cargo lifts / goods lifts
  • Aerial work platforms
All products comply with CE standards and are utilized globally across logistics centers, warehouses, and construction sites.

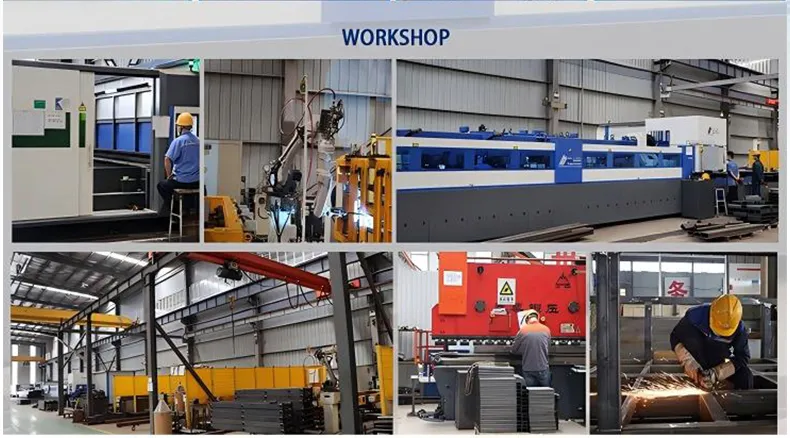

Production Capabilities
❓ Frequently Asked Questions
1. What is the primary function of a stationary dock leveler?
It serves as an auxiliary bridge between the warehouse floor and transport vehicles, allowing forklifts to drive directly into the truck for efficient loading and unloading.
2. Can the load capacity be customized?
Yes, we offer standard capacities from 8 to 20 tons, and can provide customized solutions based on specific weight requirements ranging from 1 to 10 tons or more.
3. What safety features are included?
Our dock levelers feature anti-skid high-strength steel plates, explosion-proof hydraulic systems, and are fully CE certified for safe operation.
4. What is the standard power source for the electric operation?
The standard configuration uses a 380V/1.1KW AC power source, but manual control options are also available.
5. What is the operating temperature range?
The equipment is designed to operate reliably in environments ranging from -25 ºC up to +50 ºC.
6. How many people are needed to operate this equipment?
The system is designed for high efficiency and only requires one person to operate the electric or manual controls.
