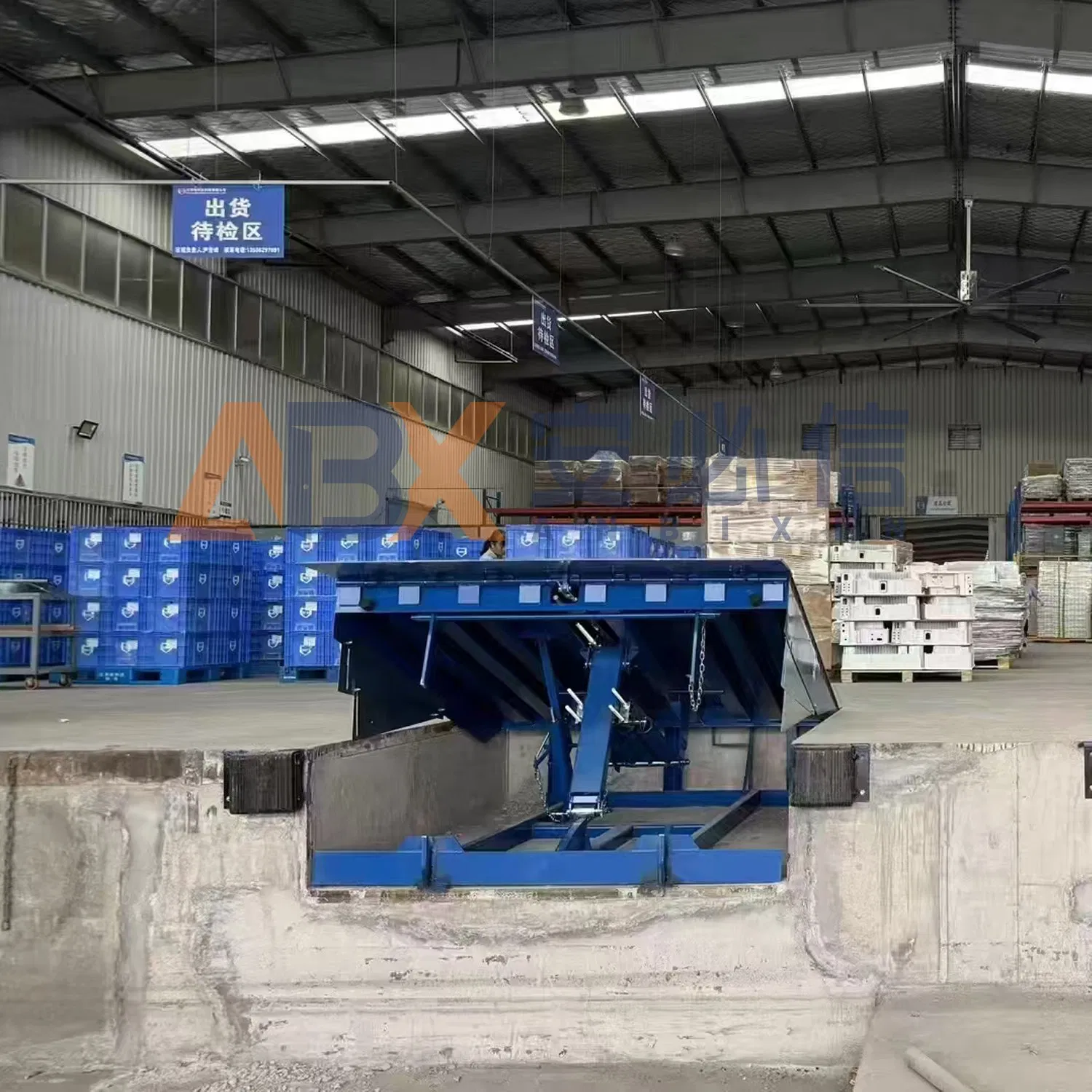

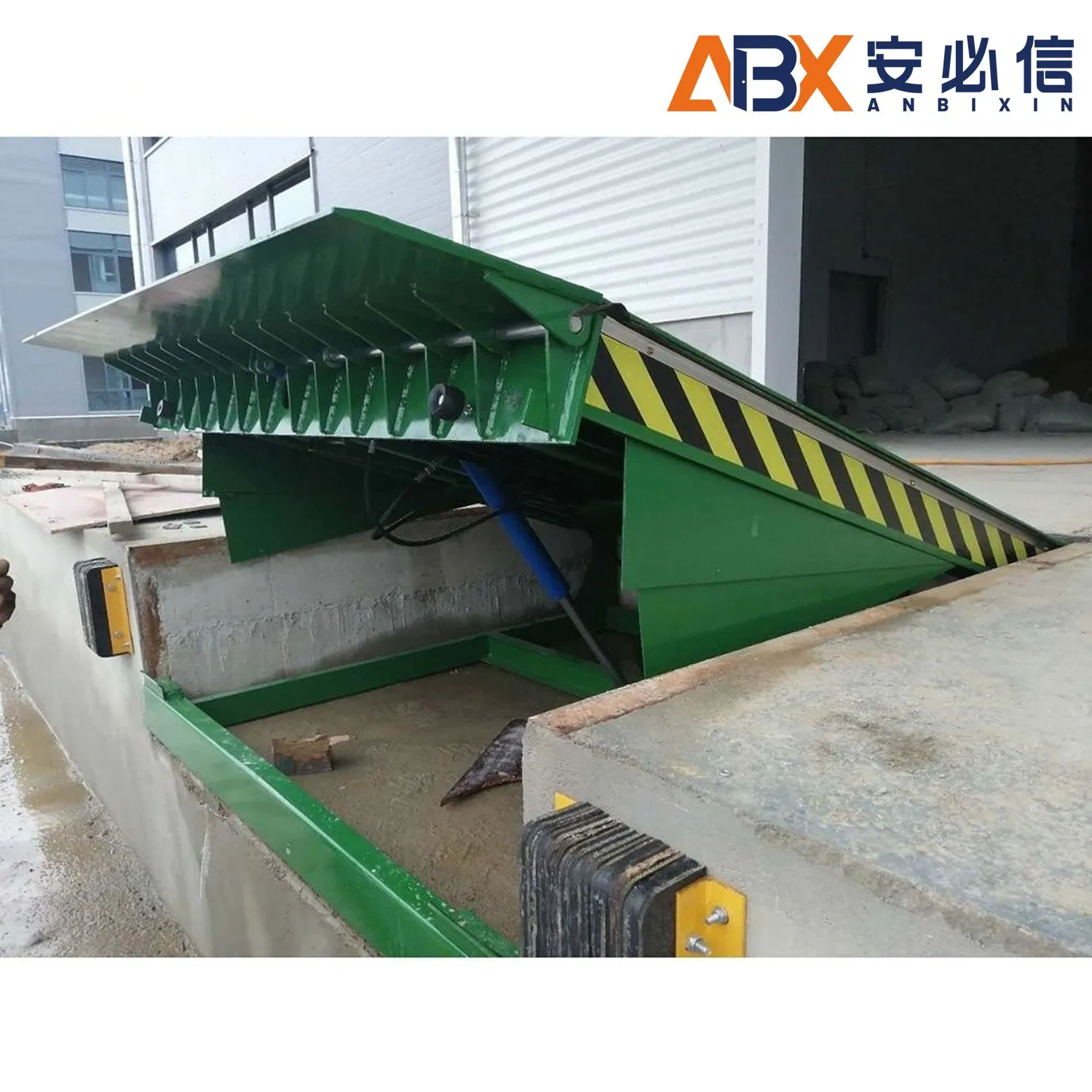

Heavy Duty Pit Mounted Dock Leveler with Galvanized Steel Construction

Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism:	Scissor Lift
Carrying Capacity:	Weight Level

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

DL101

Driven Type

Hydraulic

Running Mode

Stationary

Feature

Explosion-Proof, Insulating

Certification

GS, CE, RoHS, ISO 9001

Product Name

Dock Leveler

Rated Load

Net 8 Tons, Dynamic 6 Tons

Power Form

Electric-Hydraulic

★

Product Description

DOCK LEVELER: Loading and unloading platforms are suitable for hydraulic, pneumatic, or mechanical installations. It helps users safely and efficiently unload trucks of all heights and sizes.

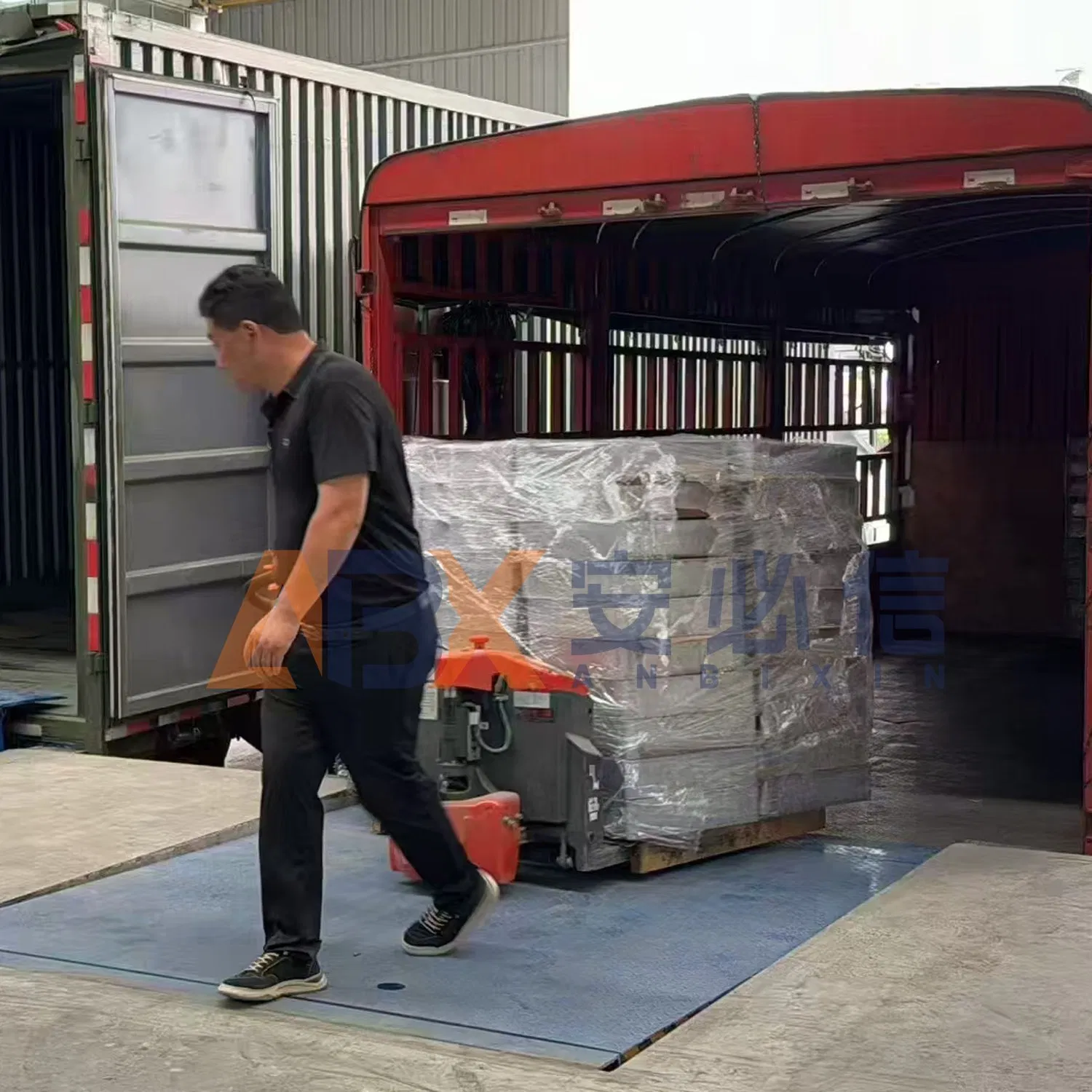

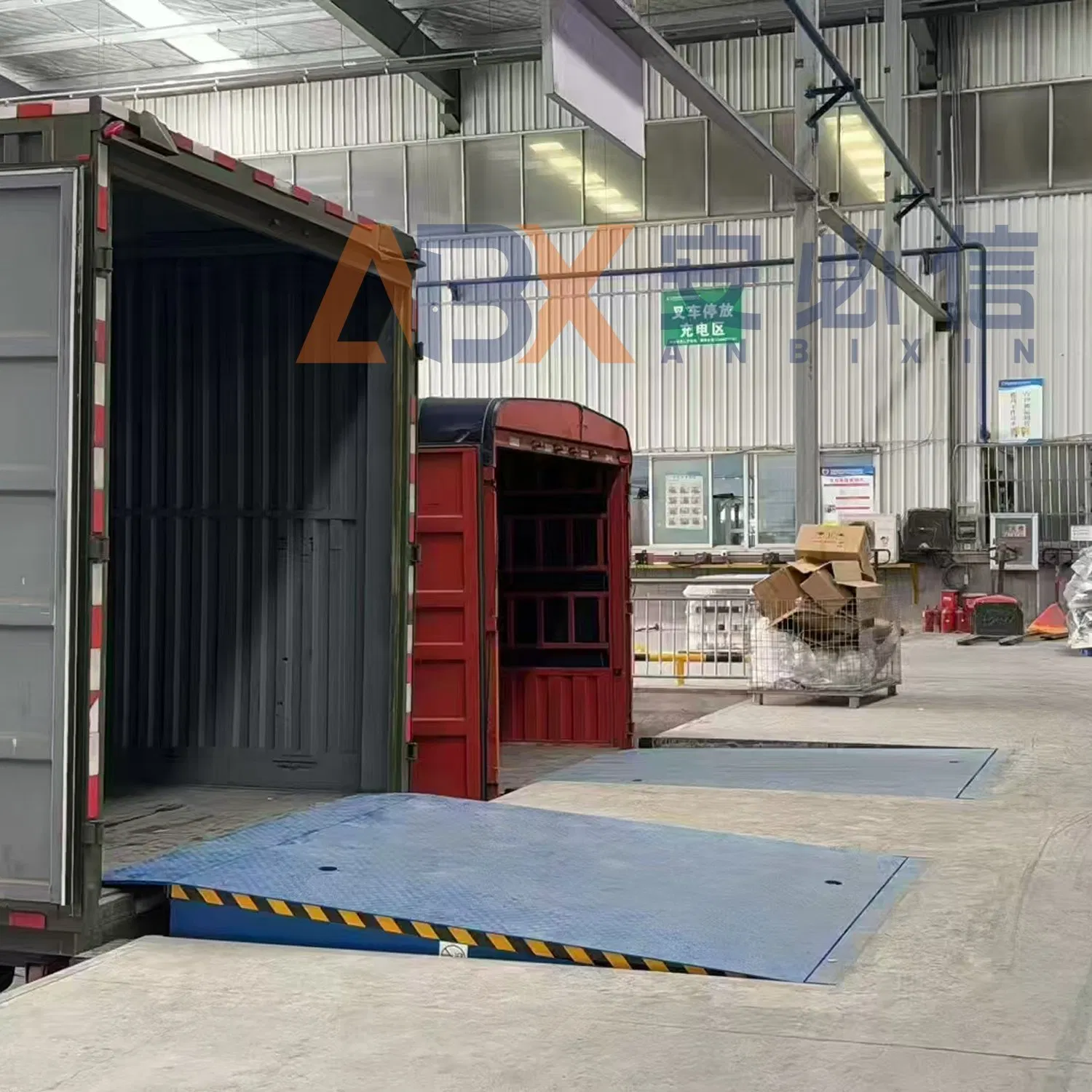

The platforms are divided into fixed and mobile types. Its main function is to build a bridge between the cargo platform and the transport vehicle, allowing the forklift to travel conveniently for unloading.

It automatically adjusts its height according to different vehicle models and changes in the vehicle compartment during loading. This product is specially designed for dimensions and load-bearing capacity to meet specific user needs.

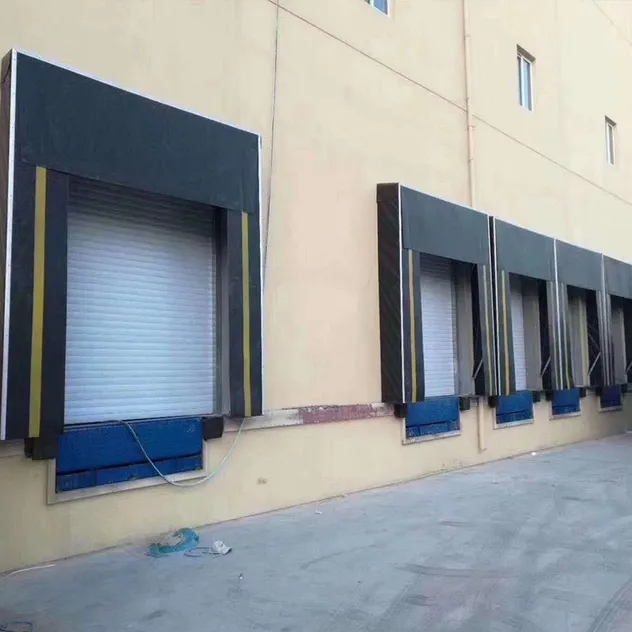

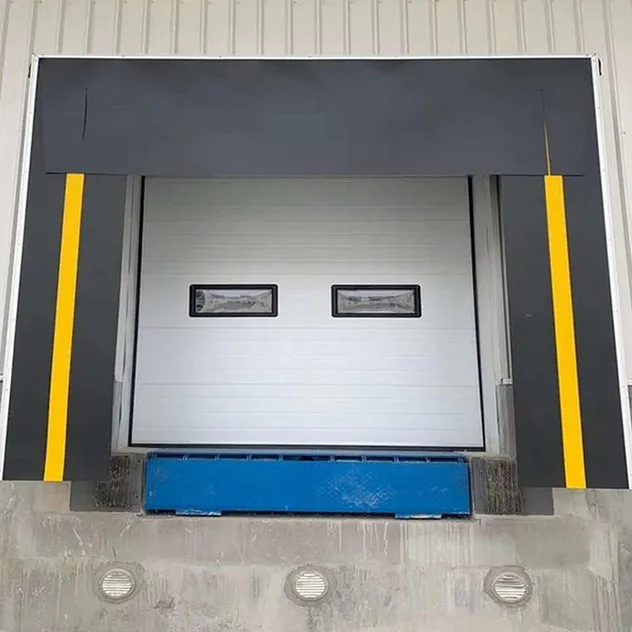

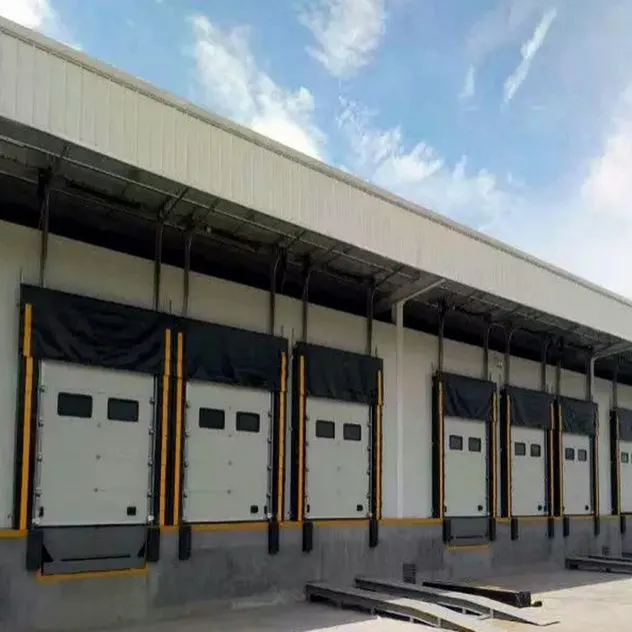

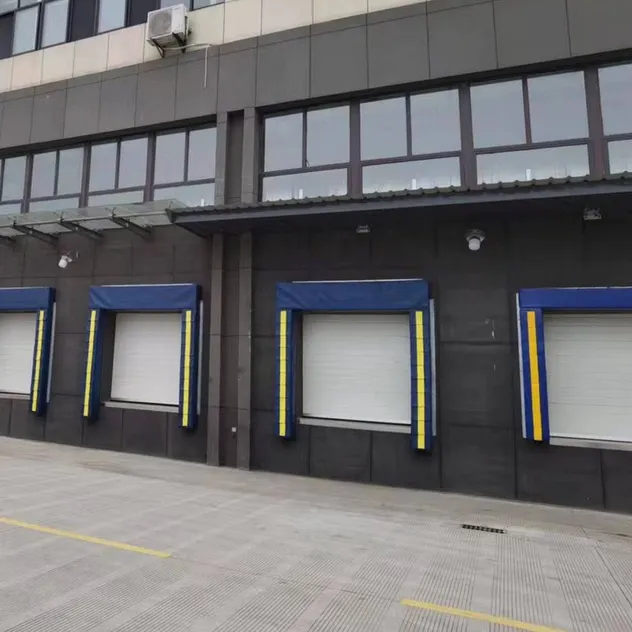

Detailed Photos

ALL-WEATHER OPERATIONAL Keep operations running smoothly with high-traction, anti-slip surfaces and weather-resistant components for wet or icy conditions.

TAILORED SOLUTIONS Fully customizable options for size, capacity, and control systems to match your unique architectural requirements.

ENERGY-SMART Advanced hydraulic systems engineered for low energy consumption without sacrificing power or speed.

Technical Parameters

TECHNICAL SPECIFICATIONS
Equipment Dimensions	2000mm Wide, 2500mm Long, 600mm High
Pit Size	Width: 2030mm, Length: 2500mm, Height: 610mm
Adjustment Range	+300/-300M
Adjust Time	Up ≤16S / Down ≤10S
Board Thickness	12mm (Board) / 400mm (Length)
Main Console Panel	6mm Patterned Board
Motherboard Skeleton	L-Shaped Bend
Side Guard Baffles	Automatically Retractable Safety Guards
Hydraulic Oil	32# Anti-Wear Hydraulic Oil
Working Pressure	8Mpa +/- 1Mpa
Base Frame	10# Channel Steel Welded H-Shaped Frame
Cycle Life	≥ 200,000 Times

✔

Key Advantages

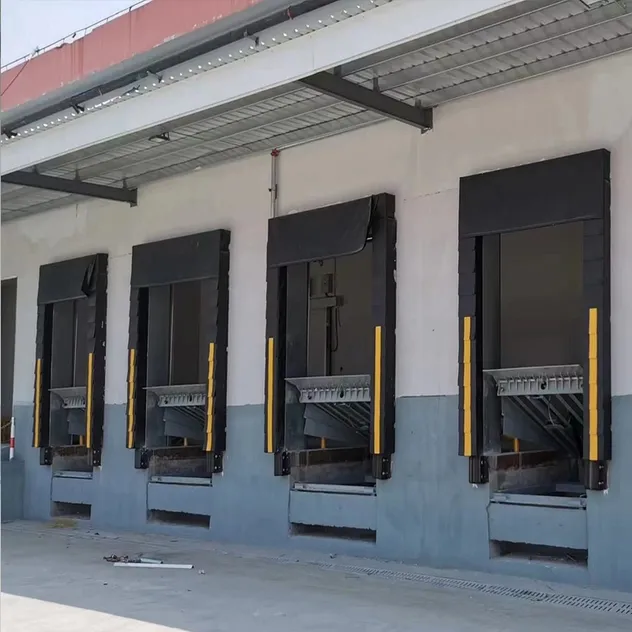

SUPERIOR DURABILITY Constructed with high-strength, industrial-grade steel to withstand heavy loads and continuous use.

ENHANCED SAFETY MECHANISMS Equipped with full-range toe guards and velocity fuses to significantly reduce the risk of accidents.

IMPROVED PRODUCTIVITY Speeds up loading cycles by providing a stable and reliable platform, boosting operational throughput.

Frequently Asked Questions

Q1: What is the load capacity of this dock leveler?

A: The DL101 model supports a net load of 8 tons and a dynamic load of 6 tons, making it suitable for heavy-duty industrial logistics.

Q2: Are customization options available for specific warehouse needs?

A: Yes, we support on-demand customization including color (Black, Blue, Grey, Green), appearance dimensions, and load capacity to fit your unique infrastructure.

Q3: What safety features are included?

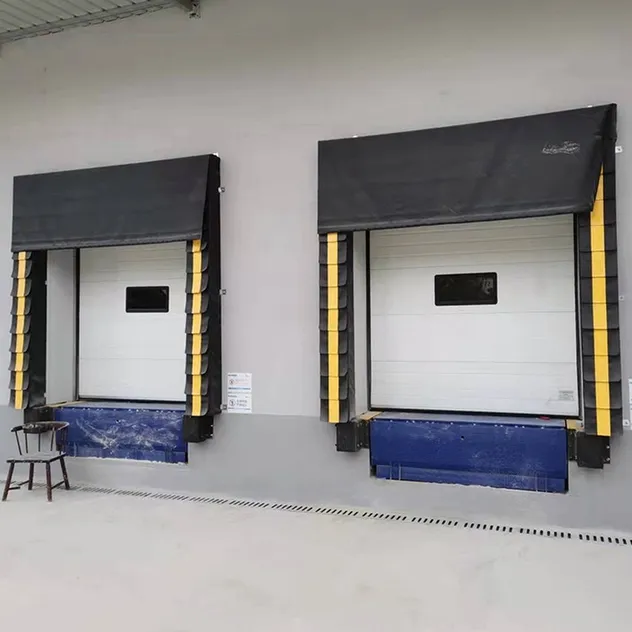

A: Safety is prioritized with automatically retractable side body guard baffles, full-range toe guards, and a velocity fuse to protect both personnel and equipment.

Q4: How does the leveler perform in outdoor or wet conditions?

A: The unit features a 6mm patterned anti-slip board and weather-resistant components, ensuring operational continuity in wet, icy, or challenging environments.

Q5: What are the maintenance requirements?

A: The design includes a foldable support bar at the bottom of the panel, allowing for easy cleaning, maintenance, and debris removal to ensure long-term reliability.

Q6: What power system does it use?

A: It utilizes an efficient Electric-Hydraulic power form with 32# anti-wear hydraulic oil, designed for low energy consumption and rapid adjustment cycles.
