| Model NO. | DL410 |
| Product Name | Dock Leveler |
| Driven Type | Hydraulic |
| Power Form | Electric-Hydraulic |
| Rated Load | Net Load 8 Tons, Dynamic Load 6 Tons |
| Certification | GS, CE, RoHS, ISO 9001 |
| Running Mode | Stationary |
| Adjustment Range | +300/-300m |
| Origin | Jiangsu, China |
| Production Capacity | 500,000 Pieces/Year |

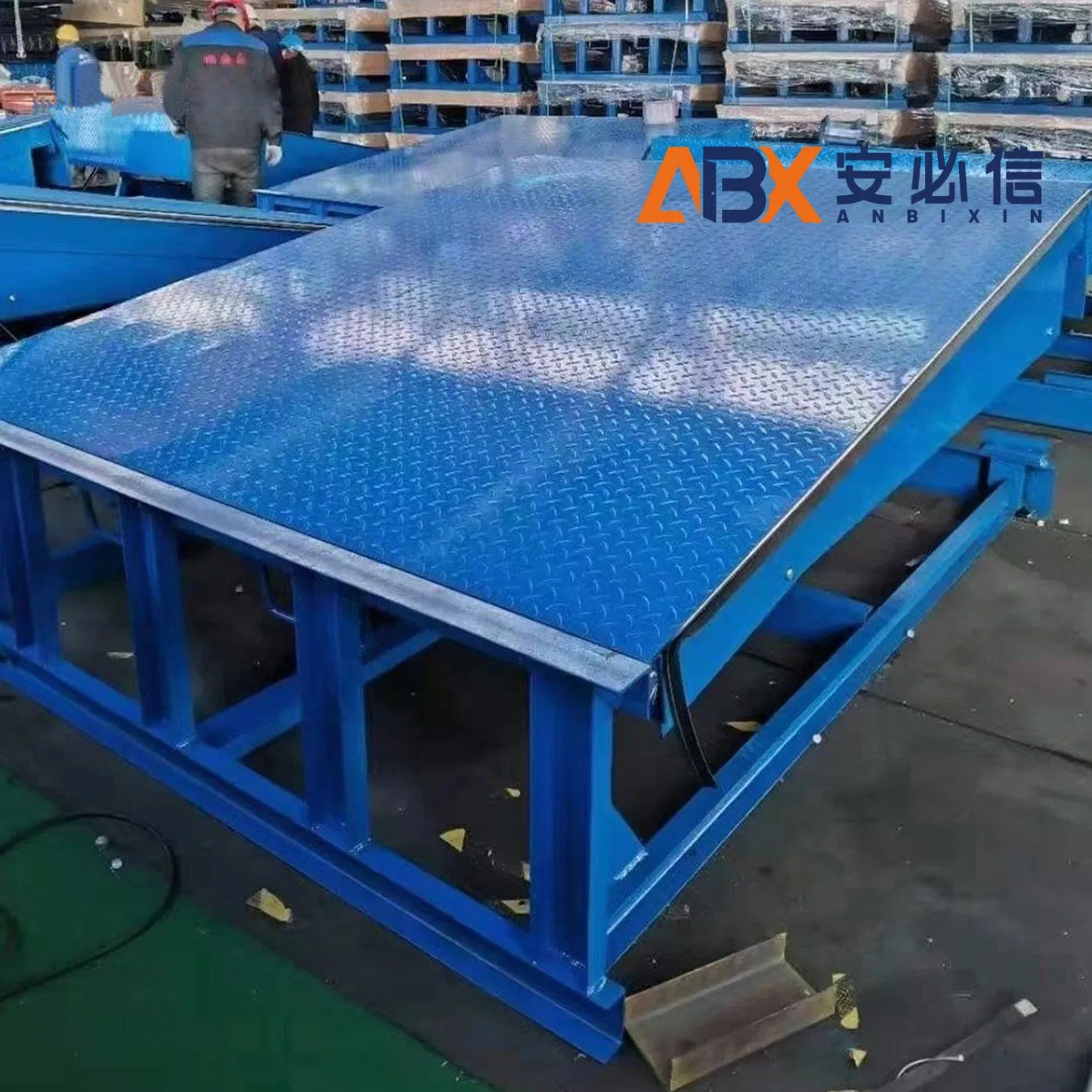

DOCK LEVELER
Loading and unloading platforms are suitable for hydraulic, pneumatic, or mechanical installations. It helps users safely and efficiently unload trucks of all heights and sizes.
The main function is to build a bridge between the cargo platform and the transport vehicle, allowing the forklift to travel conveniently for unloading. It can automatically adjust its height according to different vehicle models and changes in the vehicle compartment during loading.
Featuring a high-traction, anti-slip surface and weather-resistant components, our Dock Leveler guarantees reliable performance in wet, icy, or challenging conditions.
Fully customizable options for size, capacity, and control systems tailored to your unique architectural and operational requirements.
Advanced hydraulic or air-powered systems engineered for low energy consumption without sacrificing power or speed.
| DETAILED SPECIFICATIONS | |
| Equipment Dimensions | 2000mm Wide, 2500mm Long, 600mm High |
| Pit Size | Width: 2030mm, Length: 2500mm, Height: 610mm |
| Adjust The Time | Up Time ≤ 16s, Down Time ≤ 10s |
| Board Thickness | 12mm / 400mm |
| Console Panel Thickness | 6mm Patterned Board |
| Motherboard Skeleton | L-Shaped Bend |
| Side Body Guard | Automatically Retractable Baffles |
| Hydraulic Oil | 32# Anti-Wear Hydraulic Oil (8MPa +/- 1MPa) |
| Anti-Collision Glue | Combination Block 300*200*100 |
| Base Frame | 10# Channel Steel Welded H-Shaped Frame |
| Available Colors | Black, Blue, Grey, Green |
| Use Life Cycles | ≥ 200,000 Times |
