Product Description

i

Overview & Basic Info

Model NO.	DCQG
Lift Mechanism	Hydraulic Cylinder
Capacity	6t/8t/10t/12t/15t/20t
Driven Type	Hydraulic
Certification	CE, ISO 9001
HS Code	8428909090

Application	Workshop, Warehouse, Shipboard
Power	380V / 220V / 1.1kw
Working Range	Up 400mm / Down 300mm
Feature	Explosion-Proof
Package Gross Weight	650.000kg
Dimensions	2000mm x 2000mm x 600mm (Customizable)

P

Fixed Hydraulic Dock Leveler

Our high-performance hydraulic dock levelers are designed for factory, warehouse, and logistics projects, combining durability and efficiency. Utilizing advanced technology and robust materials, these ramps ensure superior load capacity and smooth operation.

💡 Key Configurations:
• Countertop Panel: High-strength patterned steel plate (min 5mm thickness).
• Ride Board: Min 14mm integral pattern plate.
• Hydraulic System: Working table cylinder (Ø80) & Tongue plate cylinder (Ø40).
• Bumper Blocks: Heavy-duty solid rubber anti-collision blocks (2 pieces).

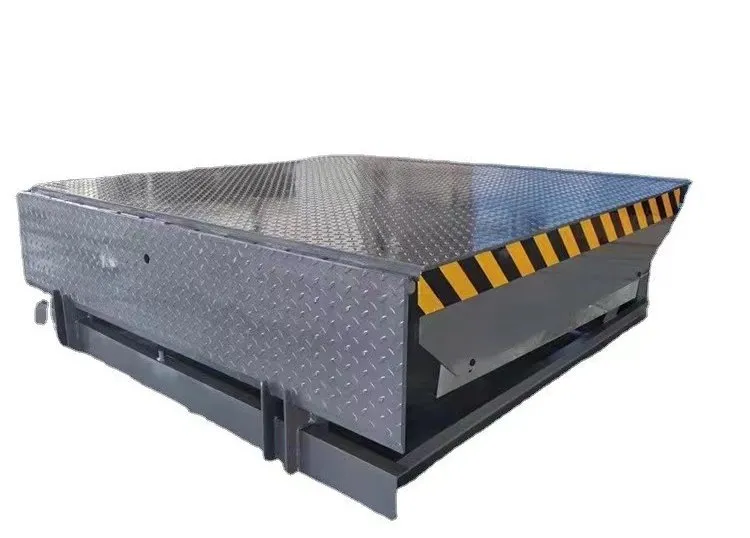

Hydraulic Dock Leveler

🎥 Operational Demonstration

Video Cover

🔍 Multi-Angle Views

Right Elevation

Right Elevation

Front Elevation

Front Elevation

Left Elevation

Left Elevation

T

Technical Specifications

Model	DCQG-6	DCQG-8	DCQG-10
Loading Weight (kg)	6,000	8,000	10,000
Table Size (mm)	2000 x 2000 / 2500 x 2000
Height (mm)	600
Working Range (mm)	+400 / -300
Self Weight (kg)	600	650	750

(Custom configurations available upon request.)

S

After Sales Service

✓ Standard Warranty: 12 months or 2,000 operating hours.
✓ Extended Warranty: Optional coverage up to 36 months.

✓ Global Support: 24/7 technical assistance and spare parts supply.
✓ Training: On-site or remote operation/maintenance training.

C

Certifications

CE ISO Certifications

W

Why Choose Our Solutions?

OEM/ODM Capabilities: Tailored designs to meet specific project needs.
Quality Control: Strict ISO 9001, CE, and GOST certified manufacturing.

Logistics Support: Fast shipping and customs clearance assistance.
Other Products: Loading yard ramps, scissors lifts, and dock levelers.

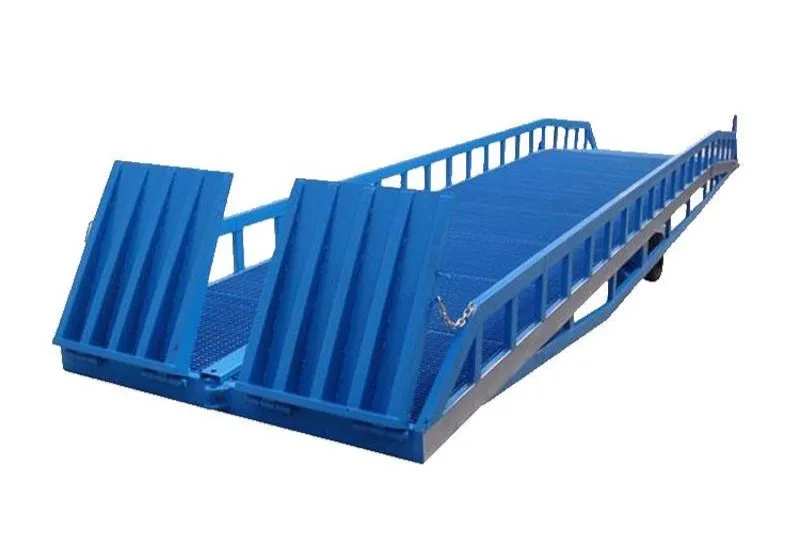

Loading Ramp Support

?

Frequently Asked Questions

Q: What is the standard lead time for orders?

A: Standard models ship within 7 days; customized units usually require 30 days depending on complexity.

Q: Can I request a customized size for the dock leveler?

A: Absolutely! We offer tailored attachments and size customizations to fit your specific facility requirements.

Q: Do you provide after-sales service overseas?

A: Yes, we provide 24/7 technical support and have partnered service centers in key global regions.

Q: What documents are provided for international export?

A: We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).

Q: What is the warranty period for the hydraulic system?

A: The standard warranty is 12 months or 2,000 operating hours, with optional extensions available up to 36 months.

Q: How do I confirm my order specifications?

A: You can contact us with your requirements for a formal quote, and once confirmed, we will proceed with a Purchase Order (PO).
