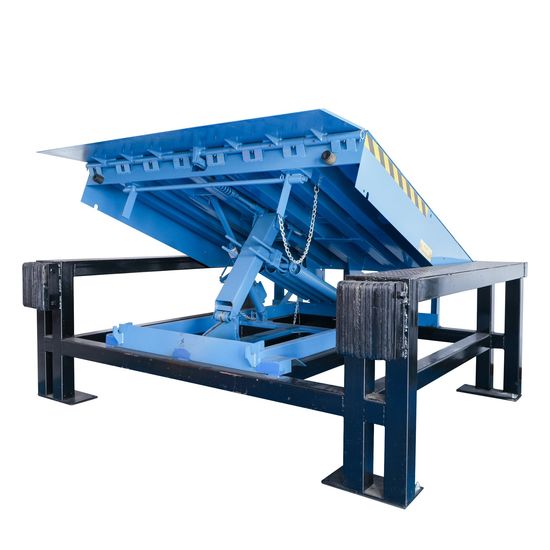

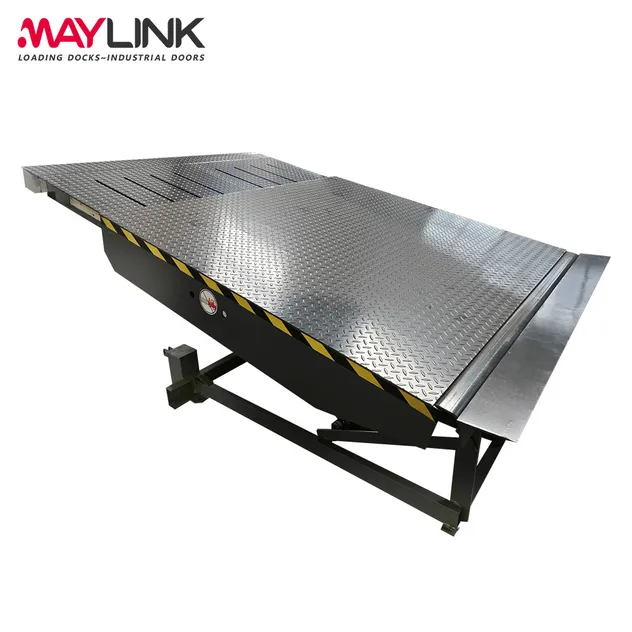

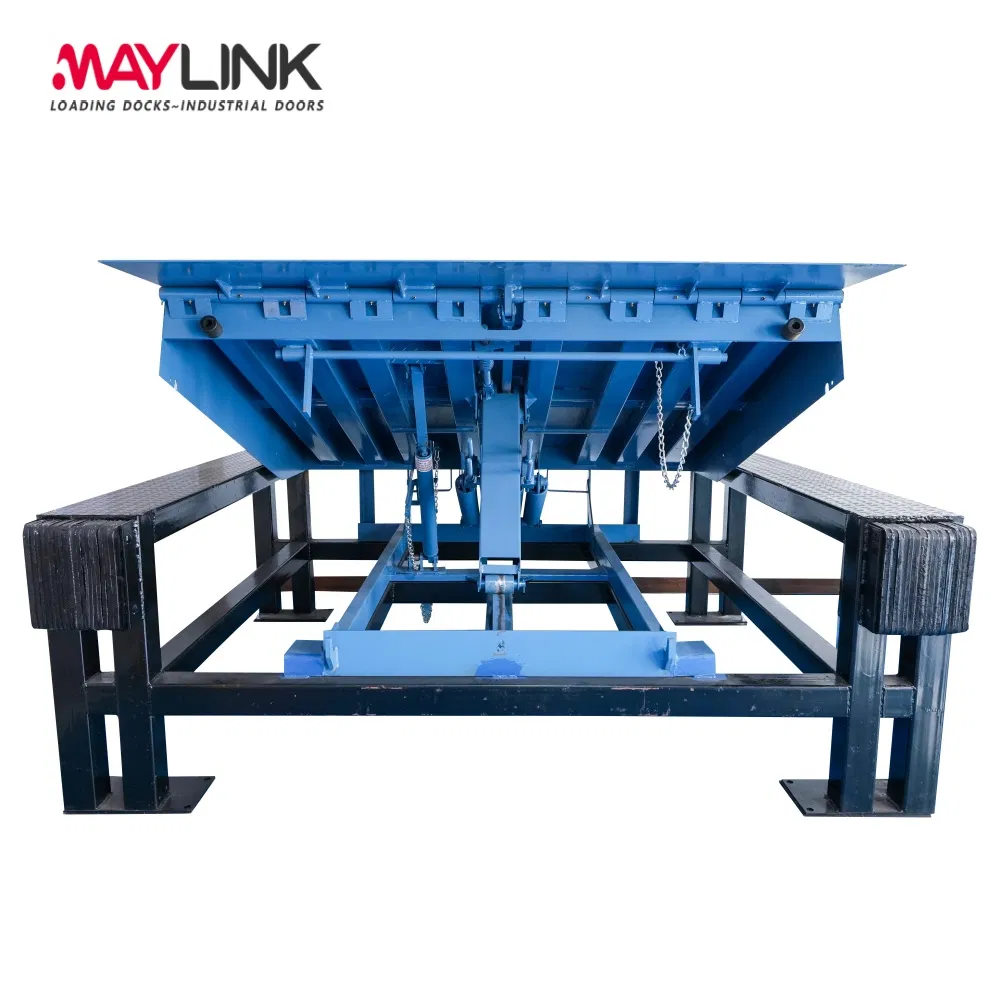

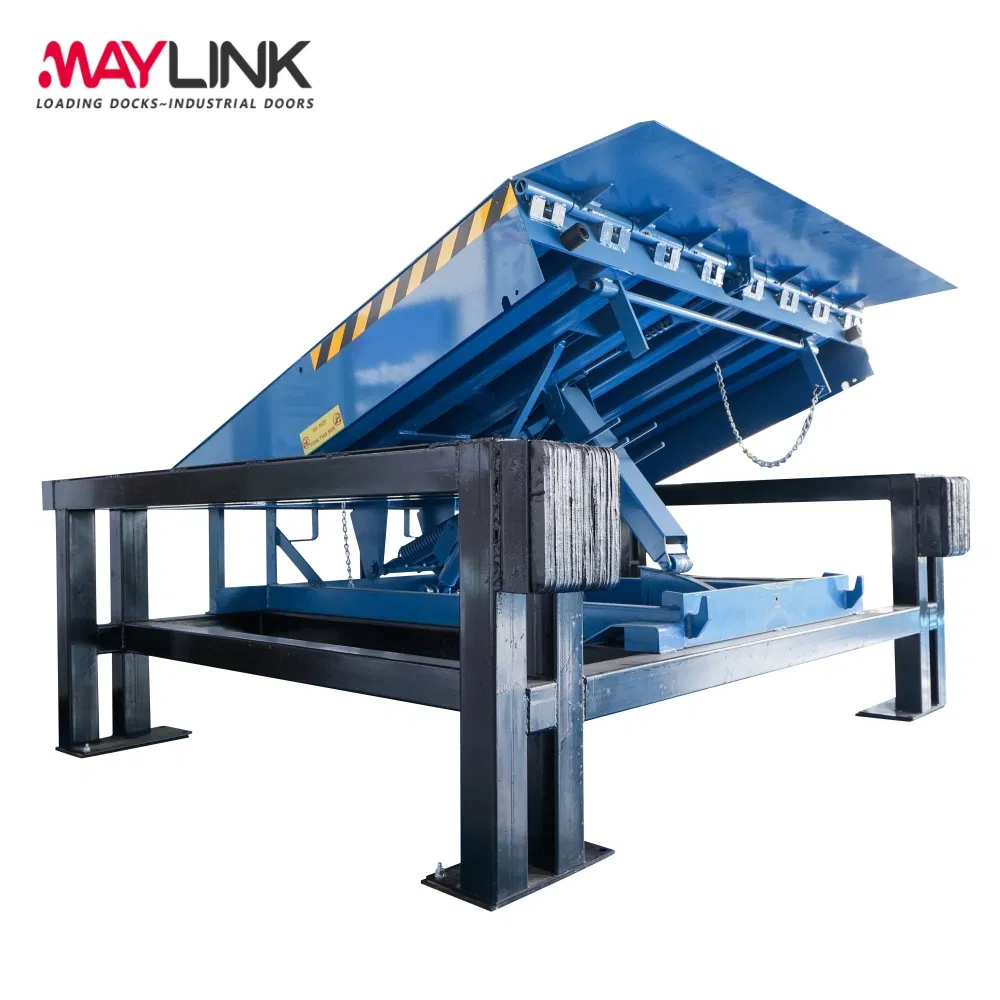

Maylink Cold Storage Adaptable Low Temp Mechanical Dock Leveler

1 / 5

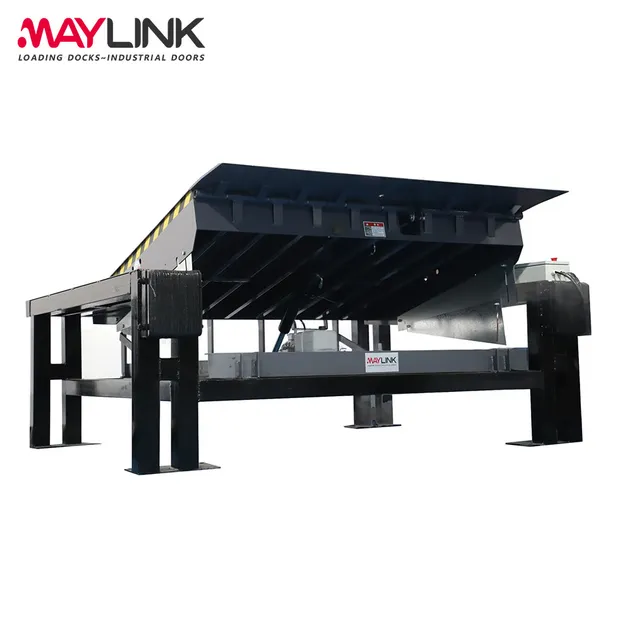

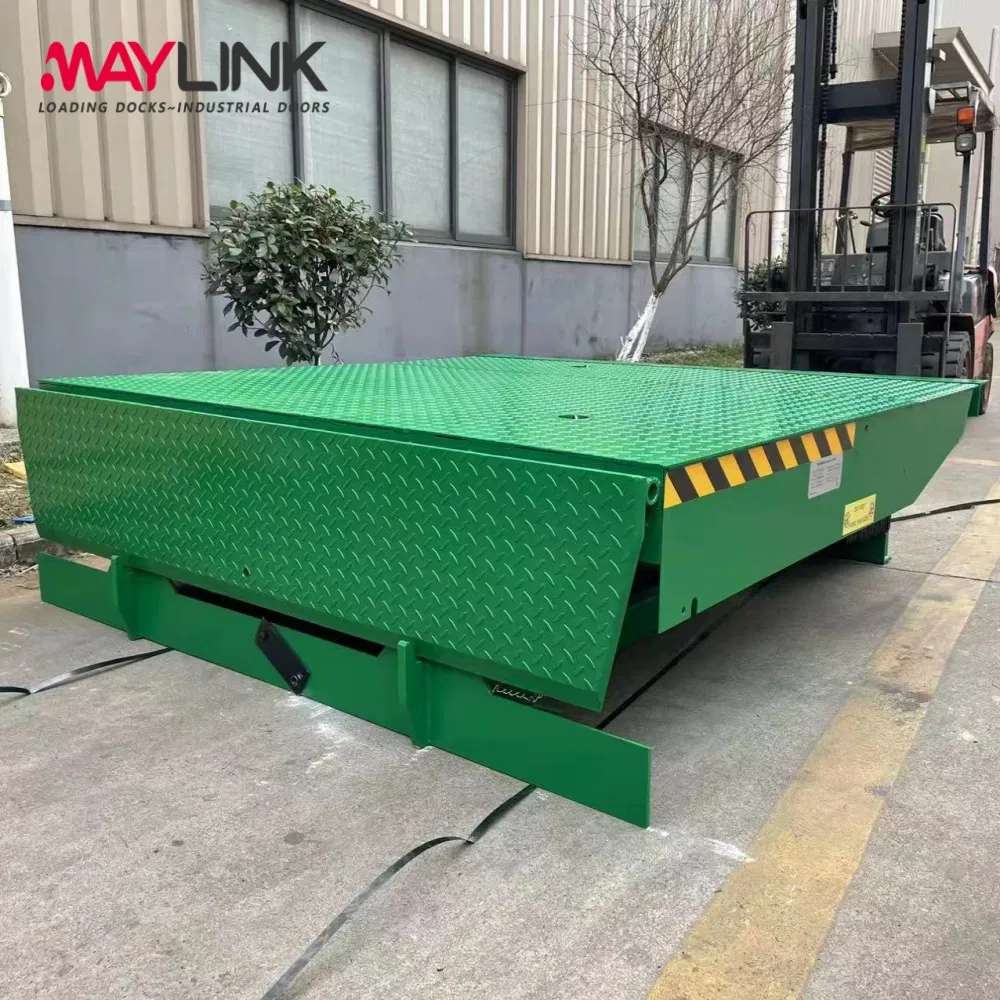

Maylink Cold Storage Adaptable Low Temp Mechanical Dock Leveler

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview & Basic Info

Model	MLK-MDL-E044
Application	Warehousing Docking
Lift Mechanism	Mechanical Lift
Carrying Capacity	Weight Level
Driven Type	Mechanical
Feature	Heavy Duty
Certification	GS, CE, RoHS, ISO 9001
Size	W1830×L2210×H600mm, Customizable
Load Capacity	Dynamic Load 8 Tons, Static Load 16 Tons
Adjust Range	+350mm, -300mm, Adjustable
Dock Plate	8mm Non-Slip Pattern Steel
Tongue Plate	400/500mm, 16mm Non-Slip Pattern Steel
Lead Time	2-4 Weeks

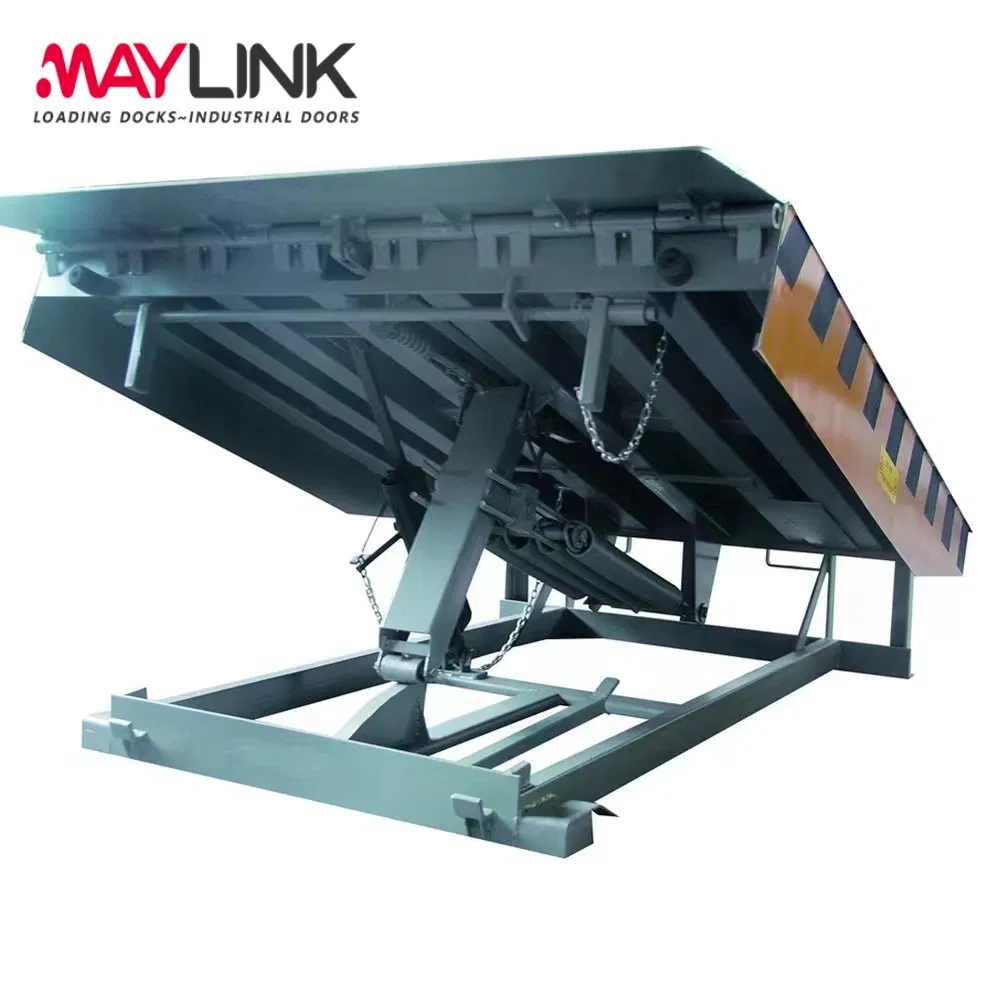

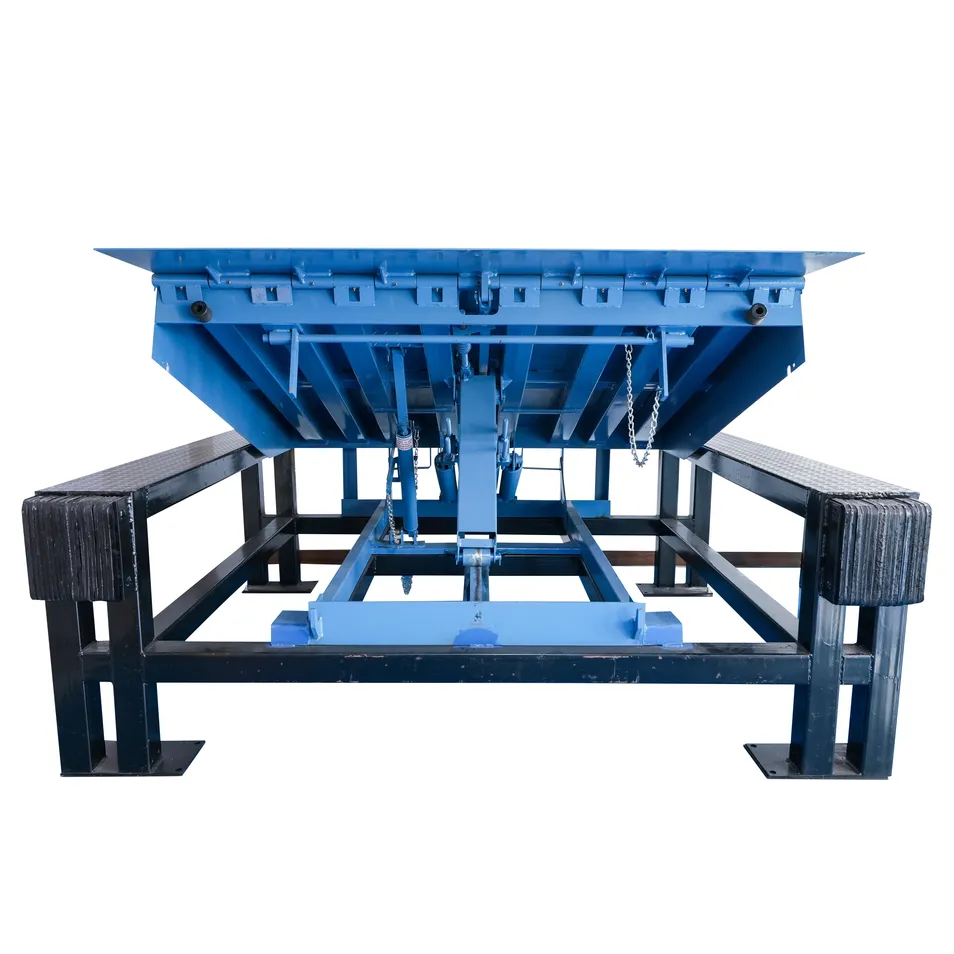

Mechanical Dock Leveler Description

✓

Economical & Reliable: Lower initial cost and proven performance for medium-duty loading.

✓

No Power Required: Fully mechanical operation eliminates electrical or hydraulic dependency.

✓

Durable Construction: Heavy-duty steel frame designed to withstand heavy loads.

✓

Easy to Operate: Simple pull-chain activation with smooth, controlled lowering.

✓

Low Maintenance: Minimal components reduce service requirements and downtime.

Configuration Chart

Pit Size	W2160mm * L2210mm * H610mm
Beam Structure	10pcs C type steel or I beam steel structure
Dock Bumpers	Laminated dock bumper, D100mmXW250mmXL300mm
Operation Temp	+50℃ ~ -30℃
Warranty	3 Years
Security	Full range toe guard plate & Maintenance support rod

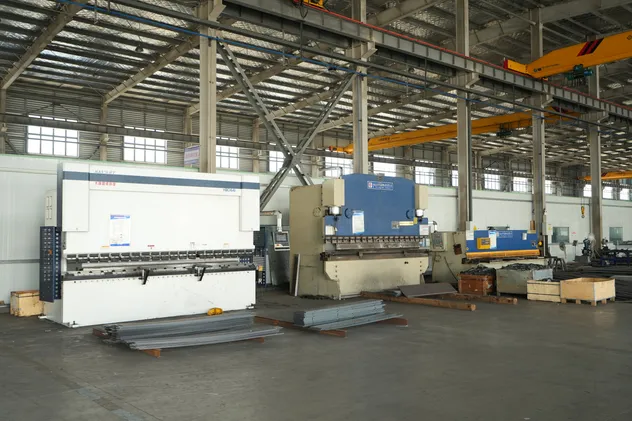

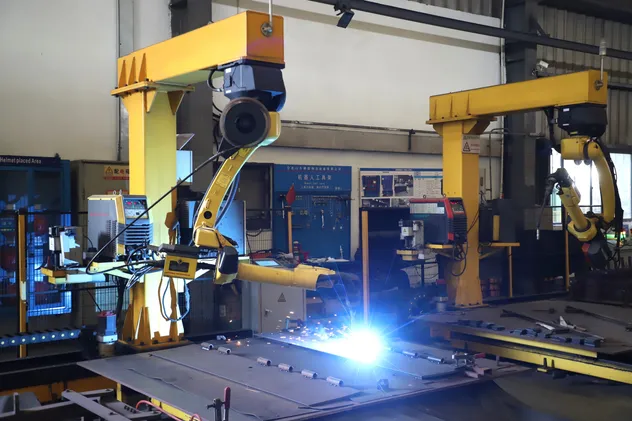

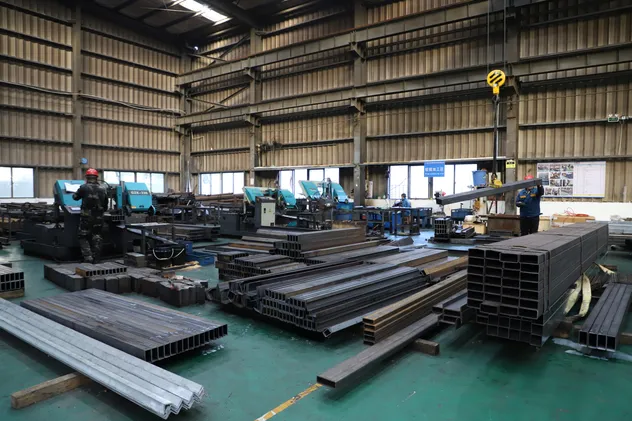

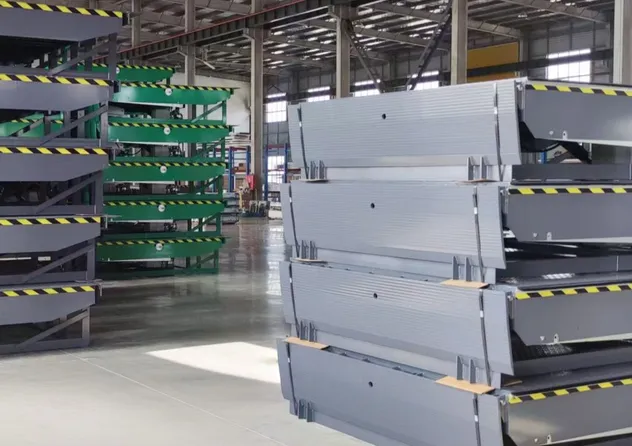

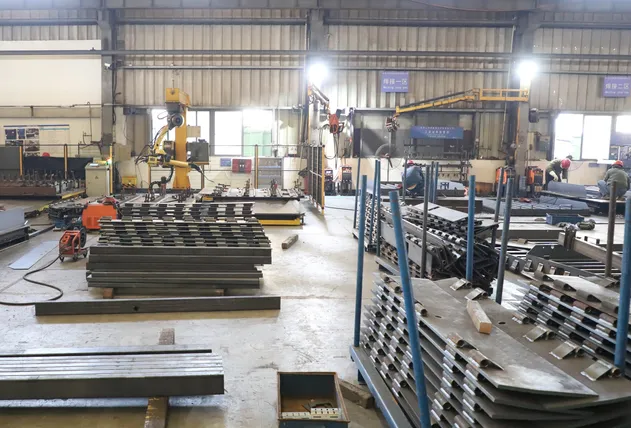

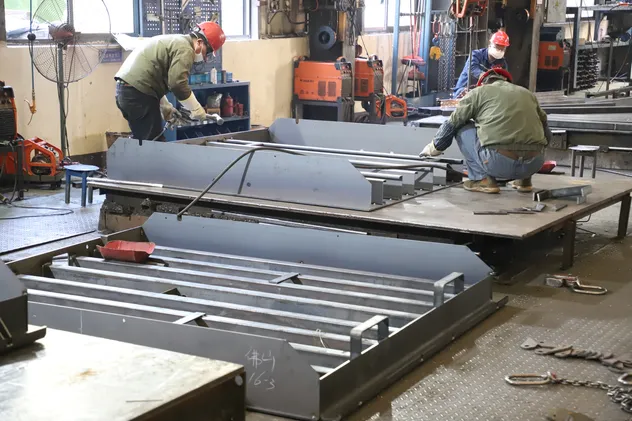

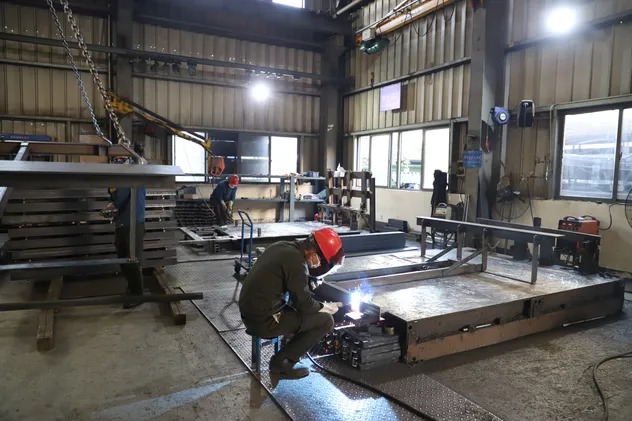

Production Process

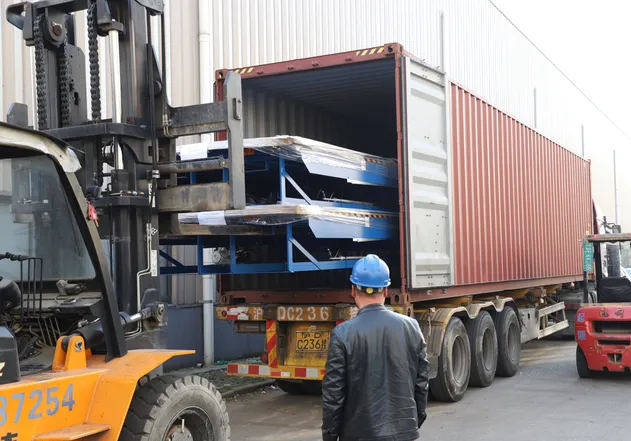

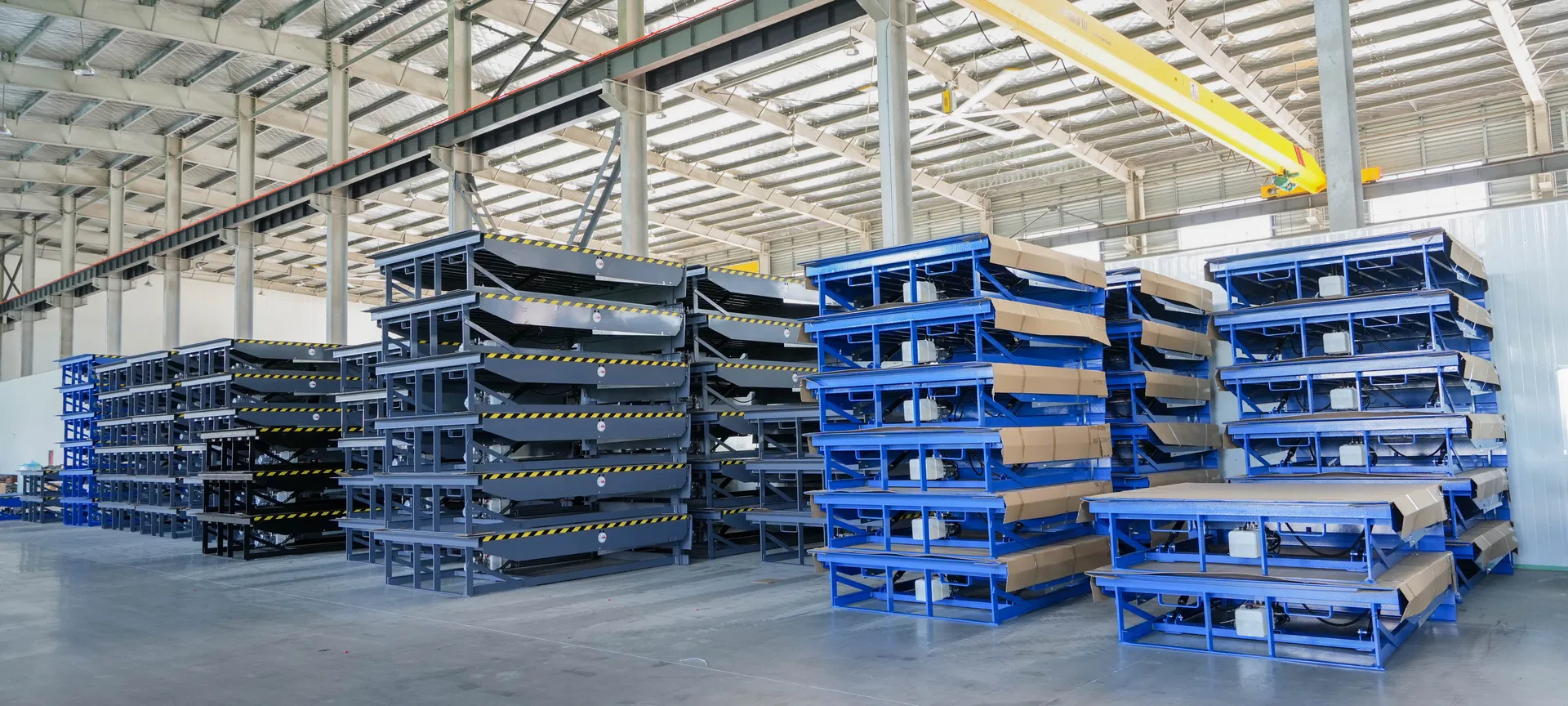

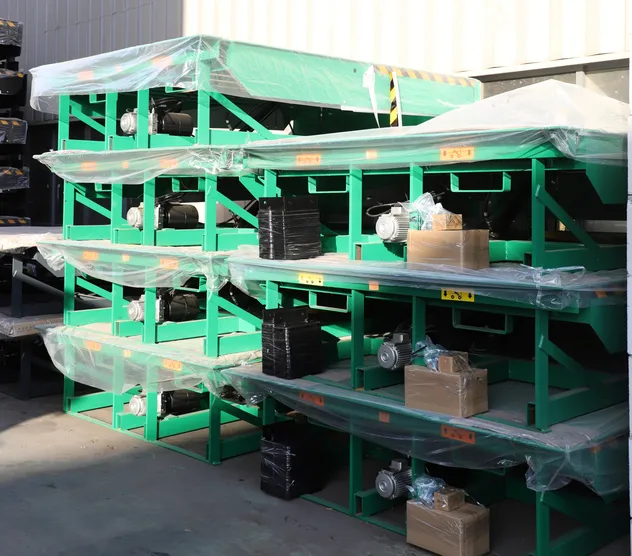

Packing & Delivery

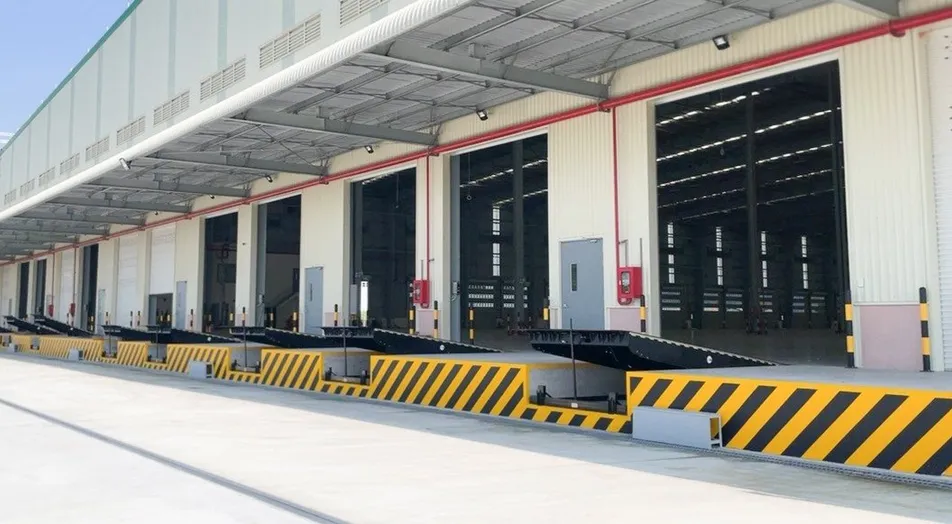

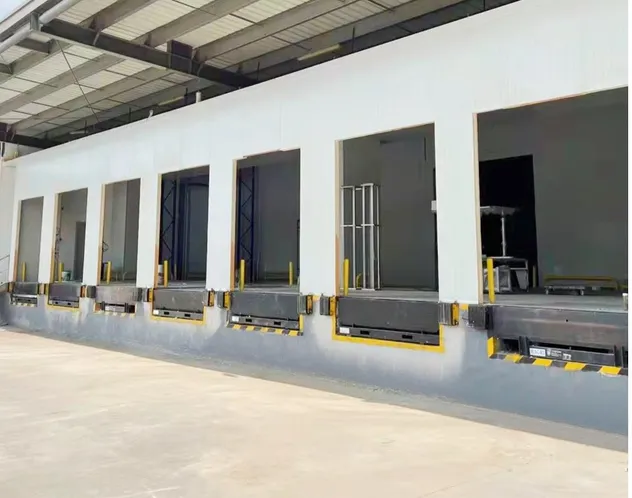

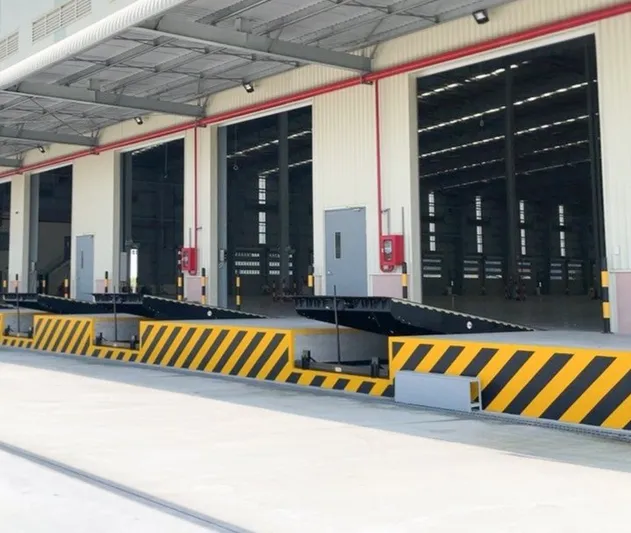

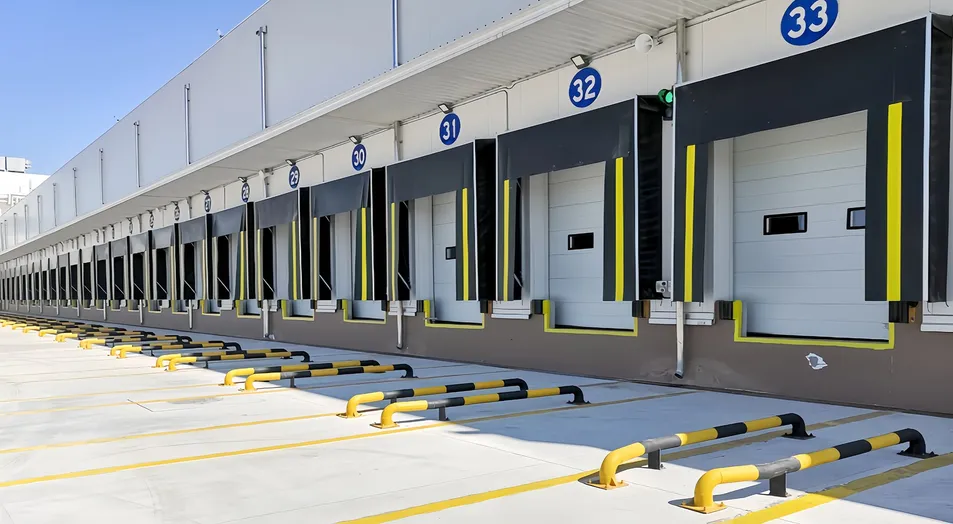

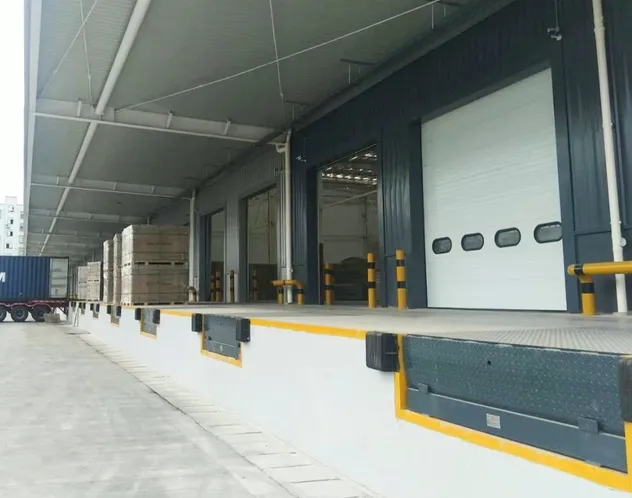

Product Cases

Who We Are & Why Choose Us

Specializing in the design, manufacture, and installation of premium industrial doors and loading dock equipment. Our CE-certified products deliver top-tier performance for logistics, cold chain, and manufacturing sectors.

Advanced Manufacturing: Automated production lines from Germany, Japan, and Switzerland.

Global Standards: European-standard designs, CE-certified and rigorously tested.

End-to-End Service: Expert pre-sales consultation and dedicated maintenance programs.

Frequently Asked Questions

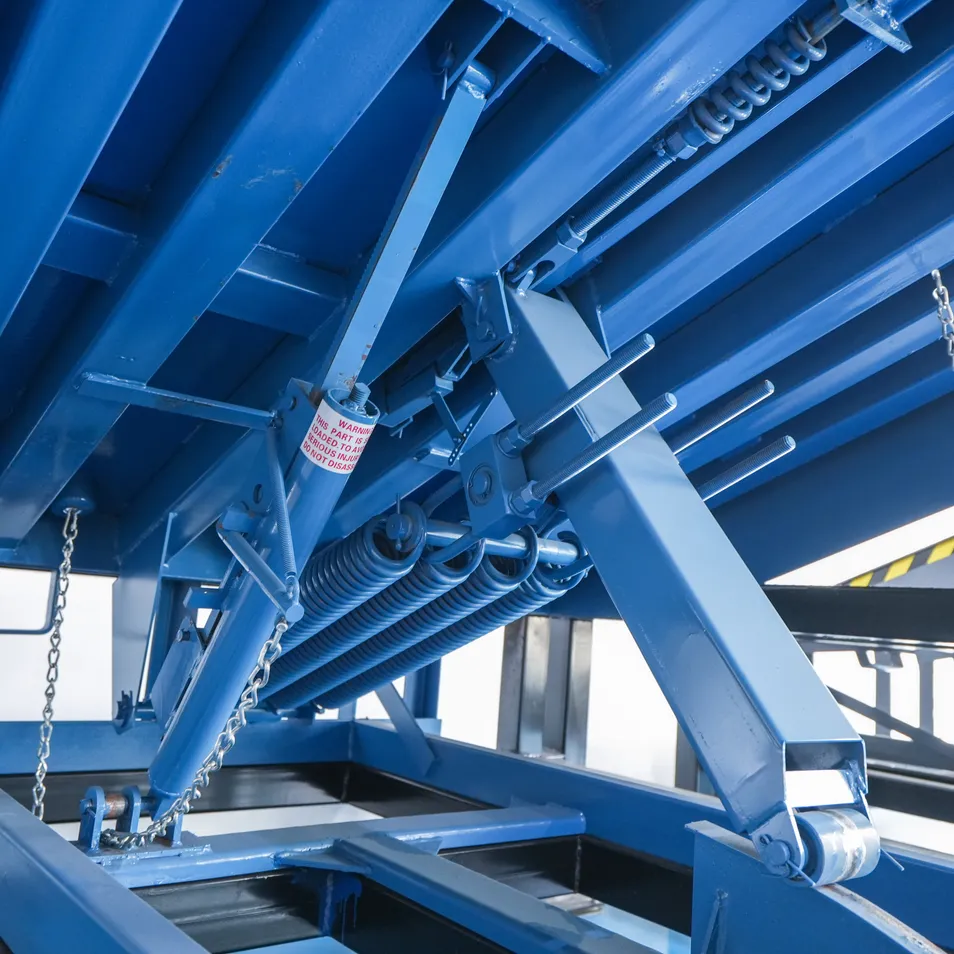

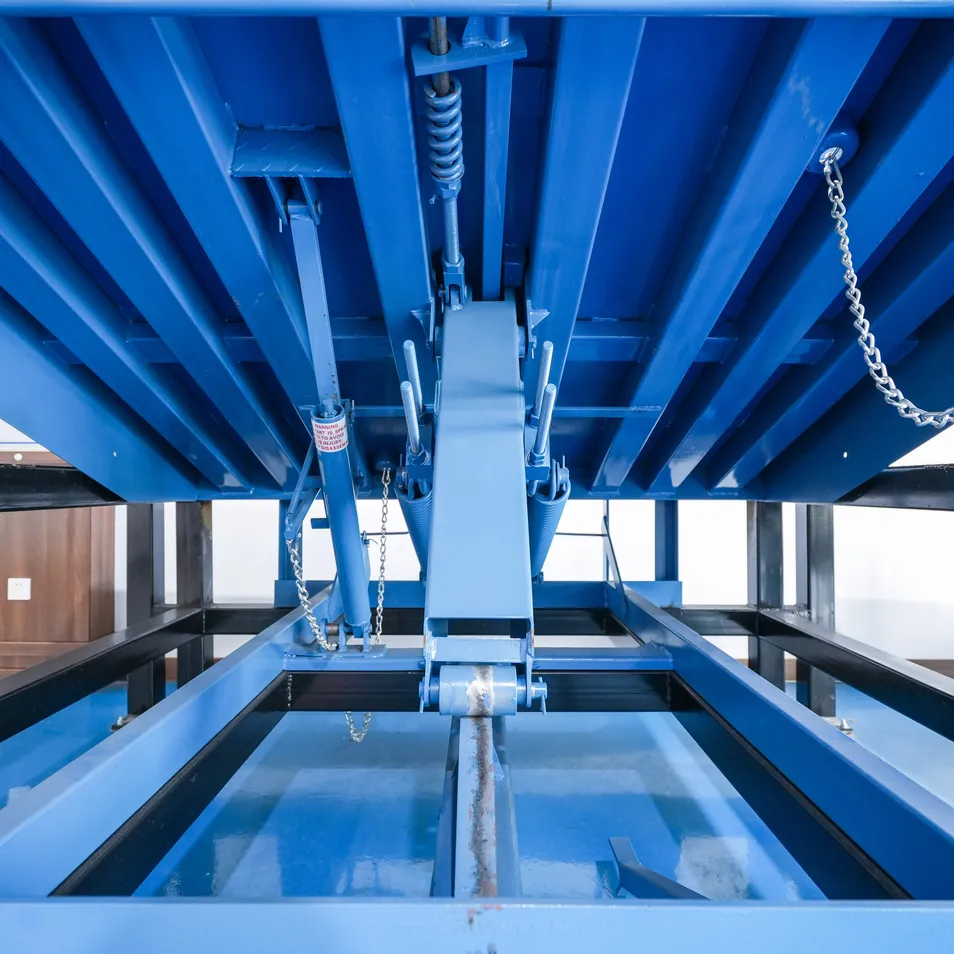

How does a mechanical dock leveler work?

It operates using a simple pull-chain release mechanism. A mechanical spring system raises the platform and deploys the lip automatically without the need for electricity.

What are the main advantages of a mechanical system over hydraulic?

Mechanical dock levelers have a lower initial cost, require no electrical power at the dock, and have fewer complex components, leading to simplified maintenance.

Can the size and capacity be customized?

Yes, we provide standard sizes like 1830x2210mm but can customize dimensions and load capacities (up to 20 tons dynamic) based on specific warehouse requirements.

What safety features are included?

Each unit is equipped with full-range toe guard plates to protect workers' feet and a maintenance support rod for safe servicing of the unit.

What is the typical warranty period?

We provide a 3-year warranty for the whole dock leveler unit, covering quality issues and providing free replacement parts during this period.

Is it suitable for cold storage environments?

Yes, our mechanical dock levelers are designed to operate efficiently in temperatures ranging from +50℃ down to -30℃.
