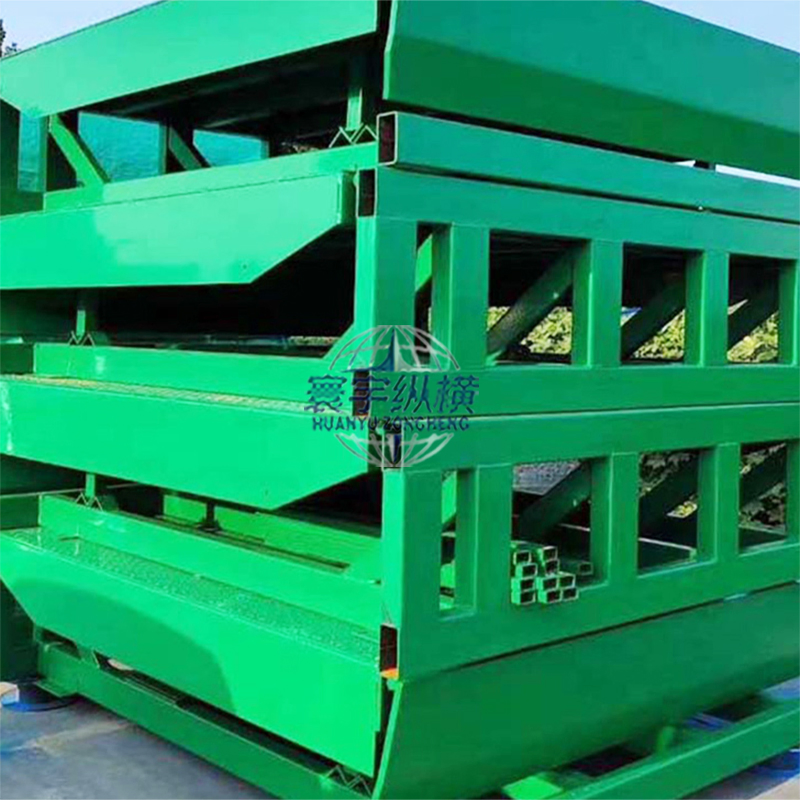

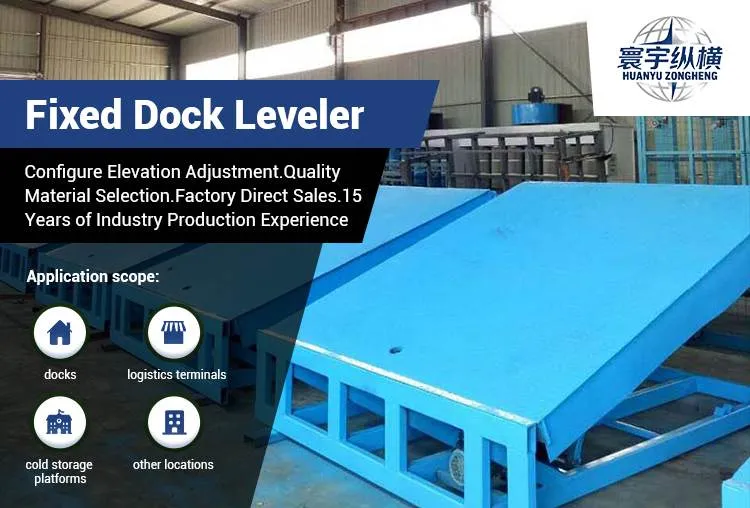

The Dock Leveler is designed for use in docks, logistics terminals, cold storage platforms and other locations where the efficient loading and unloading of goods is essential.
We offer a wide range of dock levelling solutions, including: Hydraulic dock levelers, Telescoping lip dock levelers, Mechanical dock levelers, Vertical standing dock levelers, Air-powered dock levelers, EOM dock levelers and EOD dock levelers.

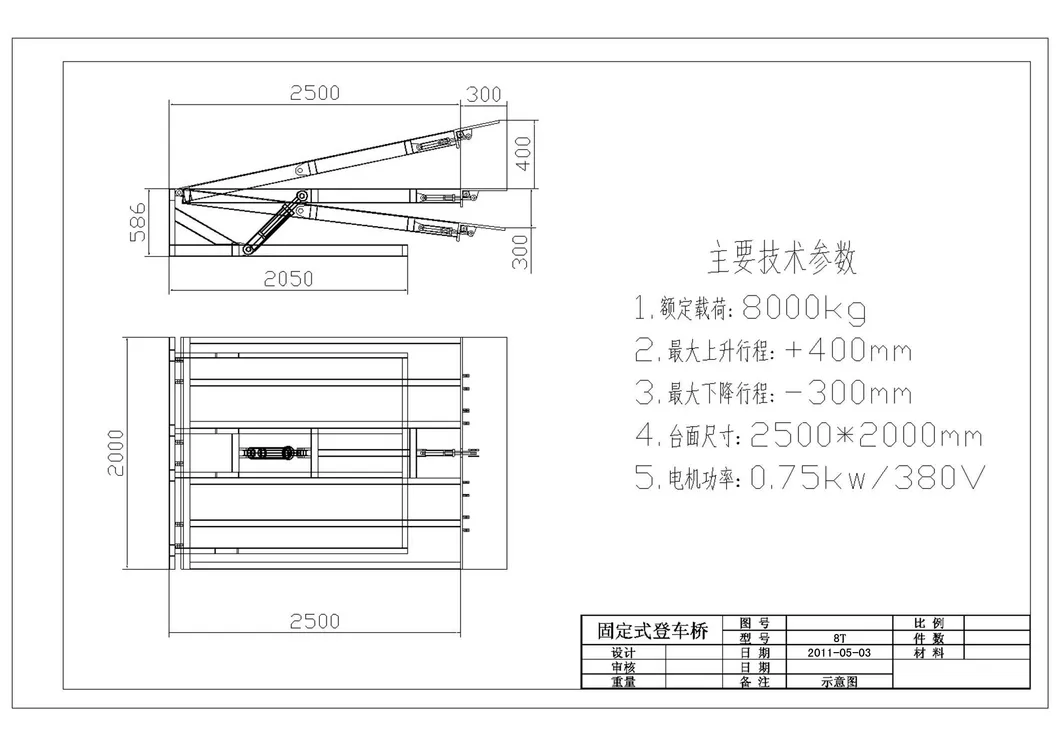

| Model | Capacity (t) | Platform Size | Distance | Lip Board | Motor Power |
|---|---|---|---|---|---|
| DCGQ6 | 6 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ8 | 8 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ10 | 10 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ12 | 12 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ6 | 6 | 2000*2000mm | 100 | 400mm | 0.75KW |
| DCGQ8 | 8 | 2000*2000mm | 100 | 400mm | 0.75KW |

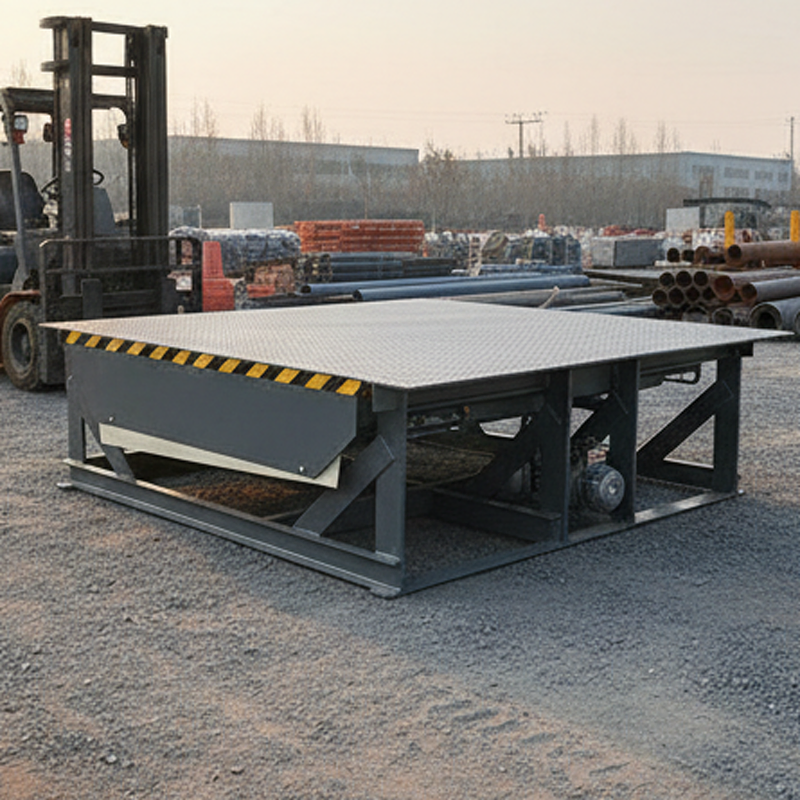

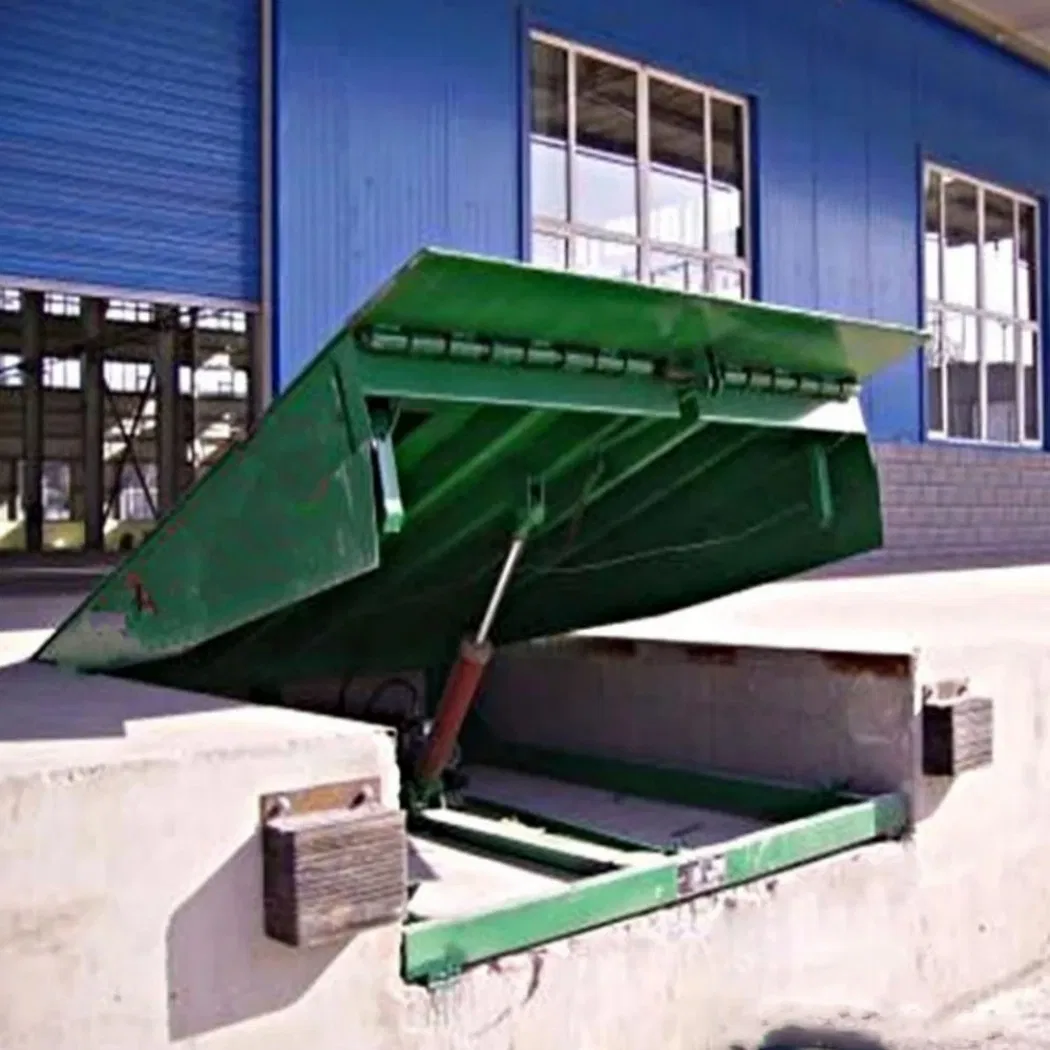

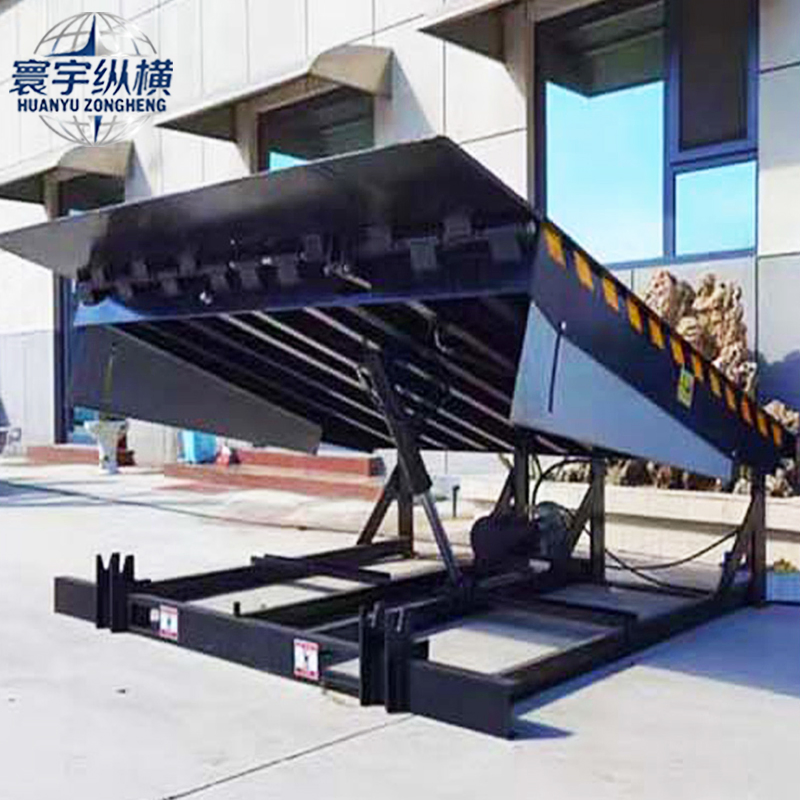

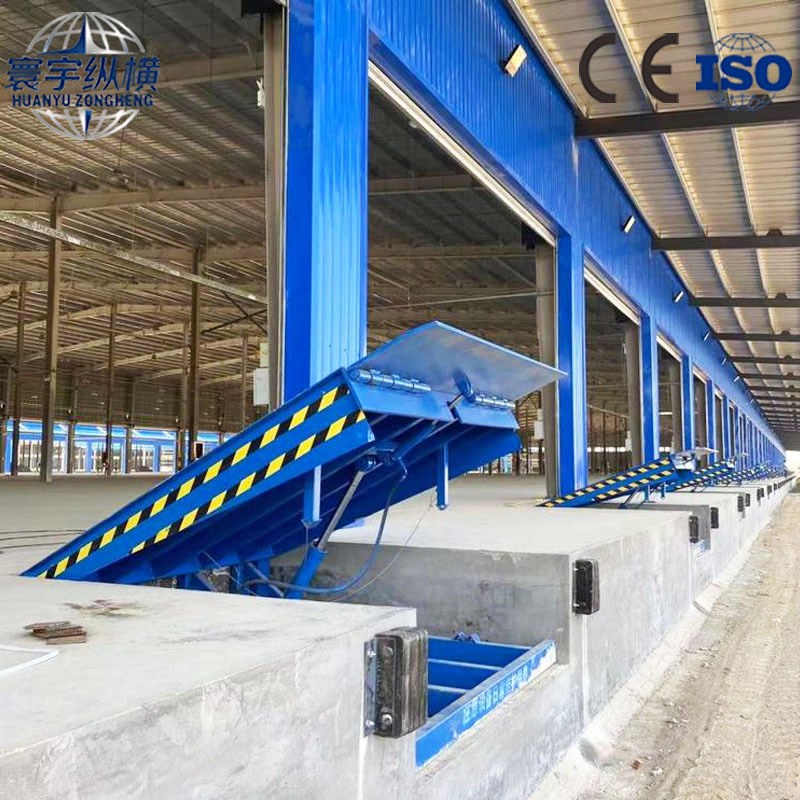

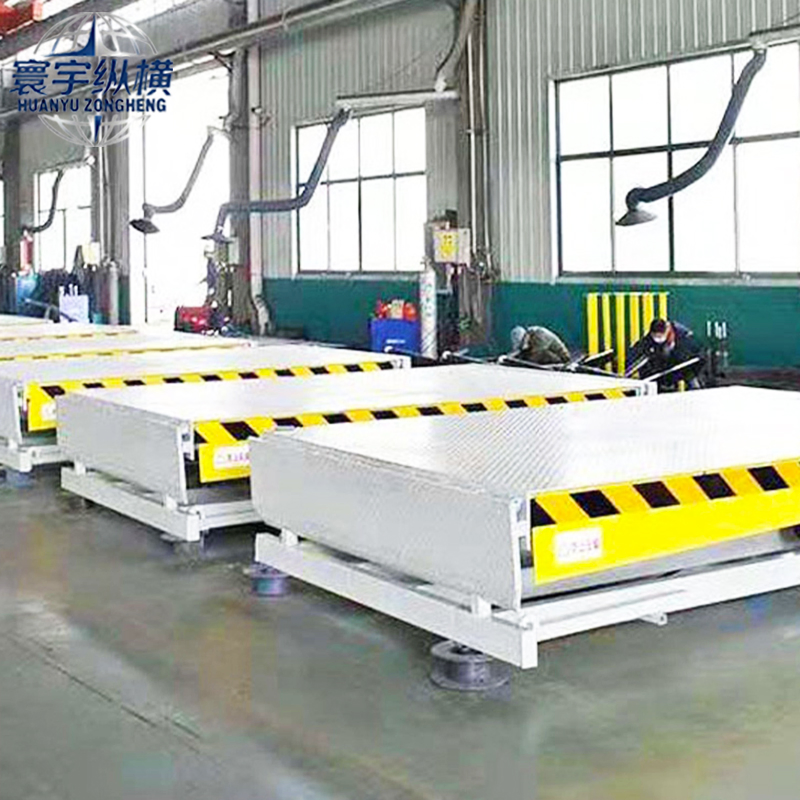

Fixed Hydraulic Dock Leveler is an excellent auxiliary equipment for efficient material handling. It can move freely within containers, providing lightweight and efficient operation. Loading docks are equipped with anti-slip surfaces, anti-crush aprons, and emergency stop devices to minimize accident risks and ensure the safety of personnel and goods.
The adjustable height feature allows it to adapt to different vehicle types, making it suitable for various scenarios such as logistics warehouses, docks, and manufacturing plants. It reduces manual handling, lowers labor intensity, and enables mechanized operation.

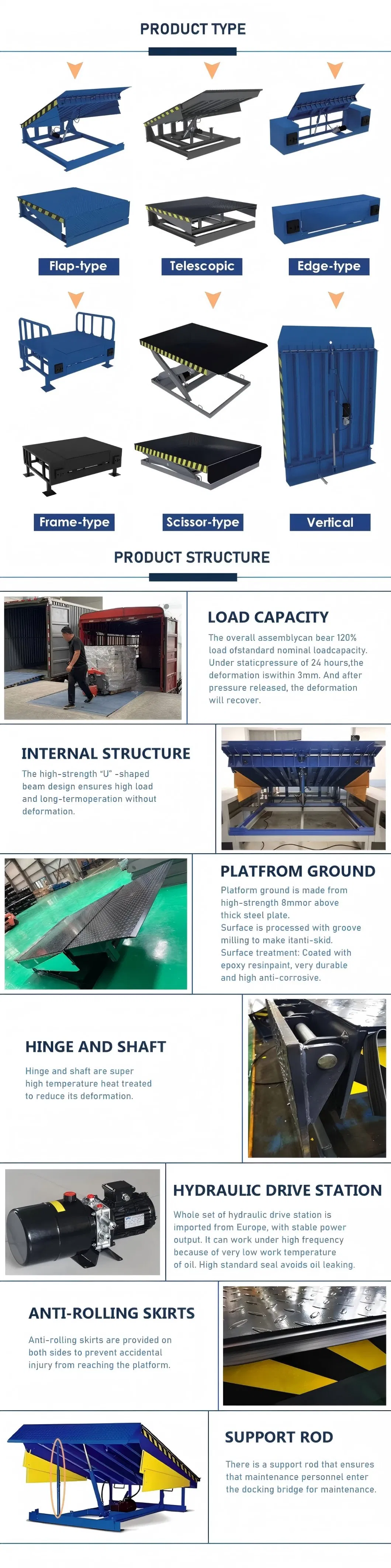

| System | Free maintenance design idea for a long run using application |
|---|---|
| Design | Hydraulic driving system will lead to the operation of the main deck and lip. Hydraulic Pump, Pipe and Tank are collected in one part under the deck. Hydraulic Velocity fuse (≤75 mm) ensures automatic stopping during heavy loading. |
| Safety | Full range foot guard, penetrating safety support bar for maintenance, front tubular hinge with 25mm diameter latch, and galvanized anti-rust surface treatment. |
| Structure | Main deck plate made of 8mm high-strength embossed non-slip steel. Extension lip is 15mm thickness. Adopts 8 Channels Unique 14# I-beam steel for reinforcement. |
Our company is a modern technology-based manufacturing enterprise integrating design, production, sales, installation, and after-sales service. Our product portfolio consists of multiple series, mainly including Wrapping Machines, lifting work platforms, and vehicle boarding bridges.
Complying with national industry standards, the products have obtained ISO system certification, CE safety certification, and multiple national invention patents. They are widely used in glass products, papermaking, chemicals, food, and metallurgy industries worldwide.
