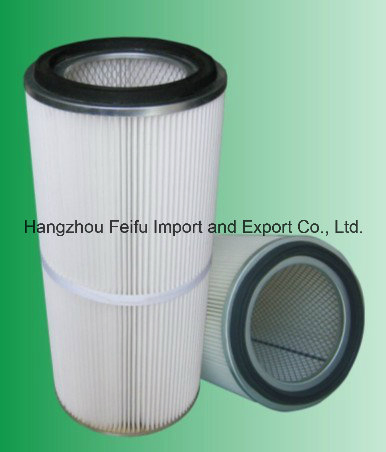

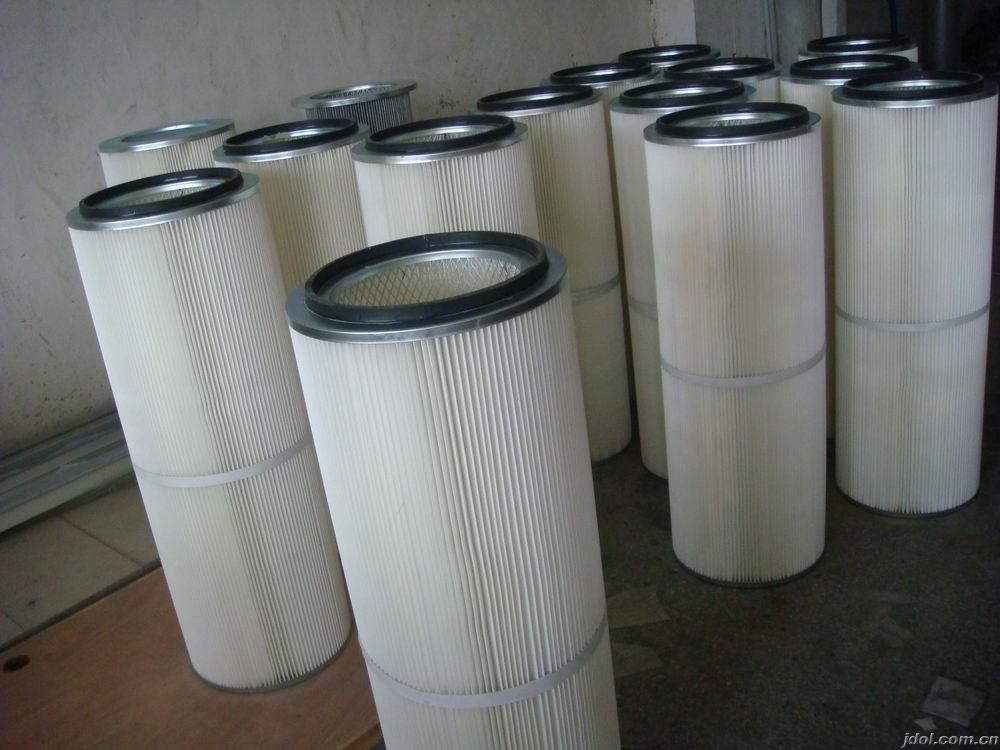

Non-Woven Galvanized Water Dust Filter in Powder Coating Industry

Customization:	Available
Material:	Polyester
Medium Material:	Paper

Basic Specifications

Model NO.

FF

Cartridge Filter

Non-Woven Polyester Fiber

Filter Type

The Filter Bag Filter

Filtration Grade

Medium Filter

Sectional Shape

Round Bag

Environment

Room Temperature

Installation

Specific Angle Ramp Loading

MOQ

1 PCS

Supply Ability

500 PCS/Month

Coating

Powder Coating

Substrate

Polyester

Certification

CE, ISO

Condition

New

Package

Carton

HS Code

8417809090

Capacity

10000 PCS/Year

Product Description

Custom Non-Woven Galvanized Water Dust Filter In Powder Coating Industrial

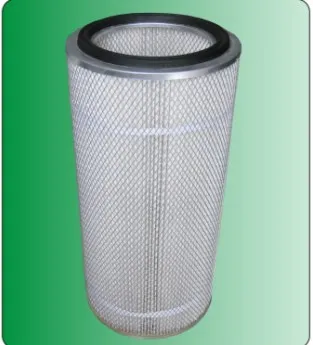

Common Dust Filter - Design Structure

Wide and fold away design
100% high-tenacity polyester
Reduced mounting holes at top/bottom design
Galvanization metal mesh components
Imports of NBR rubber sealing tape
High efficiency filter performance

1. Quick release dust filter powder recovery, widely used in powder coating industry, blasting equipment, painting and dusting equipment, environmental dust, metal dusting and other industrial applications.

2. The cartridge is composed of a quick release cover, galvanized sheet metal forming lower cover, gasket, galvanized (stainless steel) diamond mesh, and non-woven fiber filter components.

3. Custom-made sizes are available to meet specific equipment requirements.

Applications & Features

The filter for powder recovery is widely used in the powder coating industry, blasting equipment, painting and dusting equipment, and environmental metal dusting areas to support major OEMs.

Universal dust filters are divided into A, B, C, and D levels according to the filter material, providing different performance levels to meet specific powder recovery needs.

The cylindrical filter features an electrolytic plate or stainless steel plate stamping molding for upper and lower covers. It utilizes resin seals with excellent tensile strength and impact resistance to ensure no leakage and no cover detachment. PT dust filters are installed with three proprietary material ribs, offering excellent deformation capacity and rust resistance.

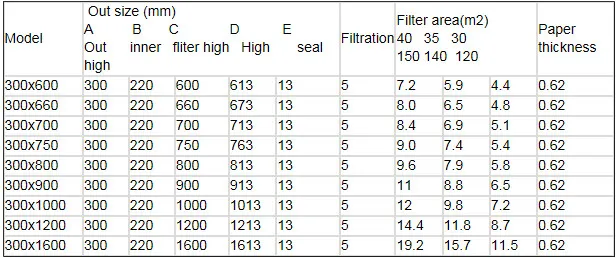

Technical Dimensions & Installation

The height of the dust filter ranges from 400mm to 1250mm, with special applications reaching up to 2500mm. Standard diameters include 150mm, 180mm, 230mm, 240mm, 280mm, 300mm, 325mm, 350mm, 400mm, and 500mm.

Installation Instructions:

Frequently Asked Questions

What materials are used for these industrial filters?

The filters are primarily constructed using 100% high-tenacity non-woven polyester fiber, galvanized metal mesh, and NBR rubber sealing tapes.

In which industries are these dust filters most commonly used?

They are widely applied in the powder coating industry, sandblasting equipment, painting and dusting systems, and metal dusting environmental control.

Are custom sizes available for the filter cartridges?

Yes, we can manufacture custom-made sizes with heights ranging from 400mm to 2500mm and various diameters to fit your specific machinery.

What ensures the filter does not leak powder during operation?

All filters use a high-quality resin seal with excellent impact resistance and NBR seals to ensure the cover stays secure and prevents powder leakage.

What are the different filtration levels available?

The filters are categorized into four levels (A, B, C, D) based on the material to meet different powder recovery and filtration efficiency requirements.
