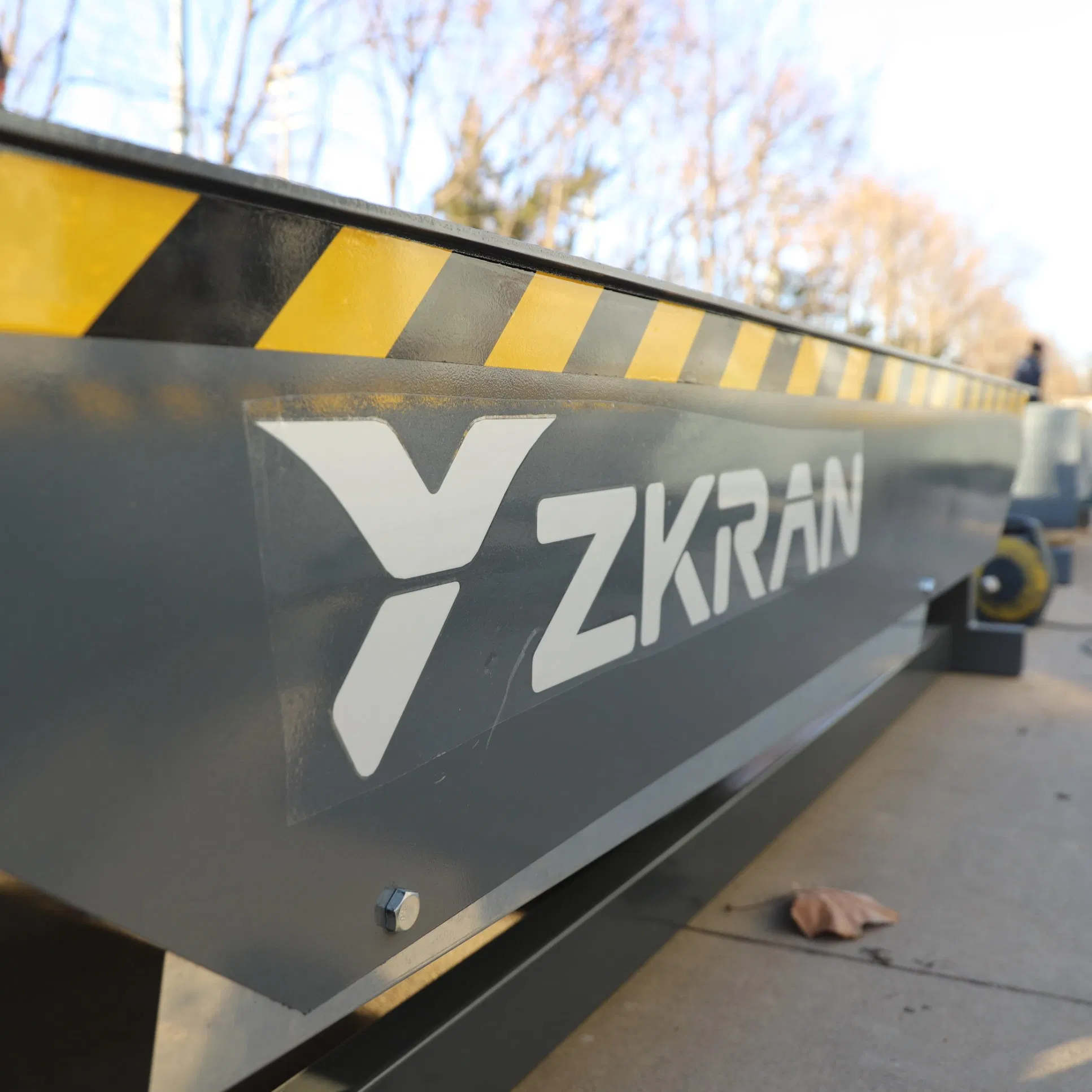

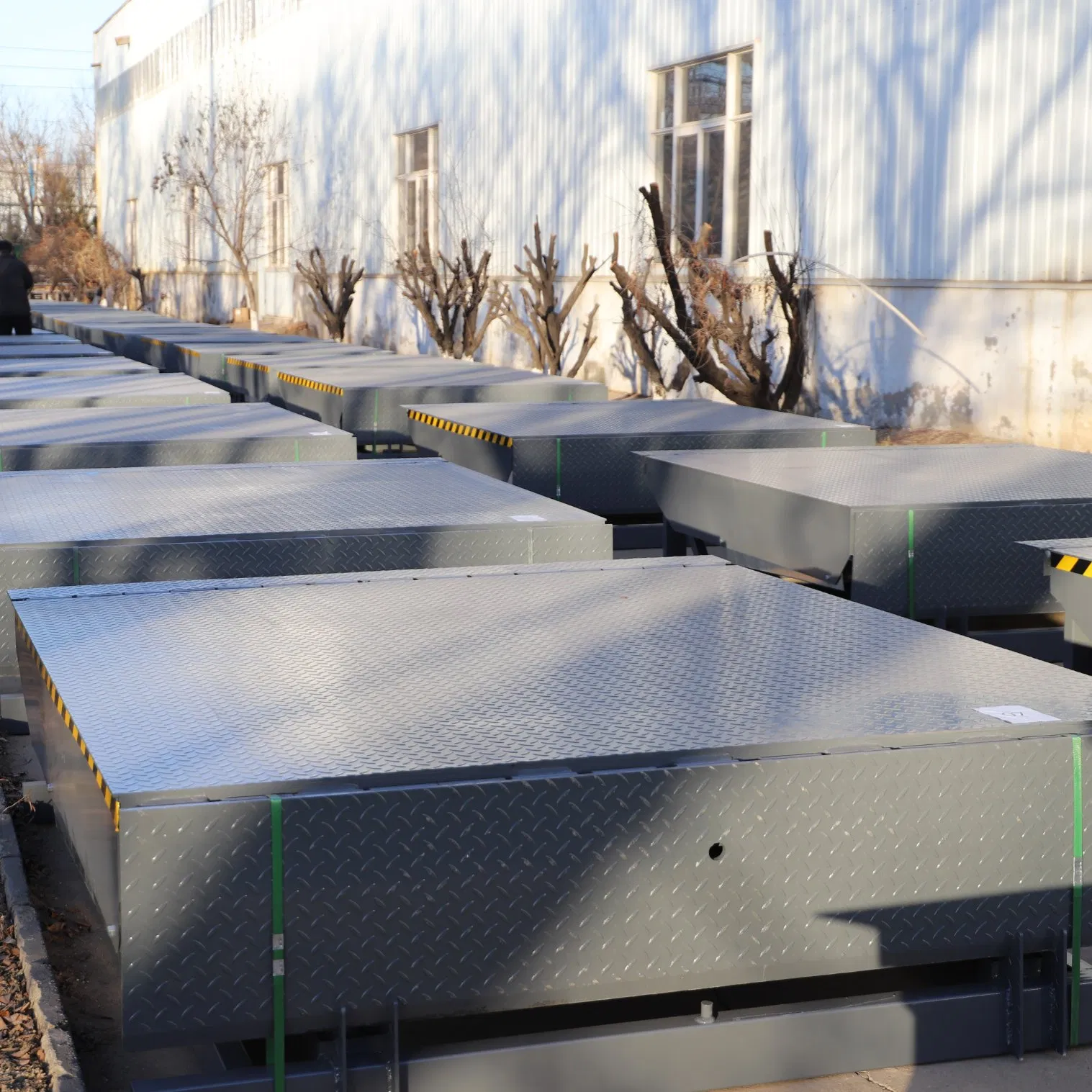

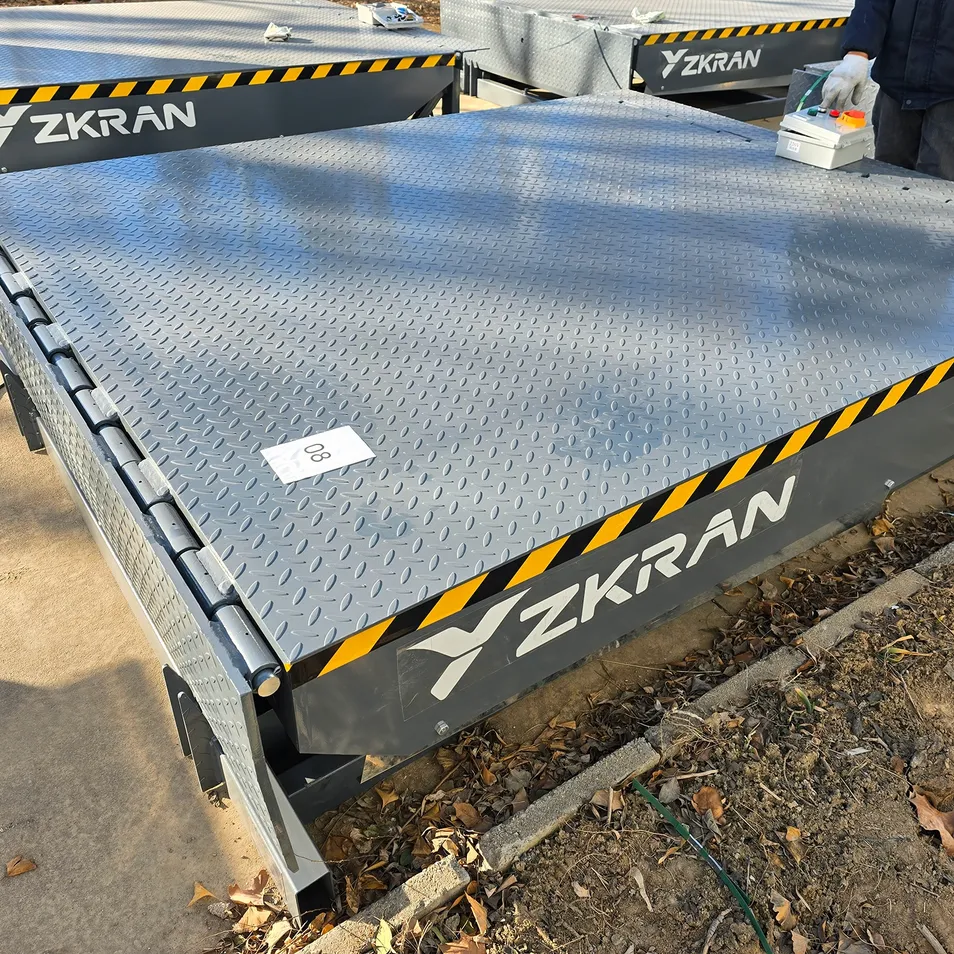

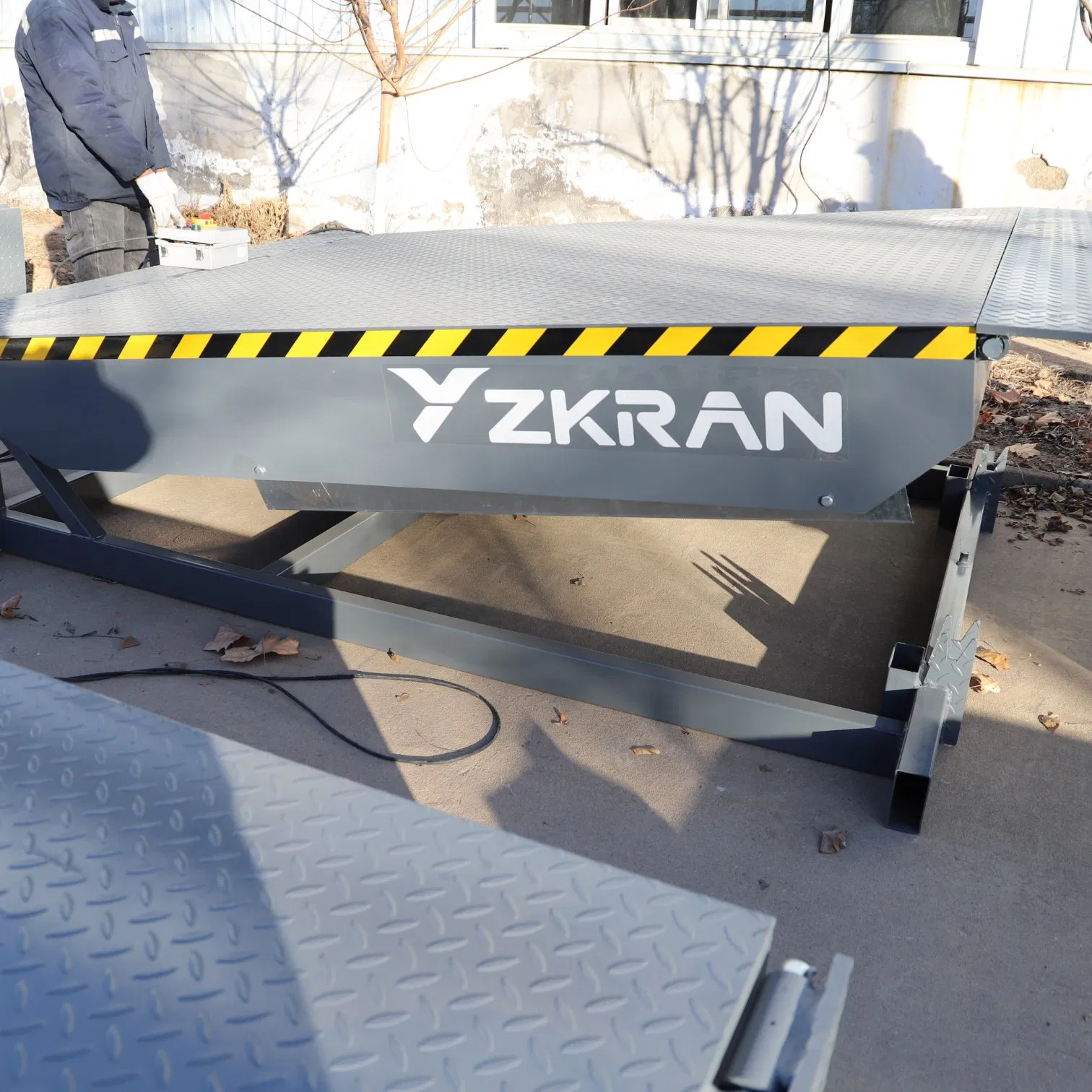

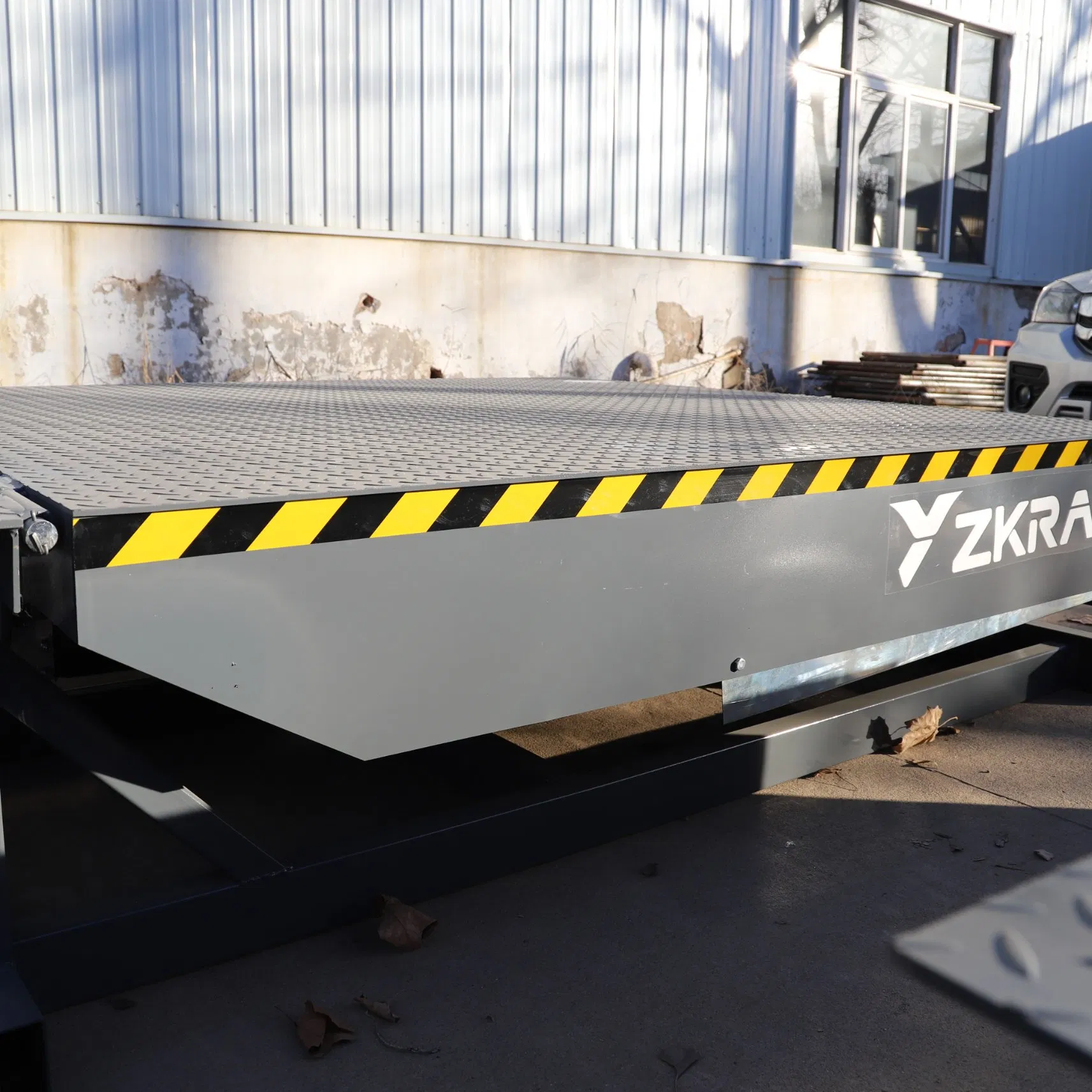

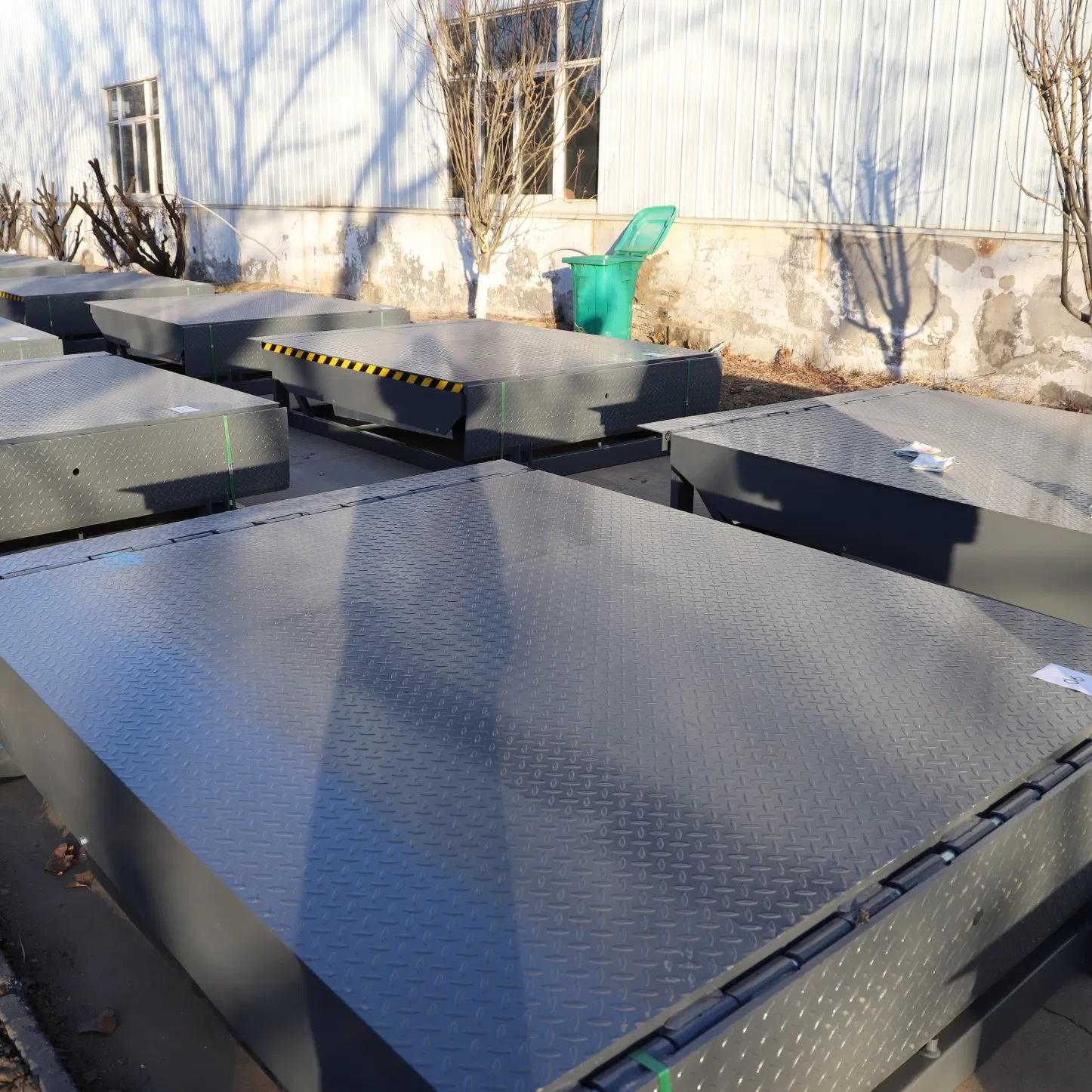

Factory Direct Stationary Hydraulic Dock Leveler System for Seamless Truck Loading Operations

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Basic Specifications

Model NO.

L23

Application

Hydraulic Lifting Platform

Lift Mechanism

Articulated Lift

Carrying Capacity

6-20 Ton

Moves

Stationary

Driven Type

Hydraulic

Certification

CE, ISO 9001

Voltage

220V, 380V, 415V

Lifting Speed

0.1-0.3m/S

HS Code

8428909090

Product Description

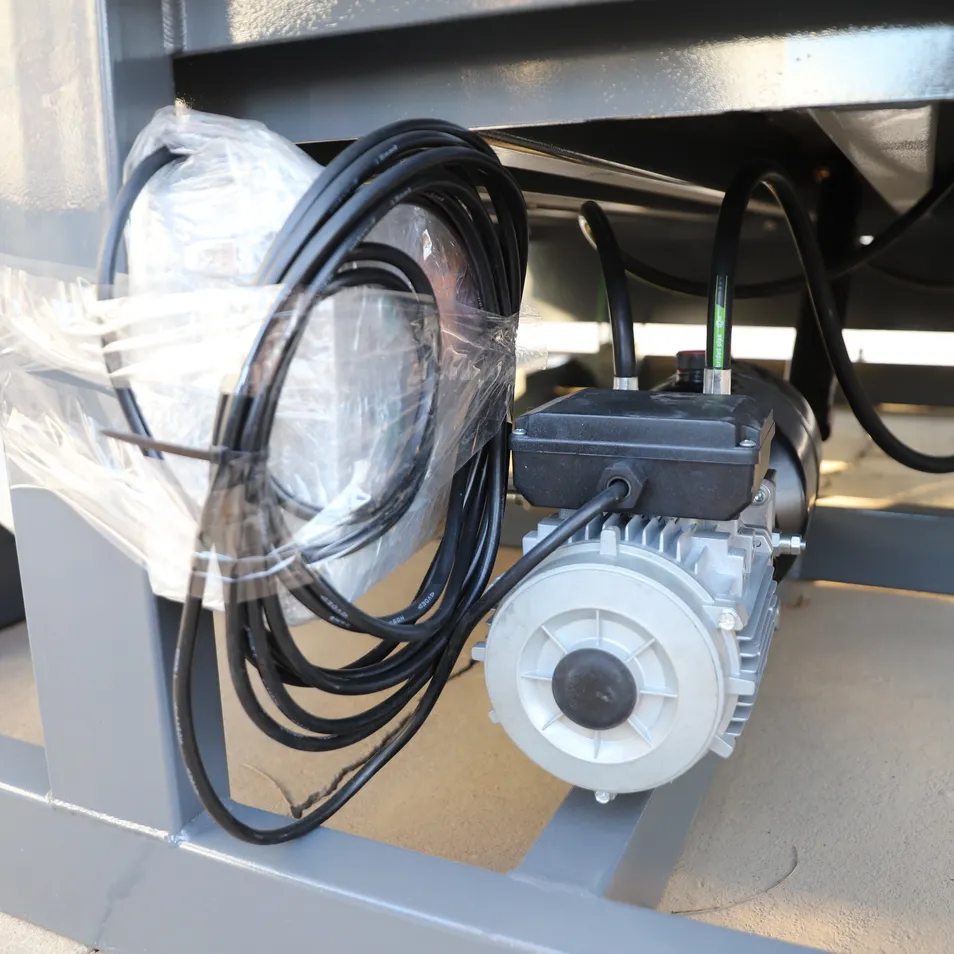

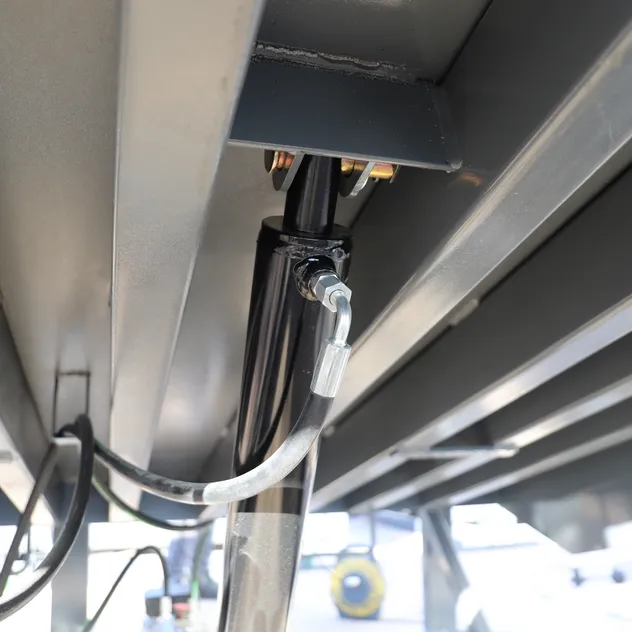

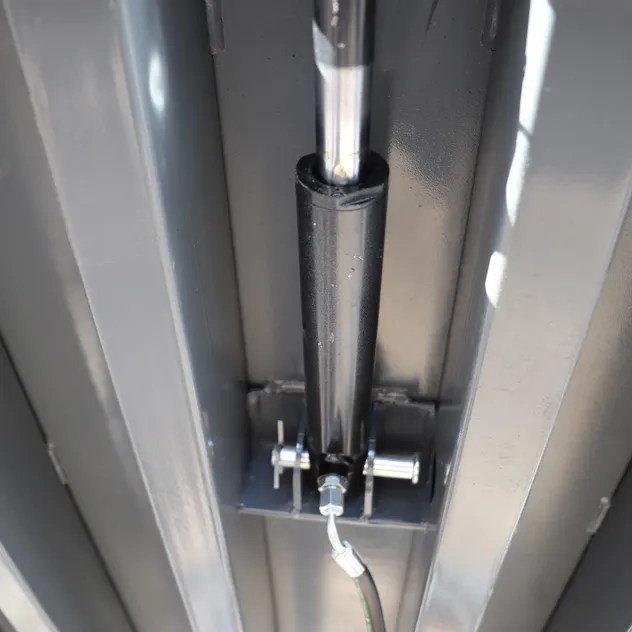

Supplying hydraulic lifting platforms of various specifications. The hydraulic lifting platform is designed based on Pascal's principle, with the hydraulic system as the core power source. It is equipped with high-quality key components such as motors, oil cylinders and control valves to achieve stable and precise vertical lifting movement.

The lifting height can be flexibly adjusted from 1 meter to 30 meters, and the rated load ranges from 500kg to dozens of tons. The table size, lifting stroke and power form (AC or DC optional) can be customized according to actual needs.

Key Features

✓Simple structure, easy to customize and produce

✓Low installation requirements, convenient maintenance

✓Made of special steel plate, durable and anti-deformation

✓Rust-resistant surface painting

✓Humanized design ensures personnel safety

✓Electric switch for easy operation

Main Applications

Industrial Production: Suitable for workshop assembly lines, material handling, and large equipment lifting.

Logistics & Warehousing: Vertical cargo access and forklift loading. Supports -25℃ cold-chain environments.

Construction Engineering: Vertical transport and aerial work support for buildings and municipal venues.

Automotive Maintenance: Precise tooling alignment for automobile and railway vehicle maintenance.

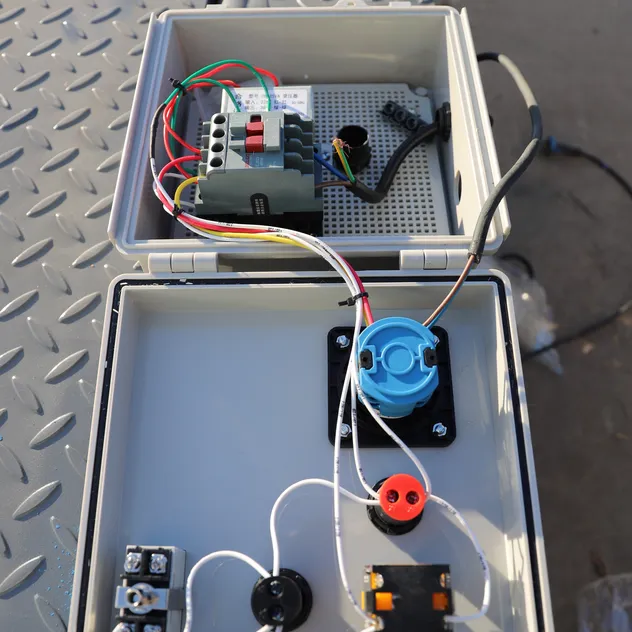

Product Details

Technical Parameters

Parameter Name	Specification Range
Rated Load	500kg - 50,000kg
Lifting Height	1m - 30m
Platform Size	Customizable (Standard 2000×1350mm)
Lifting Speed	0.1 - 0.3m/s
Motor Power	1.5kw - 11kw
Power Supply	380V/50Hz (220V/48V customizable)
Material	Carbon Steel / 304 Stainless Steel

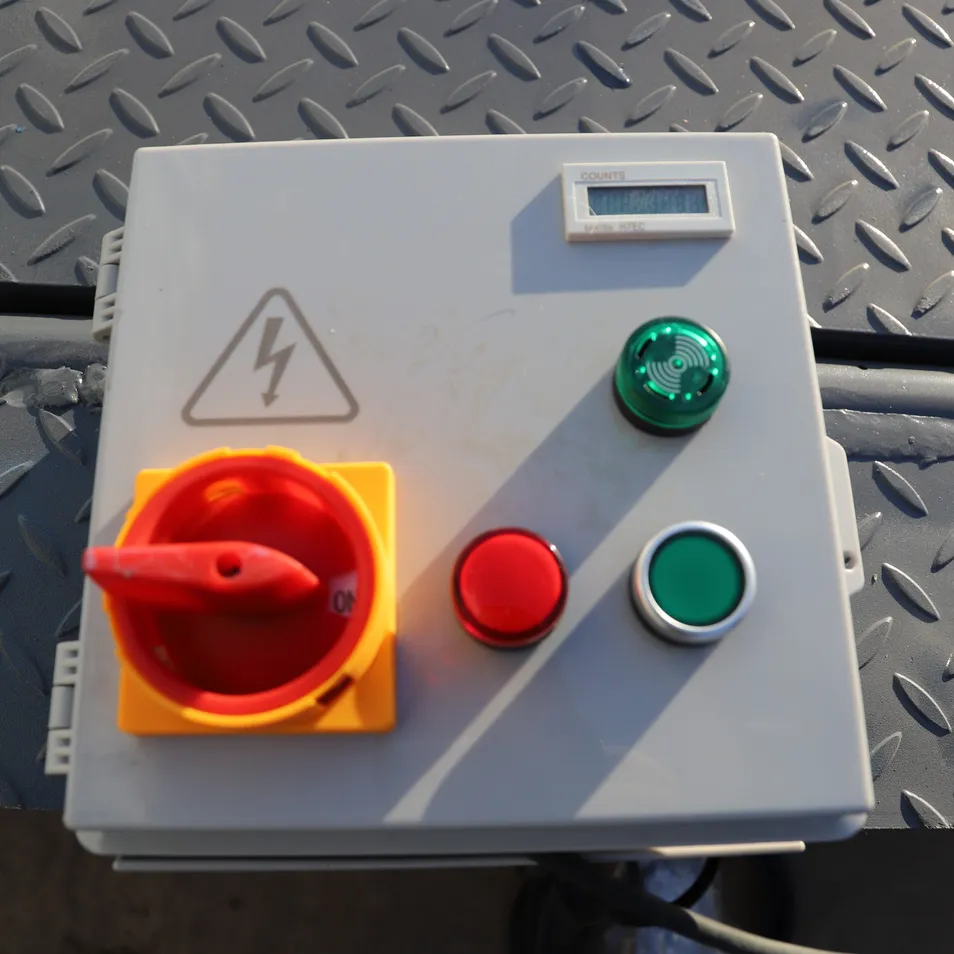

Operation Mode	Button Control / Remote Control

Frequently Asked Questions

What load capacities are available for your hydraulic lifting platforms?

Our standard lifting platforms cover 500kg to 10,000kg. Custom load capacities are also available according to your specific requirements.

Can your hydraulic lift tables be used in cold chain or low-temperature environments?

Yes. Our cold-chain models can work stably at temperatures as low as -25℃ and are widely used in cold storage and logistics centers.

Do you provide customized sizes and lifting heights?

Yes. We accept customization for platform size, lifting height, power type (AC/DC), and control mode to fit different working conditions.

What safety features are included?

It is equipped with overload protection, emergency stop, anti-fall valves, non-slip platform surfaces, and safety fences to ensure stable and safe operation.

What materials are used for the construction of the platform?

Depending on the application, we offer high-strength Carbon Steel for general industrial use or 304 Stainless Steel for food-grade or corrosive environments.

Is the installation of the stationary hydraulic lift complicated?

No, our systems are designed with low installation requirements. We provide a simple structure that is convenient for both setup and long-term after-sales service.
