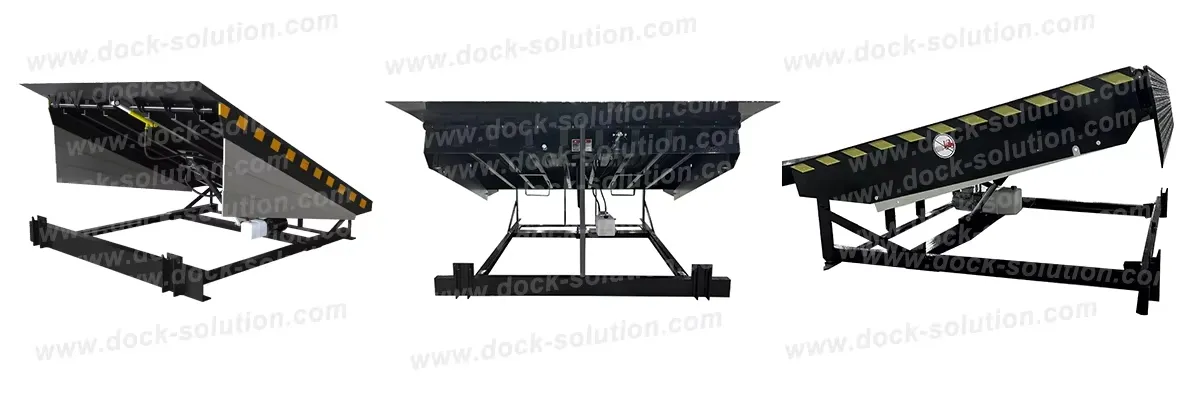

Dock Leveler uses a hydraulic power unit to lift the upper main panel through a main oil cylinder, while a small auxiliary oil cylinder pushes out the lip plate. It is essential when dock height and truck height differ, utilizing the self-weight drop principle to position the lip plate onto the rear of the truck.
This hydraulic type is currently the most widely used loading and unloading platform, recognized for stable performance, simple operation, low maintenance, and ease of repair.

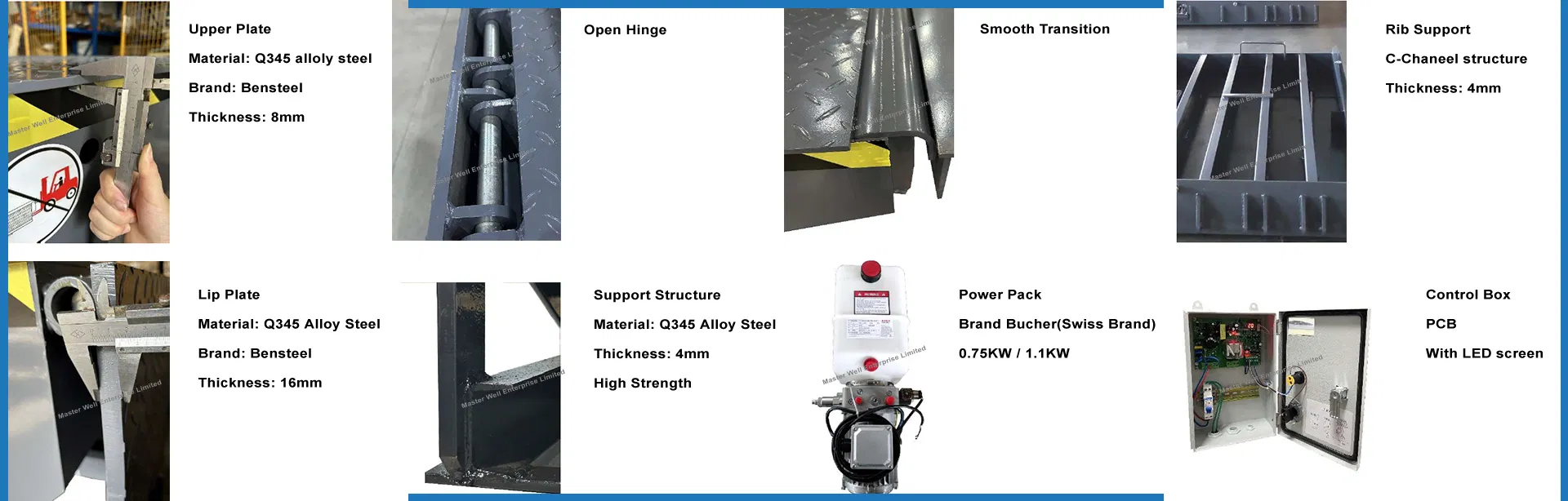

| Upper Plate | 8 mm thickness, anti-skate steel plate |
| Swinging Lip | Single 16 mm thickness, 400mm length |
| Support Profile | C-shaped stiffener/14# I-Beam |
| Working Range | +300mm / 260~300mm |
| Adjustment Time | Rise ≤16S, Fall ≤10S |
| Dynamic Loading | 6,000 ~ 25,000 KG |
| Static Loading | 10,000 ~ 31,700 KG |
| Service Life | ≥ 200,000 times |
| Noise Level | < 50db (±5db) |

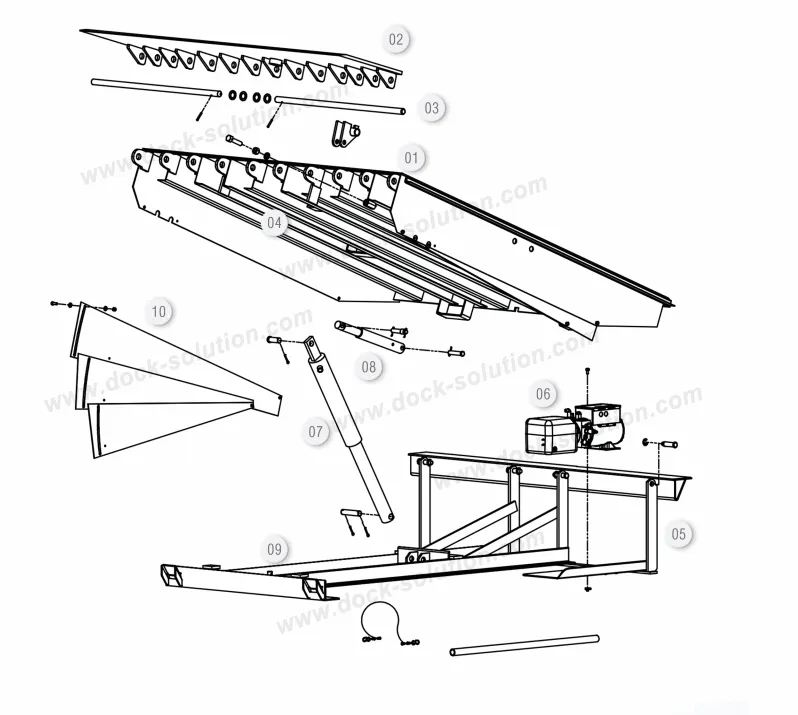

| 1. Upper Plate | 6. Power Pack |
| 2. Lip Plate | 7. Main Cylinder |
| 3. Hinge (Open) | 8. Auxiliary Cylinder |
| 4. Rib Support | 9. Frame |
| 5. Support Structure | 10. Guard |
