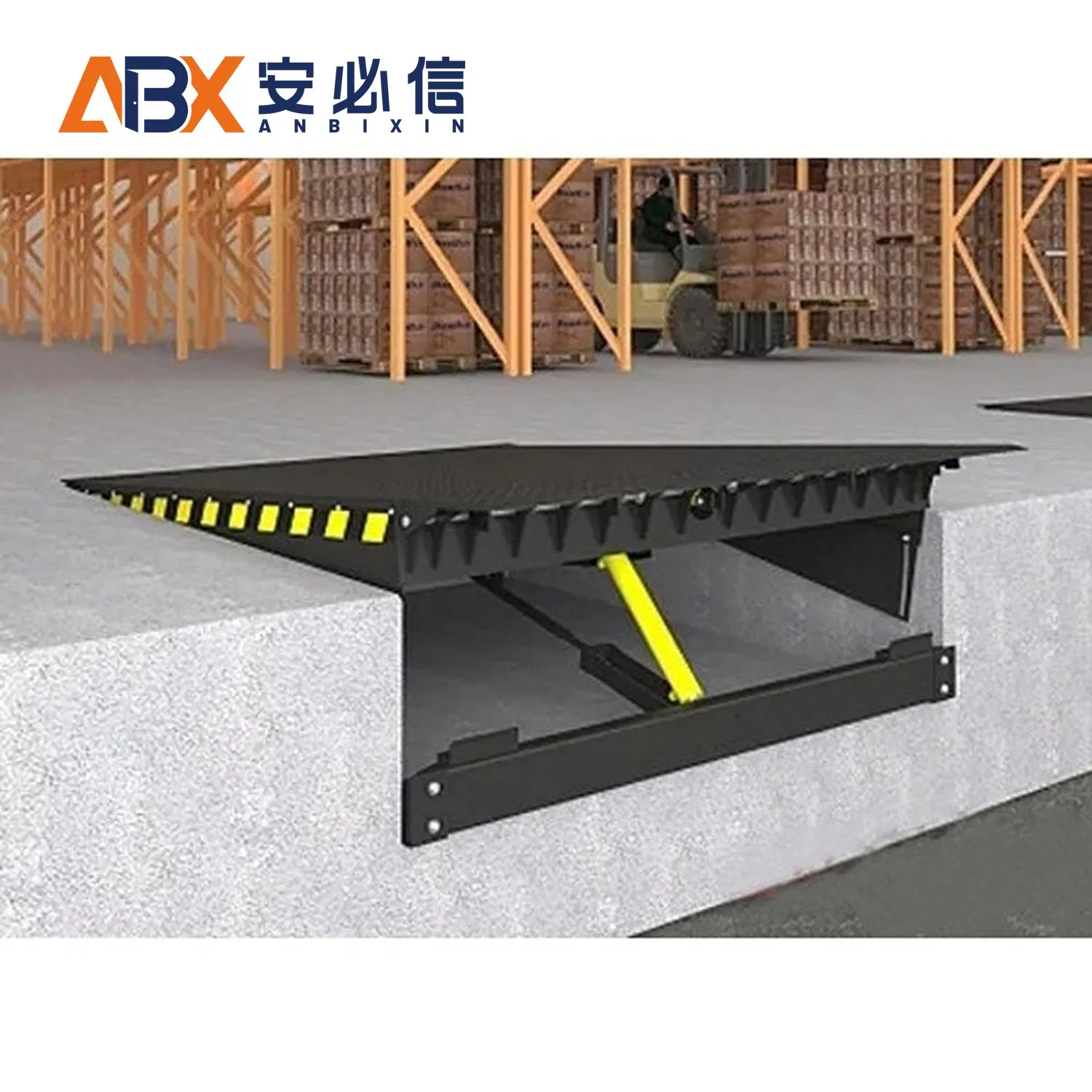

DOCK LEVELER
Loading and unloading platforms are suitable for hydraulic, pneumatic, or mechanical installations. It helps users safely and efficiently unload trucks of all heights and sizes.
The loading and unloading platforms are divided into fixed loading and unloading platforms and mobile loading and unloading platforms. Its main function is to build a bridge between the cargo platform and the transport vehicle, allowing the forklift to travel conveniently for unloading.
It can automatically adjust its height according to different vehicle models and changes in the vehicle compartment during loading. This product is specially designed in terms of dimensions, load-bearing capacity, etc., according to the different needs of users.
Keep your operations running smoothly with a high-traction, anti-slip surface and weather-resistant components.
Fully customizable solutions with options for size, capacity, and control systems tailored to your requirements.
Advanced hydraulic systems engineered for low energy consumption without sacrificing power or speed.
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Rated Load | Net Load 8 Tons, Dynamic Load 6 Tons |
| Equipment Dimensions | 2000mm Wide, 2500mm Long, 600mm High |
| Pit Size | Width: 2030mm, Length: 2500mm, Height: 610mm |
| Adjustment Time | Up Time ≤16s, Down Time ≤10s |
| Board Thickness | 12mm / 400mm |
| Main Console Panel | 6mm Patterned Board |
| Motherboard Skeleton | L-Shaped Bend |
| Side Guards | Automatically Retractable Baffles |
| Hydraulic Oil | 32# Anti-Wear Hydraulic Oil |
| Working Pressure | 8MPa +/-1MPa |
| Base Frame | 10# Channel Steel Welded H-Shaped Frame |
| Use Times | ≥ 200,000 Times |
💠 EFFORTLESS INTEGRATION: Designed to seamlessly bridge the gap between the loading dock and varying truck heights.
💠 SUPERIOR DURABILITY: Constructed with high-strength, industrial-grade steel to withstand heavy loads.
💠 ENHANCED SAFETY MECHANISMS: Equipped with full-range toe guards and velocity fuses to protect workers.
💠 LOW MAINTENANCE: Robust design and high-quality components reduce downtime and ownership costs.
💠 IMPROVED PRODUCTIVITY: Dramatically speeds up loading and unloading cycles by providing a stable platform.
