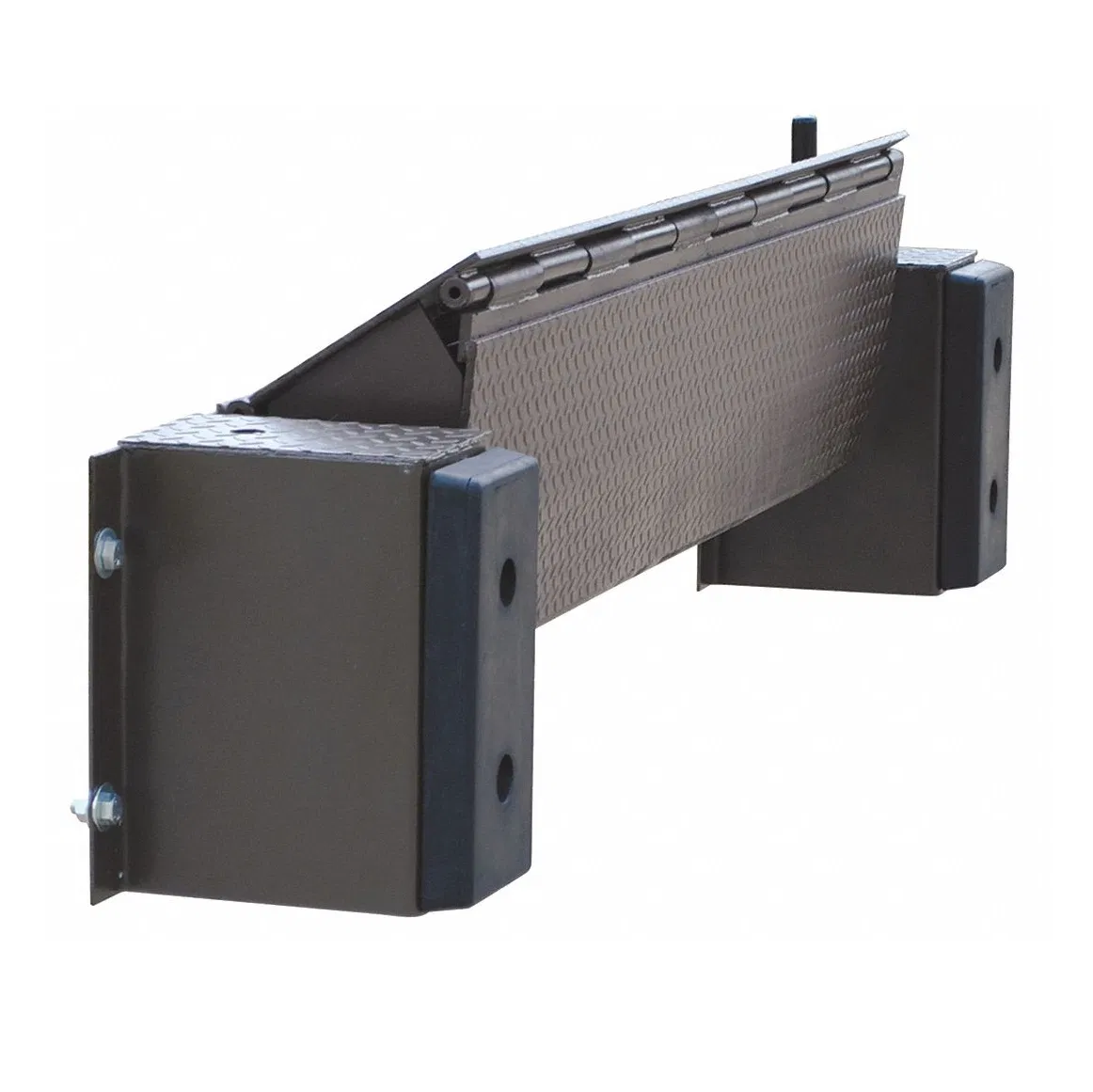

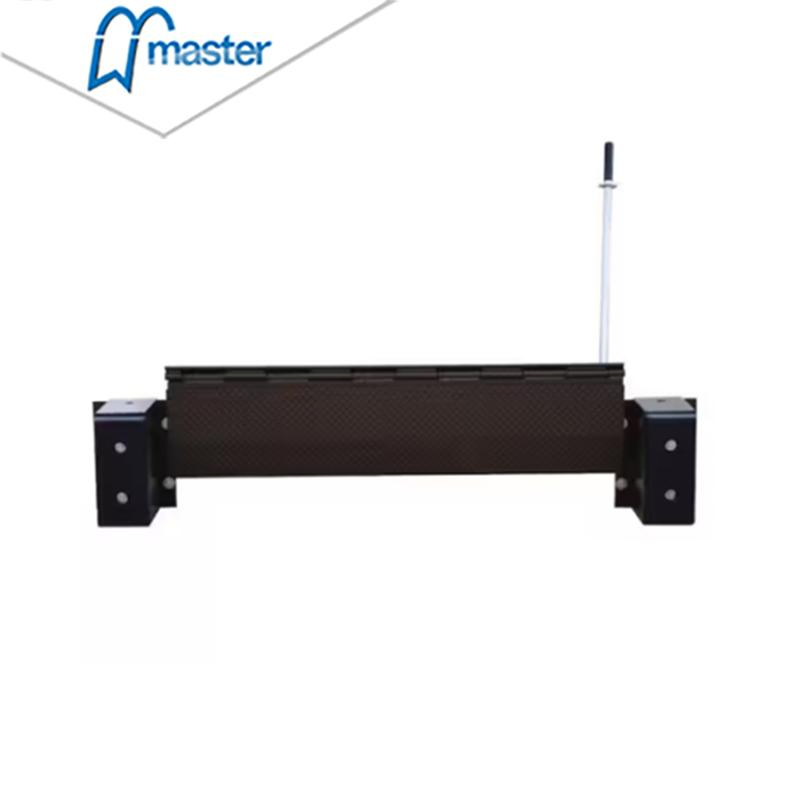

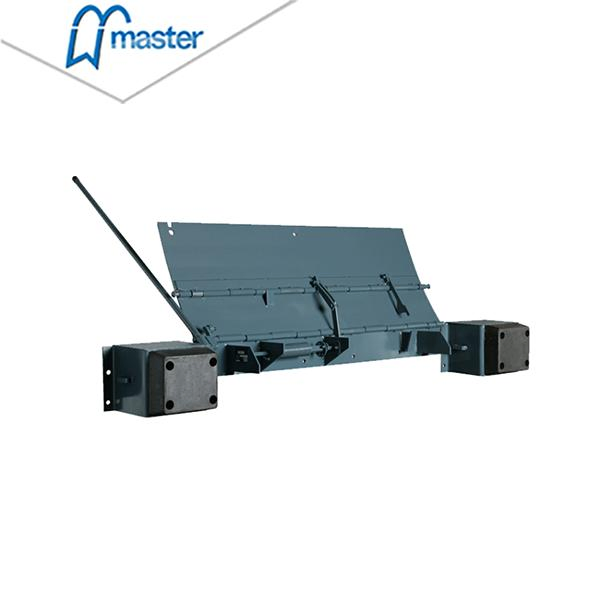

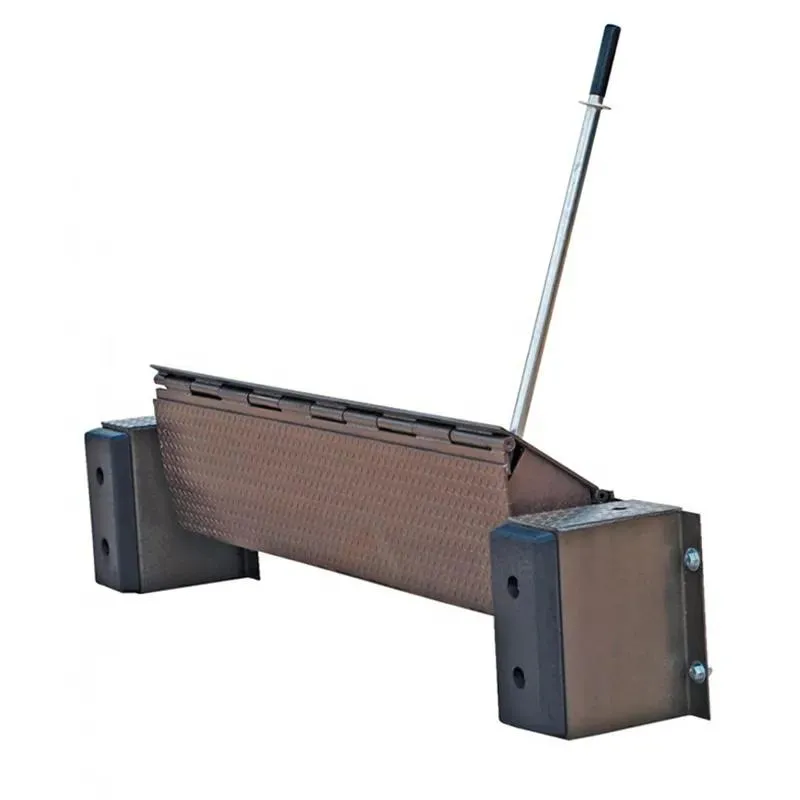

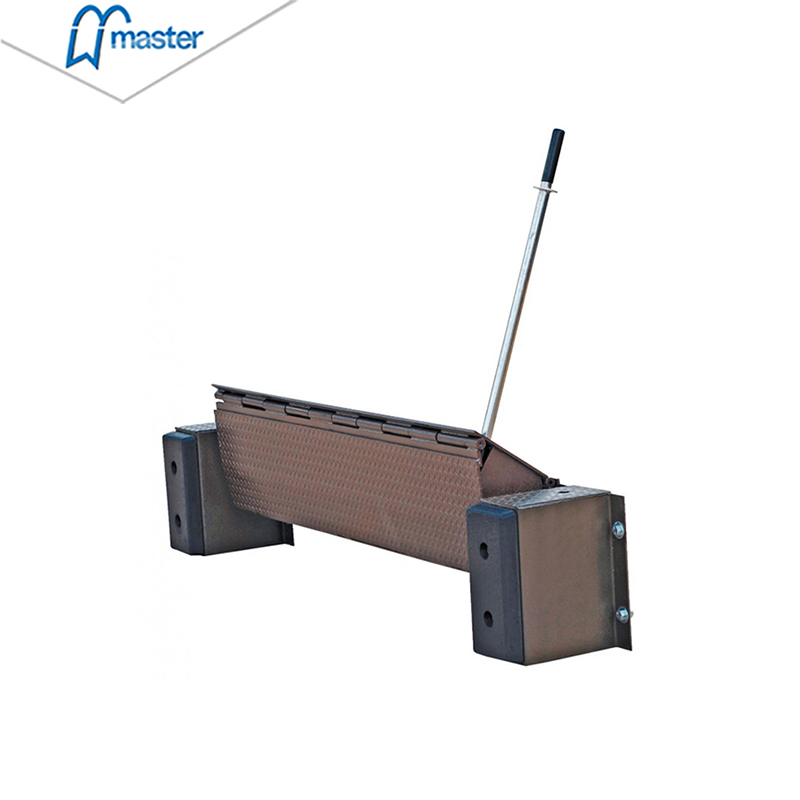

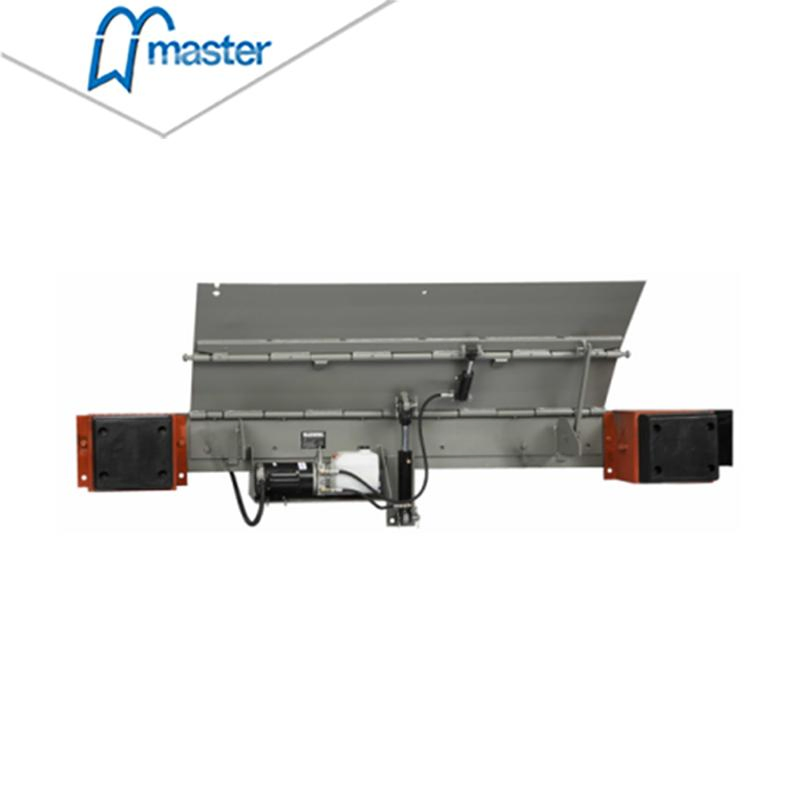

The edge of dock leveler is installed at the side of loading and unloading docks. It adopts a mechanical mode or air cylinder lifting to facilitate seamless transitions between the dock and transport vehicles.
Summary: This design creates a larger connecting space with simple and stable operation. The hydraulic telescopic dock leveler improves logistic efficiency by making loading and unloading tasks easy and fast.
Application: Ideal for factories, workshops, and warehouses, particularly in food processing, supermarkets, assembly lines, and general logistics.
| Component | Specification |
|---|---|
| Upper Plate | 8mm thickness, anti-skate steel plate |
| Swinging Lip | Single 16mm thickness, 400mm length |
| Support Profile | L-shaped stiffener/14# I Beam |
| Working Range | -300mm to +300mm |
| Adjustment Time | Rise Time ≤16S, Fall Time ≤10S |
| Dynamic Capacity | 6000~15000kg |
| Service Life | ≥200,000 times |
| Noise Level | <50db (±5db) |

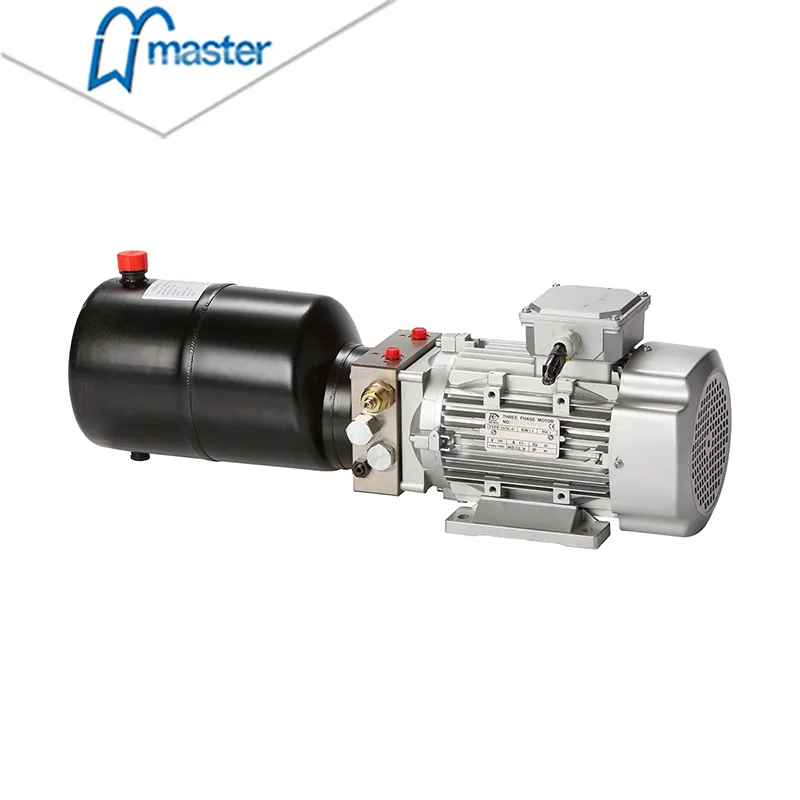

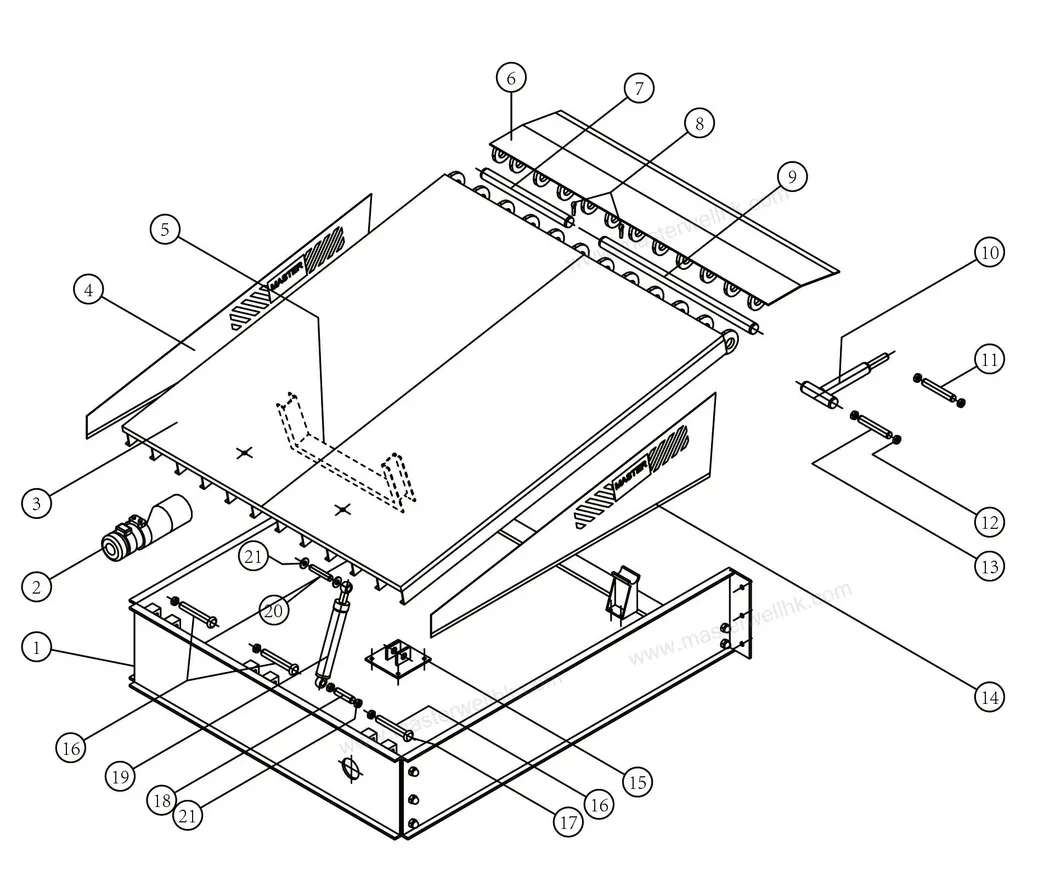

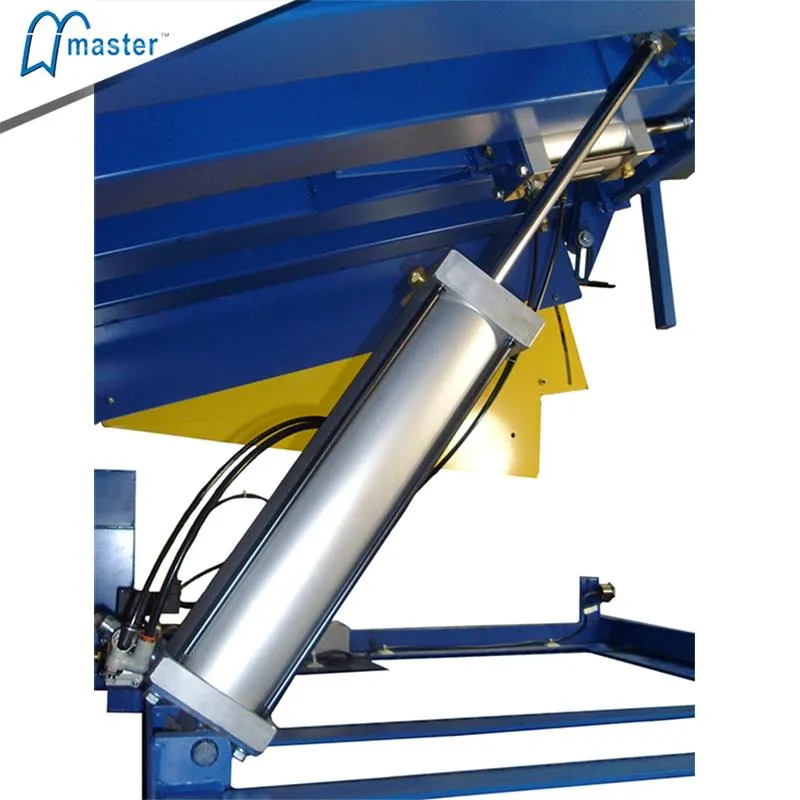

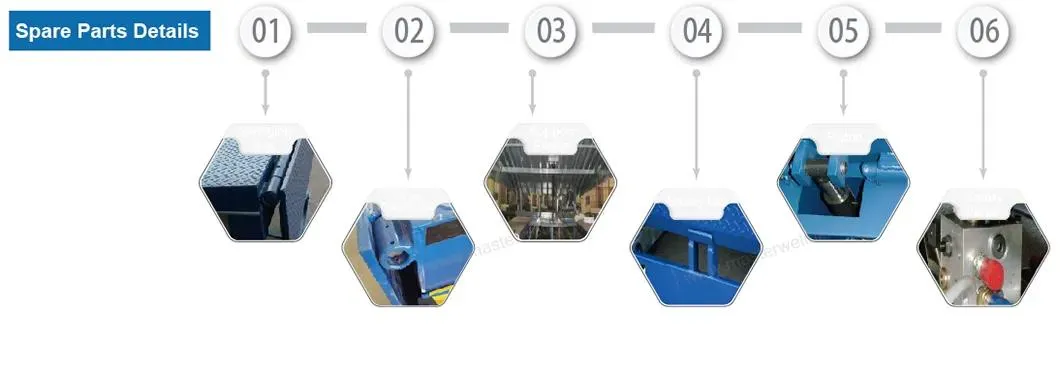

| 1. Mould / Hydraulic Unit | 2. Upper Plate / Foot Guards | 3. Swinging Lip / Shaft Pins | 4. Cylinder System |
