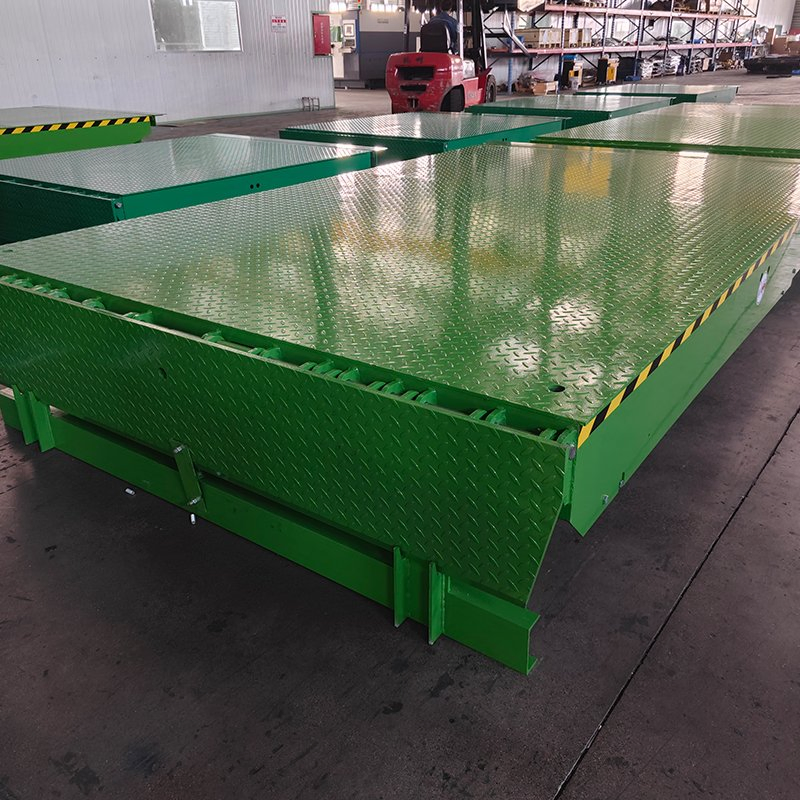

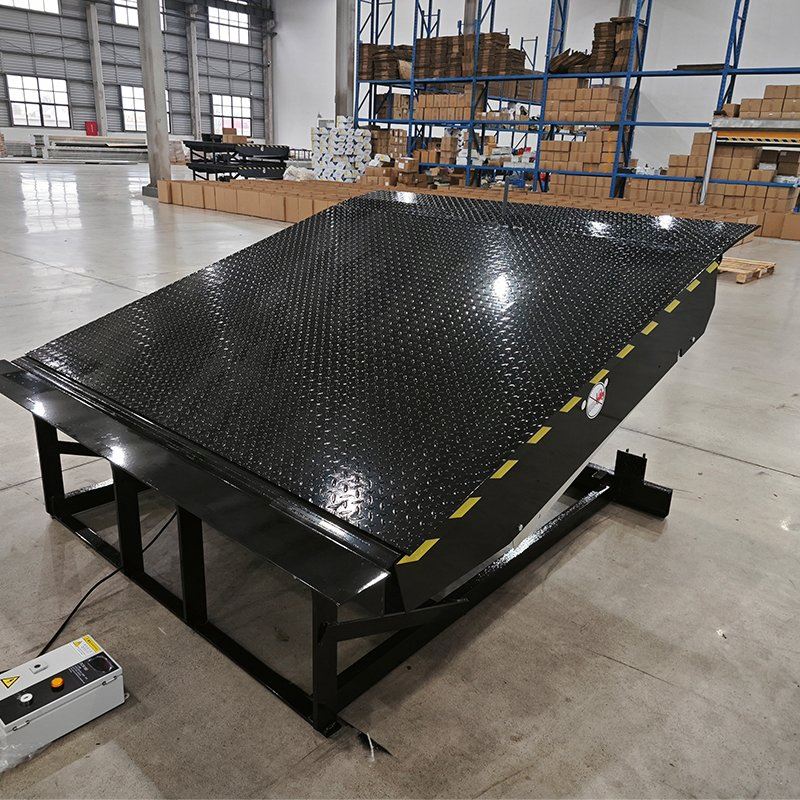

Factroy ODM. OEM Rugged Steel Hydraulic Dock Leveler Dock Plate Lift Table Lifting Platform

1 / 5

Factroy ODM. OEM Rugged Steel Hydraulic Dock Leveler Dock Plate Lift Table Lifting Platform

Customization:	Available
After-sales Service:	Available
Warranty:	1 Year

Send Inquiry

Product Description

ℹ Basic Product Information

Model NO.:DL11

Application:Warehouse Crane, Charge and Discharge

Lift Mechanism:Articulated Lift

Driven Type:Hydraulic

Loading Capacity:10000kg

Power Supply:380V/0.75kw

Hydraulic Unit:Swiss Bucher Hydraulic System

Certification:CE, RoHS, ISO 9001, AAA

Package Size:200.00cm * 220.00cm * 60.00cm

Gross Weight:800.000kg

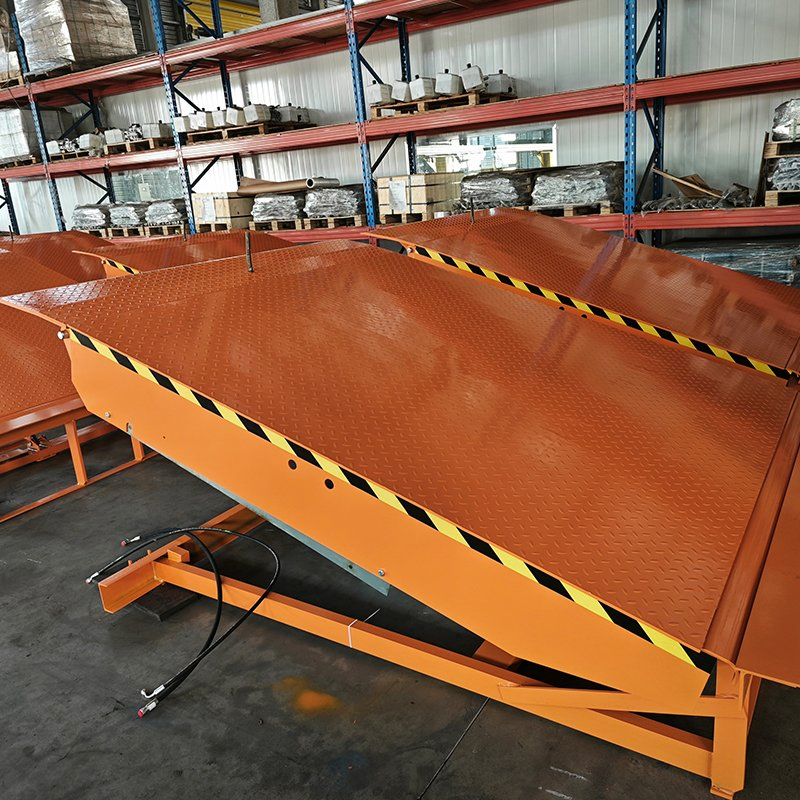

⚙ Electric Hydraulic Dock Leveller

📋 Material & Technical Specifications

Parameter	Details
Application Environment	Logistics unloading port
Load Capacity	6-25 tons
Standard Width	1830mm, 2000mm, 2130mm
Standard Length	2000mm, 2500mm, 3000mm, 3500mm
Lip Plate	Standard 400mm, 500mm optional
Countertop Structure	8mm high-strength anti-skid pattern steel plate with reinforcement
Lip Thickness	14mm, 16mm, or 20mm anti-slip pattern steel plates
Security Configuration	Anti-fall function, anti-pinch protection, maintenance support rod, night self-locking

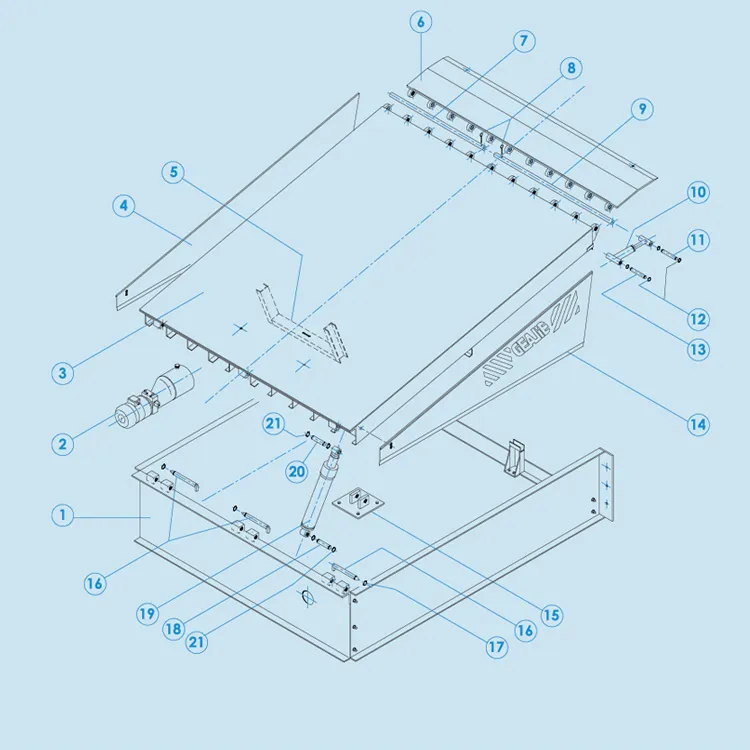

📐 Structural Drawing & Components

1. Mould

2. Hydraulic control unit

3. Upper plate

6. Swinging lip

10. Cylinder of the lip

19. Upper plate cylinder

14. Right foot guard

20. Upper plate cylinder shaft pin

⭐ Product Advantages

Various Types: Available in hydraulic, pneumatic, and mechanical types to suit different requirements.

Durable Material: Made of high-strength steel with corrosion resistance treatment for long-term durability.

Flexible Load Capacity: Designed to accommodate anything from light goods to heavy industrial equipment.

Easy Operation: Options for manual or automated control systems (buttons, switches, remote).

Safety First: Equipped with anti-slip surfaces, safety barriers, and sensors to protect personnel.

High Adjustability: Height adjustable to connect smoothly with various truck and dock heights.

❓ Frequently Asked Questions

What is the Minimum Order Quantity (MOQ)?

The MOQ is 1 set.

What are the maximum available dimensions?

The maximum length can be 6.5M and the maximum width is 6M (adjustable).

Where is the dock leveler typically used?

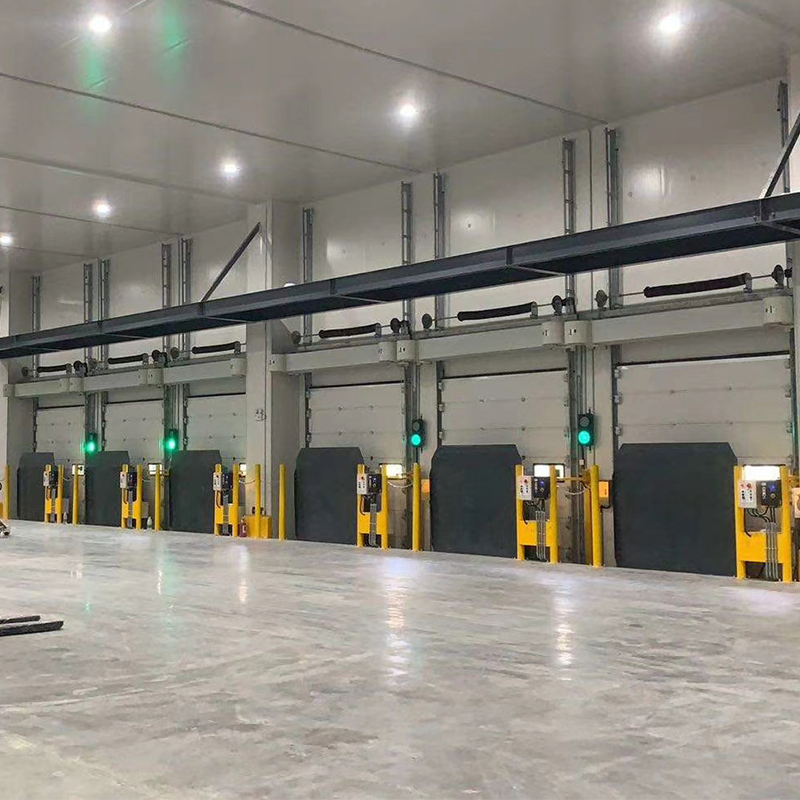

It is commonly used at factory outlets and outgoing ports of logistics parks.

What is the primary benefit of using a dock leveler?

It significantly improves the efficiency of cargo handling and makes loading/unloading goods easier and safer.

Is the installation process difficult?

No, the product is designed to be very easy to install.

Do you provide customization for load and size?

Yes, non-standard loads, sizes, and colors are available upon request.
