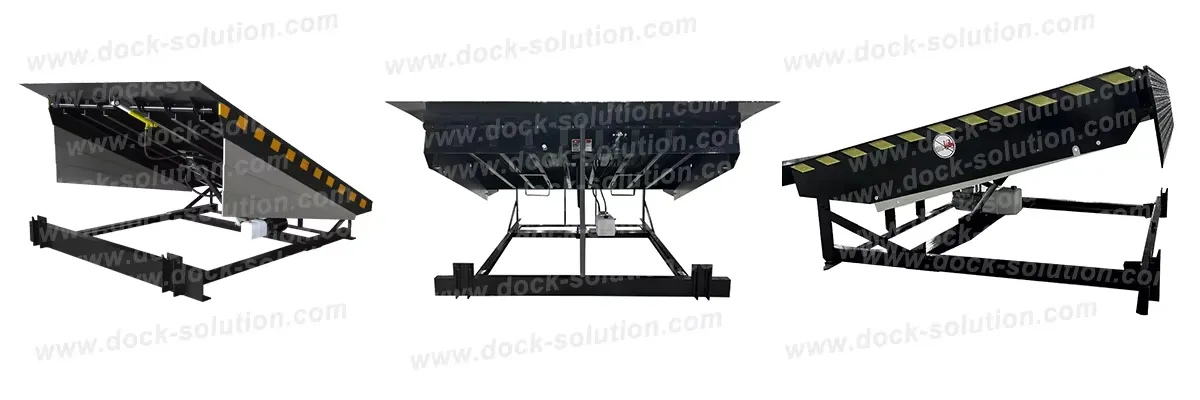

Hydraulic Dock Leveler uses a hydraulic power unit to lift the upper main panel through the main oil cylinder, while a small auxiliary oil cylinder pushes out the lip plate. It is essential when dock and truck heights differ, utilizing gravity to settle the lip plate onto the rear of the truck.
This hydraulic system is currently the most widely used loading platform, offering stable performance, simple operation, and low maintenance requirements.
| Upper Plate | 8 mm thickness, anti-skate steel plate |
| Swinging Lip | Single 16 mm thickness, 400mm length |
| Support Profile | C-shaped stiffener/14# I Beam |
| Sealing Element | Japan Brand NOK A505 |
| Working Range | +300mm / 260~300mm |
| Adjustment Time | Rise ≤16S, Fall ≤10S |
| Dynamic Capacity | 6,000 ~ 25,000 KG |
| Service Life | ≥ 200,000 times |
| Noise | < 50db (±5db) |

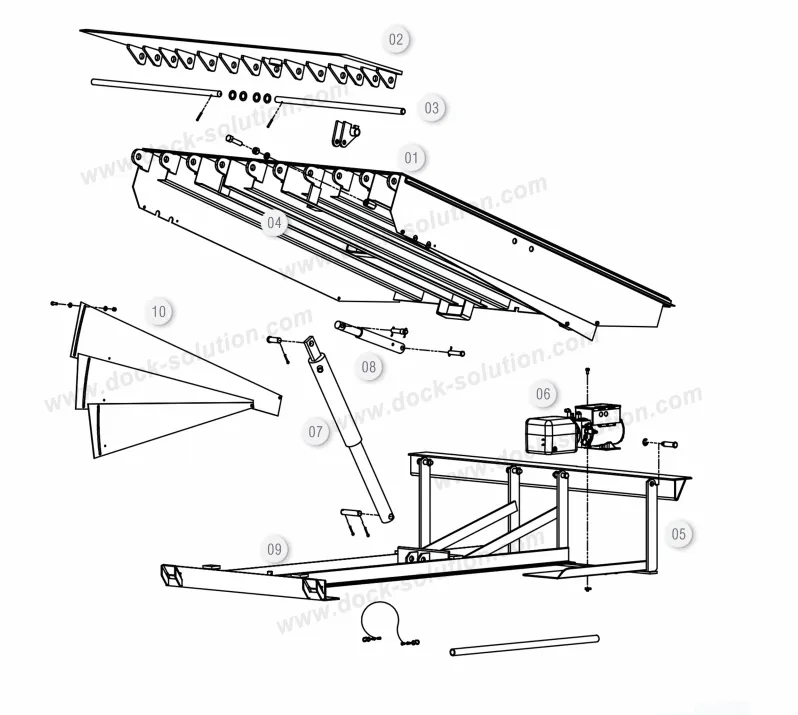

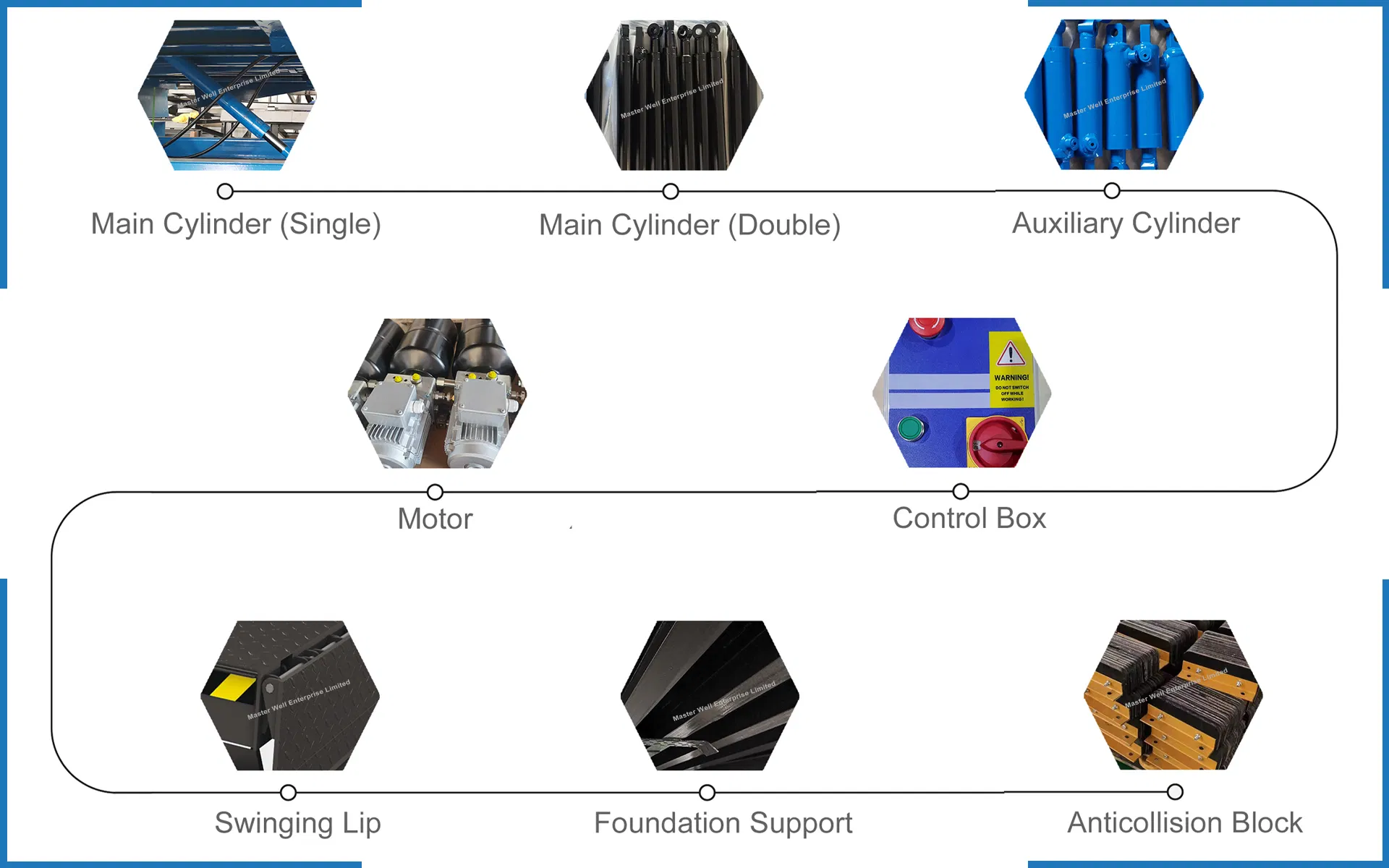

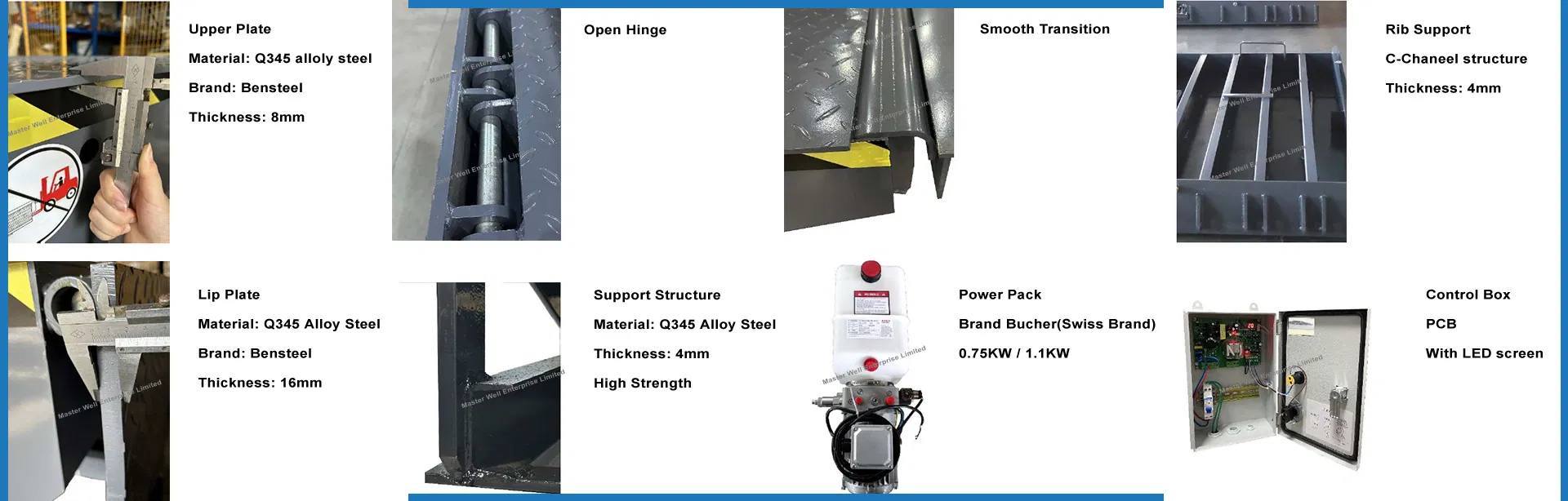

| 1. Upper Plate | 6. Power Pack |
| 2. Lip Plate | 7. Main Cylinder |
| 3. Hinge (Open) | 8. Auxiliary Cylinder |
| 4. Rib Support | 9. Frame |
| 5. Support Structure | 10. Guard |
Our team consists of approximately 100 professionals across International and Domestic Sales, Purchase, Finance, Human Resources, and R&D departments. We are dedicated to providing professional services and technical excellence.
