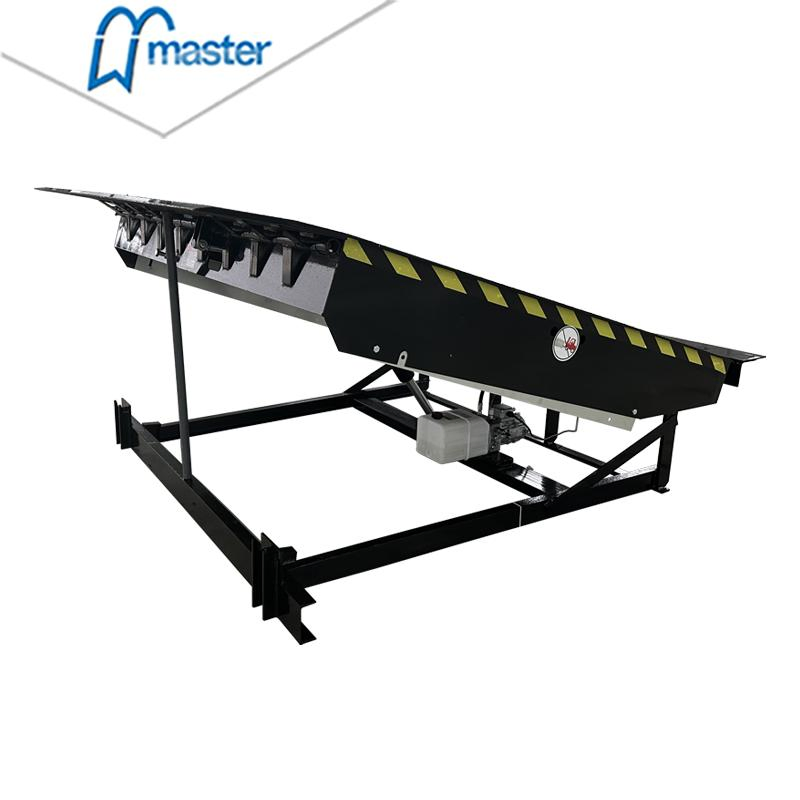

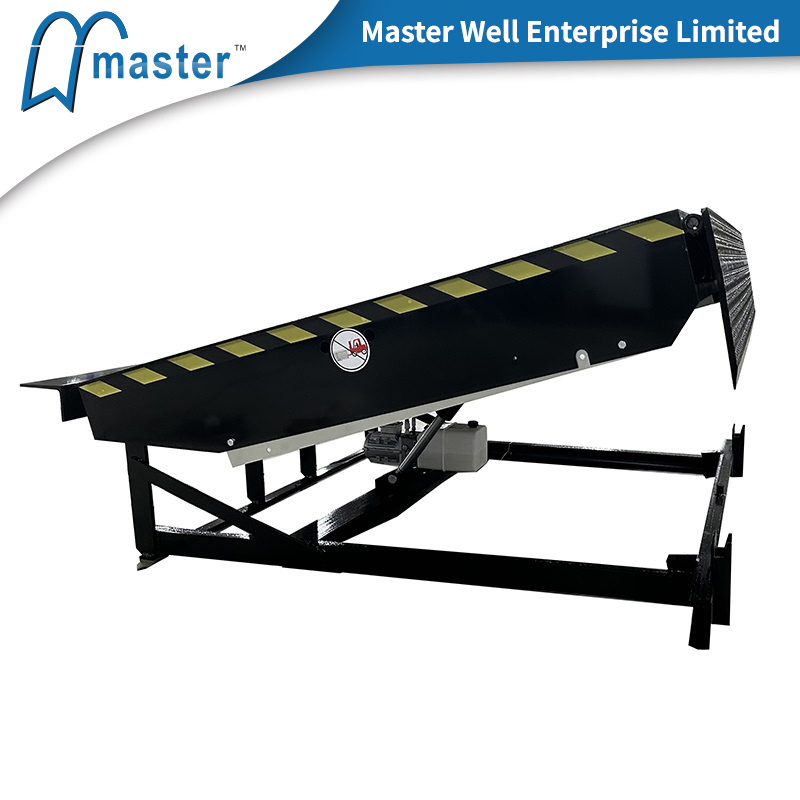

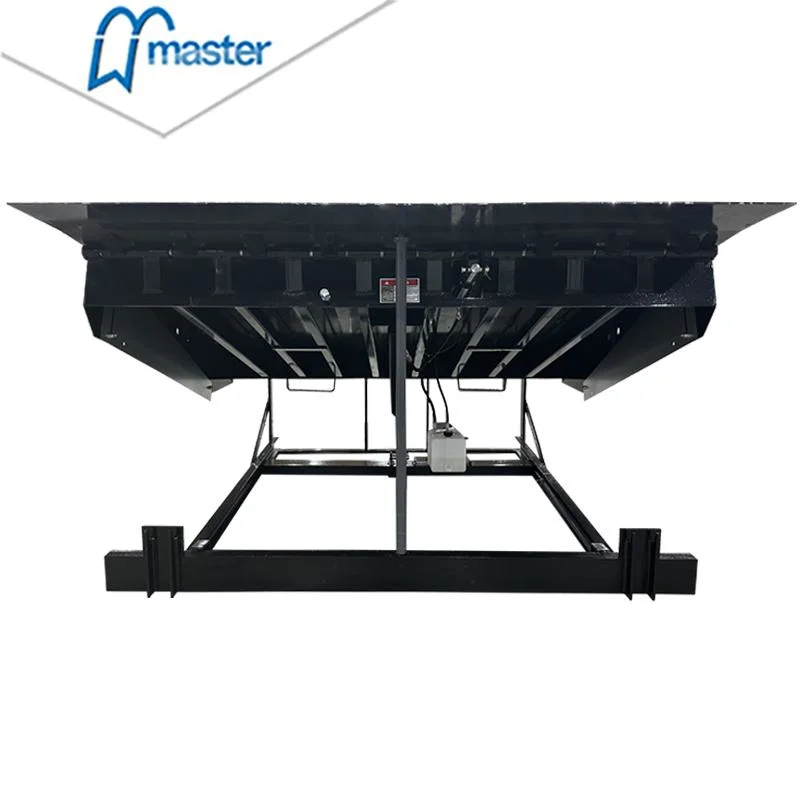

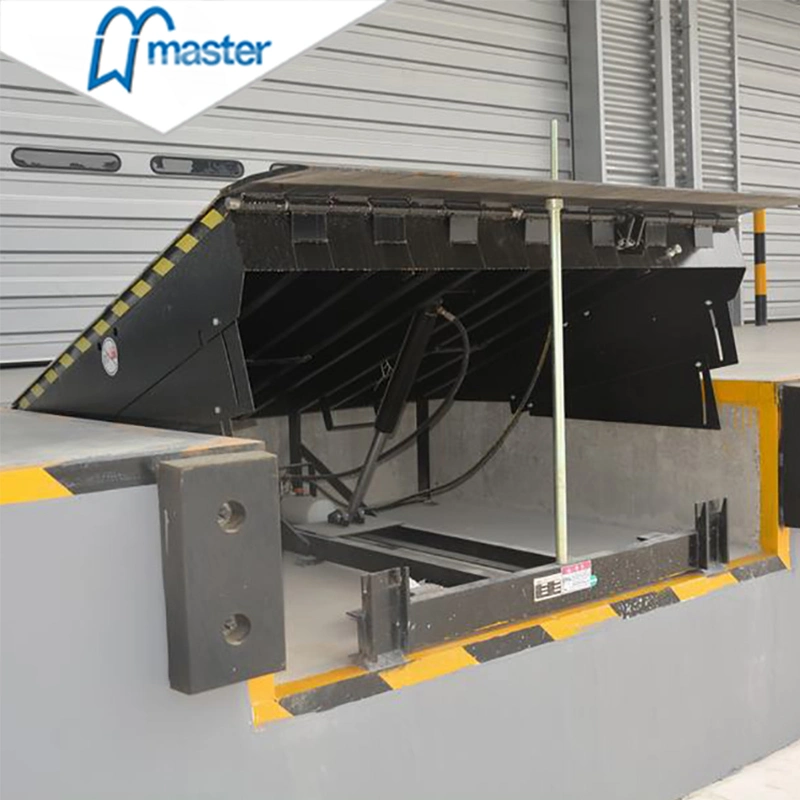

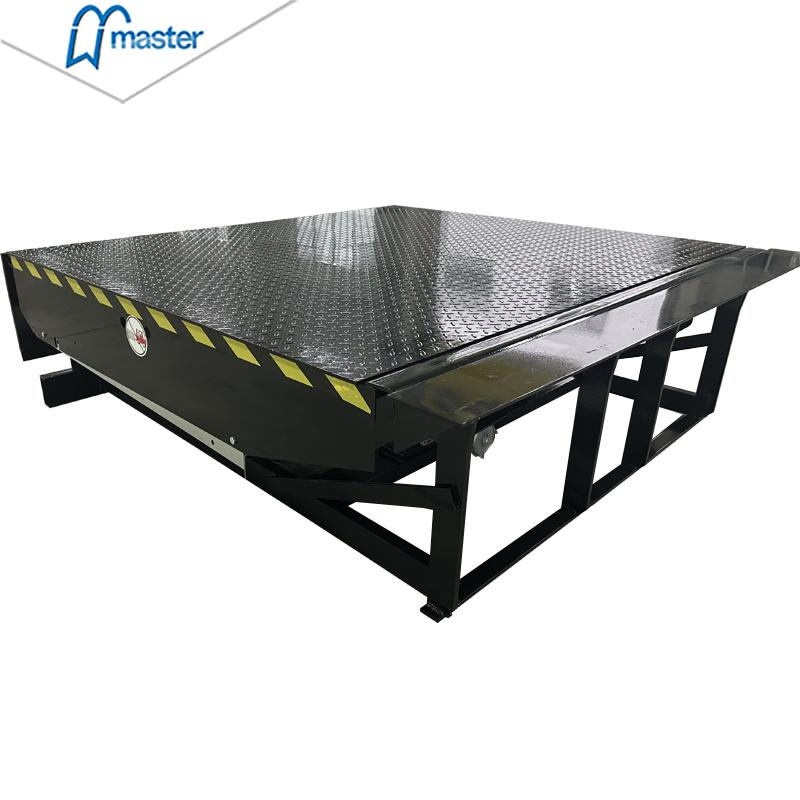

Characteristics: This Dock Leveler uses a hydraulic power unit to lift the upper main panel through the main oil cylinder, while a small auxiliary oil cylinder pushes out the lip plate. It is an essential solution when dock and truck heights differ. By utilizing the self-weight drop principle, the lip plate settles onto the rear of the truck for seamless loading operations.
The hydraulic dock leveler is the most widely utilized loading platform due to its stable performance, simple operation, and low maintenance requirements.

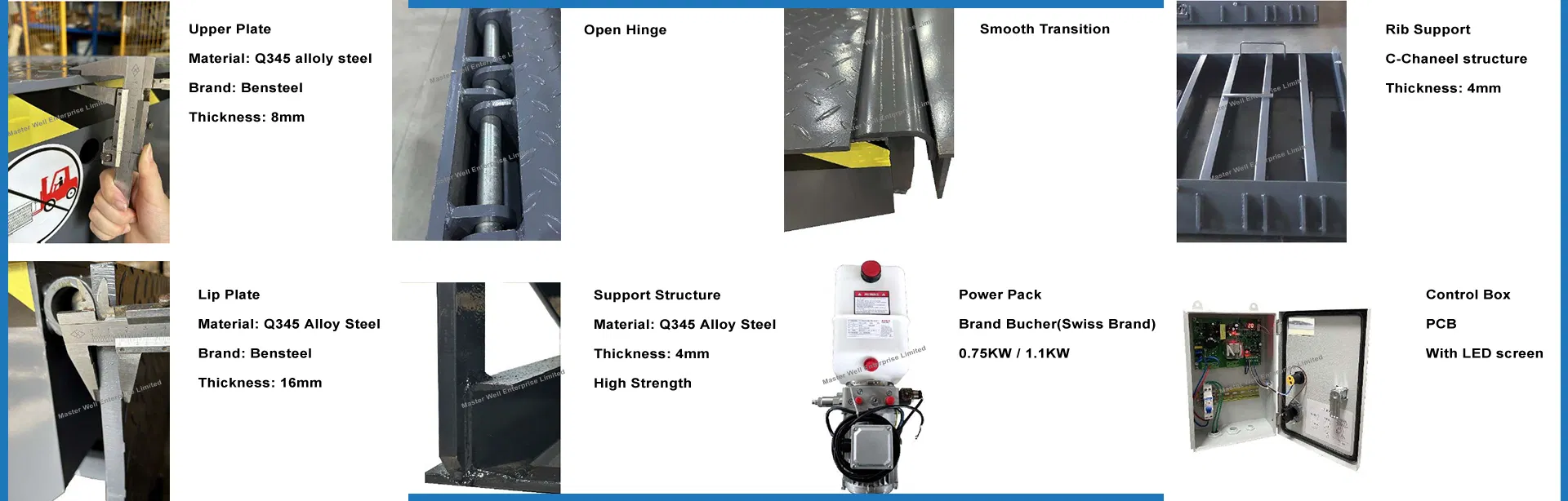

| Upper Plate | 8 mm thickness, anti-skate steel plate |
| Swinging Lip | Single 16 mm thickness, 400mm length |
| Support Profile | C-shaped stiffener / 14# I Beam |
| Sealing Element | Japan Brand NOK A505 |
| Working Range | +300mm / 260~300mm |
| Adjustment Time | Rise Time ≤16S, Fall time ≤10S |
| Power | 380V / 220V |
| Electric Control Box | 24V weak current control |
| Dynamic Loading Capacity | 6,000 ~ 25,000 KG |
| Operating Temperature | -30℃ ~ +50℃ |
| Noise | <50db (±5db) |

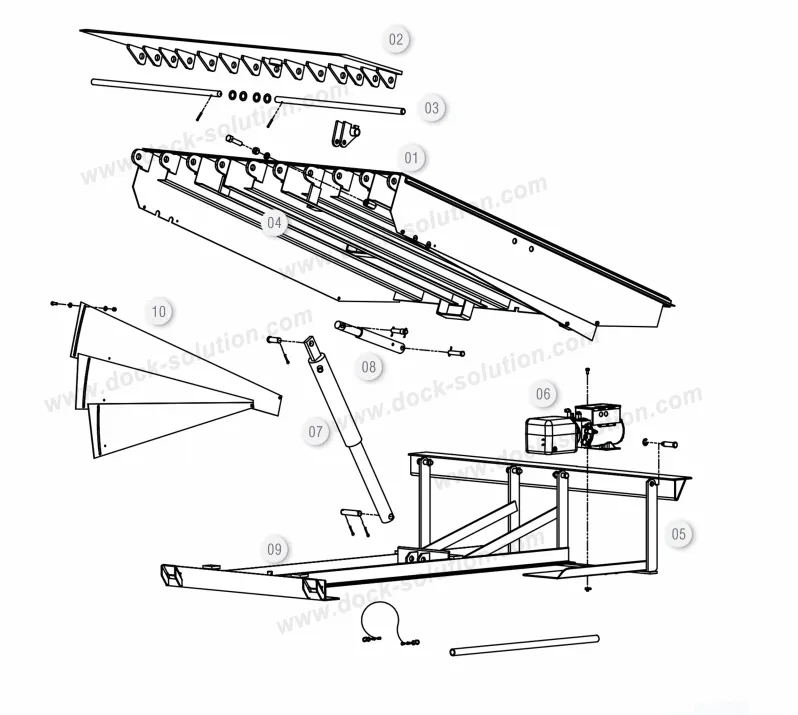

| 1. Upper Plate | 6. Power Pack |
| 2. Lip Plate | 7. Main Cylinder |
| 3. Hinge (Open) | 8. Auxiliary Cylinder |
| 4. Rib Support | 9. Frame |
| 5. Support Structure | 10. Guard |
