| Model NO. | DL406 |
| Moves | Stationary |
| Driven Type | Hydraulic |
| Running Mode | Stationary |
| Feature | Explosion-Proof, Insulating |
| Certification | GS, CE, RoHS, ISO 9001 |
| Product Name | Dock Leveler |
| Rated Load | Net Load 8 Tons, Dynamic Load 6 Tons |
| Equipment Dimensions | 2000mm Wide, 2500mm Long, 600mm High |
| Pit Size | Width: 2030mm, Length: 2500mm, Height: 610mm |
| Power Form | Electric-Hydraulic |

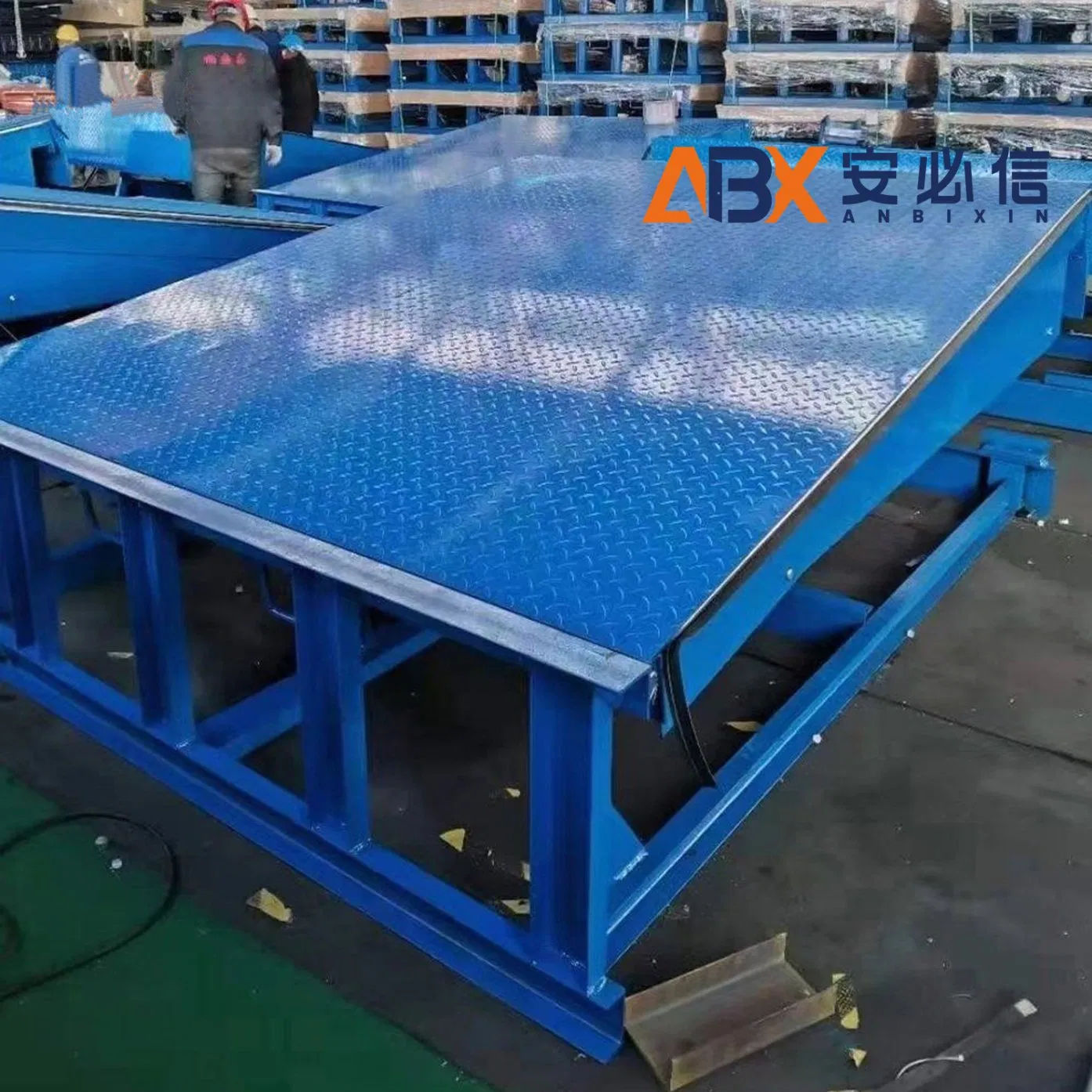

DOCK LEVELER
Loading and unloading platforms are suitable for hydraulic, pneumatic, or mechanical installations. It helps users safely and efficiently unload trucks of all heights and sizes.
The main function is to build a bridge between the cargo platform and the transport vehicle, allowing the forklift to travel conveniently for unloading.
It can automatically adjust its height according to different vehicle models and changes in the vehicle compartment during loading. This product is specially designed in terms of dimensions and load-bearing capacity.
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Adjustment Range | +300/-300mm |
| Adjust Time | Up Time ≤16s / Down Time ≤10s |
| Board Thickness | 12mm Patterned Board / 400mm Lip |
| Main Console Panel | 6mm Patterned Board |
| Motherboard Skeleton | L-Shaped Bend |
| Support Bar | Fold Bottom for easy installation and maintenance |
| Safety Features | Side Body Guard Baffles (Retractable) |
| Hydraulic Oil | 32# Anti-Wear Hydraulic Oil |
| Working Pressure | 8MPa +/-1MPa |
| Anti-Collision Block | 300*200*100 Laminated Belt Stamping |
| Base Frame | 10# Channel Steel Welded H-Shaped structure |
| Use Times | ≥ 200,000 Times |
