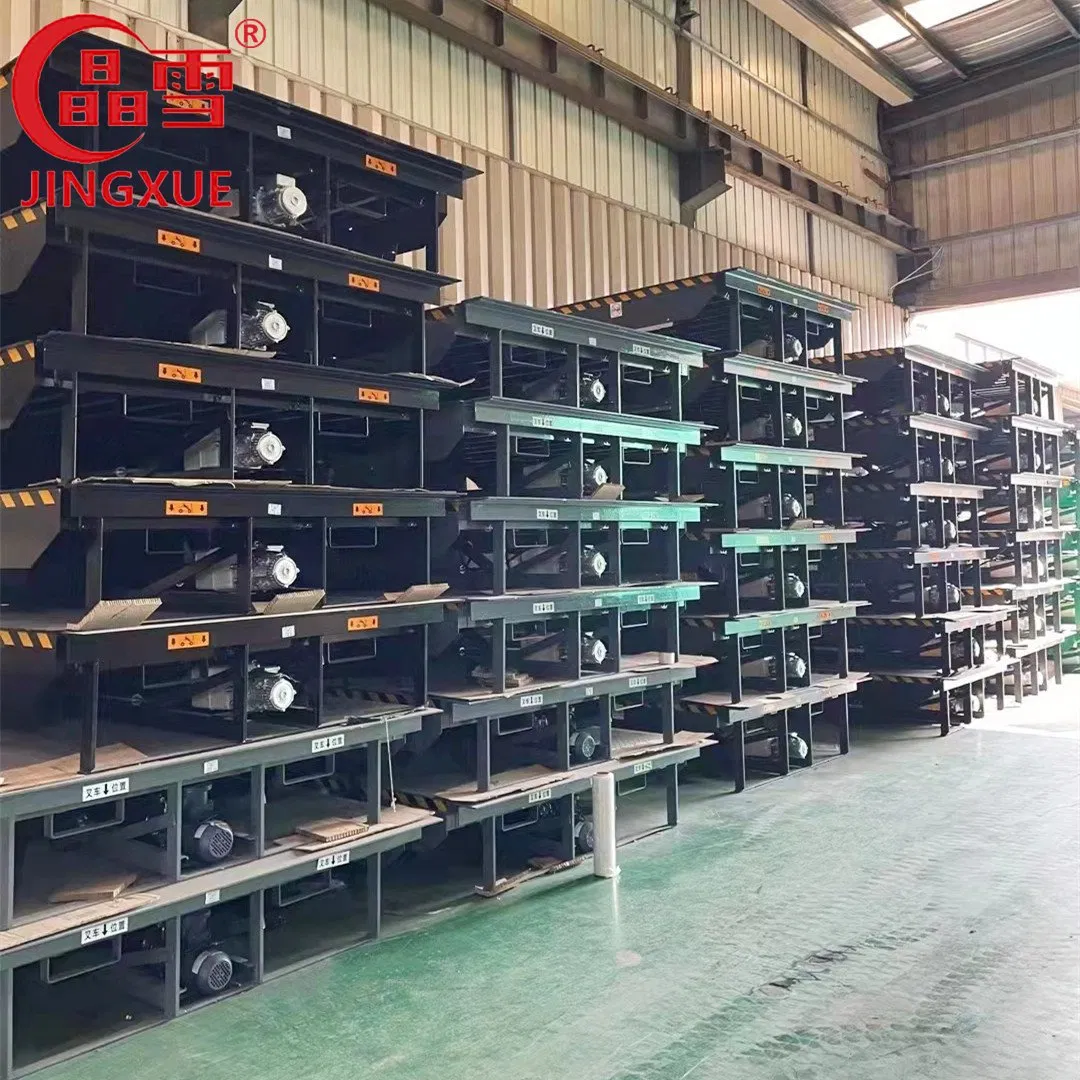

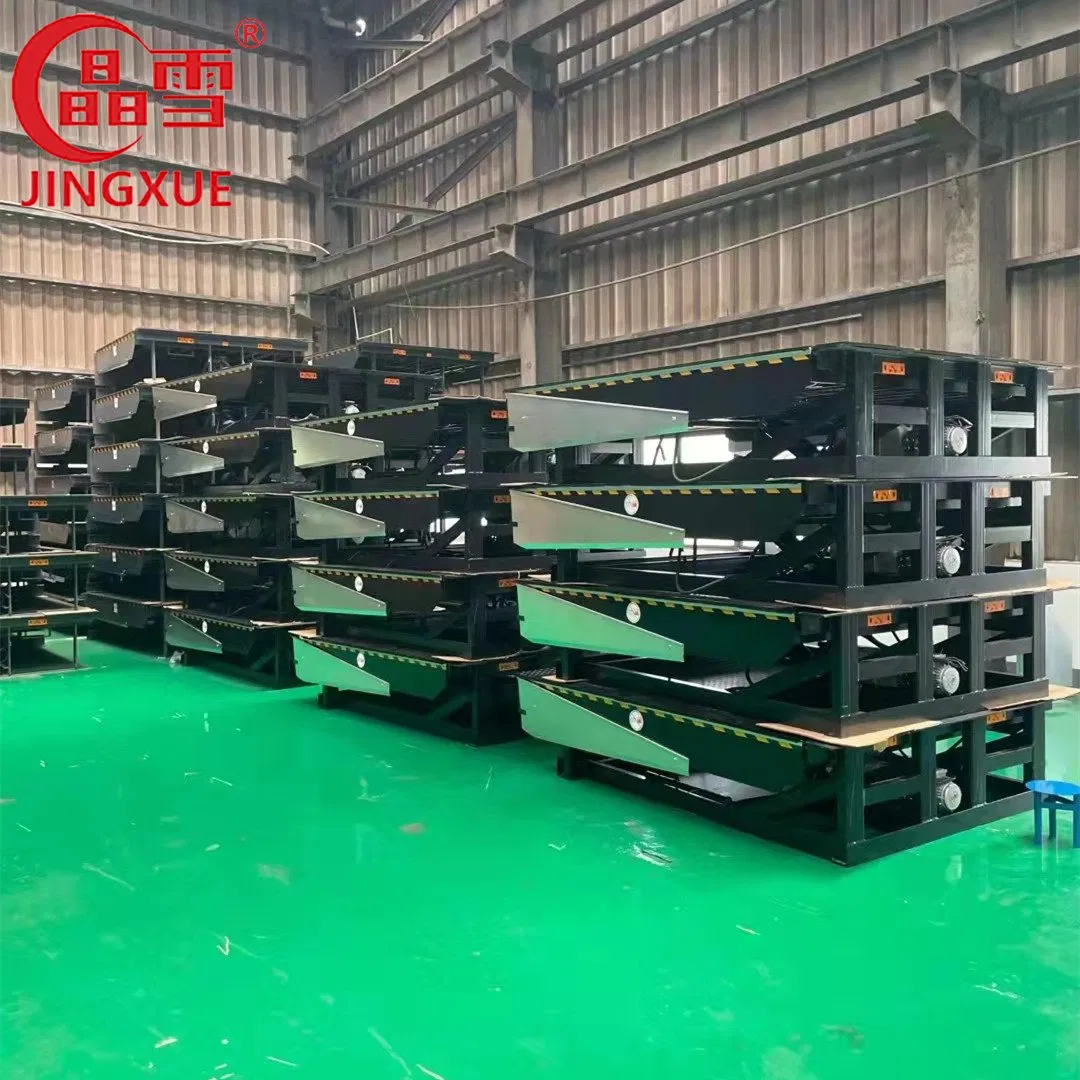

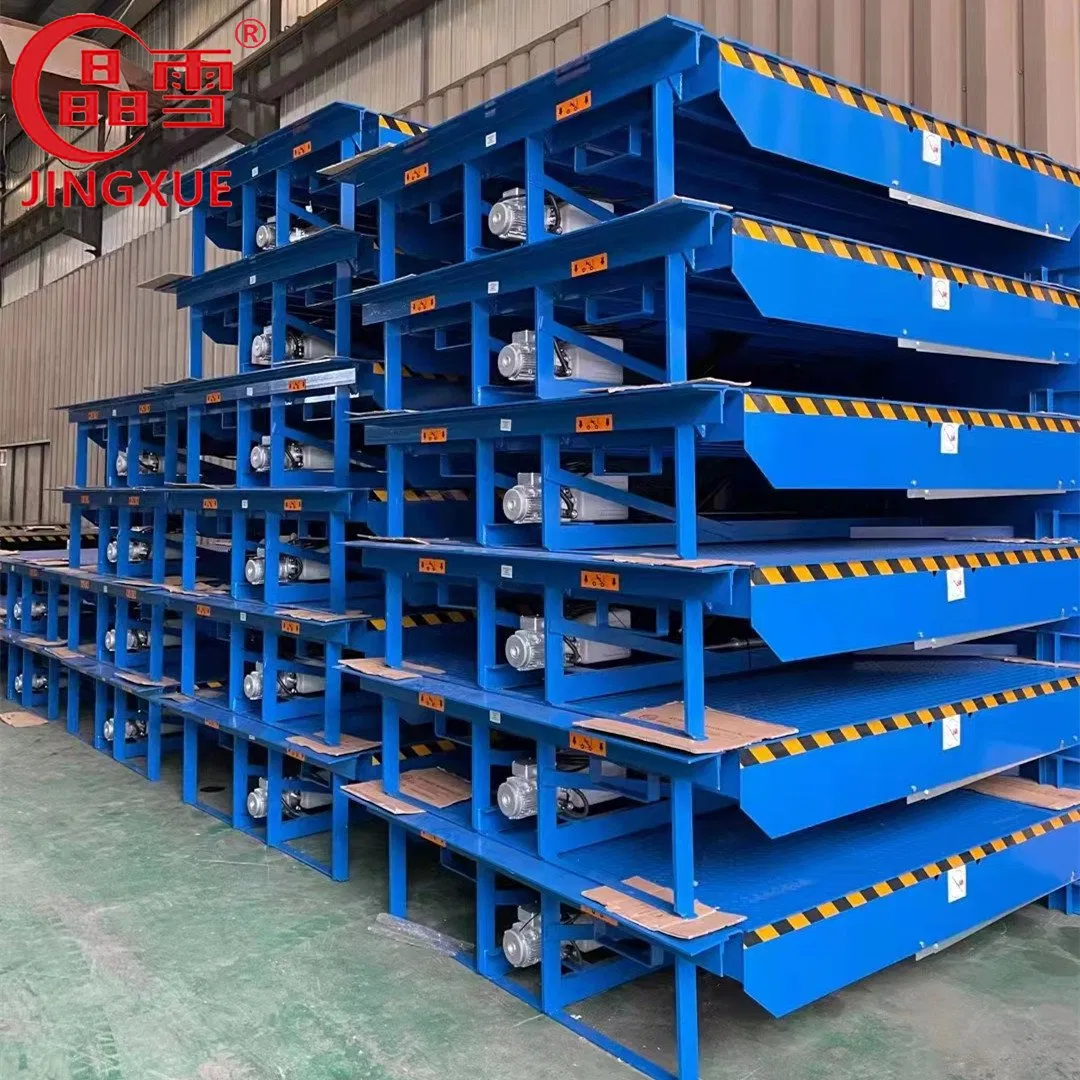

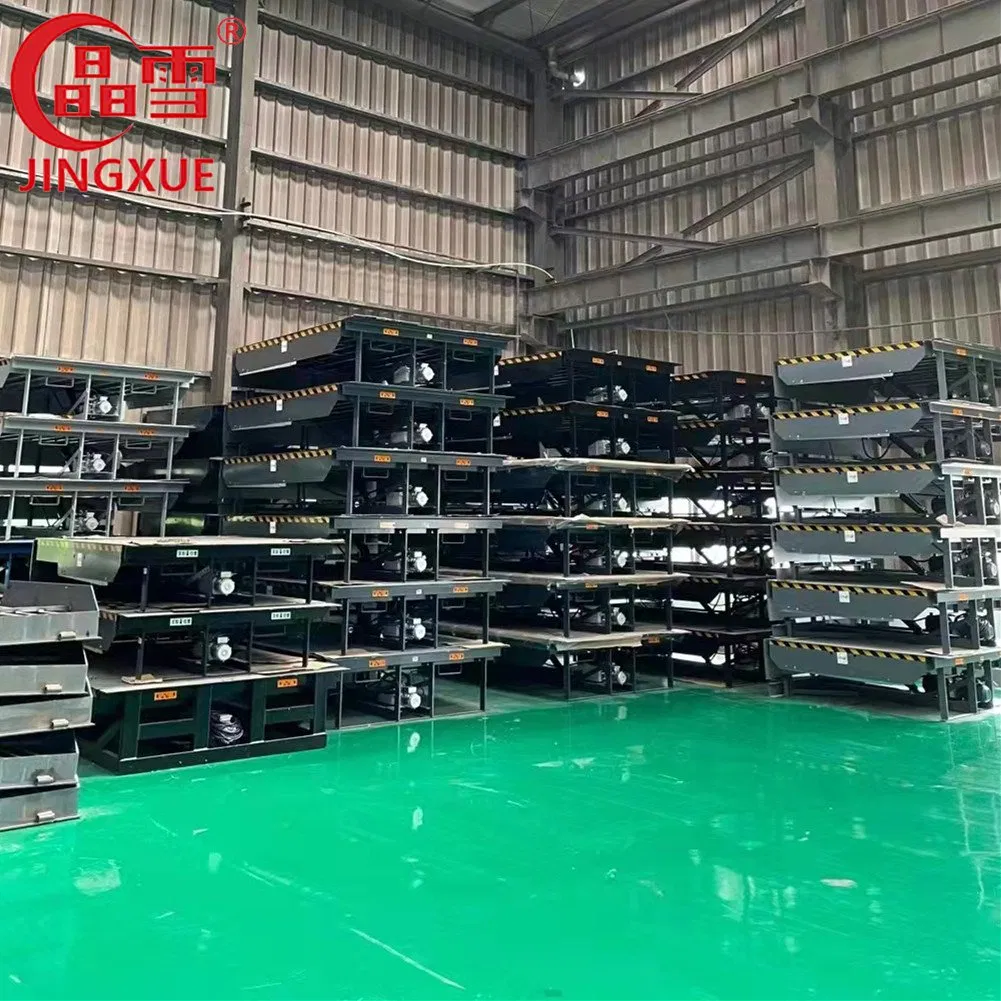

The Stationary Hydraulic Dock Leveler is an electric dual cylinder system designed for logistics environments utilizing trucks of varying heights. It bridges the gap between the warehouse platform and the truck carriage, creating a smooth slope that allows forklifts to drive directly into the vehicle for efficient loading and unloading.
| Specification Item | Detailed Data |
|---|---|
| Adjust Range | ±300mm (Safe Use Angle ± 12.5%) |
| Tongue Plate | 400mm length, 14mm thickness |
| Toe Guard Plate | 3mm Galvanized Steel Plate |
| Hydraulic Oil | Aviation Grade (Limit -40ºC) |
| Control Box | IP56 Wall Mounted with Interlock Function |
| Operation Life | ≥ 100,000 Times |
| Dock Bumper | 2pcs Laminated Bumper (D100mm x W250mm x L300mm) |
| Paint | Electrostatic Automotive Grade (1 Primer, 2 Topcoats) |

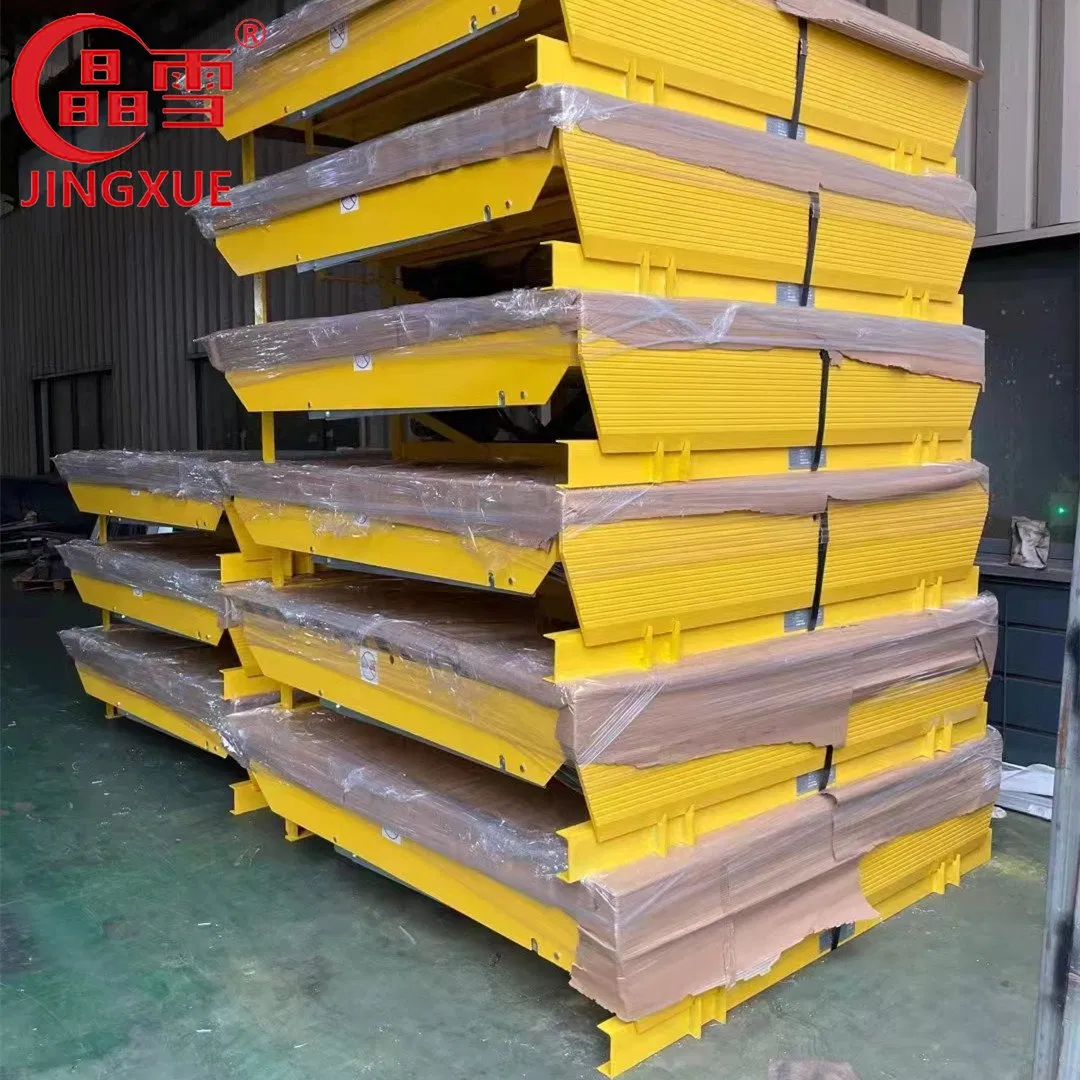

Packing: Hydraulic dock levelers are securely stacked with corrugated paper covering the main plates and corners for protection during transit.
Shipping: We support EXW, FOB, C&F, CIF, and DDP terms. Standard lead time is typically 2-4 weeks after order confirmation, depending on quantity and season.
